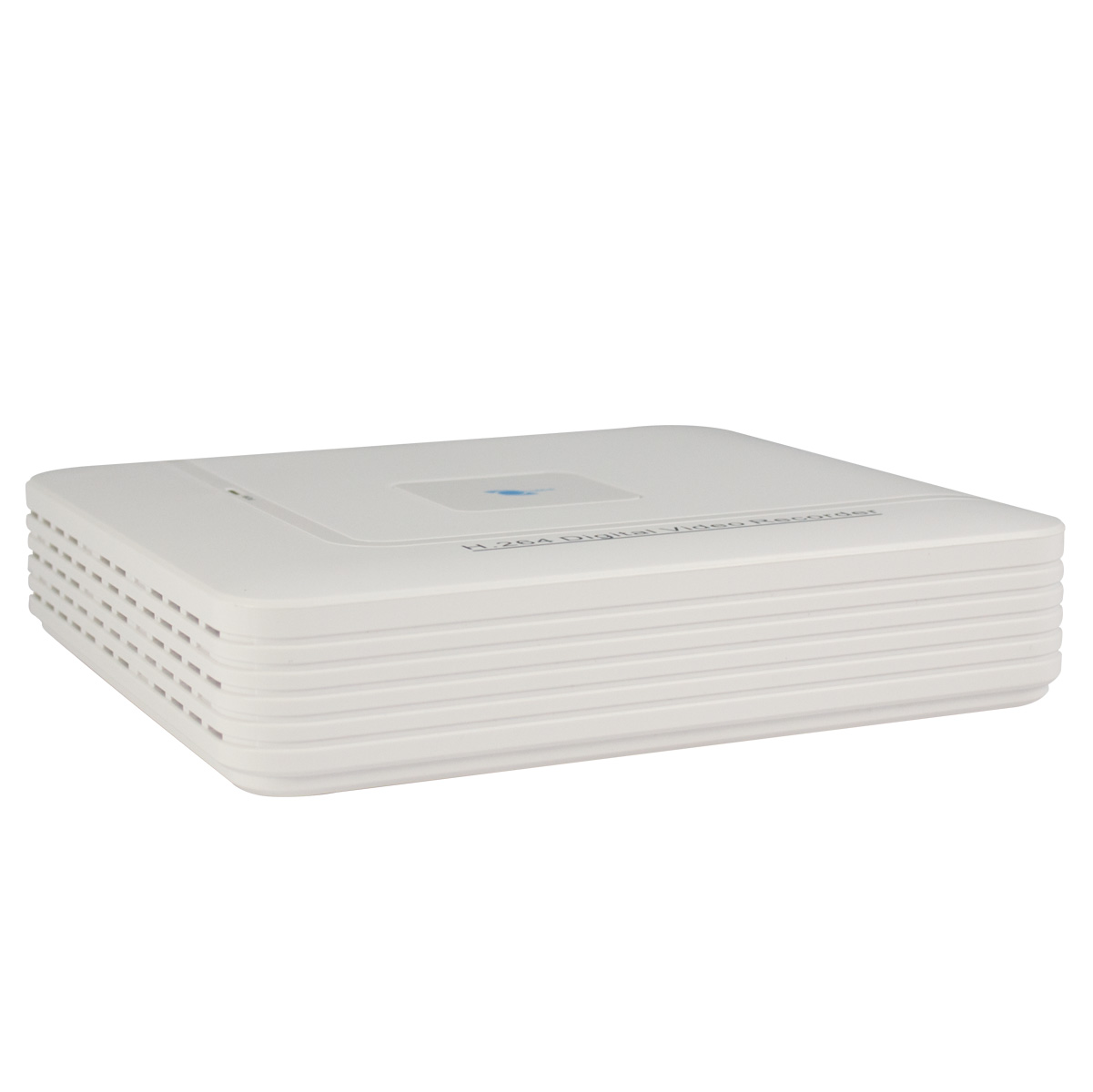

4-Ch DVR, H.264/G.711A, VGA/BNC/HDMI output, D1 Resolution, Pentaplex
|
|
General
|
|
Brand | LineMak |
Model | LS-SEDVR6304TSH |
System
|
|
Main processor | High performance embedded micro-processor HI3515 |
Operating system | Embedded Linux |
System resources | Pentaplex function: live recording, playback, backup, remote access |
Display
|
|
Display area | 1/4 |
Graphic user interface (GUI) | GUI, on-screen menu tips |
Video
|
|
Resolution | D1 |
Video format | PAL/NTSC |
Compression format | H.264 main profile |
Encode capacity | 100/120fps |
Frame rate | PAL: 50fps NTSC: 60fps |
Video recording | PAL: 1~25fps NTSC: 1~30fps |
Audio
|
|
Audio compression | G.711A |
Recording & Playback
|
|
Recording mode | Manual, alarm, motion detection, continuous |
Local playback | 1-4 simultaneously |
Search mode | Time-date, alarm, motion detection, exact search (accurate second). |
Storage & Backup
|
|
Space ocupation | Video: 25-450MB/H Audio: 28.8MB/H |
Recording storage | Local hard disk and network |
Backup mode | Network download, flash stick, movable HDD, SATA HDD and DVD-RW |

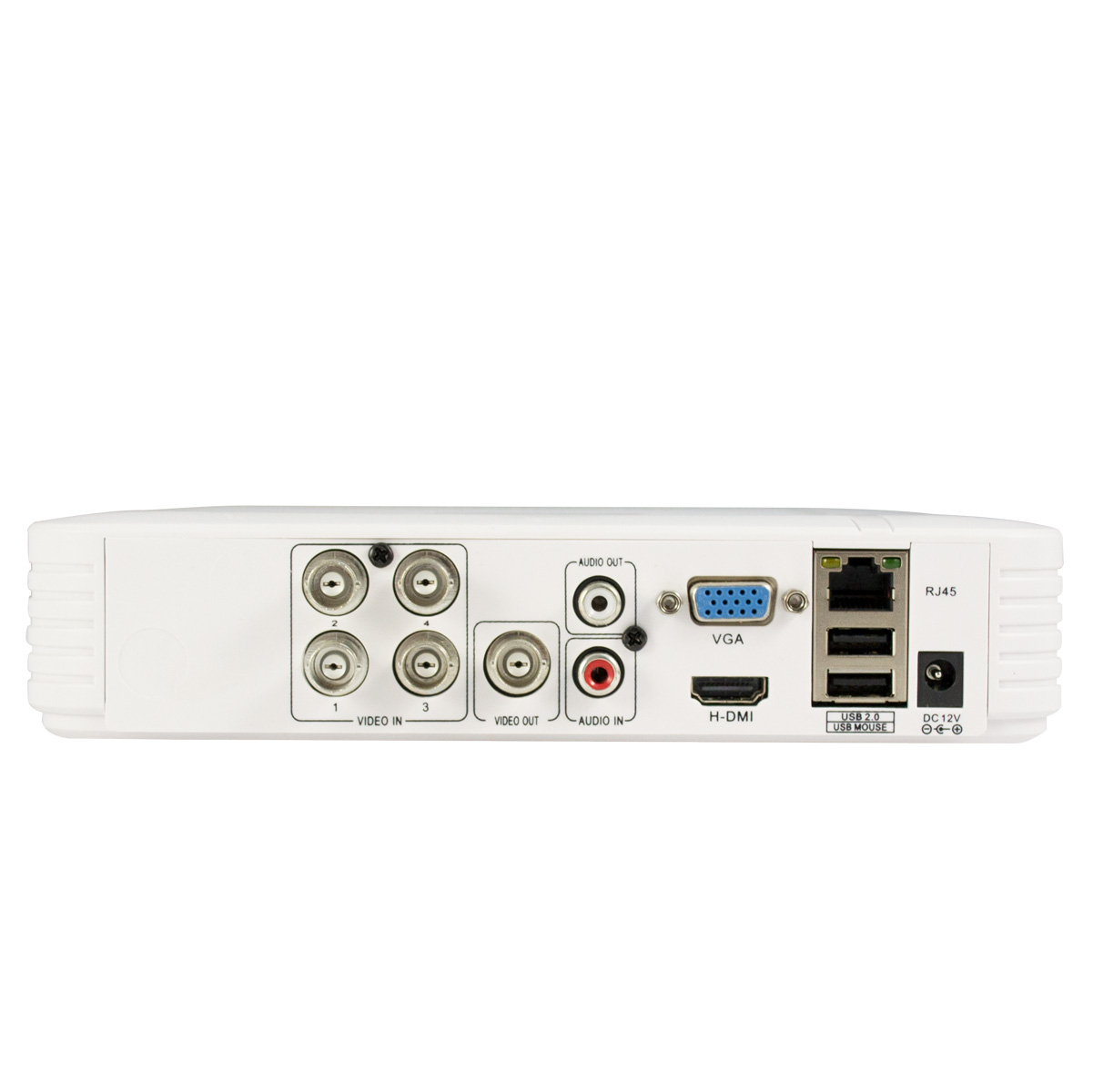

Interface
|
|
Video input/output | Input: 4-Ch BNC Output: 1-Ch BNC (1.0Vp-p, 45Ohm), 1.Ch VGA and 1-Ch HDMI |
Audio input/output | Input: 1-Ch Output: 1-Ch |
PTZ Control | 1 RS485 port |
USB Port | 2 2.0 Ports |
HDD Port | 1 SATA (Max 3 TB) |
Network interface | 1 RJ-45 (10M-100M) |
Security
|
|
Motion detection zone | Zones: 396 (22/18) Sensitivity: 1-6 |
Event notificacion | Trigger recording, PTZ movement, tour, alarm, email, snapshot, FTP |
Environment
|
|
Operation temperature | 0ºC ~ 55ºC 32ºF ~ 131ºF |
Working humidity | 10% ~ 90% |
Atmosphere pressure | 86kpa ~ 106kpa |
Power
|
|
Power supply | 12V/2A |
Power consumption | <10W (Hard disk not included) |
Appearance
|
|
Color | White |

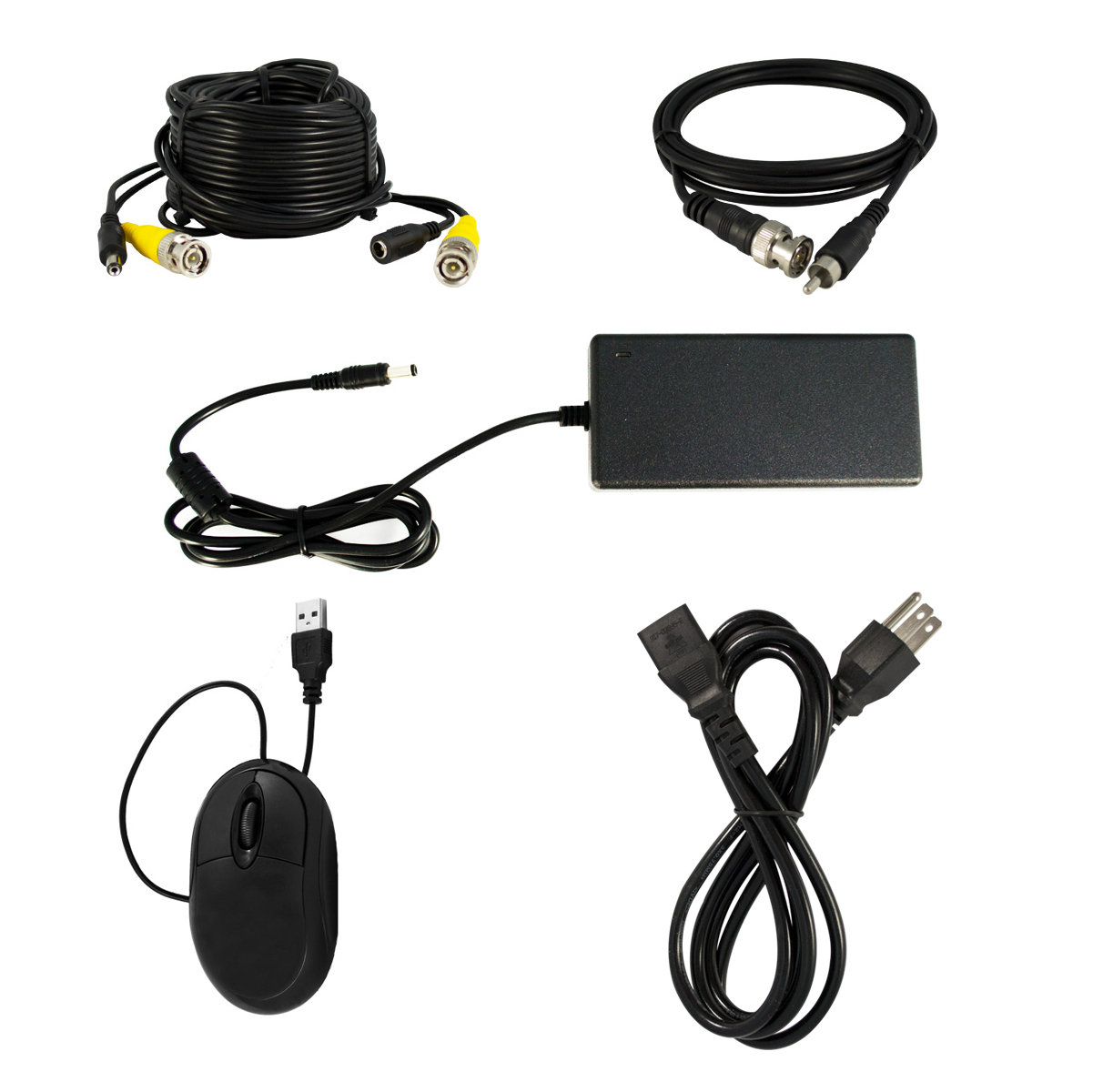

Accessories
|
|
Mouse | Yes |

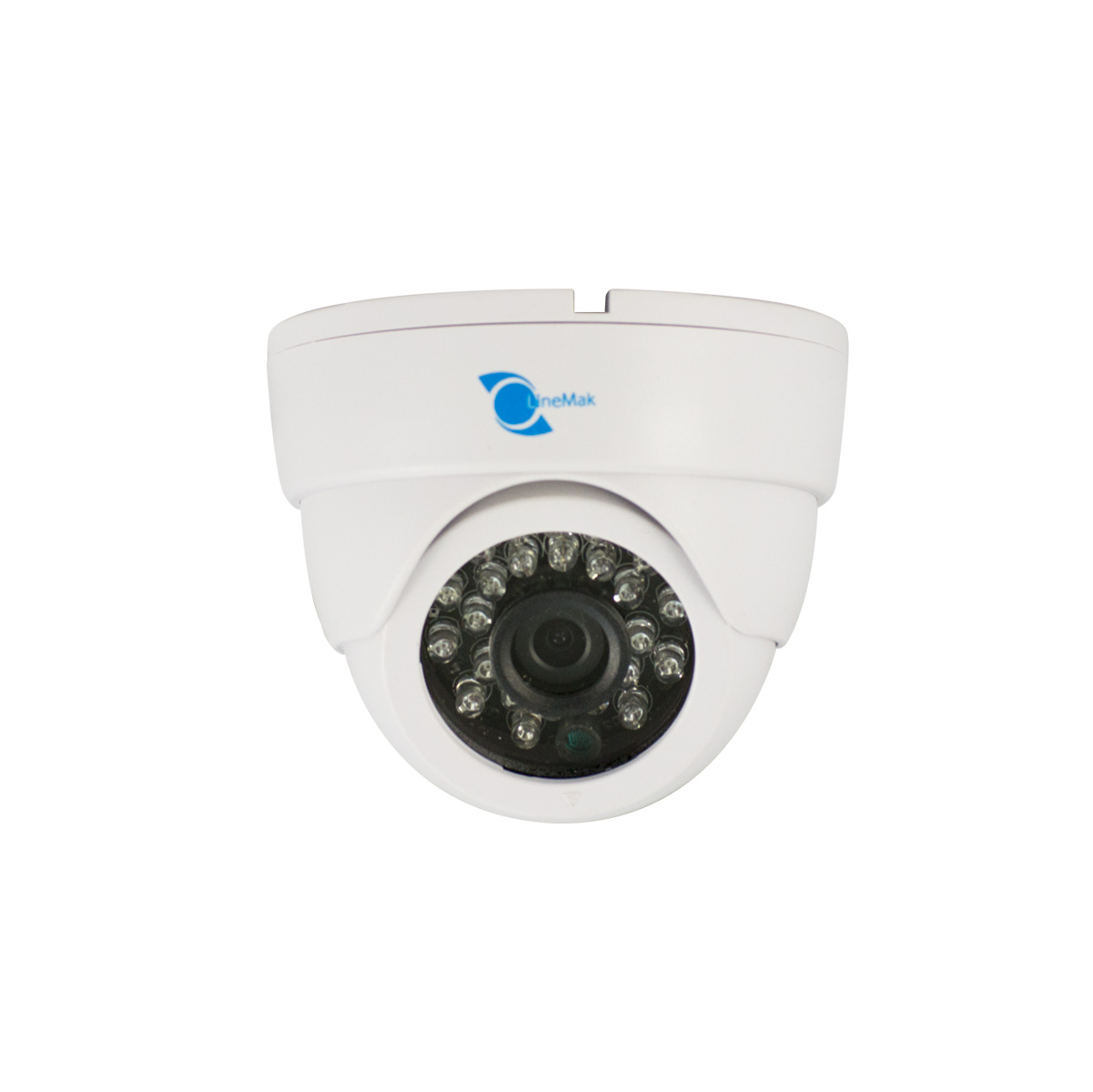

Dome Camera, SONY CCD Sensor, 700TVL, 3.6mm lens, 24 LEDs, 65ft IR
|
|
General
|
|
Brand | LineMak |
Model | LS-TC4052EF-OSD |
Sensor
|
|
Resolution | 700TVL |
Sensor | 1/3" SONY 960H Exview CCD |
Effective pixels | PAL: 960*582 NTSC: 962*794 |
Video
|
|
Video format | PAL/NTSC |
Video output | BNC (1.0Vp-p, 75Ohm) |
Lens
|
|
Lens | Board lens 3.6mm |
IR Range | 65ft night vision |
LEDs | 24pcs (5mm each) |
IR-CUT Filter | Yes |
Minimum illumination | 0 Lux with LED On |
Viewing angle | 92º |
Security
|
|
Motion detection zone | On/Off (4 zones) |
Privacy zone | On/Off (8 zones) |
Environment
|
|
Operation temperature | -10ºC ~ 50ºC 14ºF ~ 122ºF |
Storage temperature | -30ºC ~ 80ºC 22ºF ~ 176°F |
Power
|
|
Power supply | DC12V |
Power consumption | 300mA |
Appearance
|
|
Color | White |
Special function
|
|
Auto White Balance (AWB) | Yes |
Electronic shutter speed (AES) | 1/50 ~ 1/100000sec |
Auto Gain Control (AGC) | Yes |
Digital Noise Reduction (DNR) | Yes 3D (0-5) |
Wide Dynamic Range (WDR) | Yes |
Mirror | Yes |
Adaptive Tone Reproduction (ATR) | No |
High Light Compensation (HLC) | No |
Calling routing system (CRS) | No |

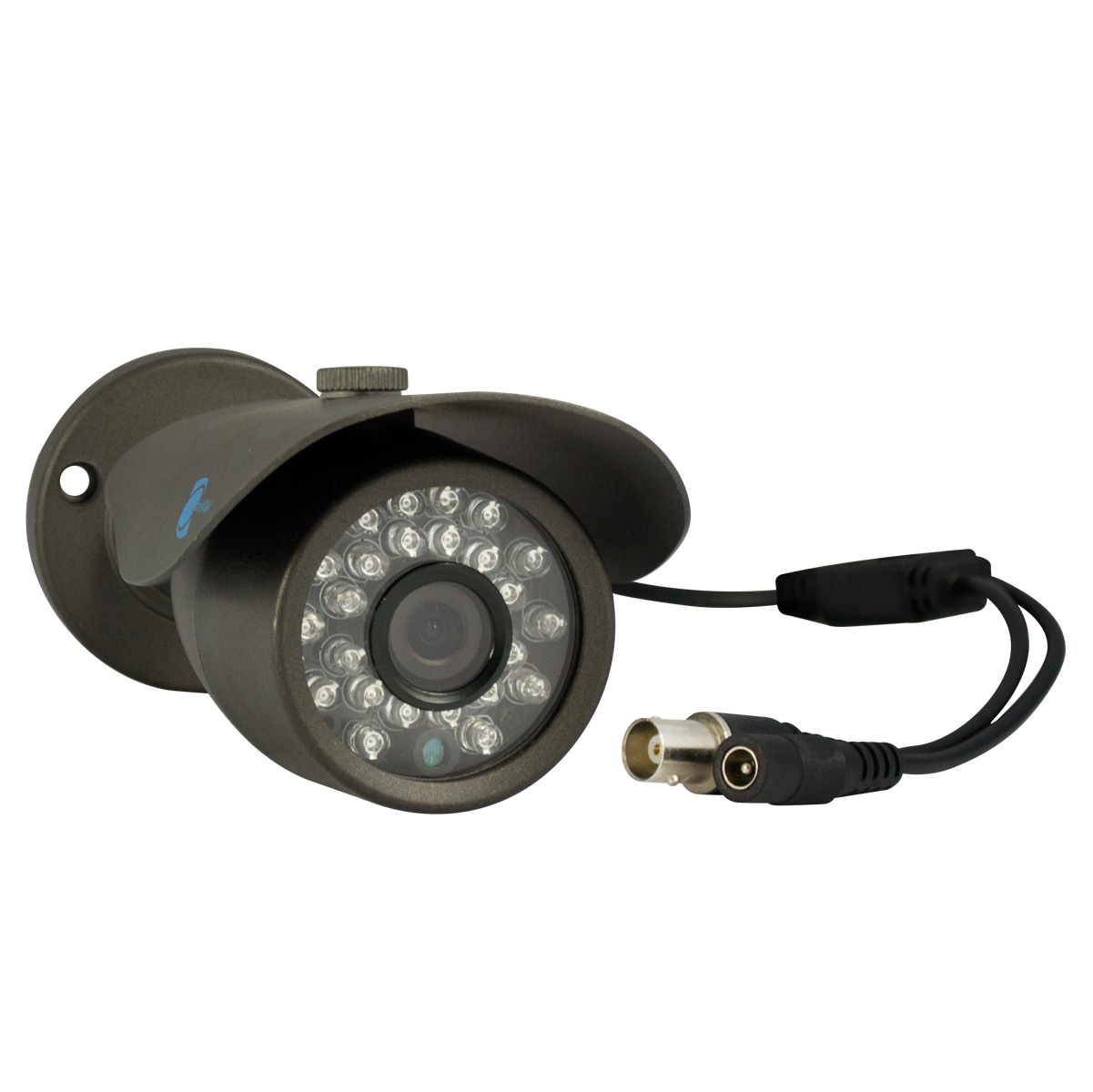

Bullet camera, SONY CCD Sensor, 700TVL, 3.6mm lens, 24 LEDs, 65ft IR
|
|
General
|
|
Brand | LineMak |
Model | LS-TC3066EF-OSD |
Sensor
|
|
Resolution | 700TVL |
Sensor | 1/3 SONY 960H Exview CCD |
Effective pixels | PAL: 960*582 NTSC: 962*492 |
Video
|
|
Video format | PAL / NTSC |
Video output | 1.0Vp-p 75ohm |
Lens
|
|
Lens | 3.6mm Board lens |
IR Range | 65ft night vision |
LEDs | 24pcs (5mm each) |
IR-CUT Filter | Yes |
Minimum illumination | 0 Lux (when IR On) |
Viewing angle | 92º |
Security
|
|
Motion detection zone | On/Off (4 zones) |
Privacy zone | On/Off (8 zones) |
Environment
|
|
Operation temperature | -10ºC ~ 50ºC 14ºF ~ 122ºF |
Storage temperature | -30ºC ~ 80ºC -22ºF ~ 176ºF |
Power
|
|
Power supply | DC 12V |
Power consumption | 300mA |
Appearance
|
|
Color | Dark grey |
Special function
|
|
Auto White Balance (AWB) | Yes |
Electronic shutter speed (AES) | 1/50 ? 1/100000sec |
Auto Gain Control (AGC) | Yes |
Digital Noise Reduction (DNR) | Yes 3D (0-5) |
Wide Dynamic Range (WDR) | Yes 3D (0-5) |
Mirror | Yes |
Adaptive Tone Reproduction (ATR) | No |
High Light Compensation (HLC) | No |
Calling routing system (CRS) | No |
Standard
|
|
Brightness | 0-90 adjustable |
Synchronizing system | Internal |
S/N Ratio | >120dB (WDR ON) |
Freeze | On / Off |
Digital zoom | On / Off |
Gamma correction | 0.05-1 adjustable |
OSD Menu | Yes |
OSD Language | English / Chinese |
