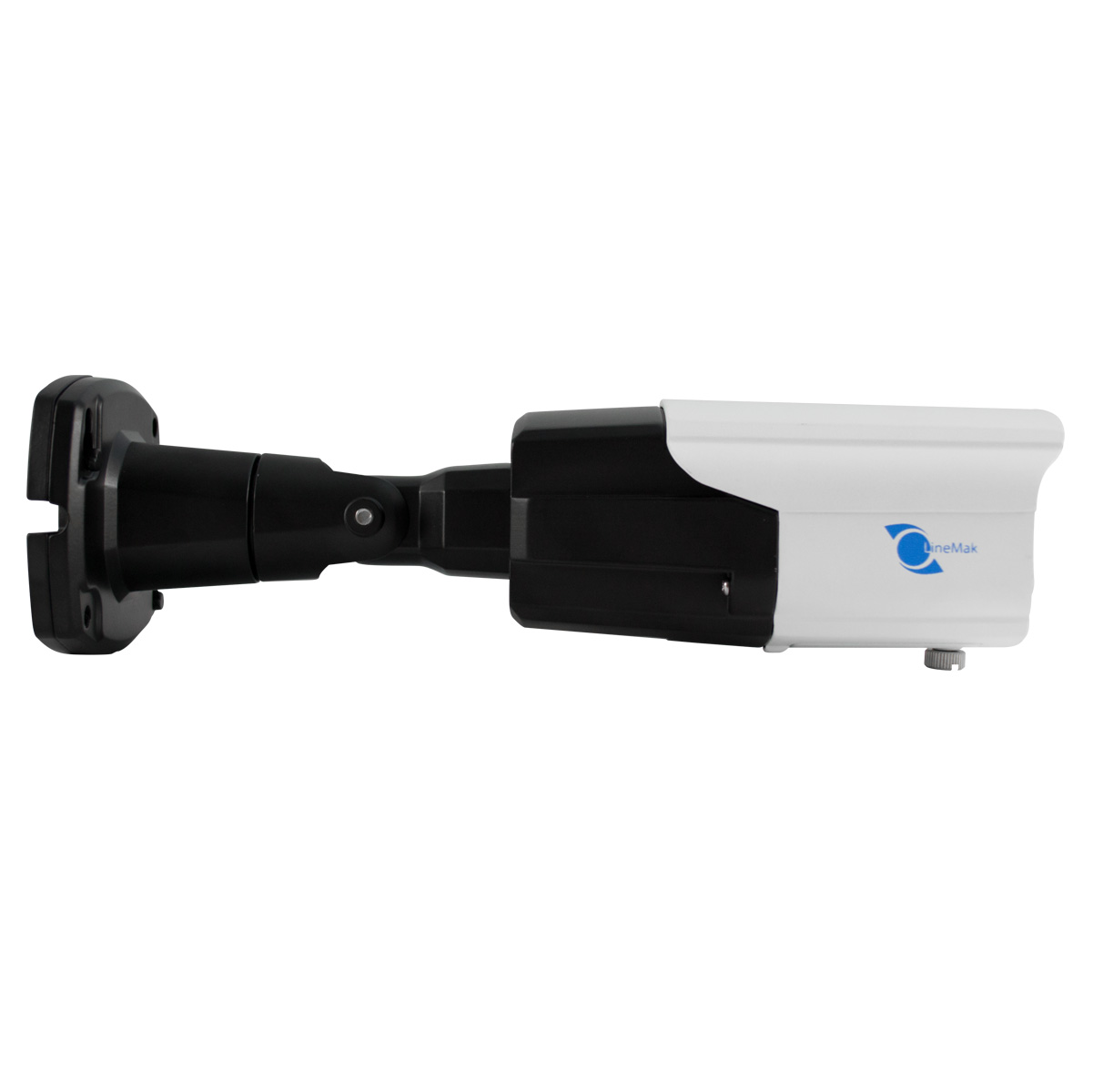

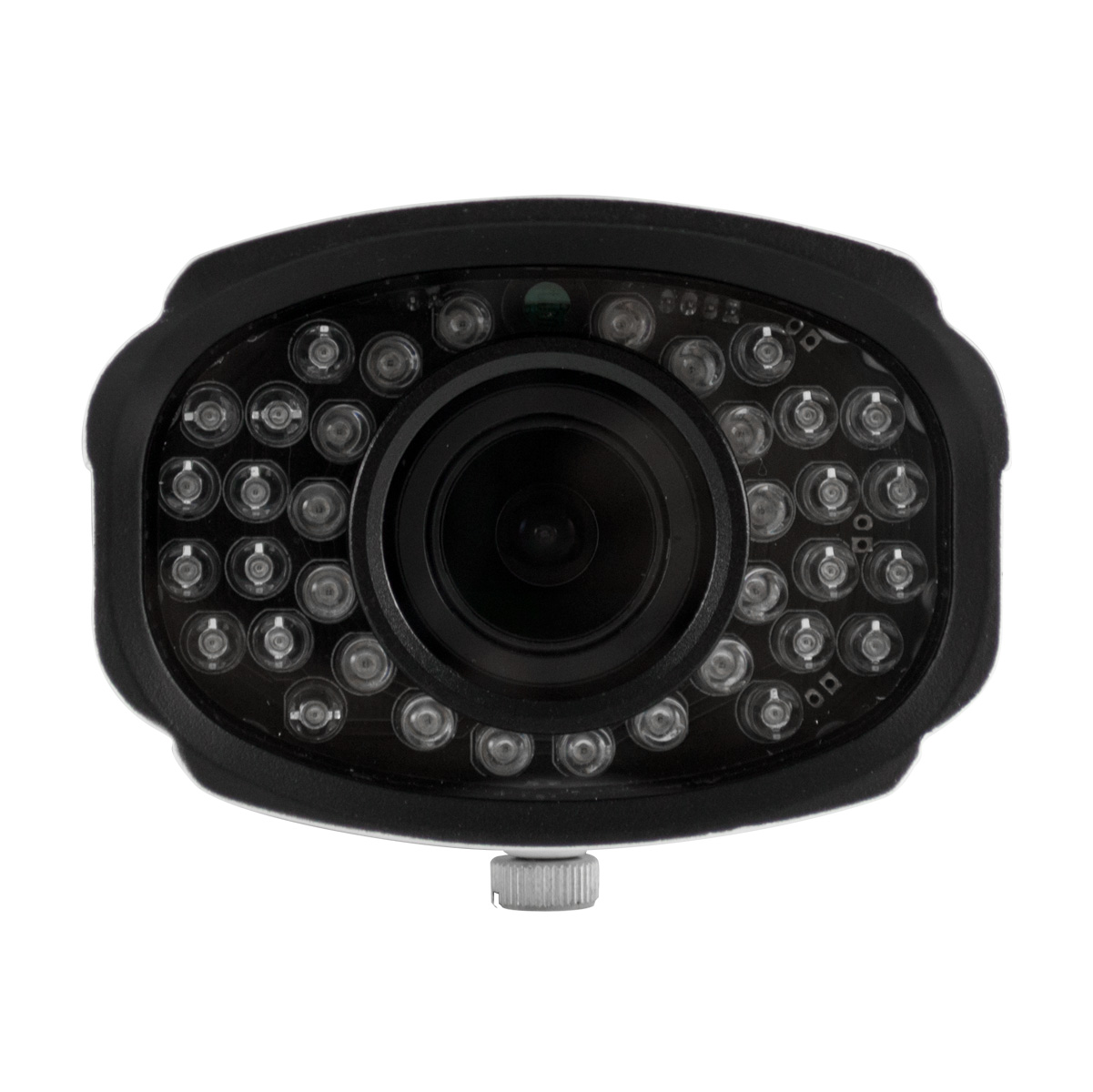

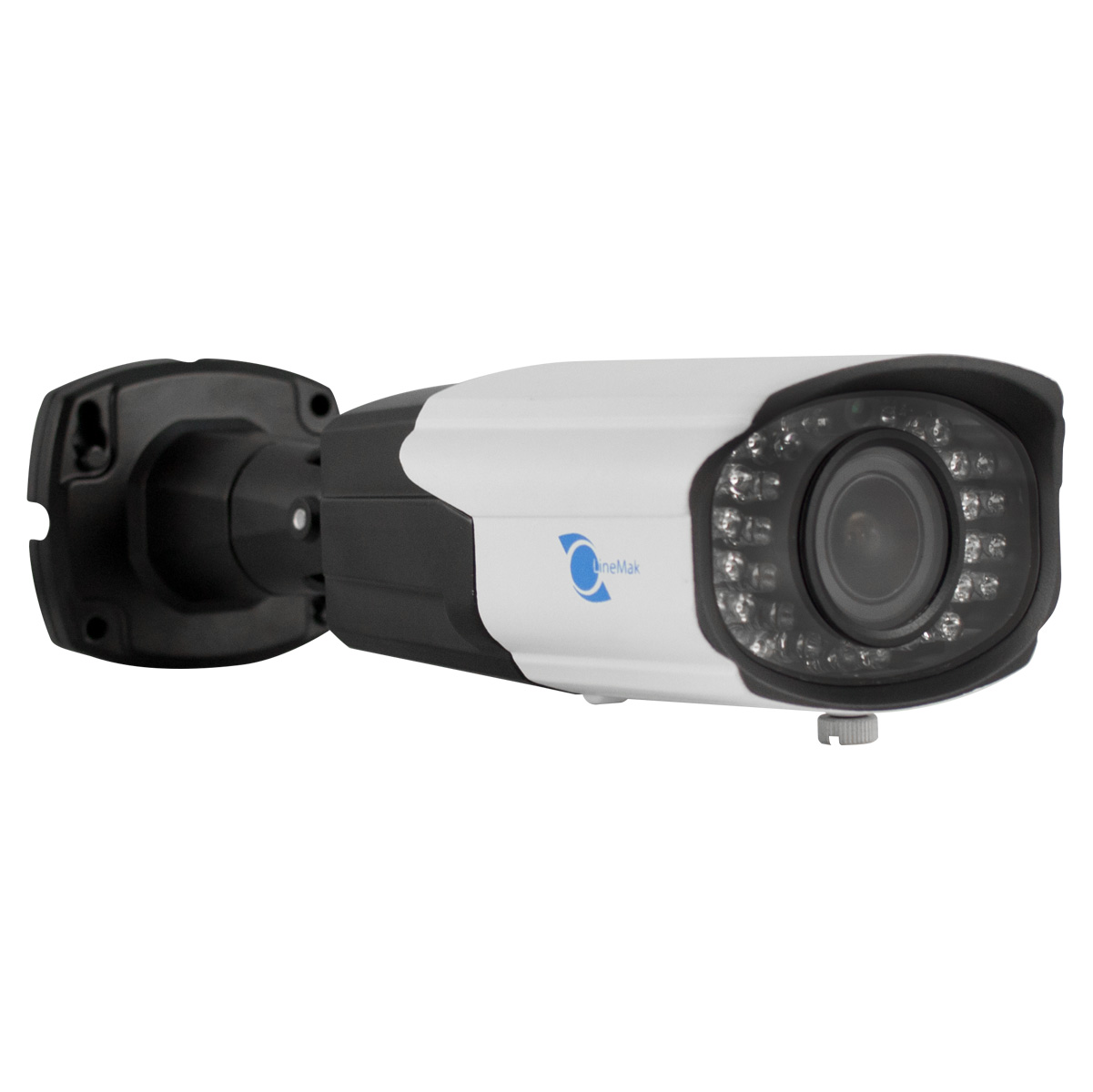

IR Bullet camera 1/3 SONY CMOS 1200TVL 2.8-12mm lens 36 LEDs 98ft IR
  • IR Bullet camera 1/3 SONY CMOS 1200TVL 2.8-12mm lens 36 LEDs 98ft IR - Image 1
  • IR Bullet camera 1/3 SONY CMOS 1200TVL 2.8-12mm lens 36 LEDs 98ft IR - Image 2
  • IR Bullet camera 1/3 SONY CMOS 1200TVL 2.8-12mm lens 36 LEDs 98ft IR - Image 3
  • - 1/3" Sony Exmor CMOS Sensor.
  • - IR CUT Filter, OSD menu.
  • - 36pcs LED, 98ft IR distance.
  • - Power adapter not included.
  • - 2.8~12mm varifocal lens
  • - 1200TVL.
  • High-resolution metal IR bullet waterproof camera with a 2.8-12mm lens, a viewing angle of 115? ~ 25? which has a 98ft range of infrared night vision and 36 pieces LEDs each.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Hinged base included.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - 1/3" SONY Exmor CMOS Sensor.
    - 1200TVL.
    - IR-CUT Filter.
    - OSD menu.
    - 2.8~12mm lens.
    - IR 98ft, 36pcs LED.
    - Cable management bracket.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Varifocal
    Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
    Varifocal
    Back Light Compensation (BLC)
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    True Day/Night for round-the-clock surveillance
    OSD Menu
    OSD Menu
    Most monitors include an on screen menu for making adjustments to the display through which you can navigate through the menu and make adjustments by using the Plus (+) and Minus (-) buttons, usually located next to the menu button. OSD include basic brightness and contrast controls. This superimposed image on the screen is commonly used by modern TV sets for volume, channel and time control.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Waterproof
    Waterproof
    Waterproofing, defined as the resistance of the passage of water under hydrostatic head pressure, provide reliable solutions for all waterproofing designs and conditions.
    Warranty: One (1) Year
  • IR Bullet camera 1/3 SONY CMOS 1200TVL 2.8-12mm lens 36 LEDs 98ft IR
    General
    Brand LineMak
    Model LS-831SH
    Sensor
    Resolution 1200TVL
    Sensor 1/3" SONY Exmor CMOS
    Effective pixels 1280*960
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm (BNC connector)
    Scanning Area 4.9mm*3.7mm
    Lens
    Lens 2.8mm~12mm Varifocal
    IR Range 98ft night vision
    LEDs 36pcs (5mm each)
    IR-CUT Filter Yes
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 25° ~ 115°
    Environment
    Operation temperature -10°C ~ 50°C
    14ºF ~ 122ºF
    Power
    Power supply DC 12V
    Power consumption 100mA (Max 400mA)
    Appearance
    Color White and black
    Size 10.63(L) * 2.76(H) * 3.35(W) inches
    Weight 1.46 pounds
    Material Aluminum alloy
    Special function
    Back Light Compensation (BLC) Included
    Electronic shutter speed (AES) PAL: 1/50s ~ 1/100,000s
    NTSC: 1/60s ~ 1/100,000s
    Standard
    Synchronizing system Internal
    S/N Ratio >50dB
    OSD Menu Included
  • Instrucción
    File Size: 463 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 440.58 Kb
    Languages: English
    File Type: PDF
