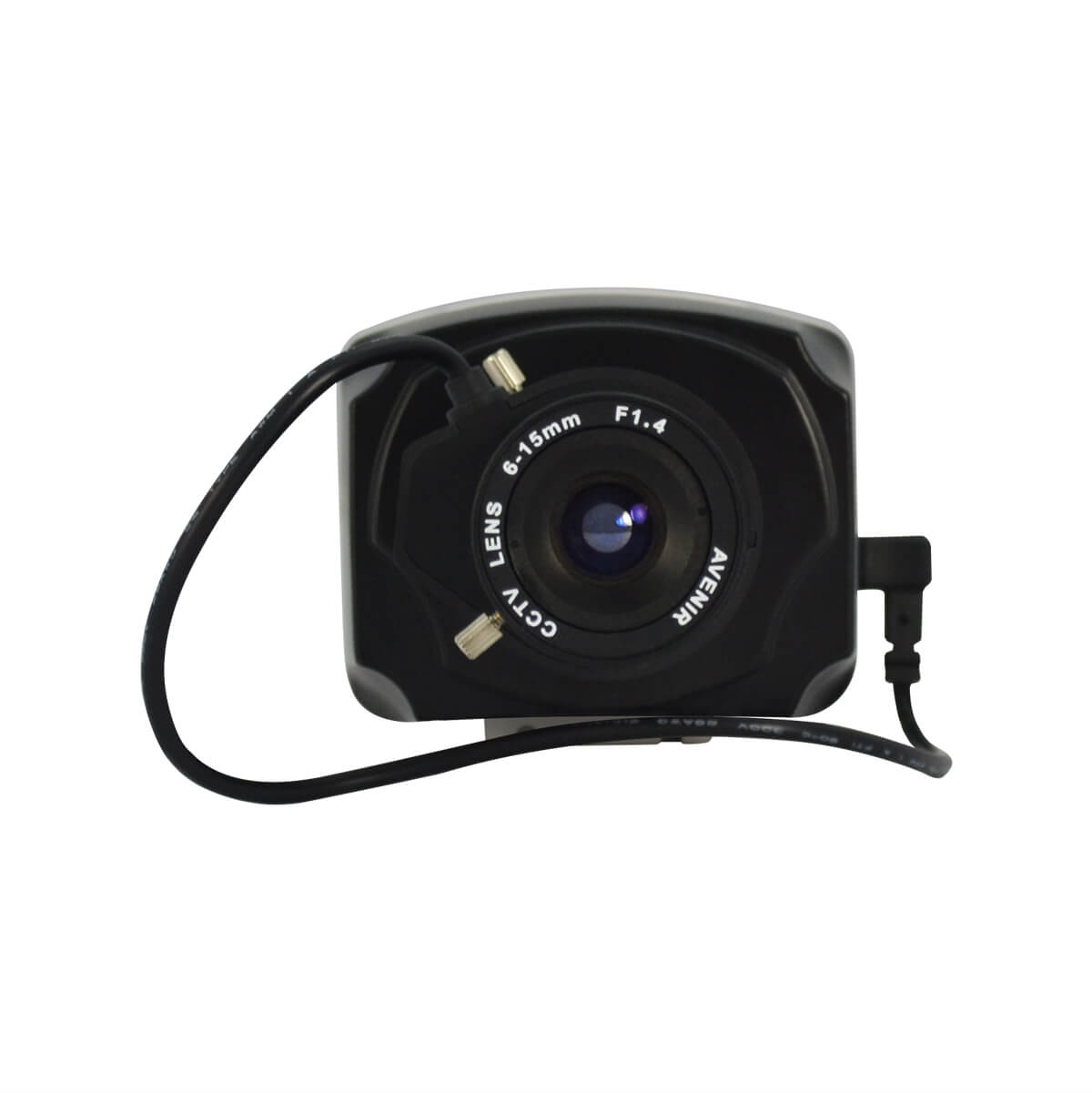

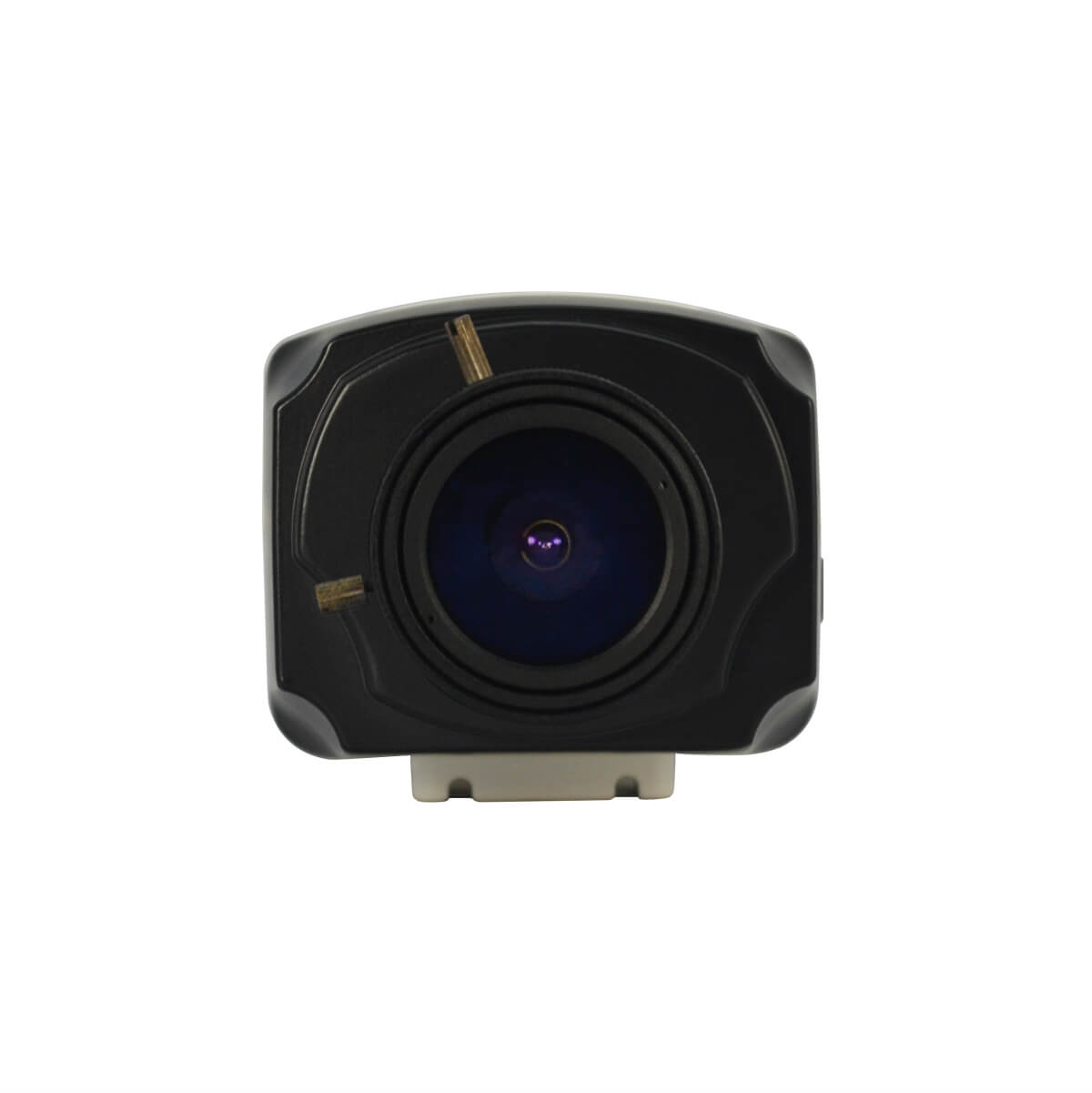

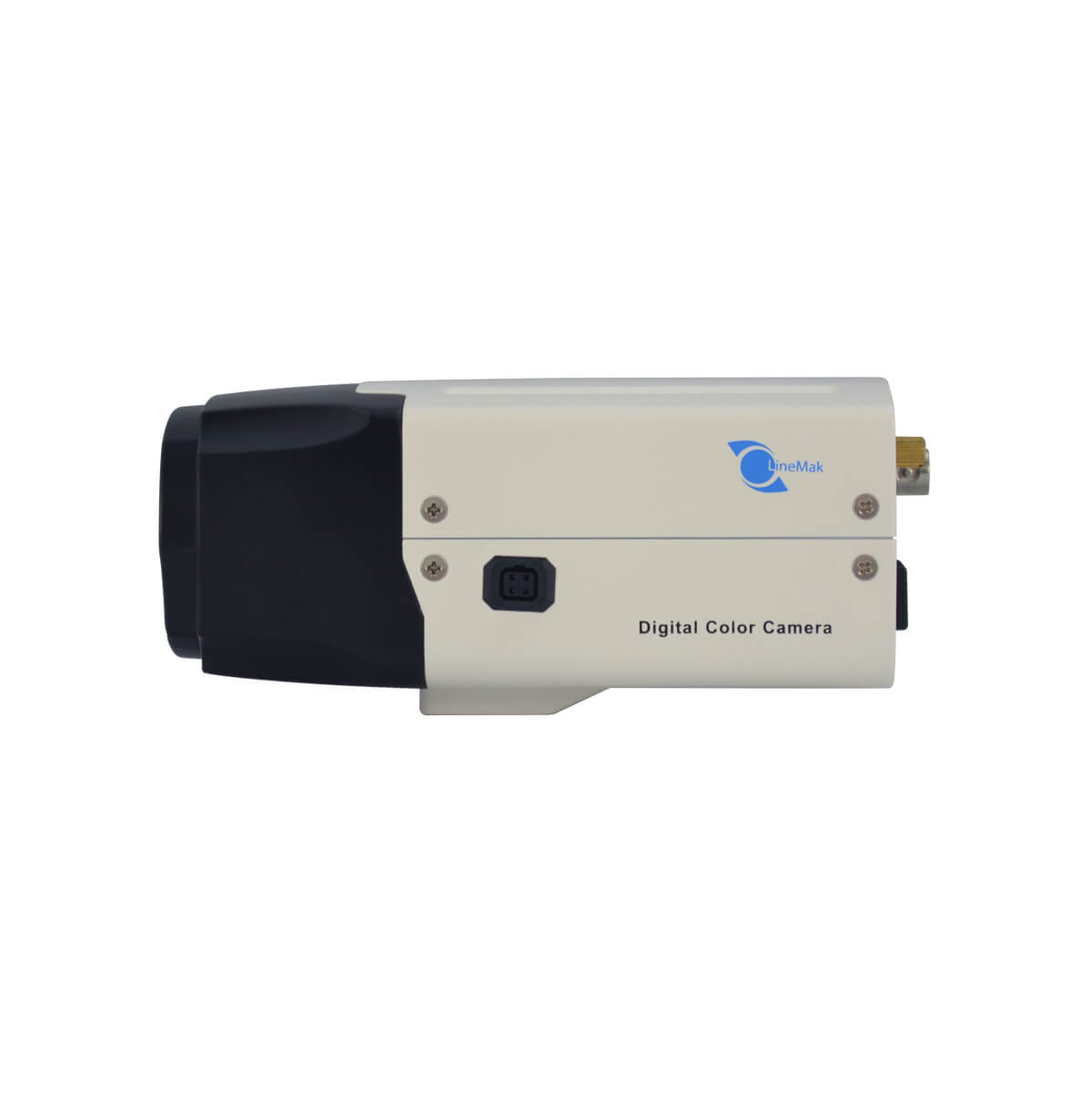

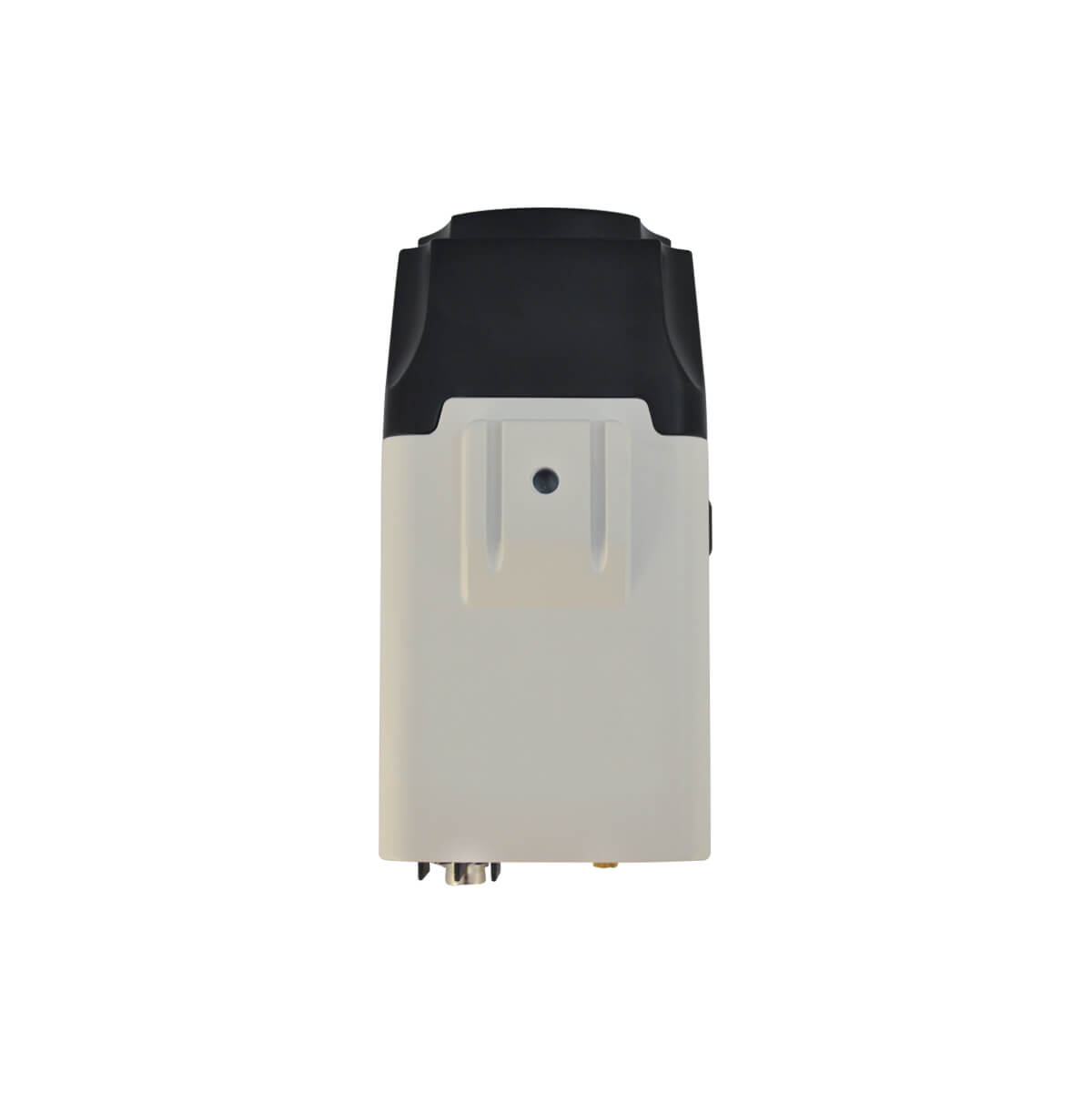

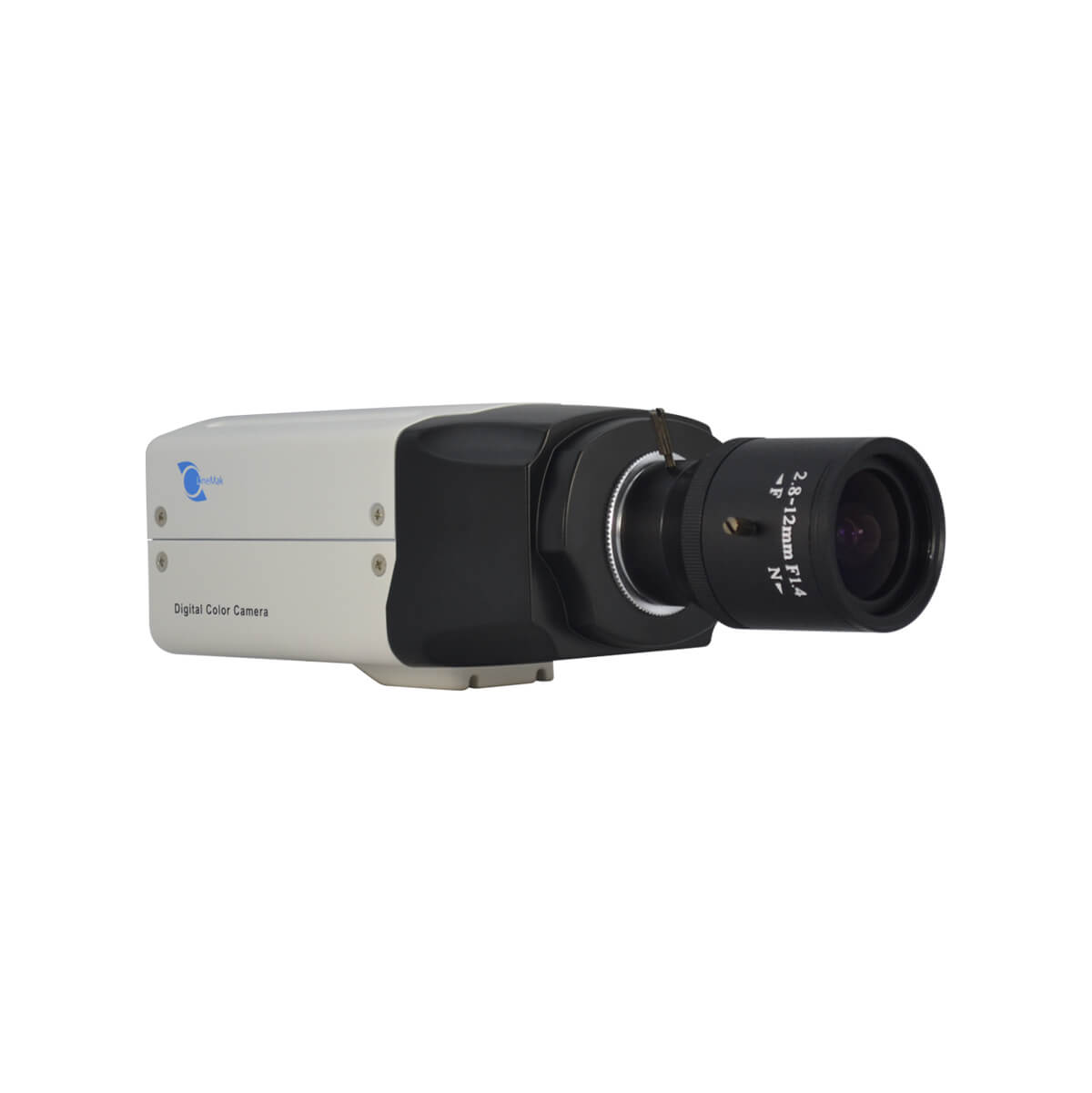

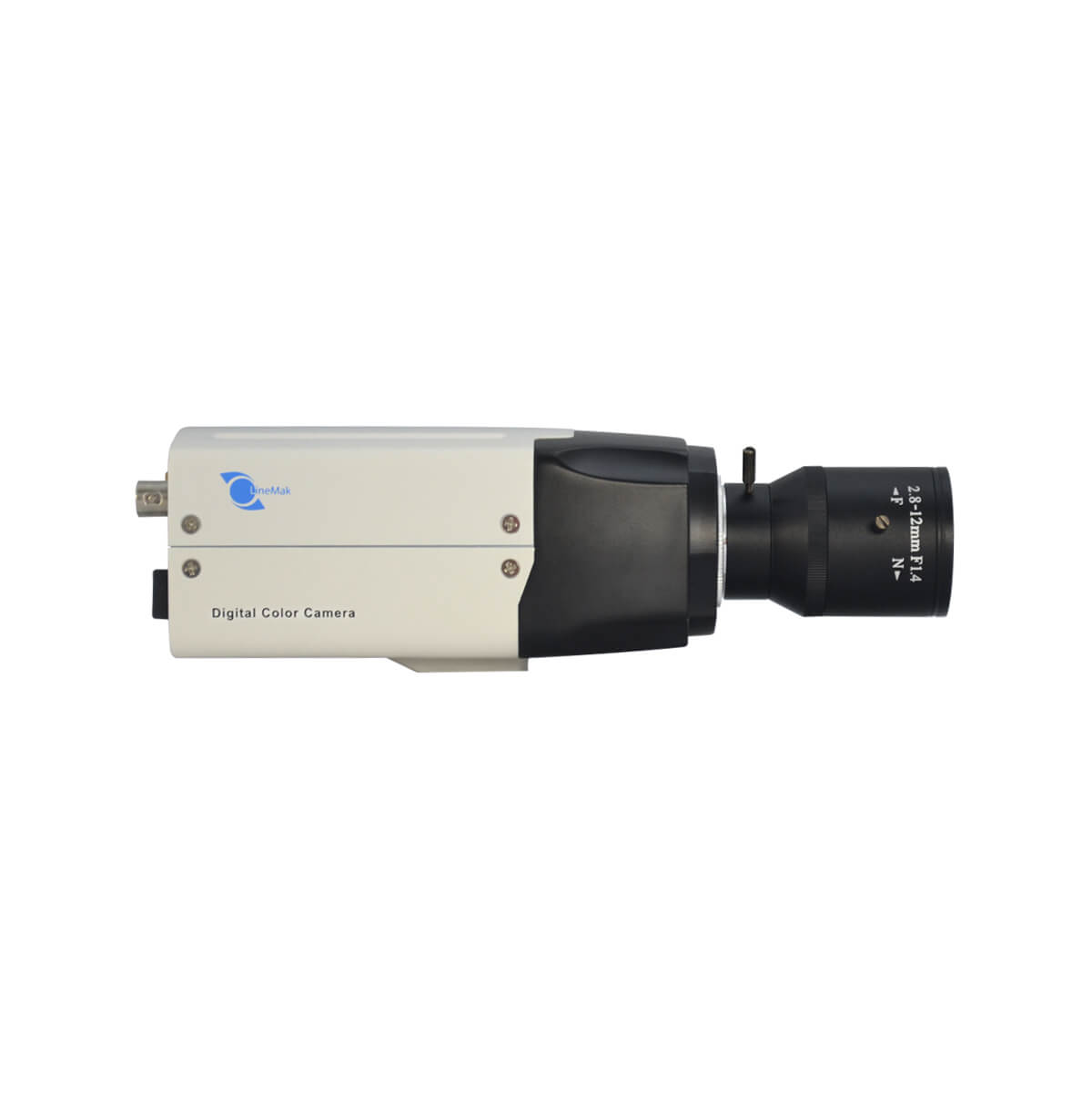

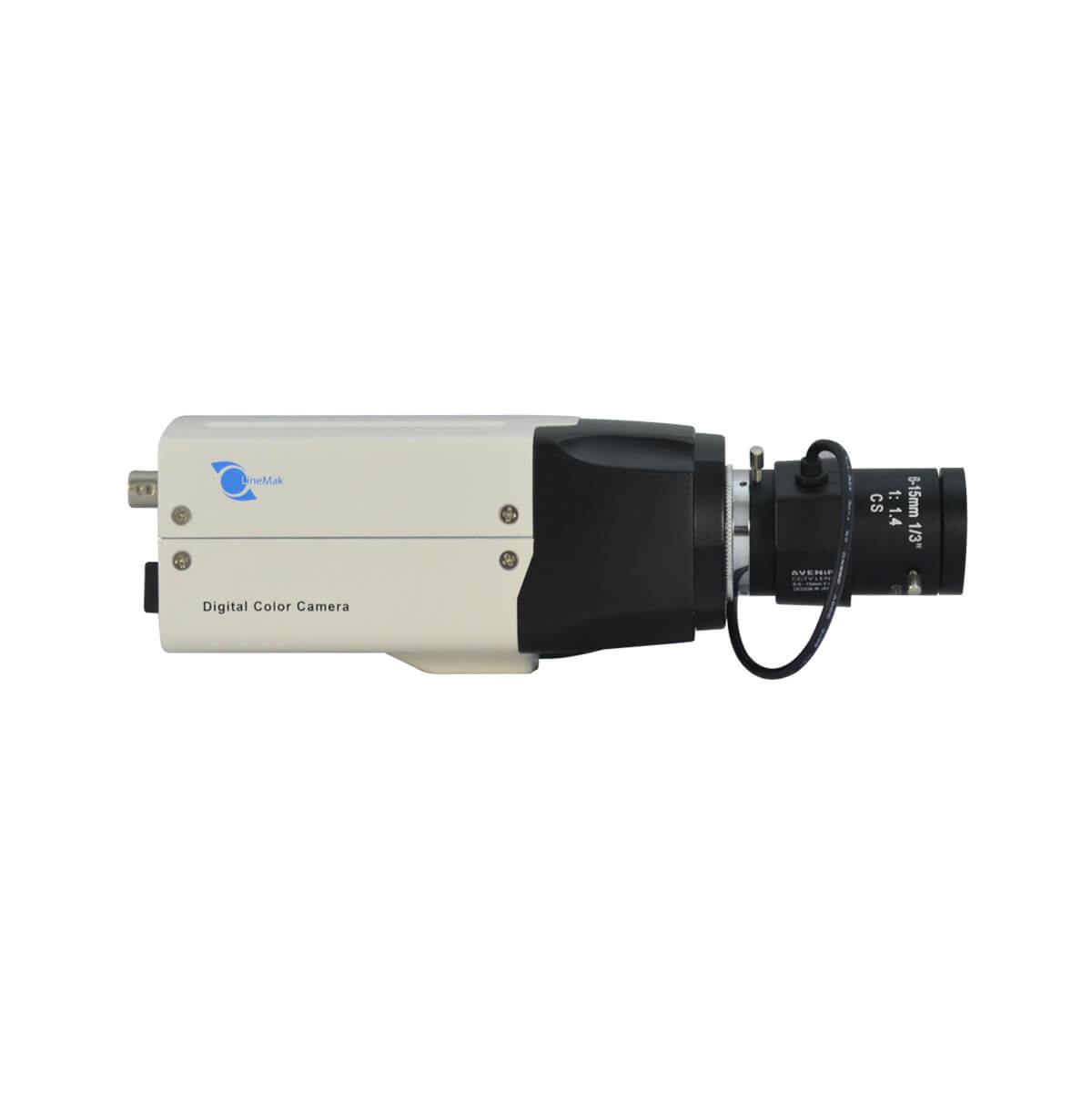

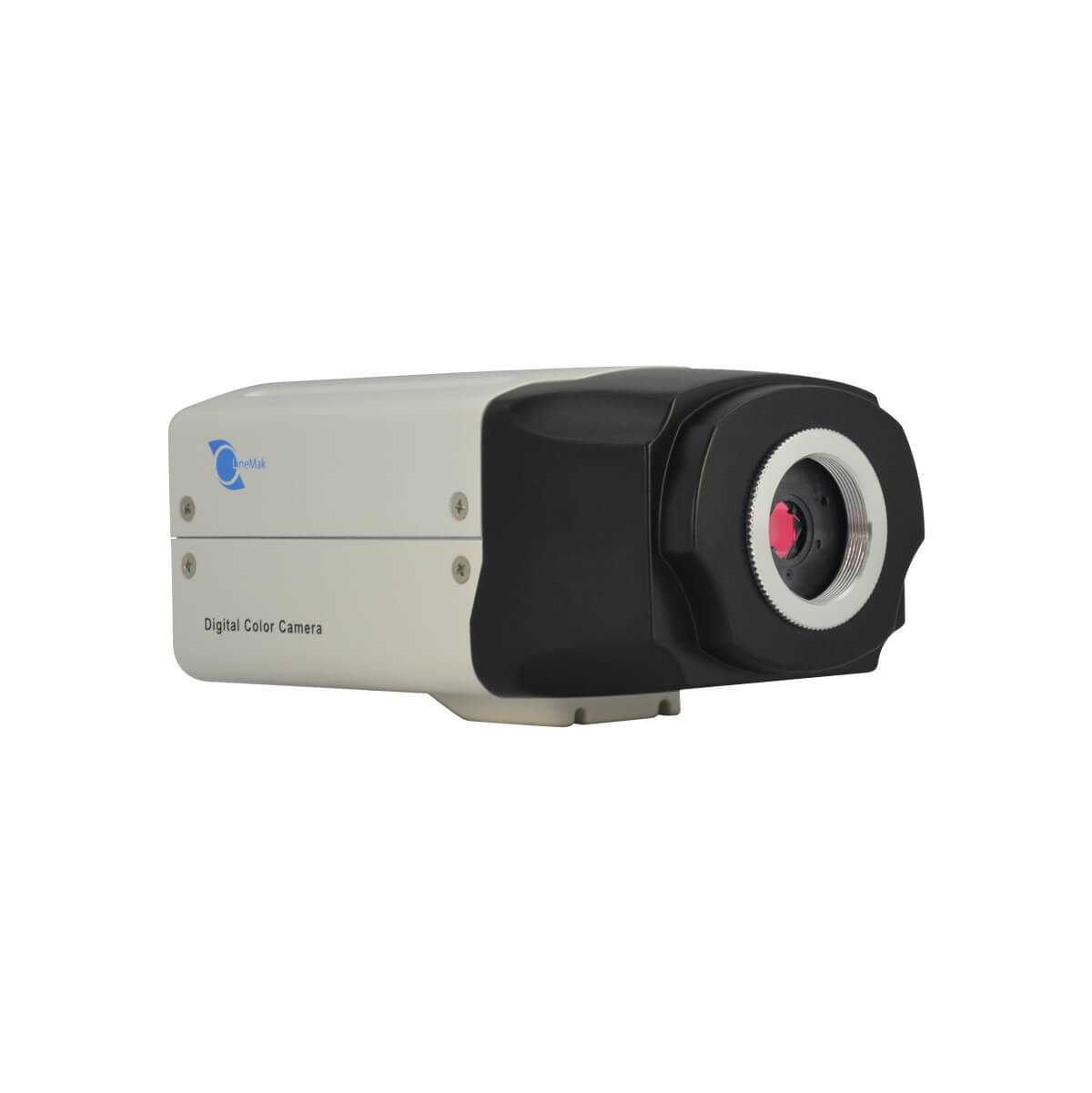

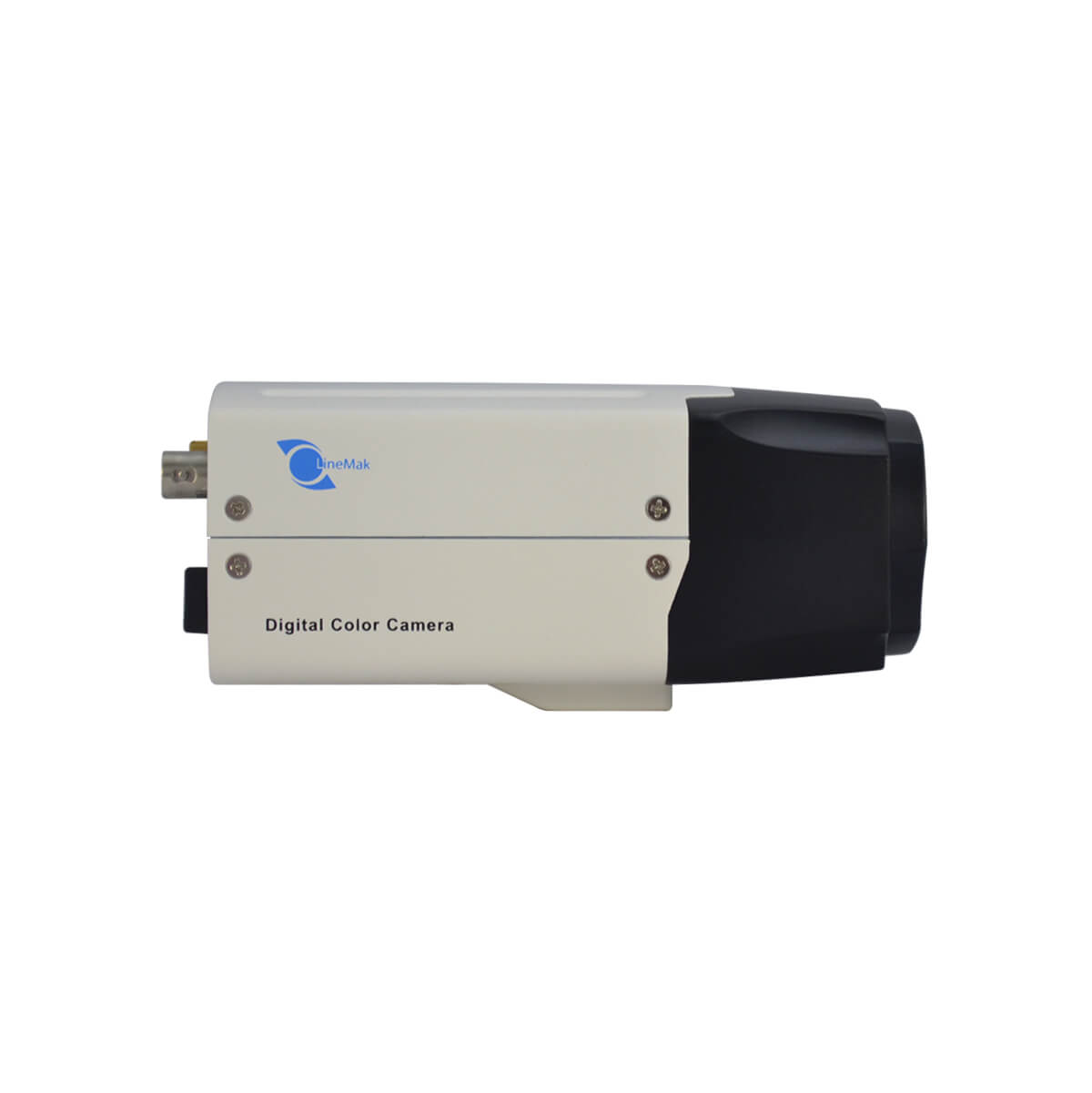

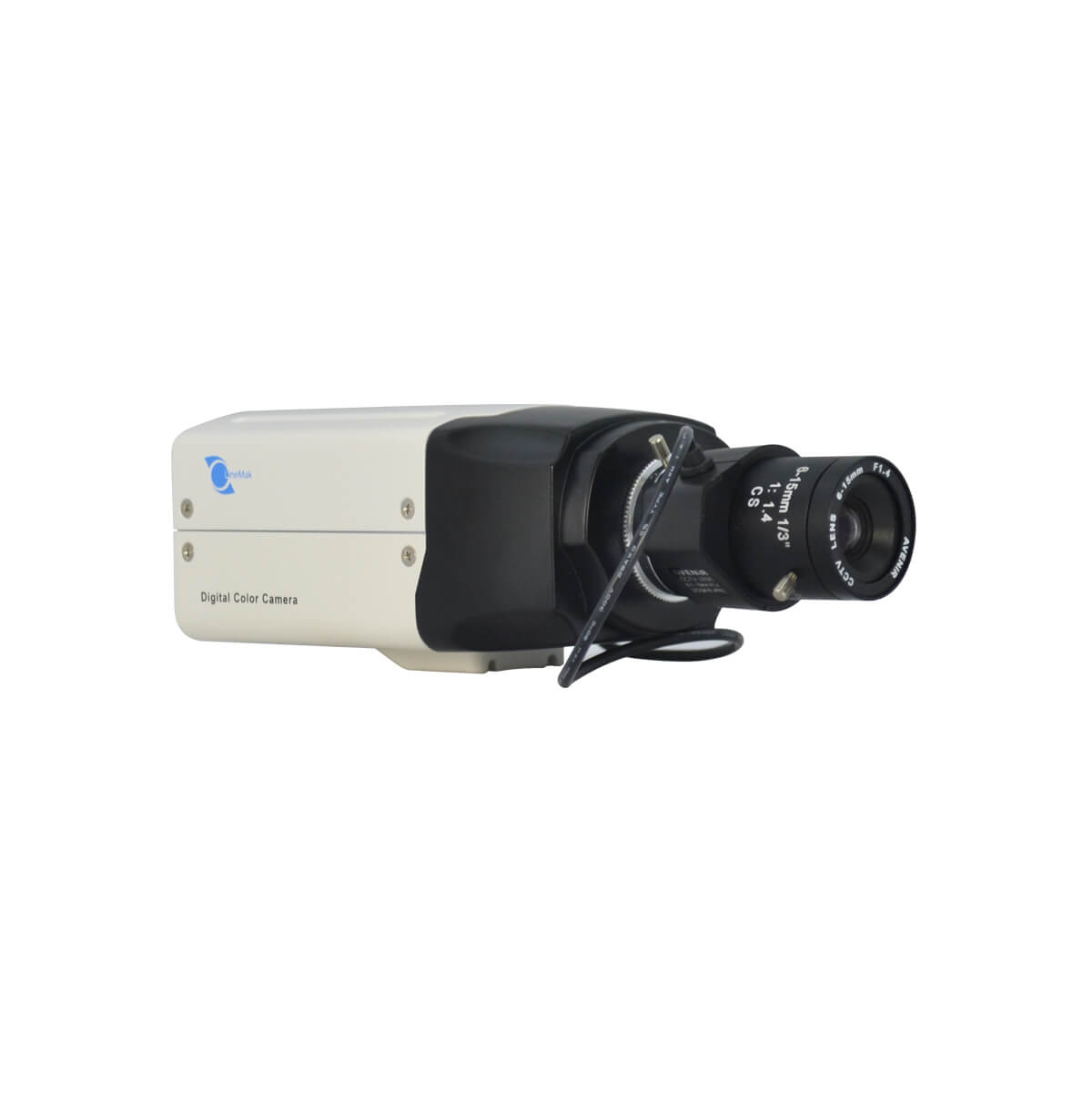

Box camera, SONY CMOS Sensor, 1200TVL, OSD menu
  • Box camera, SONY CMOS Sensor, 1200TVL, OSD menu - Image 1
  • - 1/3" SONY Exmor CMOS Sensor.
  • - 1200TVL.
  • - Digital Time Lapse.
  • - Power adapter and lens not included.
  • - C/CS lens mount.
  • - Aluminum alloy.
  • Box metal camera high-resolution with a lens CS mount.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Lens not included.
    This camera does not include Lens since it depends on the requirement of the installer or consumer. We sell various types of Lens depending on the viewing angles you need. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - 1/3" Sony Exmor CMOS Sensor.
    - 1200TVL.
    - Digital Time Lapse.
    - Aluminum alloy.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.

    Back Light Compensation (BLC)
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    OSD Menu
    Most monitors include an on screen menu for making adjustments to the display through which you can navigate through the menu and make adjustments by using the Plus (+) and Minus (-) buttons, usually located next to the menu button. OSD include basic brightness and contrast controls. This superimposed image on the screen is commonly used by modern TV sets for volume, channel and time control.
    OSD Menu
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Warranty: One (1) Year
  • Box camera, SONY CMOS Sensor, 1200TVL, OSD menu
    General
    Brand LineMak
    Model LS-601SH
    Sensor
    Resolution 1200TVL
    Sensor 1/3" Sony Exmor CMOS
    Effective pixels 1280*960
    Video
    Video format PAL / NTSC

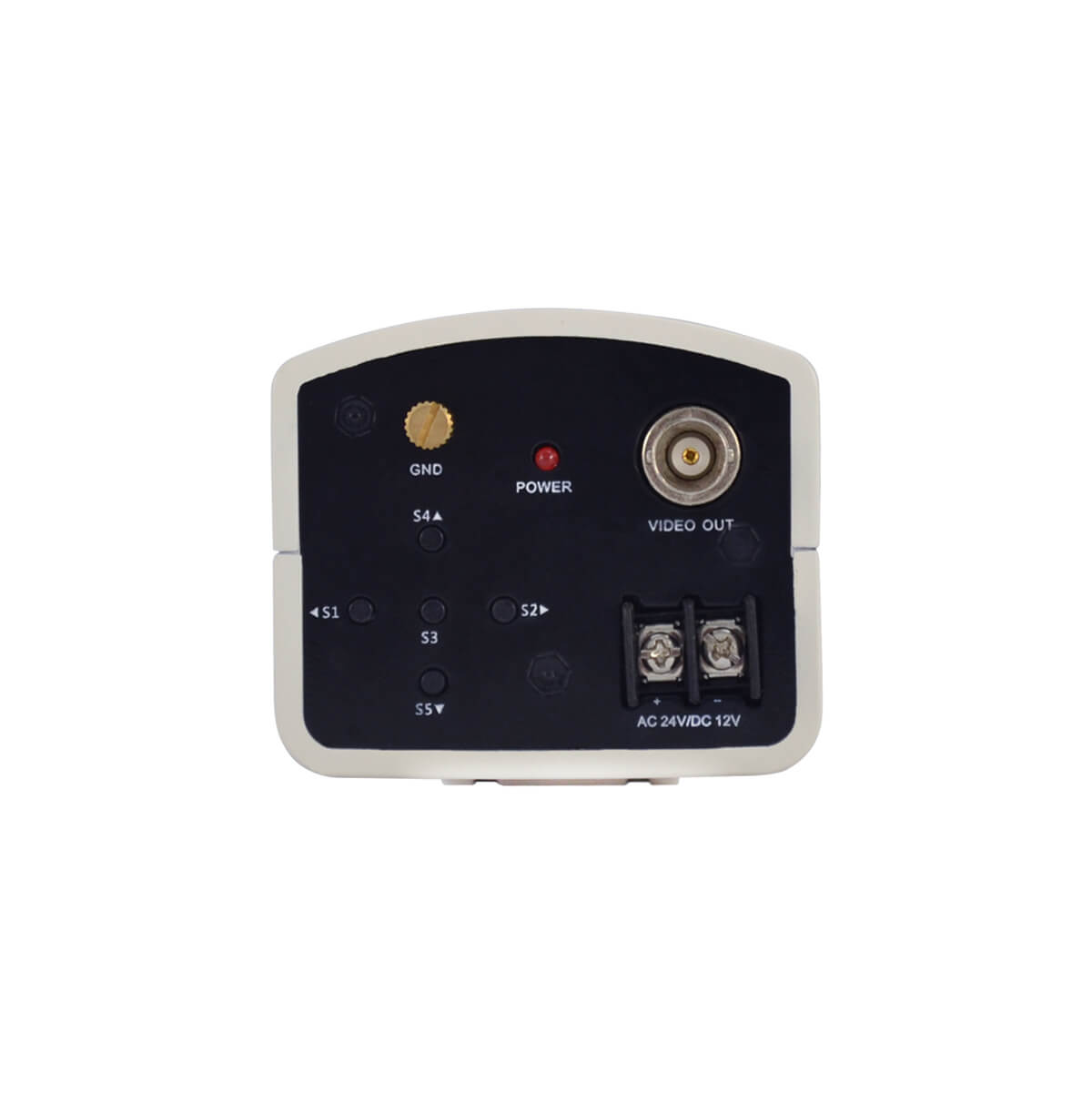

    Video output 1.0Vp-p, 75ohm (BNC Connector)
    Scanning Area 4.9mm*3.7mm
    Lens
    Minimum illumination 0.001Lux
    Environment
    Operation temperature -10°C ~ 50°C
    14°F ~ 122°F
    Power
    Power supply DC 12V ~ 24V
    Power consumption 150mA
    Appearance
    Color White
    Size 6.3(L) * 2.76(H) * 3.15(W) inches
    Weight 1.14 pounds
    Material Aluminum
    Special function
    Back Light Compensation (BLC) Yes
    Auto White Balance (AWB) No
    Electronic shutter speed (AES) PAL: 1/50~1/100000s
    NTSC: 1/60~1/100000s
    Auto Gain Control (AGC) No
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Mirror No
    Adaptive Tone Reproduction (ATR) No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Synchronizing system Internal
    S/N Ratio >50dB
    Gamma correction 0.45
    OSD Menu Yes
  • Instrucción
    File Size: 463.71Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 381.91Kb
    Languages: English
    File Type: PDF
