Passive Video Transceiver male BNC 1000ft. Contains 10 Pairs (20 Pcs)

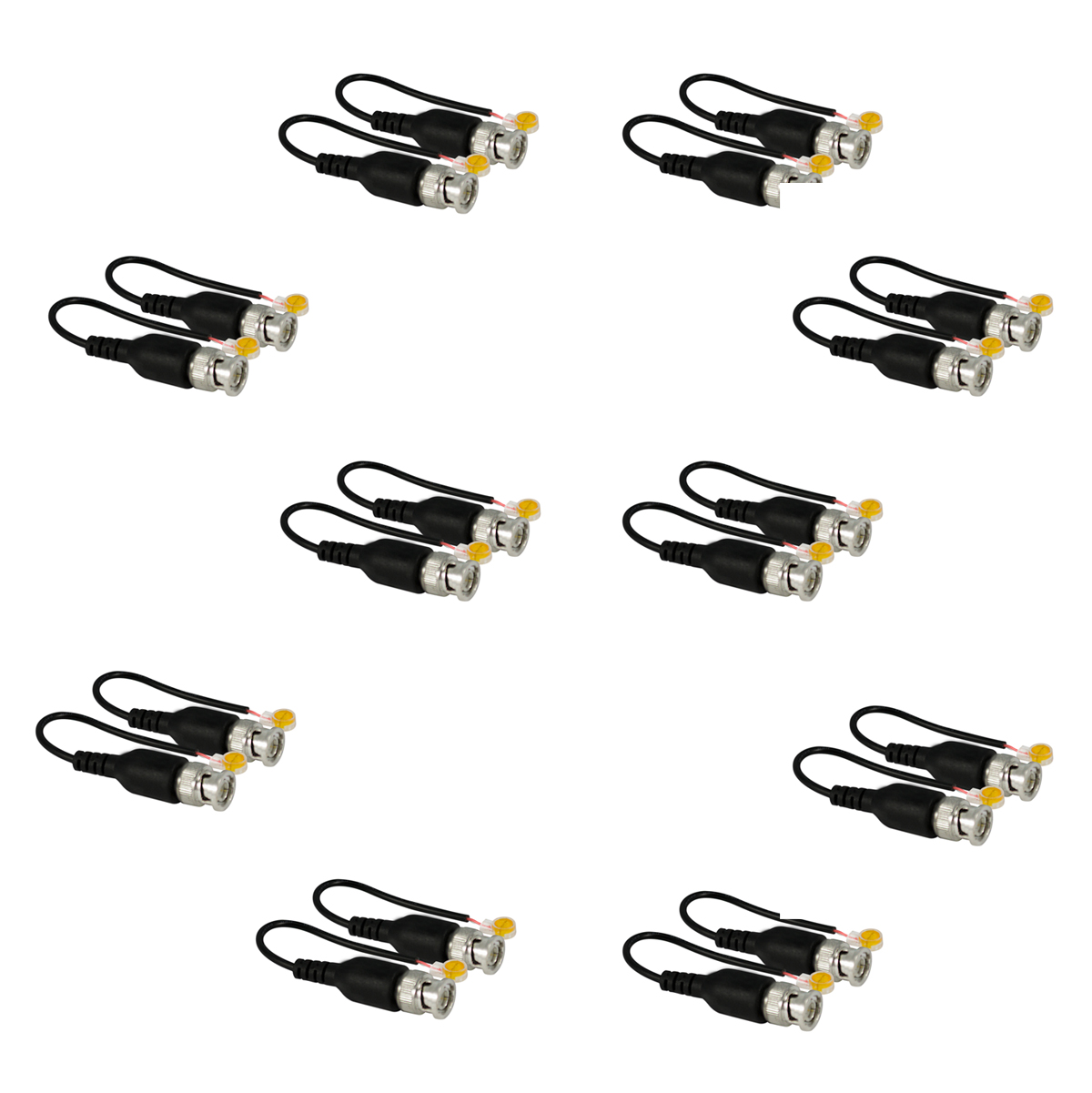

  • Passive Video Transceiver male BNC 1000ft. Contains 10 Pairs (20 Pcs) - Image 1

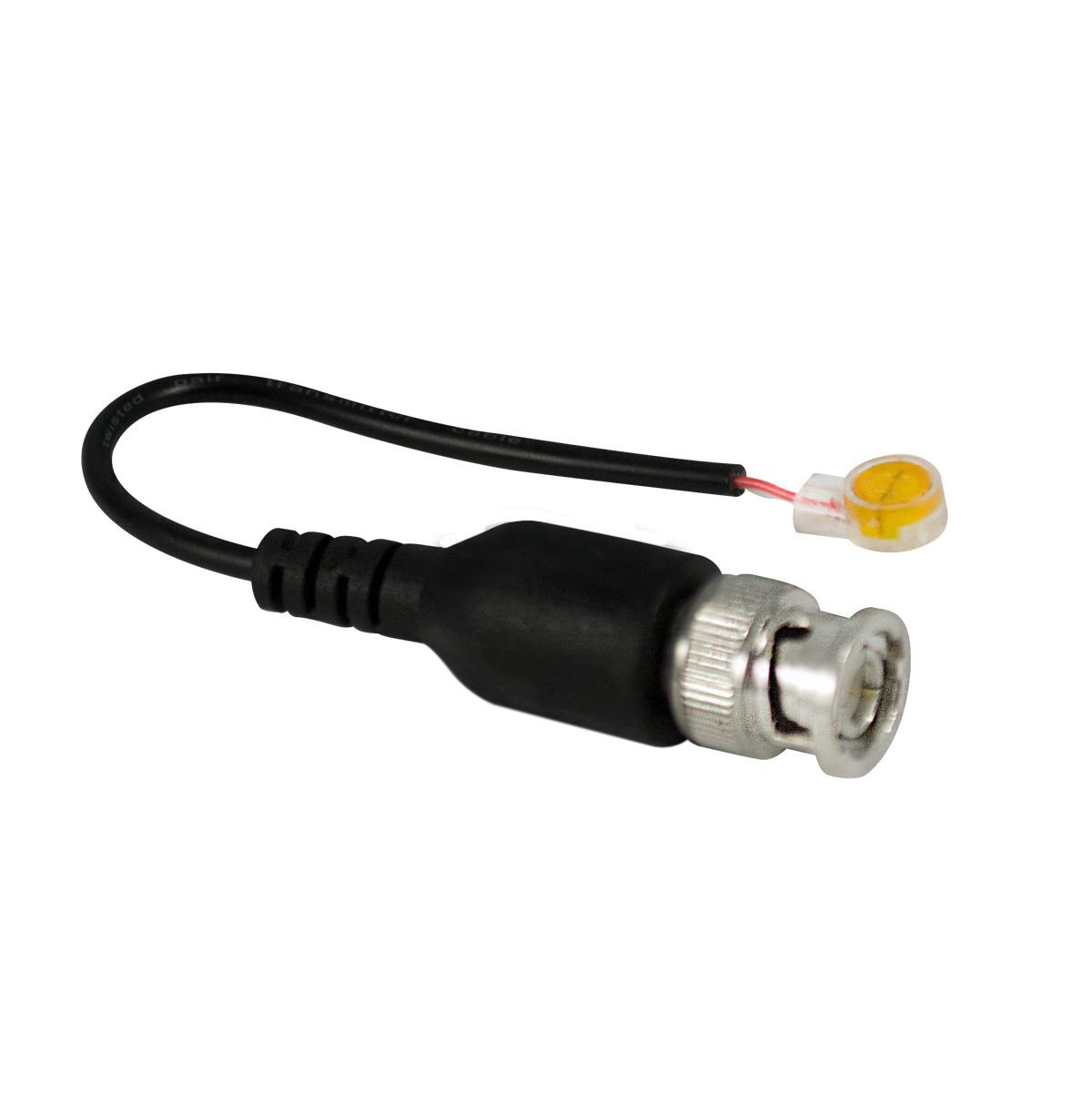

  • Passive Video Transceiver male BNC 1000ft. Contains 10 Pairs (20 Pcs) - Image 2

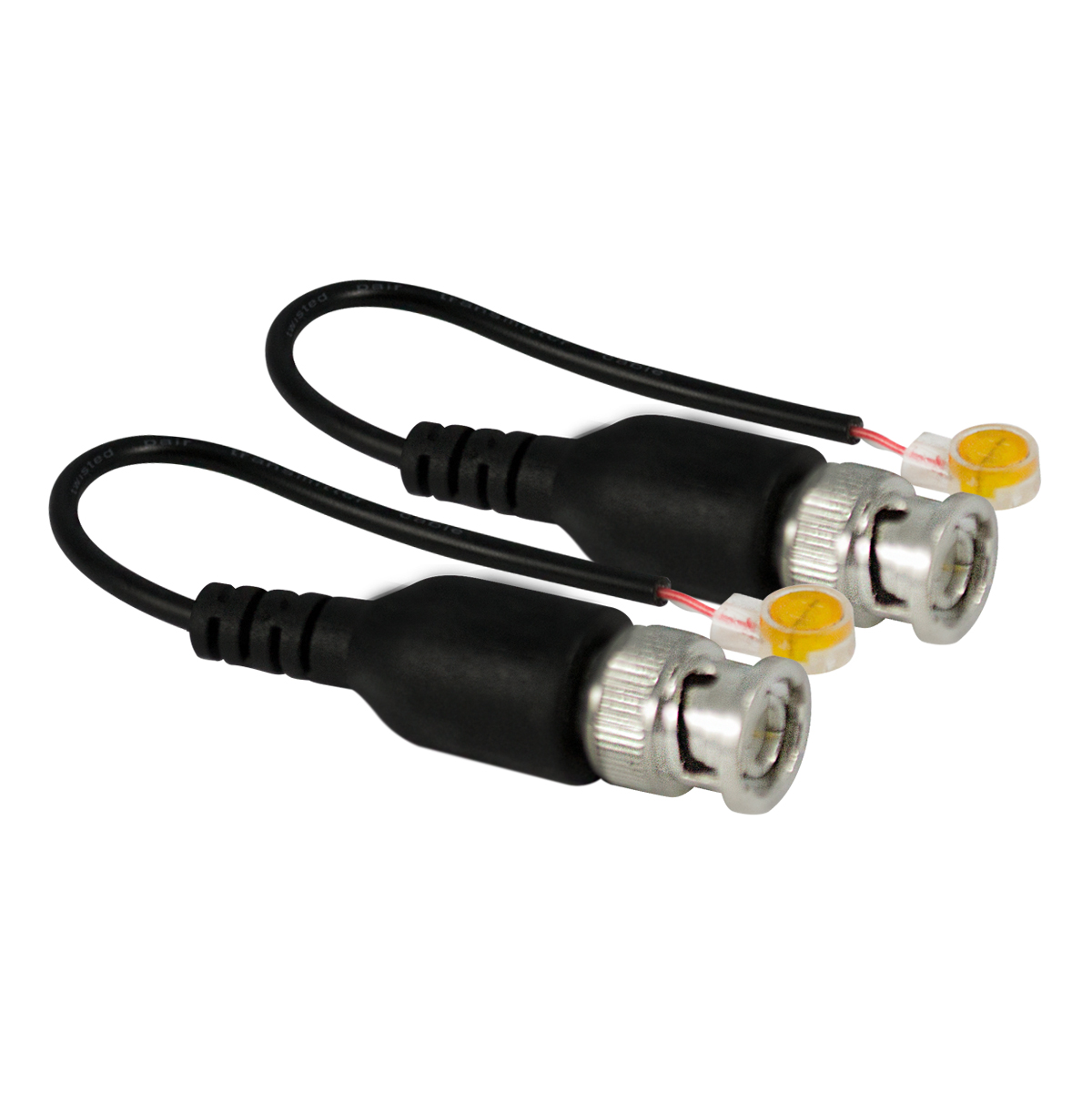

  • Passive Video Transceiver male BNC 1000ft. Contains 10 Pairs (20 Pcs) - Image 3

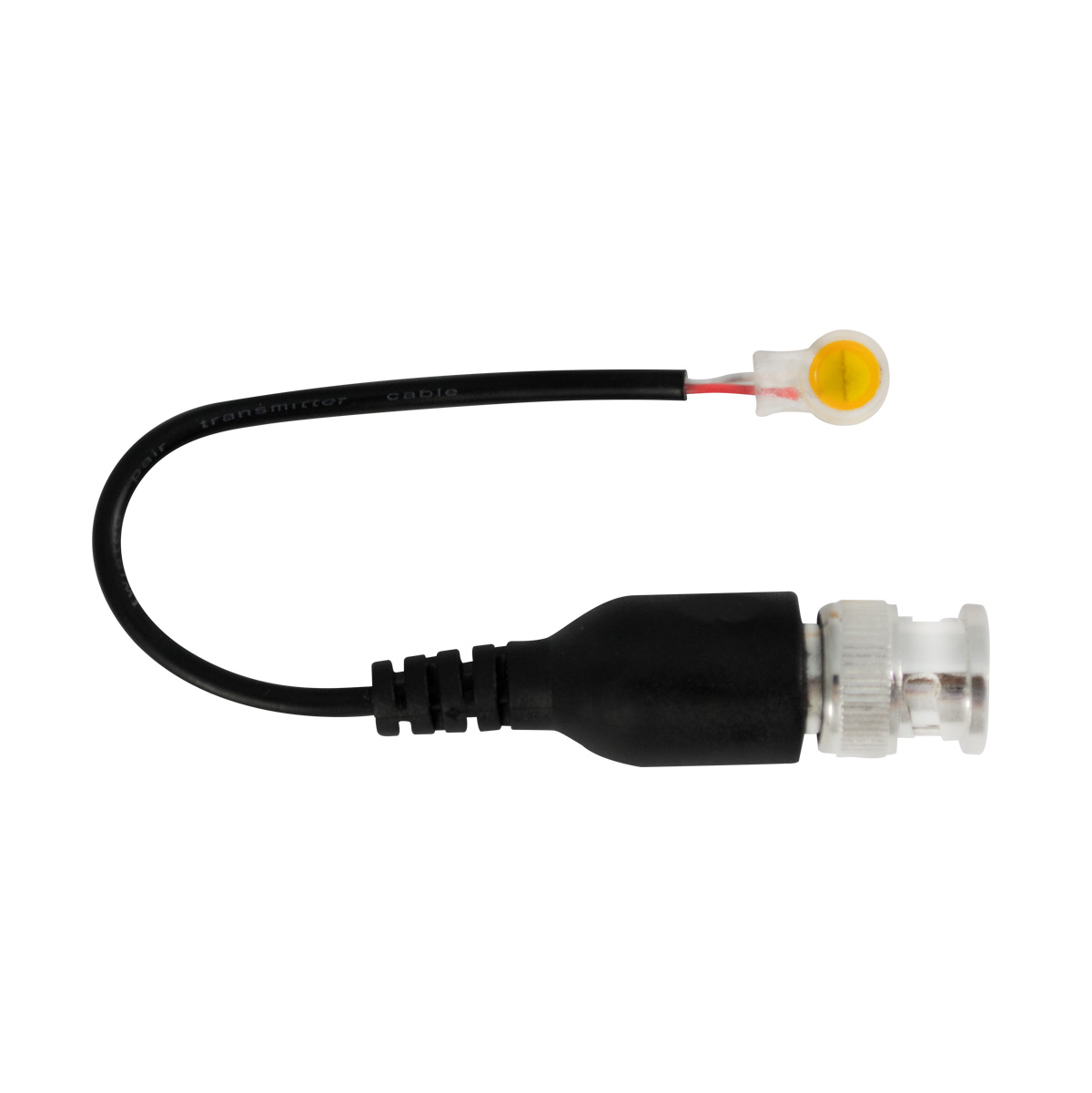

  • Passive Video Transceiver male BNC 1000ft. Contains 10 Pairs (20 Pcs) - Image 4

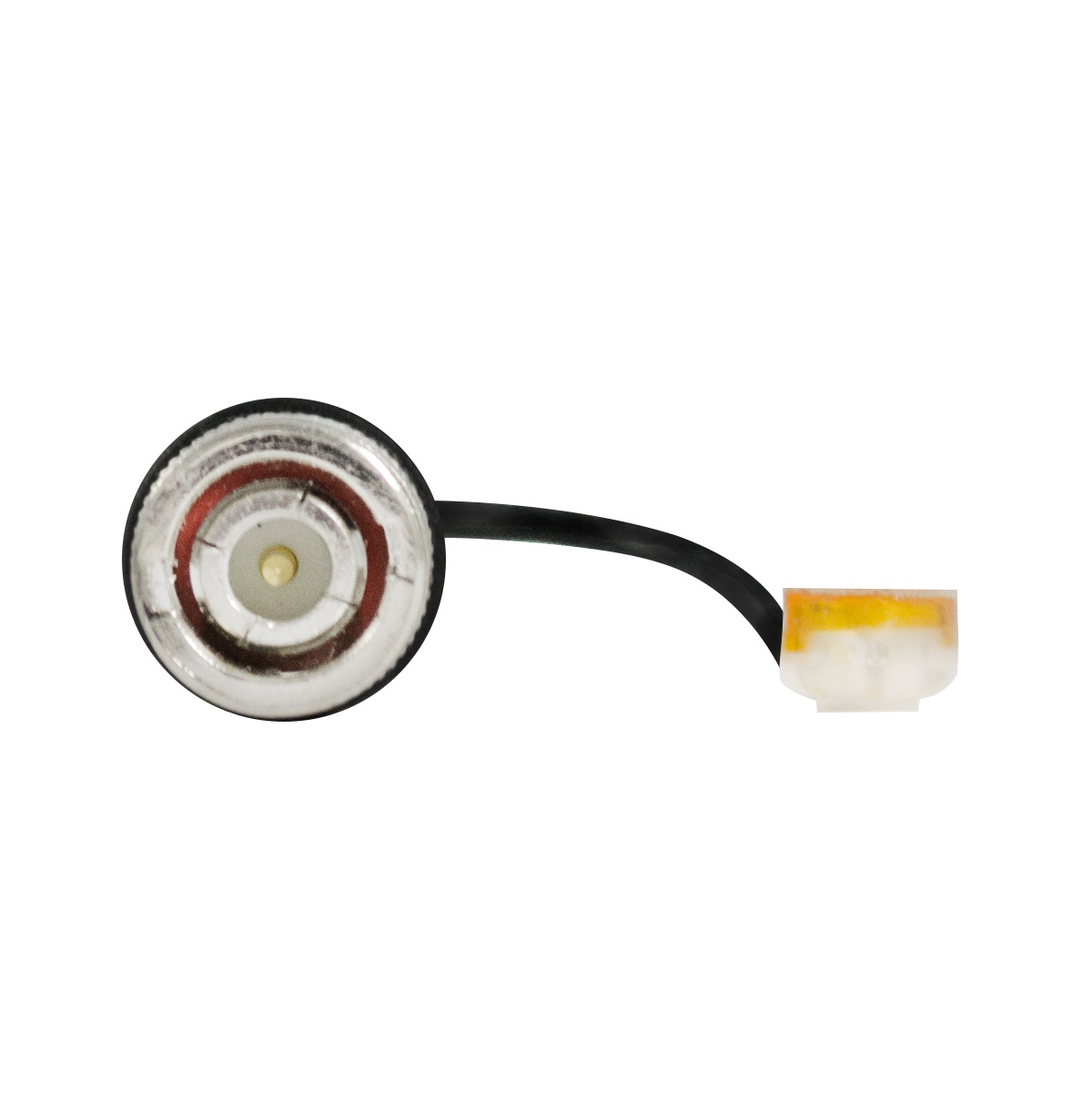

  • Passive Video Transceiver male BNC 1000ft. Contains 10 Pairs (20 Pcs) - Image 5

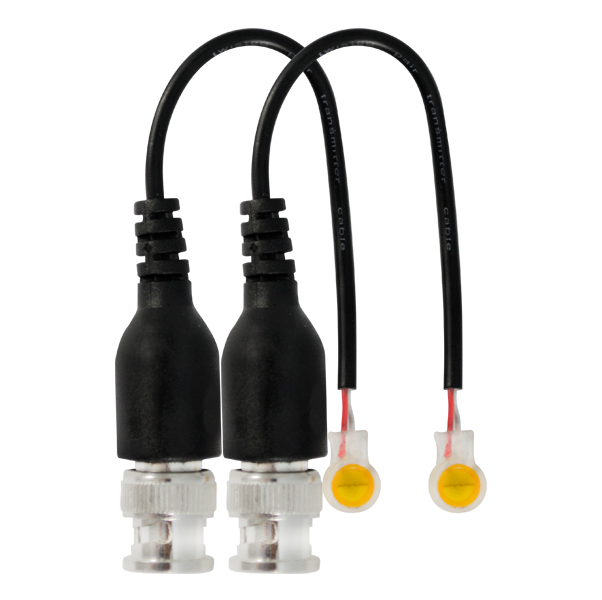

  • Passive Video Transceiver male BNC 1000ft. Contains 10 Pairs (20 Pcs) - Image 6
  • - Contains 10 Pairs (20 Pcs)
  • - Network wiring: One unshielded twited pair 24-16AWG (0.5-1, 31mm)
    - Category Type: 5 or better
    - Impedance: 100 20 ohms
    - DC Loop Resitance: 52ohms per 1,000 ft (18ohms per 100m)
    - Differential Capacitance 19pF/ft max (62pF/m max)
    Warranty: One (1) Year
  • Passive Video Transceiver male BNC 1000ft. Contains 10 Pairs (20 Pcs)
    General
    Brand Linemak
    Model LS-UTP203W
    Video Balun
    Frequency response DC to 5Mhz
    Attenuation 0.5dB typ
    Common mode rejection ratio 50Khz to 5Mhz (60dB typ)
    Impedance 100 20ohms
    Network wiring One Unshielded Twisted pair 24-16 AWG (0.5-1.31mm)
    Category type 5 or better
    DC Loop resistance 52 ohms per 1000 ft (18ohms per 100m)
    Ifferential capacitance 19pF/ft max (62pF/m Max)
    Video Connector Caax, male BNC (75ohms)
    UTP cable connector UTP 100 ohms
    Environment
    Operation temperature -20ºC to 75ºC
    Working humidity 0% to 95%
    Appearance
    Color Black
    Size 6.3(L) * 0.59(H) * 0.79(W) inches
    Weight 1 pound
