DC12V 5A Power adapter specially for security cameras

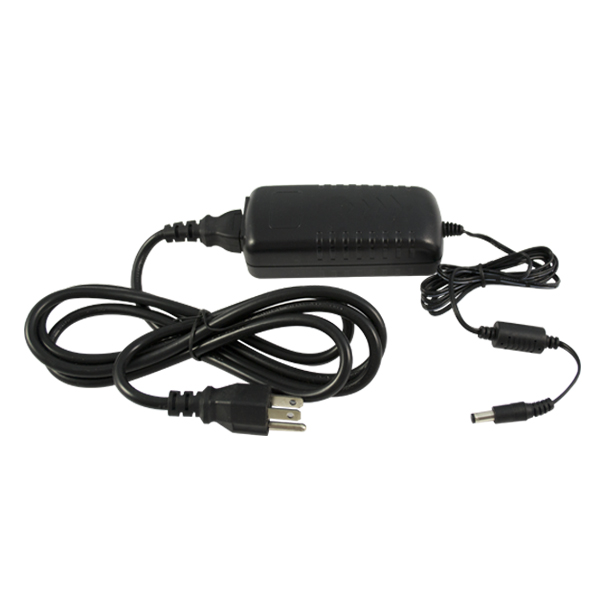

  • DC12V 5A Power adapter specially for security cameras - Image 1

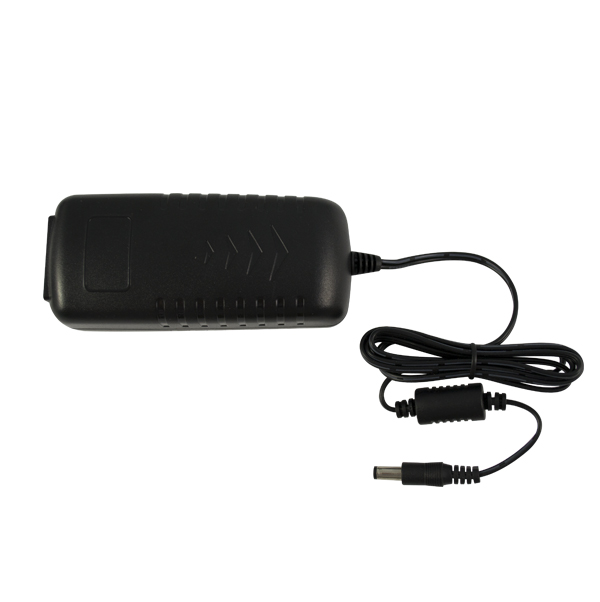

  • DC12V 5A Power adapter specially for security cameras - Image 2
  • - Power adapter 5A.
  • - Input: AC100~240V.
  • - Output: DC 12V/5A.
  • - Available in black.
  • Our LS-PCP5000 Power adapter is an independent power adapter and supplier that provides any security cameras the necessary current it need to operate properly and uninterrupted.

    Besides, we offer all of our clients a wide range of power adapters that will suit any of their requirements concerning CCTV installation.

    Main features:
    - Input voltage: AC 100 ~ 240V.
    - Frequency voltage: 50 ~ 60Hz.
    - Input current: 1amp max at any input voltage and rated, DC output rated load.
    - Output voltage: 5.0V.
    - Output max. load: 0 ~ 5.5amp.
    - Output regulation: -5%.
    - Delay time: 2 second max. at AC 115V input and output max. load.
    - Rise time: 40m max. at AC 115V input and output max. load.
    - Overshoot: 15% max. when power supply turned on or off.
    - Over current protection: the power supply will be auto-recovered when over current faults are removed.
    Warranty: One (1) Year
  • DC12V 5A Power adapter specially for security cameras
    General
    Brand LineMak
    Model LS-PCP5000
    Environment
    Operation temperature 0°C ~ 40°C
    32°F ~ 104°F
    Storage temperature -20°C ~ 60°C
    -4°F ~ 140°F
    Working humidity 5% ~ 90%
    Power
    Efficiency 80% min. at AC 100V input and output max. load
    83% min. at AC 240V input and output max. load
    Hold time 5m min. at AC 115V input and output max. load
    Short-circuit Protection The power supply will be auto recovered when short circuit faults remove
    Input inrush current 30amp max. cold start at AC 240V input, with rated load and 25°C ambient
    Leakage current 0.25mA max at AC 240V input.
    Appearance
    Color Black
    Size 4.72(L) * 1.38(H) * 2.17(W) inches
    Weight 12.88 ounces
