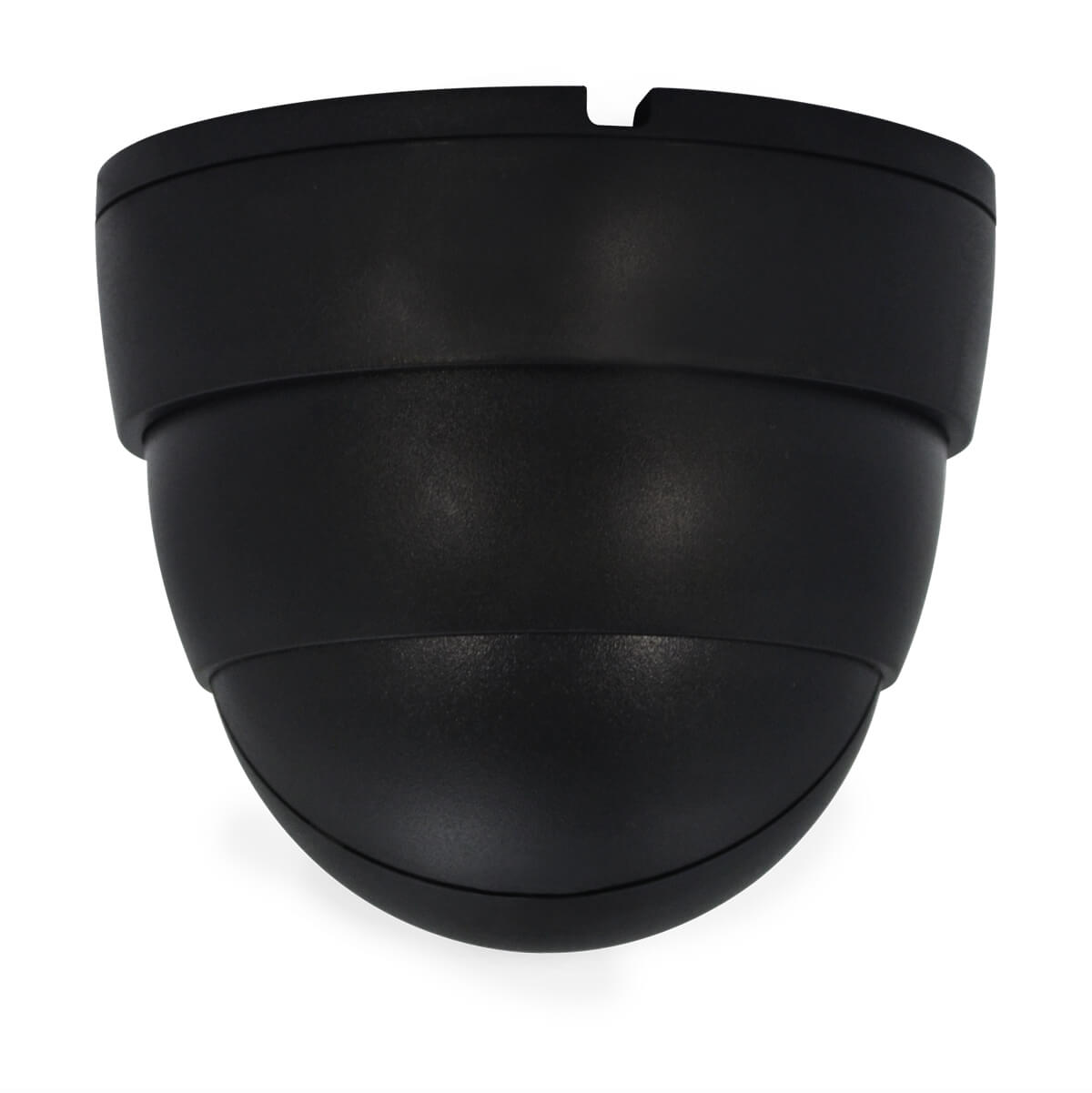

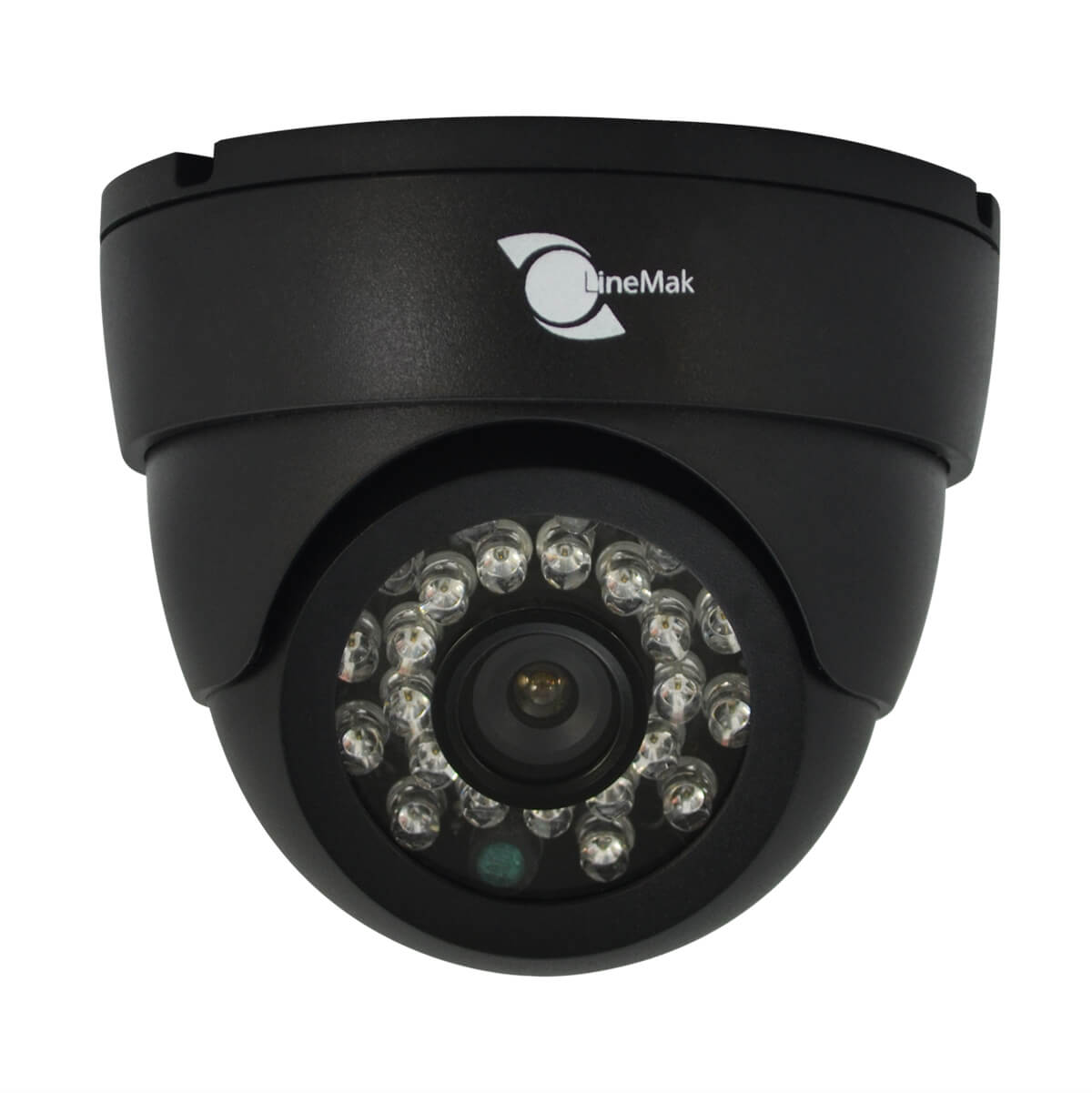

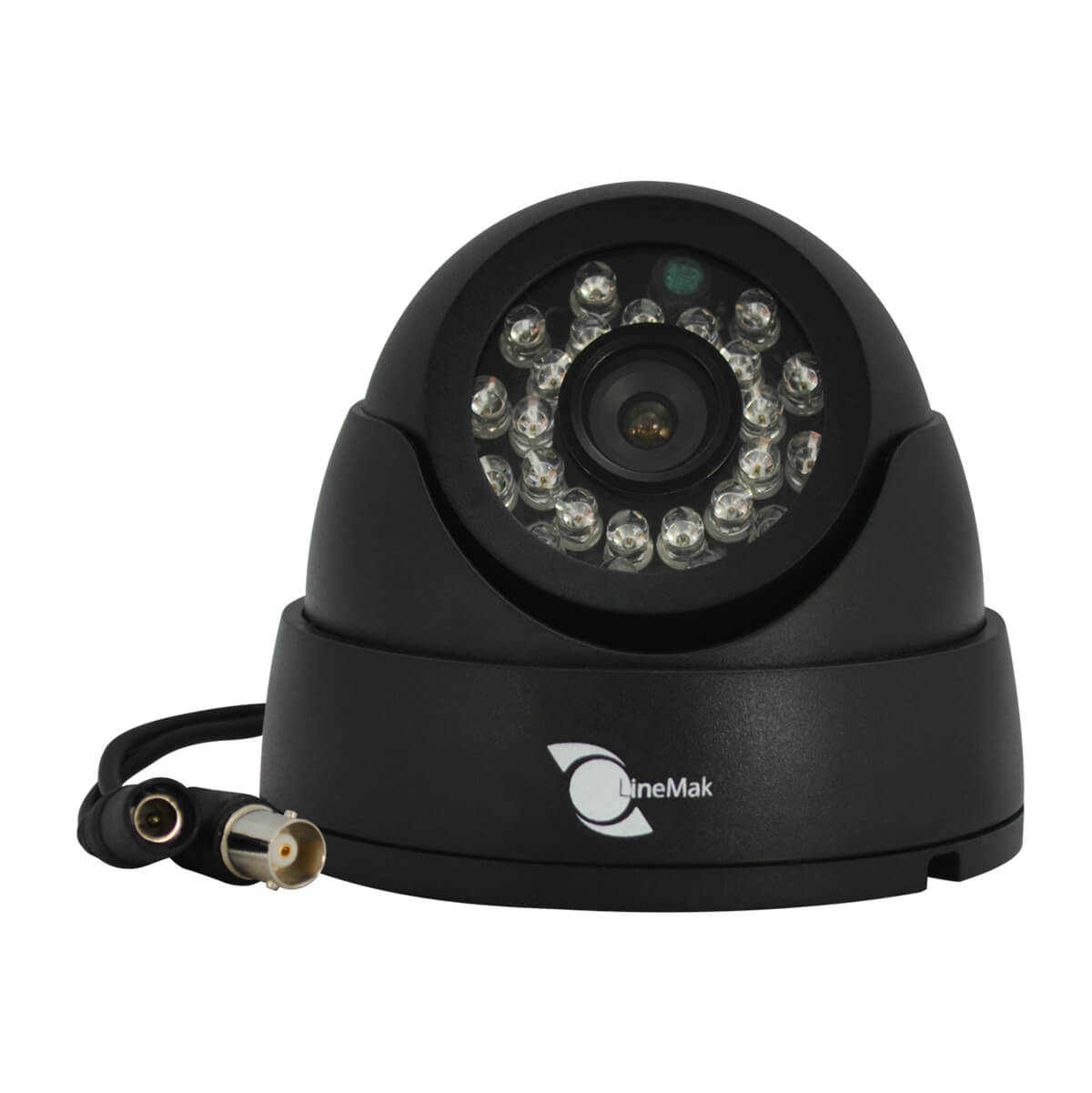

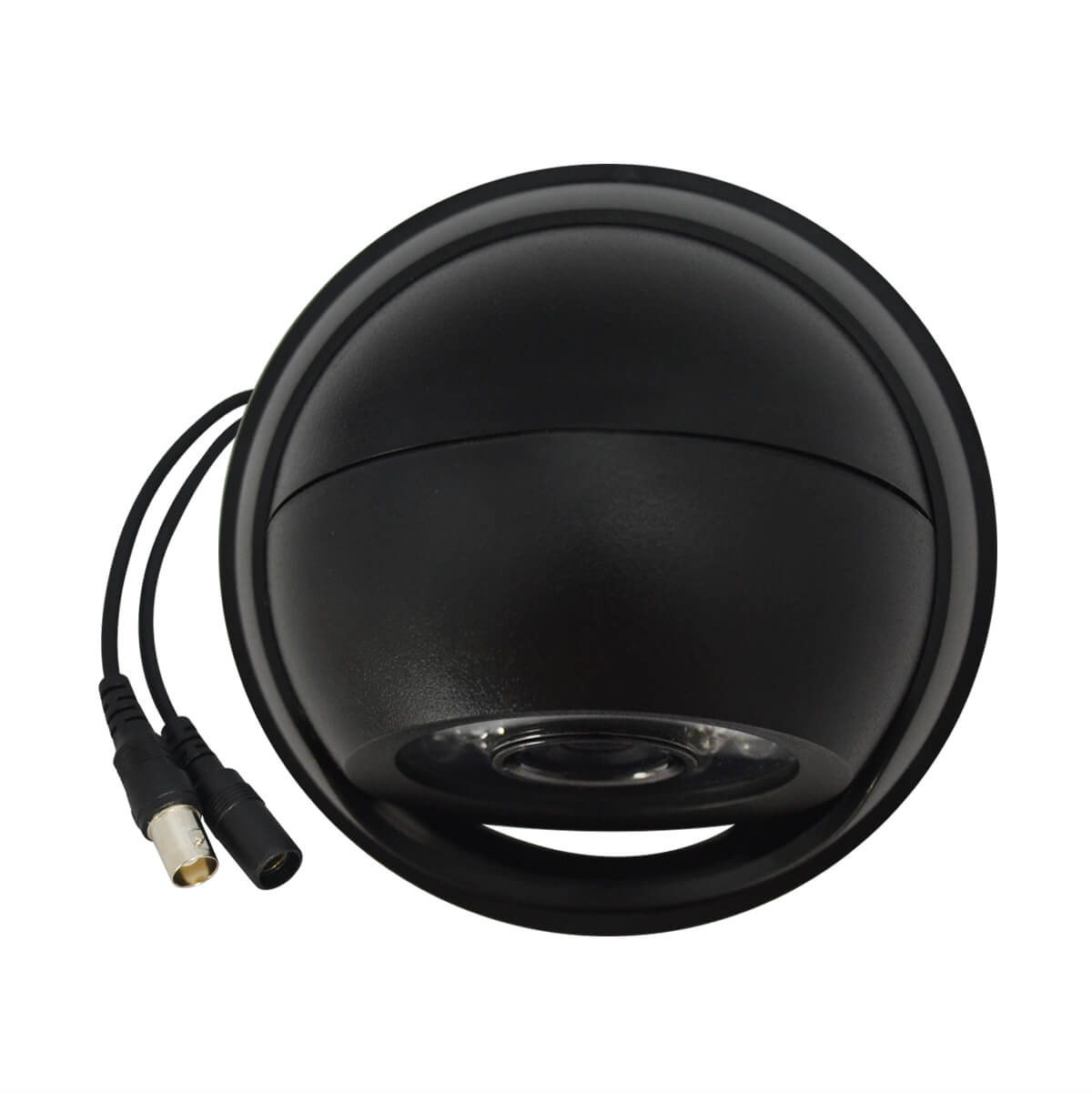

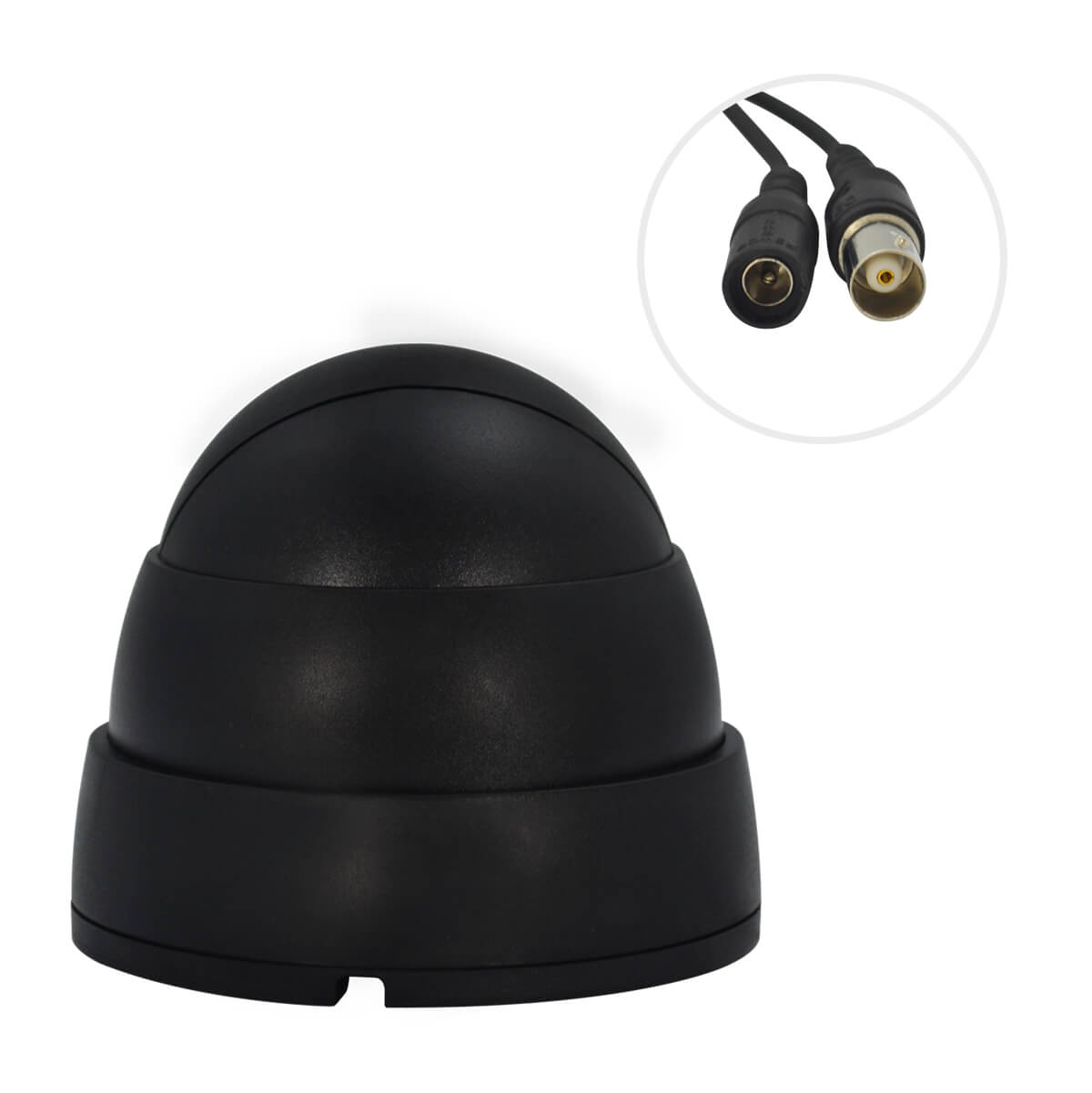

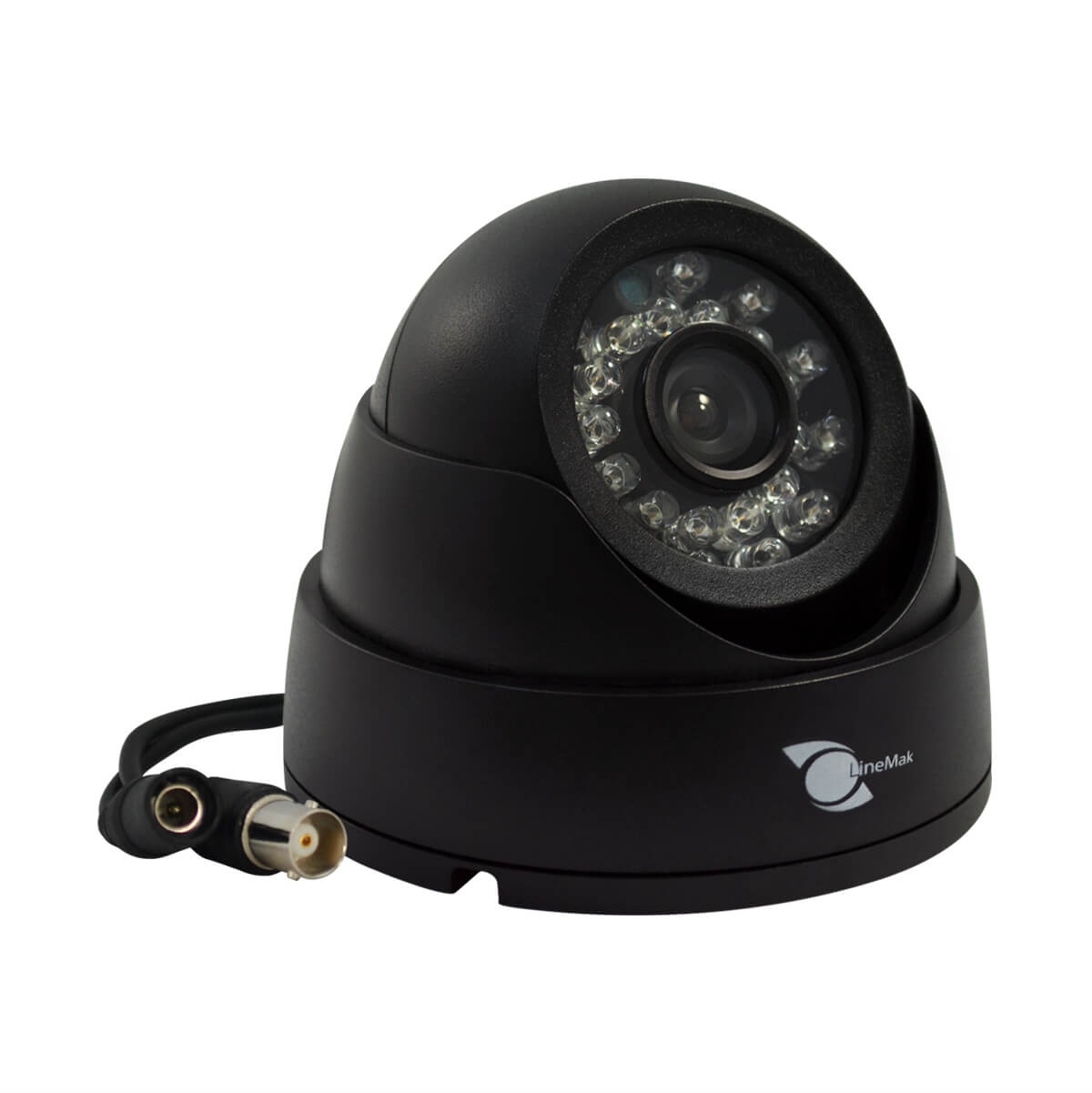

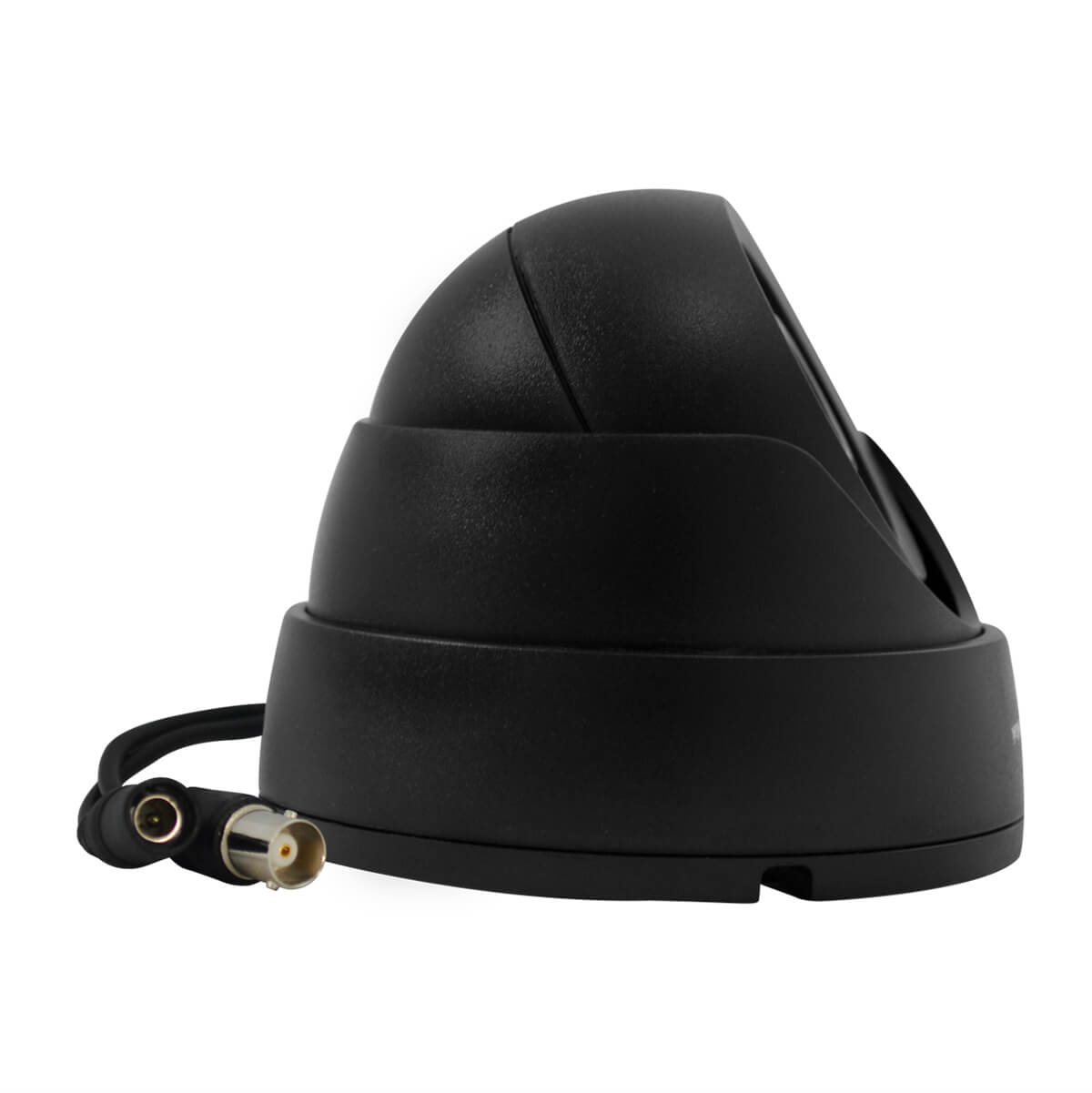

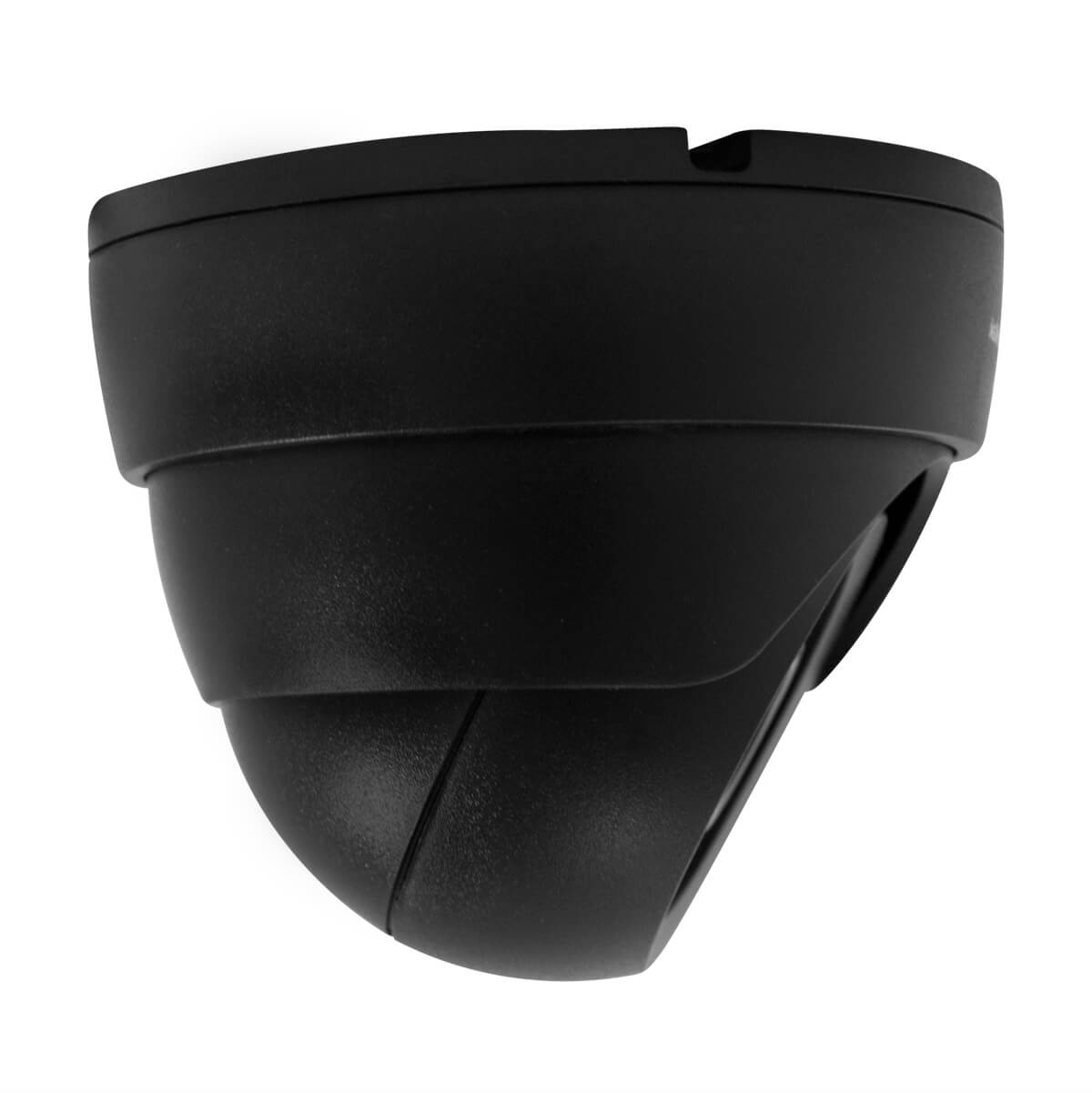

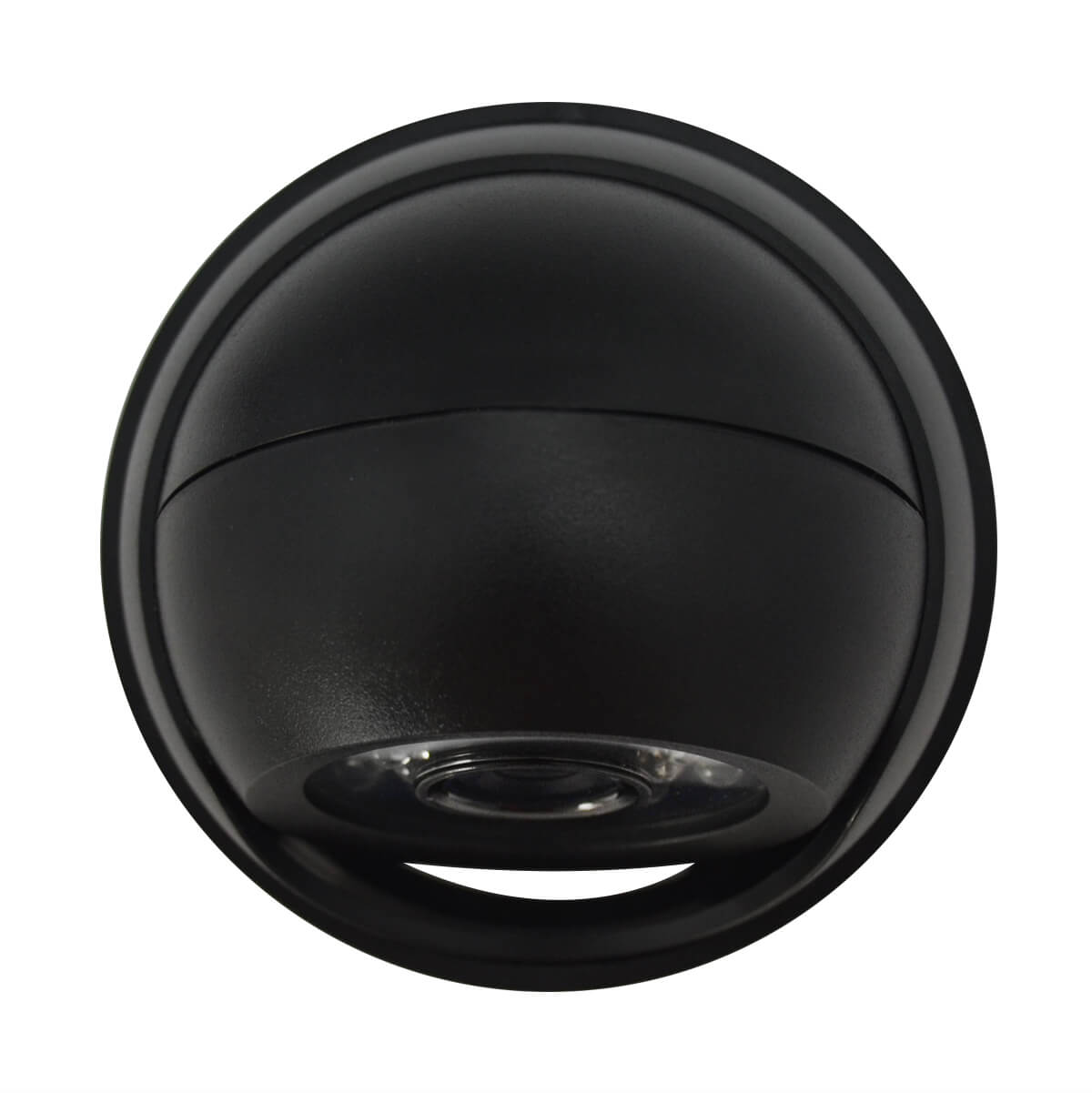

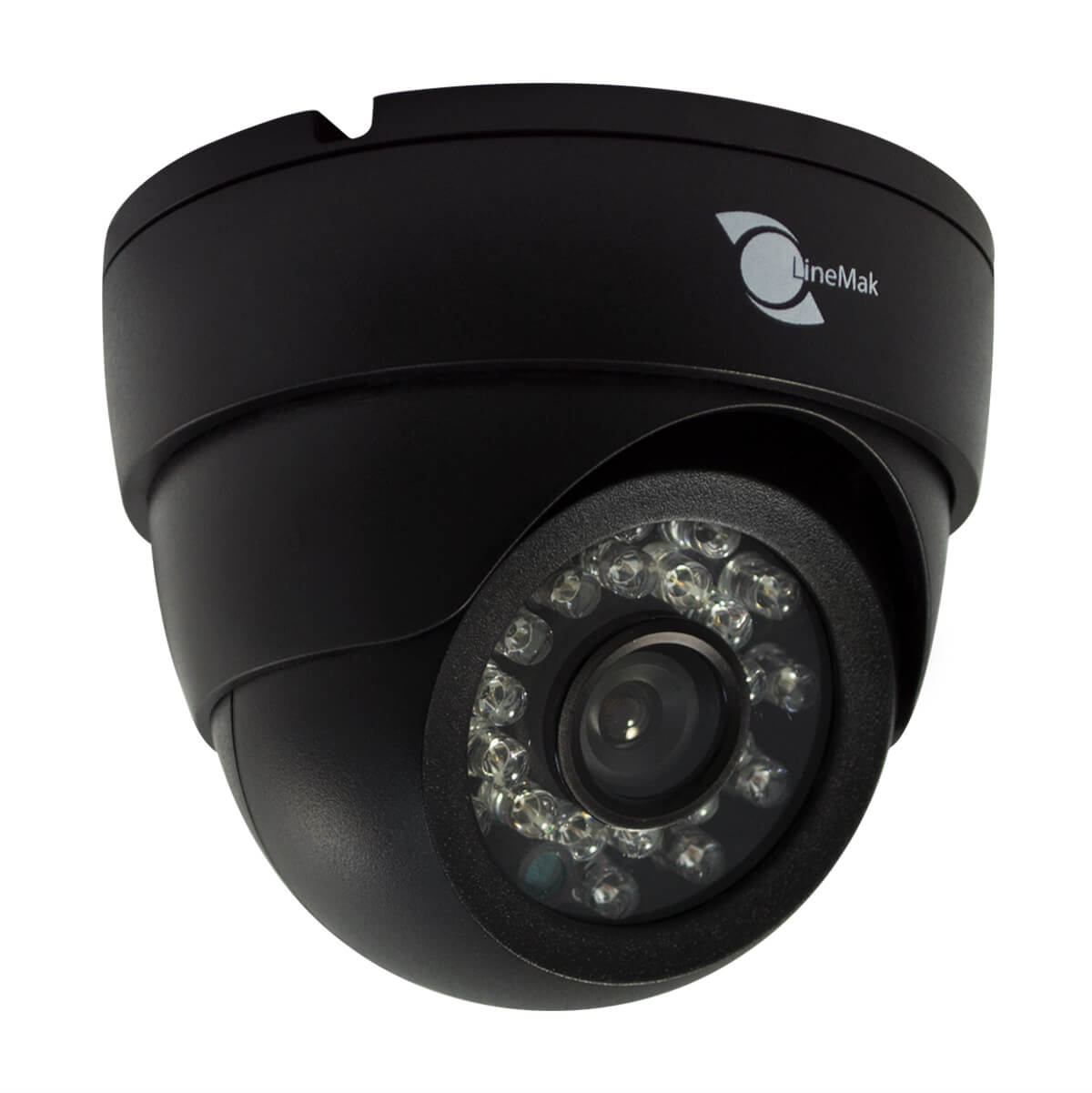

Plastic IR Dome camera, 1/3 HD Digital Sensor, 900TVL, 6mm lens
|
|
General
|
|
Brand | LineMak |
Model | LS-CD352C |
Sensor
|
|
Resolution | 900TVL |
Sensor | 1/3" HD Digital Sensor |
Effective pixels | PAL: 752*582NTSC:768*494 |
Video
|
|
Video format | PAL / NTSC |
Video output | 1.0Vp-p, 75ohm |
Lens
|
|
Lens | 6mm |
IR Range | 65ft IR night vision |
LEDs | 24pcs (5mm each) |
IR-CUT Filter | Yes |
Minimum illumination | 0 Lux (with LED on) |
Viewing angle | 53° |
IR Power ON | CDS Automatic |
Environment
|
|
Operation temperature | -20°C ~ 50°C -4°F ~ 122°F |
Power
|
|
Power supply | DC 12V |
Power consumption | 500mA |
Appearance
|
|
Color | Black |
Size | 3.54(H) * 3.94(D) inches |
Weight | 6 ounces |
Special function
|
|
Back Light Compensation (BLC) | Yes |
Auto White Balance (AWB) | Yes |
Electronic shutter speed (AES) | PAL: 1/50~1/100,000sNTSC: 1/60~1/100,000s |
Auto Gain Control (AGC) | Yes |
Digital Noise Reduction (DNR) | No |
Wide Dynamic Range (WDR) | No |
Mirror | Yes |
Adaptive Tone Reproduction (ATR) | No |
High Light Compensation (HLC) | No |
Calling routing system (CRS) | No |
Standard
|
|
Scanning system | 2:1 Interlace |
Synchronizing system | Internal |
S/N Ratio | >48dB |
