8 Channel Video Balun active receiver, with RJ45 connector 3937ft.l

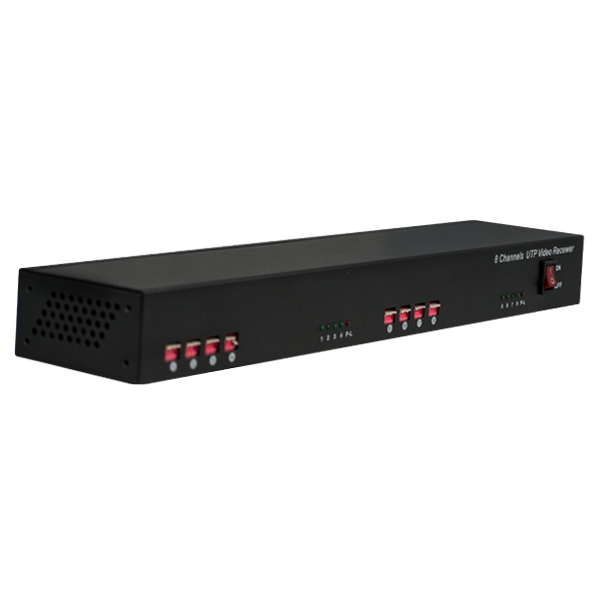

  • 8 Channel Video Balun active receiver, with RJ45 connector 3937ft.l - Image 1

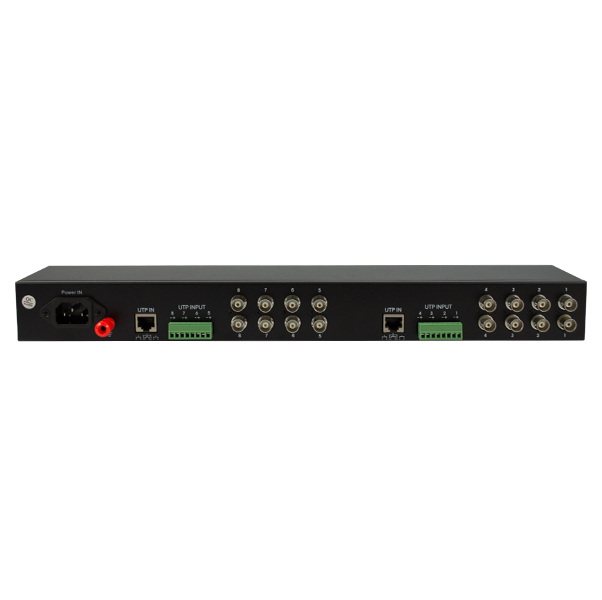

  • 8 Channel Video Balun active receiver, with RJ45 connector 3937ft.l - Image 2

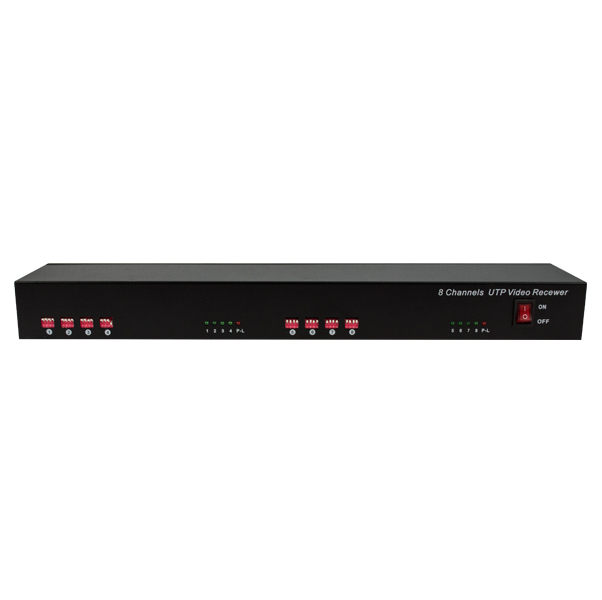

  • 8 Channel Video Balun active receiver, with RJ45 connector 3937ft.l - Image 3
  • 8 Channel Video Balun active receiver, with RJ45 connector 3937ft.l - Image 4
  • Conductor device with converter function of unbalanced transmission lines to balanced lines, through a pair of wires with opposite polarities.

    Our video balun also counts with impedance functions, whose potency varies its design and construction material of the device.

    Main features:
    - Video transmission via UTP CAT5 cable.
    - Full-motion CCTV video at distances.
    - Outstanding interference rejection and transient protection.
    - Transmission distance: 3937 ft. / 1200 m.
    Warranty: One (1) Year
  • 8 Channel Video Balun active receiver, with RJ45 connector 3937ft.l
    General
    Brand Linemak
    Model LS-UTPA108R
    Video Balun
    Frequency response DC - 8MHz
    Common mode rejection ratio 60dB
    Video Connector BNC: 75ohm
    UTP cable connector RJ45: 100ohm
    Environment
    Storage temperature -30ºC - 70ºC
    Appearance
    Size 3.35 (L) * 1.97 (H) * 16.93 (W) inches
    Weight 2.79 pounds
