Wireless magnetic contact for doors

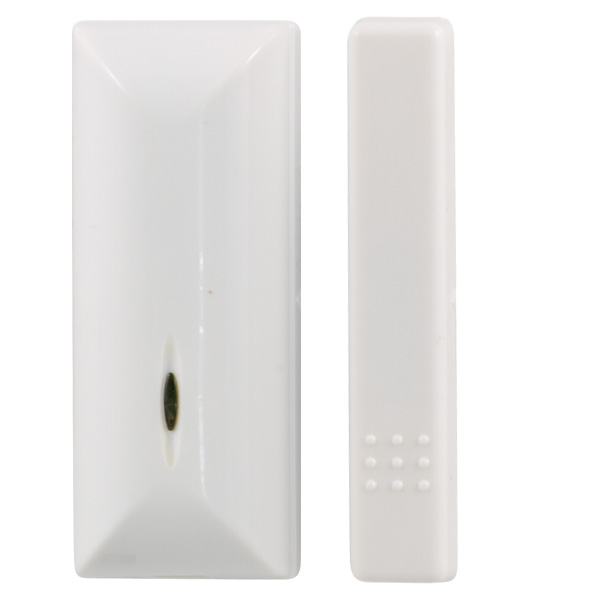

  • Wireless magnetic contact for doors - Image 1

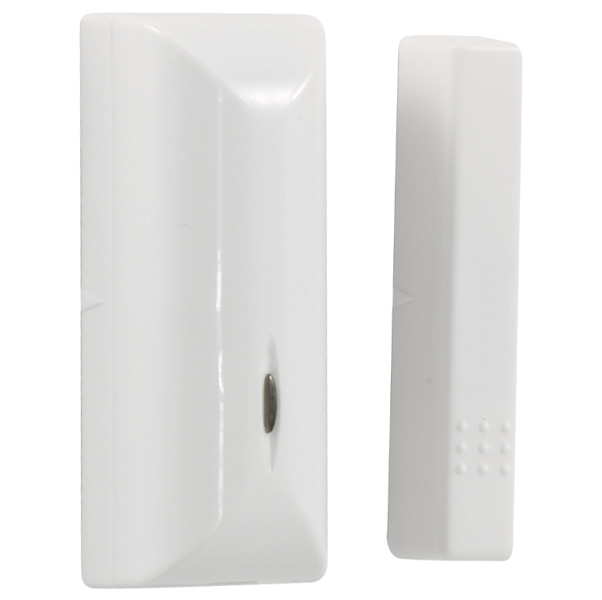

  • Wireless magnetic contact for doors - Image 2
  • - Wireless magnetic door contact.
  • - This product works perfectly with any of our central alarm systems.
  • - Tamper switch activates the alarm when its violated.
  • - Operate on one battery. Battery not included.
  • - Emitting frequency: 433MHz / 868MHz.
  • - Wireless emitting distance: 656ft
  • The LS-CM210 is a fully supervised mini style magnetic contact transmitter. It features door/ window close/open instant alarm function. It can be connected to the control panel. It can transmit strong wireless signal, having strong intensity in 150m area.

    Please code it to the control panel before using, enrolling the only one address code to the control panel. When the distance between the magnetic stripe and transmitter beyond 2.5cm the transmitter will send alarm information to the panel.

    This detector can change wired signal to wireless signal, working as a transmitter.

    Main features:
    - Magnetic door contact.
    - Wireless.
    - Operate on one CR123A battery (1).
    - Tamper switch activates the alarm when it is violated.
    - Adopt especial micro-power consuming CPU.
    - Working status automatically report.
    - Timely report when the door or window is not closed.
    - Code: 28 Digital ID, 8 digital function code, 36 digital data code in total.
    - Status report: after first electro-motion or resetting the detector, the magnetic switch reports the working status to the control panel separately after 30 seconds, 2 minutes and 6 minutes respectively. It also reports the working status every two hours to the control panel.

    This product works perfectly with any of our central alarm systems.

    This wireless item is intended to be used for our Wireless Alarm Systems such as LA-S200, LA-S300, LA-S700 and LA-S850. This item does not work as a standalone. Please keep this in mind before purchasing. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Battery not included.
    Wireless
    Wireless
    A Wireless security camera can transmit a video and audio signal to a wireless receiver through a radio band. It is sometimes required at least one cable or wire for power, however, some wireless security cameras are battery-powered, making the cameras truly wireless from top to bottom.
    Warranty: One (1) Year
  • Wireless magnetic contact for doors
    General
    Brand Linemak
    Model LA-CM210
    Alarms
    Frequency 433Mhz / 868Mhz
    Signal transmit distance 656ft (wireless antenna included)
    Power
    Power consumption 5mA (Standby)
    Emitting current: <15mA
    Working voltage 3V
    Appearance
    Color White
    Size 0.99(L) * 1.78(H) * 3.35(W) inches
    Weight 1.59 ounces
  • Manual
    File Size: 253.42 Kb
    Languages: Español
    File Type: PDF
    Instructions
    File Size: 241.43 Kb
    Languages: English
    File Type: PDF
