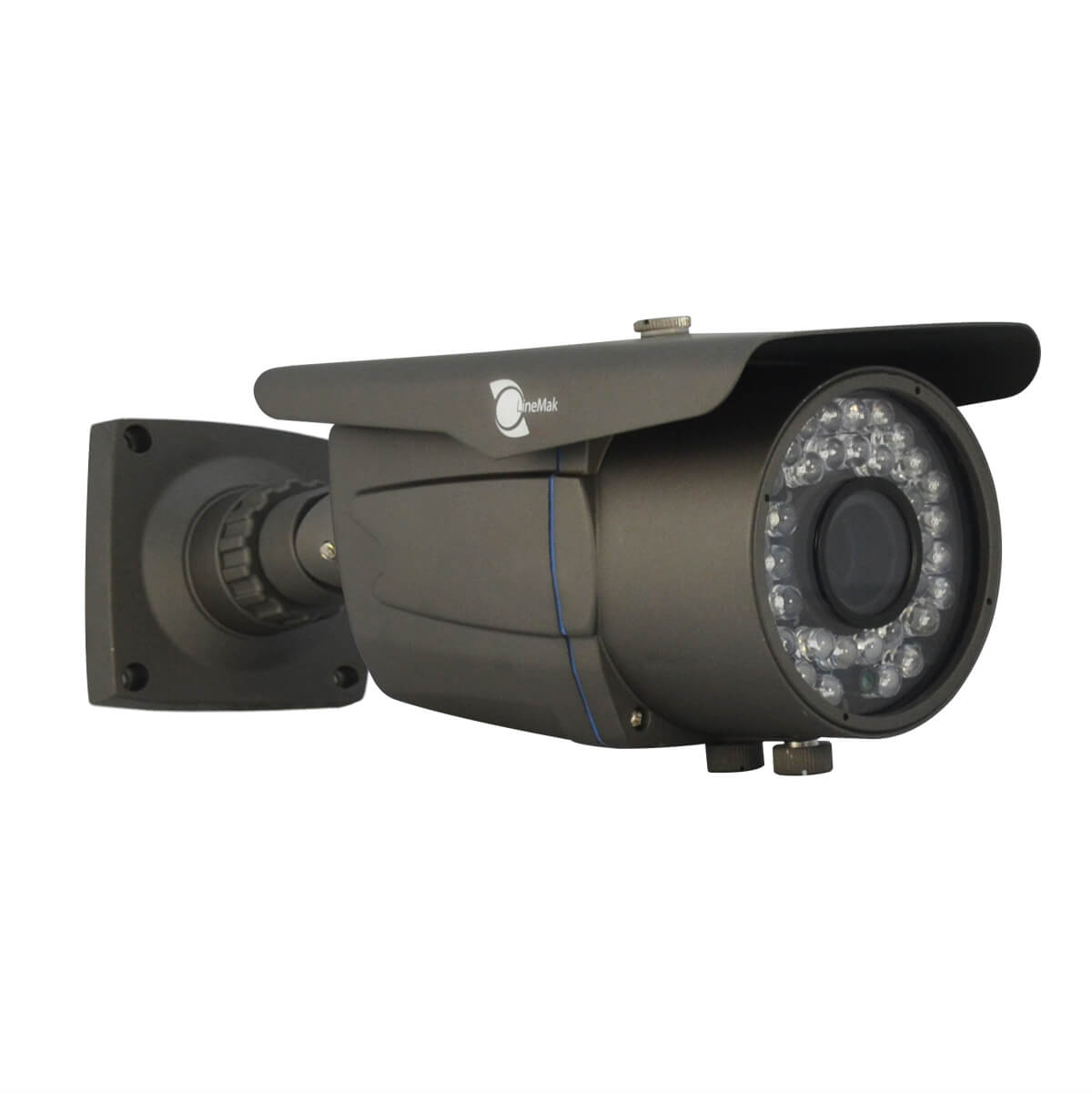

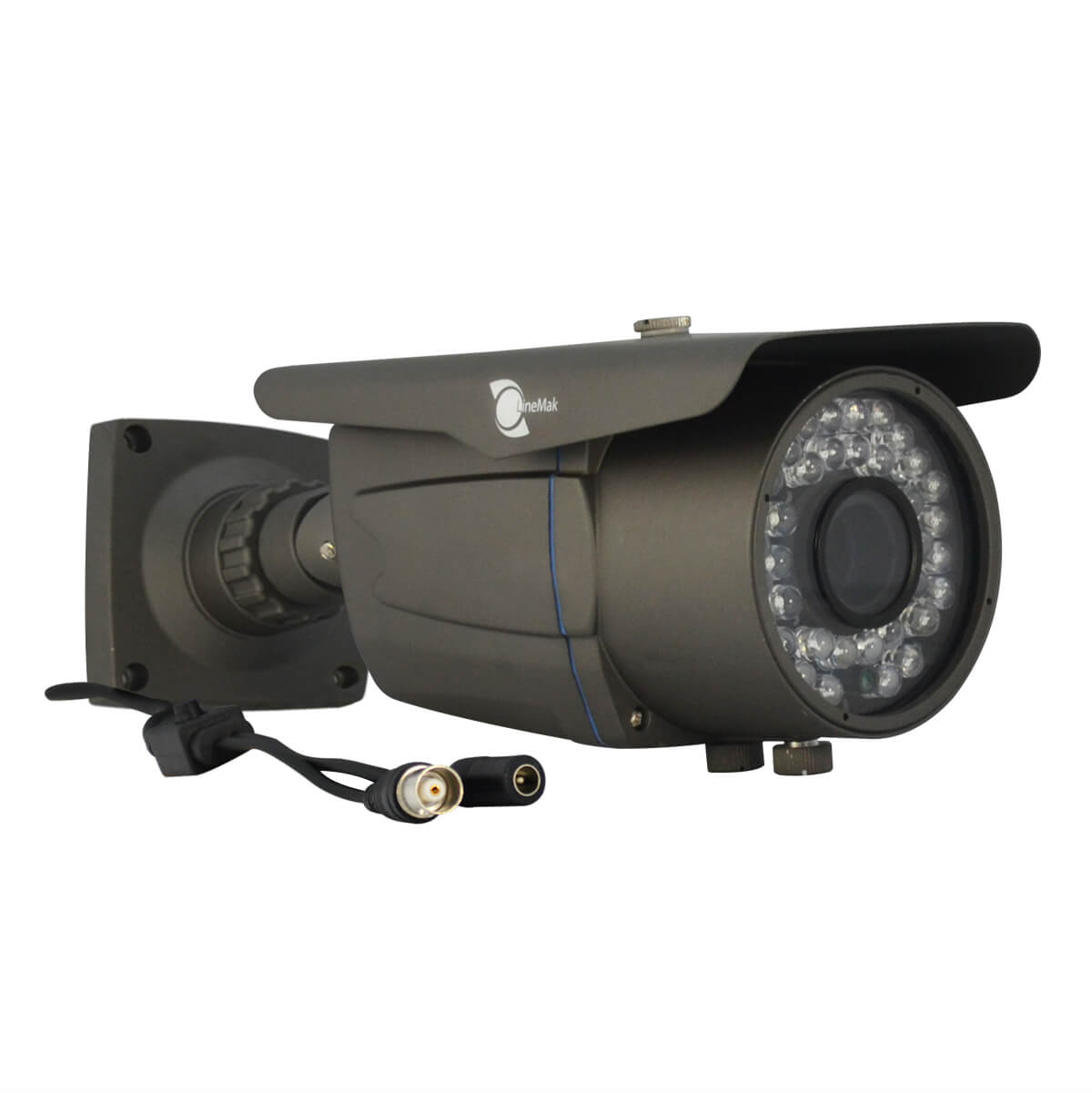

Metal IR waterproof high-resolution camera with a 2.8mm ~ 12mm lens, a viewing angle of 115? ~ 25?, a 131ft range of distance night vision and 36 pieces LEDs. Available in gray.
Top of the line equipment regarding sensor and driver.
This equipment is designed for outdoors usage and can be easily installed anywhere going unnoticed thanks to its size.
Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.
For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.
Weatherproof: IP66

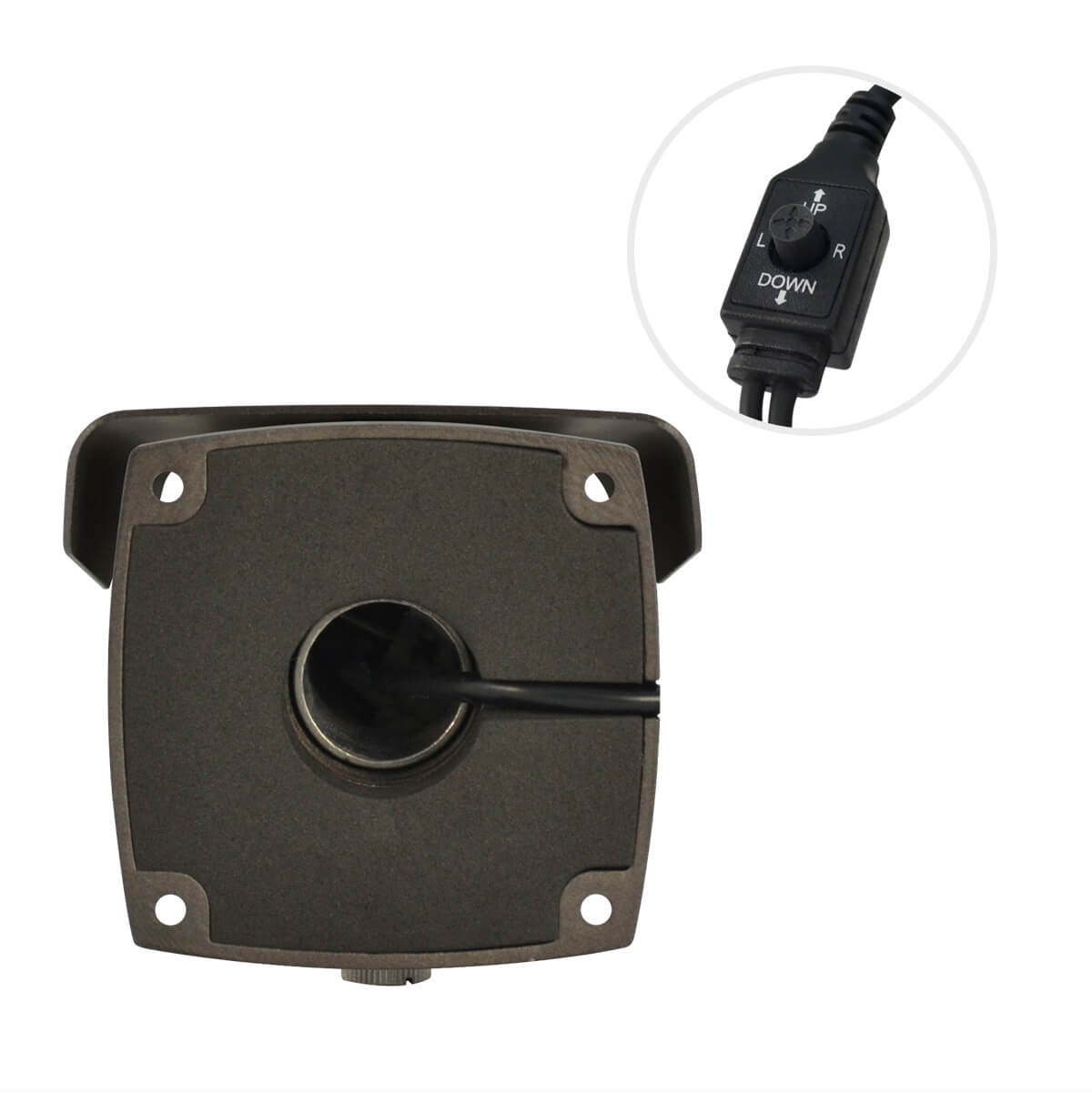

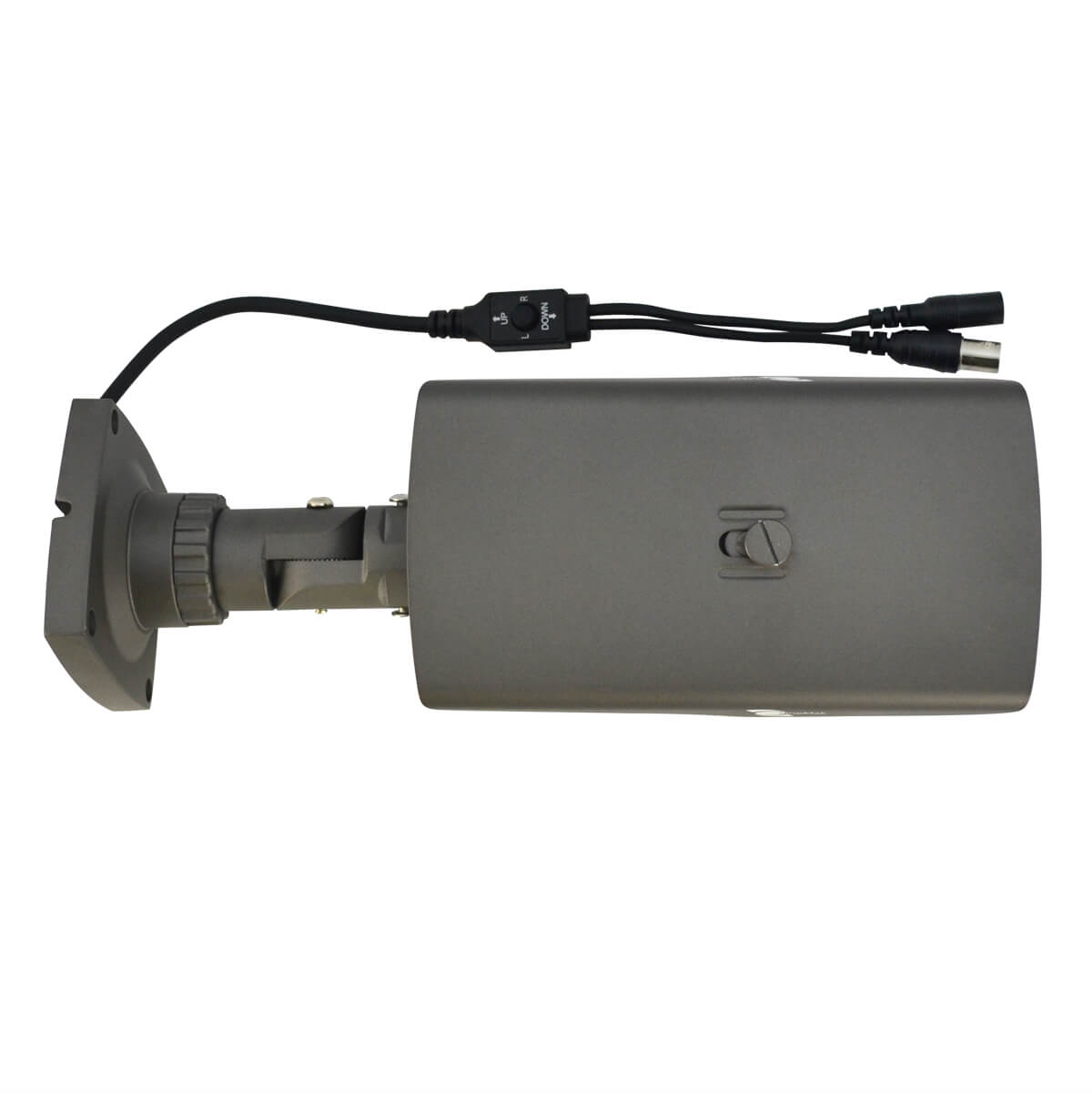

Hinged base and OSD menu included (control placed at the end of the cable).
Power adapter not included.
This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
Main features:

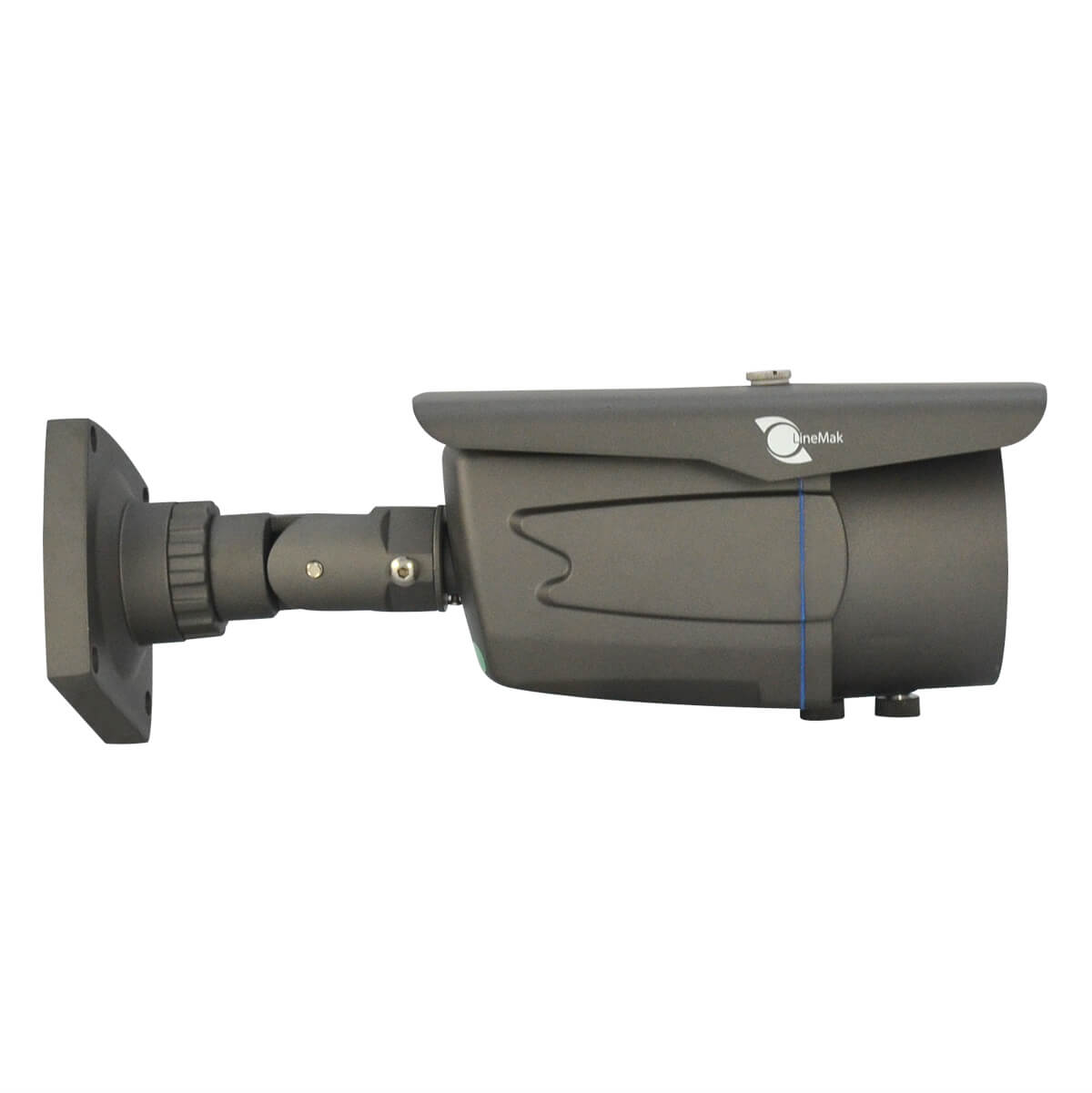

- Weatherproof IR camera with 3-Axis Bracket.

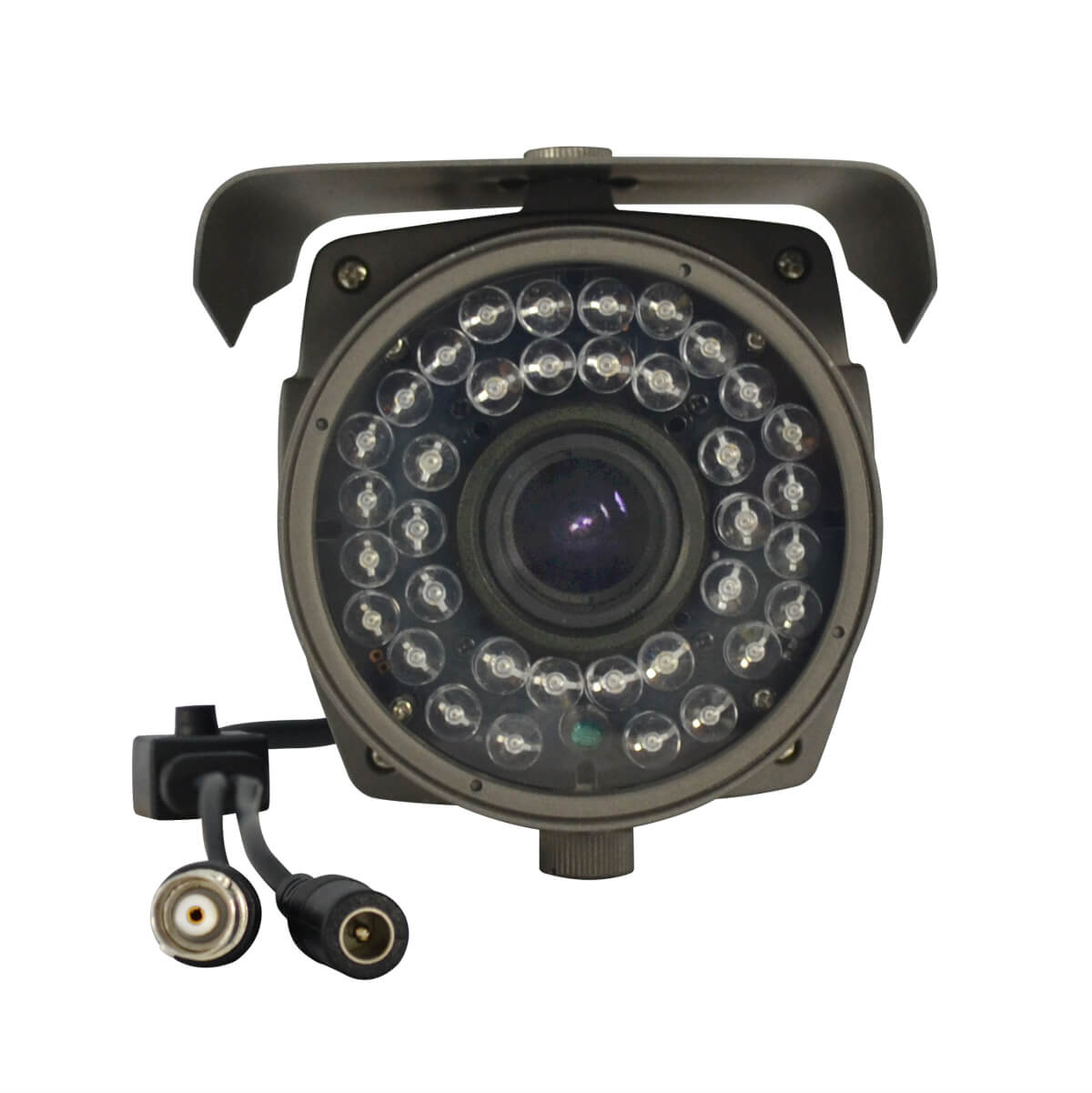

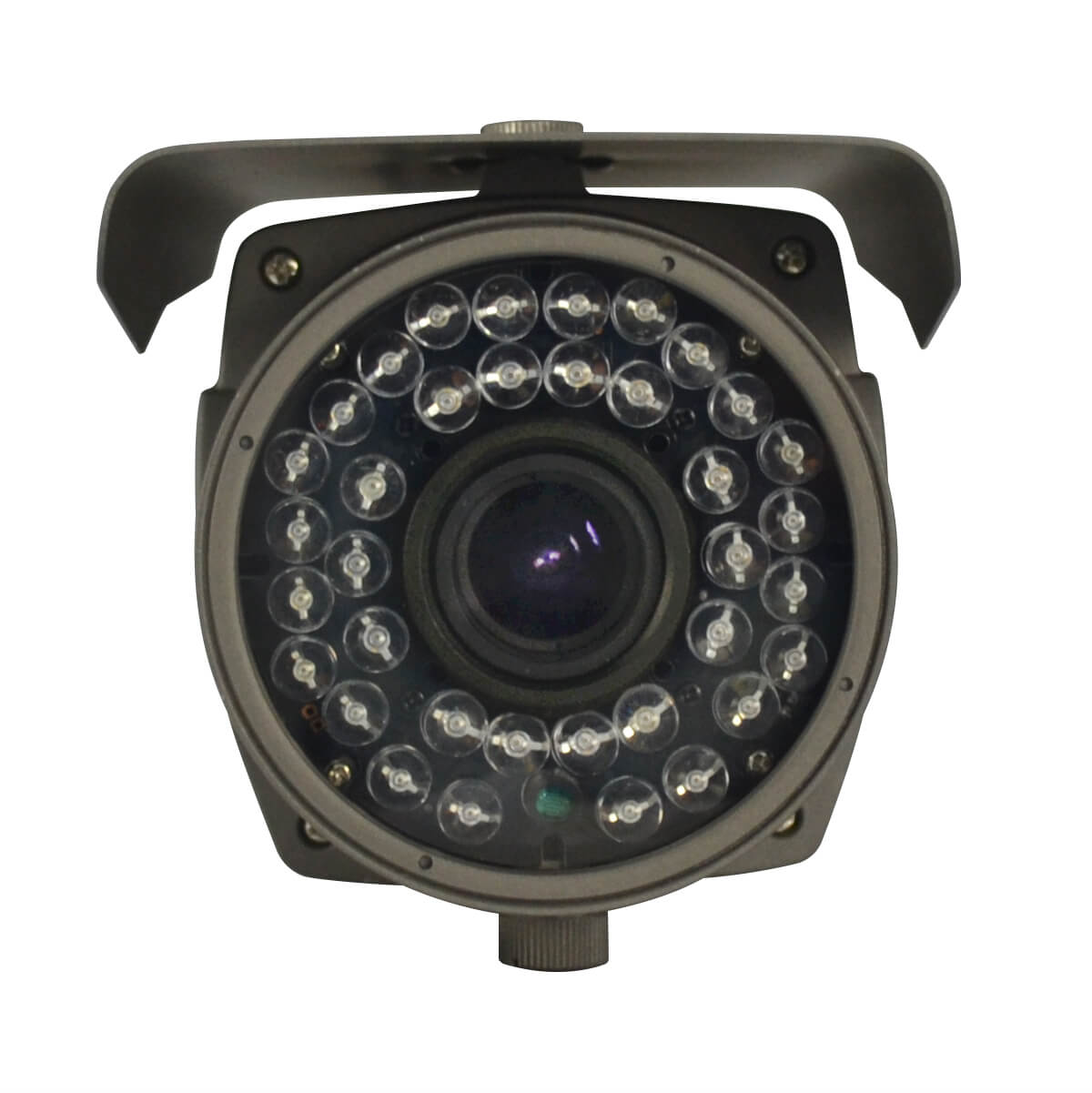

- 36pcs LEDs, 8mm each.
- 131ft IR distance.
- Water resistance: IP66.
- Cable built-in bracket.
- Real day/night feature.
- 2.8-12mm Manual Iris Varifocal.
- AWB support function: high color reproduction and real image.
- BLC support function: suitable for objects monitoring under backlight environment.
- AES support function: adapt to different monitoring environment.
- AGC support function: adaptive brightness.
- ATR, DNR and OSD menu.
IR illumination gives your cameras night vision
IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
Weatherproof cameras in a year-round protection
Our outdoor weatherproof cameras feature at least an IP66 weather rating. These outdoor cameras are built to keep out small particles such as dust and water, and are unaffected by a range of weather conditions including heavy rain and snow.
Digital Noise Reduction (DNR)
DNR incorporates frame-to-frame noise reduction with spatial noise reduction to produce clear video images with less noise, in low light conditions. It makes images clearer and reduces video file size and reduces the visibility of the random noise during playback of the video.
Automatic Electronic Shutter (AES)
To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
Auto White Balance (AWB)
Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
Back Light Compensation (BLC)
In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
Automatic Gain Control (AGC)
Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
A rear-view mirror cameras
The rear-view mirror camera imitates the function of the actual mirror including the recording function as well, reason why it is highly recommended to use the rear-view camera as a back-up means to check for obstructions behind the car and avoid using it on frozen slippery roads.
OSD Menu
Most monitors include an on screen menu for making adjustments to the display through which you can navigate through the menu and make adjustments by using the Plus (+) and Minus (-) buttons, usually located next to the menu button. OSD include basic brightness and contrast controls. This superimposed image on the screen is commonly used by modern TV sets for volume, channel and time control.
HD video
Large areas are covered by a single lens which straight-up great picture quality, design and features.
True Day/Night for round-the-clock surveillance
Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
Vandalproof
The vandal-proof provides robust protection from vandalism. If the camera has integrated housing shields from dust and water, it will be allowed to be applied in the harsh weather conditions of outdoor environments as well. A vandal-proof camera is a camera and housing intended to resist vandalism, making sure the camera will continue to operate in conditions where people attempt to break it or impair its function.
Waterproof
Waterproofing, defined as the resistance of the passage of water under hydrostatic head pressure, provide reliable solutions for all waterproofing designs and conditions.
Varifocal
Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
Warranty: One (1) Year
Bullet Camera 1/3 SONY CCD 700TVL varifocal lens OSD Menu 36 LEDs
General
Brand
LineMak
Model
LS-CI164NT
Sensor
Resolution
700TVL
Sensor
1/3" SONY Effio-E CCD
Effective pixels
PAL: 752*582NTSC:768*494
Video
Video format
PAL / NTSC
Video output
1.0Vp-p, 75ohm
Lens
Lens
2.8~12mm Varifocal
IR Range
131ft night vision
LEDs
36pcs (8mm each)
IR-CUT Filter
Included
Minimum illumination
0 Lux (with LED on)
Viewing angle
25° ~ 115°
Environment
Operation temperature
-20°C ~ 50°C -4ºF ~ 122ºF
Weatherproof standard
IP66 (protection against dust and strong water pressure)
