32 Channel DVR, H.264, BNC/VGA/HDMI, 16 Audio-in/1 Audio-out

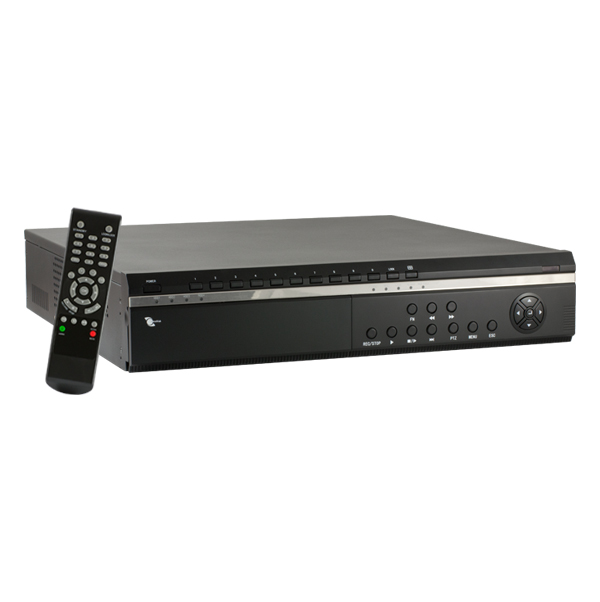

  • 32 Channel DVR, H.264, BNC/VGA/HDMI, 16 Audio-in/1 Audio-out - Image 1

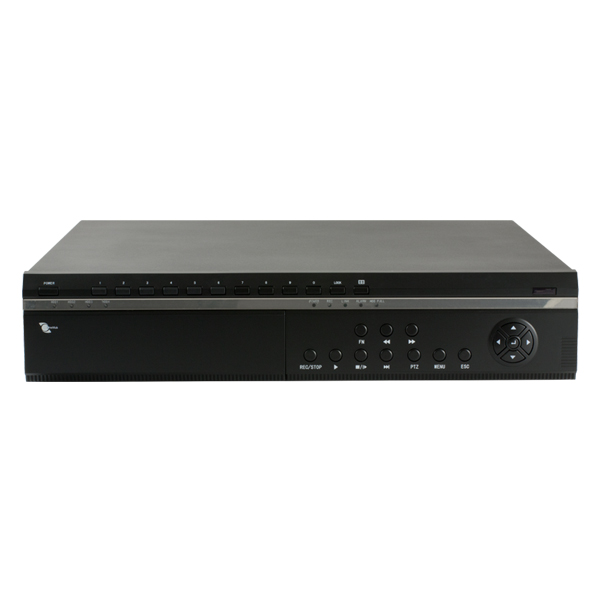

  • 32 Channel DVR, H.264, BNC/VGA/HDMI, 16 Audio-in/1 Audio-out - Image 2

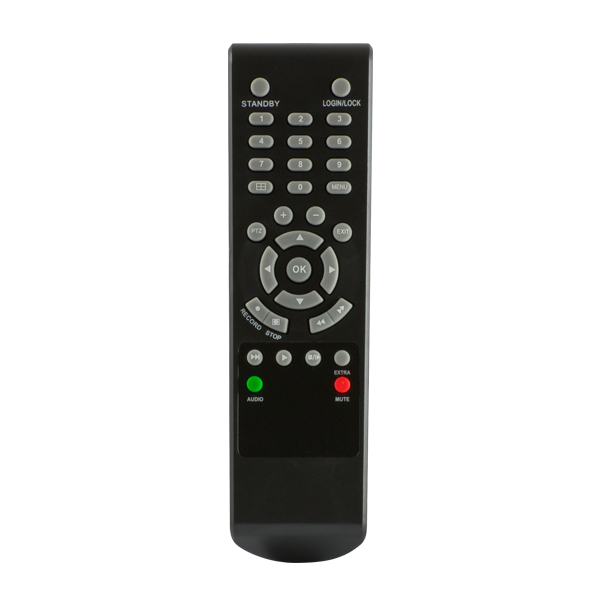

  • 32 Channel DVR, H.264, BNC/VGA/HDMI, 16 Audio-in/1 Audio-out - Image 3

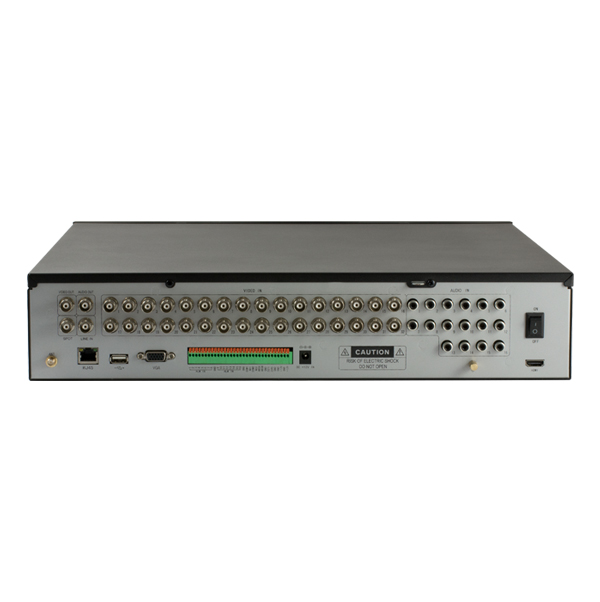

  • 32 Channel DVR, H.264, BNC/VGA/HDMI, 16 Audio-in/1 Audio-out - Image 4
  • - D1 / CIF resolution.
  • - 3G mobile phone surveillance.
  • - Wi-Fi module sold separetly.
  • - Hard drive not included.
  • - H.264 compression format.
  • - Pentaplex operation.
Products recommendaded to work with this item:
32 channel dvr, h.264, bnc/vga/hdmi, 16 audioin/1 audioout
+
ir dome camera, cmos sensor, 900tvl, 3.6mm lens, 1 led array, 49ft ir
+
ir dome camera 1/3 hd sensor, 900tvl, 3.6mm lens 24 led 65ft ir ircut
+
seagate barracuda 1 tb hdd sata 6 gb/s ncq 64mb cache
Price for all 4: $546.96
  • This easy to use DVR (Digital Video Recorder) features an English menu and motion detection recording. Monitor your cameras on the internet from anywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time. Mouse and remote control included.

    This video surveillance equipment can record images registered by their cameras and is very easy to use.

    Multiple recording modes: Manual, schedule, motion, alarm.
    Control method: USB mouse, front panel, network controller and remote control.
    Compatible with WIN98 / WIN2000 / WIN XP / WIN VISTA / WIN SEVEN.

    Main features:
    - H.264 compression format.
    - 16 RCA Audio In/1 RCA audio out.
    - Pentaplex operation (Record/Playback/Internet/Configure/PTZ).
    - 4Ch D1, 28Ch CIF real time supports.
    - Mouse, network remote, USB backup and PTZ control support.
    - 4X 2000G SATA HDD support.
    - Network: 1 RJ-45 10/100Mbps Ethernet connector.
    - 3G mobile phone surveillance.
    - HDMI/BNC/VGA outputs.

    Wi-Fi adapter needed (sold separetly).

    Hard drive not included.
    This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    HDMI delivers enhanced image clarity
    HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.
    HDMI delivers enhanced image clarity
    Keep everything under watch with multiple recording modes
    Keep everything under watch with multiple recording modes
    Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.
    Accurate alarm recording allows you to cover the whole event
    This feature works with the motion detection capability of the DVR or alarm contacts attached to a door or window. When an incident is detected, the DVR records a pre-set amount of time before and after the event to the hard drive. This enables you to see what happened before and after motion was detected and view additional information about the circumstances leading up to and after it.
    Accurate alarm recording allows you to cover the whole event
    Remote setup to access the DVR screen setting
    Remote setup to access the DVR screen setting
    DVR settings adjustment such as remote firmware upgrade, email notification, recording resolution, and motion recording. All DVR settings in the Display, Record, Device, Storage, System, Security Network and Upgrade screens are accessible remotely, for easy adjustment of related DVR functions.
    Motion detection
    Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.
    Motion detection
    WiFi
    WiFi
    A device called a wireless transmitter receives information from the internet via your broadband connection. The transmitter converts the information into a radio signal and sends it. Wireless for home security systems also act as a visible deterrent to criminals that allow you to record events at home and/or monitor staff at work.
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    Monitoring 3G
    Remote monitoring Surveillance
    Remote monitoring Surveillance
    Rely on our current and advanced technology by using any top-of-line wireless sensing device for remotely monitoring your goods or property from everywhere, every time. Be able to manipulate your security system through a simple click and have it all watched like you were nearby.
    Save money with no contracts and no monthly fees
    Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.
    Save money with no contracts and no monthly fees
    Warranty: One (1) Year
  • 32 Channel DVR, H.264, BNC/VGA/HDMI, 16 Audio-in/1 Audio-out
    General
    Brand LineMak
    Model LS-RD722W
    Video
    Resolution 4 Channels D1 real time
    28 Channels CIF full real time
    Video format PAL / NTSC
    Compression format H.264
    Display quality PAL: 704*576
    NTSC: 704*480
    Video recording NTSC: 704*480 (704*576) ~ 30fps / 704*240 (704*288) ~ 30fps / 352*240 (352*288) ~ 960fps
    PAL: 704*480 (704*576) ~ 25fps / 704*240 (704*288) ~ 25fps / 352*240 (352*288) ~ 800fps
    Recording & Playback
    Recording mode Manual, schedule, motion, alarm
    Local playback 16Ch
    Search mode Calendar, event, time search
    Storage & Backup
    Backup mode USB, DVD/RW and Network
    Interface
    Video input/output Input: 32-Ch BNC
    Output: 1-Ch BNC, 1-Ch VGA, 1-Ch Spot and 1-Ch HDMI
    Audio input/output Input: 16-Ch RCA
    Output: 1-Ch RCA
    Alarm input/output Input: 16-Ch
    Output: 2-Ch
    PTZ Control 1 RS-485 and 1 RS-232 ports
    USB Port 1 USB 2.0 port
    HDD Port 4 SATA HDDs (up to 2TB each)
    Wireless port Wi-Fi
    Network interface 1 RJ45 10M/100M Base-T port (self-adaptive Ethernet port)
    Mode control
    Operating mode USB mouse, front panel, keyboard, network controller and remote control
    Network
    Network protocol Static IP / DHCP / DDNS
    Web Browser Yes
    Remote
    Mobile surveillance Yes
    CMS Yes
    Power
    Power supply DC 12V/6A
    Appearance
    Color Black
    Size 18.12(L) * 3.94(H) * 17.33(W) inches
    Weight 14.03 pounds
    Accessories
    Remote control Yes
    Mouse Yes
