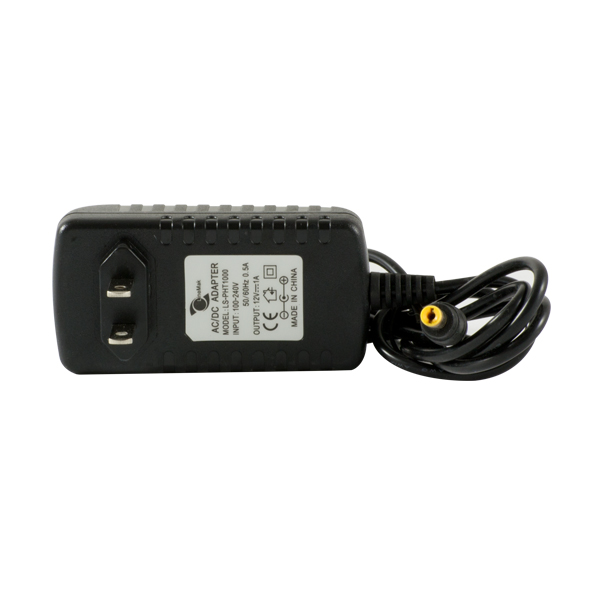

DC12V 1A Power adapter, designed to operate with security cameras
  • DC12V 1A Power adapter, designed to operate with security cameras - Image 1
  • - 1A Power adapter.
  • - Input: AC100-250V.
  • - Output: DC 12V/1A.
  • - Available in black.
  • Our LS-PHT1000 Power adapter is an independent power adapter and supplier that provides any security cameras the necessary current it need to operate properly and uninterrupted.

    Besides, we offer all of our clients a wide range of power adapters that will suit any of their requirements concerning CCTV installation.

    Main features:
    - Input voltage: 100 ~ 250 VACrms.
    - Frequency voltage: 50 ~ 60Hs.
    - Input current: 1.0amp (max) at 230V.
    - Output voltage: 1.2V.
    - Output max. load: 0.8 ~ 1.4amp.
    - Output regulation: -5%.

    Warranty: One (1) Year
  • DC12V 1A Power adapter, designed to operate with security cameras
    General
    Brand LineMak
    Model LS-PHT1000
    Environment
    Operation temperature 0°C ~ 40°C
    32°F ~ 104°F
    Storage temperature -40°C ~ 60°C
    -40°F ~ 140°F
    Working humidity 20% ~ 85%
    Power
    Ripple and noise Ripple: 20mv
    Noise: 30mv
    Efficiency 80% (min) at full load AC230V 50Hz
    Input inrush current 30A/230V (max.), 25°C cold start
    Appearance
    Color Black
    Size 3.35(L) * 1.97(H) * 1.57(L) inches
    Weight 3.35 ounces
