Replacement for power supply centralized DC12V 20A 18 channels

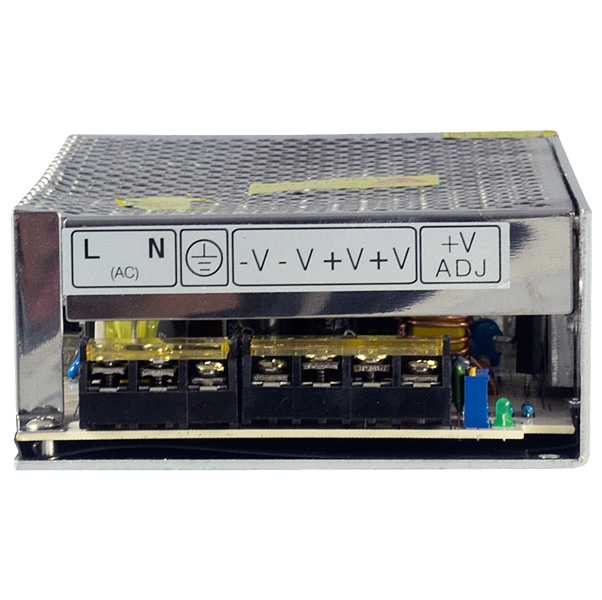

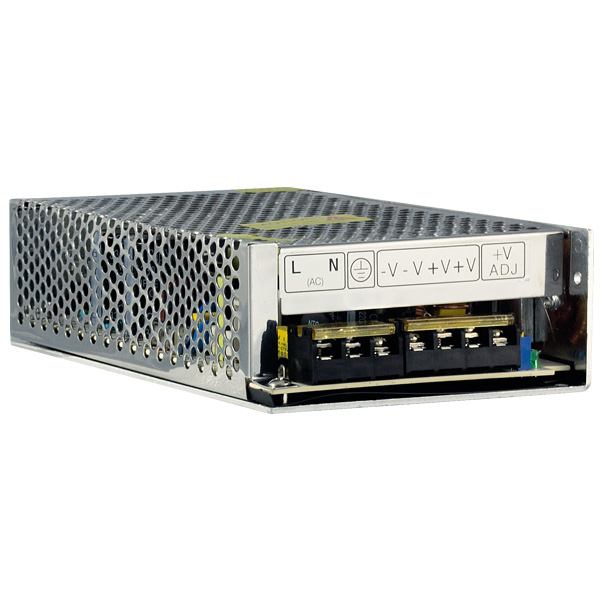

  • Replacement for power supply centralized DC12V 20A 18 channels - Image 1
  • Replacement for power supply centralized DC12V 20A 18 channels - Image 2
  • - Replacement for power supply centralized .
  • - Input: AC100~240V.
  • - Output: DC 12V/20A.
  • - Without AC cable.
  • - For 18 channel.
Products recommendaded to work with this item:
replacement for power supply centralized dc12v 20a 18 channels
+
plug connector power supply male
+
junction current femalefemale
Price for all 3: $49.99
  • Our replacements for power supply are type AT, designed to transform the AC to CC through a rectifier, a fuse and others elements that help the reception of electricity, besides of regulate, filtering it and adapt it by the need of the product that pretend to feed.

    Main features
    - Input: AC100~240V.
    - Output: DC 12V/20A.
    - For 18 channel.

    Without AC cable.
    Warranty: One (1) Year
  • Replacement for power supply centralized DC12V 20A 18 channels
    General
    Brand LineMak
    Model LS-P240W
    Environment
    Operation temperature 20%~80%
    Working humidity 20%~80%
    Barometric pressure 86~106kpa
    Power
    Stabilized voltage accuracy ±1%
    Load stability <=1%
    Voltage stability <=5%
    Ripple and noise <=150mv
    Efficiency >=80%
    Hold time >=20ms
    Short-circuit Protection Auto recovery
    Noise <=55db
    Input inrush current Less than 50 times of standand input current value
    Power factor >=0.55
    Leakage current <=3.5ma
    Appearance
    Color Gray
    Size 1.63 pounds
    Weight 9.65(L) * 1.97(H) * 4.33(W) inches
