Video tester with LCD color display for Security Cameras.

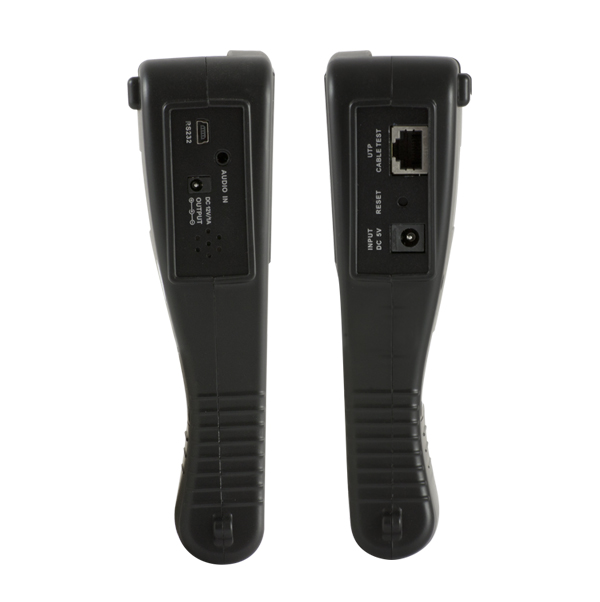

  • Video tester with LCD color display for Security Cameras. - Image 1

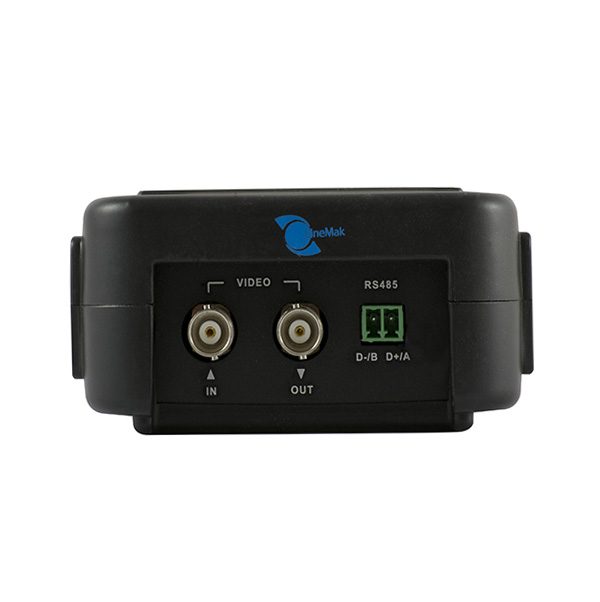

  • Video tester with LCD color display for Security Cameras. - Image 2

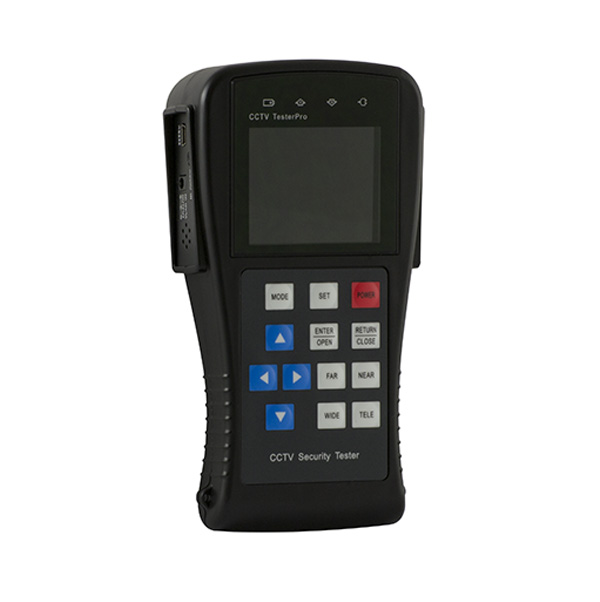

  • Video tester with LCD color display for Security Cameras. - Image 3
  • - 2.8" TFT-LCD
  • - Video displaying. Video generating.
  • - Audio input test.
  • - PTZ control. PTZ continuing rotate test.
  • - Data analyst. Multi-protocol.
  • - Cable testing.
  • Video tester with LCD color display, excellent for focus adjustment of cameras, one advantage of this tester is that it can adjust more easily ptz cameras allowing you to work more comfortably (accepts a variety of protocols).

    Main Features:
    - 2.8" TFT-LCD, 960*240 resolution.
    - Video level testing, video signals measured in IRE or mV.
    - DC 12V/1A power output for camera.
    - Audio input test, testing the audio signal from pickup devices.
    - PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and calls the preset position.
    - PTZ continuing rotate test.
    - Video displaying. Automatically adapts and displays the video format of NTSC/PAL. LCD Brightness/Contrast/Color Saturation are adjustable.
    - Video Generating, The PAL/NTSC multi-system color bar video generator (seven-system switchable, transmit/receive seven-system colorful imagines).
    - Data analyst. Captures and analyzes RS485 controlling data to help the technician to find out the problem.
    - Cable testing. It is powerful in testing LAN cable, measuring the connecting status, displaying the sequence of connection and the NO. of the LAN cable.
    - Multi-interface and Multi-baud rate. RS232, RS485 and RS422 interface support; baud rate ranging from 150, 600 to 19200bps.
    - Multi-protocol. More than twenty PTZ protocols support. For example, PELCO-P, PELCO-D, SAMSUNG etc.
    - PTZ address scanning, search up the ID of PTZ camera.
    - Lithium Ion Polymer Battery (3.7V DC2800mAh). The device employs advanced power control and protection circuit. The device is high power-efficient, energy saving and environmental protection. It can last 15 hours for normal use after charging for 4 hours.
    Warranty: One (1) Year
  • Video tester with LCD color display for Security Cameras.
    General
    Brand LineMak
    Model LS-CT891
    LCD Panel
    Monitor 2.8 inch digital TFT-LCD
    Video Test
    Monitor 2.8" digital TFT-LCD
    Video format NTSC / PAL (Auto adapt)
    Effective pixels 960*240 resolution
    Video output 1.0 Vp-p
    LCD adjusment Brightness, contrast, saturation adjustable
    Video input/output Input: 1 Channel BNC
    Output: 1 Channel
    Video level test Video signals measured in IRE or mV
    Audio Test
    Audio input test Yes
    PTZ Test
    PTZ Control RS485, RS232 and RS422 simplex
    Communication protocol Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.
    Baud rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
    UTP cable test Test UTP cable connection status and display in the screen. Read the number of the test box
    Color bar generation Output channel colorbar video signal for testing monitor or video cable
    Environment
    Operation temperature -10°C ~ 50°C
    Working humidity 30% ~ 90%
    Power
    Power supply DC 12V/1A
    Battery Built-in 3.7V Lithium polymer battery, 2000mAh
    Energy Reserve Energy saving technology
    Appearance
    Color Black
    Size 21.65 (L) * 7.09 (H) * 3.94 (W) inches
    Weight 9.70 ounces
