Video tester with 3.5 LCD color display for Security Cameras

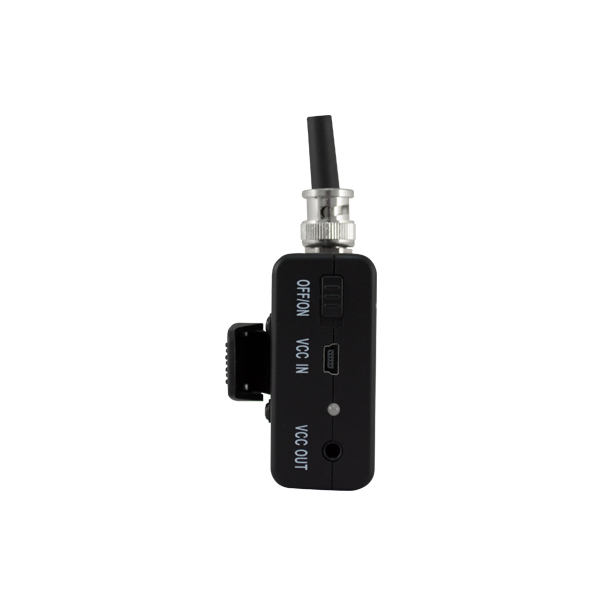

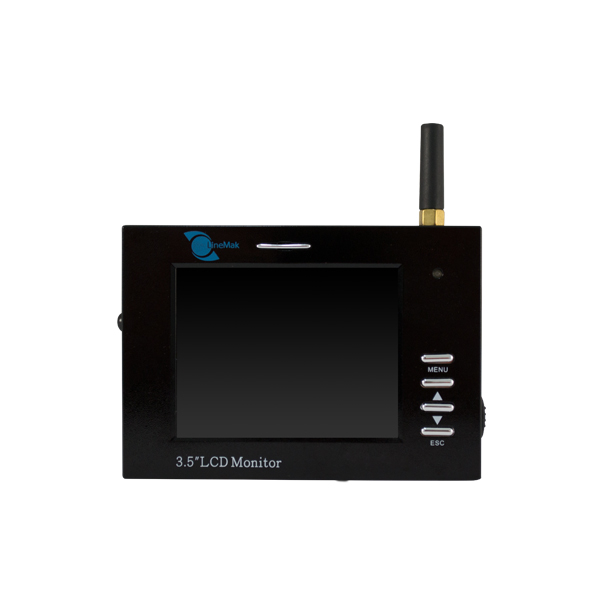

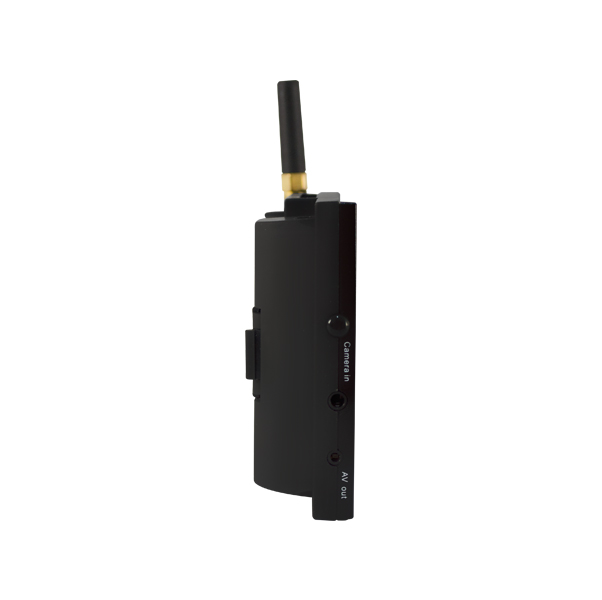

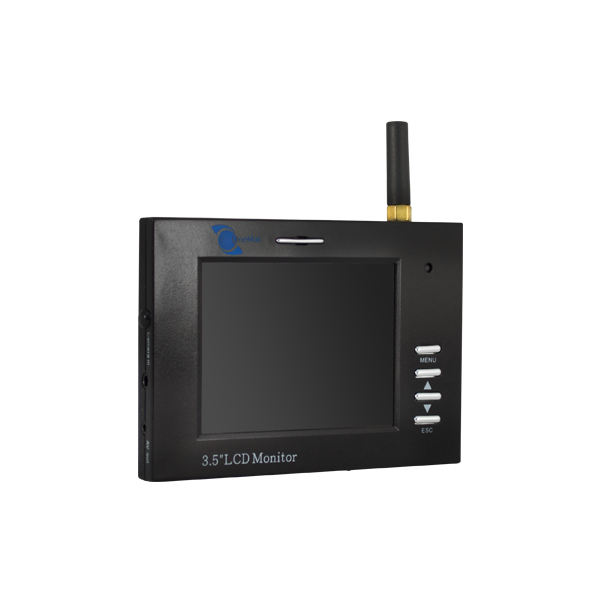

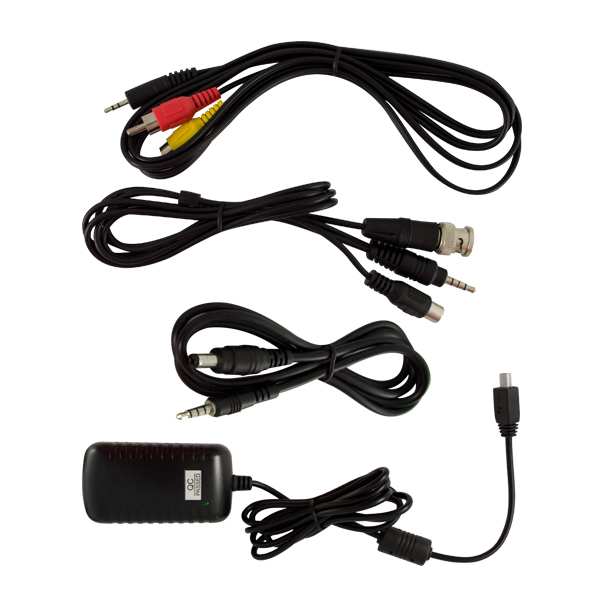

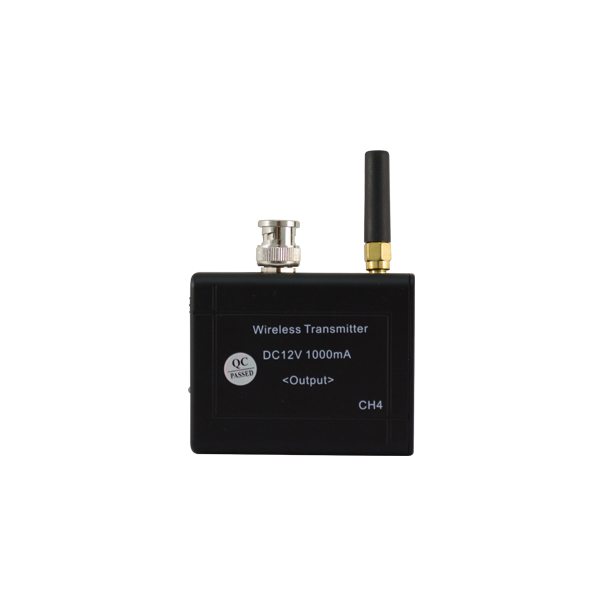

  • Video tester with 3.5 LCD color display for Security Cameras - Image 1
  • Video tester with 3.5 LCD color display for Security Cameras - Image 2
  • Video tester with 3.5 LCD color display for Security Cameras - Image 3
  • Video tester with 3.5 LCD color display for Security Cameras - Image 4
  • Video tester with 3.5 LCD color display for Security Cameras - Image 5
  • Video tester with 3.5 LCD color display for Security Cameras - Image 6
  • - LED backlight provides longer life.
  • - Manual color adjustment.
  • - Low power consumption.
  • - Battery included.
  • - Case of ABS plastic.
  • - DC12V output to camera for emergency working.
  • Video tester 3.5" LCD color, Portable device with tester function and video measurer, allows the verification of connection and working of the camera, especially, during installations of irregular range that difficults the direct maneuver of security equipment.

    Main Features:
    - LED backlight provides longer life,uses less power and provides better color saturation.
    - Battery for field monitor use included.
    - Ideal for trouble shooting system setup/fault location.
    - Manual color adjustment.
    - Low power consumption.
    - Case made of durable ABS plastic.
    - Battery provides 5 hrs continuous operation.
    - Snap-on battery pack holds 1 Lithium rechargeable batteries (batteries included).
    - Manual controls for brightness, color, contrast.
    - DC12V output to camera for emergency working.
    Warranty: One (1) Year
  • Video tester with 3.5 LCD color display for Security Cameras
    General
    Brand LineMak
    Model LS-CT835W
    LCD Panel
    Display area 70.0mm(H)*52.5mm(V)
    Resolution 320(H)*240(V)
    Brightness 250cd/?
    Aspect ratio 4:3
    Baklight life span >50000
    Color 16.7M
    Contrast ratio 350:1
    Response time 15ms
    Viewing angle Up: 40
    Down: 60
    Left: 60
    Right: 60
    Dot pitch 0.22mm(H)*0.22mm(V)
    Video Test
    Video format PAL / NTSC
    Video output 1.0Vp-p 75ohm
    Video input/output Input: 1-Ch BNC
    Audio Test
    Audio input test 1.0Vp-p/1Khz
    Mode control
    Touch button Support
    Environment
    Operation temperature 0°C ~ 60°C
    Working humidity 5% ~ 95% RH
    Temperature control 0~6 °C
    Power
    Power supply DC 12V/350mA
    Power consumption 4W
    Working voltage DC 5V ~ DC 12V
    Battery DC4.8V 2500mAh
    Appearance
    Color Black
    Size 1.2(L) * 3.3(H) * 4.7(W) inches
    Weight 9.7 ounces
