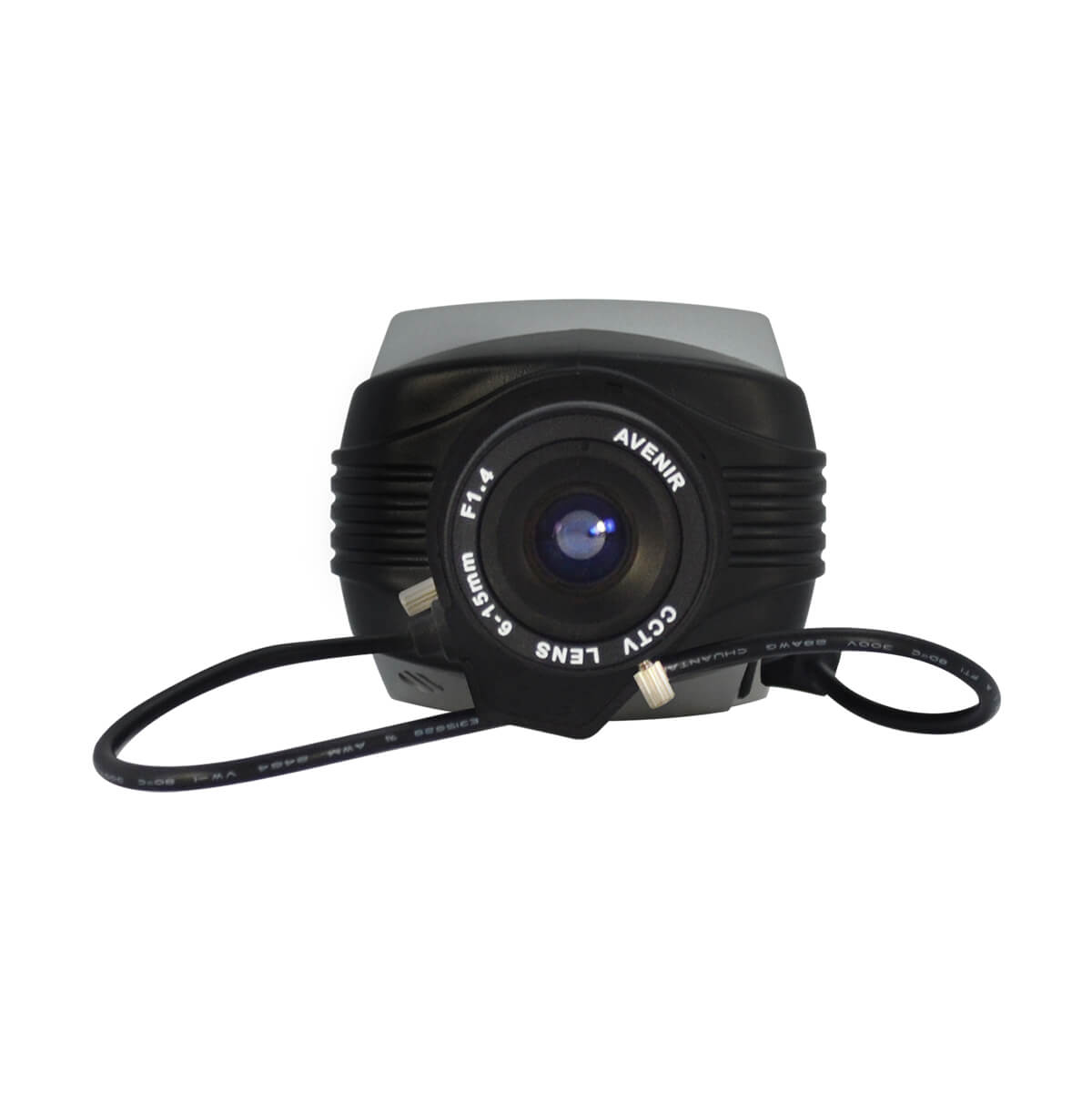

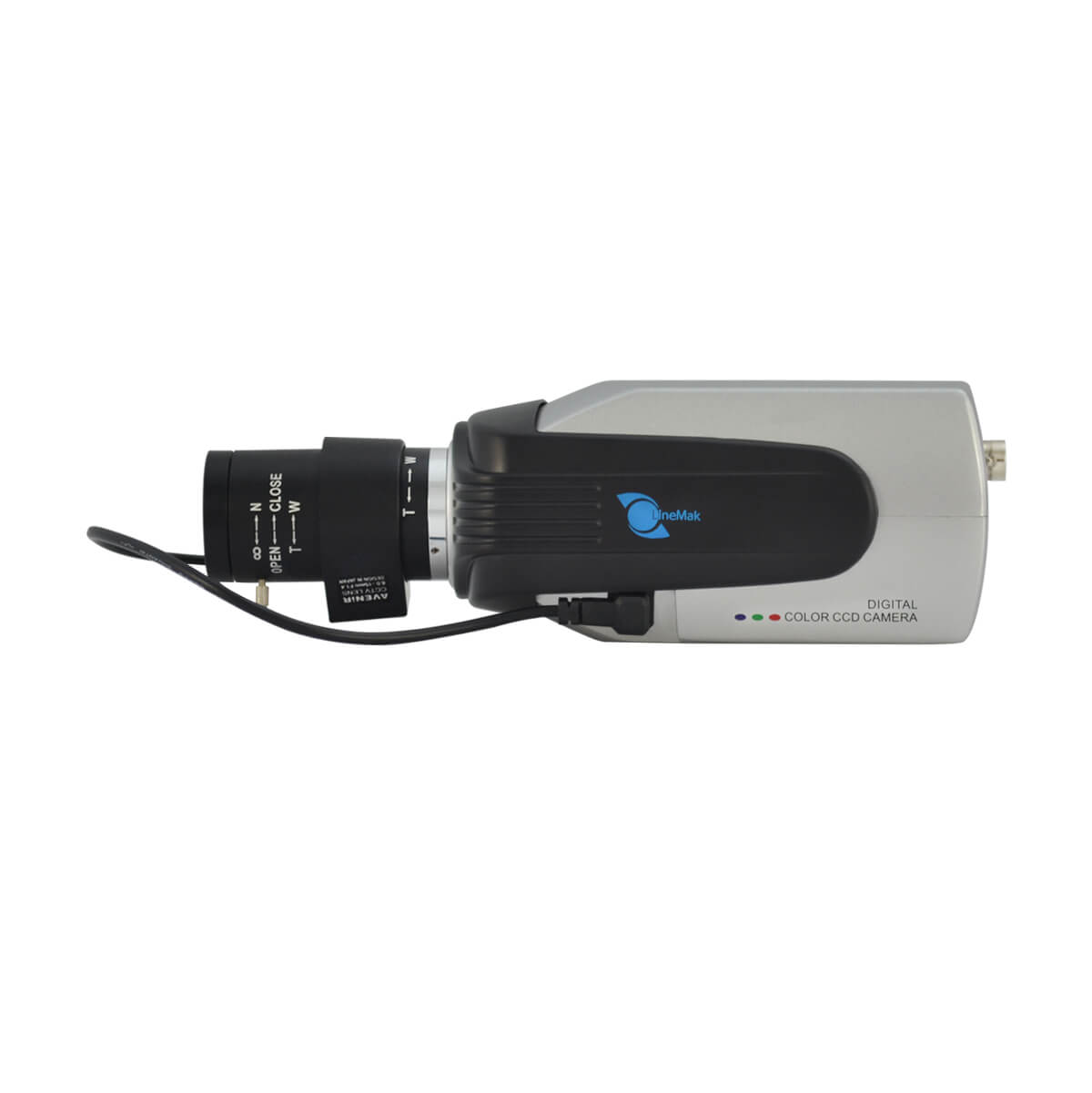

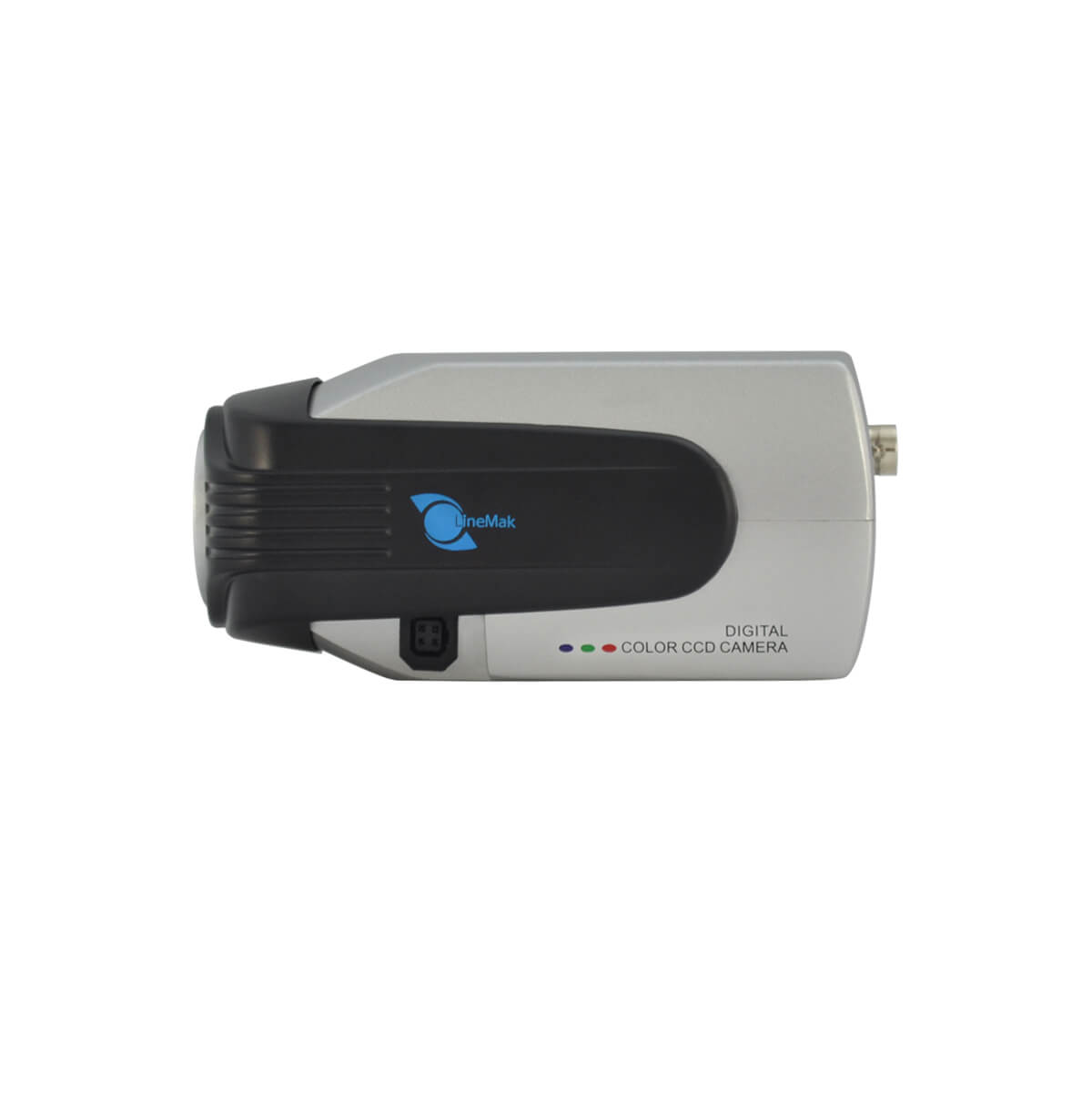

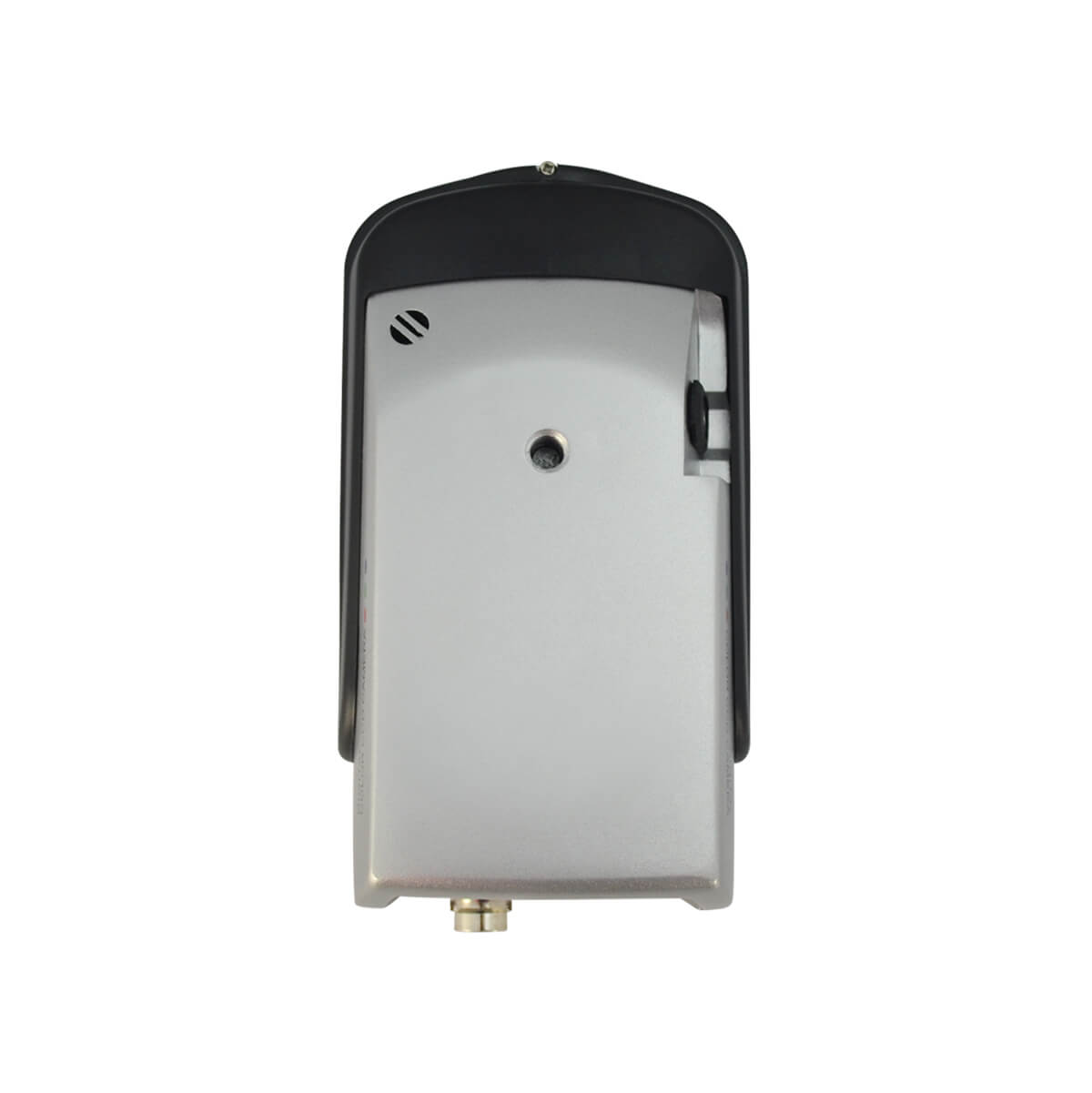

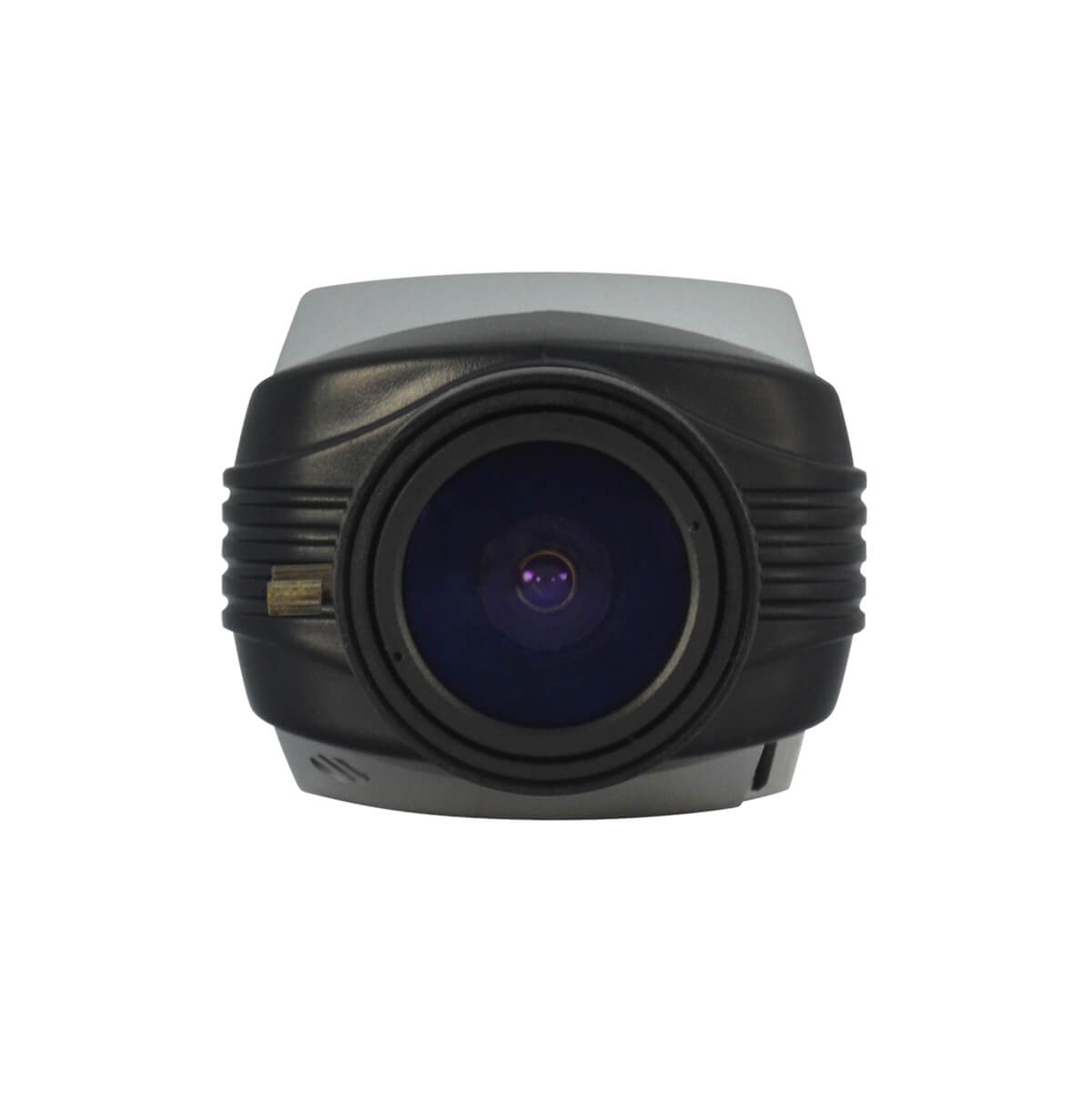

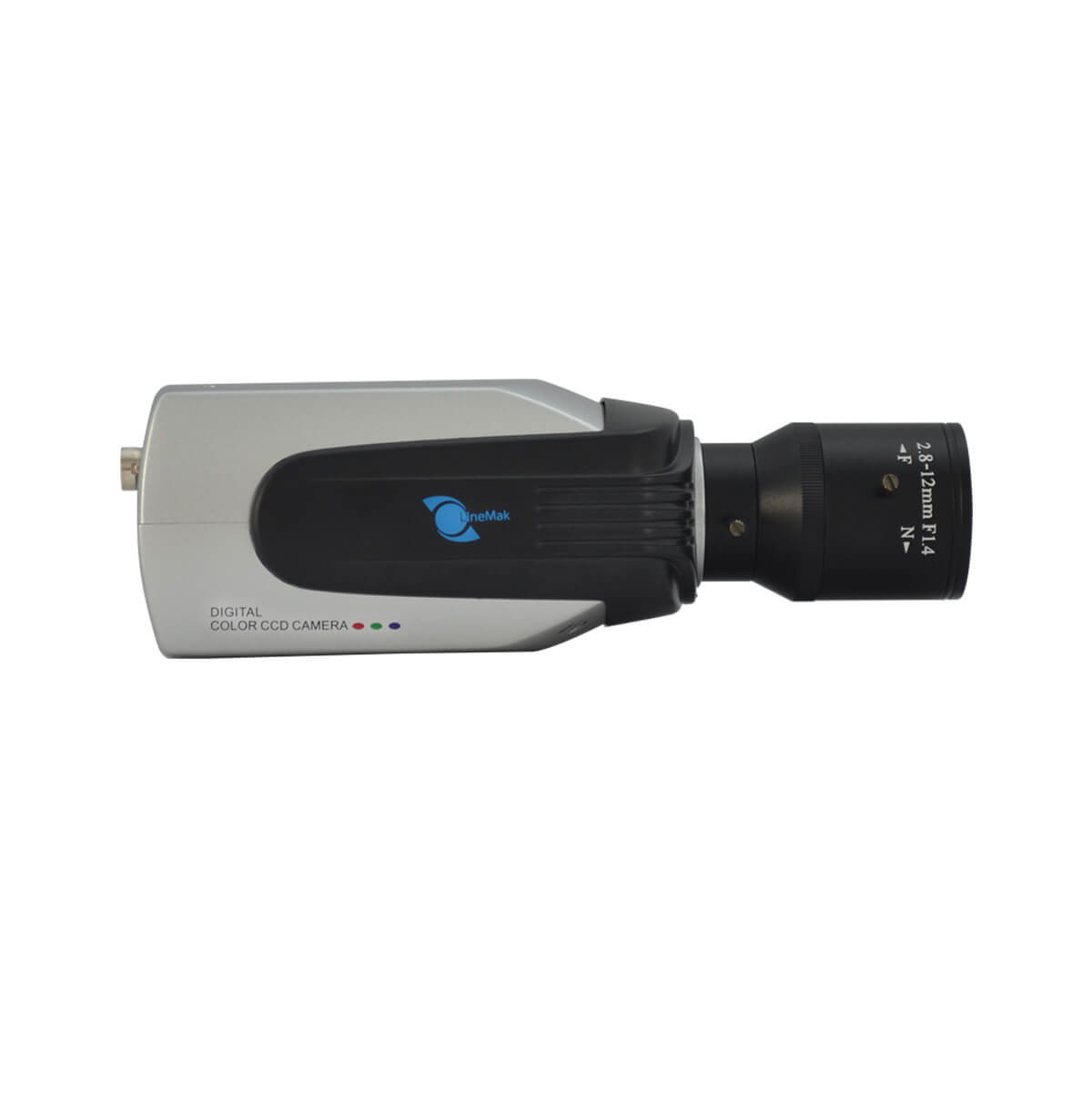

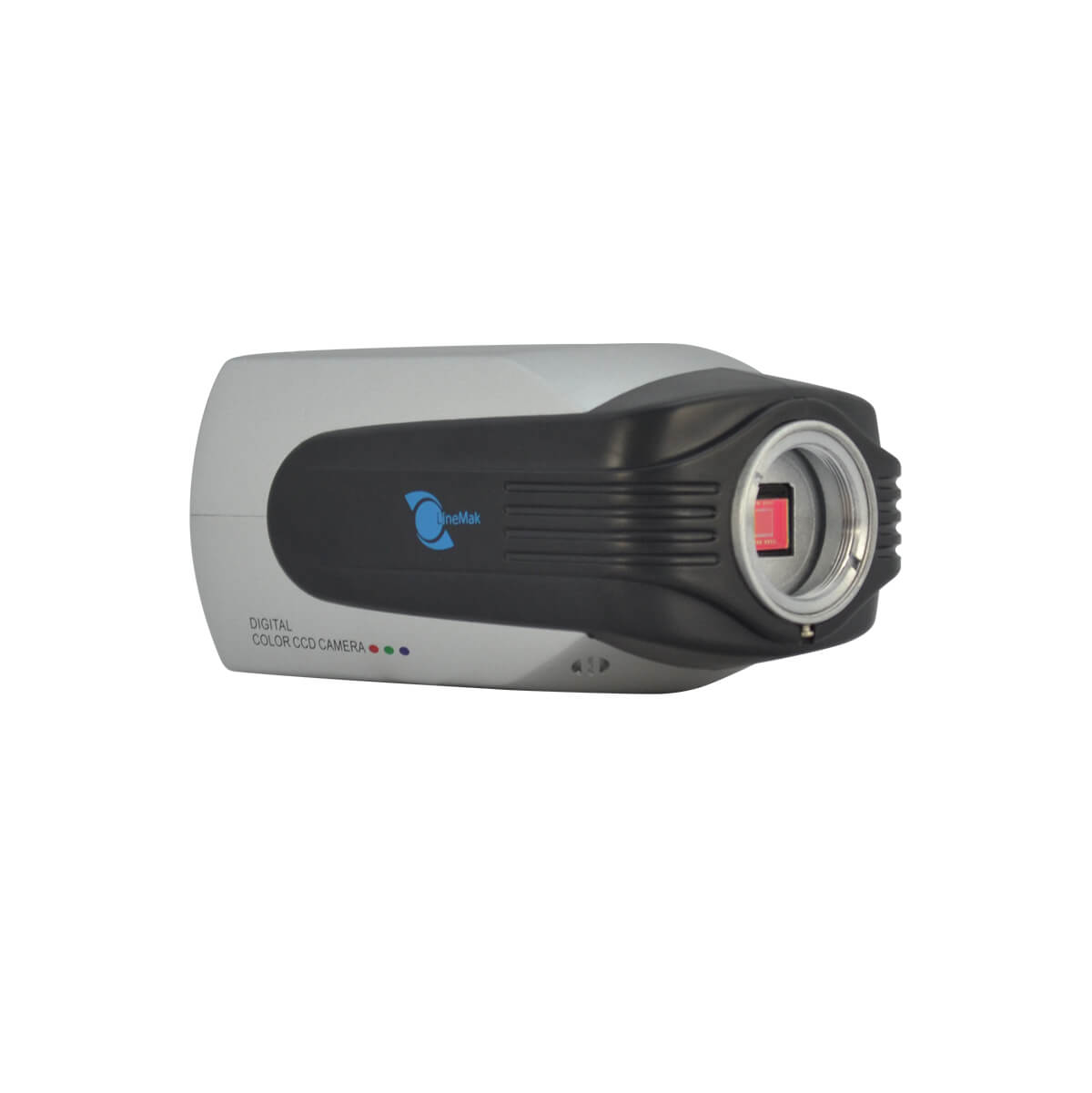

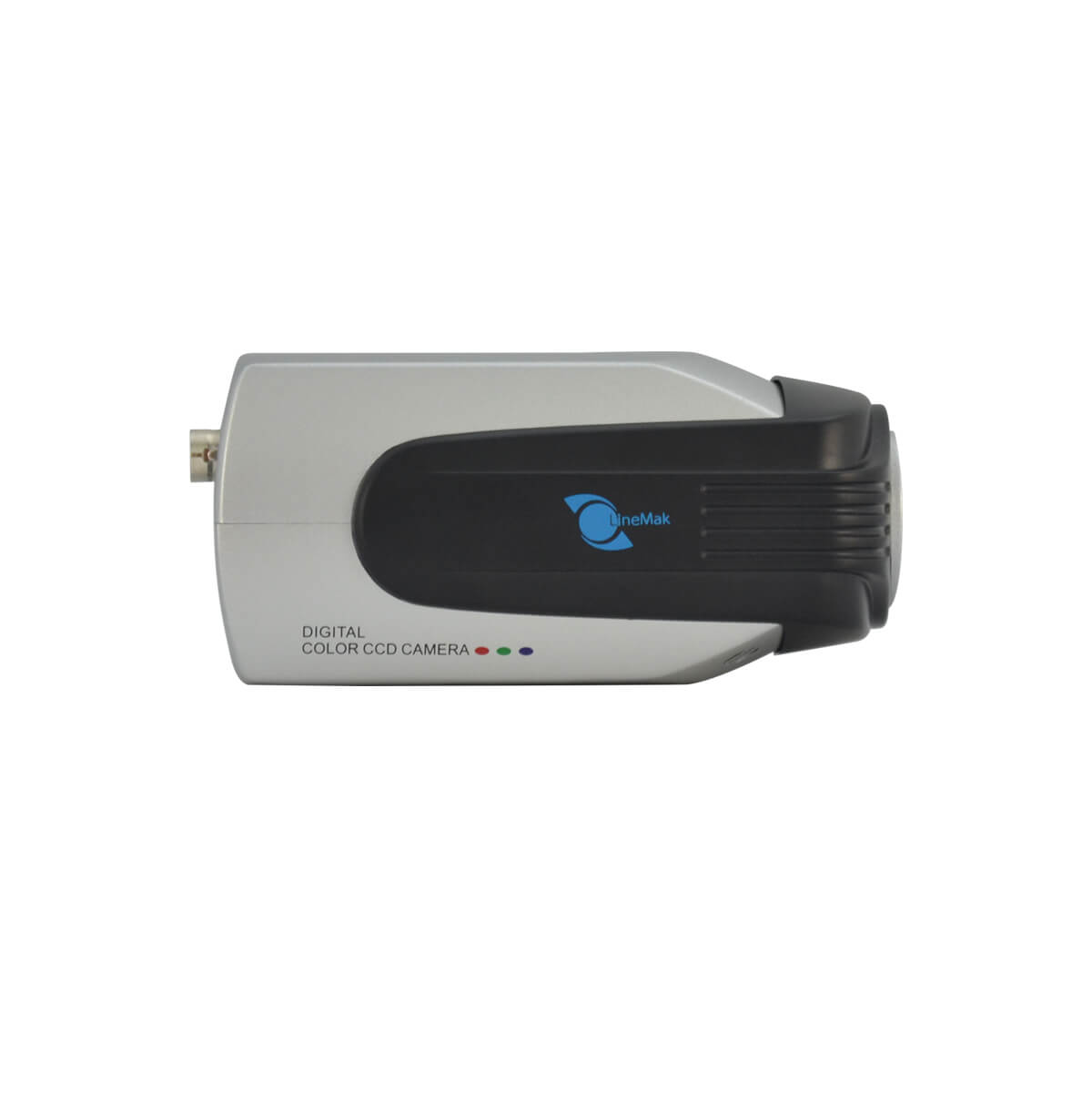

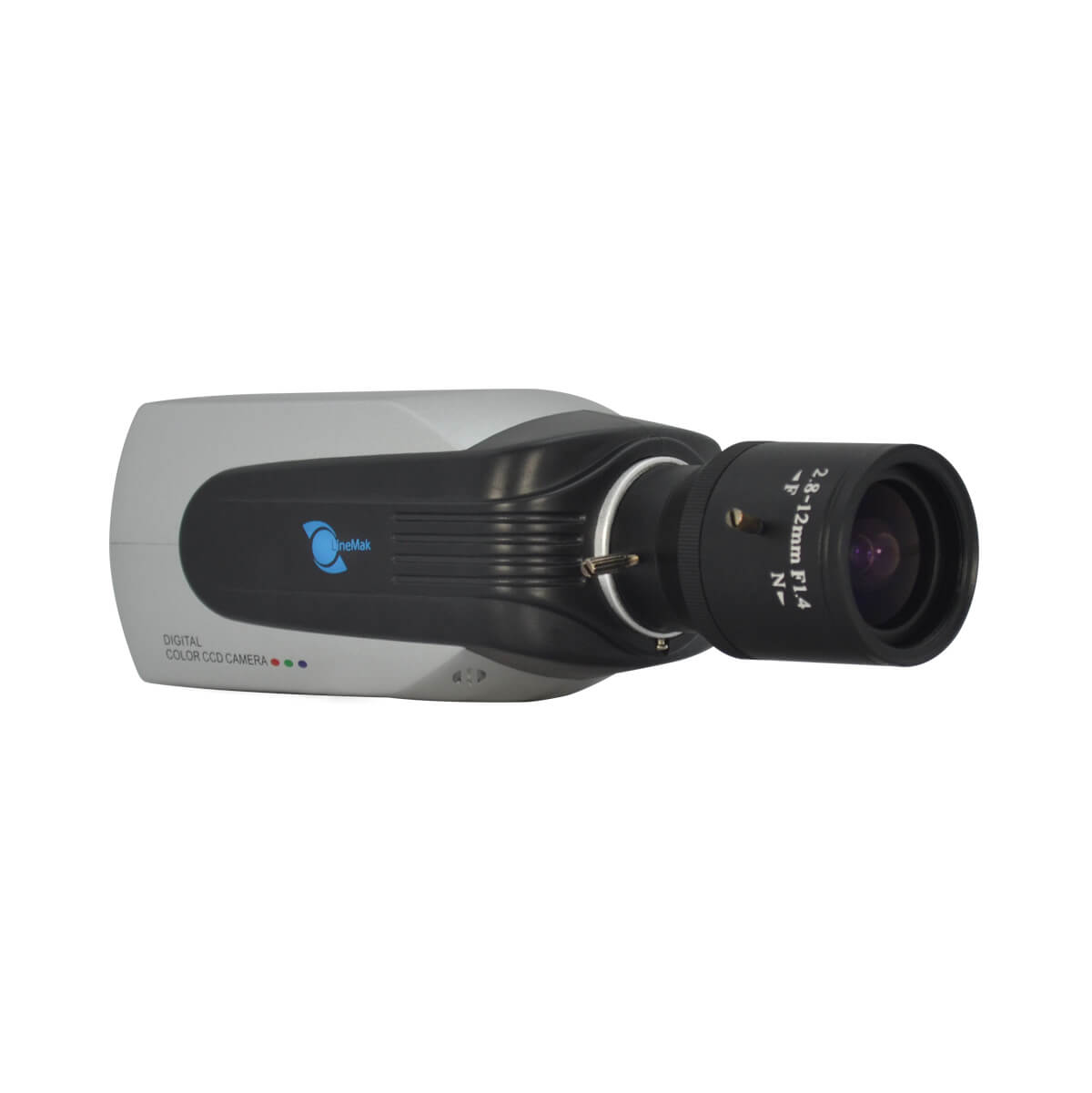

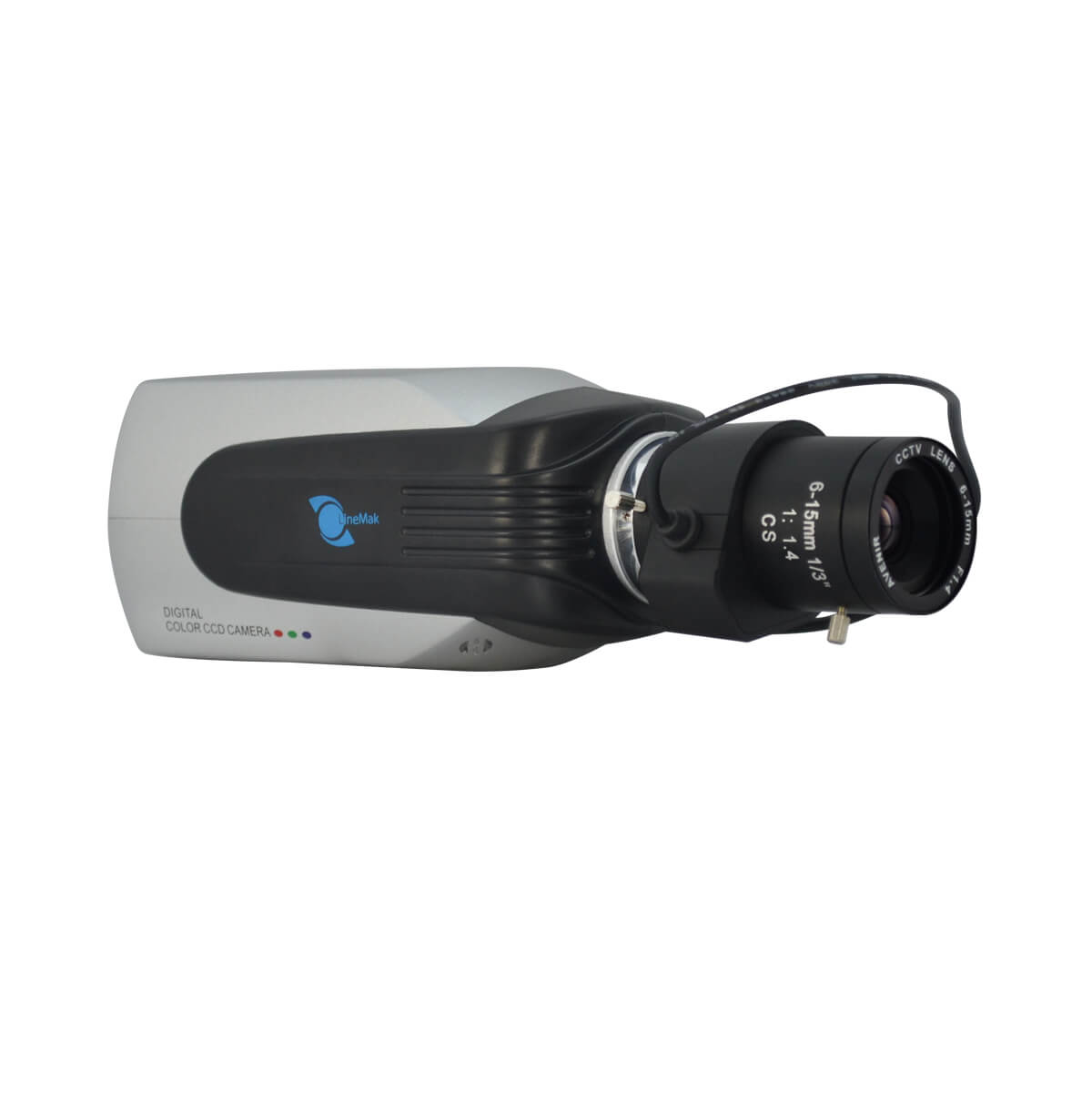

Box Camera, SONY CCD Sensor, 700TVL, OSD Menu
  • Box Camera, SONY CCD Sensor, 700TVL, OSD Menu - Image 1
  • - WDR and DNR Technology.
  • - Variable gamma adjustment.
  • - Built-in OSD.
  • - Power adapter and lens not included.
  • - Hi-resolution Video Resolution.
  • - Day and Night cameras can switch into color or B/W.
Products recommendaded to work with this item:
box camera, sony ccd sensor, 700tvl, osd menu
+
1 channel passive video balun 1082ft, contains 6 pairs 12 pcs
+
dc12v 1a power adapter specially for security cameras
+
housing with 329ft ir distance
Price for all 4: $136.96
  • HD color box camera, for general use, auto iris, compact, solid. DWD, OSD Menu, DNR and 3D-technologies included. It has a light of 0.001 Lux, allowing clear vision lighting anywhere.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Lens not included.
    This camera does not include Lens since it depends on the requirement of the installer or consumer. We sell various types of Lens depending on the viewing angles you need. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - Hi-resolution Video Resolution.
    - Day and Night cameras can switch automatically into color or B/W according to optical changes.
    - Digital Wide Dynamic Technology.
    - Frame accumulation, 256X Sense Up.
    - DNR (Digital Noise Reduction) Technology.
    - Variable gamma adjustment, there are four different curves optional.

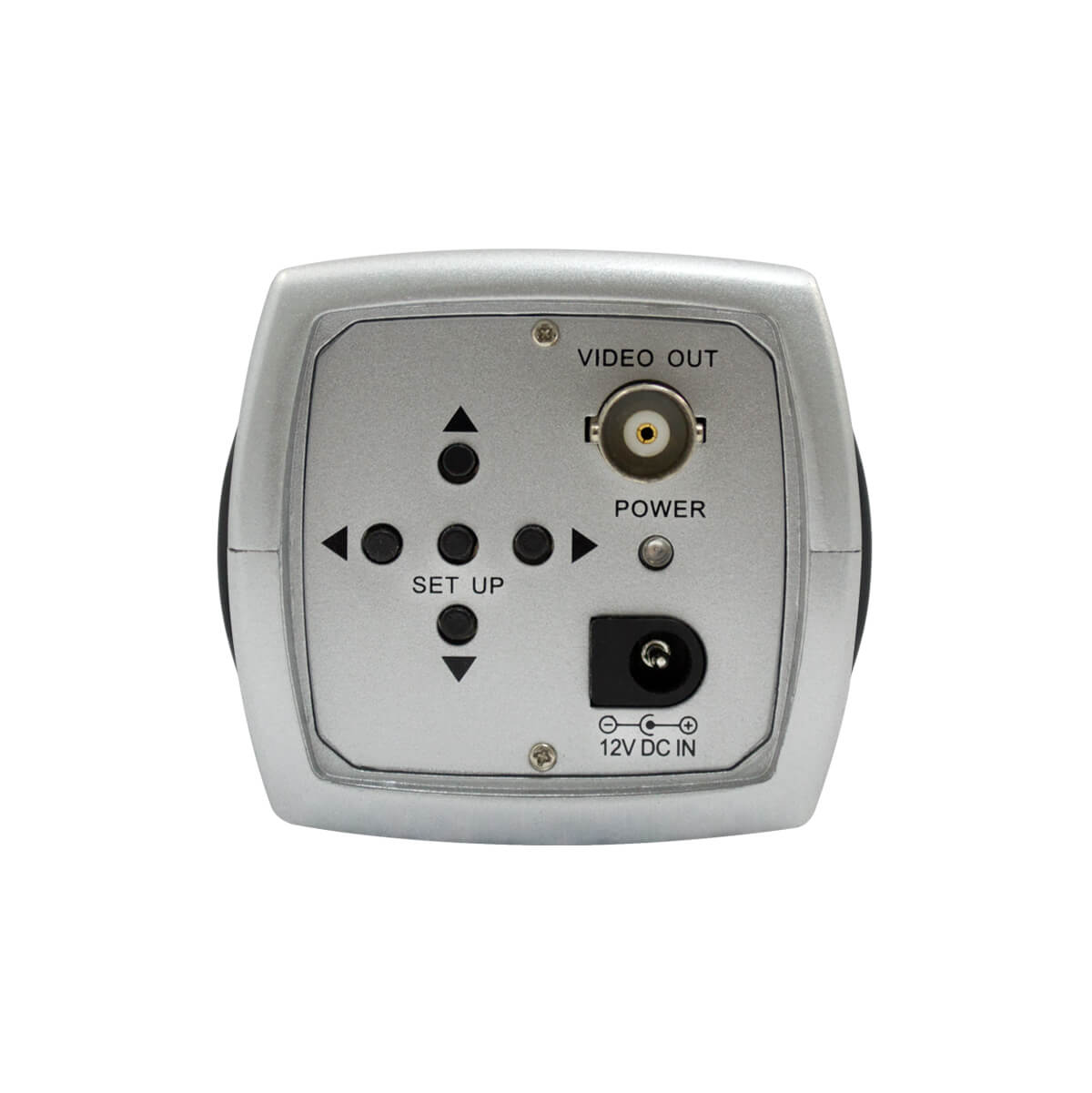

    - Built-in OSD, the user can easily set the camera parameters through menu.

    OSD Menu
    OSD Menu
    Most monitors include an on screen menu for making adjustments to the display through which you can navigate through the menu and make adjustments by using the Plus (+) and Minus (-) buttons, usually located next to the menu button. OSD include basic brightness and contrast controls. This superimposed image on the screen is commonly used by modern TV sets for volume, channel and time control.
    Digital Noise Reduction (DNR)
    DNR incorporates frame-to-frame noise reduction with spatial noise reduction to produce clear video images with less noise, in low light conditions. It makes images clearer and reduces video file size and reduces the visibility of the random noise during playback of the video.
    Digital Noise Reduction (DNR)
    HD video
    HD video
    Large areas are covered by a single lens which straight-up great picture quality, design and features.
    Wide Dynamic Range (WDR)
    Security Cameras (Analogue Cameras) with WDR Function can treat different areas in the image individually. They can also apply separate brightness modifications within the same view. This function is ideal for are scenarios in which stark contrasts and differences in darkness and brightness within the same image view are expected.
    Wide Dynamic Range (WDR)
    Auto White Balance (AWB)
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    A rear-view mirror cameras
    The rear-view mirror camera imitates the function of the actual mirror including the recording function as well, reason why it is highly recommended to use the rear-view camera as a back-up means to check for obstructions behind the car and avoid using it on frozen slippery roads.
    A rear-view mirror cameras
    True round-the-clock surveillance for illuminant/dark places
    True round-the-clock surveillance for illuminant/dark places
    This feature delivers a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications that deliver clear and sharp color images in illuminant areas and black and white images in dark areas using infrared illumination, without the need to refocus the lens.
    Warranty: One (1) Year
  • Box Camera, SONY CCD Sensor, 700TVL, OSD Menu
    General
    Brand LineMak
    Model LS-VE6057EF-OSD
    Sensor
    Resolution 700TVL

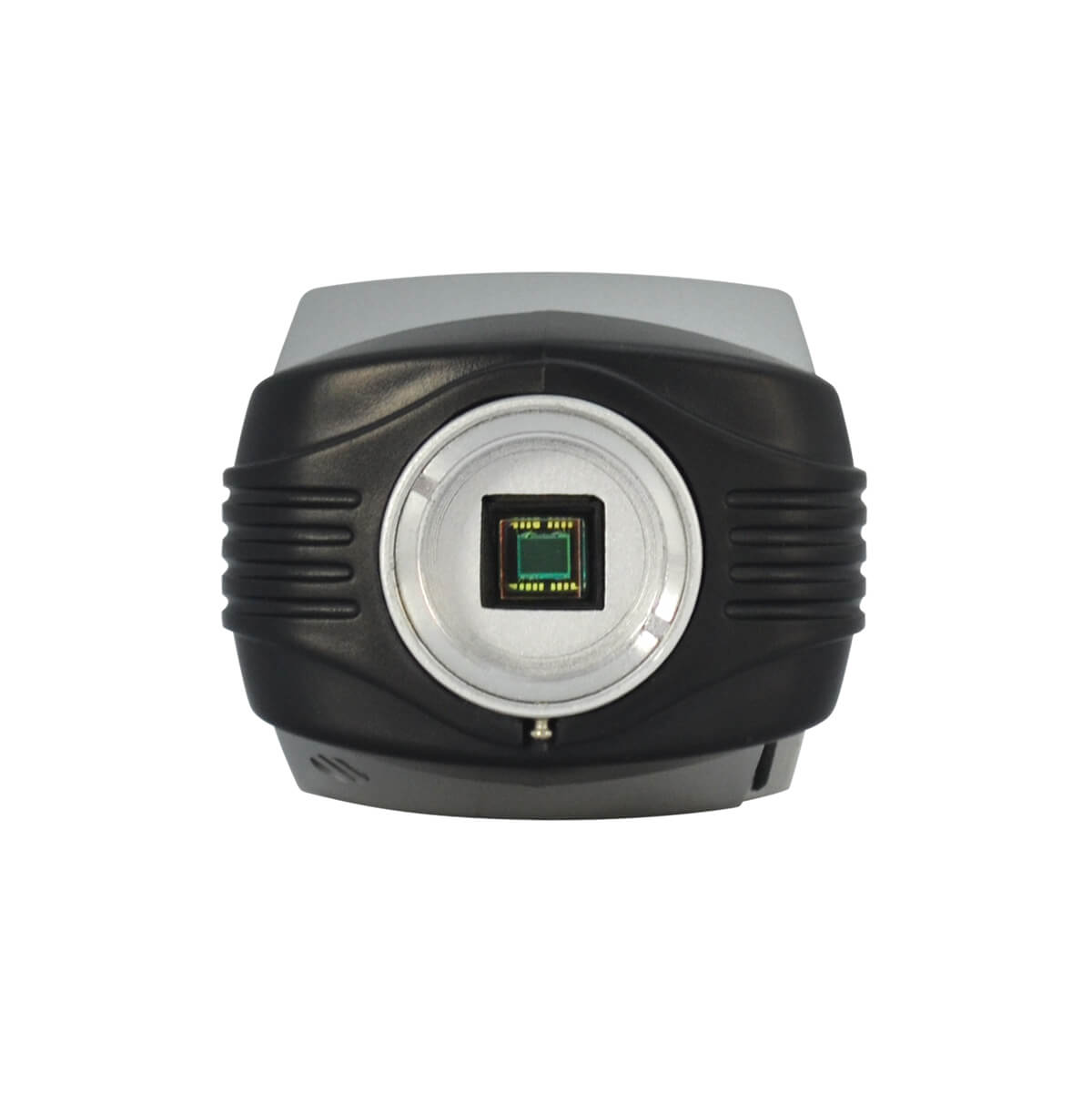

    Sensor 1/3" SONY 960H Exview CCD
    Effective pixels PAL: 960*582
    NTSC: 967*492
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm
    Lens
    Minimum illumination 0.001 Lux
    Security
    Motion detection zone On / Off
    Privacy zone On / Off
    Environment
    Operation temperature -10°C ~ 50°C
    14°F ~ 122°F
    Storage temperature -30°C ~ 80°C
    -22°F ~ 176°F
    Power
    Power supply DC 12V
    Power consumption 200mA
    Appearance
    Color Gray
    Size 4.92(L) * 2.36(H) * 2.56(W) inches
    Weight 14.11 ounces
    Special function
    Back Light Compensation (BLC) No
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) PAL: 1/50~1/100000s
    NTSC: 1/60~1/100000s
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) Yes
    Wide Dynamic Range (WDR) Yes
    Mirror Yes
    Adaptive Tone Reproduction (ATR) No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Brightness 0~90 adjustable
    Synchronizing system Internal
    S/N Ratio >120dB (WDR ON)
    Freeze On / Off
    Digital zoom On / Off
    Gamma correction 0.05~1 adjustable
    Title Yes
