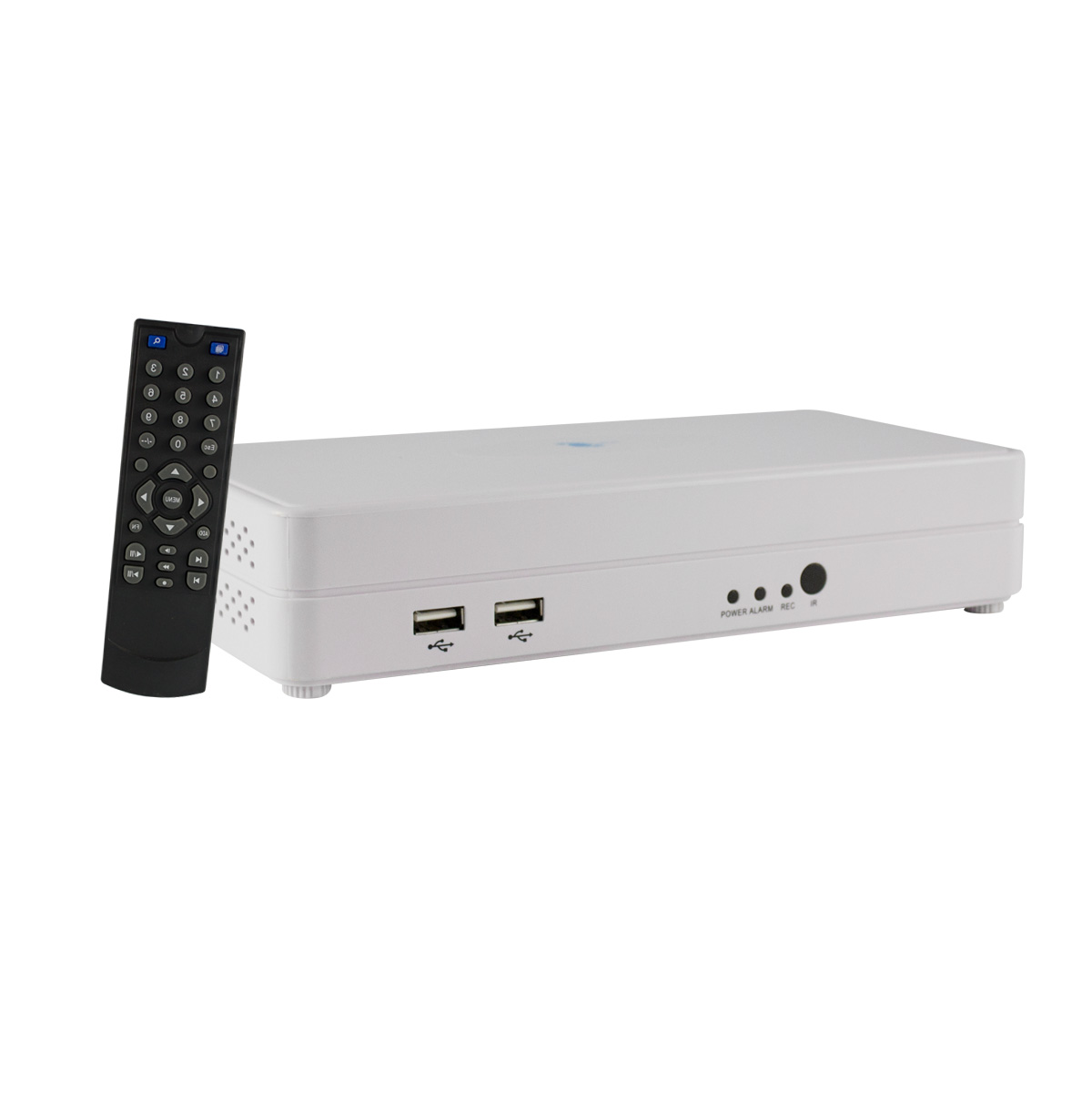

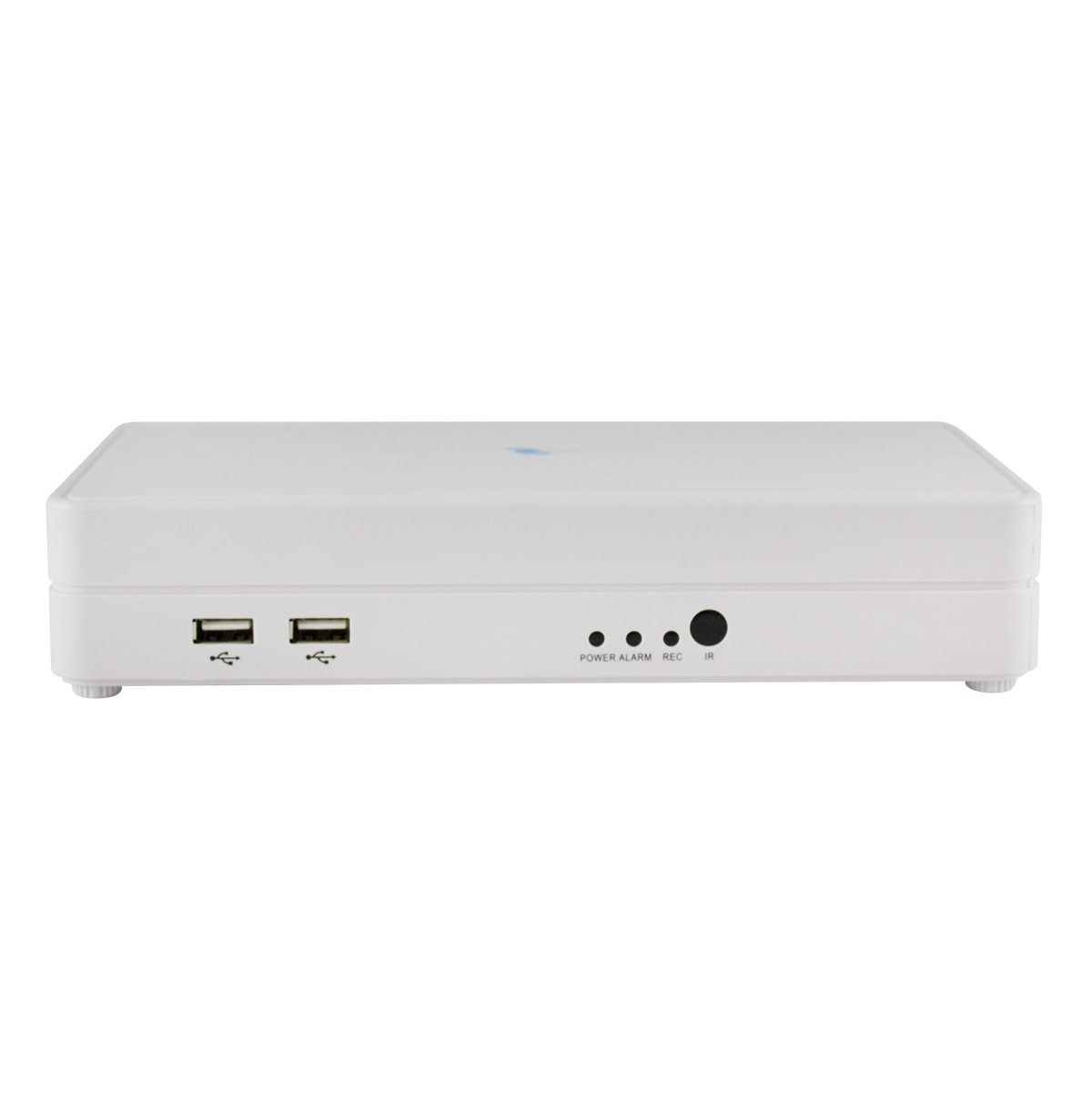

4 Channel NVR, H.264/G.711A, VGA/HDMI output simultaneous
  • 4 Channel NVR, H.264/G.711A, VGA/HDMI output simultaneous - Image 1
  • 4 Channel NVR, H.264/G.711A, VGA/HDMI output simultaneous - Image 2
  • 4 Channel NVR, H.264/G.711A, VGA/HDMI output simultaneous - Image 3
  • 4 Channel NVR, H.264/G.711A, VGA/HDMI output simultaneous - Image 4
  • - Cloud service. CMS operating style.
  • - Main stream and Sub-stream encoding.
  • - Mobile surveillance support.
  • - Hard drive not included.
  • - Network browsers support.
  • - Powerful network service.
Products recommendaded to work with this item:
4 channel nvr, h.264/g.711a, vga/hdmi output simultaneous
+
ip dome camera, 1.0mp/720p, 3.6mm hd lens, 30pcs leds, 33fts~49fts ir
Price for all 2: $120.98
  • With a DVR, the video is encoded and processed at the DVR, while with a NVR, the video is encoded and processed in the camera then transmitted to the NVR for both storage and remote viewing. Monitor your cameras on the Internet from anywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time and CMS. Also the mouse and remote control are included.

    It has both VGA and HDMI video outputs, and option to record on the motion detection option.

    Multiple recording mode: alarm, auto, motion detection, manual recording.
    Multiple control mode: USB mouse, network controller and remote control.
    Compatible with: WINXP, WIN2000, WIN7.

    Main features:
    - With cloud service, easy to achieve a variety of network penetration, one step to remote monitoring, getting rid of complicated network settings, easy and simple to operate.
    - Main stream and Sub-stream encoding. Main stream for local storage, ensure image. quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
    - Various mobile monitoring support (iOS, Windows Mobile, BlackBerry, Symbian, Android).
    - Various network browsers support (IE, Chrome, Firefox, Safari).
    - 2 USB 2.0 interfaces support to achieve USB backup, burn, upgrades and other operations stably.
    - Similar to CMS operating style.
    - VGA, HDMI full HD 1080P display output support.
    - Powerful network service (supported with DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP permissions, IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve integration.
    - With its own domain name service functions (ARSP), and one key to remote monitoring, monitoring becomes easy and enjoyable. 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are available.
    - Perfect circuit protection, unique triple watchdog function, ensures that the equipment never crashes.
    - It supports more than 20 languages (English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkish, etc.).
    - Display flexibly, free to change start-up screen.

    Hard drive not included.
    This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    It uses 2.5 inch Hard Drives for Laptop
    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    HDMI delivers enhanced image clarity
    HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.
    HDMI delivers enhanced image clarity
    Keep everything under watch with multiple recording modes
    Keep everything under watch with multiple recording modes
    Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.
    Accurate alarm recording allows you to cover the whole event
    This feature works with the motion detection capability of the DVR or alarm contacts attached to a door or window. When an incident is detected, the DVR records a pre-set amount of time before and after the event to the hard drive. This enables you to see what happened before and after motion was detected and view additional information about the circumstances leading up to and after it.
    Accurate alarm recording allows you to cover the whole event
    Motion detection
    Motion detection
    Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.
    Backup for saving critical video evidence
    The recorder allows still images and recorded video to be offloaded via one or more of these options for quick and easy backup of your critical video evidence: DVD, USB drive or network.
    Backup for saving critical video evidence
    Monitoring 3G
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    Remote monitoring Surveillance
    Rely on our current and advanced technology by using any top-of-line wireless sensing device for remotely monitoring your goods or property from everywhere, every time. Be able to manipulate your security system through a simple click and have it all watched like you were nearby.
    Remote monitoring Surveillance
    Save money with no contracts and no monthly fees
    Save money with no contracts and no monthly fees
    Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.
    Warranty: One (1) Year
  • 4 Channel NVR, H.264/G.711A, VGA/HDMI output simultaneous
    General
    Brand LineMak
    Model LS-NVR6304J
    System
    Main processor Hi3515C
    Operating system LINUX
    System resources Simultaneous multi-channel recording, sub-stream, playback and network operation, USB storage
    Display
    Display area 1/4
    Graphic user interface (GUI) 16-bit true color graphical menu interface
    Video
    Resolution 960P
    Video format PAL / NTSC
    Compression format H.264 (High Profile)
    Display quality VGA, HDMI
    Motion detector Support
    Frame rate PAL: 50fps
    NTSC:60fps
    Audio
    Audio compression G.711A
    Recording & Playback
    Recording mode Manual, alarm, motion detection, timing
    Local playback 1-Ch(960P) / 4-Ch(D1)
    Search mode Time, calendar, event, channel search
    Storage & Backup
    Space ocupation Video: CIF 4~5G/day*channel, D1 8~10G/day*channel, 960H 12~20G/day*channel, 720P 24~30G/day*channel
    Audio: 691.2M/day*channel
    Recording storage HDD (It uses 2.5 inch Hard Drives for Laptop), network
    Backup mode Network backup, USB, USB writer, SATA burner

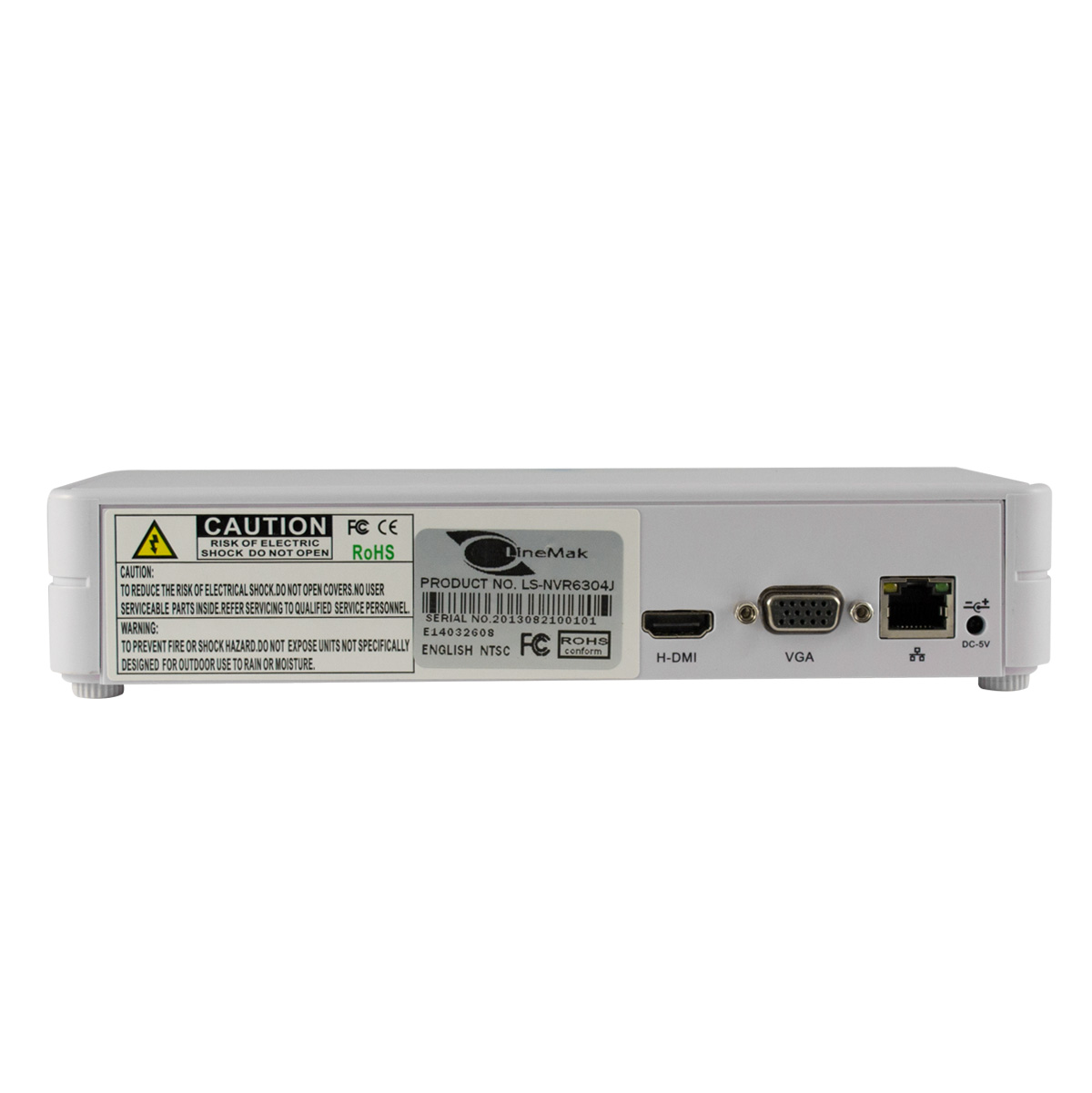

    Interface
    Video input/output Input: N/A
    Output: 1-Ch VGA,1-Ch HDMI
    USB Port 2 USB ports 2.0
    HDD Port 1 SATA (up to 4TB, it uses 2.5 inch Hard Drives for Laptop)
    Network interface 1 RJ45 10M/100M port
    Power
    Power supply DC 5V/2A
    Appearance
    Color White
    Size 4.34(L) * 1.58(H) * 8.47(H) inches
    Weight 14.29 ounces
