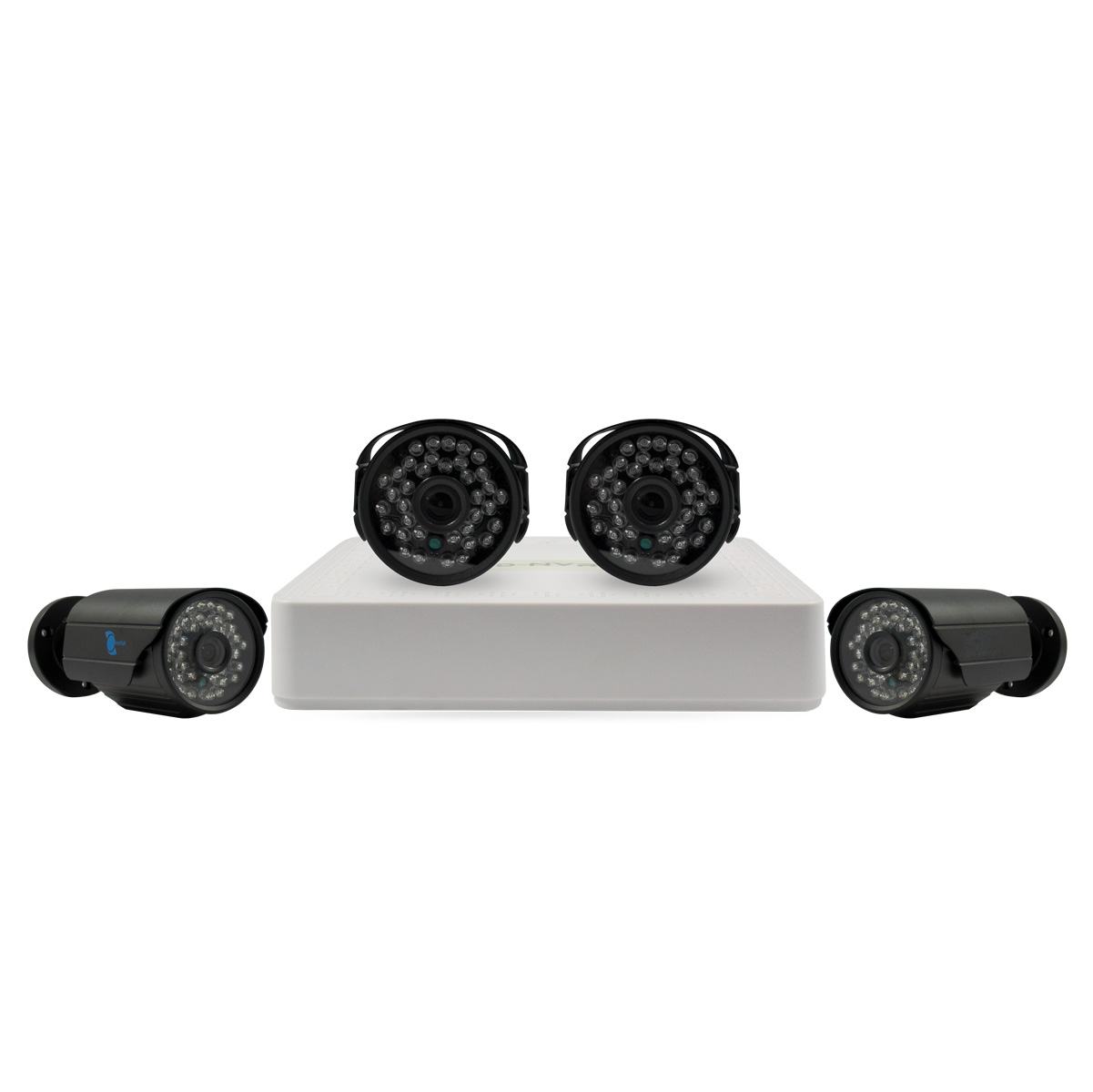

Kit 4 cameras, CMOS Sensor, 30 LEDs, 33ft~49ft IR, H264, ONVIF
  • Kit 4 cameras, CMOS Sensor, 30 LEDs, 33ft~49ft IR, H264, ONVIF - Image 1
  • Kit 4 cameras, CMOS Sensor, 30 LEDs, 33ft~49ft IR, H264, ONVIF - Image 2
  • Kit 4 cameras, CMOS Sensor, 30 LEDs, 33ft~49ft IR, H264, ONVIF - Image 3
  • Kit 4 cameras, CMOS Sensor, 30 LEDs, 33ft~49ft IR, H264, ONVIF - Image 4
  • Kit 4 cameras, CMOS Sensor, 30 LEDs, 33ft~49ft IR, H264, ONVIF - Image 5
  • Kit 4 cameras, CMOS Sensor, 30 LEDs, 33ft~49ft IR, H264, ONVIF - Image 6
  • - Kit of 4 IP cameras, 720P/960P resolution.
  • - H.264 High profile compression algorithm ideal for network NVR.
  • - Dual-streams, to make mobile monitoring very easy, flexible for network transmission.
  • - ONVIF / DHCP / PPOE / FTP / DNS / NTP network protocol
  • - Mobile surveillance (iOS and Android)
  • - 30pcs LED. 33ft ~ 49ft night vision.
  • Kit of 4 cameras ideal for monitoring homes, offices or local chambers, is easy to install and can see the images captured by the cameras via internet.

    4 cameras contain a sensor 1/3" CMOS that provides a resolution of 1.3Mp, one 3.6mm lens, his crown of 30 LED allows a night vision of 33 to 49ft, recorded in H.264 format in real time.

    The NVR is designed for the connection of 4 incoming channel and 2 output channels (VGA and HDMI), recorded in H.264 format in real time, has a compact size to be placed anywhere, has two USB ports 2.0 and five network port RJ-45, playing from 1 to 4 channels simultaneously supports remote access, it has a pentaplex function.

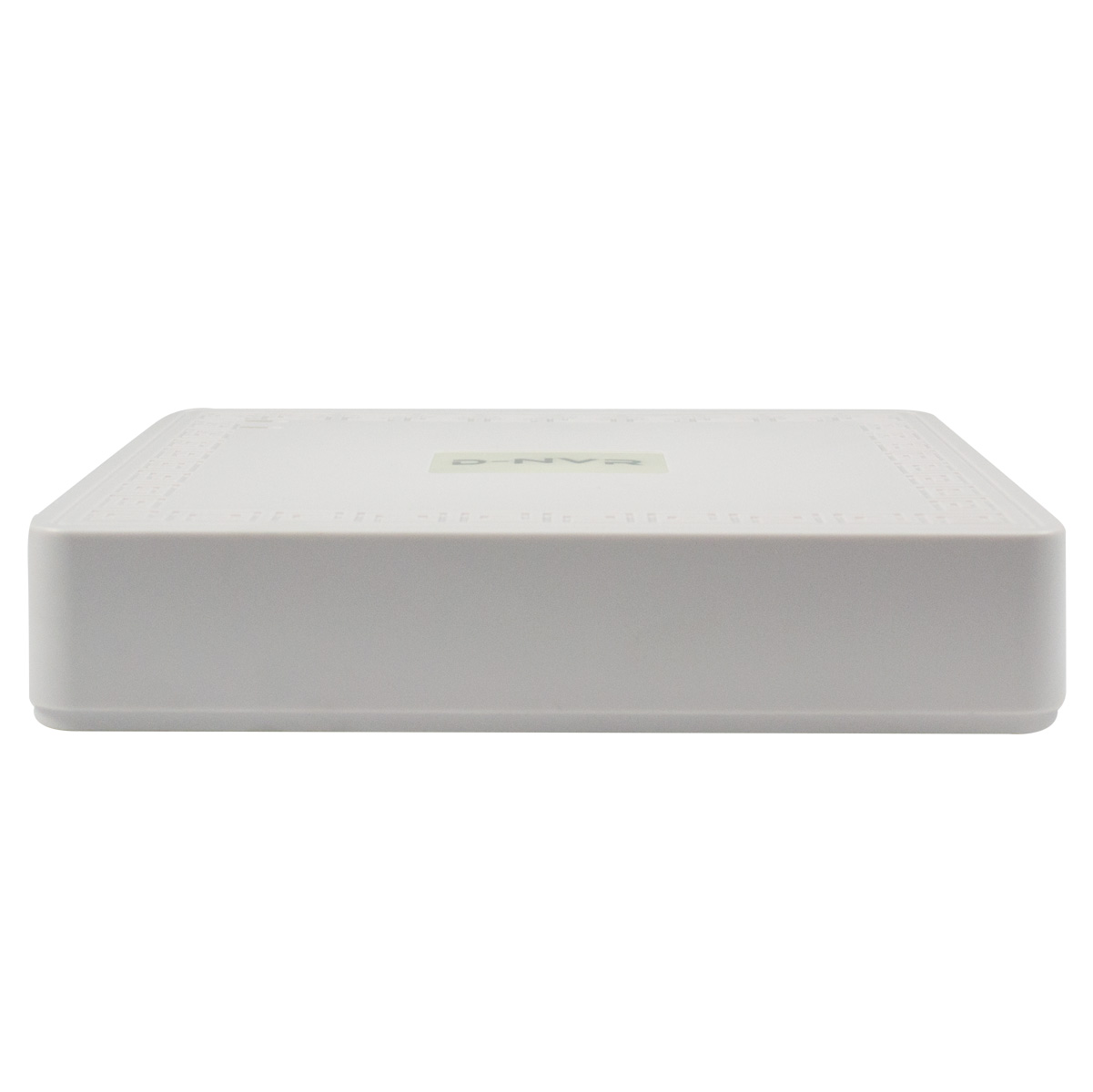

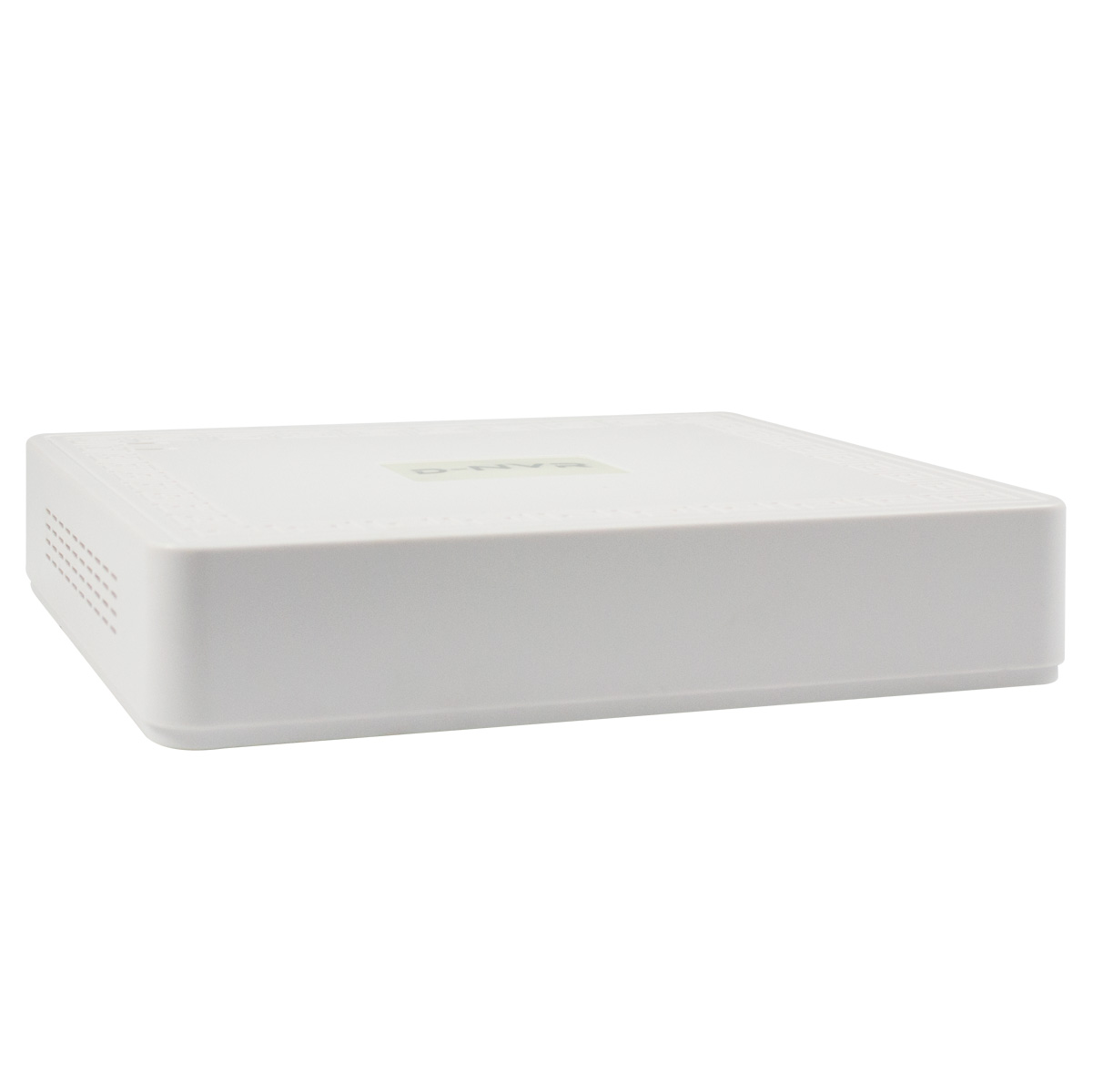

    Network video recorder (NVR) LS-N9104

    With a DVR, the video is encoded and processed at the DVR, while with a NVR, the video is encoded and processed in the camera then transmitted to the NVR for both storage and remote viewing. Monitor your cameras on the Internet from anywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time and CMS. Also the mouse and remote control are included.

    It has both VGA and HDMI video outputs, and option to record on the motion detection option.

    Multiple recording mode: Alarm, auto, motion detection, manual recording.
    Multiple control mode: USB mouse, network controller and remote control.
    Compatible with: WINXP, WIN2000, WIN7.

    Main features:
    - H.264 main profile compression algorithm ideal for standalone NVR.
    - VGA output, genuine high-definition VGA output support.
    - Remote network and mobile monitoring for iPhone, Android, module by USB 2.0 port.
    - Multiple control methods: front panel, IR remote controller, USB mouse.
    - 2 USB 2.0 port for mouse, backup, DVD-RW, movable hard disk, upgrade, etc., support.
    - Smart HDDs management: non-working HDD hibernating, HDD faulty alarm, raid function.
    - With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up.
    - Plug and play, P2P, Cloud service.
    - 20 different languages (English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish, Vietnamese, Ukrainian, Romanian, Brazilian, Korean).

    Hard drive not included.
    This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

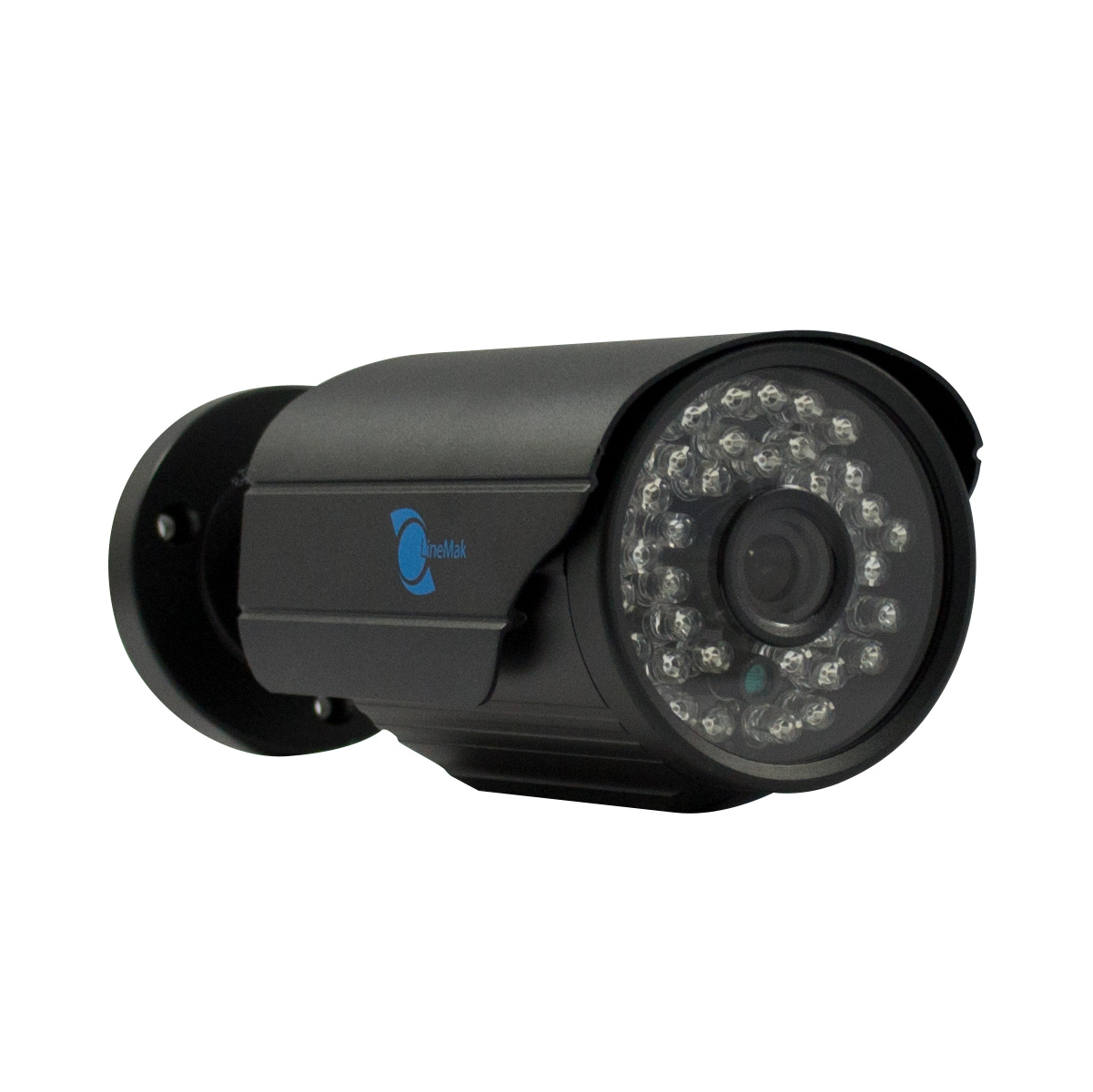

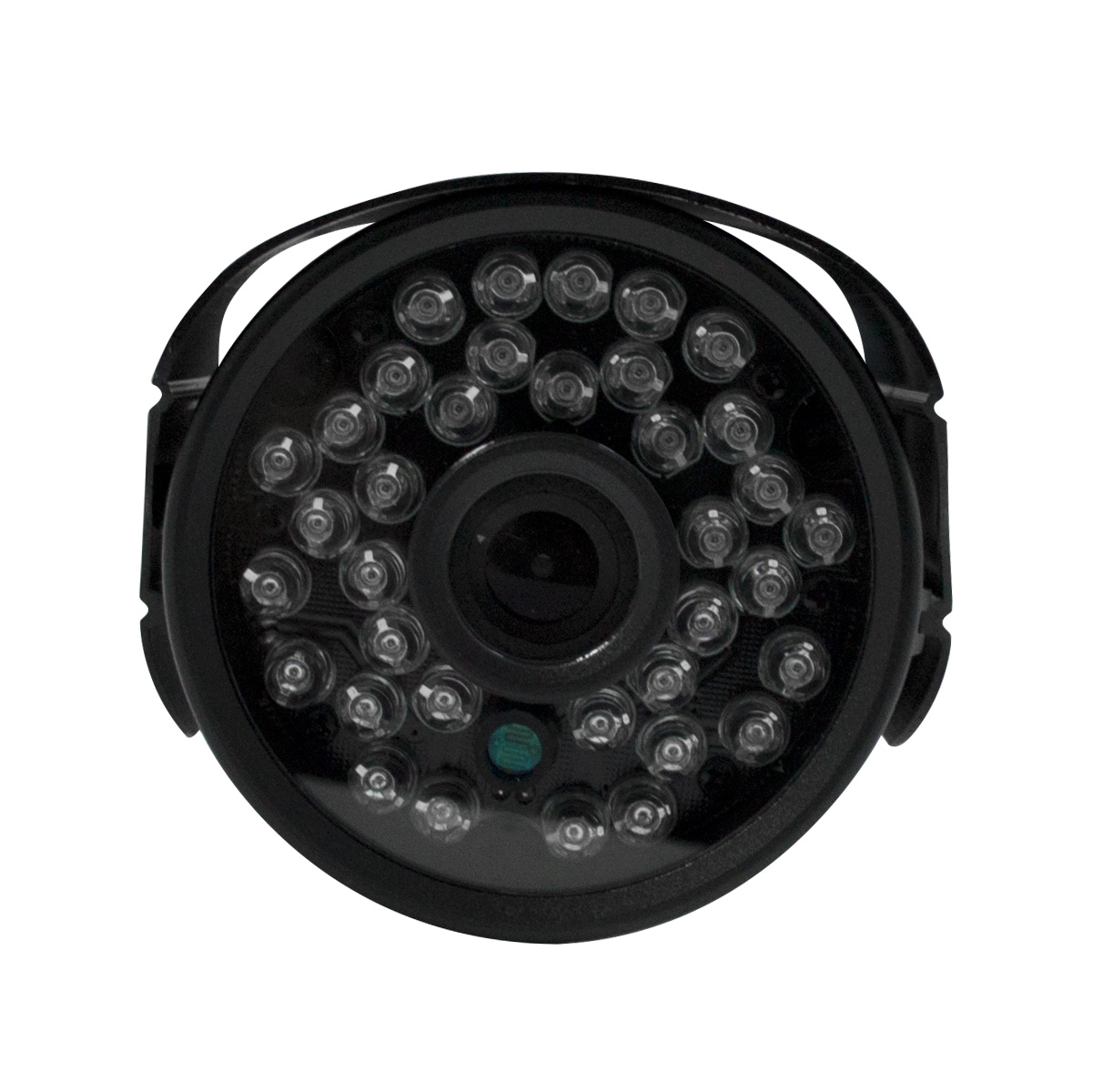

    IP bullet camera LS-JA6013E

    IP Bullet camera for outdoors with a lens of 3.6mm, a 33ft to 49ft range of infrared night vision, and 30pcs LEDs 5mm each. Available in white. The latest technology of sensor and driver adopted. The most attractive characteristics are night-time vision and easy to mount.

    This equipment can be easily installed anywhere going unnoticed thanks to its size. Resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no lighting.

    Using our servers and digital video recorders (DVR) for good results in image quality is recommended. You can see this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

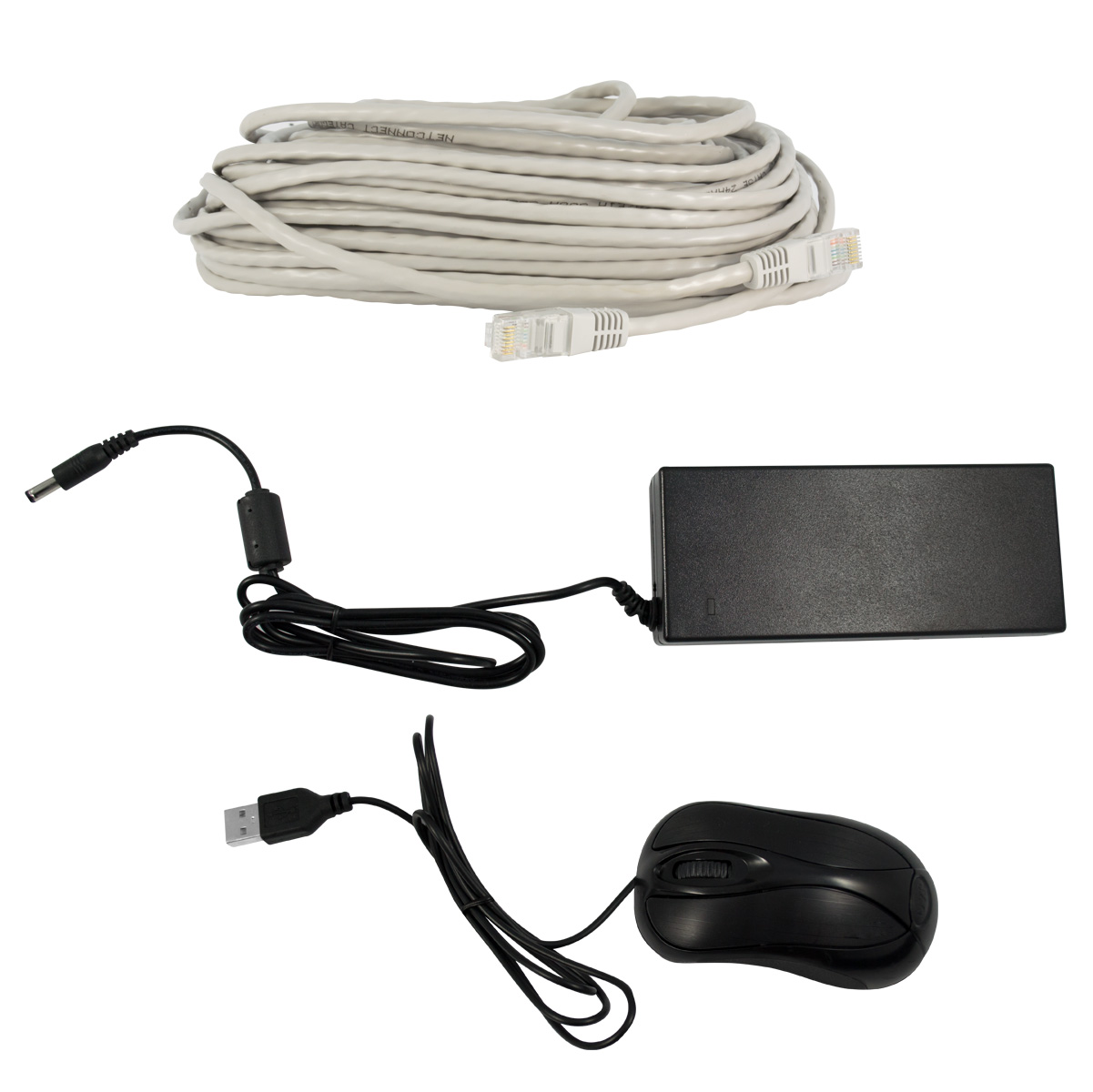

    Package includes:
    - 1 Digital video recorder (LS-N9104).
    - 4 IP bullet cameras (LS-JA6013E).
    - 1 Power supply.
    - 4 Patch cord (data cable) 56ft.
    - 1 Mouse.
    - Manual.
    - Software.
    True Day/Night for round-the-clock surveillance
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    HDMI delivers enhanced image clarity
    HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.
    HDMI delivers enhanced image clarity
    Keep everything under watch with multiple recording modes
    Keep everything under watch with multiple recording modes
    Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.
    Accurate alarm recording allows you to cover the whole event
    This feature works with the motion detection capability of the DVR or alarm contacts attached to a door or window. When an incident is detected, the DVR records a pre-set amount of time before and after the event to the hard drive. This enables you to see what happened before and after motion was detected and view additional information about the circumstances leading up to and after it.
    Accurate alarm recording allows you to cover the whole event
    Remote setup to access the DVR screen setting
    Remote setup to access the DVR screen setting
    DVR settings adjustment such as remote firmware upgrade, email notification, recording resolution, and motion recording. All DVR settings in the Display, Record, Device, Storage, System, Security Network and Upgrade screens are accessible remotely, for easy adjustment of related DVR functions.
    Be informed
    The DVR will automatically send an email alert with a text notification when an event triggered by motion has occurred. This provides a record of the event and enables you quickly to take action when an incident occurs.
    Be informed
    Backup for saving critical video evidence
    Backup for saving critical video evidence
    The recorder allows still images and recorded video to be offloaded via one or more of these options for quick and easy backup of your critical video evidence: DVD, USB drive or network.
    Motion detection
    Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.
    Motion detection
    IP
    IP
    Internet Protocol Address (or IP Address) is a unique address that computing devices use to identify themselves and communicate with other devices in the Internet Protocol network. An IP address is analogous to a street address or telephone number in that it is used to uniquely identify a network device to deliver mail message, or call ("view") a website.
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    Monitoring 3G
    Remote monitoring Surveillance
    Remote monitoring Surveillance
    Rely on our current and advanced technology by using any top-of-line wireless sensing device for remotely monitoring your goods or property from everywhere, every time. Be able to manipulate your security system through a simple click and have it all watched like you were nearby.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Save money with no contracts and no monthly fees
    Save money with no contracts and no monthly fees
    Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.
    Warranty: One (1) Year
  • 4 Channel NVR, H.264 Compression format, VGA/HDMI simultaneous outputs
    General
    Brand LineMak
    Model LS-N9104
    System
    Operating system Embedded Linux
    System resources Pentaplex function: Recording, Playback, Backup, Remote view, Mobile view
    Display
    Display area 1/4
    Video
    Resolution 960P/720P
    Compression format H.264
    Display quality 720P (1280*720)
    Frame rate PAL: 25fps
    NTSC: 30fps
    Video recording 4-Ch 960P
    Streams Dual
    Recording & Playback
    Recording mode Alarm, auto, motion detection, manual
    Local playback 4-Ch 960P
    Storage & Backup
    Recording storage Internet, HDD
    Backup mode U disk, HDD, Mobile, Internet
    Interface
    Video input/output Input:
    4-Ch (1280*720) sub[640*480] 4Play, 4-Ch*1.0mp IP cameras
    4-Ch (1280*960) sub[640*480] 4Play; 4-Ch*1.3mp IP cameras
    4-Ch (1920*1080) sub[640*480] 4Play; 4-Ch*2.0mp IP cameras
    5 network port
    Output: 1-Ch HDMI (1920*1080), 1-Ch VGA (1280*1024)
    PTZ Control 1 RS485 port
    USB Port 2 USB 2.0
    HDD Port 1 SATA HDDs (max. 4TB)
    Wireless port 3G
    Network interface 5 RJ45 10M/ ports (10M/100m Digital and power transmission through on cable)
    Network
    Network protocol ONVIF/DHCP/PPOE/FTP/DNS/NTP/ Email Alarm/ Ip right management/IP search/Network alarm center functions/Standalone client/SDK
    Security
    Motion detection zone Zones: 396 (22*18), multi-level sensitivity can be set (Local channel only)
    Environment
    Operation temperature -10ºC ~ 55ºC
    14ºF ~ 131ºF
    Working humidity 90%
    Power
    Power supply DC 15V/4A
    Power consumption <20W (HDD not included)
    IP Bullet camera, CMOS Sensor, 1.3Mp, 3.6mm lens, 30 LEDs, IR-CUT
    General
    Brand LineMak
    Model LS-JA6013E
    Sensor
    Resolution 1.3Mp
    Sensor 1/3" Mega progressive scan CMOS
    Effective pixels 1280*960
    Video
    Compression format H.264
    Display quality 1280*960 / 1280*720 / 640*360
    Frame rate 25fps
    Bit rate 64Kbp ~ 4Mbps continuously-adjustable
    Streams Dual
    Recording & Playback
    Recording mode Manual, timing, motion detection and alarm
    Interface
    Network interface 1 RJ-45 10M/100M adaptive Ethernet interface
    Network
    Network protocol RTSP / UPnP / PPPoE / DDNS / ONVIF
    Web Browser IE
    Remote
    Mobile surveillance iOS and Android
    Lens
    Lens 3.6mm
    IR Range 33-49ft night vision
    LEDs 30pcs (5mm each)
    IR-CUT Filter Yes
    Minimum illumination 0Lux/F 1.2 (with LED on)
    Viewing angle 92°
    Environment
    Operation temperature -10ºC ~ 55ºC
    14ºF ~ 131ºF
    Working humidity 10% ~ 90%
    Power
    Power supply 12V/600mA
    Power consumption 6W
    Appearance
    Color Black
    Special function
    Electronic shutter speed (AES) 1/25s ~ 1/10000s
    Standard
    S/N Ratio >39db (AGC off)
