Bullet camera 1/3 SONY CCD 700TVL 6mm lens 30 LEDs 65~98ft IR IP67

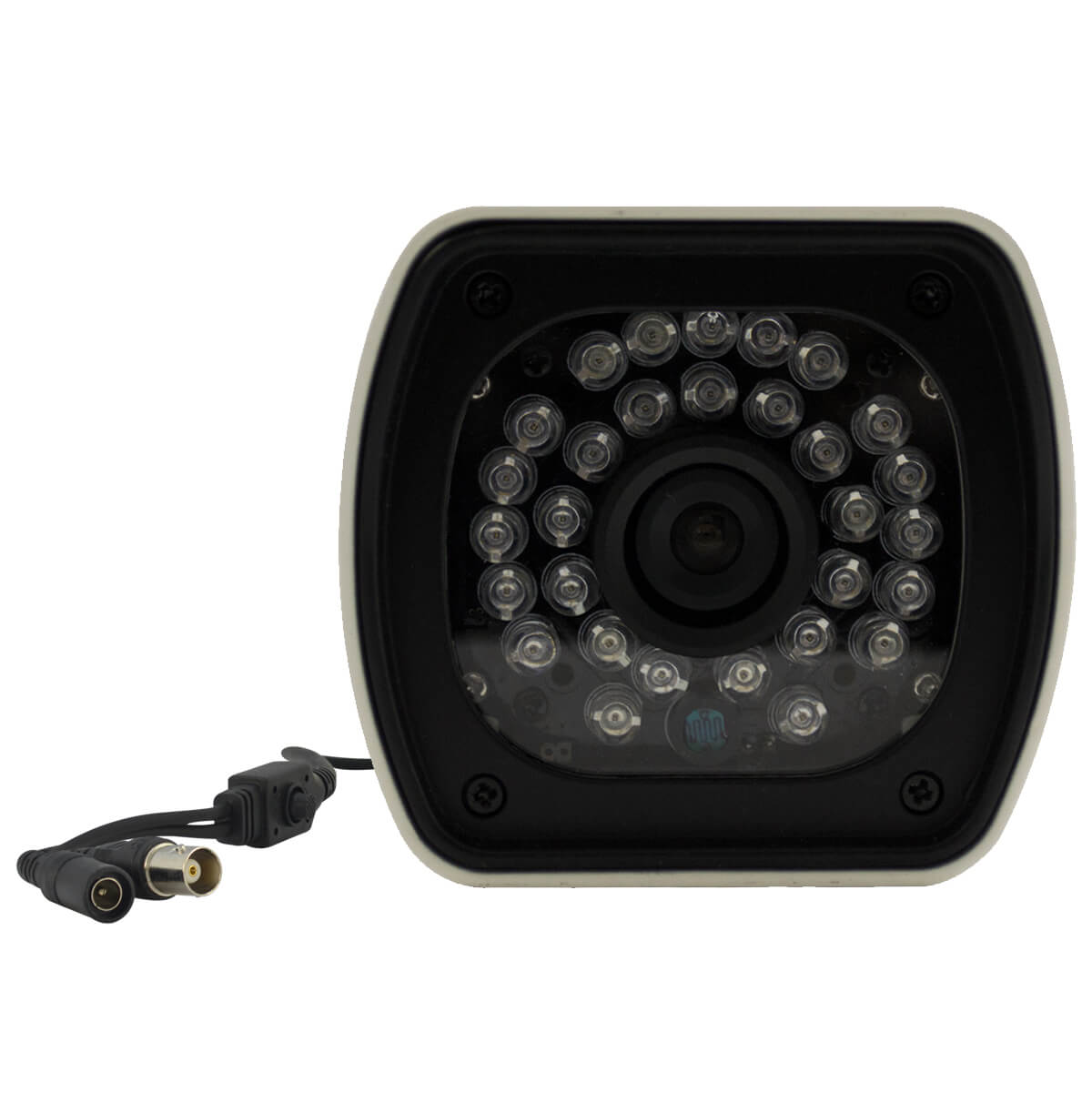

  • Bullet camera 1/3 SONY CCD 700TVL 6mm lens 30 LEDs 65~98ft IR IP67 - Image 1

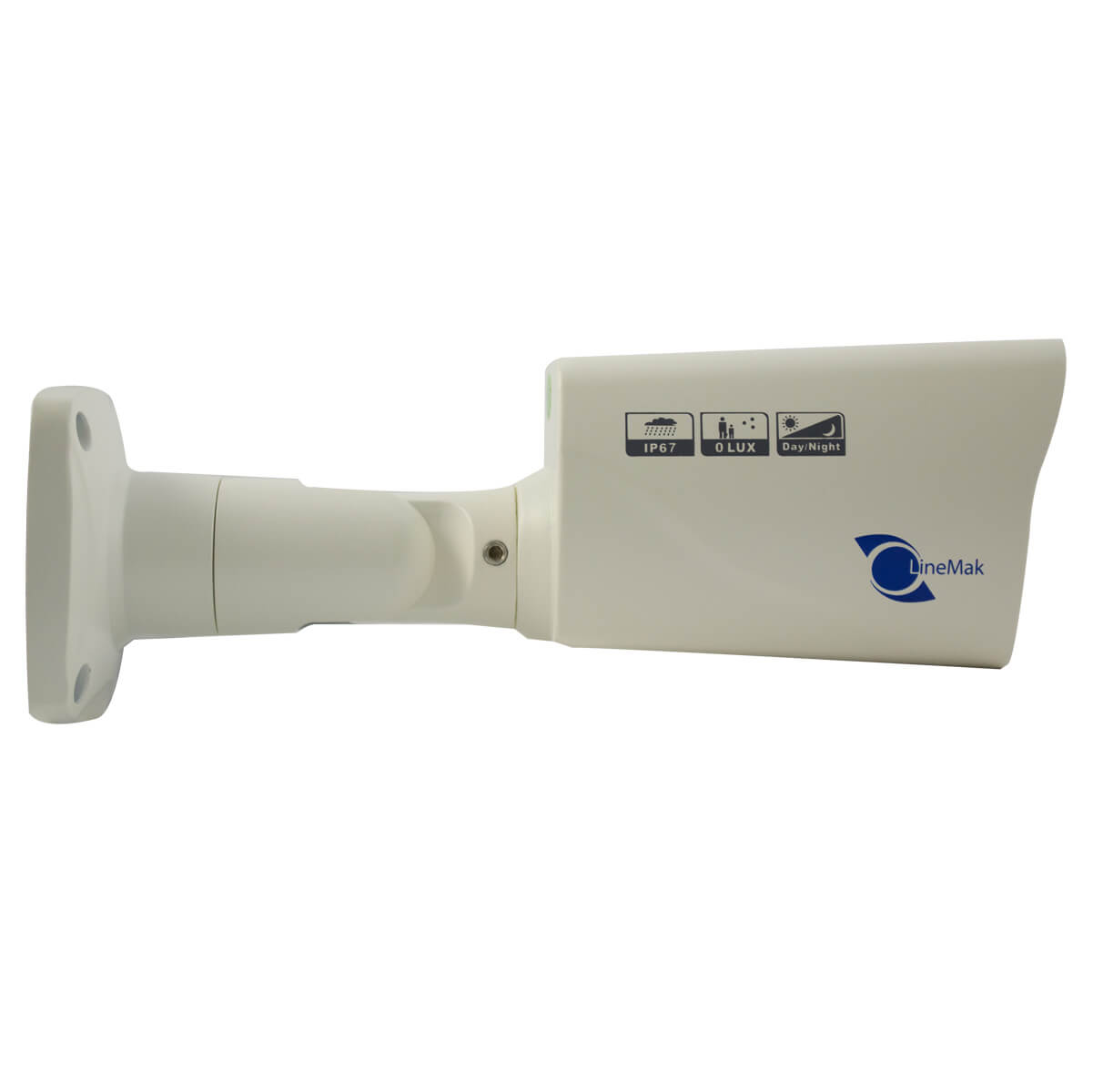

  • Bullet camera 1/3 SONY CCD 700TVL 6mm lens 30 LEDs 65~98ft IR IP67 - Image 2

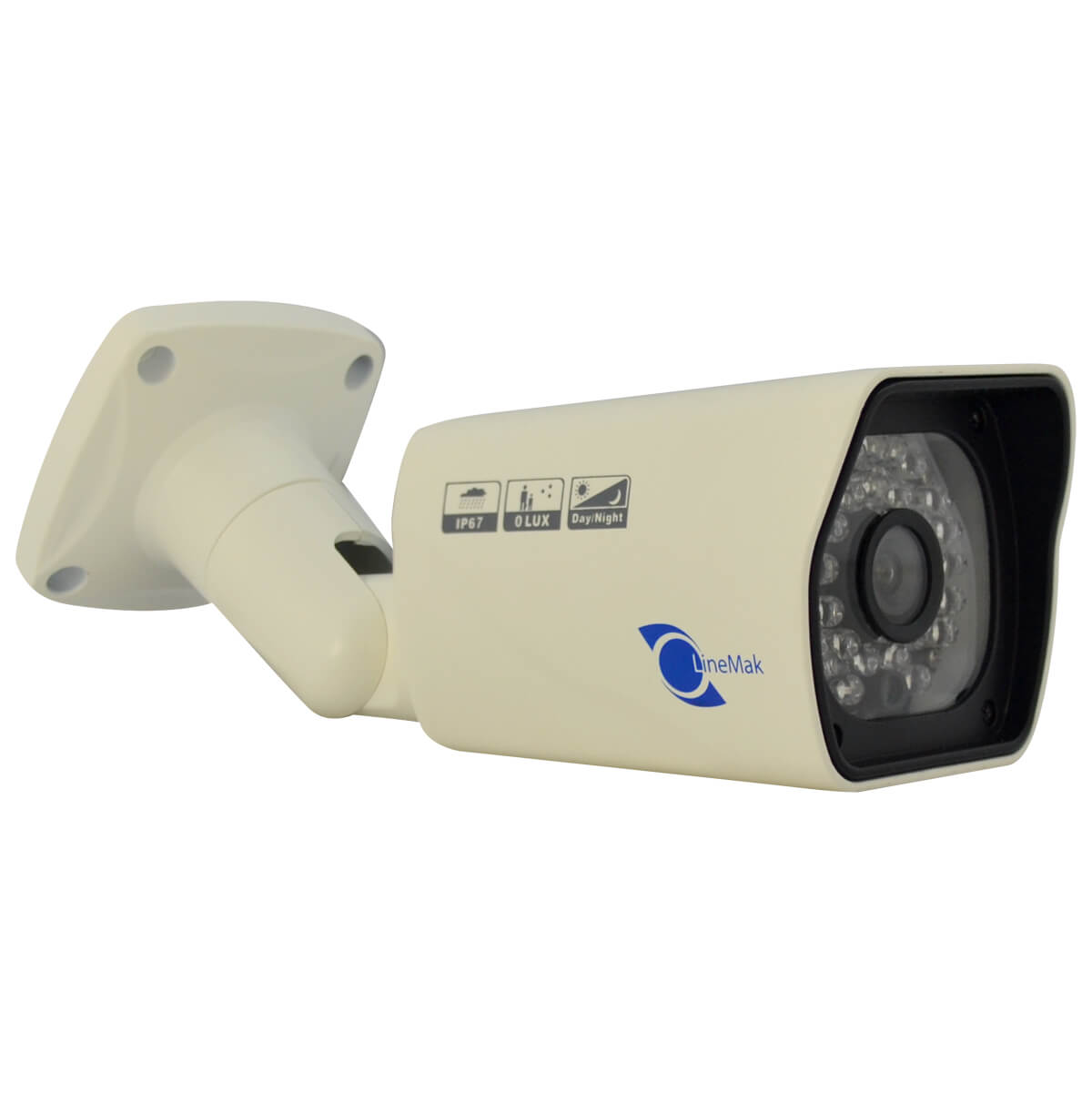

  • Bullet camera 1/3 SONY CCD 700TVL 6mm lens 30 LEDs 65~98ft IR IP67 - Image 3

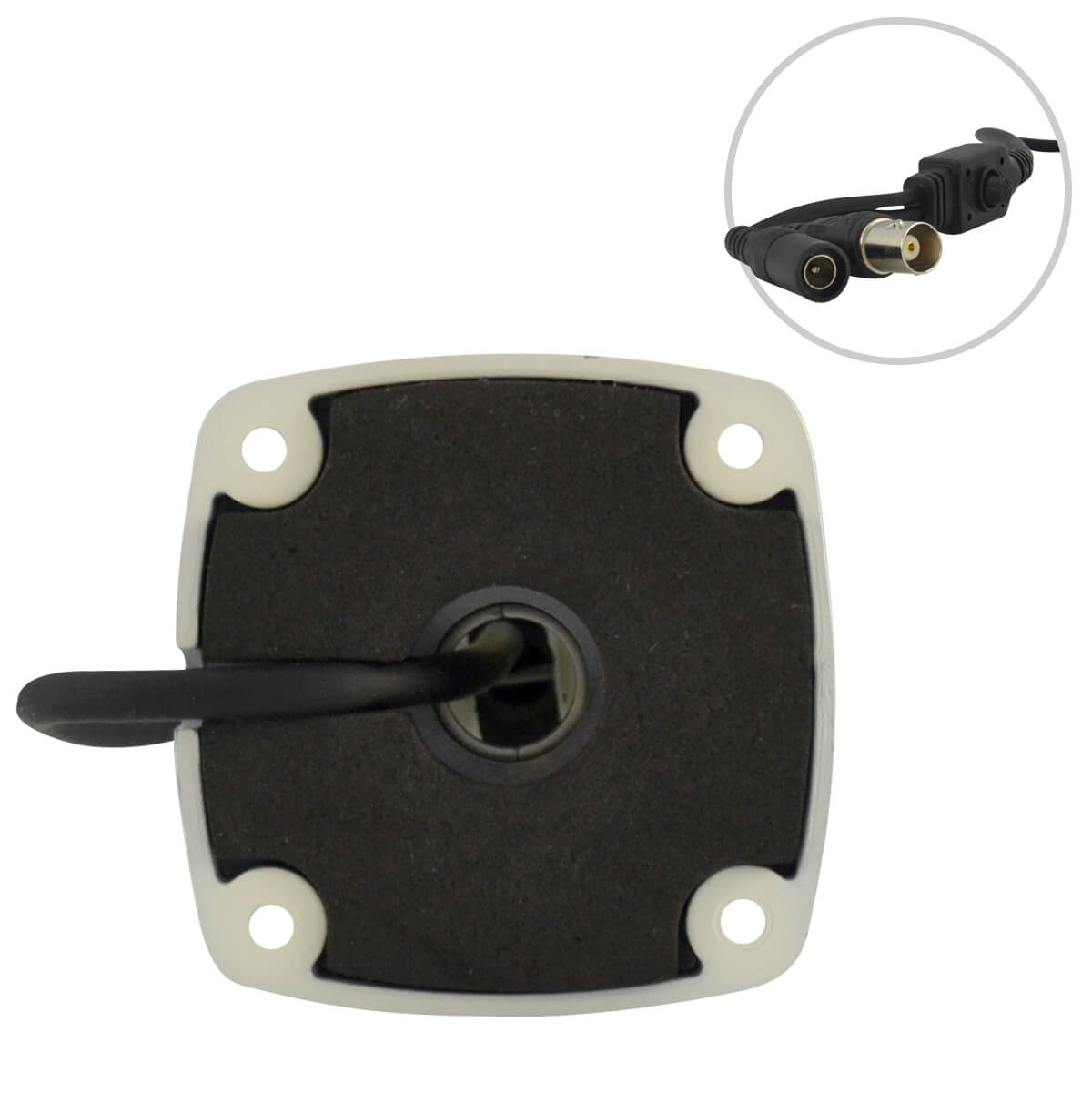

  • Bullet camera 1/3 SONY CCD 700TVL 6mm lens 30 LEDs 65~98ft IR IP67 - Image 4

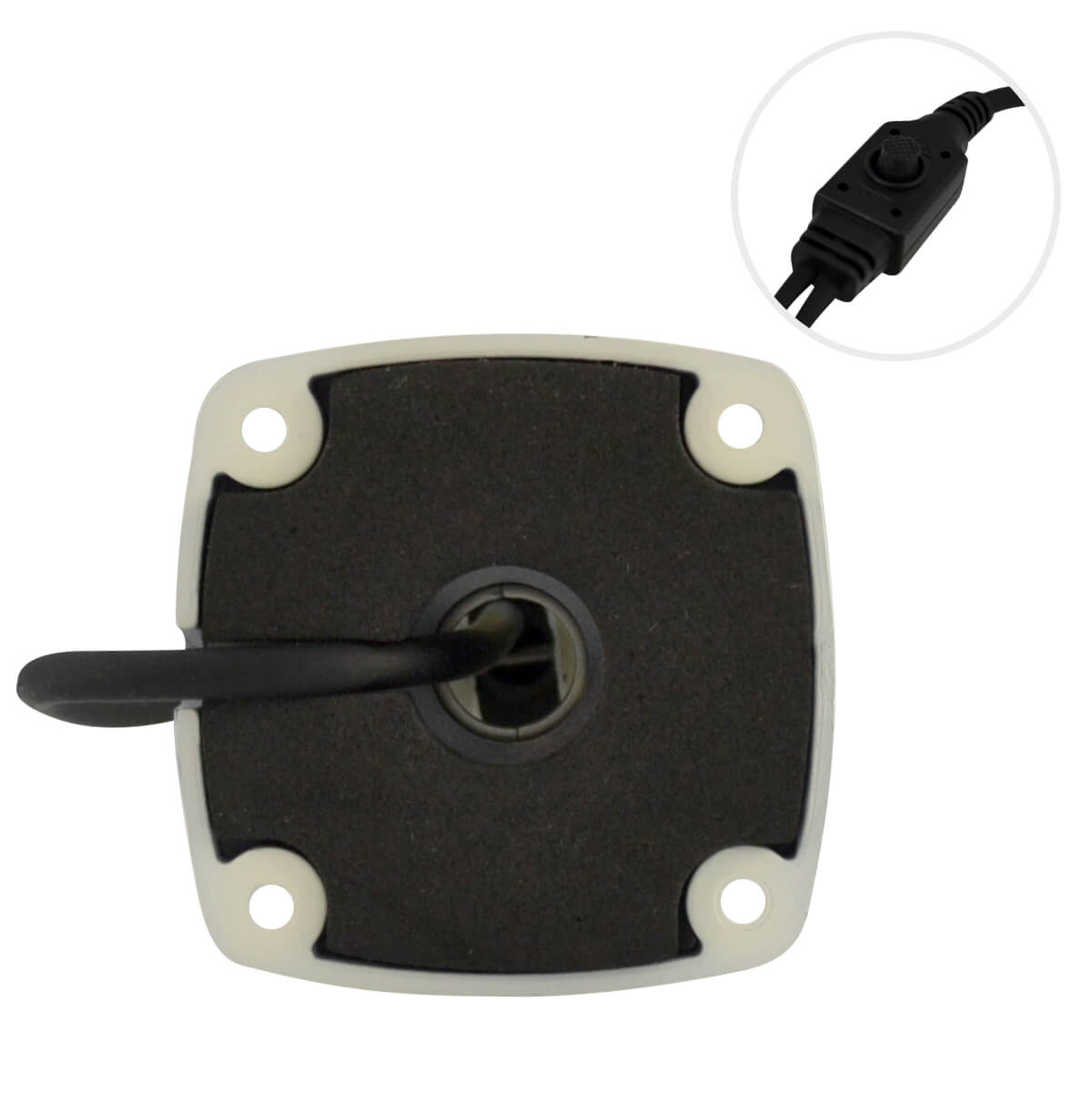

  • Bullet camera 1/3 SONY CCD 700TVL 6mm lens 30 LEDs 65~98ft IR IP67 - Image 5

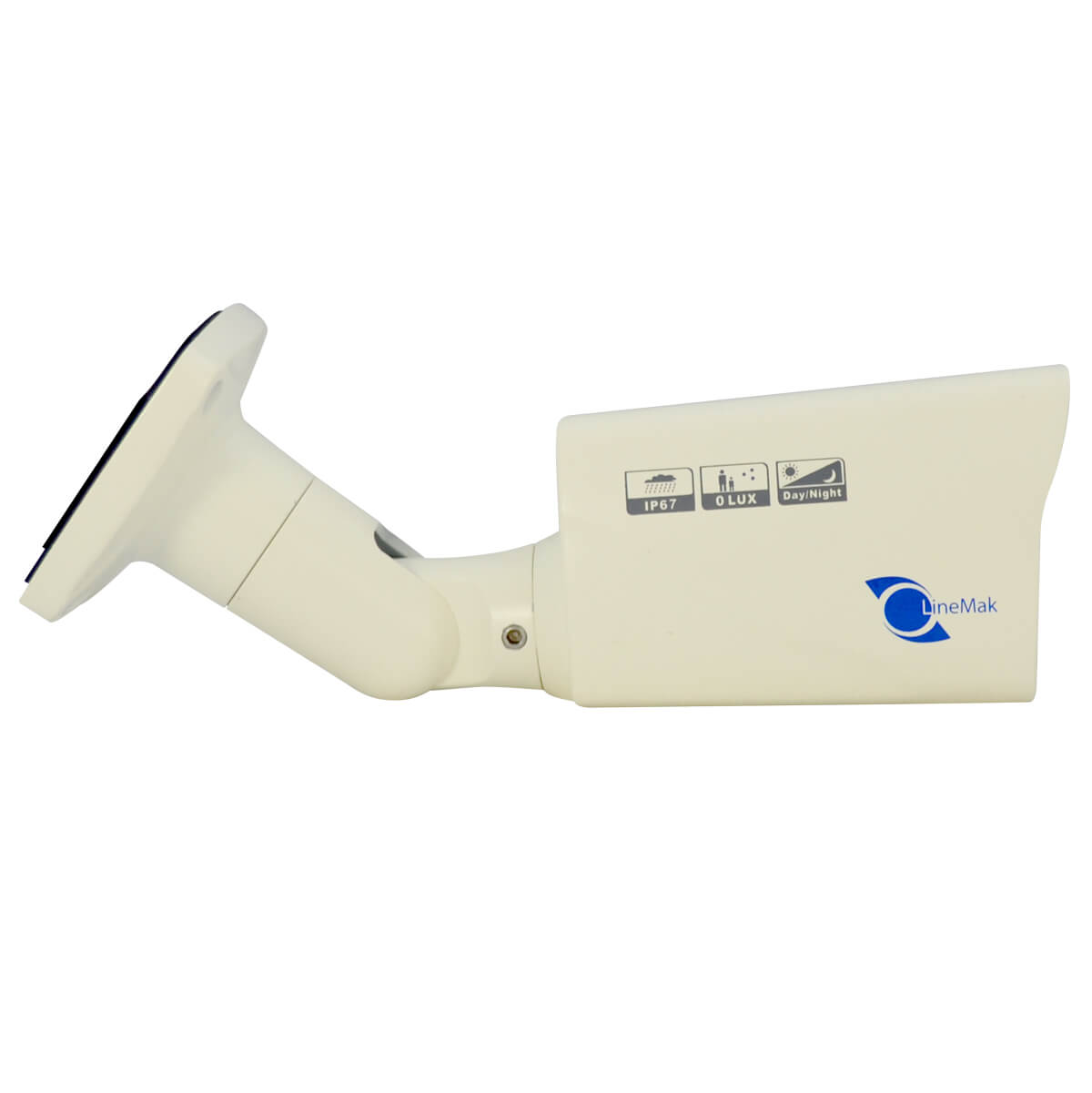

  • Bullet camera 1/3 SONY CCD 700TVL 6mm lens 30 LEDs 65~98ft IR IP67 - Image 6

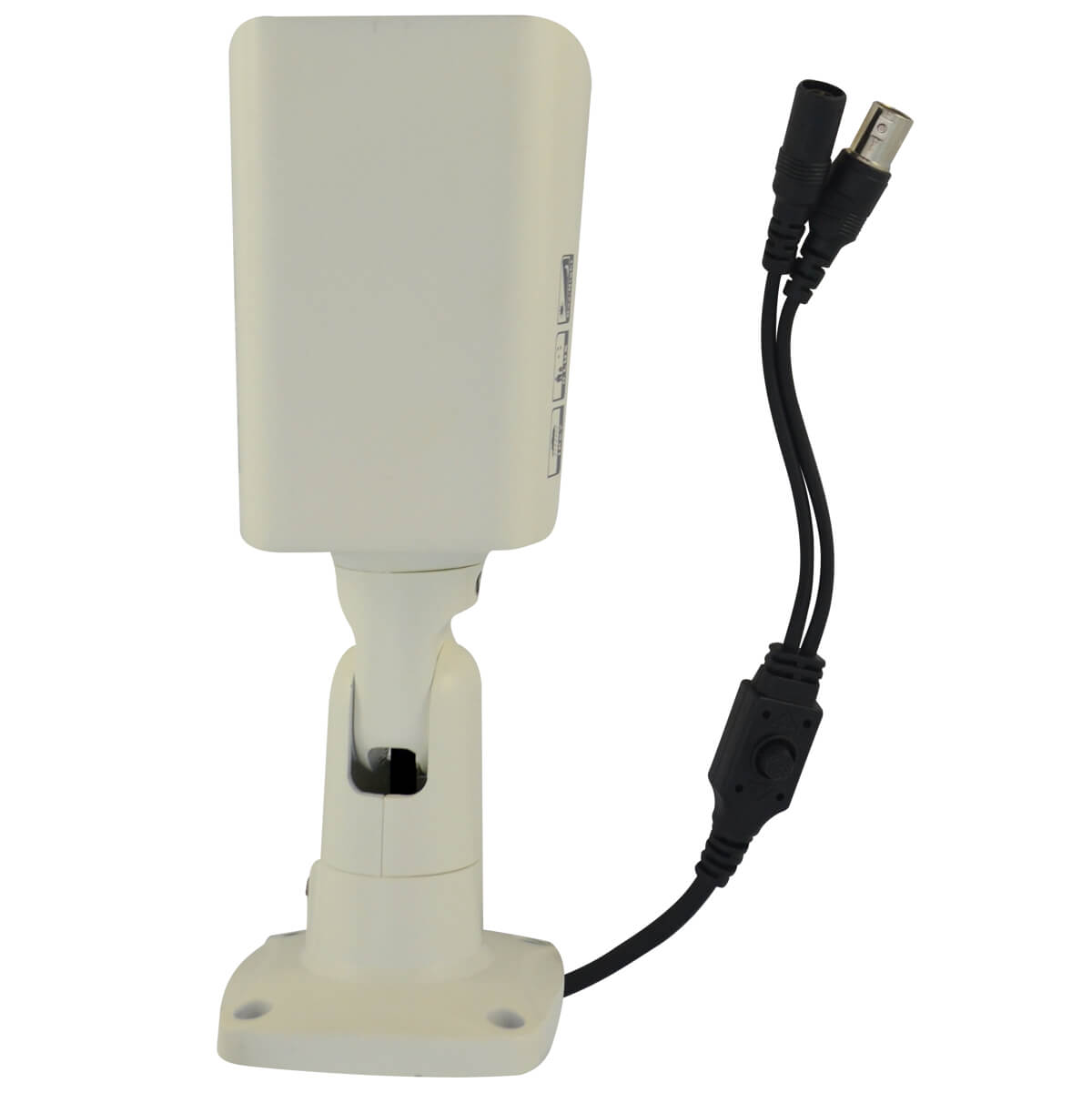

  • Bullet camera 1/3 SONY CCD 700TVL 6mm lens 30 LEDs 65~98ft IR IP67 - Image 7

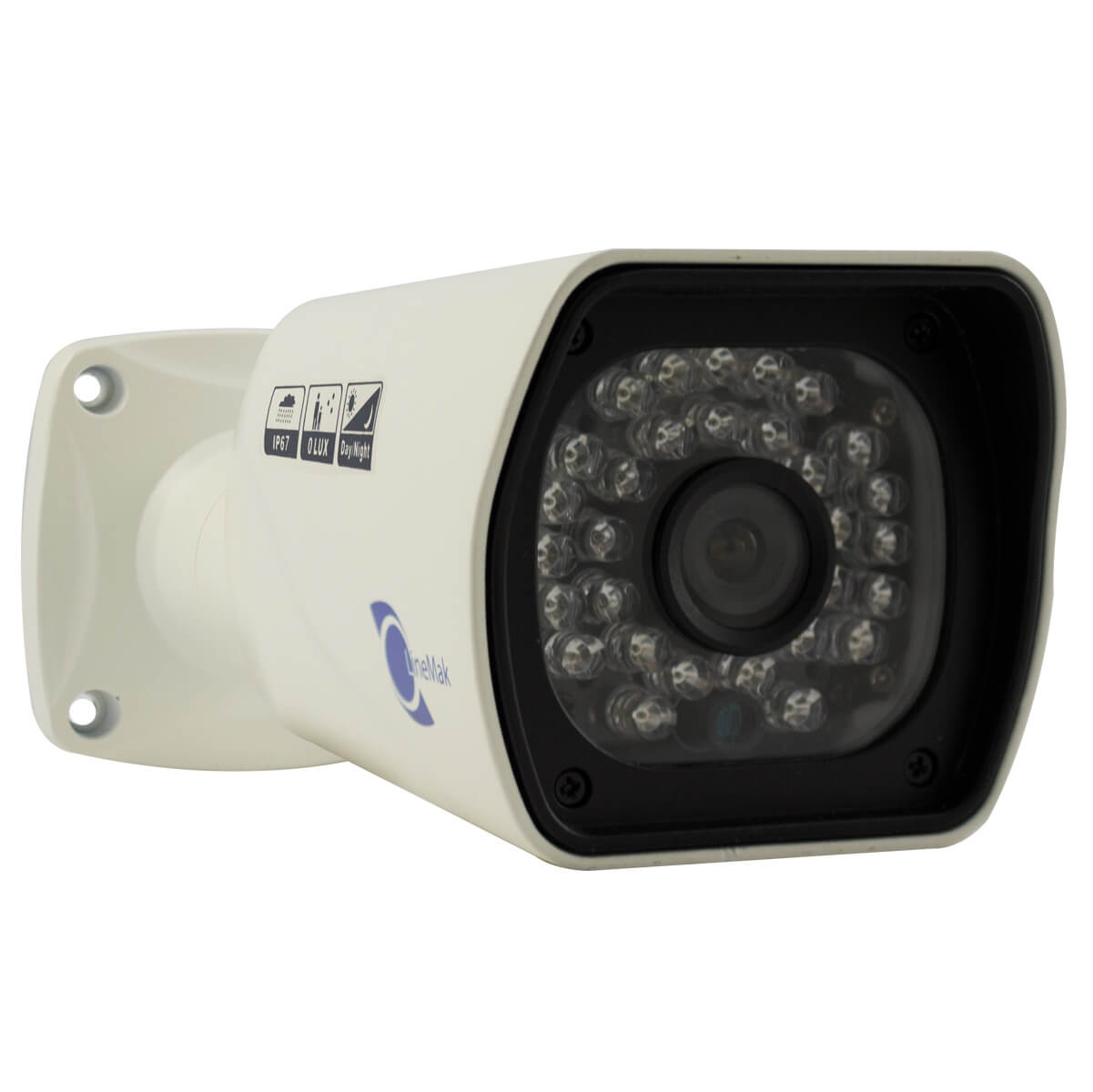

  • Bullet camera 1/3 SONY CCD 700TVL 6mm lens 30 LEDs 65~98ft IR IP67 - Image 8
  • Bullet camera 1/3 SONY CCD 700TVL 6mm lens 30 LEDs 65~98ft IR IP67 - Image 9
  • - AES, AGC, AWB, BLC and mirror functions.
  • - ATR, DWDR, DNR, HLC and CRS functions.
  • - Weatherproof: IP67.
  • - Power adapter not included.
  • - 30pcs LEDs. 65-98ft IR distance.
  • - MTV Lens 6mm/F2.0, 53° viewing angle.
Products recommendaded to work with this item:
bullet camera 1/3 sony ccd 700tvl 6mm lens 30 leds 65~98ft ir ip67
+
1 channel passive video balun 2000ft. contains 6 pairs 12 pcs
+
dc12v 1a power adapter specially for security cameras
Price for all 3: $77.97
  • High-resolution IR waterproof bullet camera with a 6mm MTV lens, a 53° viewing angle, a 65ft to 98ft range infrared night vision, and 30pcs 5mm LEDs each.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for outdoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Weatherproof: IP67

    Hinged base included.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - Weatherproof IR camera with Cable built-in bracket.
    - 30pcs LEDs of 5mm each.
    - 65ft to 98ft IR distance.
    - Real day/night feature.
    - MTV Lens 6mm/F2.0.
    - AWB support function: high color reproduction and real image.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.
    - ATR, DWDR, DNR, OSD menu, HLC and CRS functions.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Weatherproof cameras in a year-round protection
    Our outdoor weatherproof cameras feature at least an IP66 weather rating. These outdoor cameras are built to keep out small particles such as dust and water, and are unaffected by a range of weather conditions including heavy rain and snow.
    Weatherproof cameras in a year-round protection
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Auto White Balance (AWB)
    Back Light Compensation (BLC)
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Automatic Gain Control (AGC)
    Wide Dynamic Range (WDR)
    Wide Dynamic Range (WDR)
    Security Cameras (Analogue Cameras) with WDR Function can treat different areas in the image individually. They can also apply separate brightness modifications within the same view. This function is ideal for are scenarios in which stark contrasts and differences in darkness and brightness within the same image view are expected.
    Digital Noise Reduction (DNR)
    DNR incorporates frame-to-frame noise reduction with spatial noise reduction to produce clear video images with less noise, in low light conditions. It makes images clearer and reduces video file size and reduces the visibility of the random noise during playback of the video.
    Digital Noise Reduction (DNR)
    Highlight Compensation (HLC)
    Highlight Compensation (HLC)
    Differently from BLC, stands for highlight compensation. Camera can detect the strong spots and then reduce the brightness of the strong spots to improve the overall images. This function is mainly designed so cameras capture vehicle plate license.
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    True Day/Night for round-the-clock surveillance
    A rear-view mirror cameras
    A rear-view mirror cameras
    The rear-view mirror camera imitates the function of the actual mirror including the recording function as well, reason why it is highly recommended to use the rear-view camera as a back-up means to check for obstructions behind the car and avoid using it on frozen slippery roads.
    OSD Menu
    Most monitors include an on screen menu for making adjustments to the display through which you can navigate through the menu and make adjustments by using the Plus (+) and Minus (-) buttons, usually located next to the menu button. OSD include basic brightness and contrast controls. This superimposed image on the screen is commonly used by modern TV sets for volume, channel and time control.
    OSD Menu
    Warranty: One (1) Year
  • Bullet camera 1/3 SONY CCD 700TVL 6mm lens 30 LEDs 65~98ft IR IP67
    General
    Brand LineMak
    Model LS-CI162V
    Sensor
    Resolution 700TVL
    Sensor 1/3" SONY Effio EXview HAD CCD II
    Effective pixels PAL: 752*582
    NTSC: 768*494
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm
    Lens
    Lens MTV Lens 6mm / F2.0
    IR Range 65ft ~ 98ft night vision
    LEDs 30pcs (5mm each)
    IR-CUT Filter Yes
    Minimum illumination 0.1 Lux (with LED On)
    Viewing angle 53°
    Environment
    Operation temperature -20°C ~ 50°C
    -4ºF ~ 122ºF
    Weatherproof standard IP67 (Dust and water resistance for no longer than 30 minutes nor deeper than 1 meter)
    Power
    Power supply DC 12V
    Power consumption 500mA
    Appearance
    Color White
    Size 8.27(L) * 2.76(H) * 2.76(W) inches
    Weight 1.32 pounds
    Special function
    Back Light Compensation (BLC) Included
    Auto White Balance (AWB) Included
    Electronic shutter speed (AES) PAL: 1/50s ~ 1/100,000s
    NTSC: 1/60s ~ 1/100,000s
    Auto Gain Control (AGC) Included
    Digital Noise Reduction (DNR) Included
    Wide Dynamic Range (WDR) Included
    Mirror Included
    Adaptive Tone Reproduction (ATR) Included
    High Light Compensation (HLC) Included
    Calling routing system (CRS) Included
    Standard
    Scanning system 2:1 Interlace
    Synchronizing system Internal
    S/N Ratio >48dB
    Gamma correction >0.45
    OSD Menu Included
  • Instrucción
    File Size: 485.42 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 454.37 Kb
    Languages: English
    File Type: PDF
