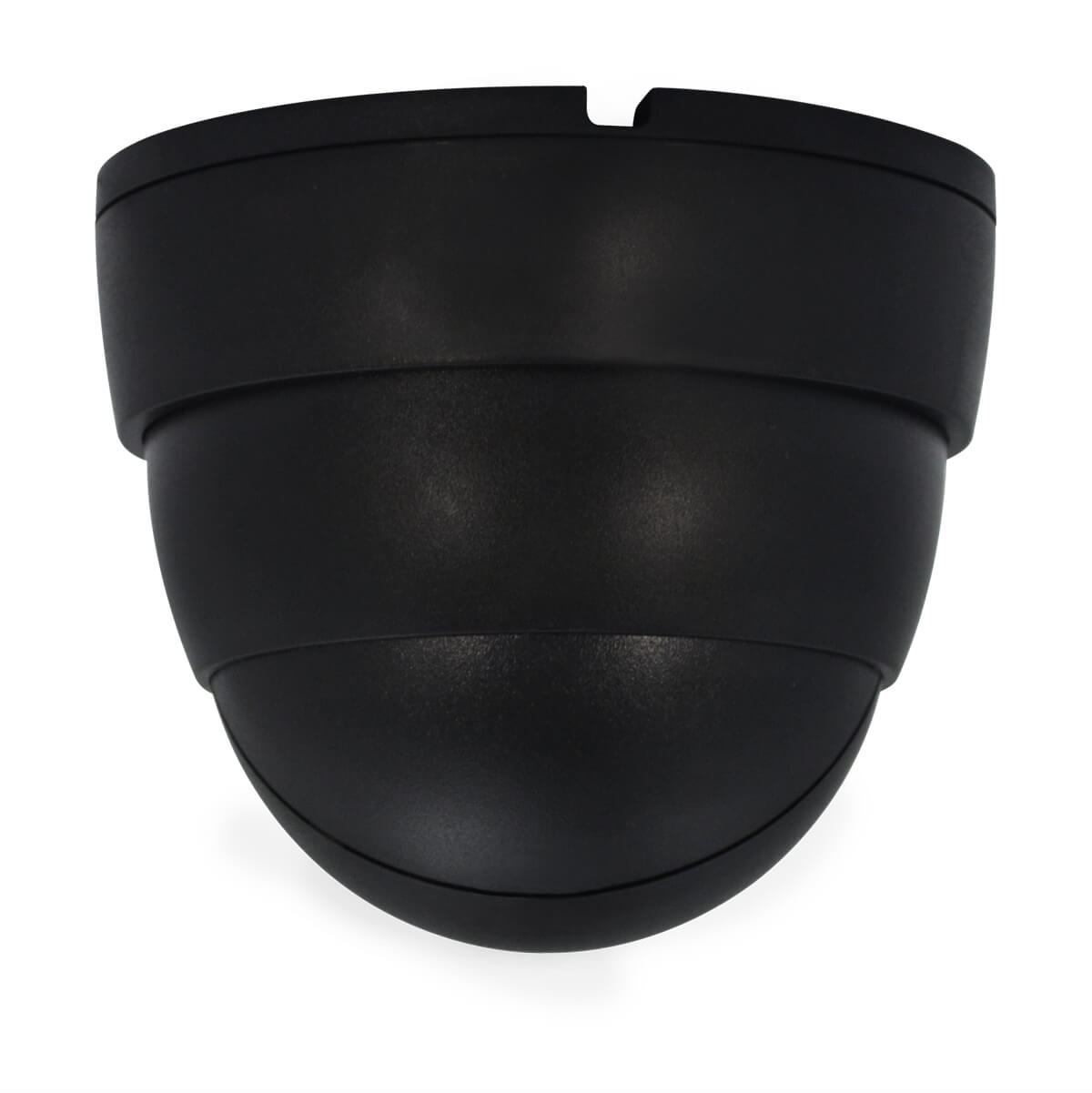

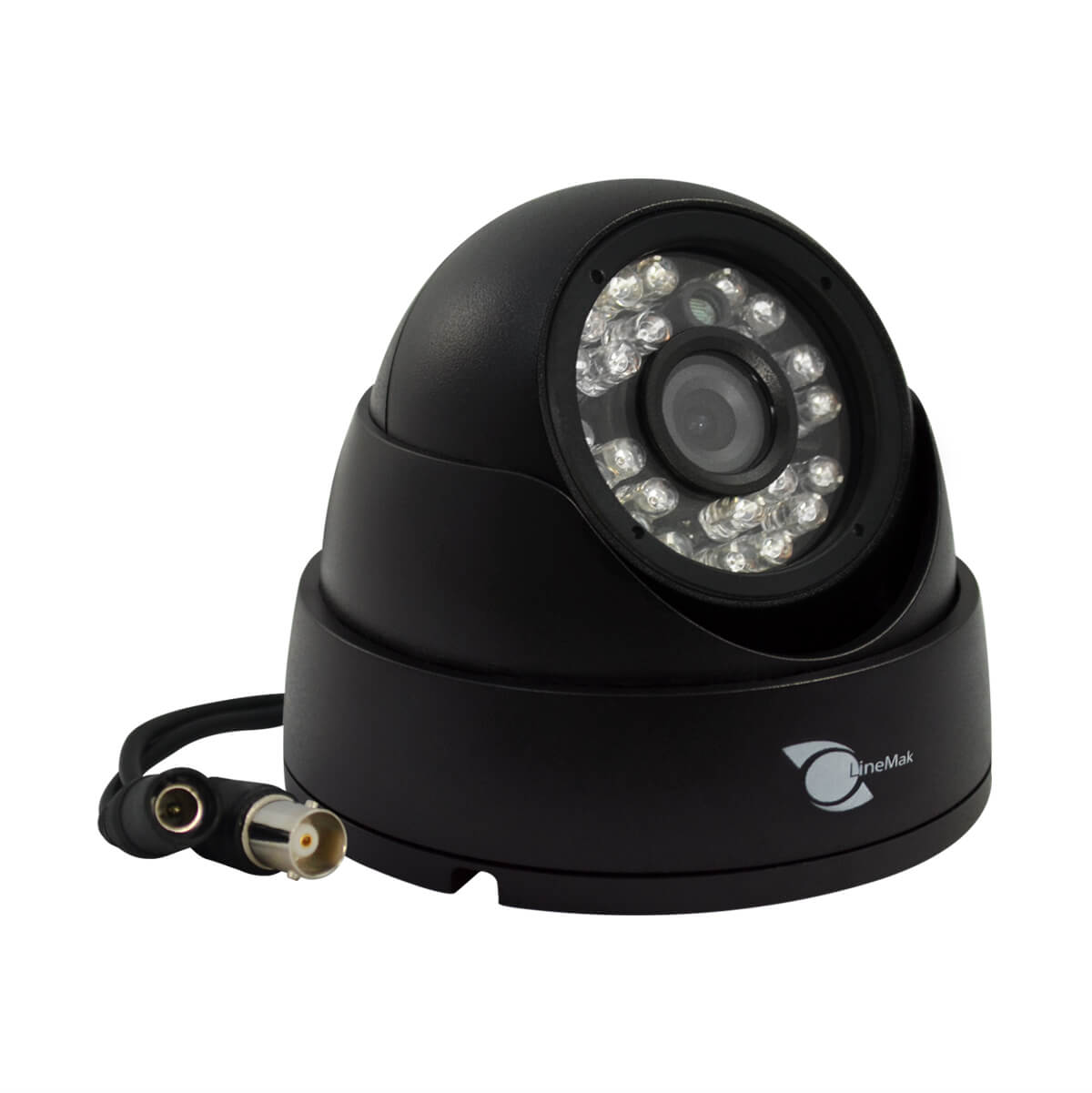

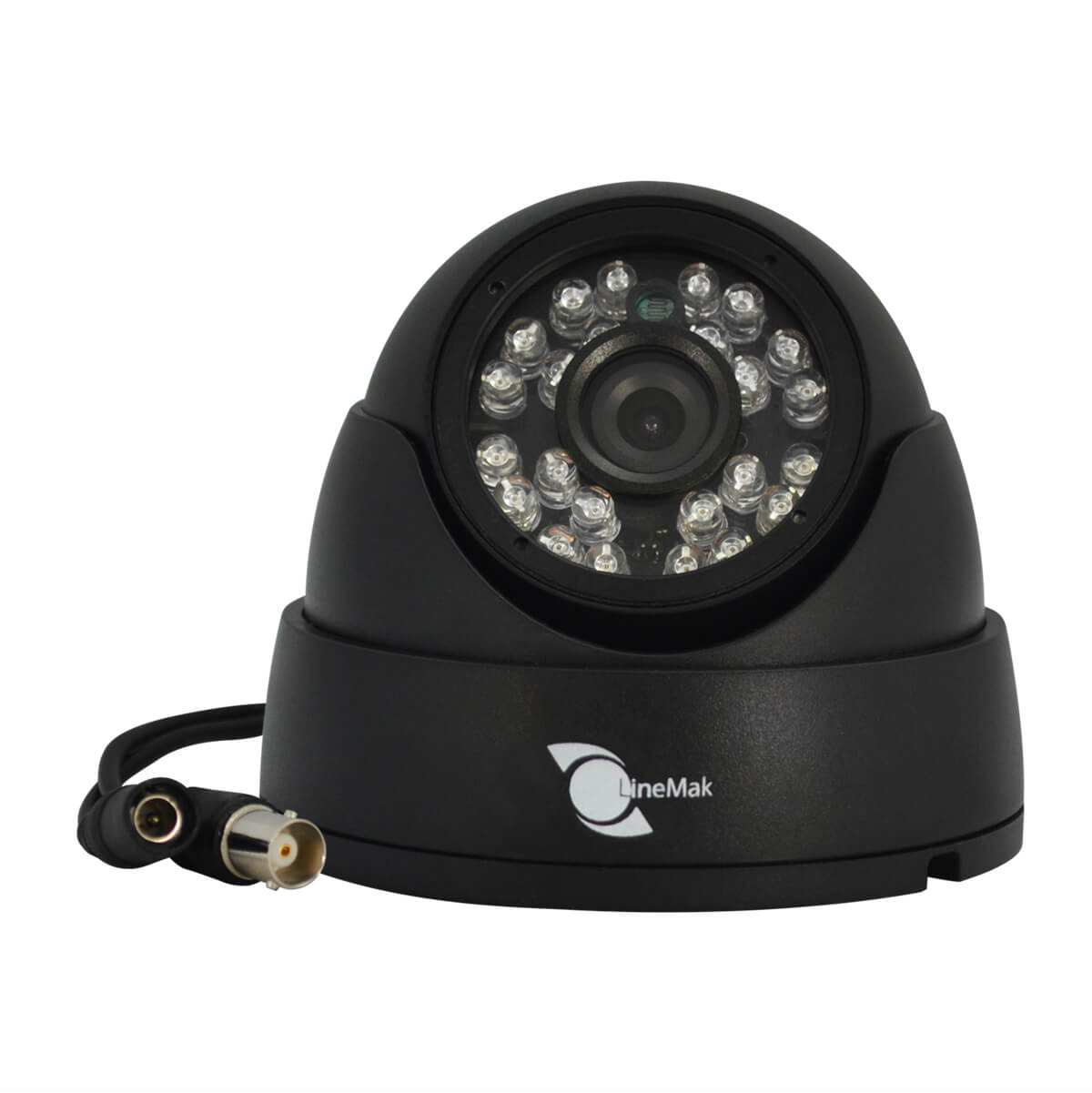

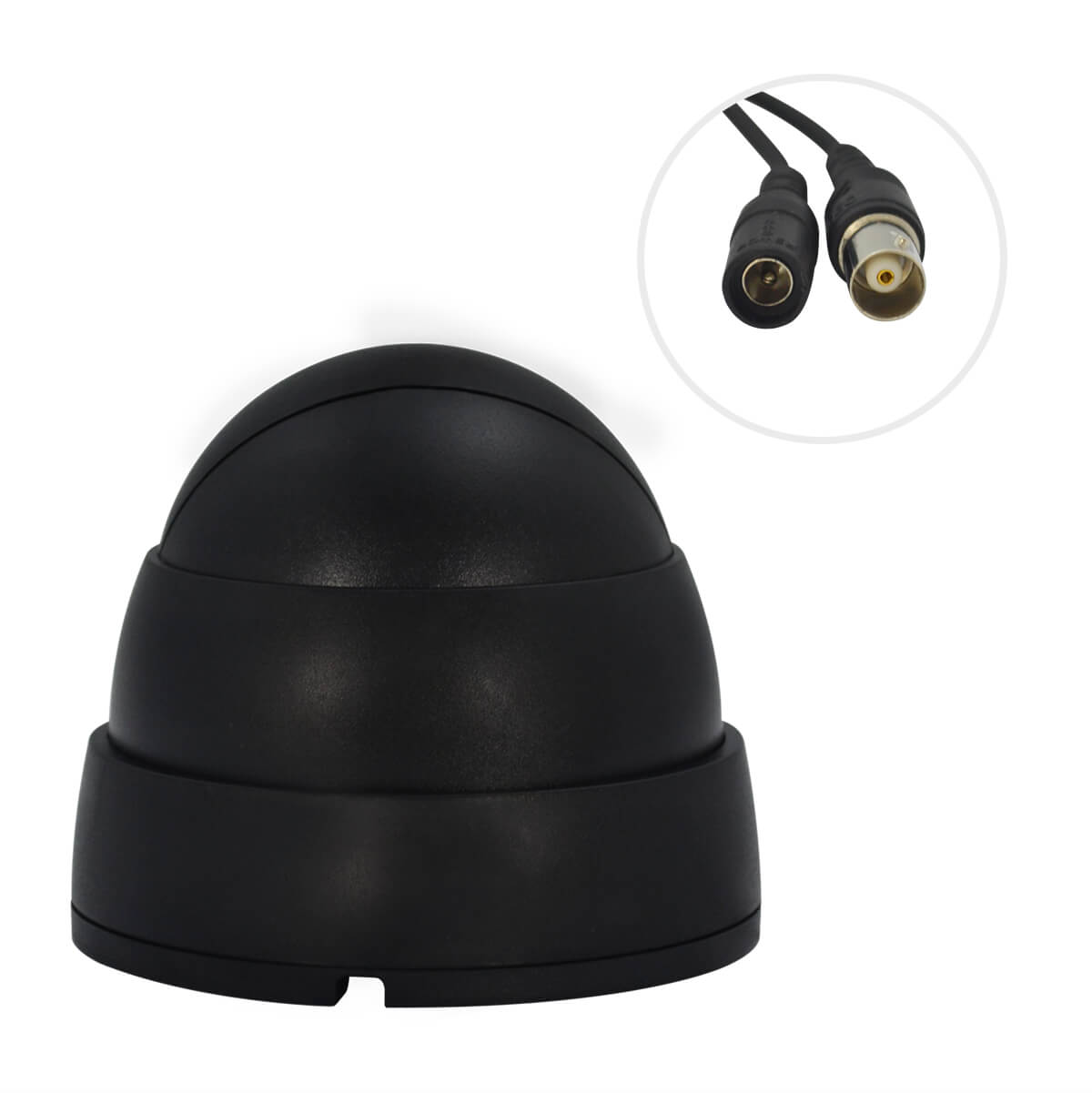

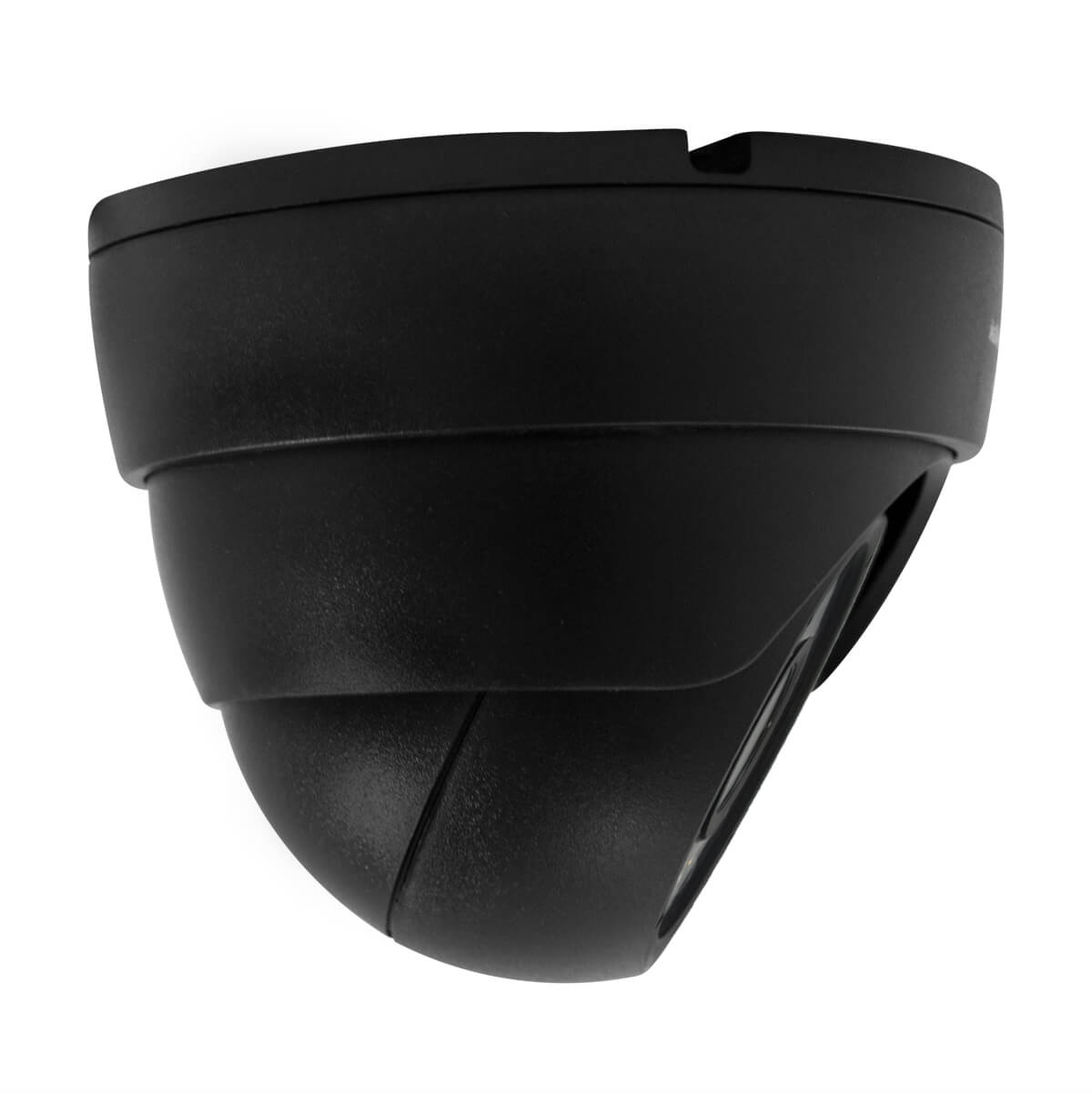

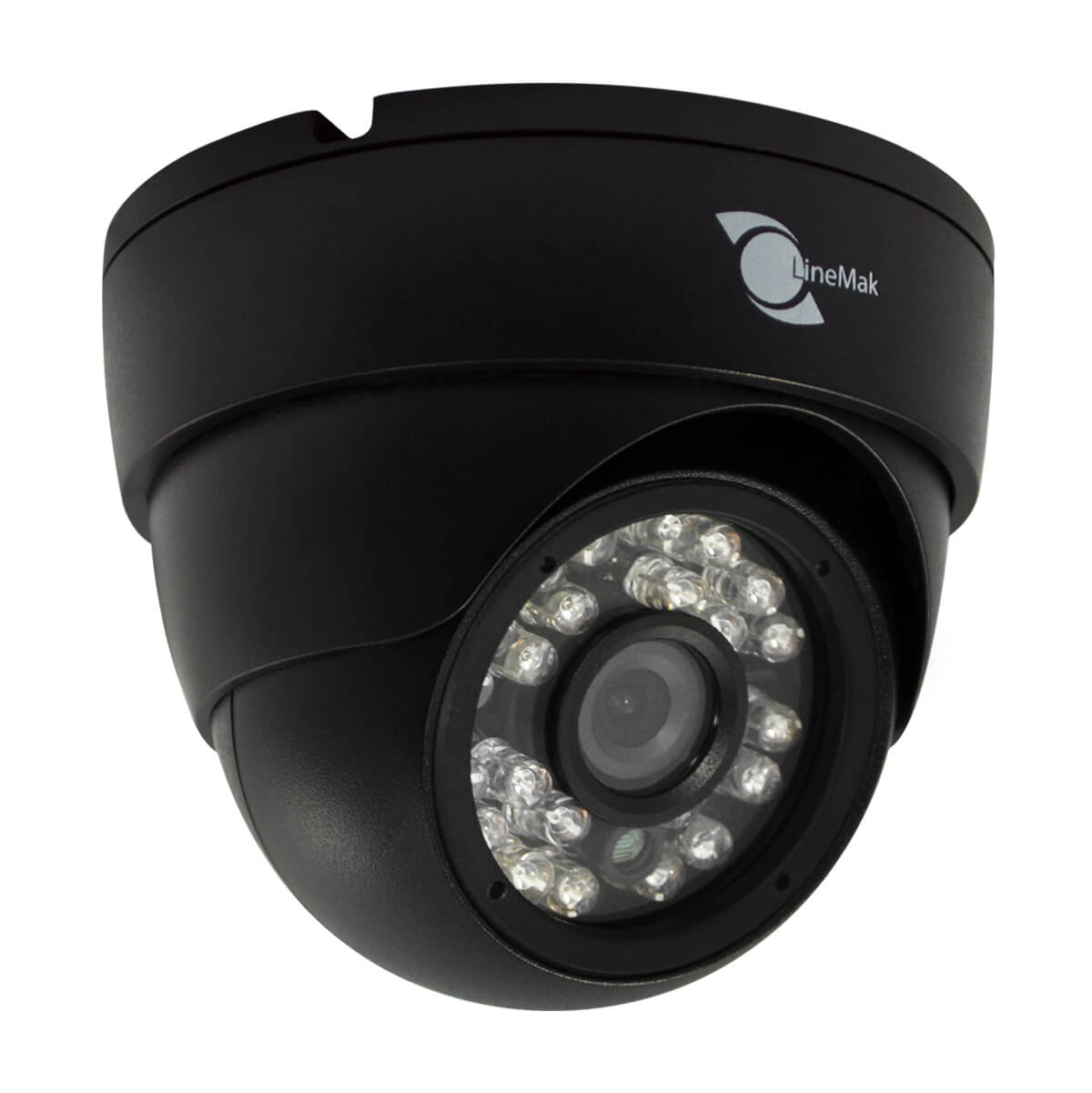

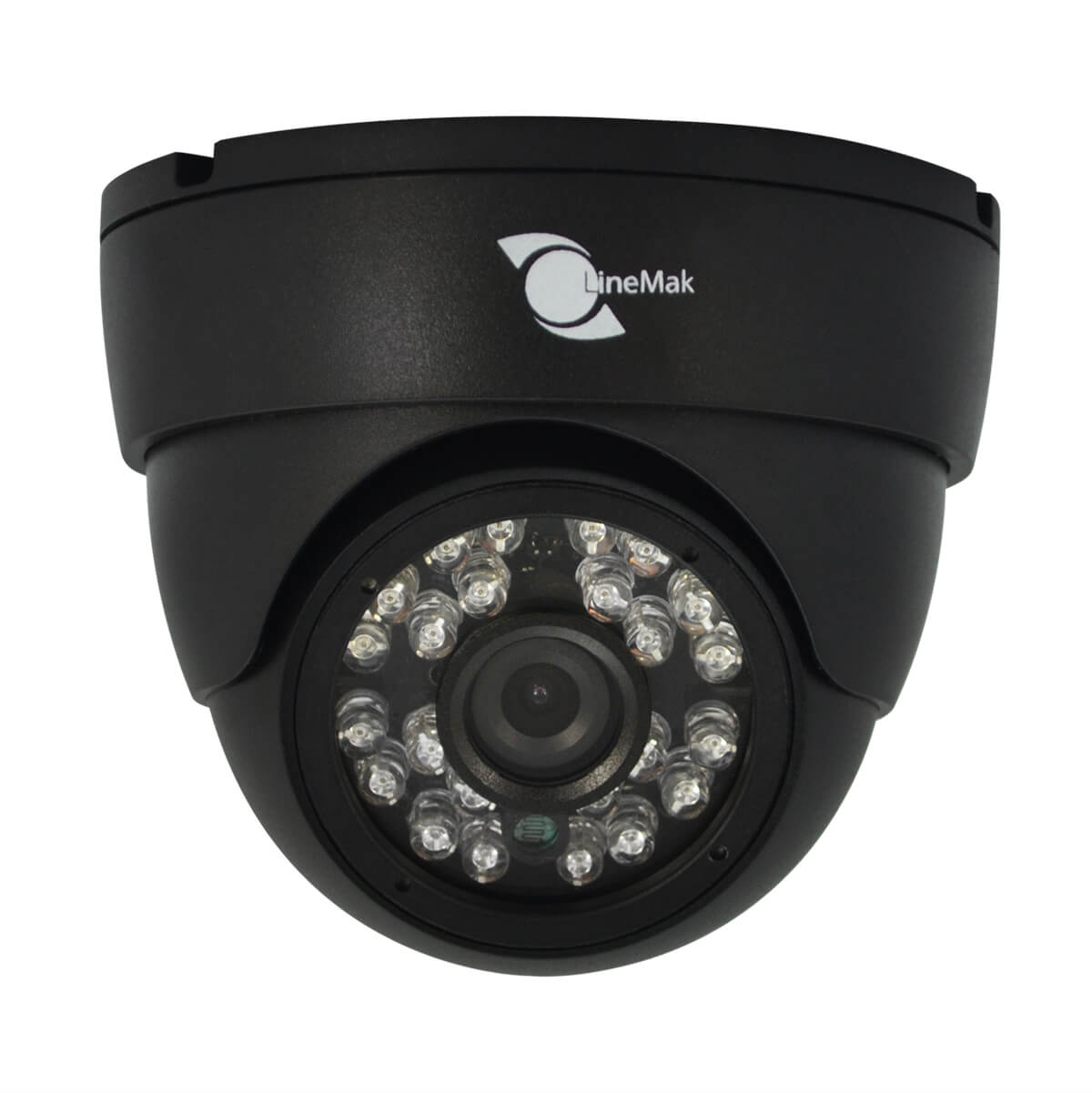

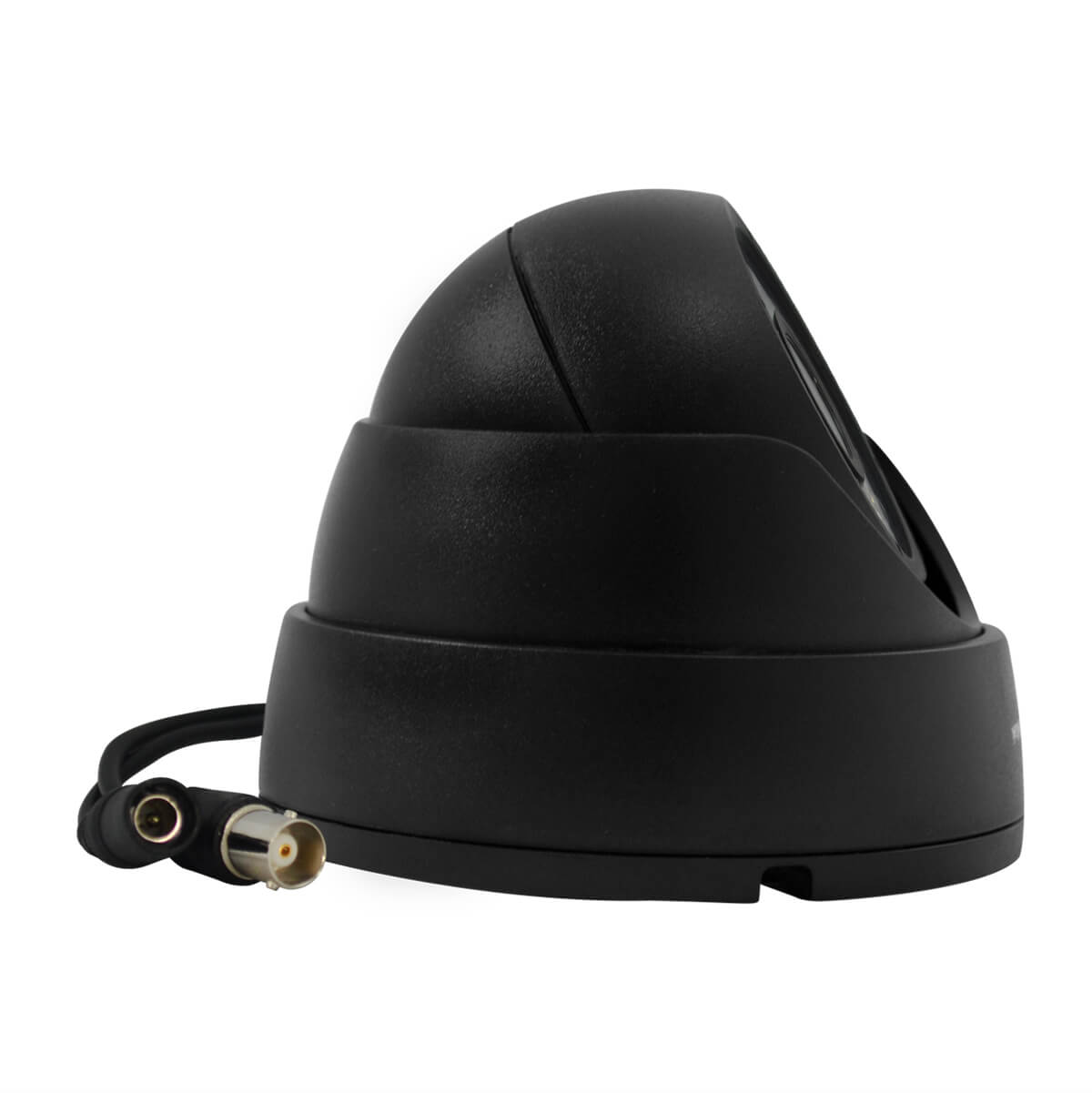

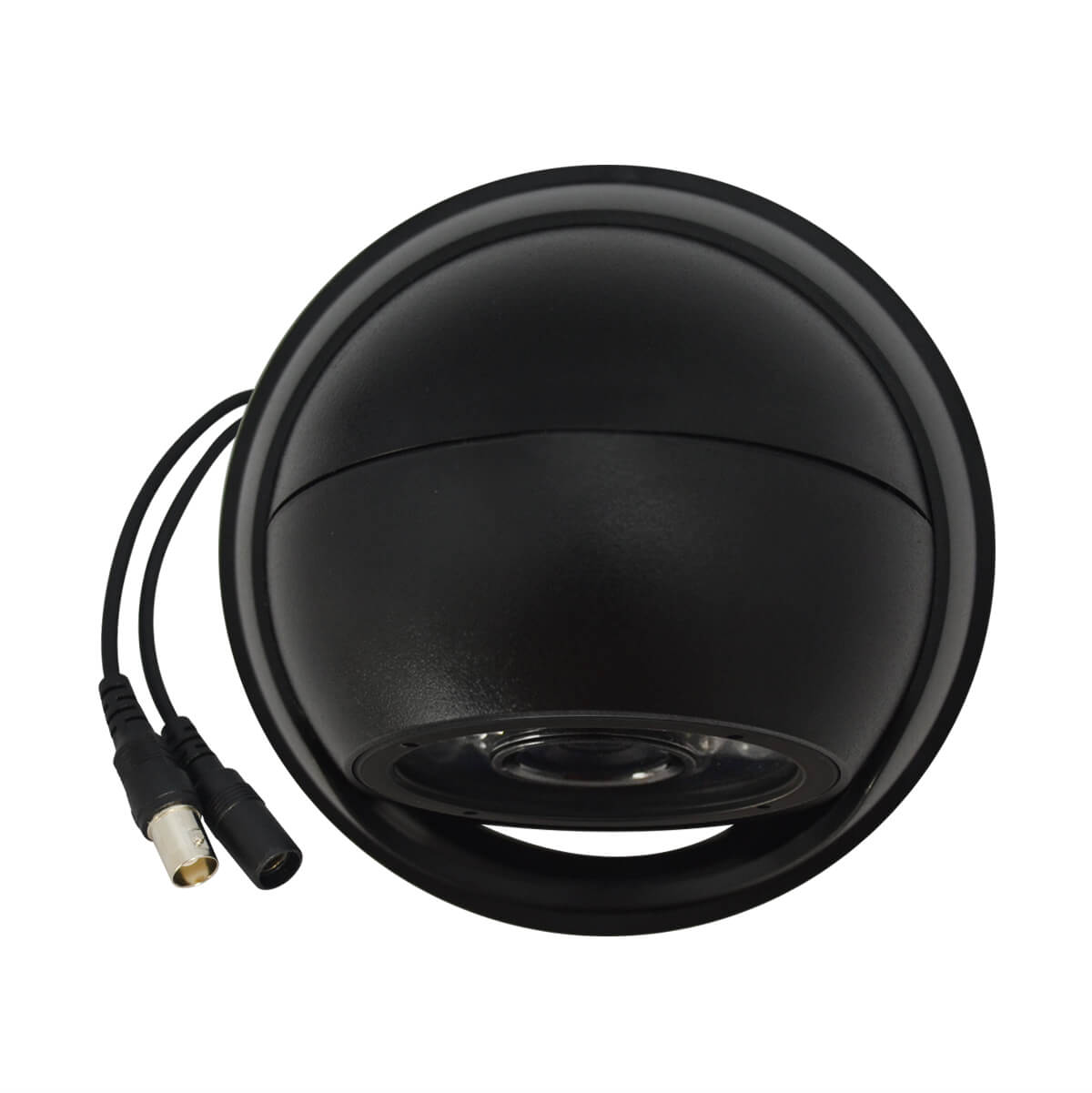

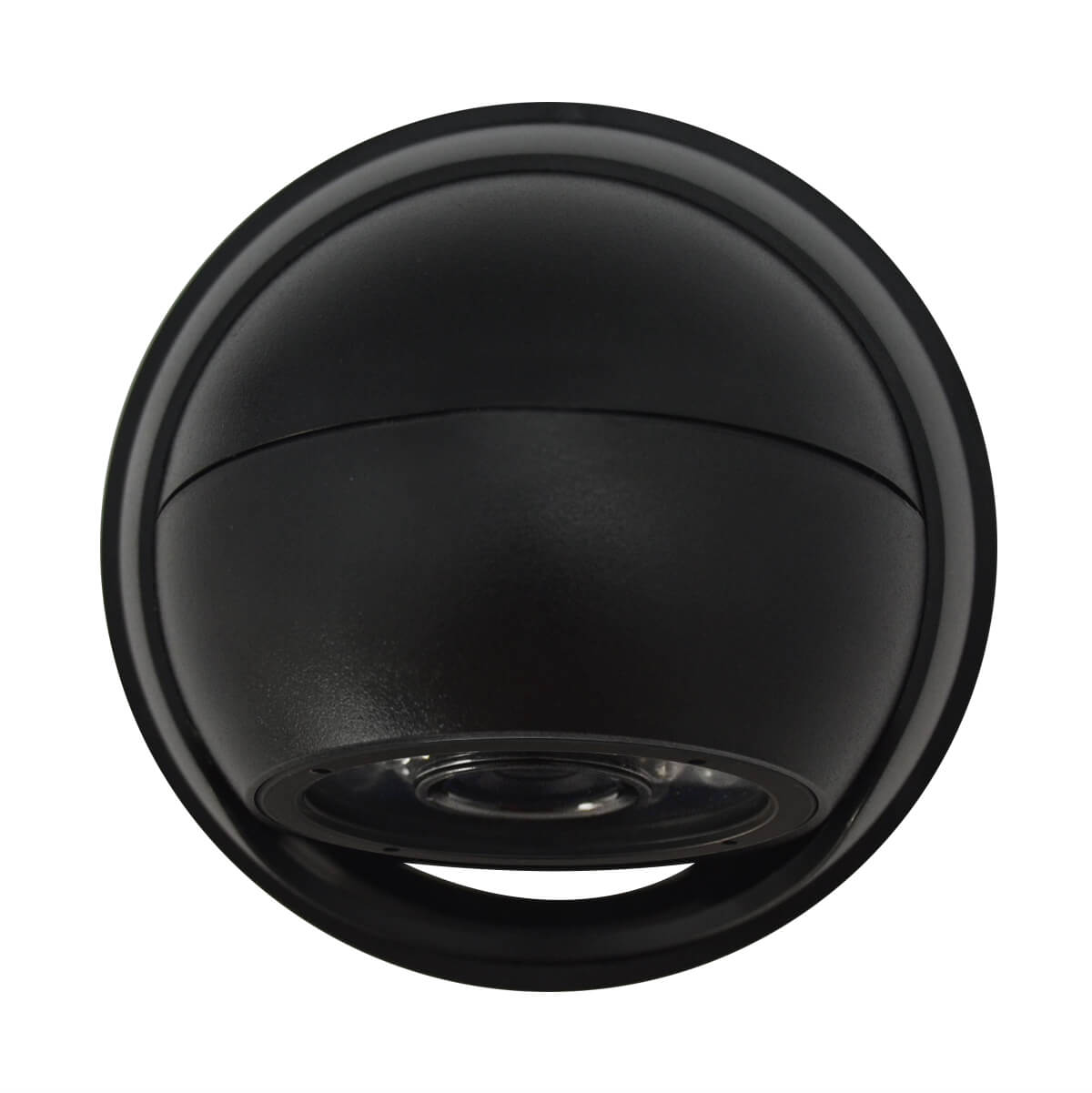

IR Dome camera 1/4 HD Digital Sensor 700TVL 3.6mm lens 24 LED 65ft IR
  • IR Dome camera 1/4 HD Digital Sensor 700TVL 3.6mm lens 24 LED 65ft IR  - Image 1
  • - AES, AGC, AWB, BLC and mirror function.
  • - Waterproof: IP66.
  • - IR CUT Filter.
  • - Power adapter not included.
  • - 24pcs LEDs. 65ft IR distance.
  • - 3.6mm Lens.
  • High-resolution IR dome camera with a 3.6mm lens and a viewing angle of 70° with a 65ft range infrared night vision and a 24pcs LEDs 5mm each.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size. Due to its slightly tilted crystal, the IR is not reflected on the surface.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - IR dome camera.
    - 24pcs LEDs (5mm each).
    - 65ft IR distance.
    - 3.6mm lens.
    - Metal shell.
    - AWB support function: high color reproduction and real image.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.

    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Automatic Gain Control (AGC)
    True round-the-clock surveillance for illuminant/dark places
    True round-the-clock surveillance for illuminant/dark places
    This feature delivers a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications that deliver clear and sharp color images in illuminant areas and black and white images in dark areas using infrared illumination, without the need to refocus the lens.
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Back Light Compensation (BLC)
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Auto White Balance (AWB)
    Warranty: One (1) Year
  • IR Dome camera 1/4 HD Digital Sensor 700TVL 3.6mm lens 24 LED 65ft IR
    General
    Brand LineMak
    Model LS-CV342F
    Sensor
    Resolution 700TVL
    Sensor 1/4" HD Digital
    Effective pixels PAL: 752*582
    NTSC: 768*494
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm
    Lens
    Lens 3.6mm
    IR Range 65ft night vision
    LEDs 24pcs (5mm each)
    IR-CUT Filter Yes
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 70°
    Environment
    Operation temperature -20°C ~ 50°C
    -4°F ~ 122°F
    Weatherproof standard IP66 (dustproof and waterproof)
    Power
    Power supply DC 12V
    Power consumption 500mA
    Appearance
    Color Black
    Size 3.15(H) * 3.54(D) inches
    Weight 9.88 ounces
    Special function
    Back Light Compensation (BLC) Yes
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) PAL: 1/50~1/100,000s
    NTSC: 1/60~1/100,000s
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Mirror No
    Adaptive Tone Reproduction (ATR) No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Scanning system 2:1 Interlace
    Synchronizing system Internal
    S/N Ratio >48dB
    Gamma correction 0.45
