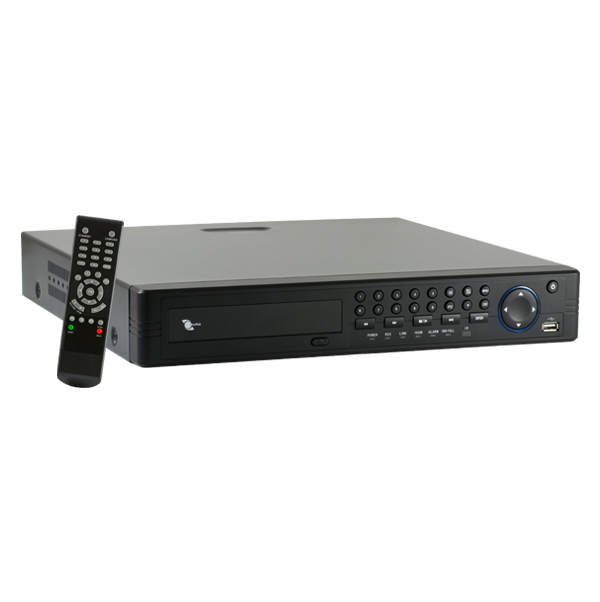

16Ch DVR, H264, BNC/VGA/HDMI output, Audio 16Ch in/1Ch out, D1.
  • 16Ch DVR, H264, BNC/VGA/HDMI output, Audio 16Ch in/1Ch out, D1. - Image 1
  • - D1 resolution.
  • - H.264 compression format.
  • - BNC, VGA, HDMI and SPOT output.
  • - WIFI module sold separately. Hard drive not included.
  • - Mobile surveillance: iOS and Android.
  • - PAL / NTSC video formats.
Products recommendaded to work with this item:
16ch dvr, h264, bnc/vga/hdmi output, audio 16ch in/1ch out, d1.
+
ir dome camera 1/3 hd sensor, 900tvl, 3.6mm lens 24 led 65ft ir ircut
+
seagate barracuda 1 tb hdd sata 6 gb/s ncq 64mb cache
Price for all 3: $334.97
  • This easy to use DVR (Digital Video Recorder) features an English menu and motion detection recording. Monitor your cameras on the internet from anywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time. Remote control included.

    This video surveillance equipment can record images registered by their cameras and is very easy to use.

    Multiple recording modes: Manual, schedule, motion detection, sensor.
    Multiple control methods: Front panel, network controller and remote control.
    Compatible with WIN98 / WIN2000 / WIN XP / WIN VISTA / WIN SEVEN.

    Hard drive not included.
    This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    HDMI delivers enhanced image clarity
    HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.
    HDMI delivers enhanced image clarity
    Keep everything under watch with multiple recording modes
    Keep everything under watch with multiple recording modes
    Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.
    Accurate alarm recording allows you to cover the whole event
    This feature works with the motion detection capability of the DVR or alarm contacts attached to a door or window. When an incident is detected, the DVR records a pre-set amount of time before and after the event to the hard drive. This enables you to see what happened before and after motion was detected and view additional information about the circumstances leading up to and after it.
    Accurate alarm recording allows you to cover the whole event
    Remote setup to access the DVR screen setting
    Remote setup to access the DVR screen setting
    DVR settings adjustment such as remote firmware upgrade, email notification, recording resolution, and motion recording. All DVR settings in the Display, Record, Device, Storage, System, Security Network and Upgrade screens are accessible remotely, for easy adjustment of related DVR functions.
    Remote monitoring Surveillance
    Rely on our current and advanced technology by using any top-of-line wireless sensing device for remotely monitoring your goods or property from everywhere, every time. Be able to manipulate your security system through a simple click and have it all watched like you were nearby.
    Remote monitoring Surveillance
    Monitoring 3G
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    Backup for saving critical video evidence
    The recorder allows still images and recorded video to be offloaded via one or more of these options for quick and easy backup of your critical video evidence: DVD, USB drive or network.
    Backup for saving critical video evidence
    Motion detection
    Motion detection
    Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.
    Save money with no contracts and no monthly fees
    Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.
    Save money with no contracts and no monthly fees
    Warranty: One (1) Year
  • 16Ch DVR, H264, BNC/VGA/HDMI output, Audio 16Ch in/1Ch out, D1.
    General
    Brand LineMak
    Model LS-RD736
    System
    Main processor High Speed 600MHz * 2
    Operating system Linux
    Memory Space 1*7G (DDR2 SDRAM)
    Flash Memory 256M/bit
    Display
    Display area 1/4/9/16
    Graphic user interface (GUI) Supported GUI 16 Bit True Color
    Zoom Preview and Playback Zoom Support
    Video
    Resolution D1
    Video format NTSC / PAL Switch Selectable
    Compression format H.264 (Main Profile)
    Display quality Best, Fine, Norm, Bit-rate settings(16kbps-2Mbps)
    Motion detector High, Higher, Middle, Low
    Video recording PAL: 704*480 (704*576) ~ 400fps / 704*240 (704*288) ~ 400fps / 352*240 (352*288) ~ 400fps
    NTSC: 704*480 (704*576) ~ 480fps / 704*240 (704*288) ~ 480fps / 352*240 (352*288) ~ 480fps
    Audio
    Bidirectional talk Yes
    Recording & Playback
    Recording mode Manual, schedule, motion detection, sensor
    Local playback PAL: 704*480 (704*576) ~ 100fps / 704*240 (704*288) ~ 100fps / 352*240 (352*288) ~ 100fps
    NTSC: 704*480 (704*576) ~ 120fps / 704*240 (704*288) ~ 120fps / 352*240 (352*288) ~ 120fps
    Search mode Time, event, channels and calendar
    Water Mark Yes
    Multi-channel playback 1, 4
    Speed Normal, slow and fast (1/5, 1/4, 1/3, 1/2, 1, 2, 3, 4, 5)
    Storage & Backup
    Backup mode USB, DVD/RW and network
    Interface
    Video input/output Input: 16-Ch BNC
    Output: 1-Ch BNC, 1-Ch VGA, 1-Ch HDMI and 1-Ch SPOT
    Audio input/output Input: 16-Ch RCA
    Output: 1-Ch RCA
    Alarm input/output Input: 16-Ch
    Output: 2-Ch
    PTZ Control 1 RS-485 and 1 RS-232 ports (18 kinds of protocol support)
    HDD Port 2 SATA HDDs port (up to 2TB each)
    Network interface 1 RJ45 10M/100M Base-T (self-adaptive Ethernet port) port
    Mode control
    Operating mode Front panel, network controller and remote control
    Network
    Web Browser IE, Firefox, Google chrome
    Remote
    Network protocol TCP/IP, UDP, HTTP, DDNS, SMTP(SSL), LAN, DHCP, PPPOE
    Remote independent operation Remote view, remote playback, remote setup
    Mobile surveillance Symbian, iOS, Blackberry, Android
    CMS Yes
    PTZ
    PTZ Control RS-485
    Communication protocol Static IP, DHCP, DDNS
    Environment
    Operation temperature 10°C ~ 50°C
    50ºF ~ 131ºF
    Working humidity 10% ~ 90%
    Power
    Power supply DC 12V/5A
    Power consumption 12-15W (Exclude HDD)
    Appearance
    Color Black
    Size 14.96(L) * 2.36(H) * 14.96(W) inches
    Weight 7.55 pounds
    Accessories
    Remote control Yes
  • Manual
    File Size: 2303.01Kb
    Languages: English
    File Type: PDF
    Instructions
    File Size: 2213.12Kb
    Languages: English
    File Type: PDF
