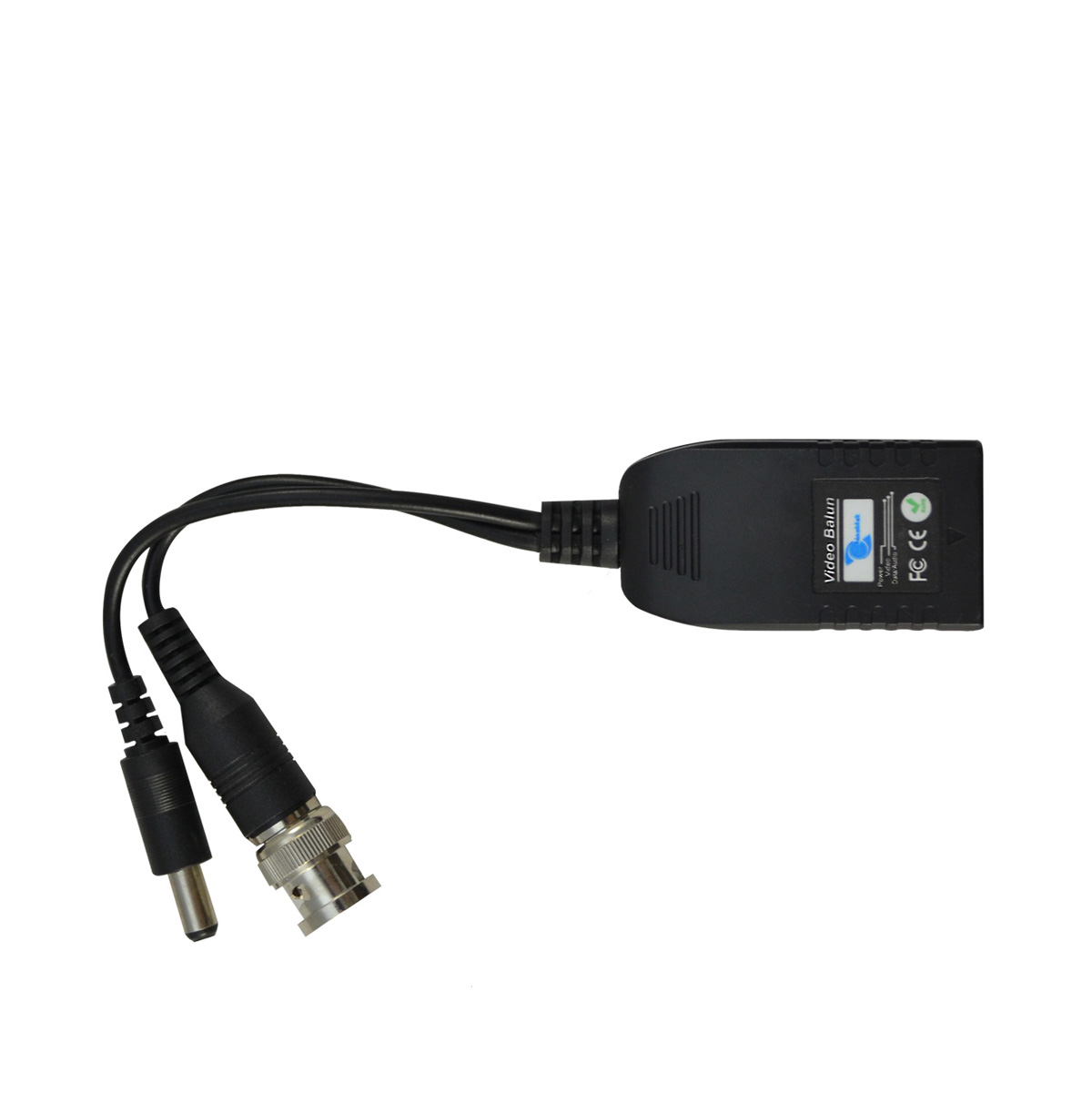

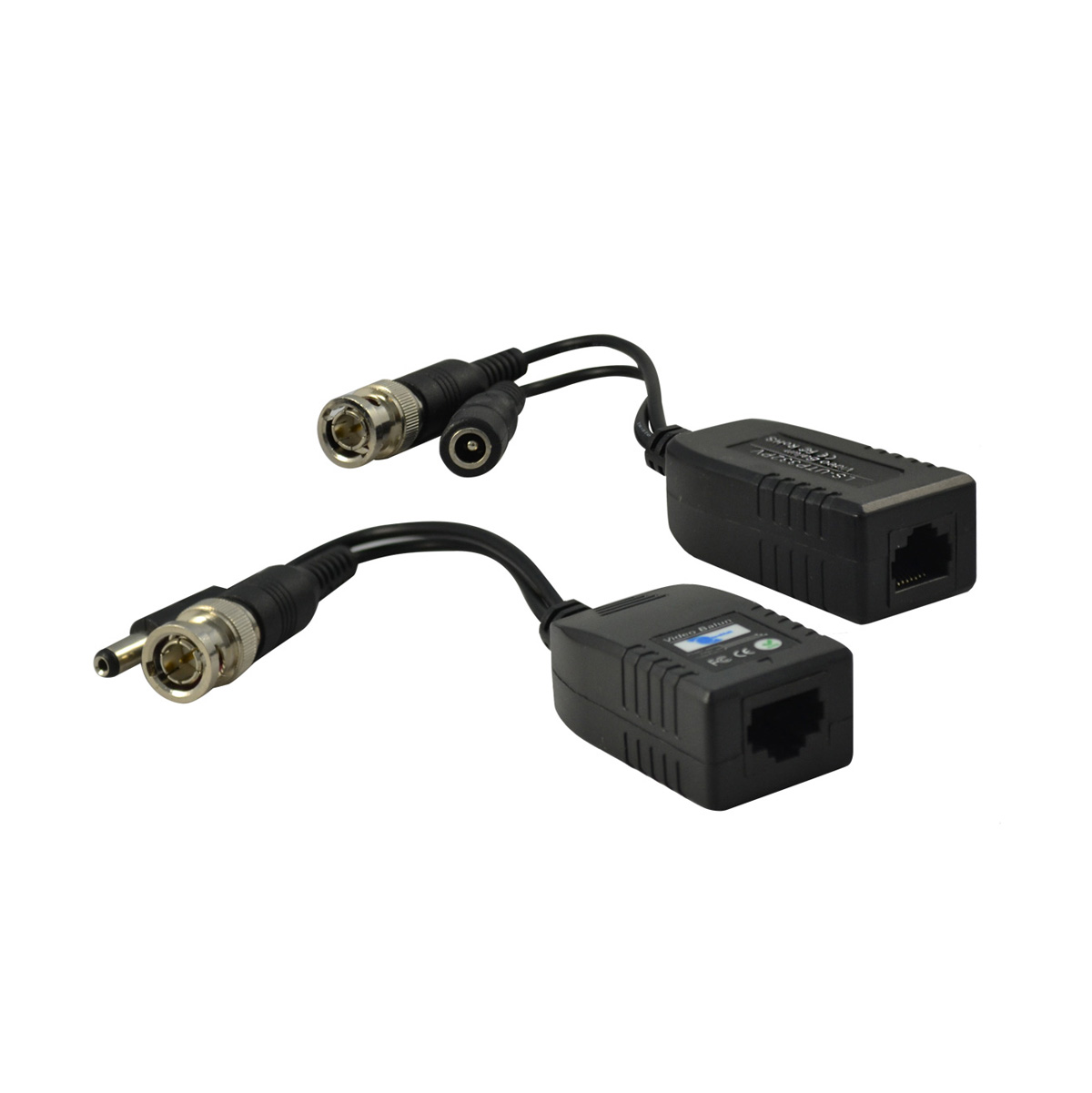

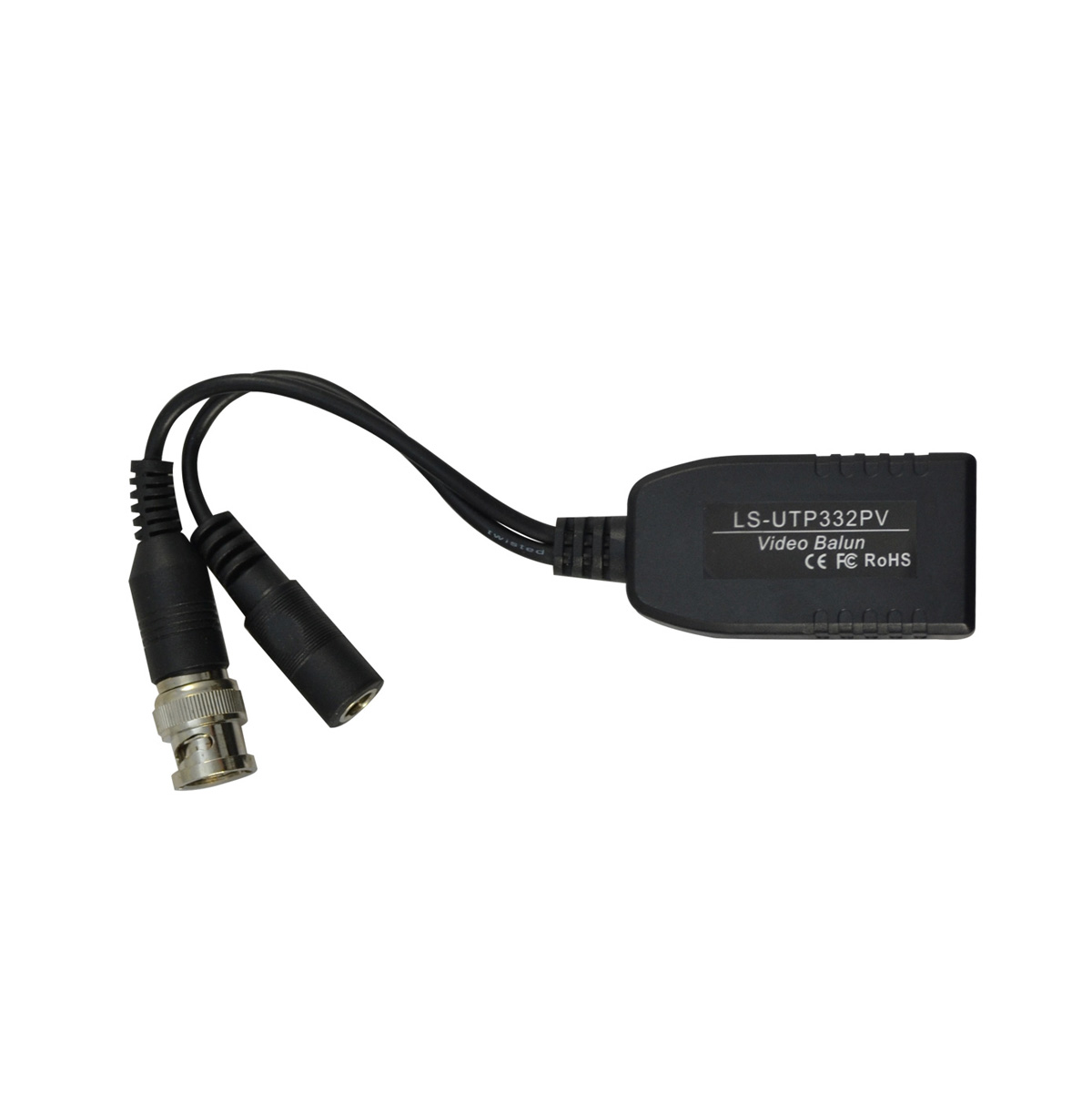

Passive Video Balun, Power and Video
  • Passive Video Balun, Power and Video - Image 1
Products recommendaded to work with this item:
passive video balun, power and video
+
32 channel hvr, h.264/g.711a compression formats, bnc/vga/hdmi simulta
+
seagate barracuda 1 tb hdd sata 6 gb/s ncq 64mb cache
Price for all 3: $533.97
  • Technical Spevifications
    - Power - Video - Audio signals are routed via UTP and RJ45. The unit is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over unshielded twisted-Pair (UTP) telephone wire.

    - NTSC, PAL and SECAM video formats.
    - 60dB crosstalk and noise immunity.
    - Compact size and easy installation.
    - Built-in transient suppression proteccion.

    Power-Distance Chart

    By using PVD product, cameras can be powered at extended distances, please refer to the chart below for more information:

    Power Supply Voltage24AVC28VAC13VDC
    Resultant Camera Voltage21AVC21VAC10VDC
    100 mA Camera984ft2296ft984ft
    300 mA Camera328ft754ft328ft
    500 mA Camera196ft459ft196ft
    Warranty: One (1) Year
  • Passive Video Balun, Power and Video
    General
    Brand Linemak
    Model LS-UTP331PV
    Video Balun
    Frequency response DC to 8Mhz
    Attenuation 0.5dB ty
    Common mode rejection ratio 60DB
    Impedance BNC: 75ohms
    RJ45: 100ohms
    Environment
    Operation temperature -10ºC to 70ºC
    Storage temperature -30ºC to 70ºC
    Working humidity 0% to 95%
    Appearance
    Material ABS Plastic
