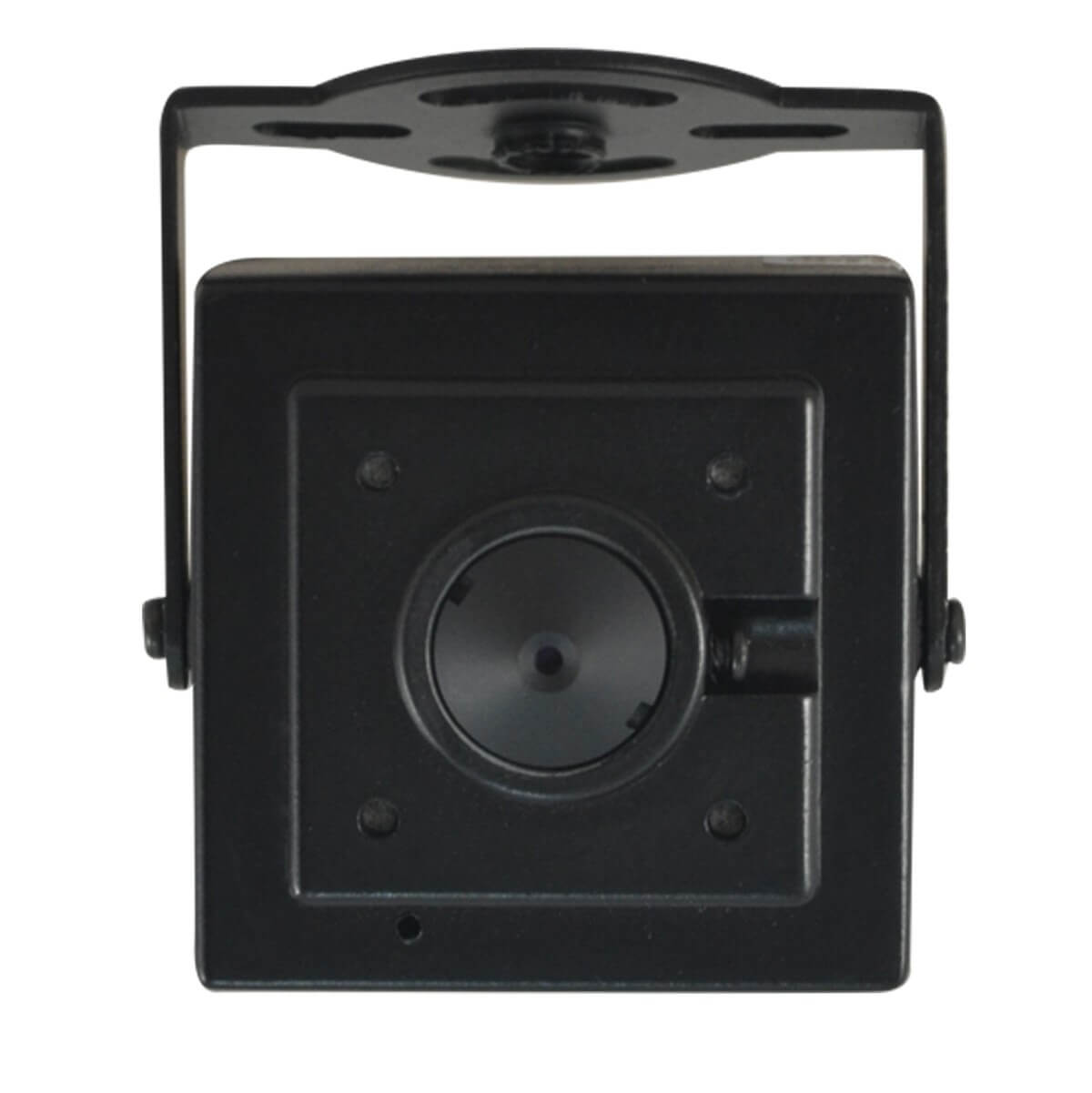

Mini Camera, 480TVL, 3.7mm Taper Pinhole lens, BLC, AGC

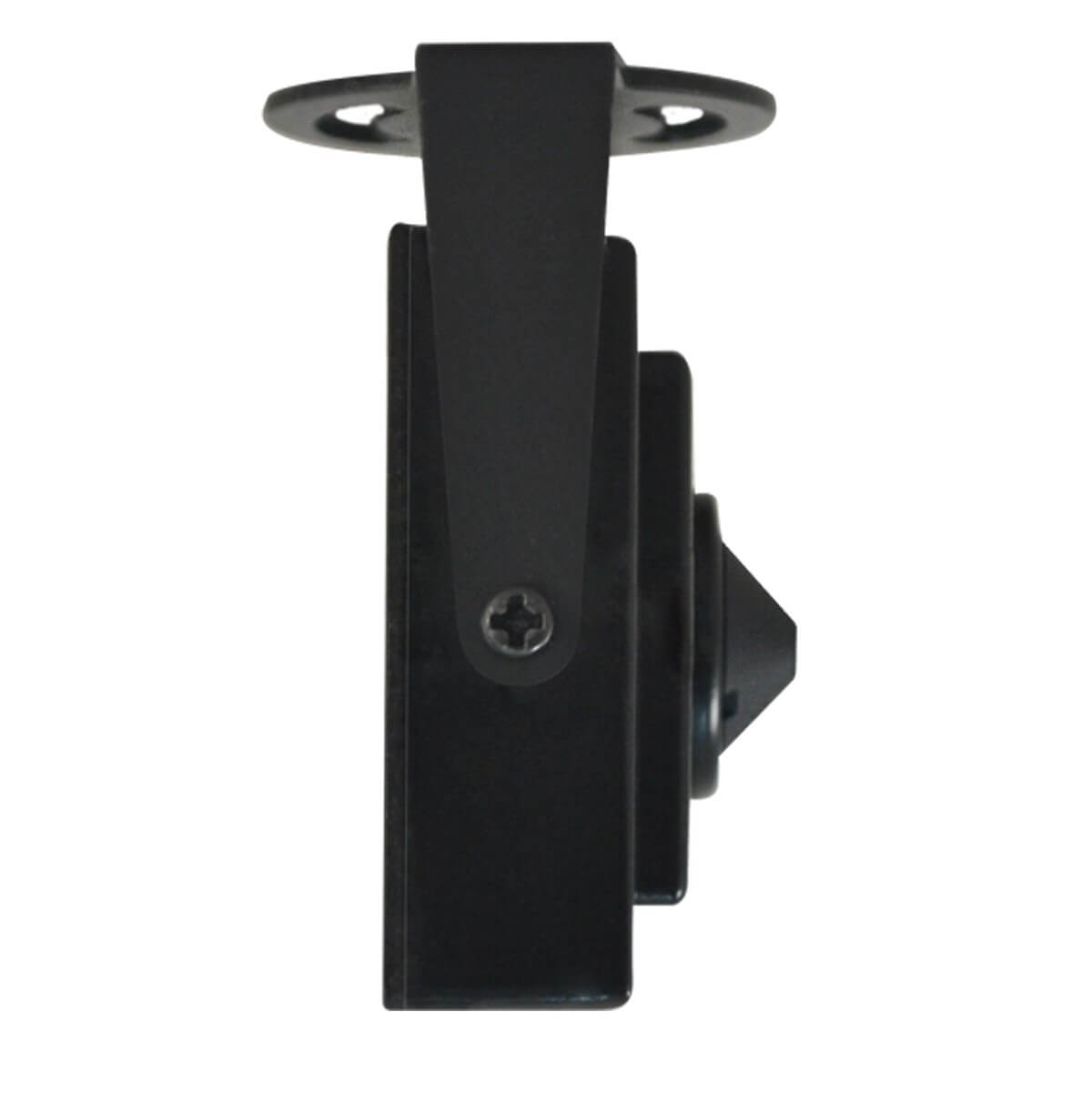

  • Mini Camera, 480TVL, 3.7mm Taper Pinhole lens, BLC, AGC - Image 1

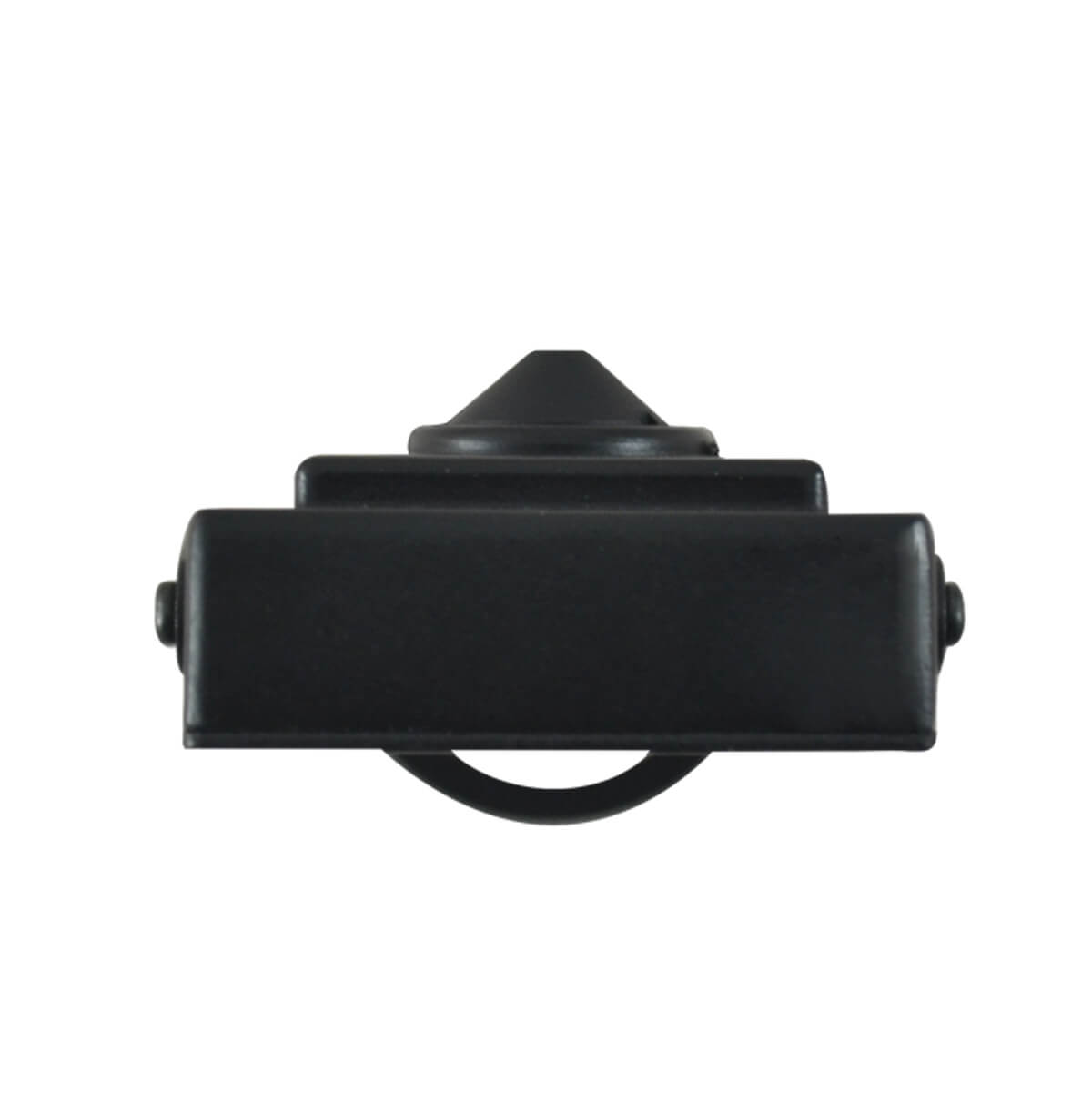

  • Mini Camera, 480TVL, 3.7mm Taper Pinhole lens, BLC, AGC - Image 2

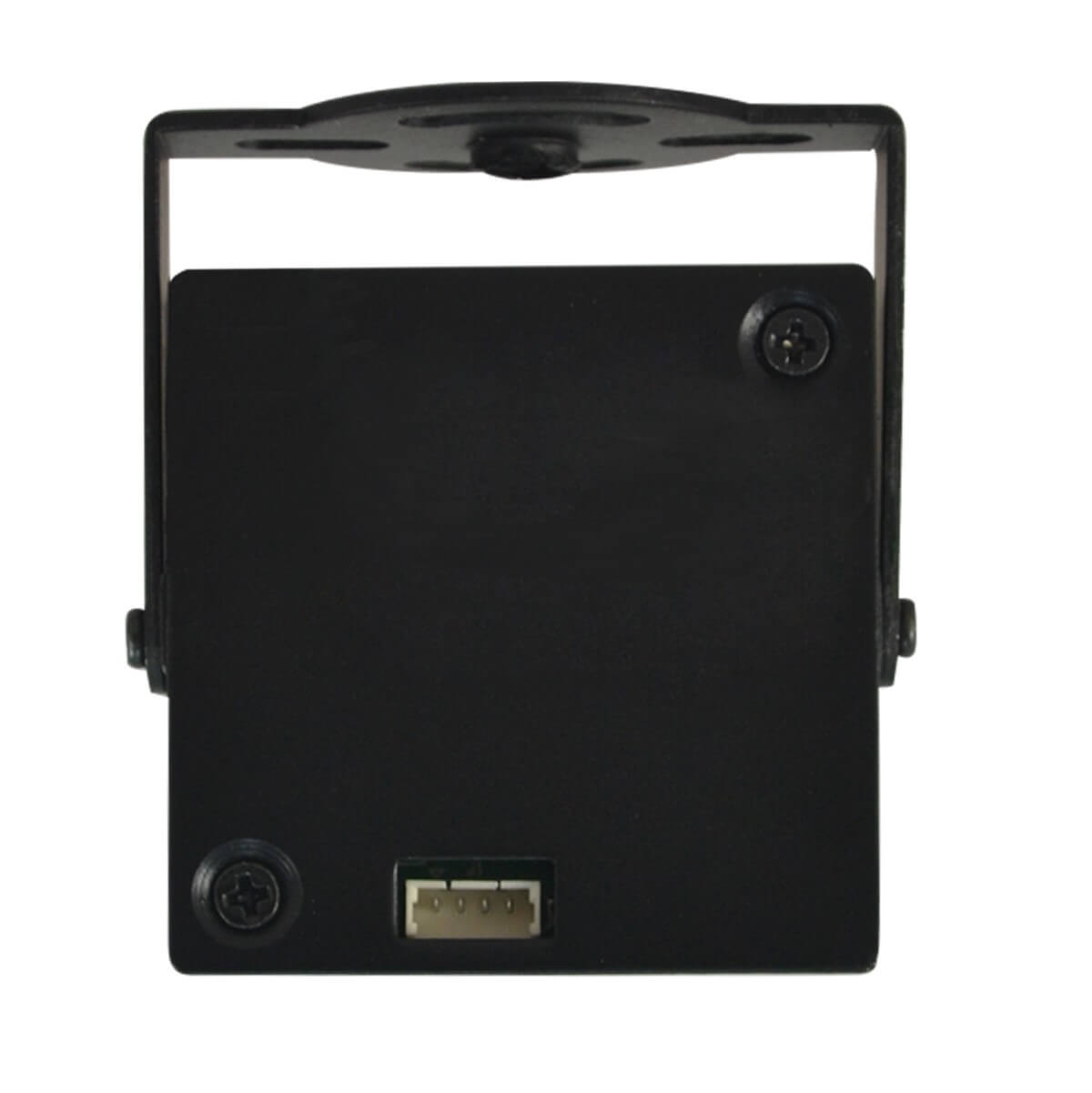

  • Mini Camera, 480TVL, 3.7mm Taper Pinhole lens, BLC, AGC - Image 3

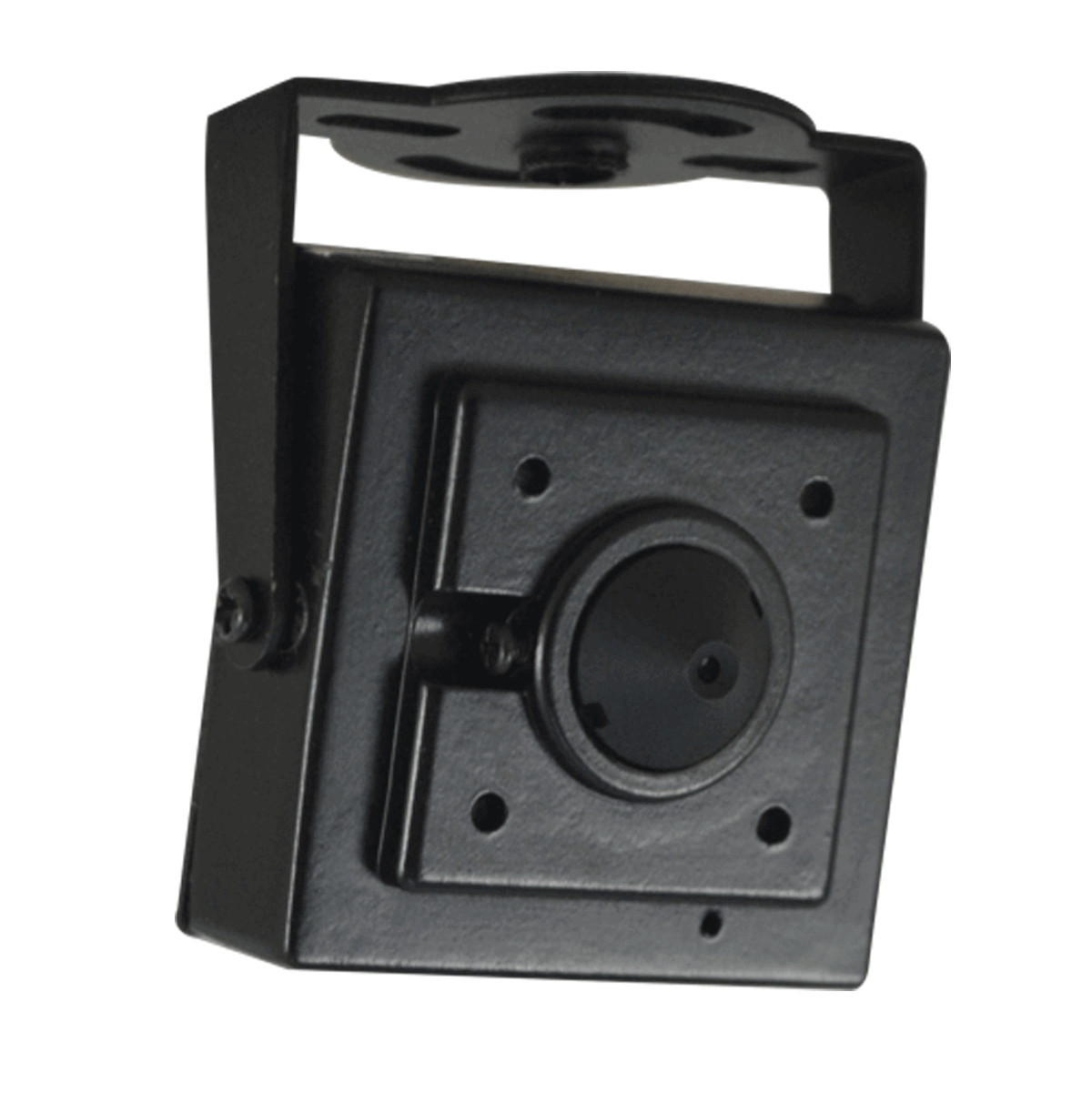

  • Mini Camera, 480TVL, 3.7mm Taper Pinhole lens, BLC, AGC - Image 4

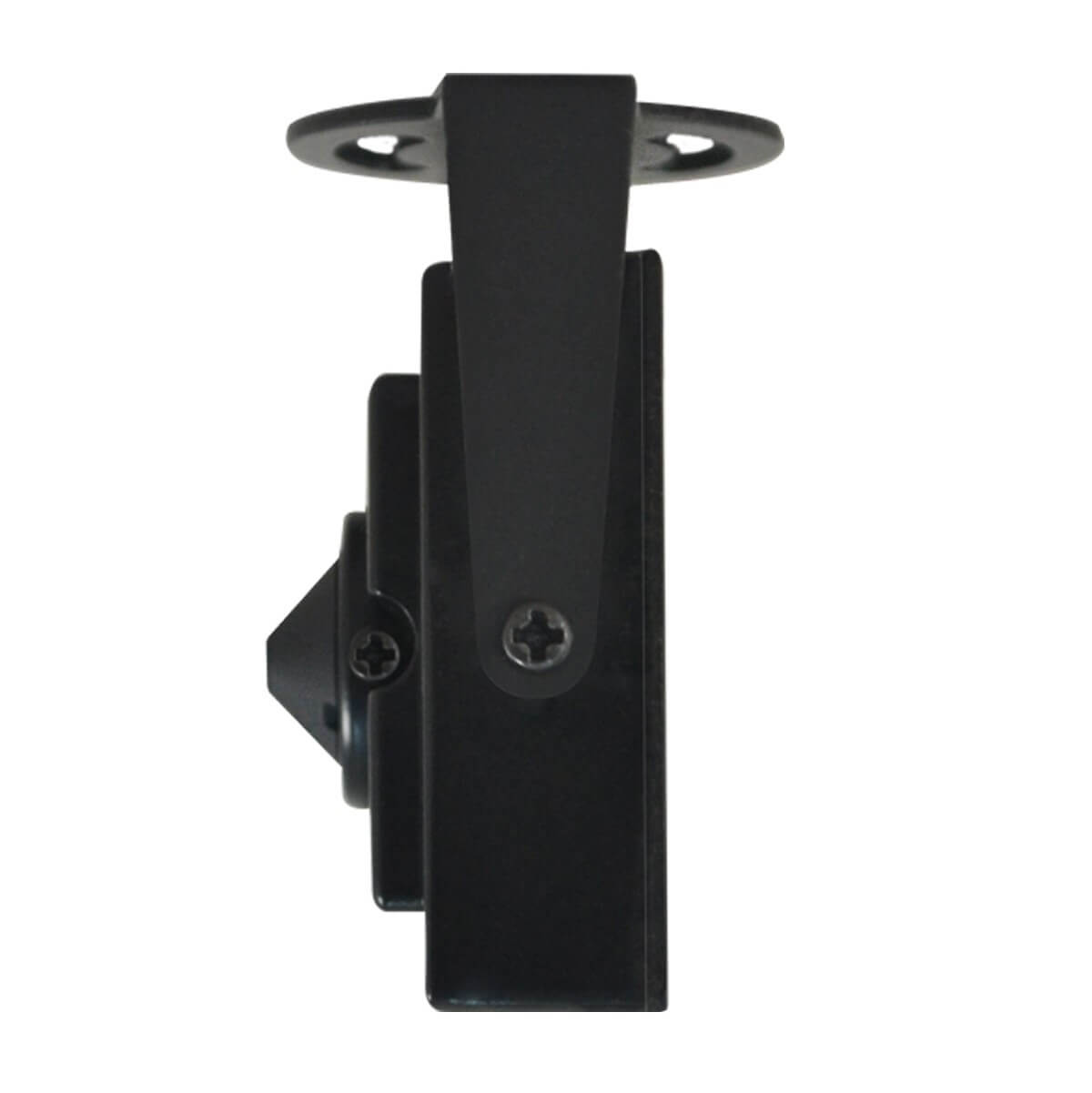

  • Mini Camera, 480TVL, 3.7mm Taper Pinhole lens, BLC, AGC - Image 5

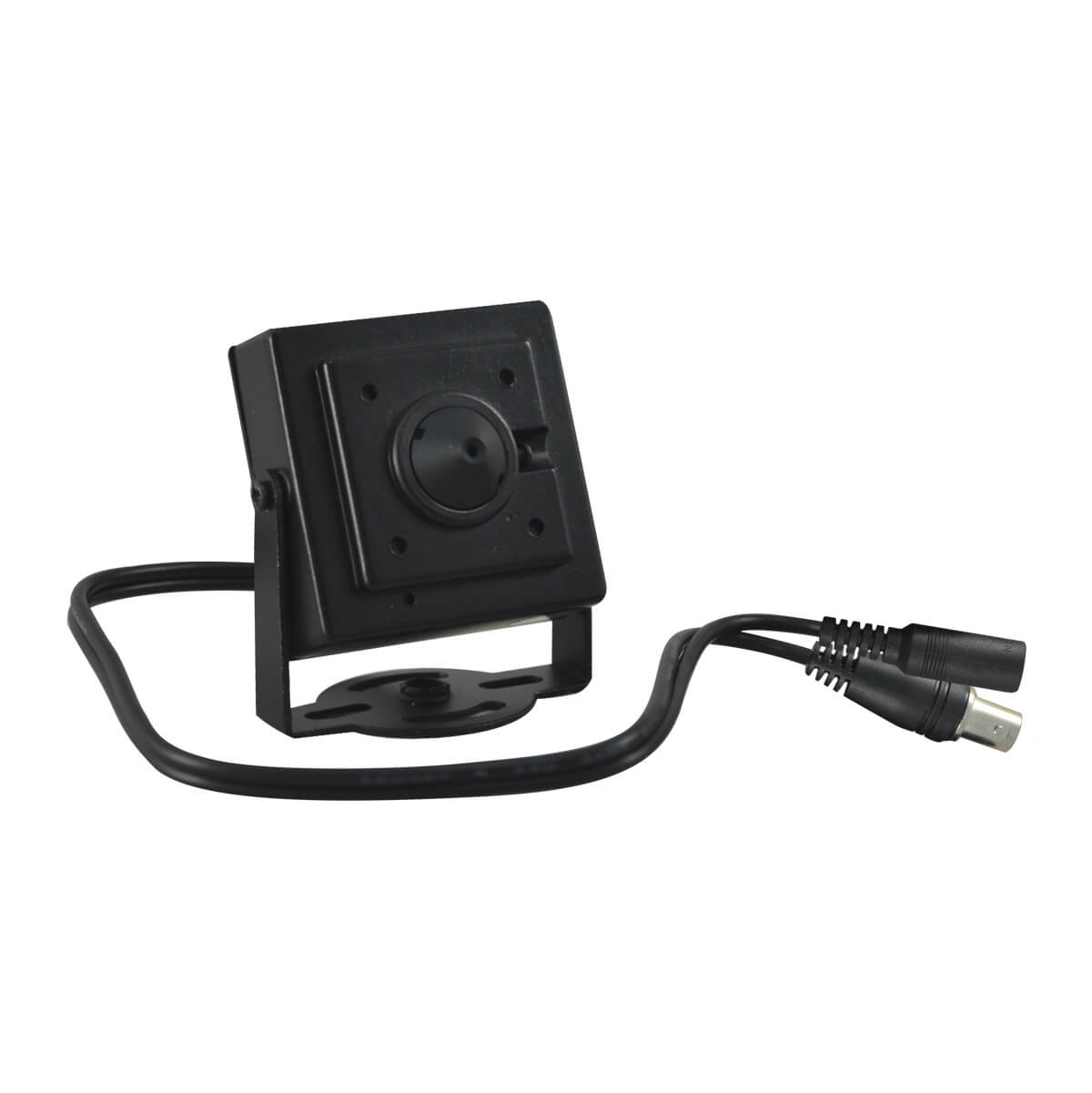

  • Mini Camera, 480TVL, 3.7mm Taper Pinhole lens, BLC, AGC - Image 6

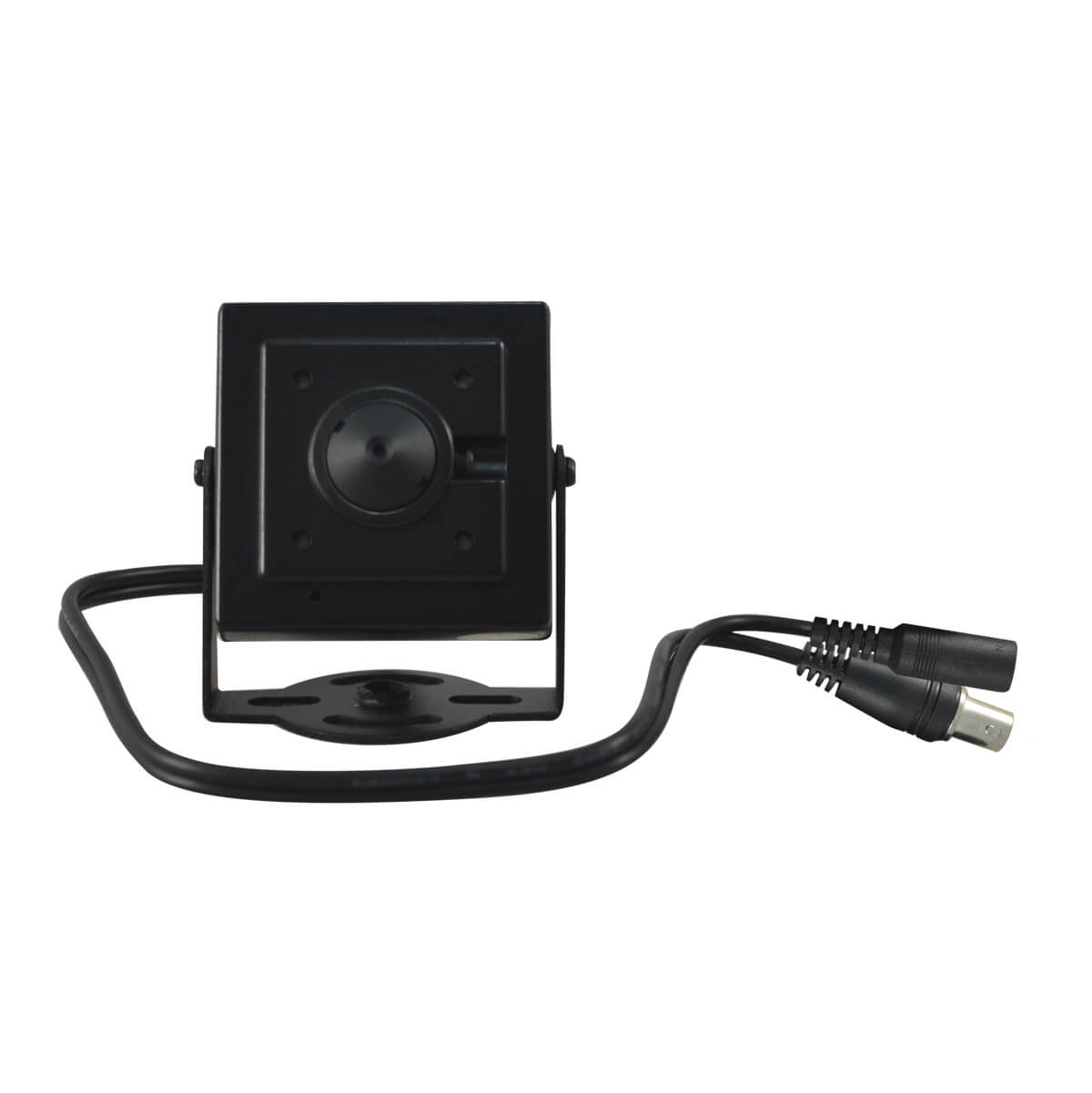

  • Mini Camera, 480TVL, 3.7mm Taper Pinhole lens, BLC, AGC - Image 7

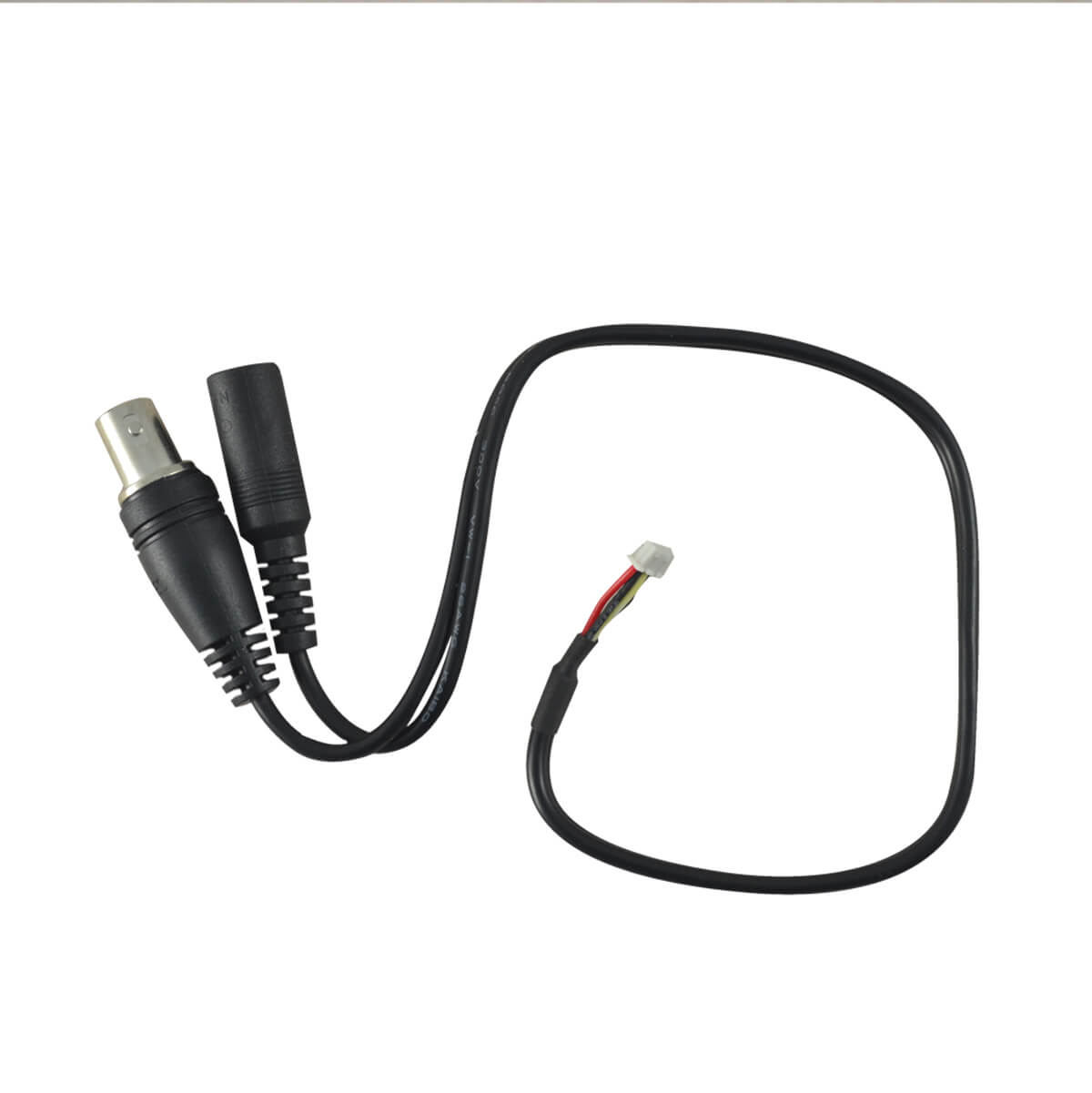

  • Mini Camera, 480TVL, 3.7mm Taper Pinhole lens, BLC, AGC - Image 8
  • Mini Camera, 480TVL, 3.7mm Taper Pinhole lens, BLC, AGC - Image 9
  • - High sensitive interline transfer 1/4" sensor.
  • - AGC, AWB and AES functions.
  • - 3.7mm Pinhole lens.
  • - Power adapter not included.
  • - Exquisite design for circuit and structure that incarnates high technology.
  • - Square structure that easy to install.
  • Mini metal camera with a viewing angle of 72? has a 3.7mm Taper Pinhole lens.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - Use high sensitive interline transfer 1/4" sensor.
    - Square structure, easy to install.
    - 3.7mm Pinhole lens.
    - Exquisite design for circuit and structure, incarnates high technology. - Aluminum, Solidity.
    - Designed to be installed strategically in concealed spaces.
    - AWB support function: high color reproduction and real image.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Pinhole
    Pinhole
    A Pinhole consists of a camera which works without a lens, but carries a small aperture through which the recording is made. Typically, the smaller the hole, the sharper the image, but dimmer its projection.
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Auto White Balance (AWB)
    Warranty: One (1) Year
  • Mini Camera, 480TVL, 3.7mm Taper Pinhole lens, BLC, AGC
    General
    Brand LineMak
    Model LS-CPM480
    Sensor
    Resolution 480TVL
    Sensor 1/4"
    Effective pixels PAL: 720*480
    NTSC: 720*576
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm
    Lens
    Lens 3.7mm Pinhole
    Minimum illumination 0.3 Lux
    Environment
    Operation temperature -30°C ~ 85°C
    -22°F ~ 185°F
    Working humidity 90%
    Power
    Power supply DC 12V
    Power consumption 50mA
    Appearance
    Color Black
    Size 1.58(L) * 1.38(H) * 1.38(W) inches
    Weight 2.83 ounces
    Material Aluminum
    Special function
    Back Light Compensation (BLC) No
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) PAL: 1/50~1/100,000s
    NTSC: 1/60~1/100,000s
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Adaptive Tone Reproduction (ATR) No
    Mirror No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Synchronizing system Internal
    S/N Ratio >45dB
    Gamma correction 0.45
  • Instrucción
    File Size: 500.68 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 480.46 Kb
    Languages: English
    File Type: PDF
