4Ch DVR, H264, VGA/BNC/HDMI, Audio 4Ch in/1Ch out, D1/CIF, Pentaplex
  • 4Ch DVR, H264, VGA/BNC/HDMI, Audio 4Ch in/1Ch out, D1/CIF, Pentaplex - Image 1
  • - D1 / Half-D1 / CIF / QCIF resolutions.
  • - Recording and playback are available in mobile phone.
  • - Plug and Play (PnP) function.
  • - Hard drive and remote control not included.
  • - HDMI, VGA and BNC output.
  • - 3 coding stream support.
Products recommendaded to work with this item:
4ch dvr, h264, vga/bnc/hdmi, audio 4ch in/1ch out, d1/cif, pentaplex
+
ir dome camera, hdis cmos sensor, 700tvl, 6mm lens, 1 led array, ip66
+
ir dome camera 1/3 hd sensor, 900tvl, 3.6mm lens 24 led 65ft ir ircut
+
seagate barracuda 1 tb hdd sata 6 gb/s ncq 64mb cache
Price for all 4: $184.96

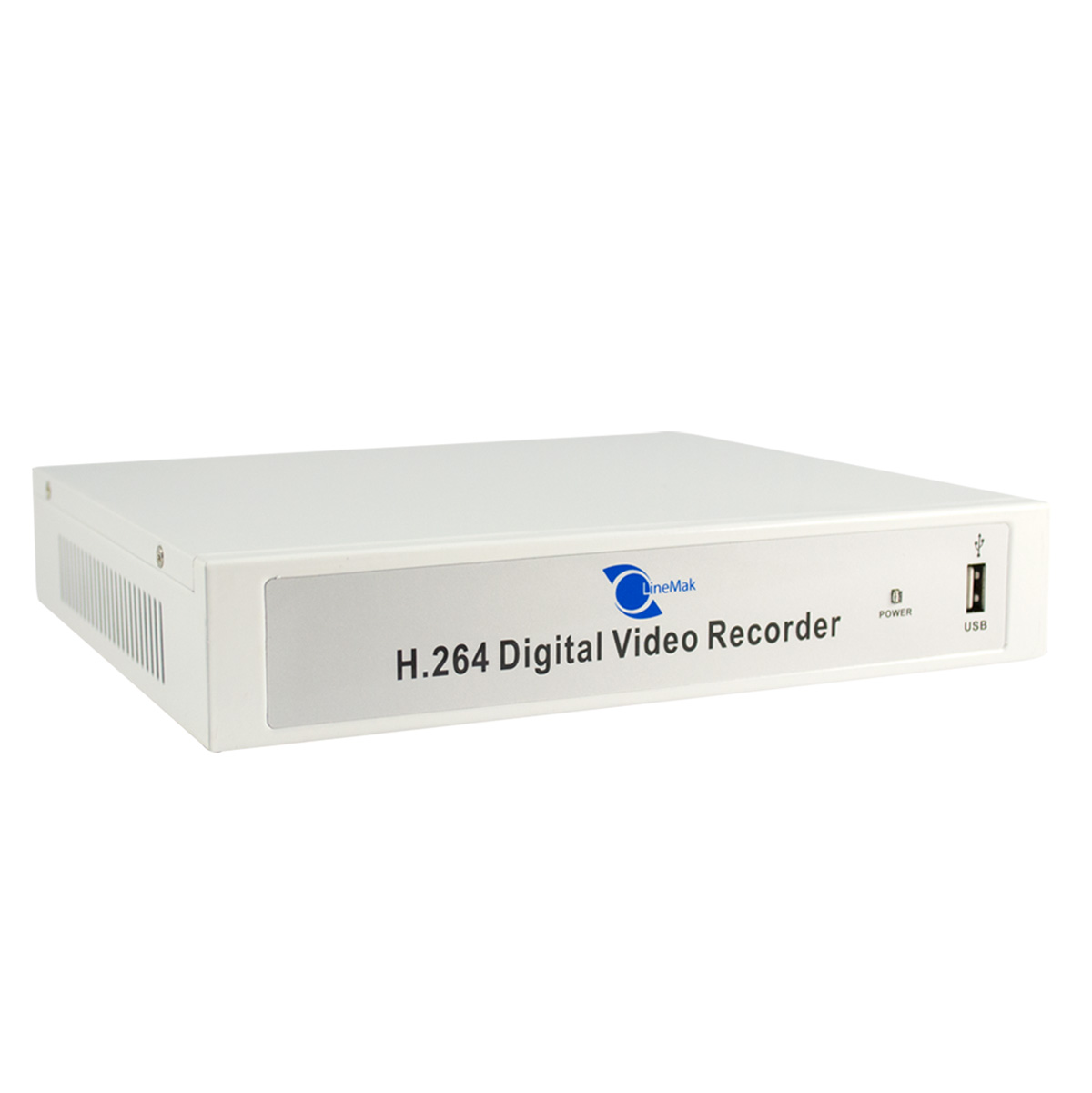

  • This DVR (Digital Video Recorder) is an easy to use device with simultaneous BNC, VGA and HDMI outputs. Monitor your cameras on the Internet everywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time. Its H.264 compression algorithm is ideal for standalone DVR.

    This video surveillance equipment can record images registered by their cameras and is very easy to use.

    Multiple recording modes: Manual, alarm, motion detection and timing.
    Control method: USB mouse.
    Compatible with: WIN98 / WIN2000 / WIN ME / WIN XP / VISTA WIN / WIN SEVEN.

    Main features:
    - D1/CIF recording resolution.
    - Simultaneous HDMI, VGA and BNC outputs.
    - Plug and Play (PnP) function.
    - Recording and playback on mobile phone.
    - Simultaneous playback of all channels.
    - 3G mobile phone and email.
    - 20 visitors support for remote checking.
    - 3 independent coding stream support (local, network, mobile).

    Hard drive and remote control not included.
    This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    HDMI delivers enhanced image clarity
    HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.
    HDMI delivers enhanced image clarity
    Keep everything under watch with multiple recording modes
    Keep everything under watch with multiple recording modes
    Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.
    Backup for saving critical video evidence
    The recorder allows still images and recorded video to be offloaded via one or more of these options for quick and easy backup of your critical video evidence: DVD, USB drive or network.
    Backup for saving critical video evidence
    Motion detection
    Motion detection
    Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.
    Full HD sets
    Be able to handle High Definition signal of 1080 lines of information across the screen with Full HD. Since Full HD is only a marketing term, it does not indicate any particular qualities besides 1080p. 1080p televisions have a resolution of 1920×1080 and are progressive scan, which means all lines of each frame of video are drawn on the set.
    Full HD sets
    Monitoring 3G
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    Save money with no contracts and no monthly fees
    Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.
    Save money with no contracts and no monthly fees
    Warranty: One (1) Year
  • 4Ch DVR, H264, VGA/BNC/HDMI, Audio 4Ch in/1Ch out, D1/CIF, Pentaplex
    General
    Brand Linemak
    Model LS-RD634E
    System
    Operating system Embedded linux
    System resources Pentaplex function (real-time recording, playback, network operation, USB backup, mobile view)
    Display
    Graphic user interface (GUI) Support 16-bit true color graphical menu interface and mouse operation
    Video
    Resolution D1/Half-D1/CIF/QCIF
    Compression format H.264
    Display quality D1; VGA, HDMI: 1920*1080
    Motion detector Zones: 192 (16*12) detection zones,sensitivity: multi-level sensitivity (Only local channels)
    Encode capacity 4ch D1 real-time
    Decode capacity 4ch D1 real-time
    Frame rate NTSC: 120fps@CIF, 120fps@D1
    PAL: 100fps@CIF, 100fps@D1
    Recording & Playback
    Recording mode Manual, alarm, motion detection, timing
    Local playback Multi-channel Simultaneously playback
    Search mode Time/calendar/event/channel search
    Storage & Backup
    Recording storage HDD, Network
    Backup mode Network backup, USB
    Interface
    Video input/output Input: 4-Ch BNC (1.0Vp-p,75ohm)
    Output: 1-Ch BNC (1.0Vp-p,75ohm), 1-Ch VGA and 1-Ch HDMI
    Audio input/output Input: 4-Ch RCA (200-2800mV, 30K)
    Output: 1-Ch RCA (200-3000mV, 5K)
    PTZ Control One RS485 port, multiple PTZ protocols support
    USB Port 3 USB 2.0 ports
    HDD Port 1 SATA port (up to 4TB)
    Network interface 1 RJ45 10M/100M port
    Mode control
    Operating mode USB mouse
    Environment
    Operation temperature 0°C ~ 55°C
    32°F ~ 131°F
    Working humidity 10% ~ 90%
    Atmosphere pressure 86kpa ~ 106kpa
    Power
    Power supply DC 12V/2A
    Appearance
    Color White
    Size 8.27(L) * 1.57(H) * 8.86(L) inches
    Weight 1.8 pounds
    Accessories
    Mouse Yes
  • Manual
    File Size: 1680.92Kb
    Languages: English
    File Type: PDF
    Instructions
    File Size: 2203.73Kb
    Languages: English
    File Type: PDF
