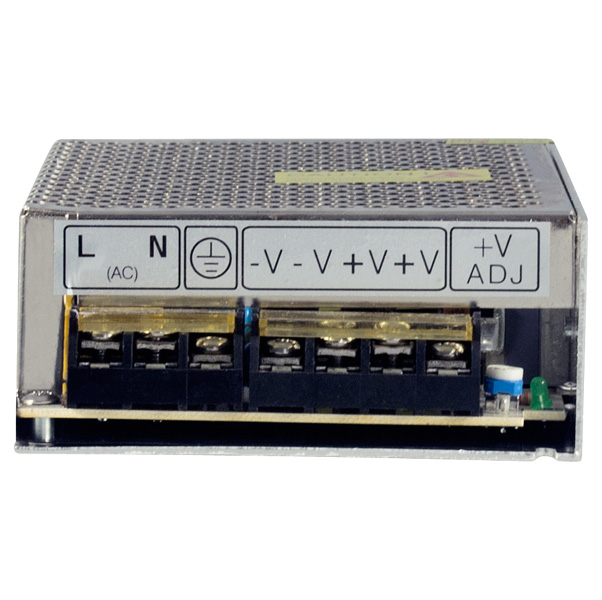

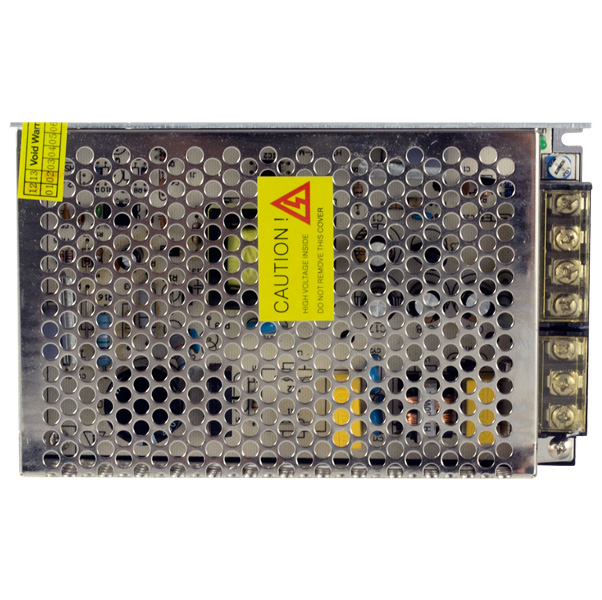

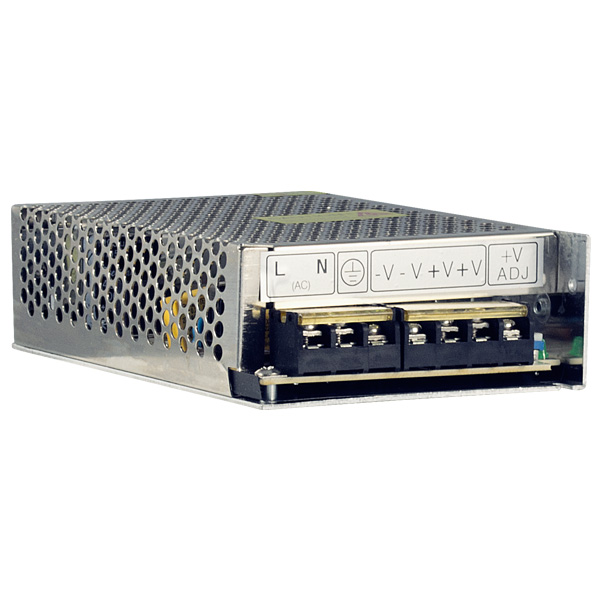

Replacement for centralized Power Source 9CH DC 12V/10A
  • Replacement for centralized Power Source 9CH DC 12V/10A - Image 1
  • Replacement for centralized Power Source 9CH DC 12V/10A - Image 2
  • Replacement for centralized Power Source 9CH DC 12V/10A - Image 3
  • - Replacement for power supply.
  • - Input: AC100~240V.
  • - Output: DC 12V/10A.
  • - Without AC cable.
  • - 9 Channel.
Products recommendaded to work with this item:
replacement for centralized power source 9ch dc 12v/10a
+
ir dome camera 1/3 hd sensor, 900tvl, 3.6mm lens 24 led 65ft ir ircut
+
plug connector power supply male
Price for all 3: $52.48
  • Our replacements for power supply are type AT, designed to transform the AC to CC through a rectifier, a fuse and others elements that help the reception of electricity, besides of regulate, filtering it and adapt it by the need of the product that pretend to feed.

    Main features
    - Input: AC100~240V.
    - Output: DC 12V/10A.
    - 9 Channel.

    Without AC cable.
    Warranty: One (1) Year
  • Replacement for centralized Power Source 9CH DC 12V/10A
    General
    Brand LineMak
    Model LS-P120W
    Environment
    Working humidity 20%~80%
    Barometric pressure 86~106kpa
    Power
    Input condition 90-250ac / 50~60hz
    Load stability <=1%
    Voltage stability <=5%
    Ripple and noise <=150mv
    Efficiency >=80%
    Hold time >=20ms
    Short-circuit Protection Auto recovery
    Noise <=55db
    Input inrush current Less than 50 times of standand input current value
    Power factor >=0.55
    Transient recovery time >=50ms
    Appearance
    Color Gray
    Size 3.94 (L) * 1.77 (H) * 6.30 (W) inches
    Weight 14.99 ounces
