Fingerprint Reader and Access control

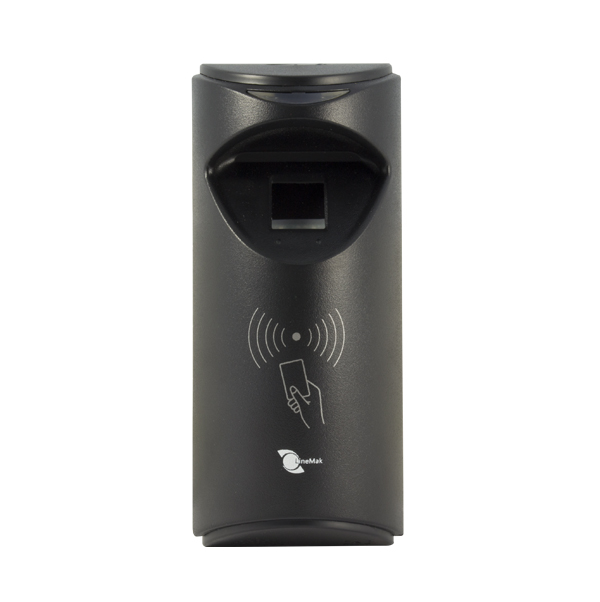

  • Fingerprint Reader and Access control - Image 1
  • - Fingerprint reader with optical sensor.
  • - Fingerprint and/or Card reader.
  • - Stores 1,500 templates and 10,000 cards.
  • - Built-in Serial and Ethernet ports.
  • - 1 touch a-second user recognition.
  • - Tamper-proofs switch and alarm outputs.
  • It is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed.

    It features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand.

    The user can be enrolled by administrator card when the device works as a standalone access control. TCP/IP and RS232/485 are available and the device can be used in different network. TCP/IP communication ensures the data transition between the device and the PC could be easily done within several seconds.

    Main features:
    - Fingerprint reader with durable and highly accurate optical sensor.
    - 1 touches a-second user recognition.
    - Stores 1,500 templates and 10,000 cards.
    - Fingerprint and/or card reader.
    - Built-in serial and Ethernet ports.
    - Tamper-proofs switch and alarm outputs.
    - Request-to-exit and alarm contacts.
    - Real-time 1-touch data export 3rd party hosted.
    Warranty: One (1) Year
  • Fingerprint Reader and Access control
    Brand LineMak
    Model LB-F11
    Biometric control
    Sensor Optical Sensor
    Communication RS232/485, TCP/IP
    Capacity Fingerprint: 500 templates
    ID card: 10000 cards
    Transactions: 30000
    Wiegand signal Output
    Functions Optional: Mifare, HID
    Access control interface 3rd party electric lock, exit button, alarm
    Algorithm version Finger v9.0
    Hardware Platform ZEM500
    Operation temperature 0ºC ~ 45ºC / 32ºF ~ 113ºF
    Working humidity 20% - 80%
    Power supply DC 12V
    Color Black
    Size 2.37(L) * 6.30(H) * 3.35(W) inches
    Weight 7.94 ounces
