Bullet Camera 1/3 SONY CCD 700TVL varifocal lens 36 LEDs IR 98ft

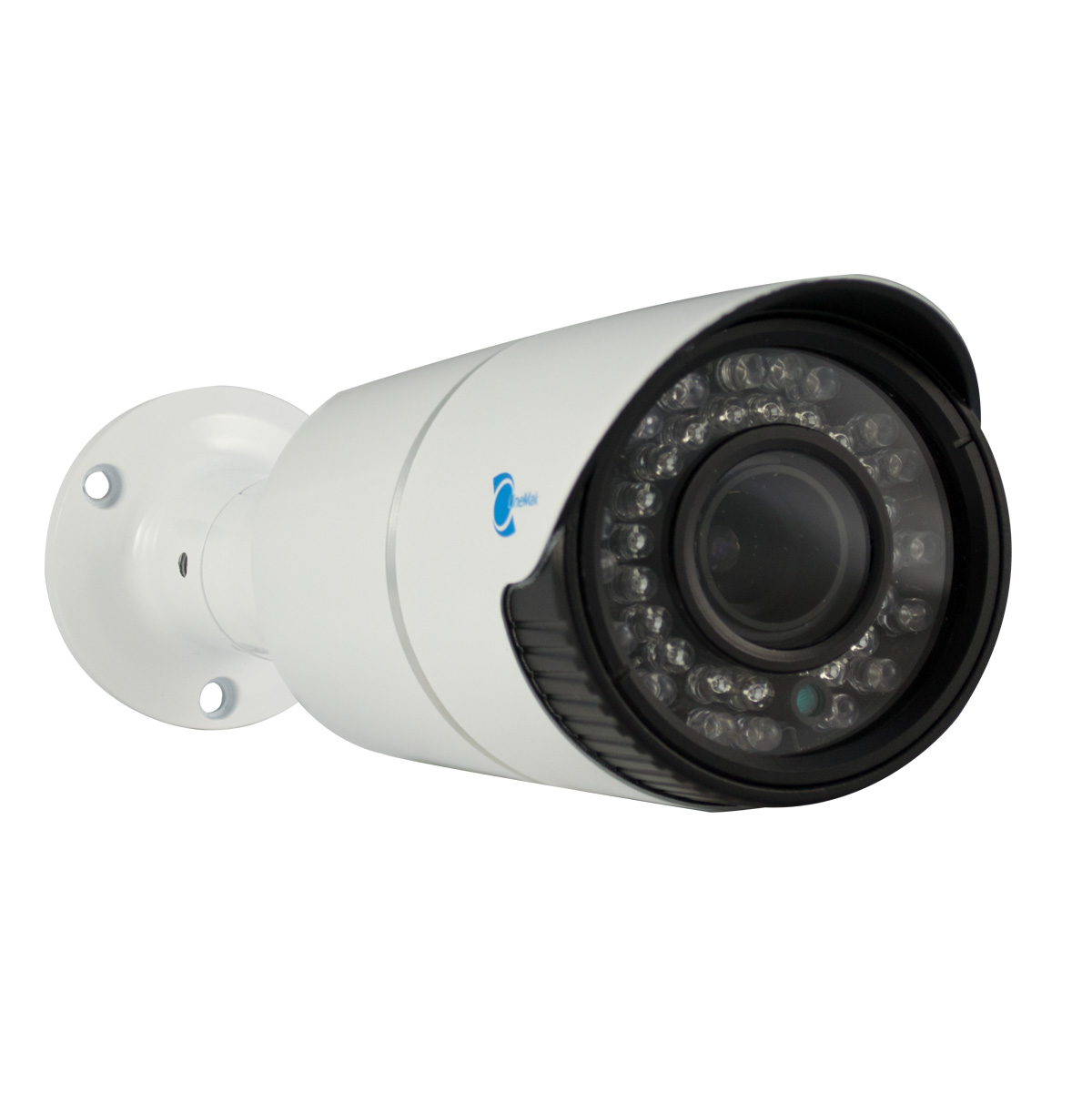

  • Bullet Camera 1/3 SONY CCD 700TVL varifocal lens 36 LEDs IR 98ft - Image 1

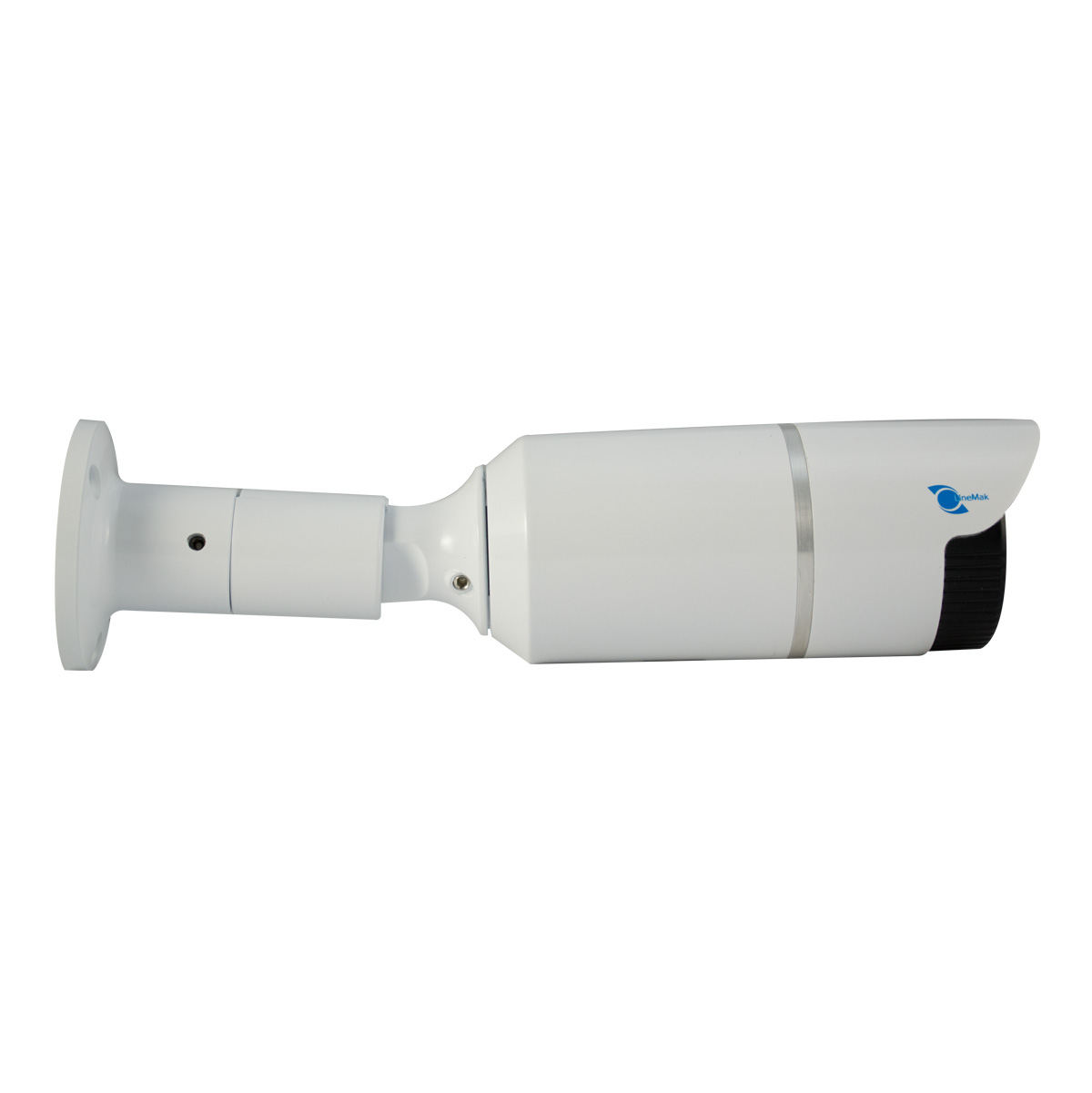

  • Bullet Camera 1/3 SONY CCD 700TVL varifocal lens 36 LEDs IR 98ft - Image 2

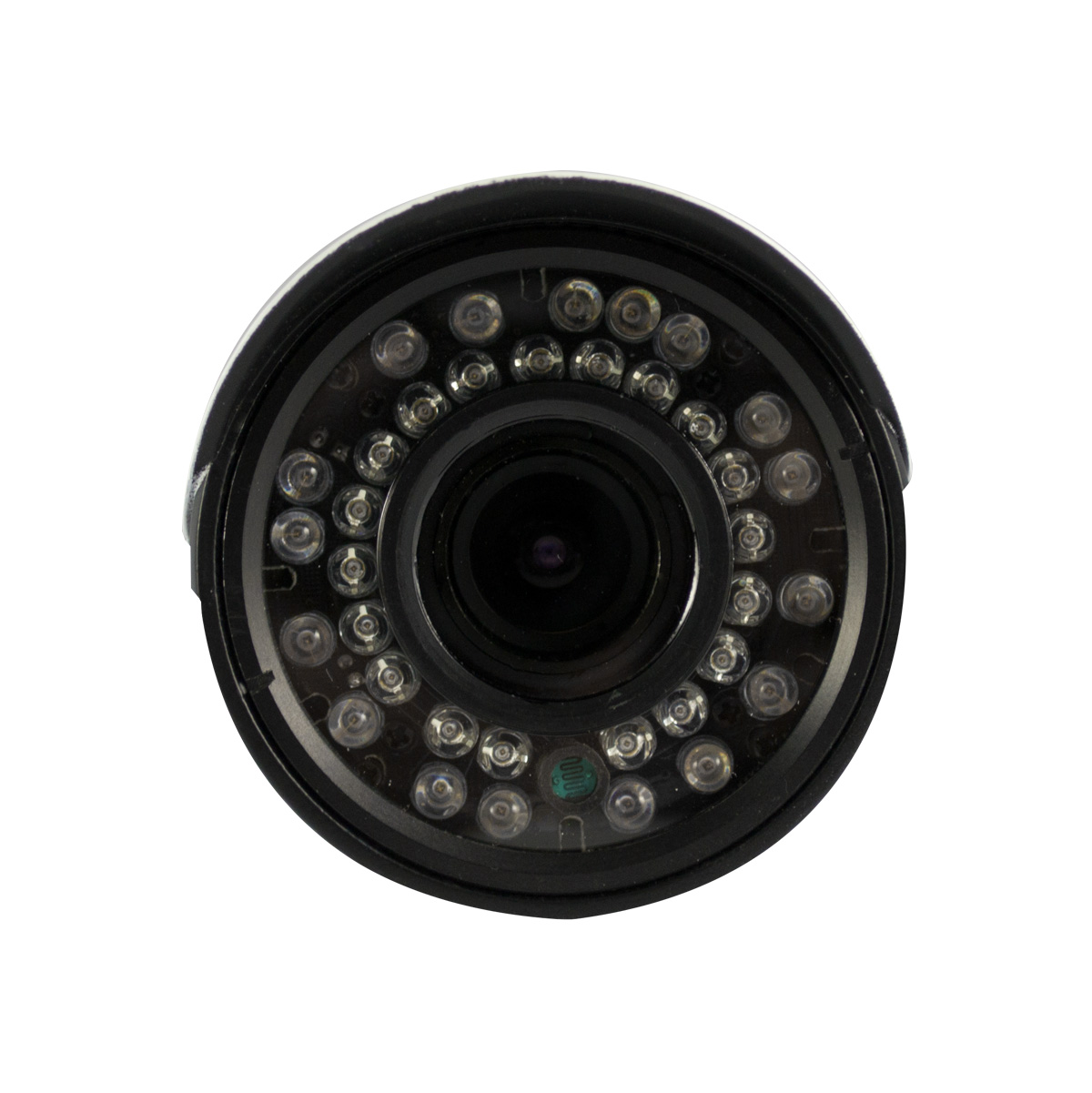

  • Bullet Camera 1/3 SONY CCD 700TVL varifocal lens 36 LEDs IR 98ft - Image 3
  • - 36pcs LEDs, 98ft IR distance.
  • - Weatherproof: IP66.
  • - 2.8~12mm varifocal lens.
  • - Power adapter not included.
  • - 25°~115° viewing angle.
  • - Externally adjust Zoom/Focus on bottom.
  • Plastic IR waterproof high-resolution bullet camera with a 2.8-12mm varifocal lens, a viewing angle of 115° ~ 25°, a 98ft range of infrared night vision, and 36 pieces LEDs.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for outdoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Hinged base included.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - IR Waterproof Camera.
    - Built-in 2.8~12mm varifocal lens.
    - Externally adjust Zoom/Focus on bottom.
    - Cable conceal inside of the all-oriented bracket.
    - 36pcs 5mm IR LEDs, 98ft IR distance.
    - AES support function: adapt to different monitoring environment.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Weatherproof cameras in a year-round protection
    Our outdoor weatherproof cameras feature at least an IP66 weather rating. These outdoor cameras are built to keep out small particles such as dust and water, and are unaffected by a range of weather conditions including heavy rain and snow.
    Weatherproof cameras in a year-round protection
    Varifocal
    Varifocal
    Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    True Day/Night for round-the-clock surveillance
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    A rear-view mirror cameras
    The rear-view mirror camera imitates the function of the actual mirror including the recording function as well, reason why it is highly recommended to use the rear-view camera as a back-up means to check for obstructions behind the car and avoid using it on frozen slippery roads.
    A rear-view mirror cameras
    Warranty: One (1) Year
  • Bullet Camera 1/3 SONY CCD 700TVL varifocal lens 36 LEDs IR 98ft
    General
    Brand LineMak
    Model LS-VE8068WN
    Sensor
    Resolution 700TVL
    Sensor 1/3" Sony Super HAD II CCD
    Effective pixels PAL: 752*582
    NTSC: 768*494
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm (BNC connector)
    Lens
    Lens 2.8mm~12mm varifocal
    IR Range 98ft night vision
    LEDs 36pcs (5mm each)
    IR-CUT Filter Included
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 25º ~115°
    Environment
    Operation temperature -10°C ~ 50°C
    14ºF ~ 122ºF
    Storage temperature -30°C ~ 80°C
    -22ºF ~ 176ºF
    Weatherproof standard IP66 (protection against dust and strong water pressure)
    Power
    Power supply DC 12V
    Power consumption 500mA
    Appearance
    Color White
    Size 12.2(L) * 3.15(H) * 2.76(W) inches
    Weight 1.6 pounds
    Special function
    Electronic shutter speed (AES) PAL: 1/50s ~ 1/100,000s
    NTSC: 1/60s ~ 1/100,000s
    Mirror Included
    Standard
    Synchronizing system Internal
    S/N Ratio >50dB
  • Instrucción
    File Size: 520.76 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 460.28 Kb
    Languages: English
    File Type: PDF
