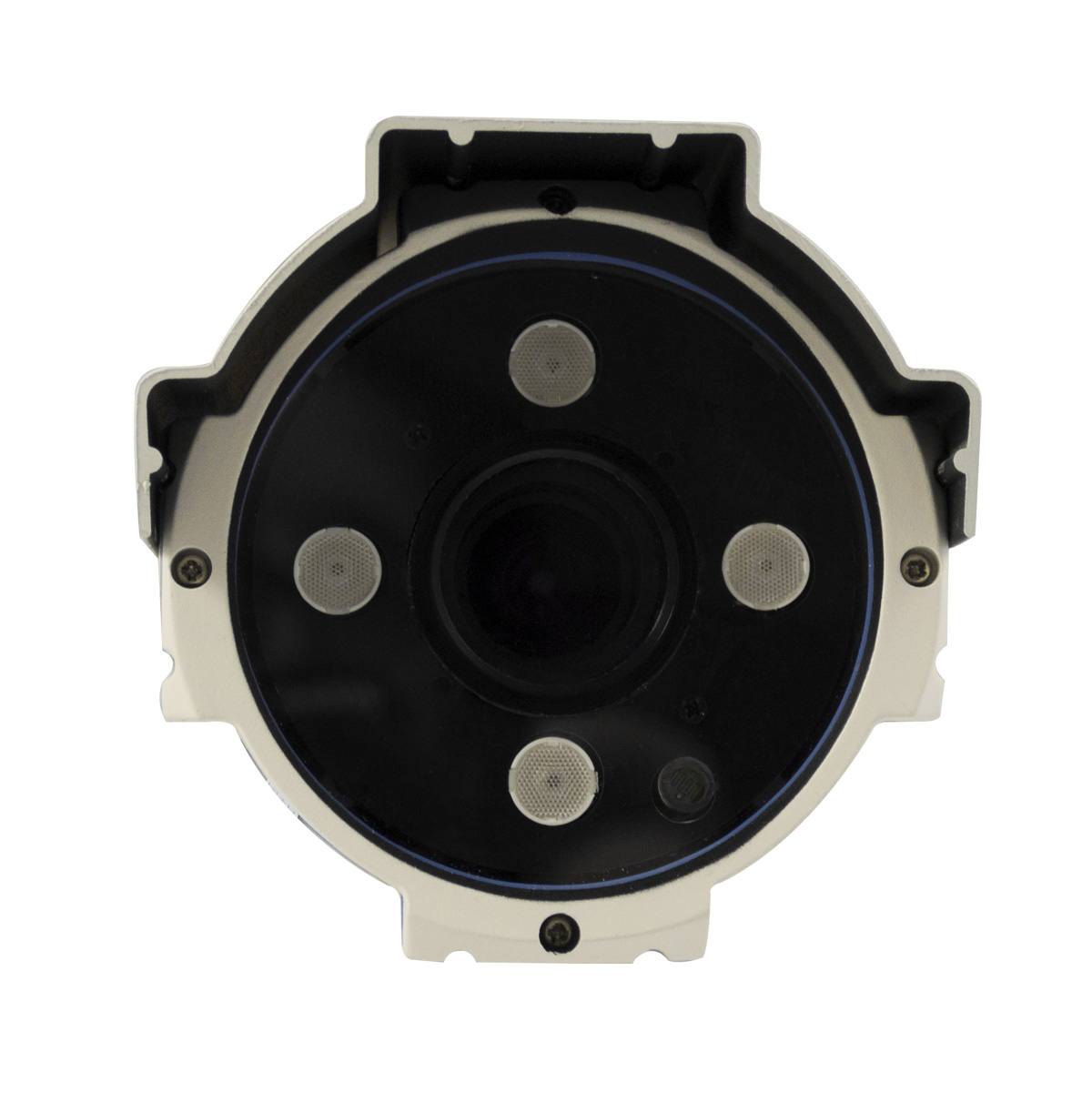

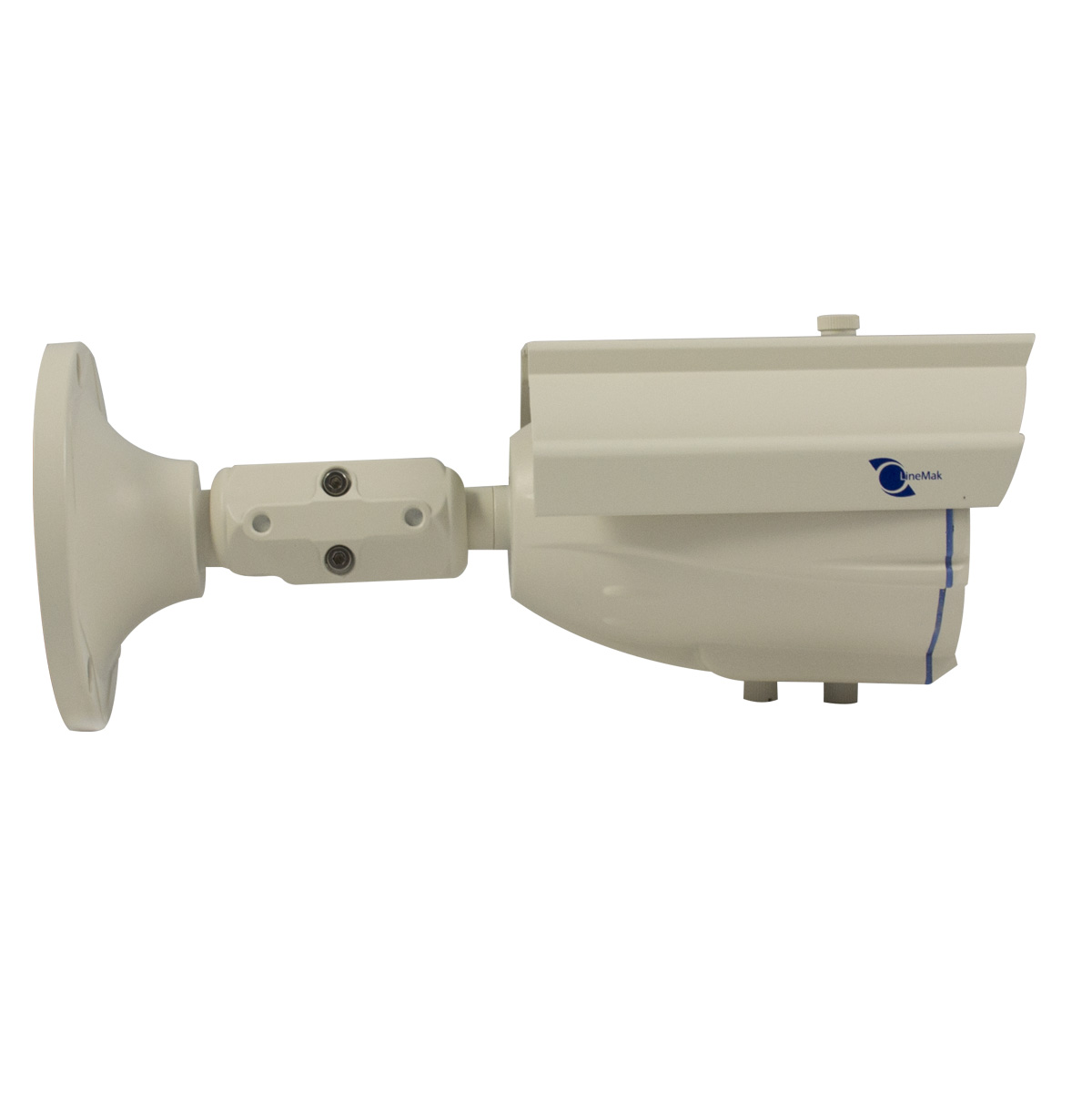

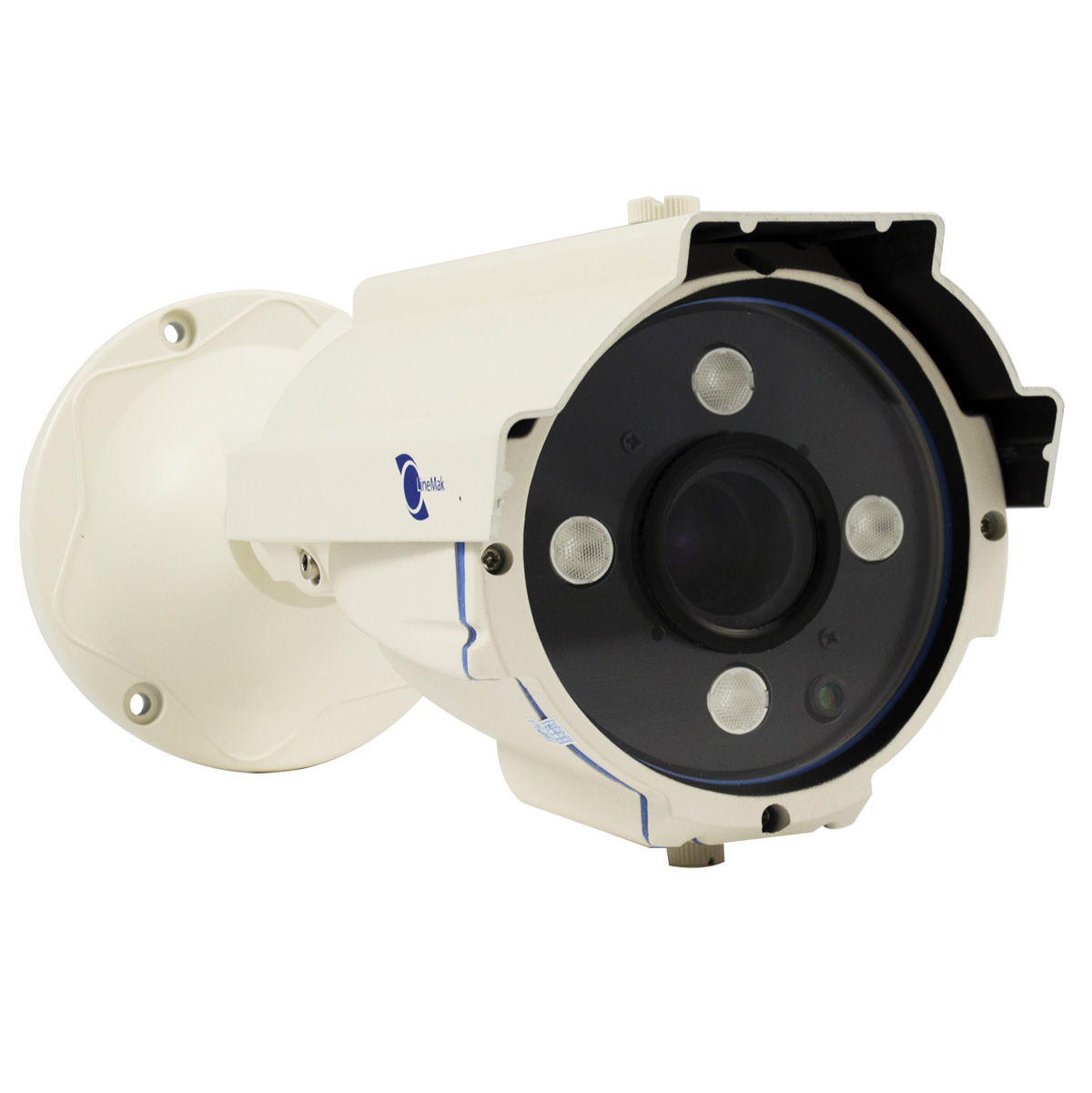

IR Bullet camera 1/4 HD Sensor 700TVL 2.8-12mm lens 4 LEDs Array IP66
  • IR Bullet camera 1/4 HD Sensor 700TVL 2.8-12mm lens 4 LEDs Array IP66 - Image 1
  • - AES, AGC, AWB, BLC and mirror function.
  • - Weatherproof: IP66.
  • - 4pcs Array IR LED. 196-262ft IR distance.
  • - Power adapter not included.
  • - 2.8-12mm Varifocal lens
  • - 25° ~ 115° viewing angle.
  • Metal IR waterproof bullet high-resolution camera with a 2.8-12mm varifocal lens, a viewing angle of 19? ~ 86?, a 196ft ~ 262ft range of infrared night vision, and 28pcs 5mm LEDs each and 4 LED array.
    Top of the line equipment regarding sensor and driver.

    This equipment is designed for outdoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Weatherproof: IP66.

    Hinged base included.

    Power adapter not included.

    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - Weatherproof IR camera with Cable built-in bracket.
    - 28MIL * 4pcs Array IR LED.
    - 196-262ft. IR distance.
    - Real day/night feature.
    - Lens: 2.8-12mm Manual Zoom Lens (2M Pixels).
    - AWB support function: high color reproduction and real image.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.

    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Weatherproof cameras in a year-round protection
    Our outdoor weatherproof cameras feature at least an IP66 weather rating. These outdoor cameras are built to keep out small particles such as dust and water, and are unaffected by a range of weather conditions including heavy rain and snow.
    Weatherproof cameras in a year-round protection
    LED array
    LED array
    The infrared led array has a wider emitting angle than traditional infrared leds. Traditional infrared leds can only emit the active infrared ray in a narrow angle. When there is a security camera with infrared led array, the emitted infrared will cover the whole surveillance area, which means the infrared led array camera can see the whole area in a dark environment such as at night.
    Varifocal
    Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
    Varifocal
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Back Light Compensation (BLC)
    Auto White Balance (AWB)
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    A rear-view mirror cameras
    A rear-view mirror cameras
    The rear-view mirror camera imitates the function of the actual mirror including the recording function as well, reason why it is highly recommended to use the rear-view camera as a back-up means to check for obstructions behind the car and avoid using it on frozen slippery roads.
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    True Day/Night for round-the-clock surveillance
    HD video
    HD video
    Large areas are covered by a single lens which straight-up great picture quality, design and features.
    Warranty: One (1) Year
  • IR Bullet camera 1/4 HD Sensor 700TVL 2.8-12mm lens 4 LEDs Array IP66
    General
    Brand LineMak
    Model LS-CA346M
    Sensor
    Resolution 700TVL
    Sensor 1/4" HD Digital
    Effective pixels PAL: 752*582
    NTSC: 768*494
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm
    Lens
    Lens 2.8-12mm varifocal (2MP)
    IR Range 196ft~262ft night vision
    LEDs 28MIL * 4 LED Array
    IR-CUT Filter Included
    Minimum illumination 0 Lux (with LED On)
    Viewing angle 19° ~ 86°
    Environment
    Operation temperature -20°C ~ 50°C
    -4ºF ~ 122ºF
    Weatherproof standard IP66 (protection against dust and strong water pressure)
    Power
    Power supply DC 12V
    Power consumption 500mA
    Appearance
    Color White
    Size 10.24(L) * 4.73(H) * 4.73(W) inches
    Weight 2.14 pounds
    Special function
    Back Light Compensation (BLC) Included
    Auto White Balance (AWB) Included
    Electronic shutter speed (AES) PAL: 1/50s ~ 1/100,000s
    NTSC: 1/60s ~ 1/100,000s
    Auto Gain Control (AGC) Included
    Digital Noise Reduction (DNR) Included
    Mirror Included
    Standard
    Scanning system 2:1 Interlace
    Synchronizing system Internal
    S/N Ratio >48dB
    Gamma correction >0.45
