Wireless magnetic contact for doors

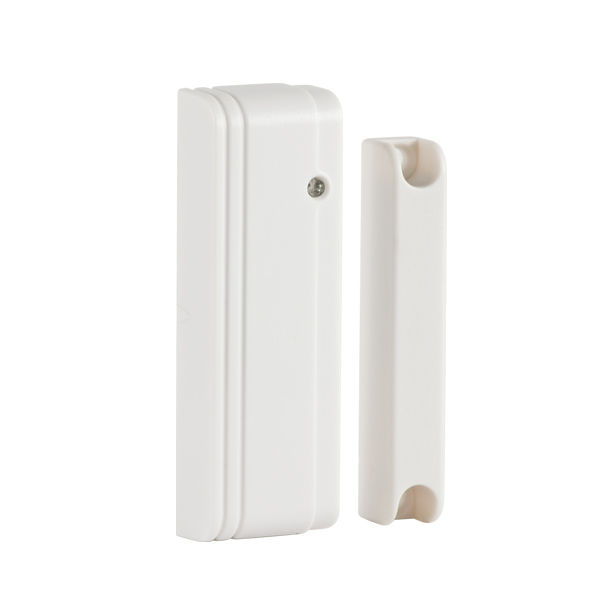

  • Wireless magnetic contact for doors - Image 1

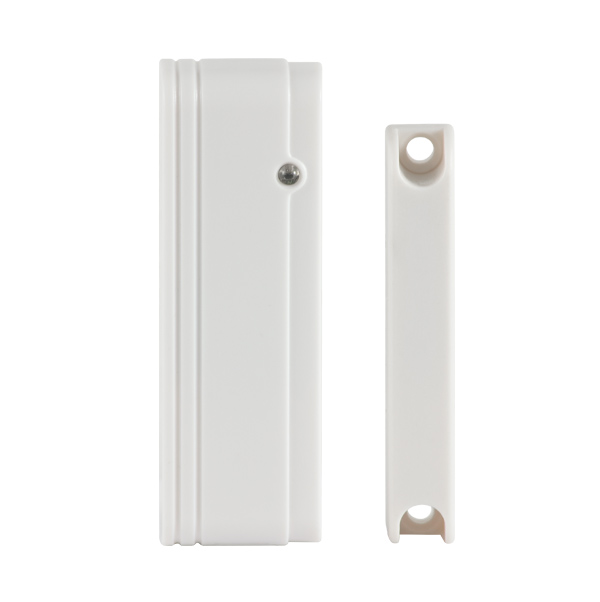

  • Wireless magnetic contact for doors - Image 2
  • - Magnetic door contact.
  • - This product works perfectly with any of our central alarm systems.
  • - No anti-tamper needed.
  • - Operates on one Litium battery (Battery not included).
  • - Effective range 492ft (open area).
  • - 433 Mhz frequency.
  • The LA-CM215R is a fully supervised mini style magnetic contact transmitter. It features door/ window close/open instant alarm function. It can be connected to the control panel. It can transmit strong wireless signal, having strong intensity in 150m area.

    Please code it to the control panel before using, enrolling the only one address code to the control panel. When the distance between the magnetic stripe and transmitter beyond 2.5cm the transmitter will send alarm information to the panel.

    This detector can change wired signal to wireless signal, working as a transmitter.

    Main features:
    - Magnetic door contact.
    - Wireless.
    - Operates on one 3V CR2032 Lithium battery (1).
    - No anti-tamper needed.
    - Effective range 492ft (open area).
    - Frequency: 433MHz.
    - Code: 28-digit ID, 8-digit function code, 36 digits data code in total.
    - Alarm output: alarm, tamper.
    - Status report: after first electro-motion or resetting the detector, the magnetic switch reports the working status to the control panel separately after 1 minute and 6 minutes respectively. It also reports the working status every two hours to the control panel.

    This product works perfectly with any of our central alarm systems.

    This wireless item is intended to be used for our Wireless Alarm Systems such as LA-S200, LA-S300, LA-S700 and LA-S850. This item does not work as a standalone. Please keep this in mind before purchasing. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Battery not included.
    Wireless
    Wireless
    A Wireless security camera can transmit a video and audio signal to a wireless receiver through a radio band. It is sometimes required at least one cable or wire for power, however, some wireless security cameras are battery-powered, making the cameras truly wireless from top to bottom.
    Warranty: One (1) Year
  • Wireless magnetic contact for doors
    General
    Brand LineMak
    Model LA-CM215R
    Alarms
    Frequency 433MHz / 868MHz
    Signal transmit distance 492ft open area (wireless antenna included)
    Environment
    Operation temperature -10°C ~ 50°C
    14ºF ~ 122ºF
    Power
    Working voltage 3V
    Battery CR2032
    System static current <5uA
    System alarm current <7-12mA(433MHz) / <15-25mA(868MHz)
    Appearance
    Color White
    Size 0.98(L) * 0.79(H) * 2.76(W) inches
    Weight 0.89 ounces
