LCD 22 inch monitor special for CCTV

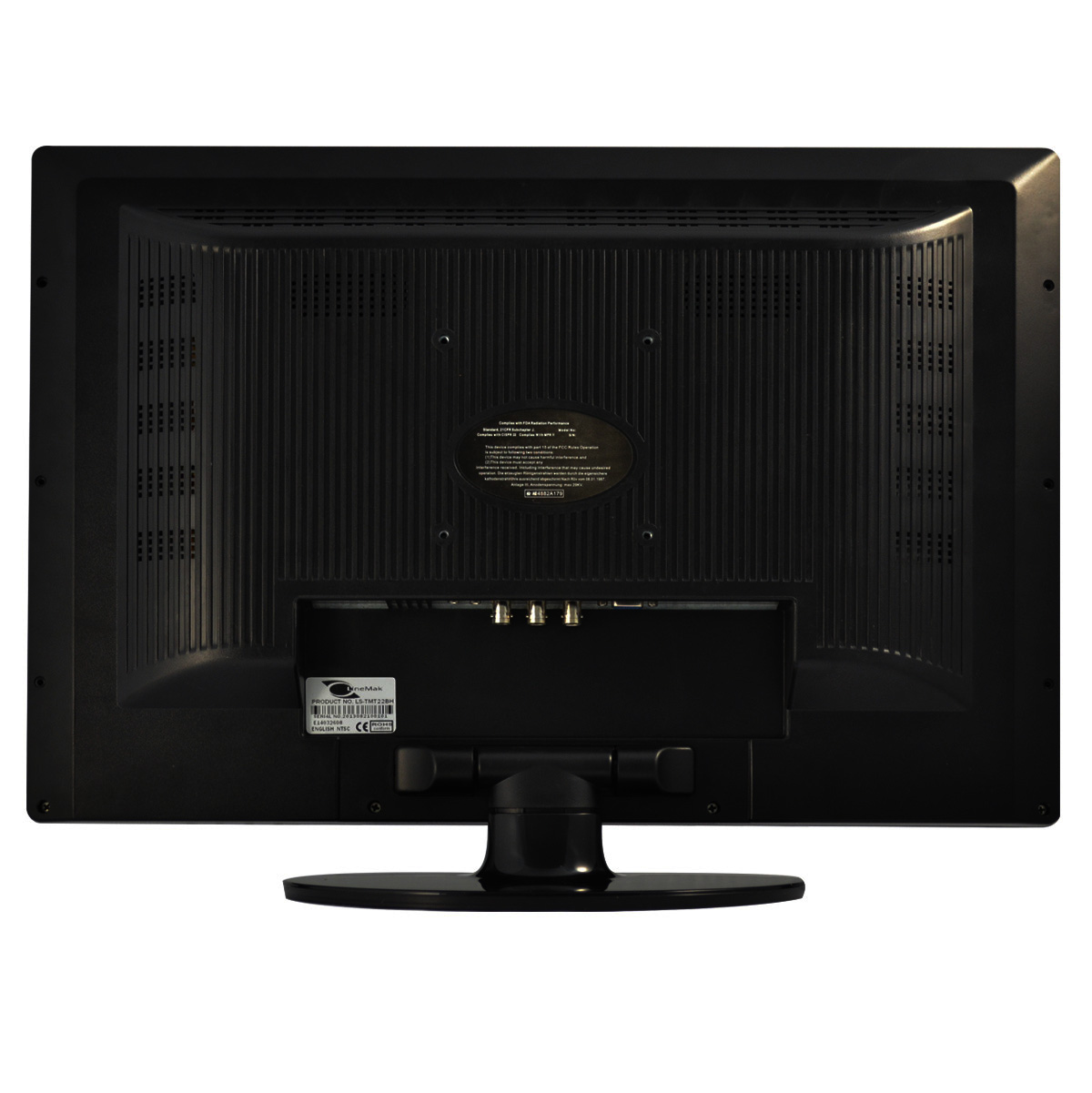

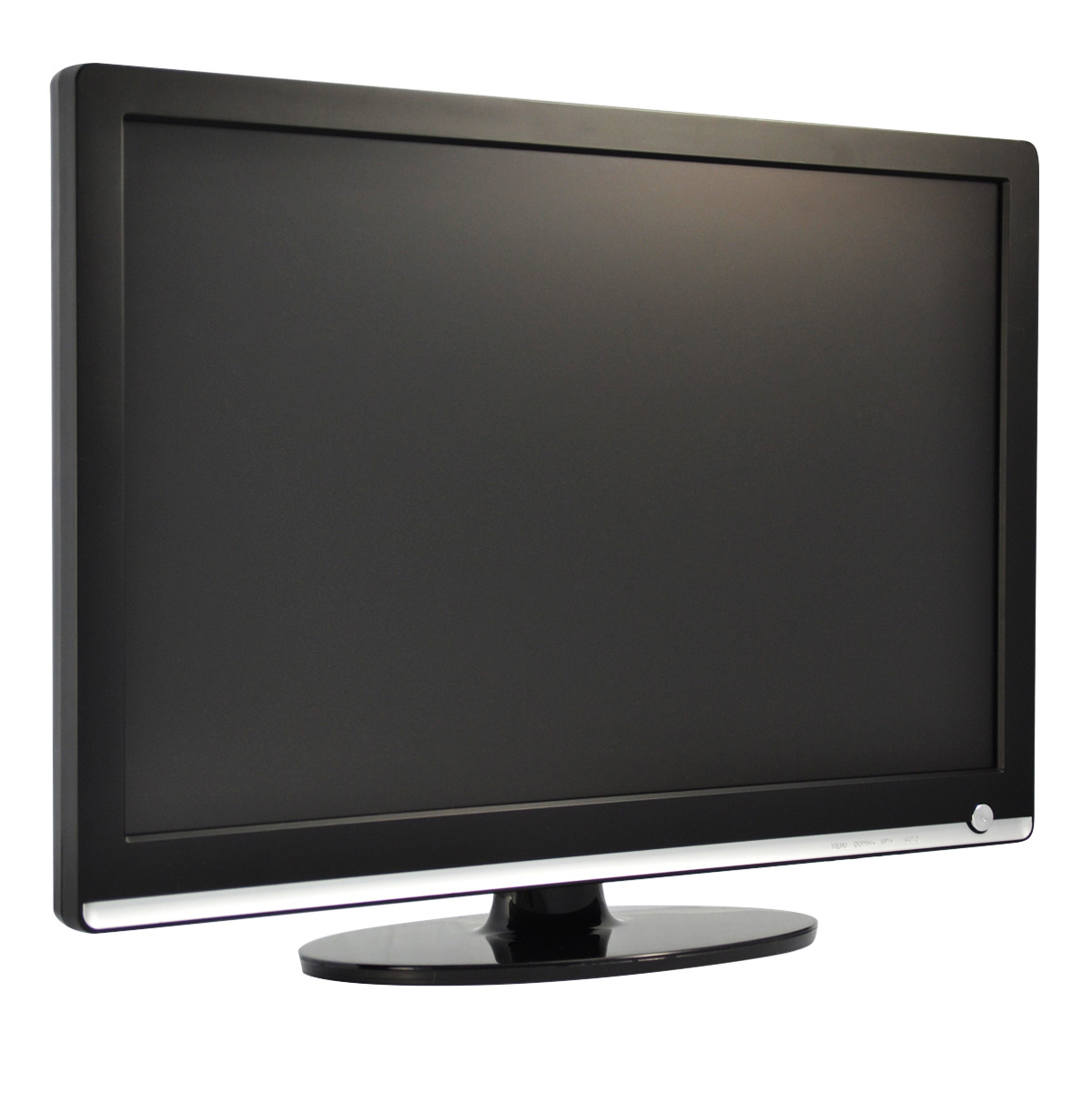

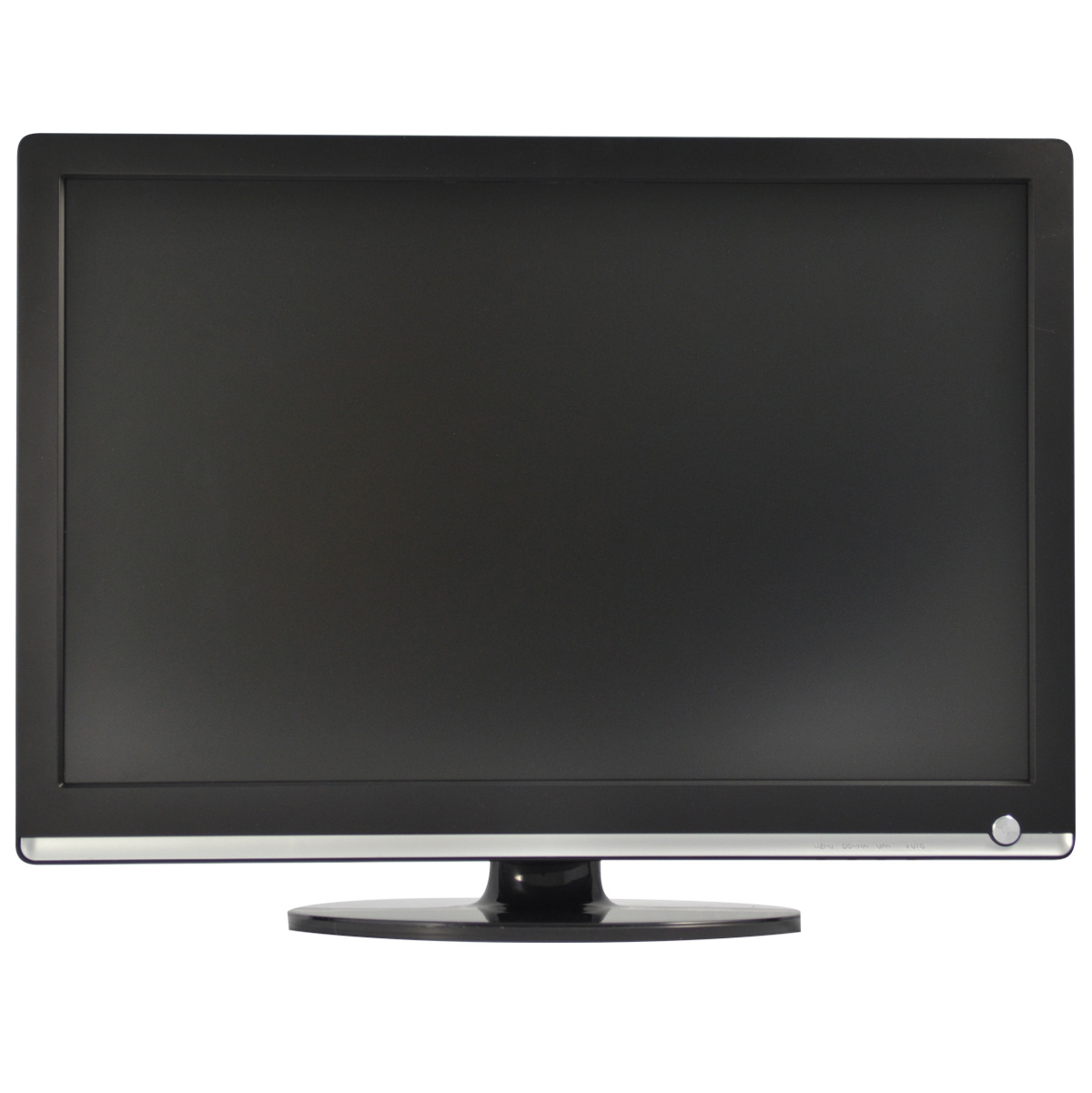

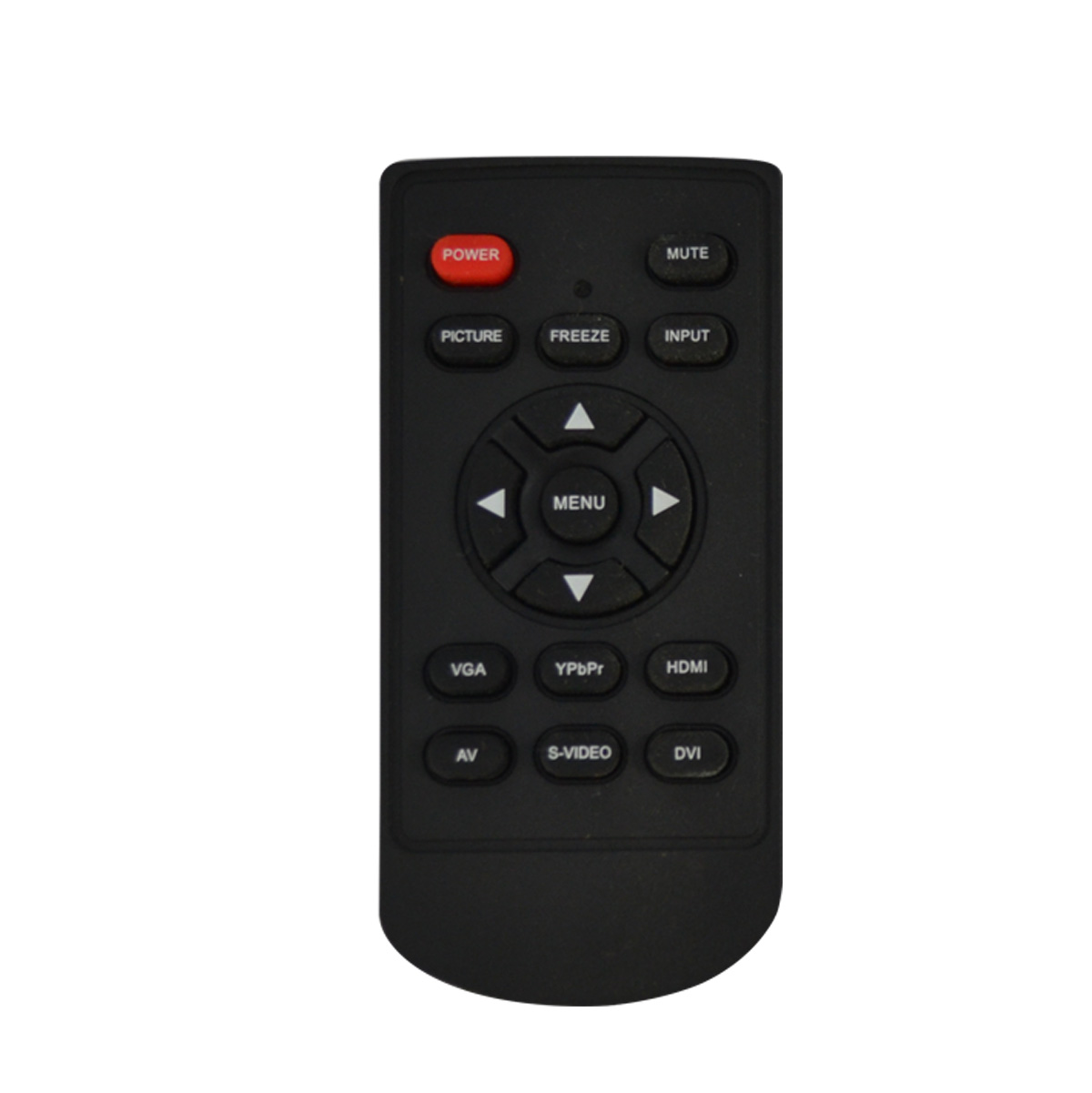

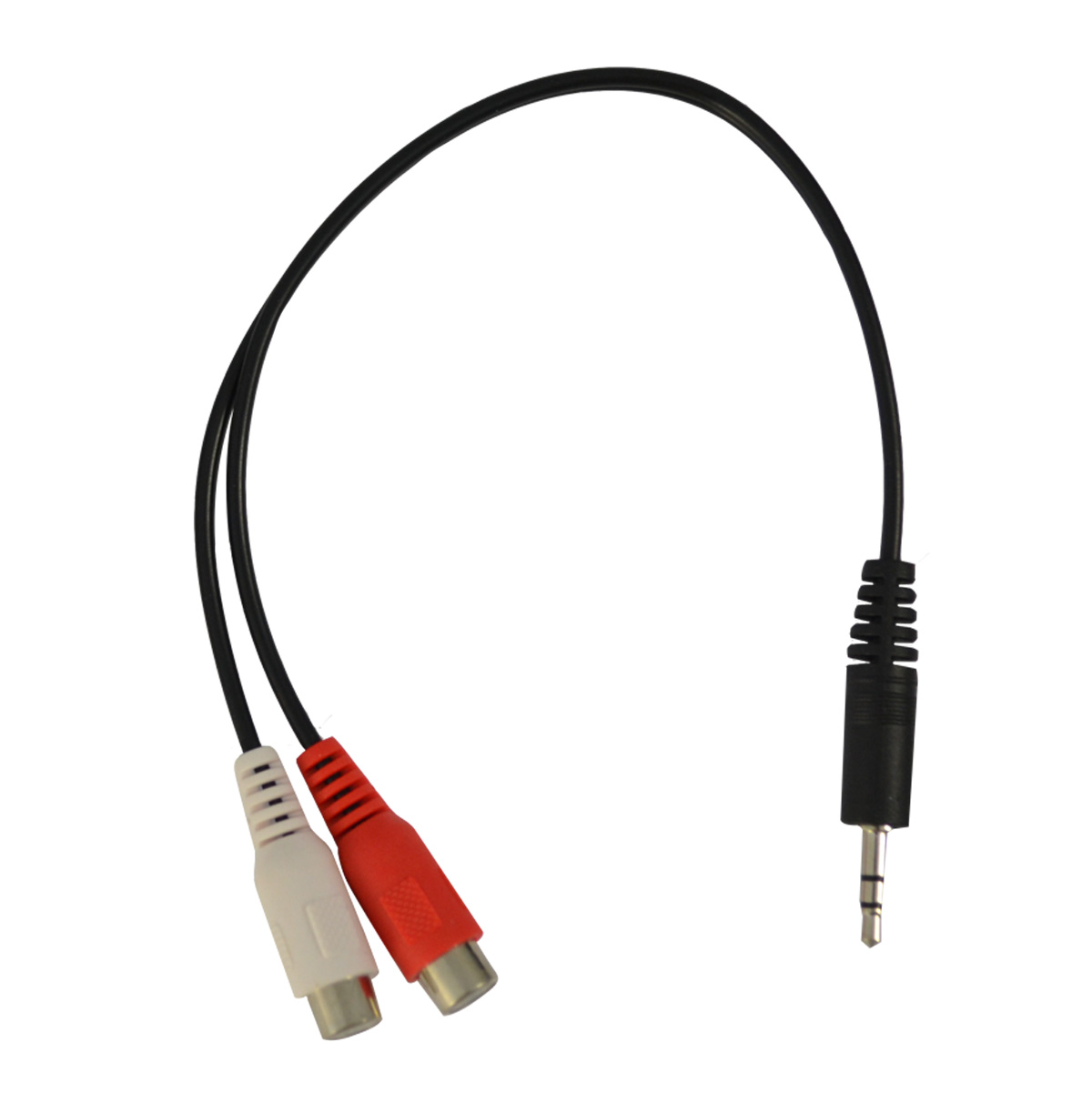

  • LCD 22 inch monitor special for CCTV - Image 1
  • LCD 22 inch monitor special for CCTV - Image 2
  • LCD 22 inch monitor special for CCTV - Image 3
  • LCD 22 inch monitor special for CCTV - Image 4
  • LCD 22 inch monitor special for CCTV - Image 5
  • - LCD 22" monitor.
  • - HDMI input support.
  • - Auto adjust the re-image.
  • - Low energy consumption.
  • - Rich docking functions.
  • - Ultra-quiet cooling fan design.
Products recommendaded to work with this item:
lcd 22 inch monitor special for cctv
+
bnc connector female to rca male stainless steel.
+
4ch dvr, h264, vga/bnc/hdmi, audio 4ch in/1ch out, d1/cif, pentaplex
+
bnc patch cord, 30 cm
Price for all 4: $408.96
  • Main Features:

    - HDMI input support.
    - Slim, ultralight, easy to use and aesthetic.
    - High contrast, high brightness, greatly improving the image layering, better performance details.
    - With automatic elimination of blur function, protect the LCD screen of the long-term use.
    - Auto adjust the re-image in the VGA status.
    - 16.7M colors, the picture is more natural, delicate.
    - Speed response time, the picture really no tail.
    - Latest I²C control circuit, high reliability and good scalability.
    - Rich docking functions.
    - Multi-level menu display.
    - Low energy consumption, the LCD screen up to 6 thousand hours life.
    - Ultra-quiet cooling fan design.
    Warranty: One (1) Year
  • LCD 22 inch monitor special for CCTV
    General
    Brand Linemak
    Model LS-TMT22BH
    LCD Panel
    Monitor 22" TFT-LCD
    Display area 473(H)*296(V)
    Resolution 1920*1080
    Brightness 500cd/m2
    Aspect ratio 16:9
    Contrast ratio 1000:1
    Response time 8ms
    Viewing angle 140°(V)*160°(H)
    Dot pitch 0.264mm
    Video
    Video format PAL / NTSC
    Interface
    Video input/output Input: 1-Ch BNC / 1-Ch S-Video / 1-Ch VGA / 1-Ch AV / 1-Ch HDMI
    Output: 1-Ch RCA
    Audio input/output Input: 1-Ch RCA stereo
    Output: Built-in speaker, 1-Ch earphone
    Environment
    Operation temperature 0°C ~ 40°C
    Working humidity 10% ~ 85%
    Power
    Power supply DC 12V/4A
    Power consumption <55W
    Appearance
    Size 6.69 (L) * 19.69 (H) * 20.67 (W) inches
    Weight 8.12 pounds
    Standard
    OSD Menu Support
