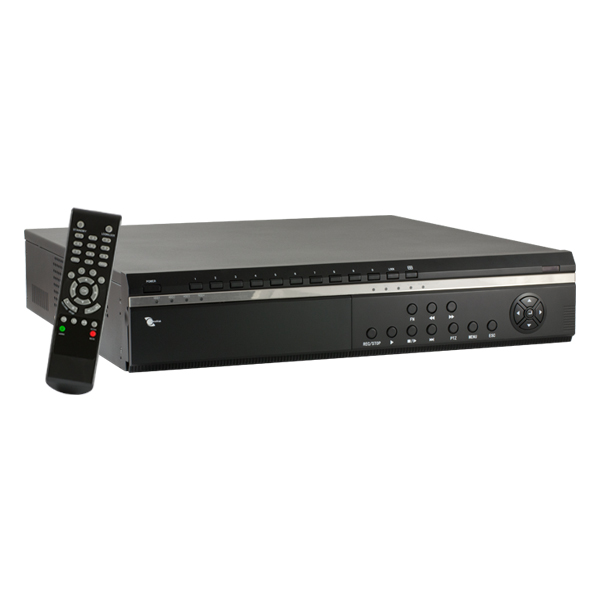

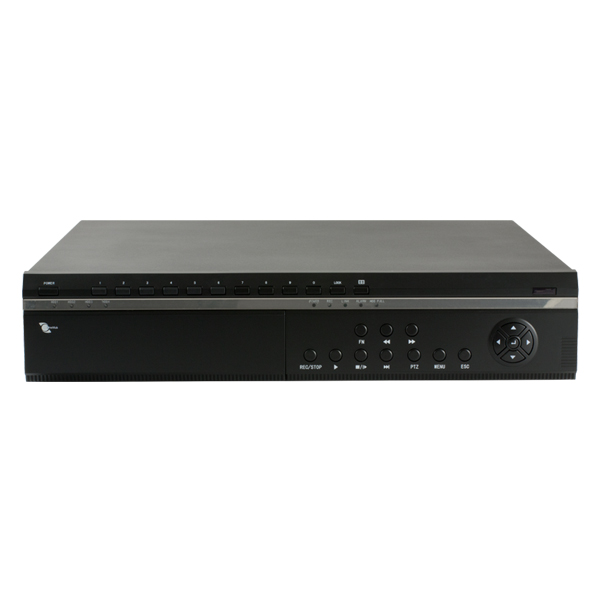

24Ch DVR, H264, BNC/VGA/HDMI, Audio 16Ch in/1Ch out, D1/CIF, WiFi, DVR

COMING SOON

- D1 / CIF resolution.
- H.264 compression format.
- Pentaplex operation.
- Hard drive not included. Wi-Fi module sold separetly.
- 3G mobile phone surveillance.
- HDMI, BNC, VGA and Spot Outputs.

Product Features Specifications Download

This easy to use DVR (Digital Video Recorder) features an English menu and motion detection recording. Monitor your cameras on the internet from anywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time. Mouse and remote control included.

This video surveillance equipment can record images registered by their cameras and is very easy to use.

Multiple recording modes: Manual, schedule, motion, alarm.
Control method: USB mouse, front panel, network controller and remote control.
Compatible with WIN98 / WIN2000 / WIN XP / WIN VISTA / WIN SEVEN.

Main features:
- H.264 compression format.
- 16 RCA Audio In/1 RCA audio out.
- Pentaplex operation (Record/Playback/Internet/Configure/PTZ).
- 4Ch D1, 20Ch CIF real time supports.
- Mouse, network remote, USB backup and PTZ control support.
- 4X 2000G SATA HDD support.
- Network: 1 RJ-45 10/100Mbps Ethernet connector.
- 3G mobile phone surveillance.
- HDMI/BNC/VGA outputs.

Wi-Fi adapter needed (sold separetly).

Hard drive not included.
This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

H.264 video compression reduces storage requirements

H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.

Keep everything under watch with multiple recording modes

Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.

Motion detection

Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.

Remote setup to access the DVR screen setting

DVR settings adjustment such as remote firmware upgrade, email notification, recording resolution, and motion recording. All DVR settings in the Display, Record, Device, Storage, System, Security Network and Upgrade screens are accessible remotely, for easy adjustment of related DVR functions.

Monitoring 3G

Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness

Remote monitoring Surveillance

Rely on our current and advanced technology by using any top-of-line wireless sensing device for remotely monitoring your goods or property from everywhere, every time. Be able to manipulate your security system through a simple click and have it all watched like you were nearby.

WiFi

A device called a wireless transmitter receives information from the internet via your broadband connection. The transmitter converts the information into a radio signal and sends it. Wireless for home security systems also act as a visible deterrent to criminals that allow you to record events at home and/or monitor staff at work.

HDMI delivers enhanced image clarity

HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.

Save money with no contracts and no monthly fees

Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.

Warranty: One (1) Year

24Ch DVR, H264, BNC/VGA/HDMI, Audio 16Ch in/1Ch out, D1/CIF, WiFi
General
Brand	LineMak
Model	LS-RD724W
Video
Resolution	4 Channels D1 real time 20 Channels CIF full real time
Video format	PAL / NTSC
Compression format	H.264
Display quality	PAL: 704576 NTSC:* 704*480
Video recording	NTSC: 704480 (704576) ~ 30fps / 704240 (704288) ~ 30fps / 352240 (352288) ~ 960fps PAL: 704480 (704576) ~ 25fps / 704240 (704288) ~ 25fps / 352240 (352288) ~ 800fps
Recording & Playback
Recording mode	Manual, schedule, motion, alarm
Local playback	16Ch
Search mode	Calendar, event, time search
Storage & Backup
Backup mode	USB, DVD/RW and Network
Interface

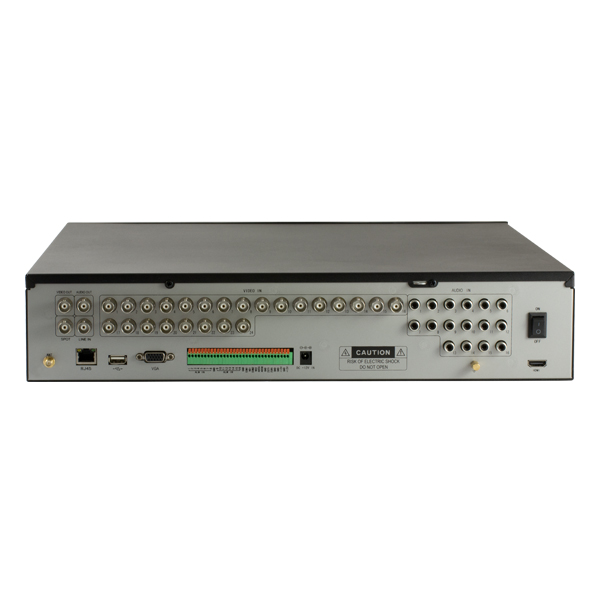

Video input/output	Input: 24-Ch BNC (1.0Vp-p, 75ohm) Output: 1-Ch BNC (1.0Vp-p, 75ohm), 1-Ch SPOT, 1-Ch VGA and 1-Ch HDMI
Audio input/output	Input: 16-Ch RCA Output: 1-Ch RCA
Alarm input/output	Input: 16-Ch Output: 2-Ch
PTZ Control	1 RS-485 and 1 RS-232 ports
USB Port	1 USB 2.0 port
HDD Port	4 SATA HDDs (up to 2TB each)
Wireless port	Wi-Fi
Network interface	1 RJ45 10M/100M Base-T port (self-adaptive Ethernet port)
Mode control
Operating mode	USB mouse, front panel, keyboard, network controller and remote control
Network
Network protocol	Static IP, DHCP, DDNS
Web Browser	Yes
Remote
Mobile surveillance	Yes
CMS	Yes
Power
Power supply	DC 12V/6A
Appearance
Color	Black
Size	18.11(L) * 3.94(H) * 17.32(W) inches
Weight	13.68 pounds
Accessories

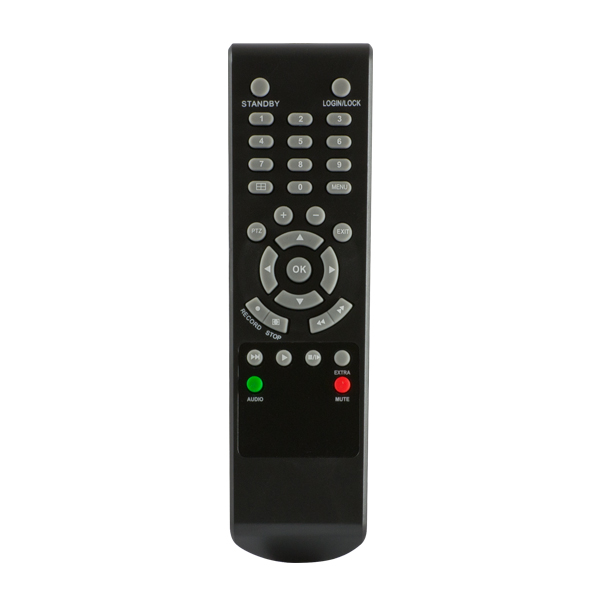

Remote control	Yes
