Bullet camera, HDIS CMOS Sensor, 1200TVL, 24 LEDs, 65ft IR distance

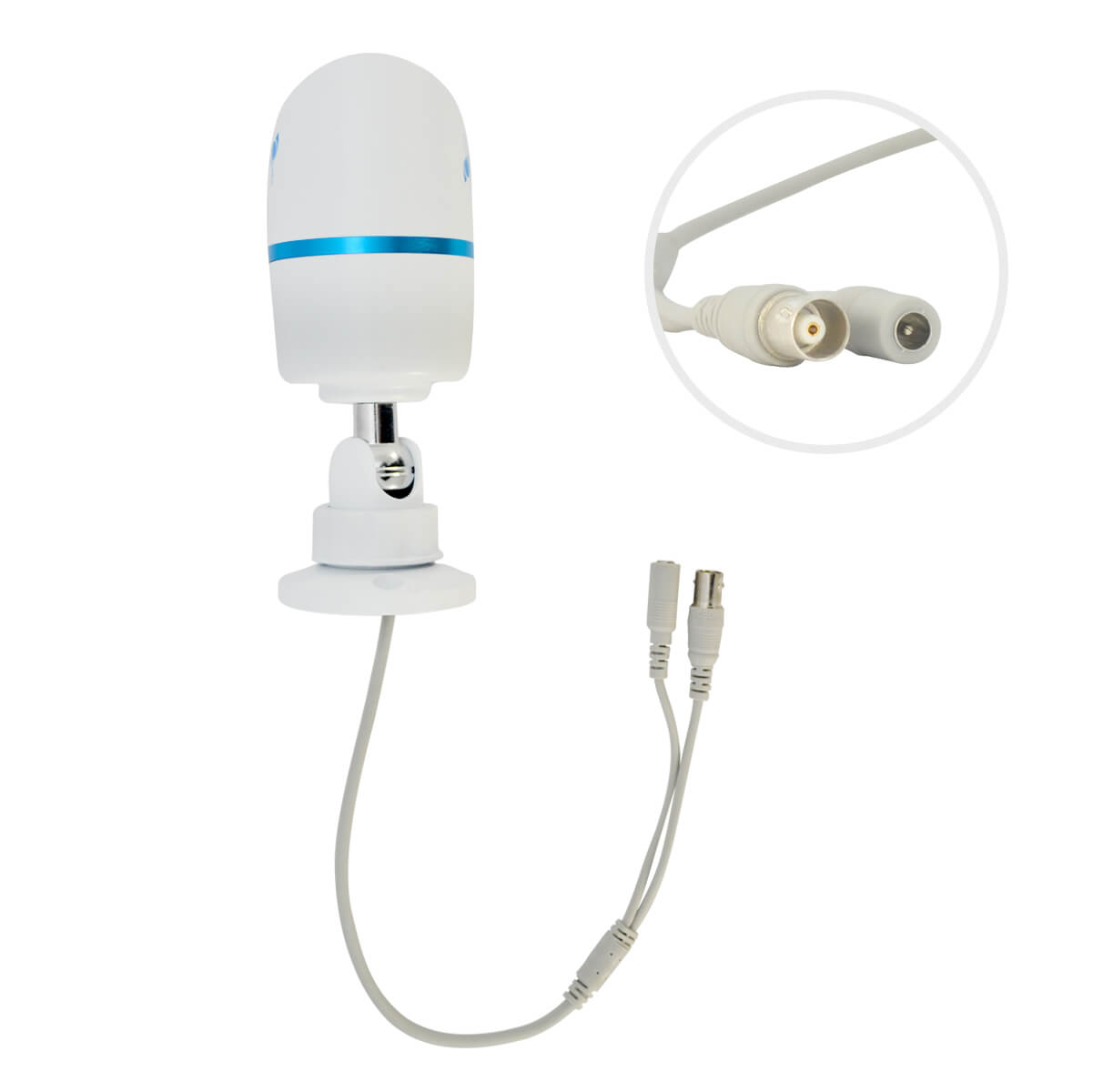

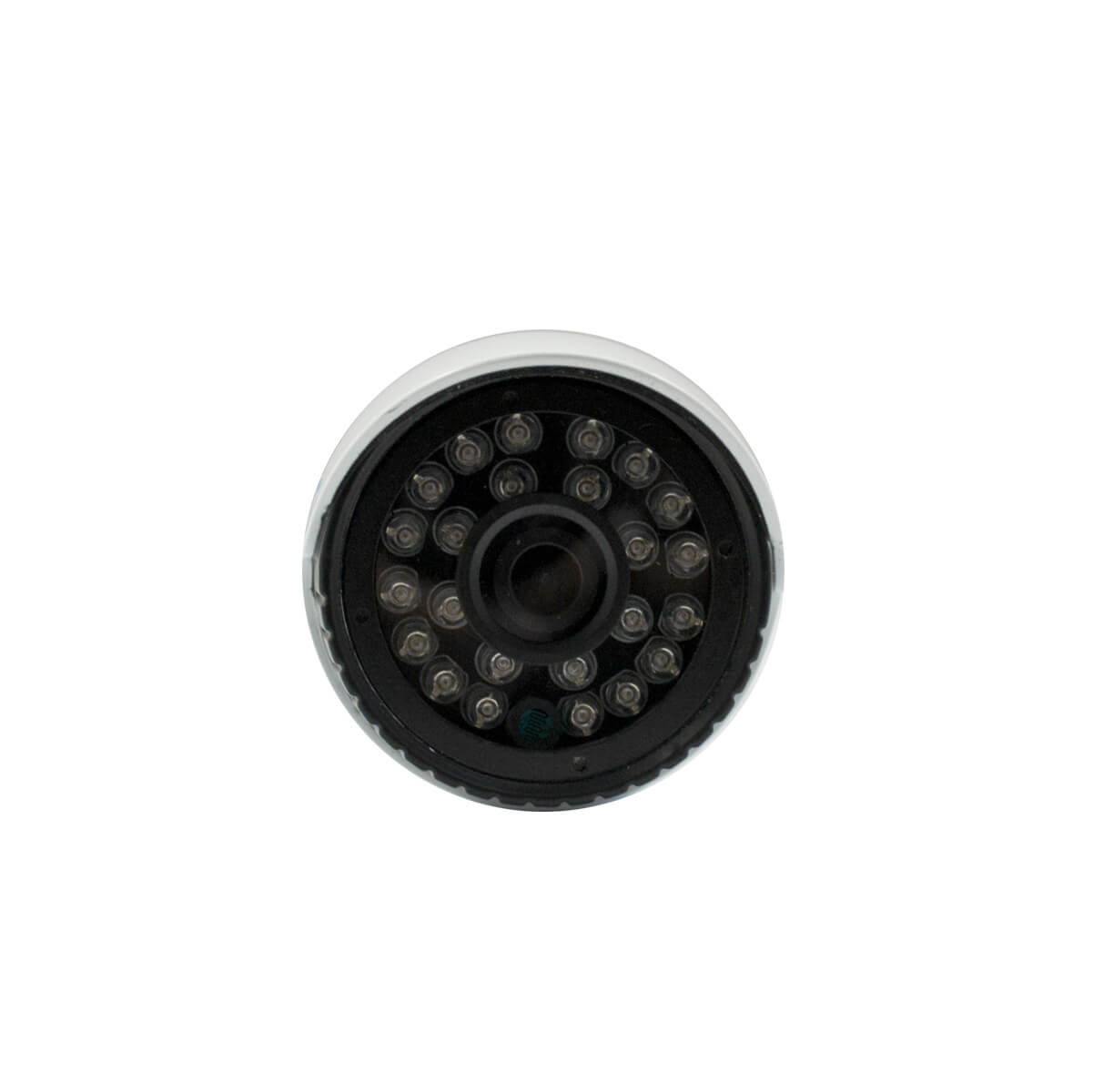

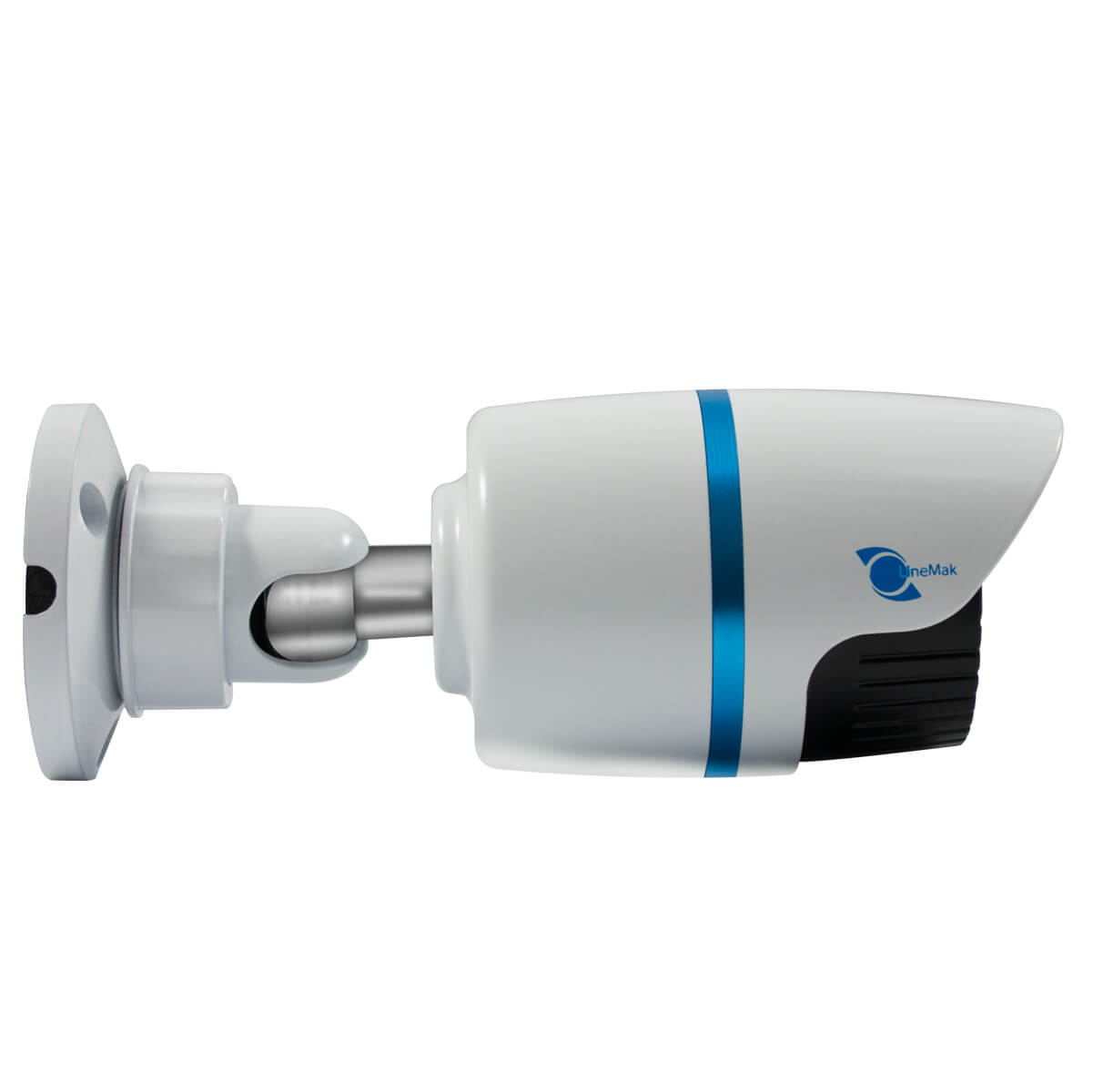

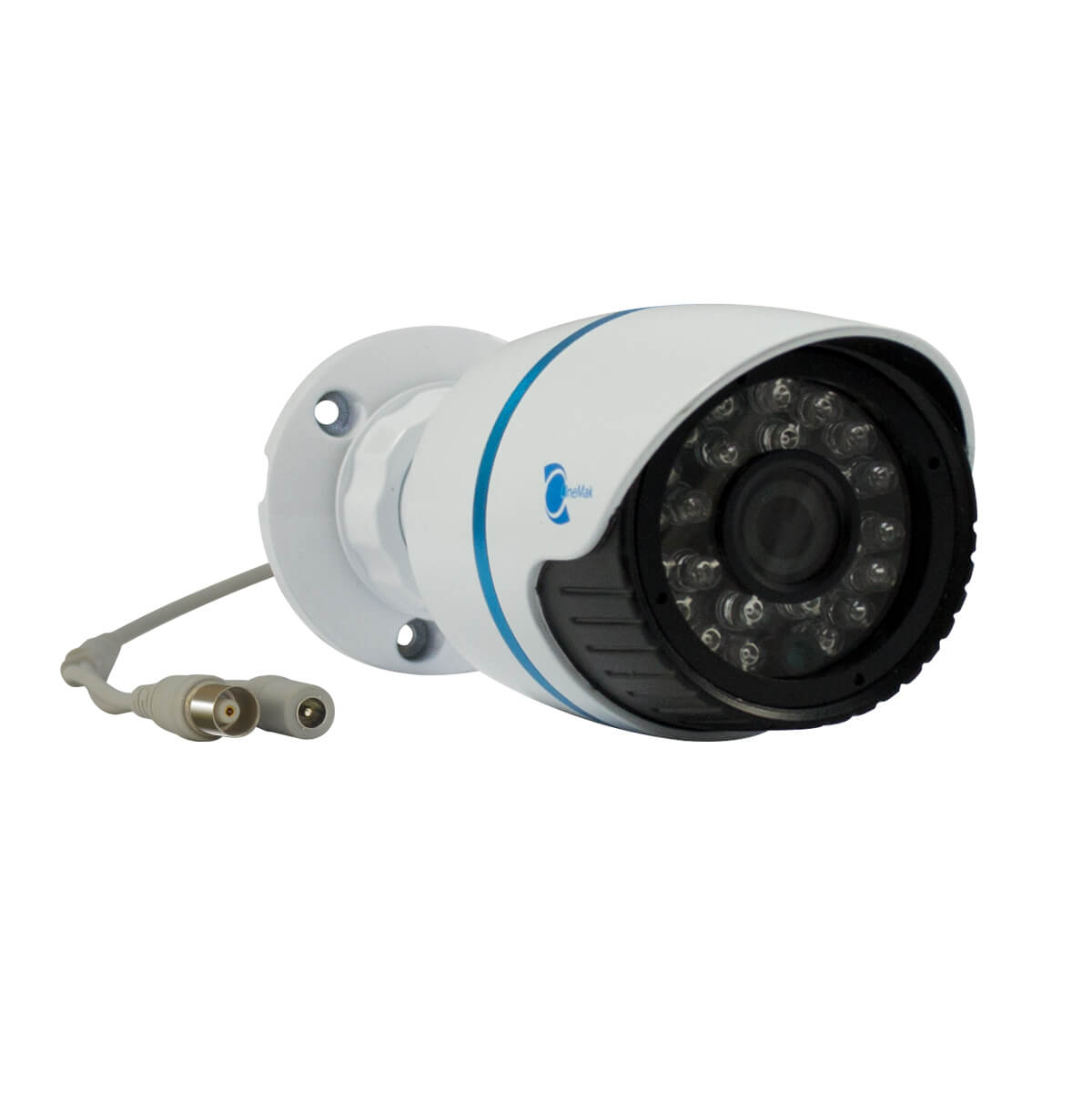

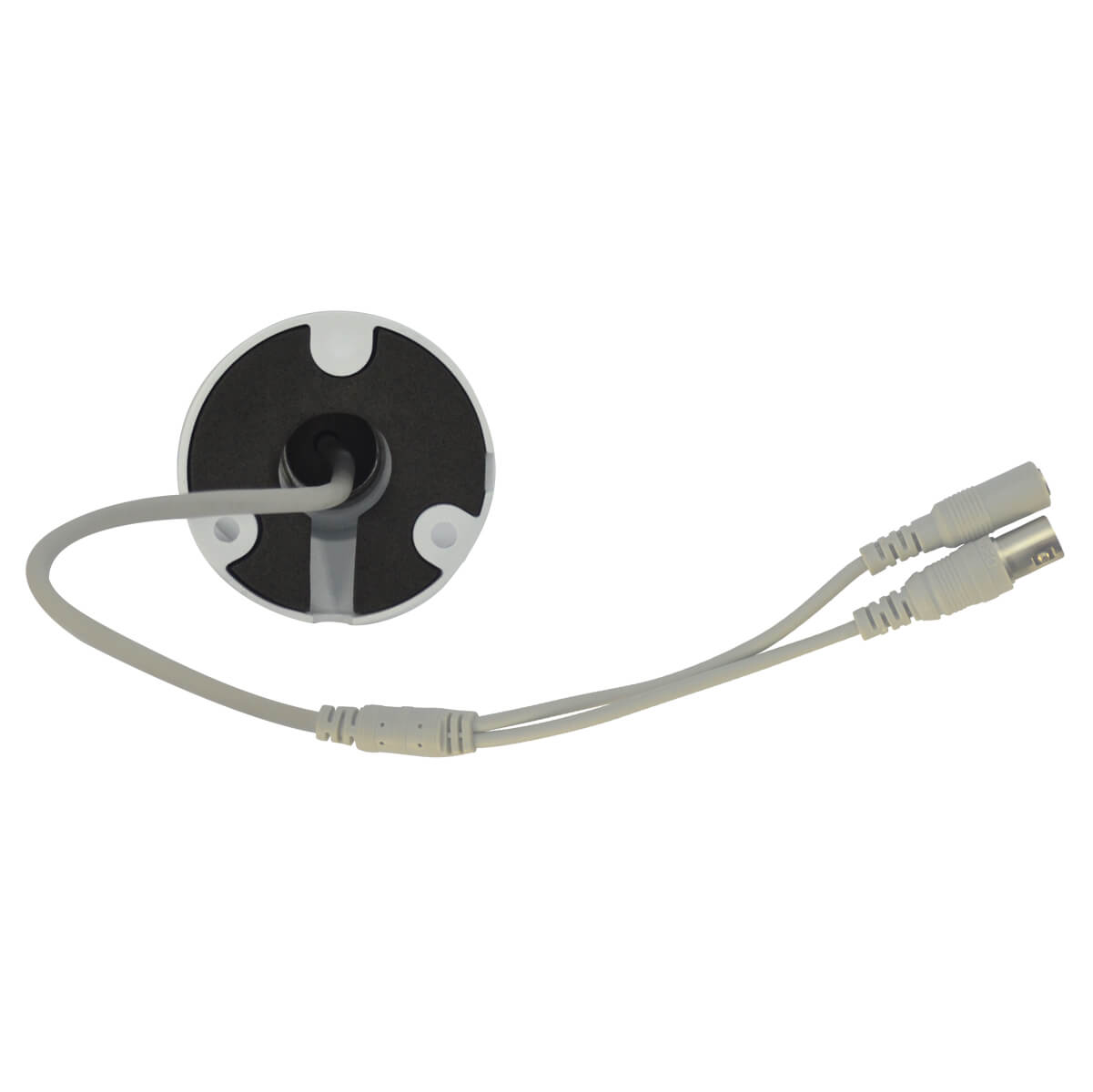

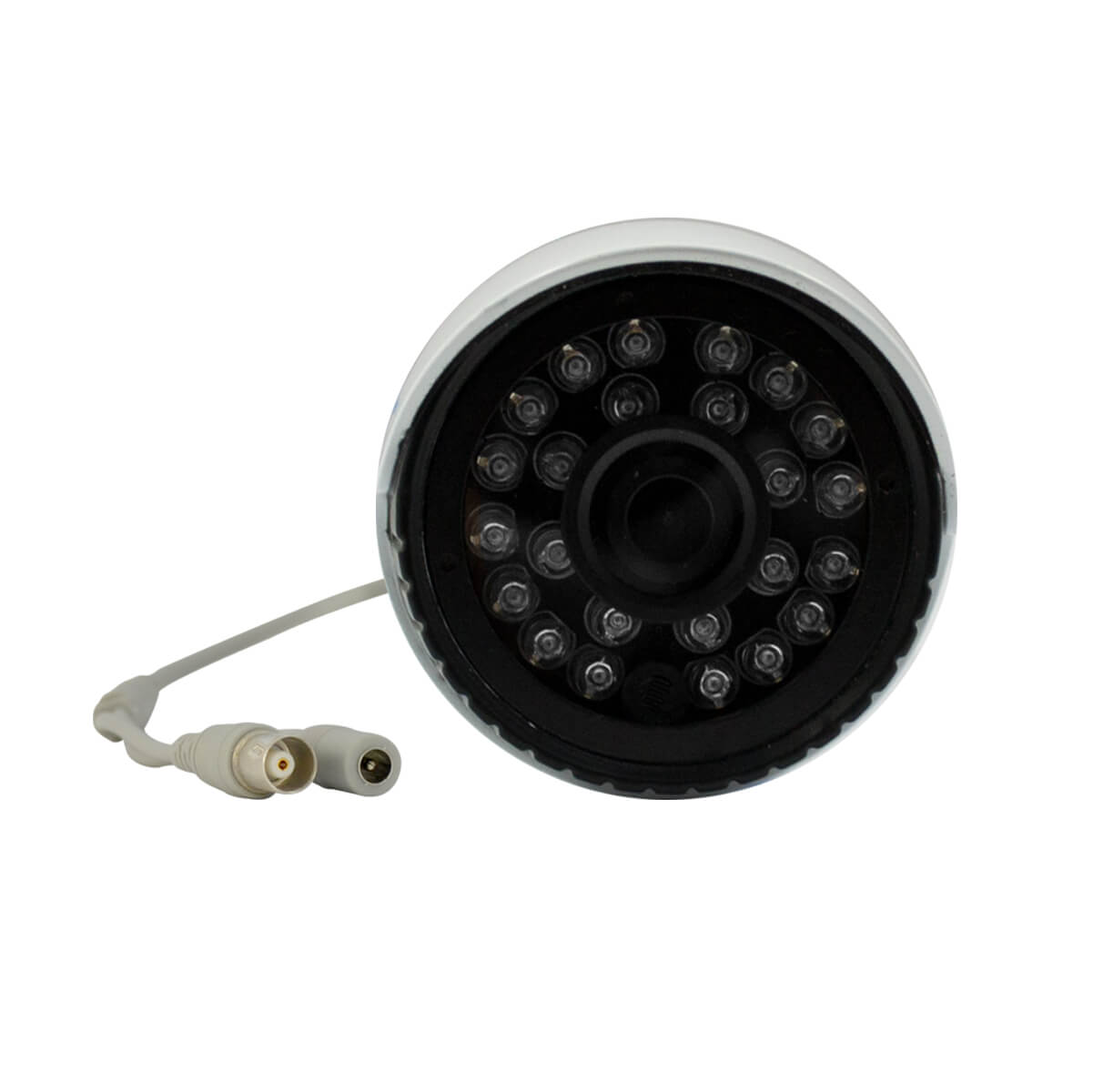

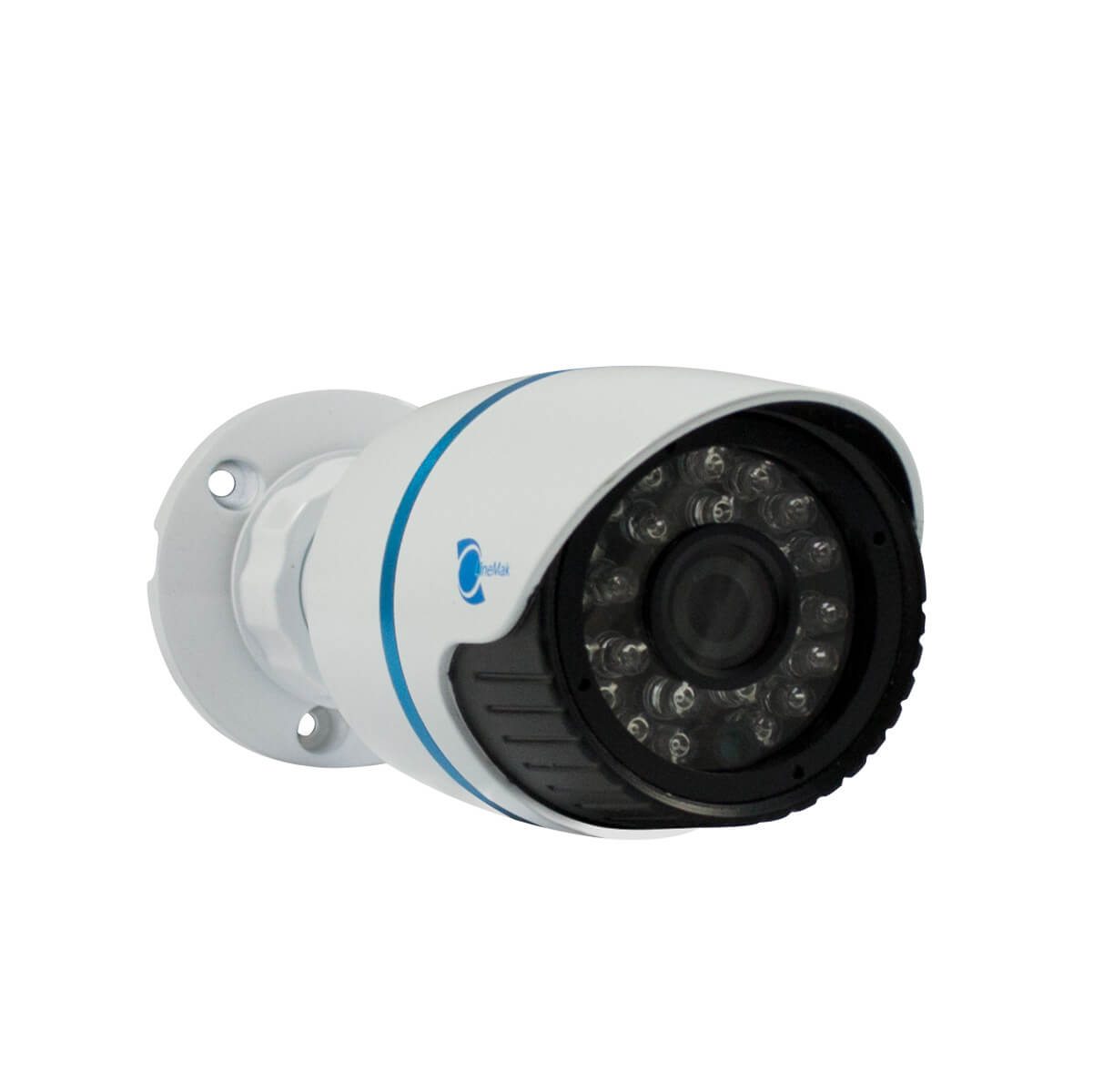

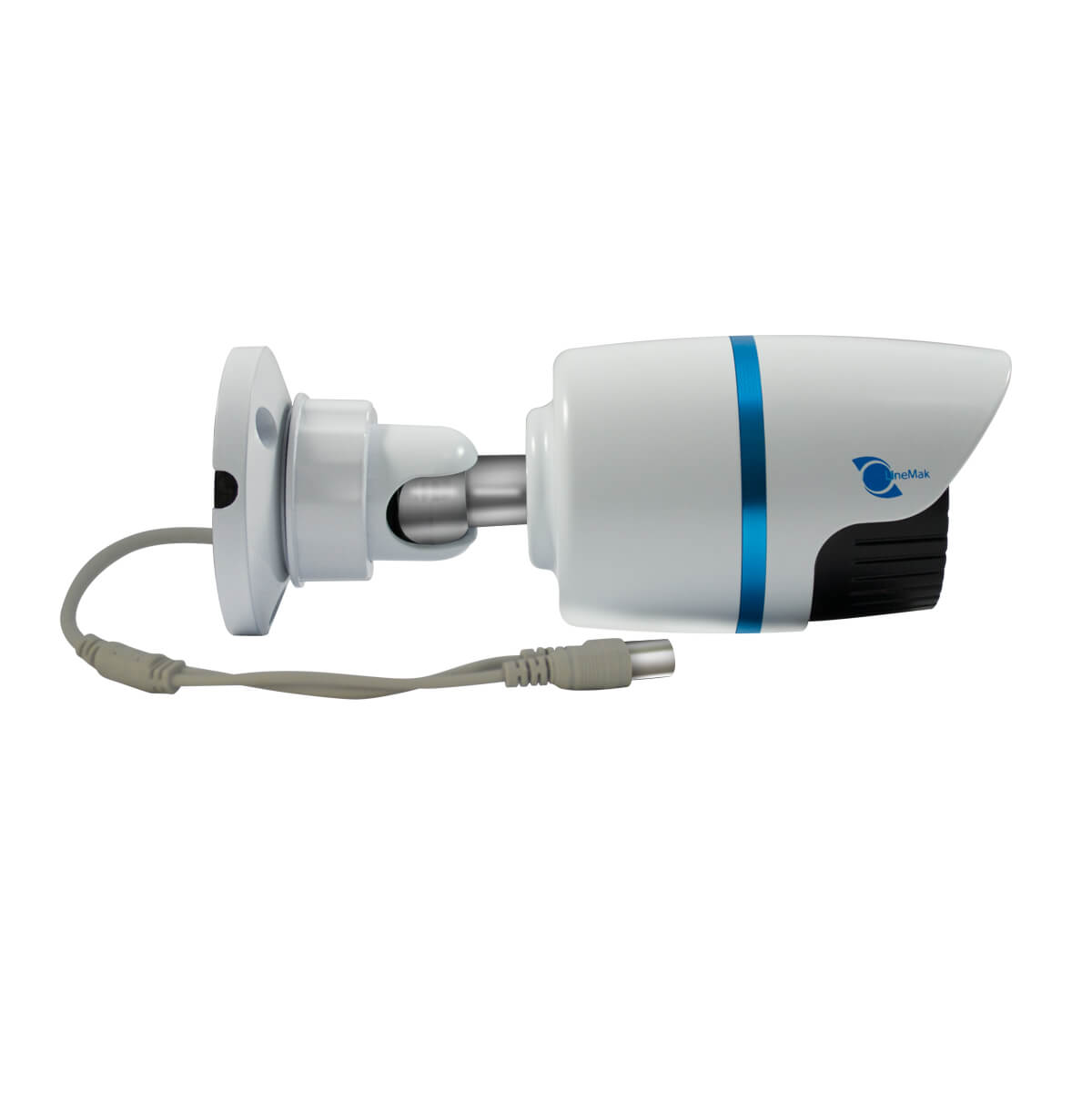

  • Bullet camera, HDIS CMOS Sensor, 1200TVL, 24 LEDs, 65ft IR distance - Image 1
  • Bullet camera, HDIS CMOS Sensor, 1200TVL, 24 LEDs, 65ft IR distance - Image 2
  • Bullet camera, HDIS CMOS Sensor, 1200TVL, 24 LEDs, 65ft IR distance - Image 3
  • Bullet camera, HDIS CMOS Sensor, 1200TVL, 24 LEDs, 65ft IR distance - Image 4
  • Bullet camera, HDIS CMOS Sensor, 1200TVL, 24 LEDs, 65ft IR distance - Image 5
  • Bullet camera, HDIS CMOS Sensor, 1200TVL, 24 LEDs, 65ft IR distance - Image 6
  • Bullet camera, HDIS CMOS Sensor, 1200TVL, 24 LEDs, 65ft IR distance - Image 7
  • Bullet camera, HDIS CMOS Sensor, 1200TVL, 24 LEDs, 65ft IR distance - Image 8
  • - 1/2.8" HDIS Color CMOS Sensor, 1200TVL
  • - 3.6mm lens
  • - 24 LEDs, 65ft IR night vision
  • - Power adapter not included.
  • - 92° viewed angle.
  • - Synchronizing system: Internal.
Products recommendaded to work with this item:
bullet camera, hdis cmos sensor, 1200tvl, 24 leds, 65ft ir distance
+
passive video balun with power 300m / 1000ft
+
dc12v 2a power adapter specially for security cameras
Price for all 3: $64.97
  • High resolution metal bullet camera with a 1/2.8" HDIS Color CMOS sensor, 1200TVL of resolution, a 3.6mm board lens, and a 95? viewing angle. It has a 65ft range of infrared night vision and 24pcs 5mm LEDs each. Available in white.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Hinged base included.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Warranty: One (1) Year
  • Bullet camera, HDIS CMOS Sensor, 1200TVL, 24 LEDs, 65ft IR distance
    General
    Brand LineMak
    Model LS-TC3076CB08
    Sensor
    Resolution 1200TVL
    Sensor 1/2.8" HDIS Color CMOS
    Effective pixels 1280*720
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm (Composite output)
    Lens
    Lens 3.6mm
    IR Range 65ft night vision
    LEDs 24pcs (5mm each)
    Infrared wavelength 850nm
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 95°
    Environment
    Operation temperature -10°C ~ 50°C
    14ºF ~ 122ºF
    Power
    Power supply DC 12V
    Power consumption 350mA
    Appearance
    Color White
    Size 8.27(L) * 2.37(H) * 2.37(W) inches
    Weight 10.41 ounces
    Special function
    Electronic shutter speed (AES) 1/50s ~ 1/12,000s
    Standard
    Synchronizing system Internal
    S/N Ratio >50dB
  • Instrucción
    File Size: 449.16 Kb
    Languages: Spanish
    File Type: PDF
    Instrucción
    File Size: 449.16 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 483.65 Kb
    Languages: English
    File Type: PDF
