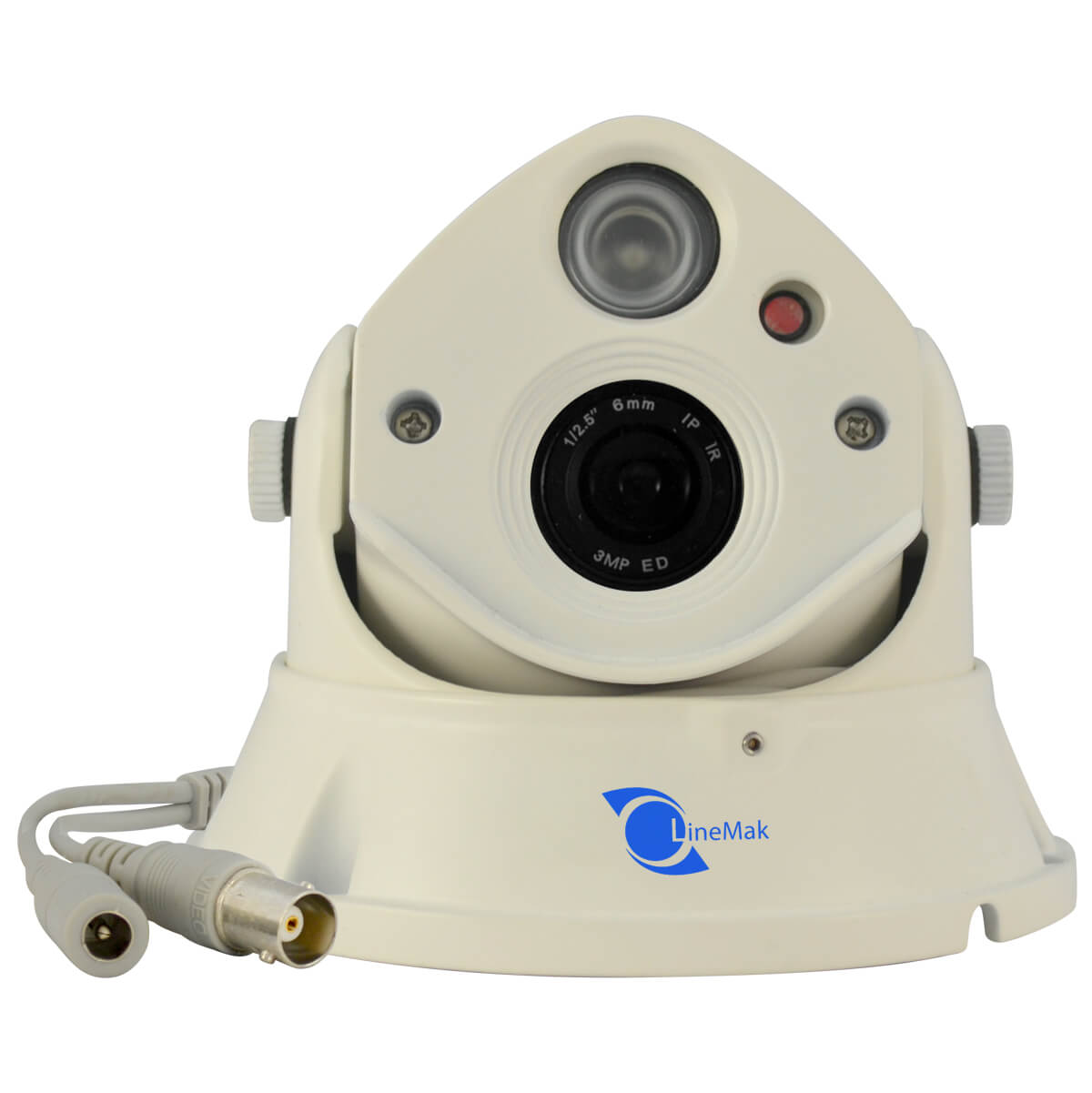

Vandalproof Dome camera, HDIS CMOS Sensor, 1200TVL, 6mm lens, 1 LED.

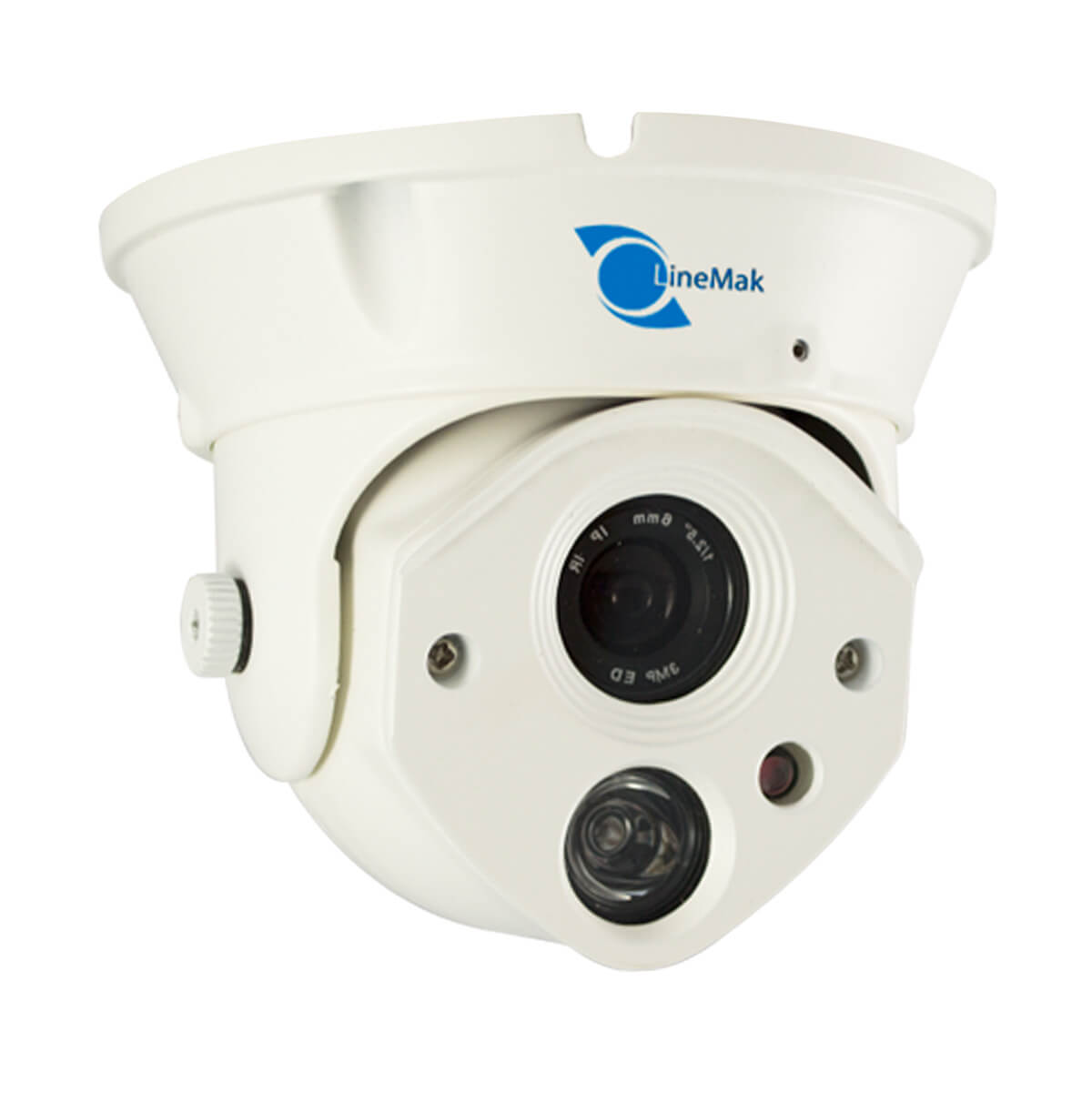

  • Vandalproof Dome camera, HDIS CMOS Sensor, 1200TVL, 6mm lens, 1 LED. - Image 1

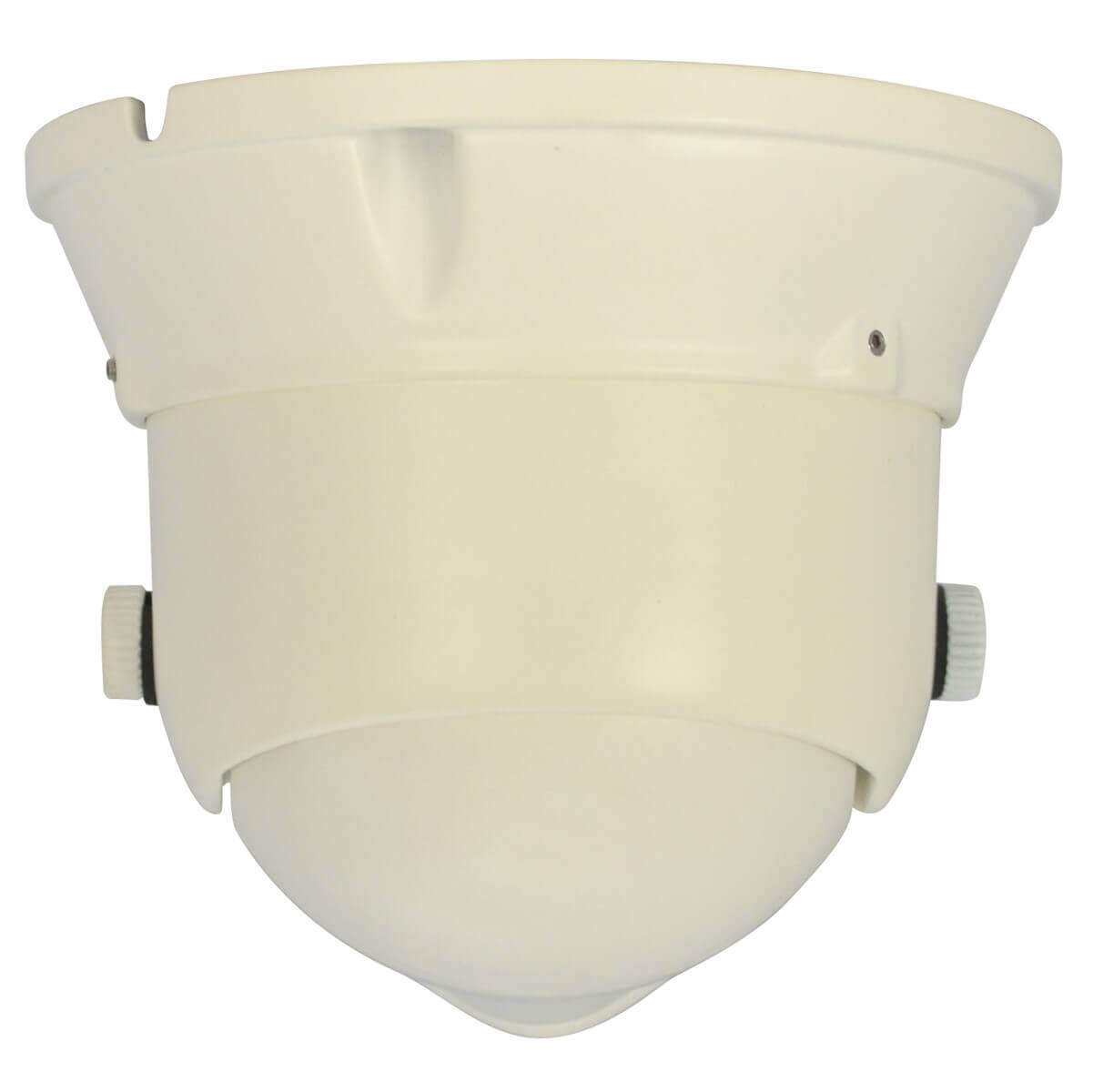

  • Vandalproof Dome camera, HDIS CMOS Sensor, 1200TVL, 6mm lens, 1 LED. - Image 2

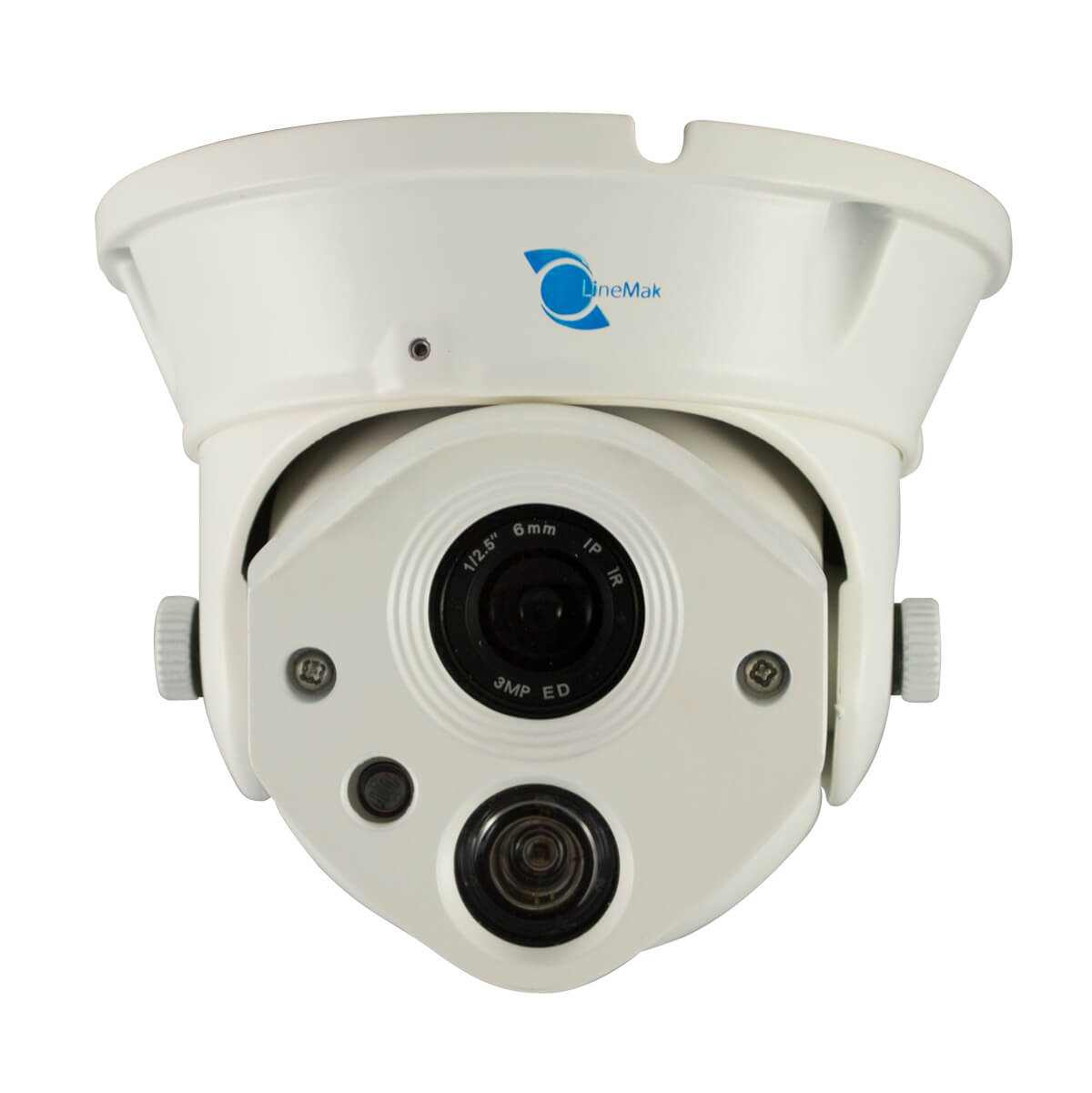

  • Vandalproof Dome camera, HDIS CMOS Sensor, 1200TVL, 6mm lens, 1 LED. - Image 3

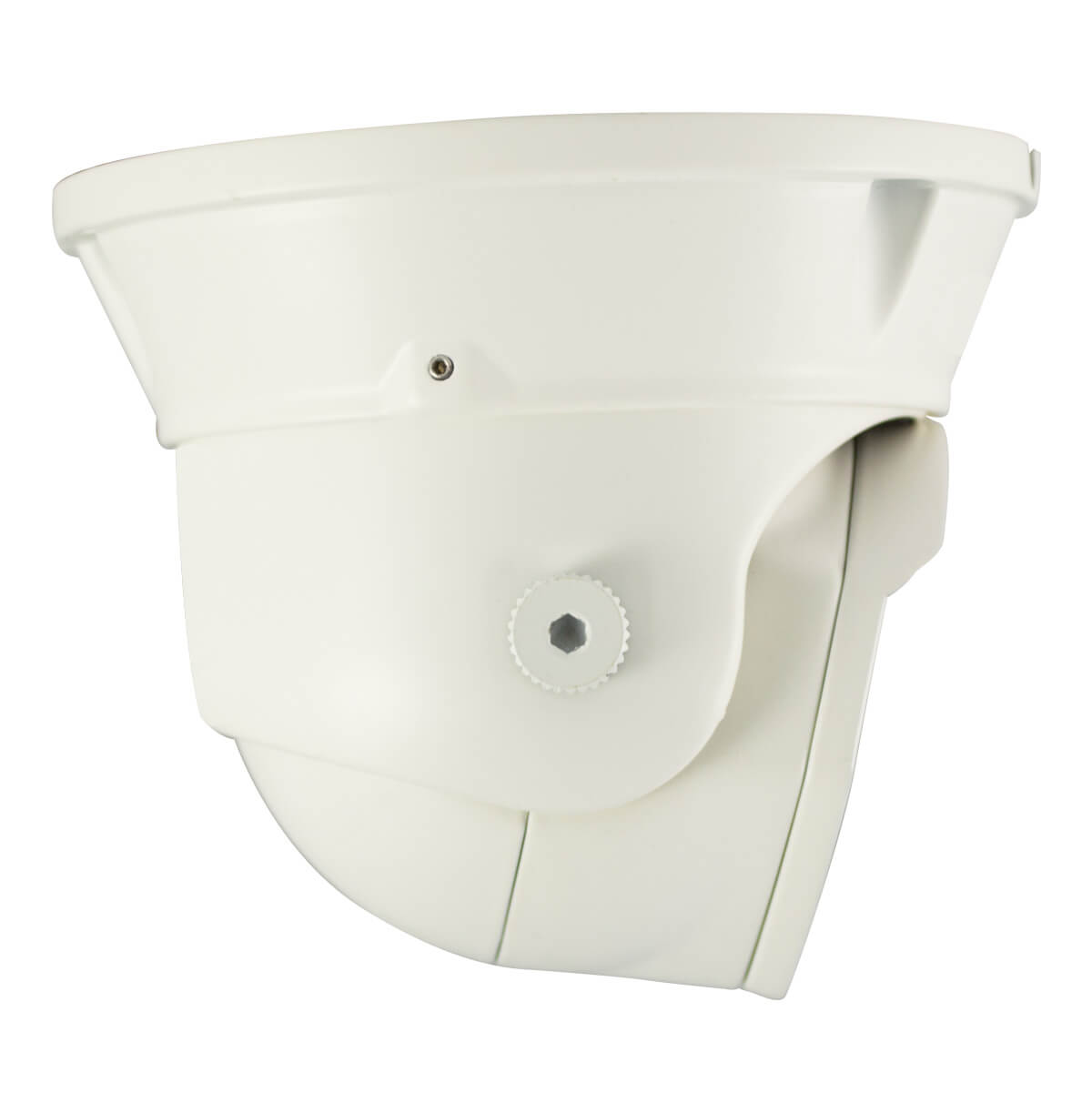

  • Vandalproof Dome camera, HDIS CMOS Sensor, 1200TVL, 6mm lens, 1 LED. - Image 4

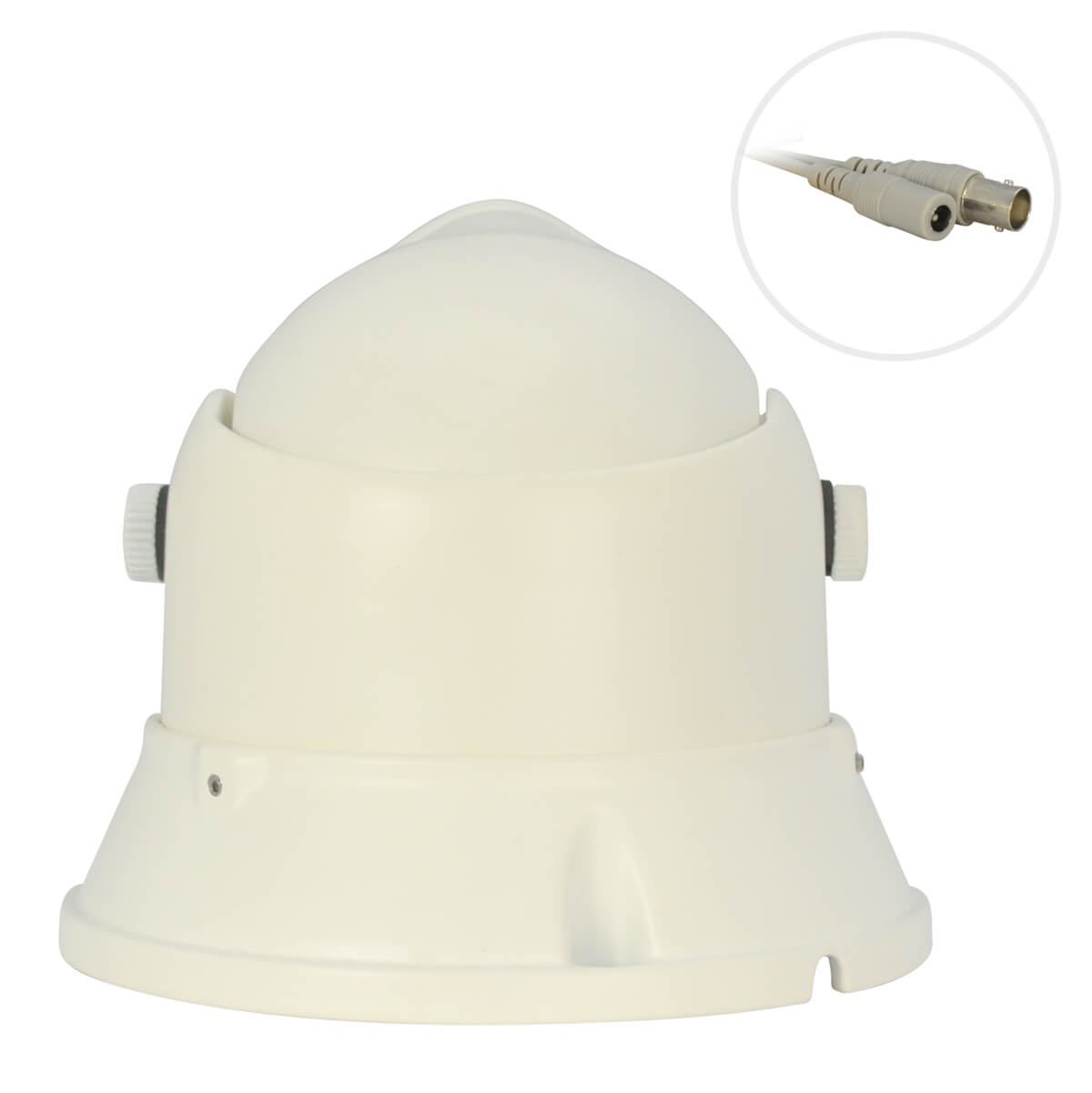

  • Vandalproof Dome camera, HDIS CMOS Sensor, 1200TVL, 6mm lens, 1 LED. - Image 5

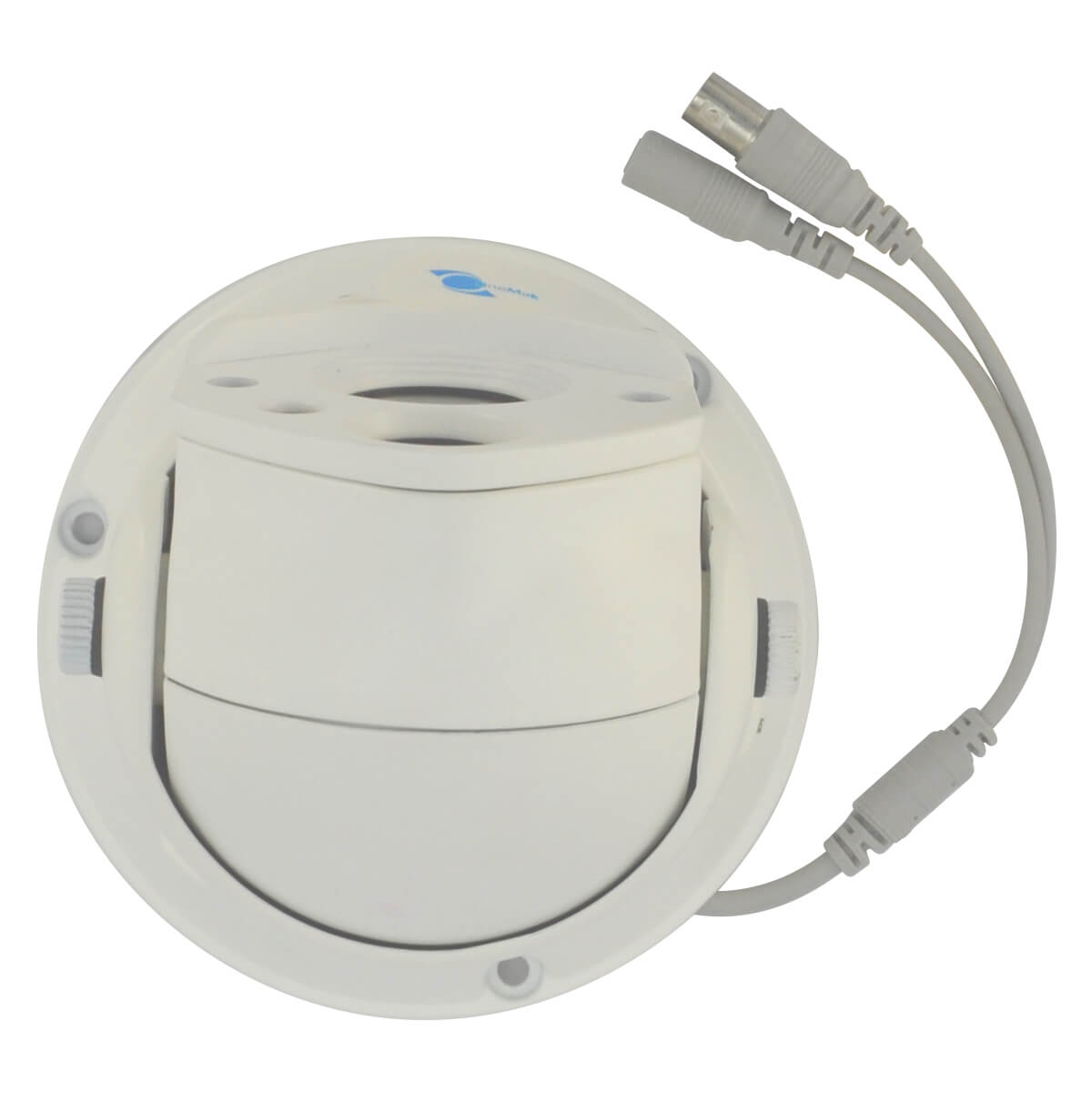

  • Vandalproof Dome camera, HDIS CMOS Sensor, 1200TVL, 6mm lens, 1 LED. - Image 6

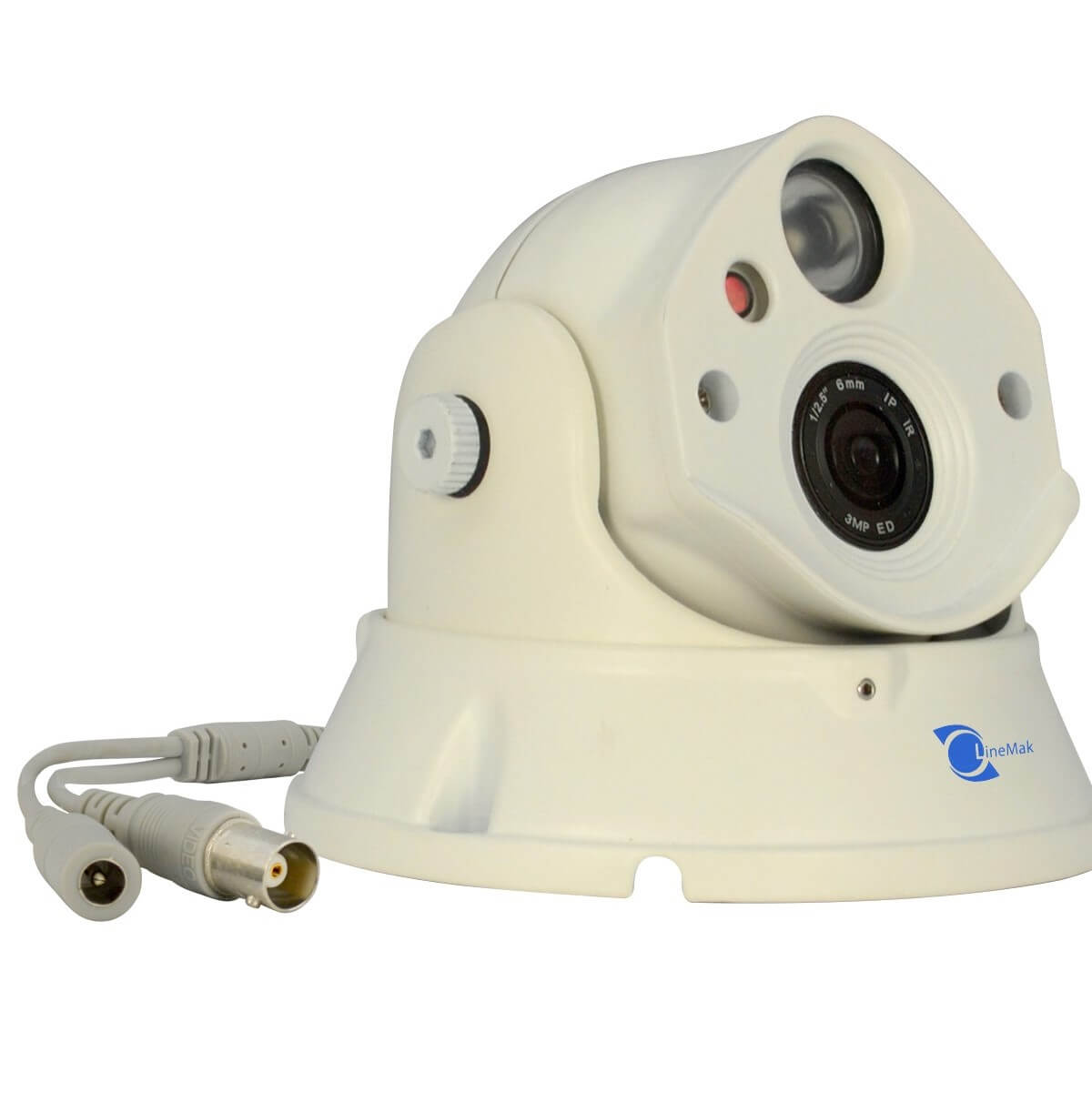

  • Vandalproof Dome camera, HDIS CMOS Sensor, 1200TVL, 6mm lens, 1 LED. - Image 7

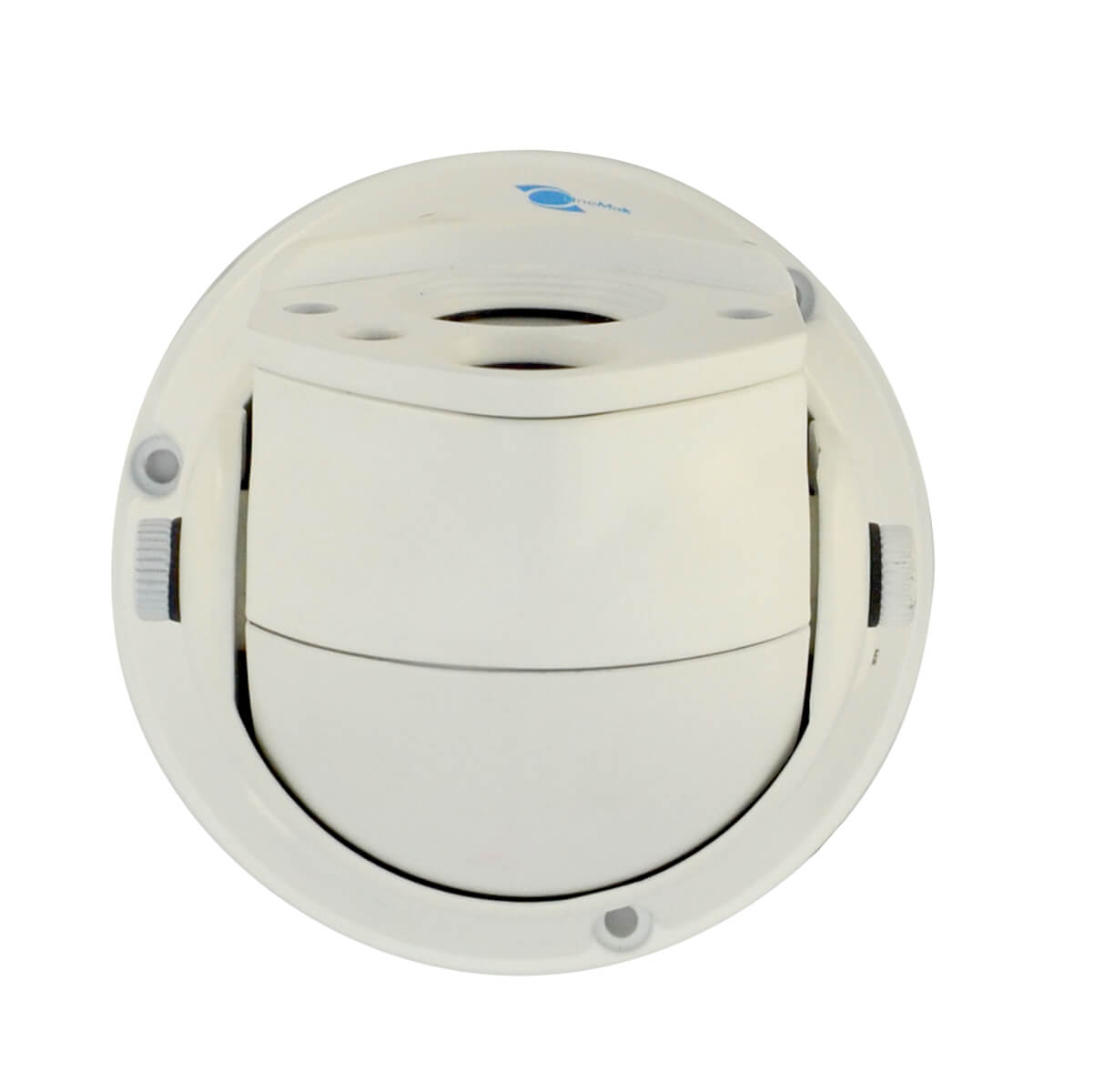

  • Vandalproof Dome camera, HDIS CMOS Sensor, 1200TVL, 6mm lens, 1 LED. - Image 8
  • Vandalproof Dome camera, HDIS CMOS Sensor, 1200TVL, 6mm lens, 1 LED. - Image 9
  • Vandalproof Dome camera, HDIS CMOS Sensor, 1200TVL, 6mm lens, 1 LED. - Image 10
  • - 1/2.5" HDIS Color CMOS Sensor, 1200TVL.
  • - 6mm lens. 53° viewing angle.
  • - 1 LED Array, 98ft IR distance.
  • - Power adapter not included.
  • - Minimun illumination: 0 LUX.
  • - Synchronizing system: Internal.
  • IR high-resolution dome camera with a lens of 6mm and a viewing angle of 53° which has a 98ft range of infrared night vision, and 1 LED array. Available in white.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    LED array
    The infrared led array has a wider emitting angle than traditional infrared leds. Traditional infrared leds can only emit the active infrared ray in a narrow angle. When there is a security camera with infrared led array, the emitted infrared will cover the whole surveillance area, which means the infrared led array camera can see the whole area in a dark environment such as at night.
    LED array
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Warranty: One (1) Year
  • Vandalproof Dome camera, HDIS CMOS Sensor, 1200TVL, 6mm lens, 1 LED.
    General
    Brand LineMak
    Model LS-VE7061CB08
    Sensor
    Resolution 1200TVL
    Sensor 1/2.5" HDIS Color CMOS
    Effective pixels 1280*720
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm (Composite output)
    Lens
    Lens 6mm
    IR Range 98ft night vision
    LEDs 1 LED Array
    Infrared wavelength 850nm
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 53°
    Environment
    Operation temperature -10°C ~ 50°C
    14°F ~ 122°F
    Power
    Power supply DC 12V
    Power consumption 450mA
    Appearance
    Color White
    Size 4.33(H) * 5.12(D) inches
    Weight 1.16 pounds
    Special function
    Back Light Compensation (BLC) No
    Auto White Balance (AWB) No
    Electronic shutter speed (AES) 1/50~1/12,000 sec.
    Auto Gain Control (AGC) No
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Mirror No
    Adaptive Tone Reproduction (ATR) No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Synchronizing system Internal
    S/N Ratio >50dB
