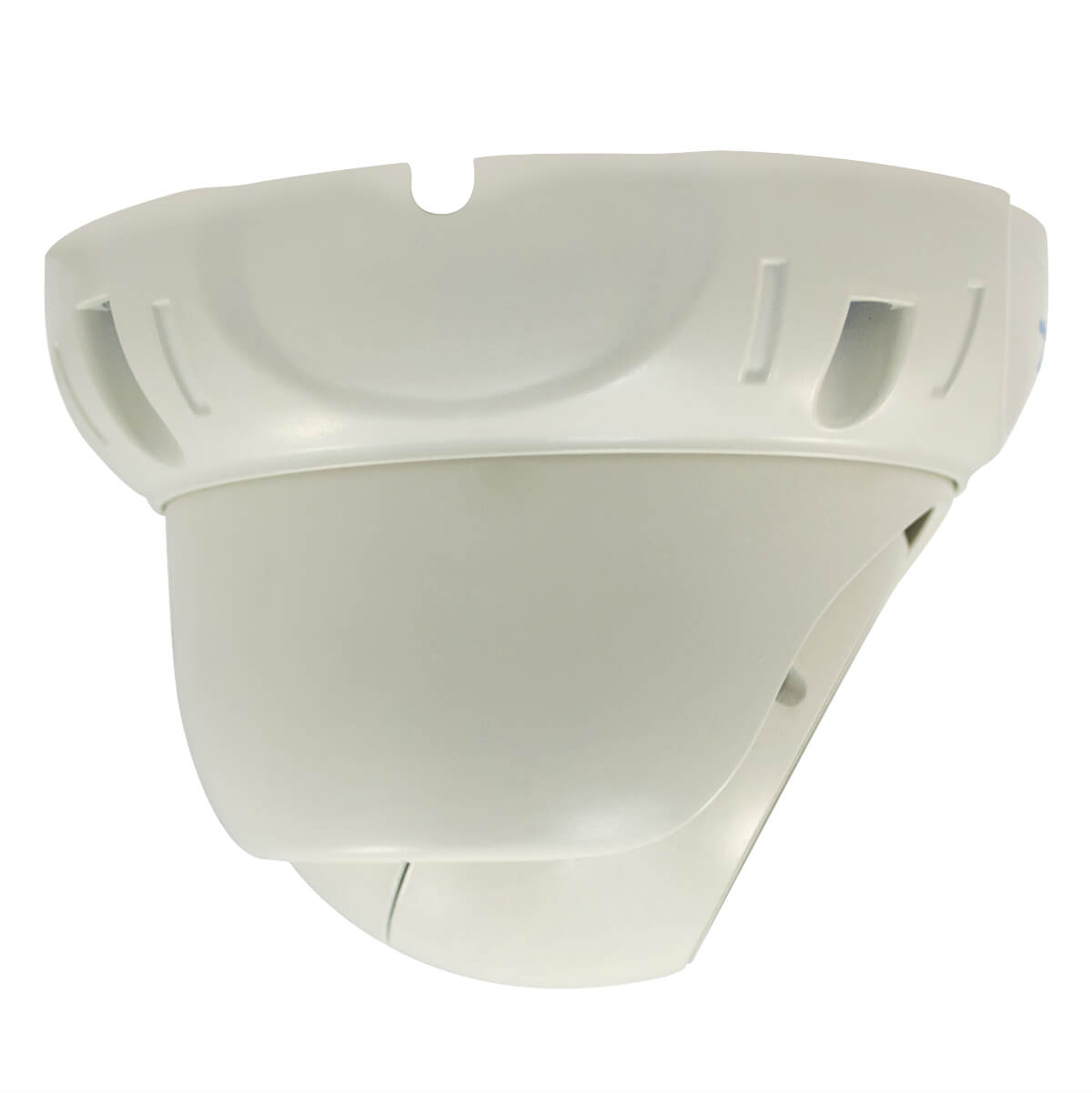

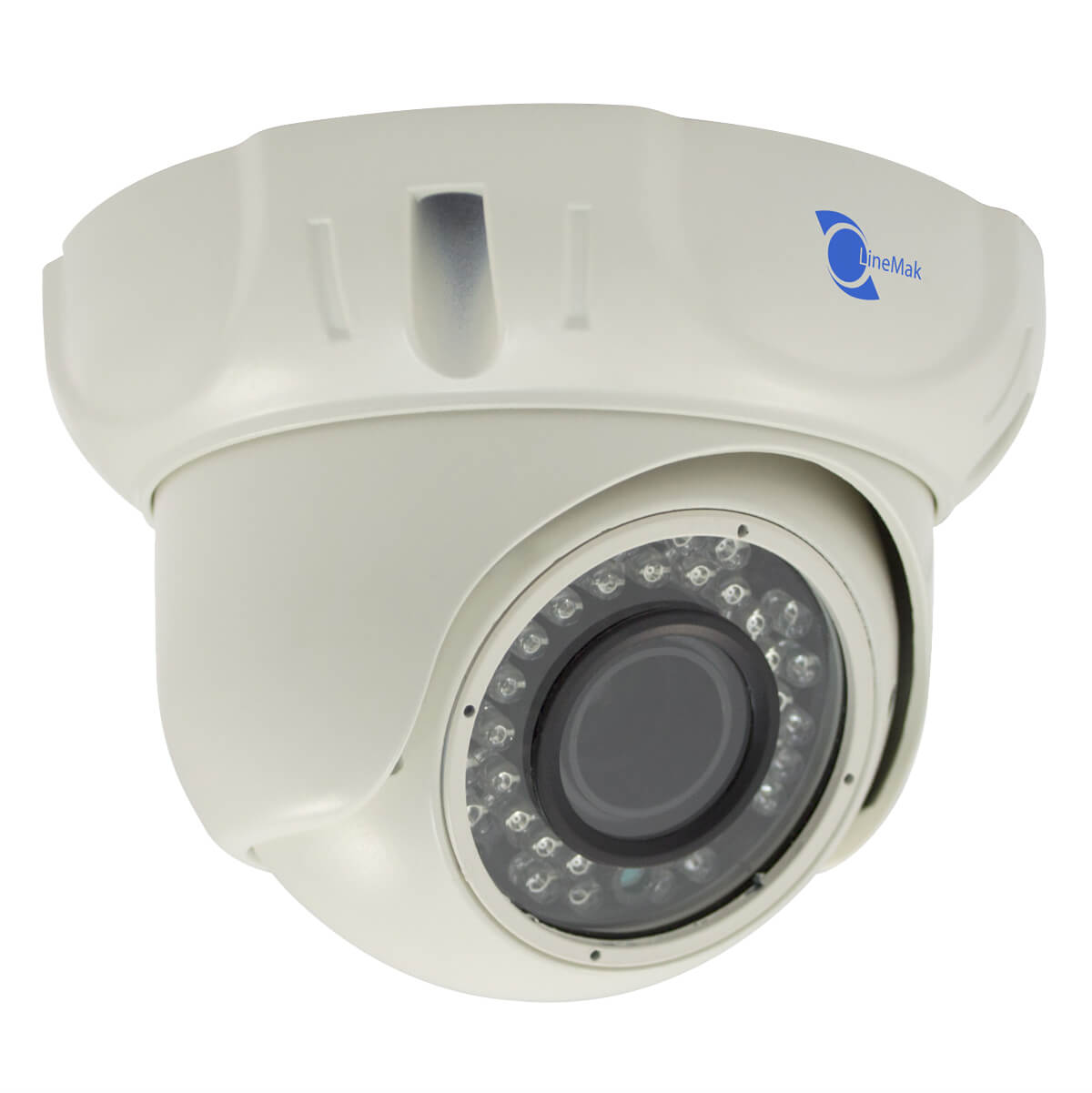

Vandalproof Dome camera, SONY CCD Sensor 700TVL, 24 LEDs, 65ft IR, UTC

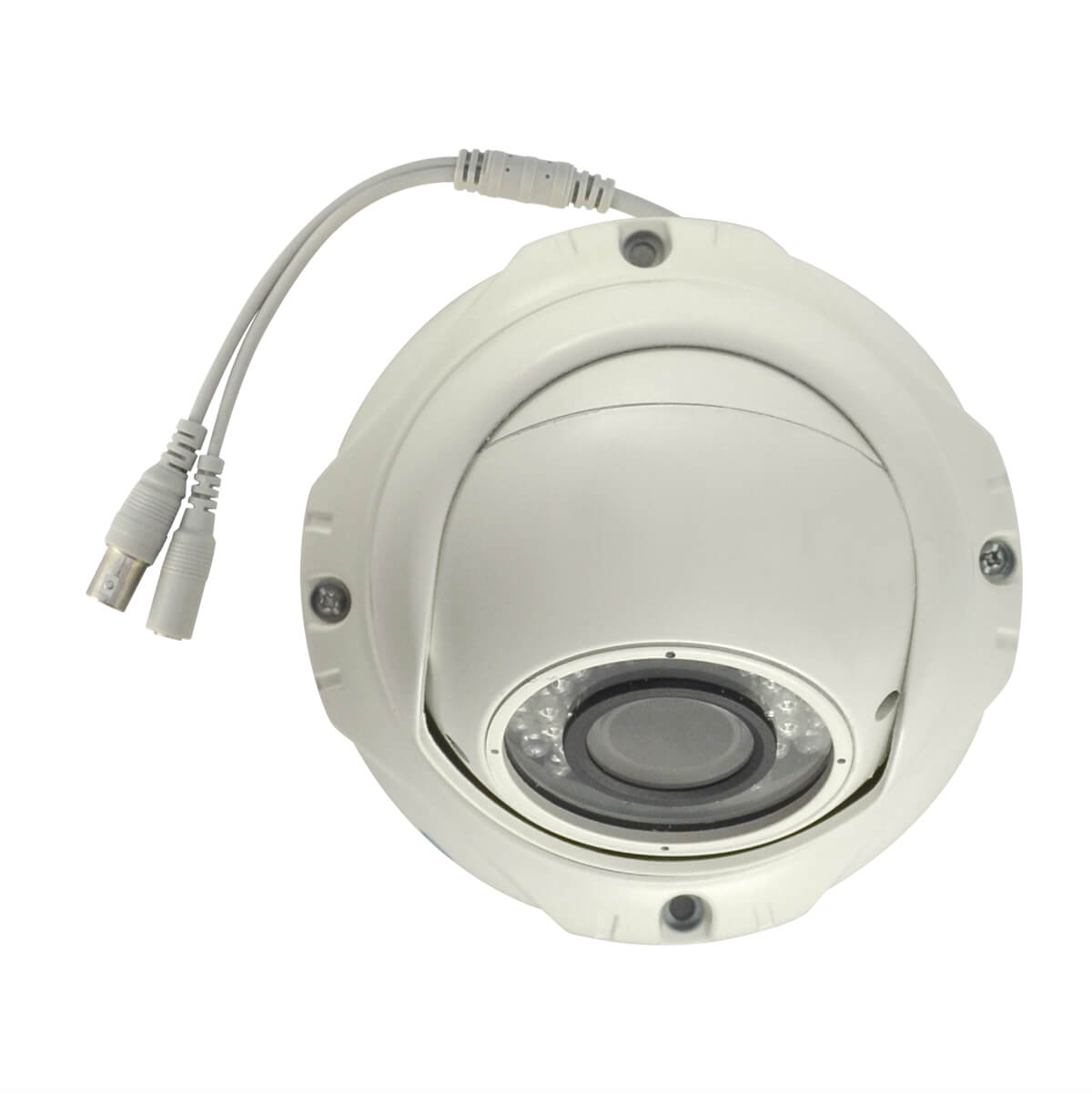

  • Vandalproof Dome camera, SONY CCD Sensor 700TVL, 24 LEDs, 65ft IR, UTC - Image 1

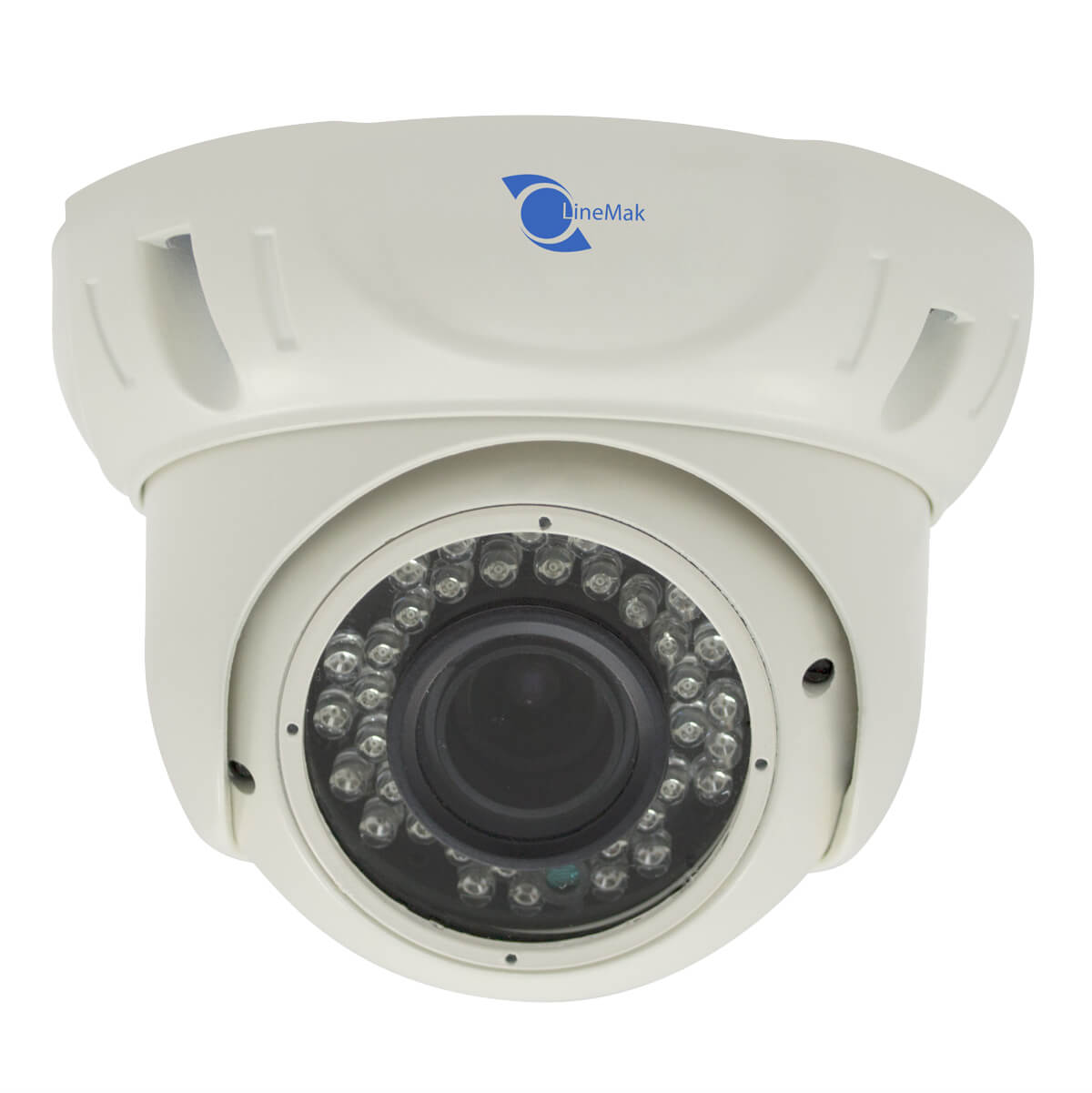

  • Vandalproof Dome camera, SONY CCD Sensor 700TVL, 24 LEDs, 65ft IR, UTC - Image 2

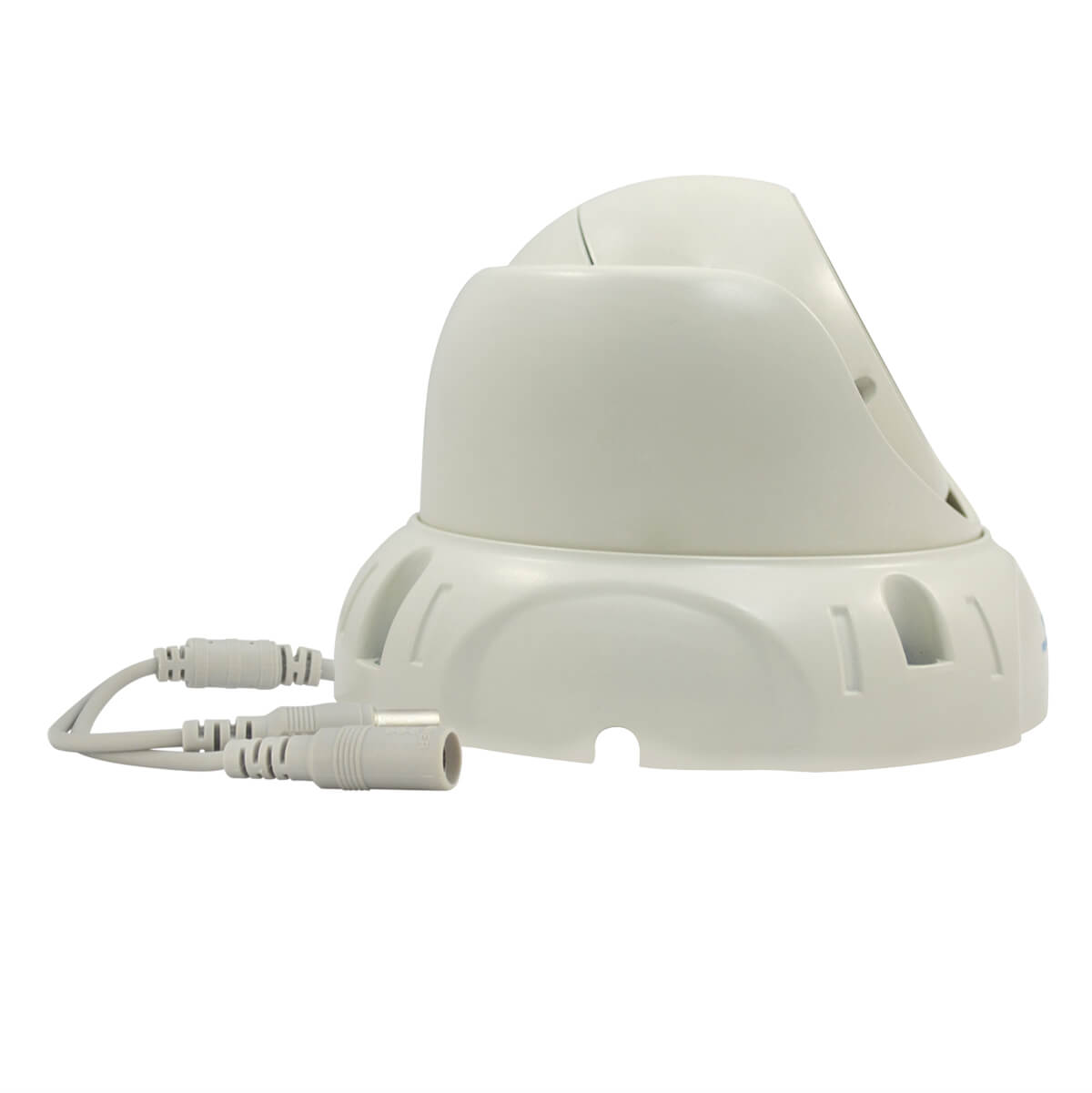

  • Vandalproof Dome camera, SONY CCD Sensor 700TVL, 24 LEDs, 65ft IR, UTC - Image 3

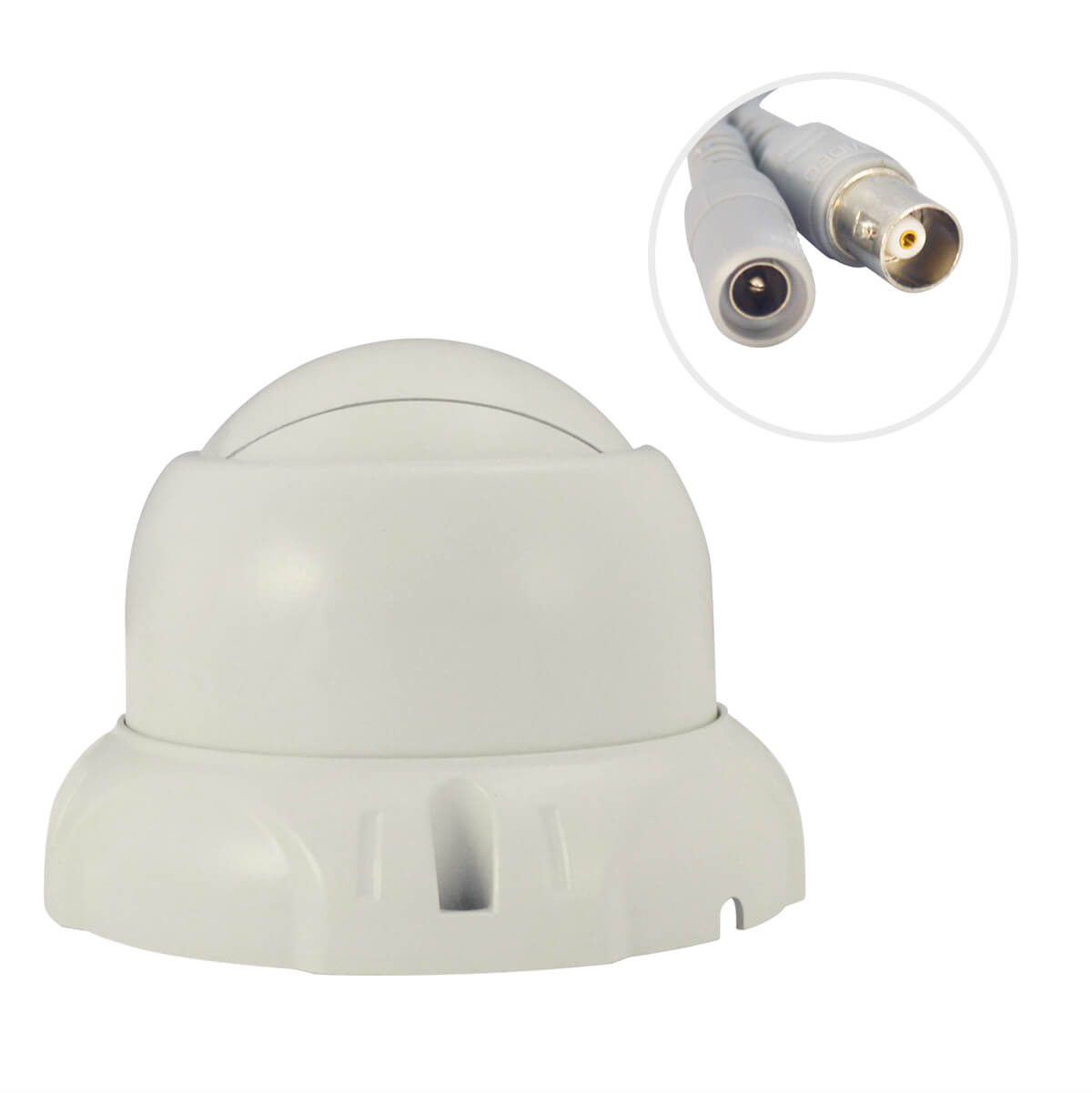

  • Vandalproof Dome camera, SONY CCD Sensor 700TVL, 24 LEDs, 65ft IR, UTC - Image 4

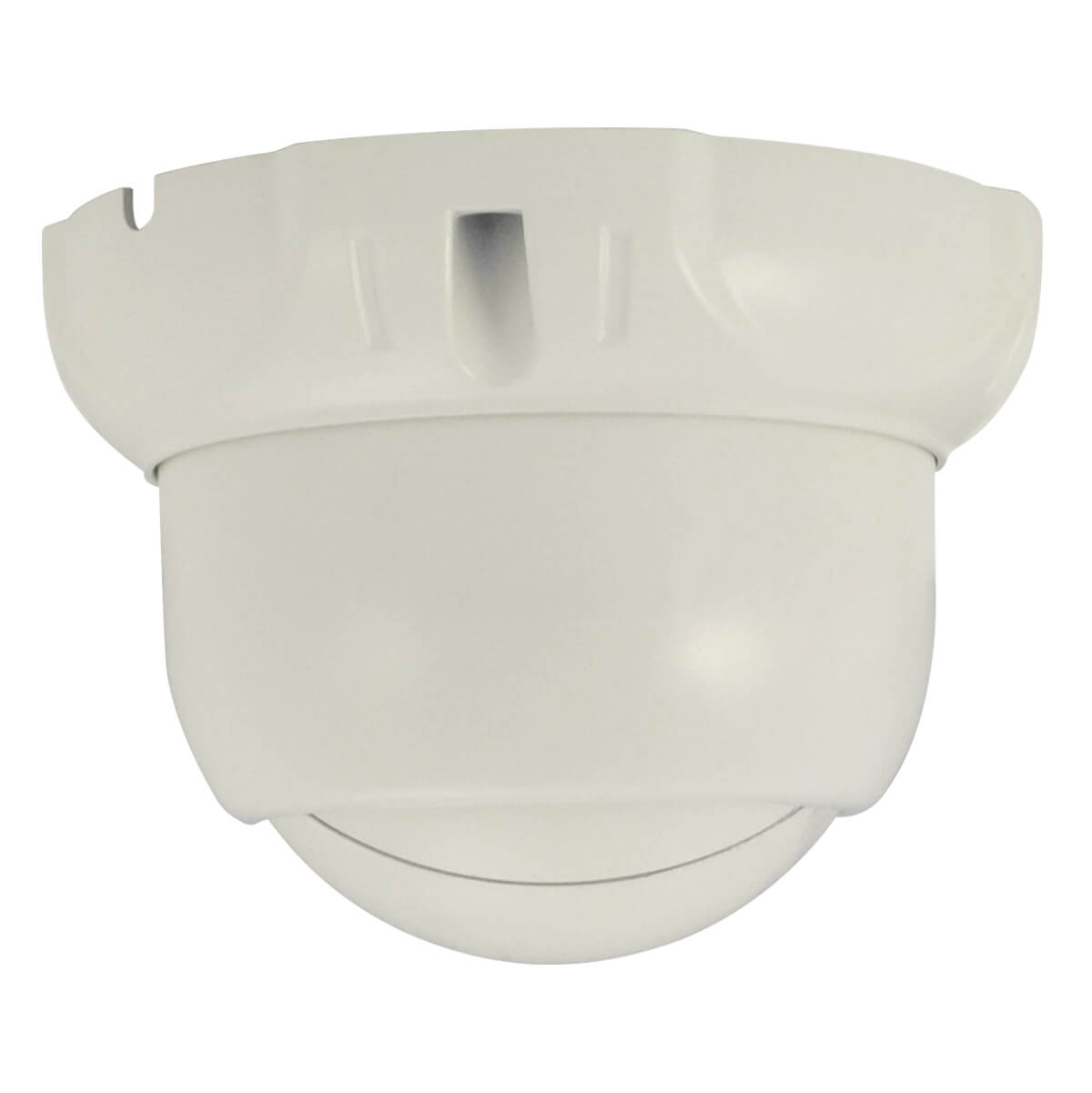

  • Vandalproof Dome camera, SONY CCD Sensor 700TVL, 24 LEDs, 65ft IR, UTC - Image 5

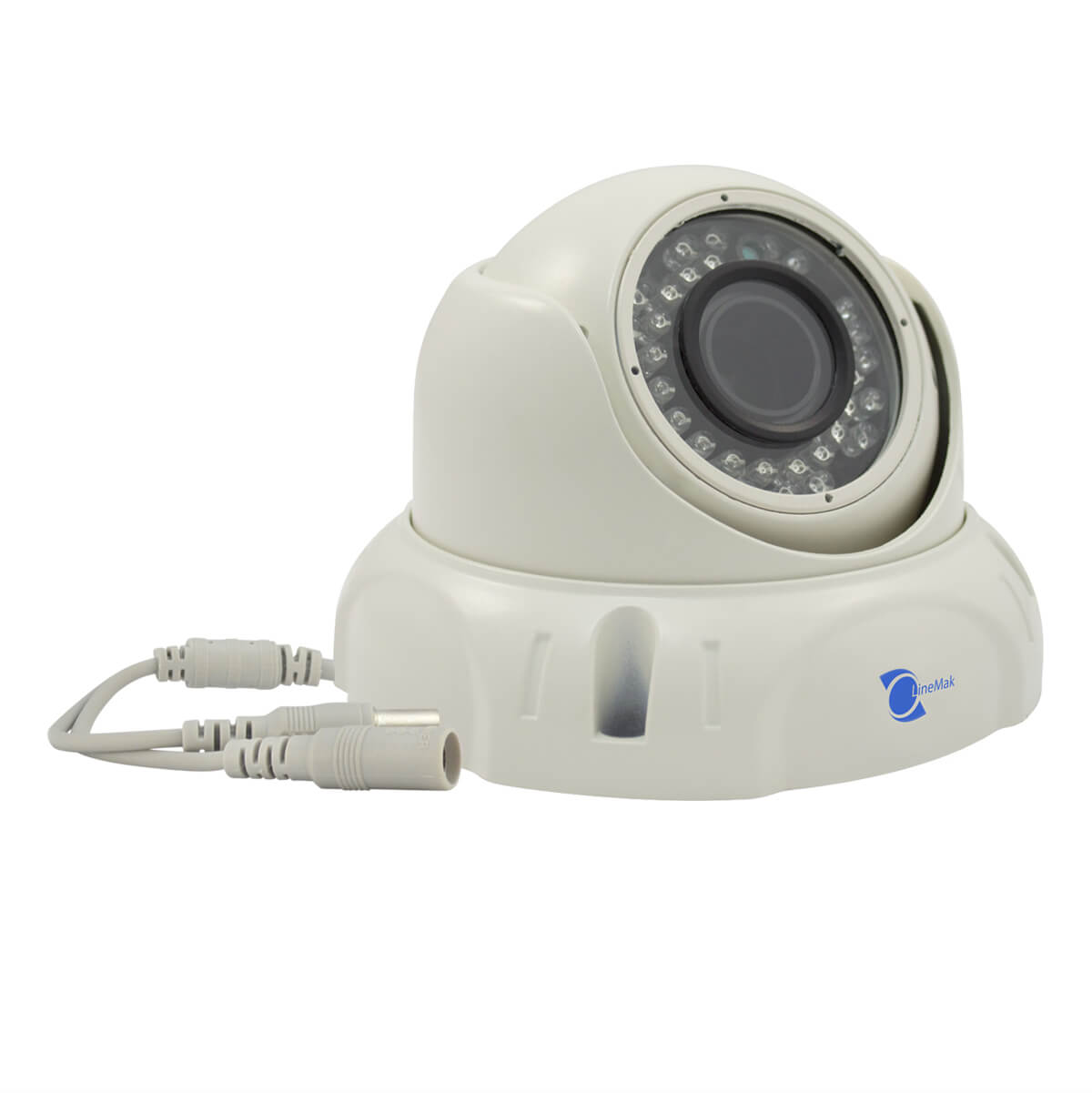

  • Vandalproof Dome camera, SONY CCD Sensor 700TVL, 24 LEDs, 65ft IR, UTC - Image 6

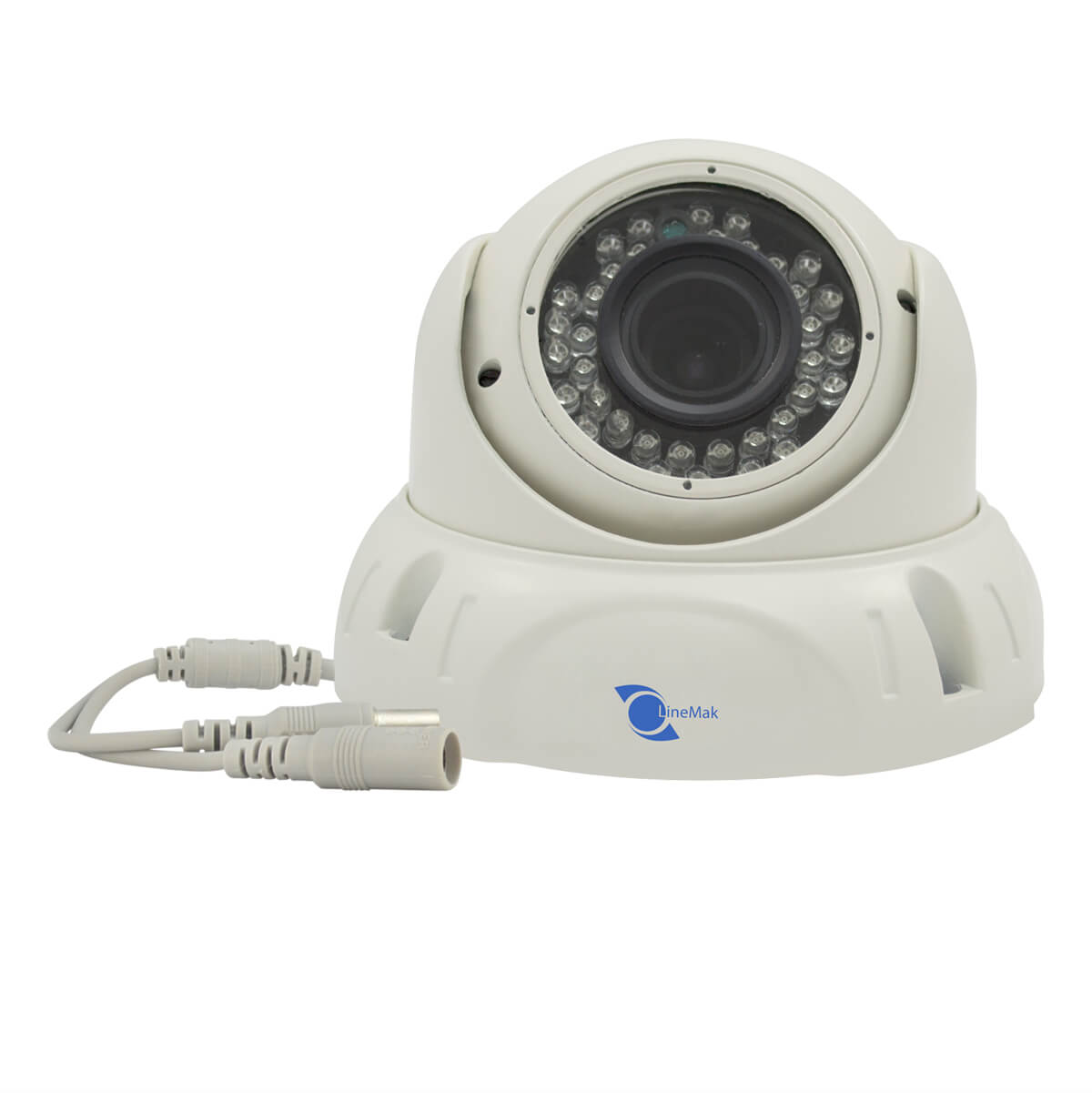

  • Vandalproof Dome camera, SONY CCD Sensor 700TVL, 24 LEDs, 65ft IR, UTC - Image 7
  • Vandalproof Dome camera, SONY CCD Sensor 700TVL, 24 LEDs, 65ft IR, UTC - Image 8
  • Vandalproof Dome camera, SONY CCD Sensor 700TVL, 24 LEDs, 65ft IR, UTC - Image 9
  • Vandalproof Dome camera, SONY CCD Sensor 700TVL, 24 LEDs, 65ft IR, UTC - Image 10
  • - UTC Function.
  • - AWB, AGC, DNR, WDR and mirror functions.
  • - 1/3" SONY Effio-e CCD Sensor, 700TVL.
  • - Power adapter not included.
  • - 24pcs LEDs, 65ft IR distance.
  • - 2.8mm-12mm varifocal lens.
  • IR vandalproof dome camera high-resolution, with a 2.8~12mm varifocal lens and a viewing angle of 25°~115° which has a 65ft range of infrared night vision, a 24 pcs LEDs 5mm each, and UTC function.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size. Due to its slightly tilted crystal, the IR is not reflected on the surface.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    UTC control not included.
    This camera has the UTC function that can be accessed through a UTC control. This camera does not include it. We sell various types of UTC controls if needed. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    Varifocal
    Varifocal
    Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    Auto White Balance (AWB)
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.

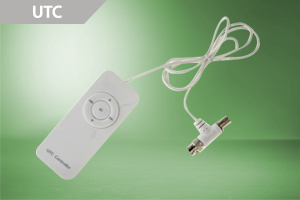

    UTC
    The UTC support the camera OSD control via coaxial cable by using remote controller. This coaxtron functions let our end-user enjoy more easy & simple way to install camera and control camera OSD menu.
    UTC
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Digital Noise Reduction (DNR)
    DNR incorporates frame-to-frame noise reduction with spatial noise reduction to produce clear video images with less noise, in low light conditions. It makes images clearer and reduces video file size and reduces the visibility of the random noise during playback of the video.
    Digital Noise Reduction (DNR)
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Wide Dynamic Range (WDR)
    Security Cameras (Analogue Cameras) with WDR Function can treat different areas in the image individually. They can also apply separate brightness modifications within the same view. This function is ideal for are scenarios in which stark contrasts and differences in darkness and brightness within the same image view are expected.
    Wide Dynamic Range (WDR)
    A rear-view mirror cameras
    A rear-view mirror cameras
    The rear-view mirror camera imitates the function of the actual mirror including the recording function as well, reason why it is highly recommended to use the rear-view camera as a back-up means to check for obstructions behind the car and avoid using it on frozen slippery roads.
    True round-the-clock surveillance for illuminant/dark places
    This feature delivers a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications that deliver clear and sharp color images in illuminant areas and black and white images in dark areas using infrared illumination, without the need to refocus the lens.
    True round-the-clock surveillance for illuminant/dark places
    Warranty: One (1) Year
  • Vandalproof Dome camera, SONY CCD Sensor 700TVL, 24 LEDs, 65ft IR, UTC
    General
    Brand LineMak
    Model LS-VE7055EF-UTC
    Sensor
    Resolution 700TVL
    Sensor 1/3" SONY Effio-e CCD
    Effective pixels PAL: 960*582
    NTSC: 962*492
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm
    Lens
    Lens 2.8mm~12mm Varifocal
    IR Range 65ft night vision
    LEDs 24pcs (5mm each)
    IR-CUT Filter Yes
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 25° ~ 115°
    Security
    Motion detection zone On / Off (8 Zones)
    Privacy zone On / Off (8 Zones)
    Environment
    Operation temperature -10°C ~ 50°C
    14°F ~ 122°F
    Storage temperature -30°C ~ 80°C
    -22°F ~ 176°F
    Power
    Power supply DC 12V
    Power consumption 300mA
    Appearance
    Color White
    Size 4.53(H) * 5.71(D) inches
    Weight 1.38 pounds
    Special function
    Back Light Compensation (BLC) No
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) PAL: 1/50~1/100,000s
    NTSC: 1/50~1/100,000s
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) Yes
    Wide Dynamic Range (WDR) Yes
    Mirror Yes
    Adaptive Tone Reproduction (ATR) No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Brightness 0~90 adjustable
    Synchronizing system Internal
    S/N Ratio >120dB (WDR ON)
    Freeze Yes
    Digital zoom Yes
    Gamma correction 0.05~1 adjustable
