Bullet Camera, SONY CCD Sensor, 800TVL, 24 LEDs, 131ft IR, AGC, AWB

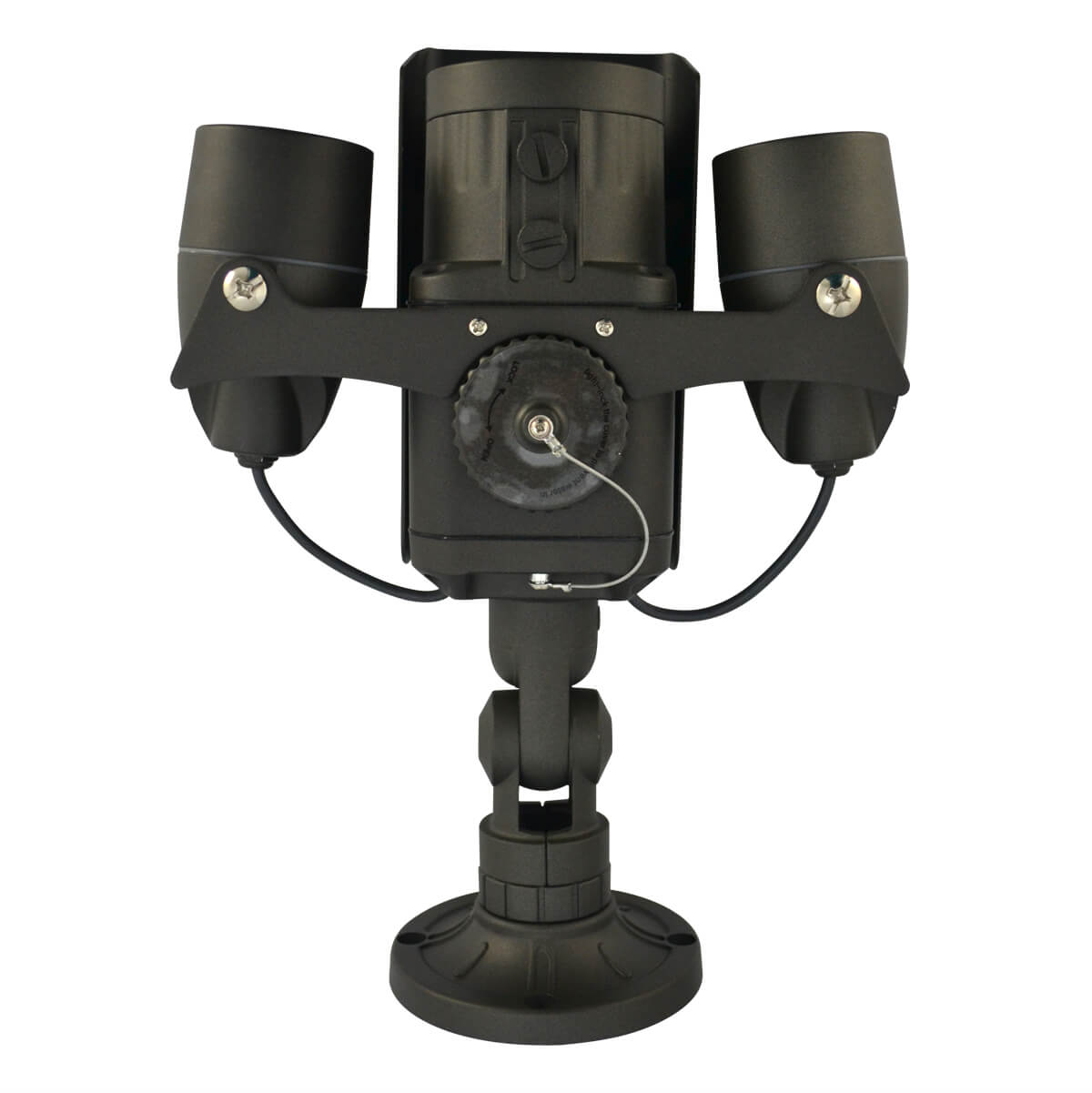

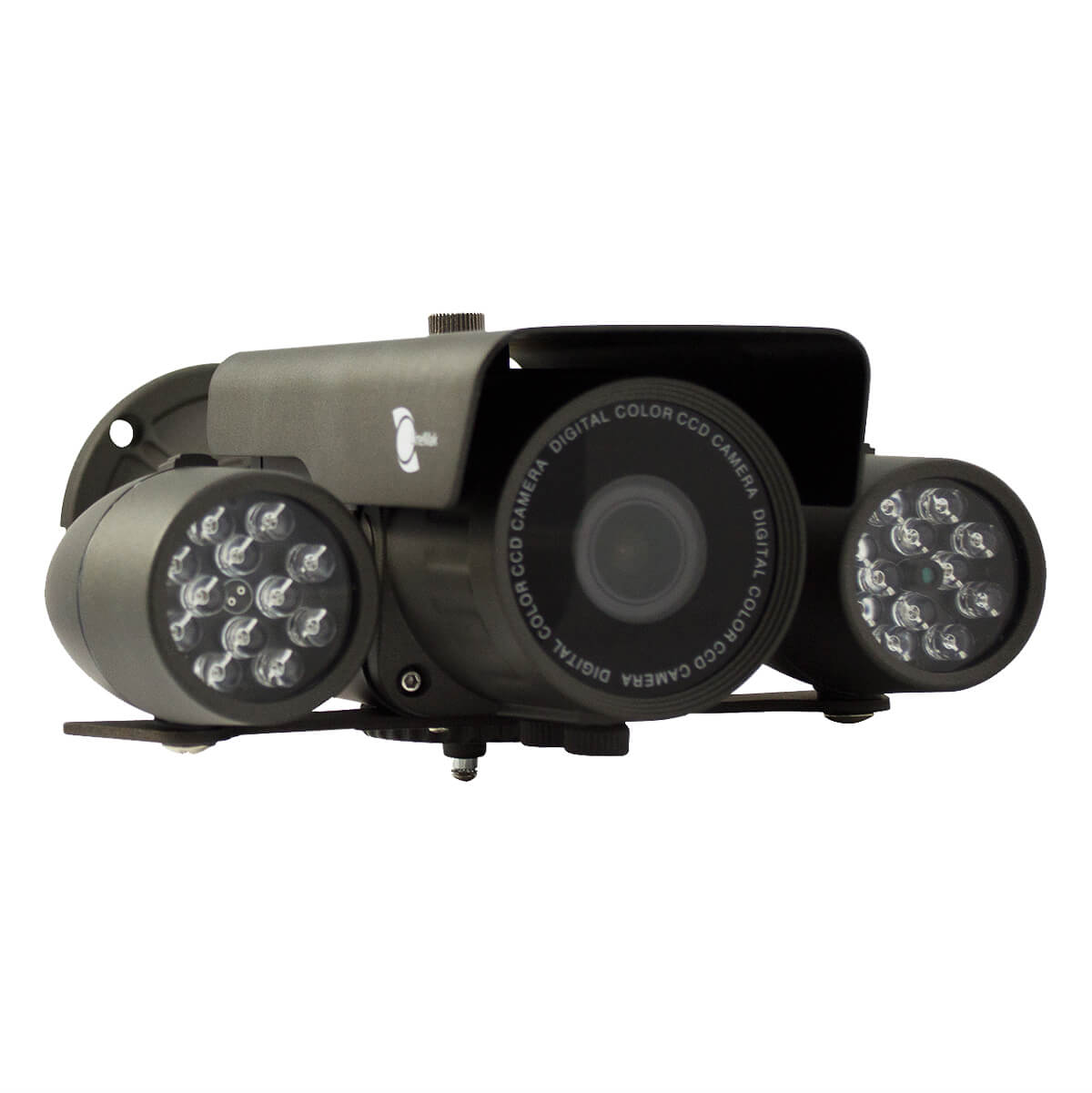

  • Bullet Camera, SONY CCD Sensor, 800TVL, 24 LEDs, 131ft IR, AGC, AWB - Image 1

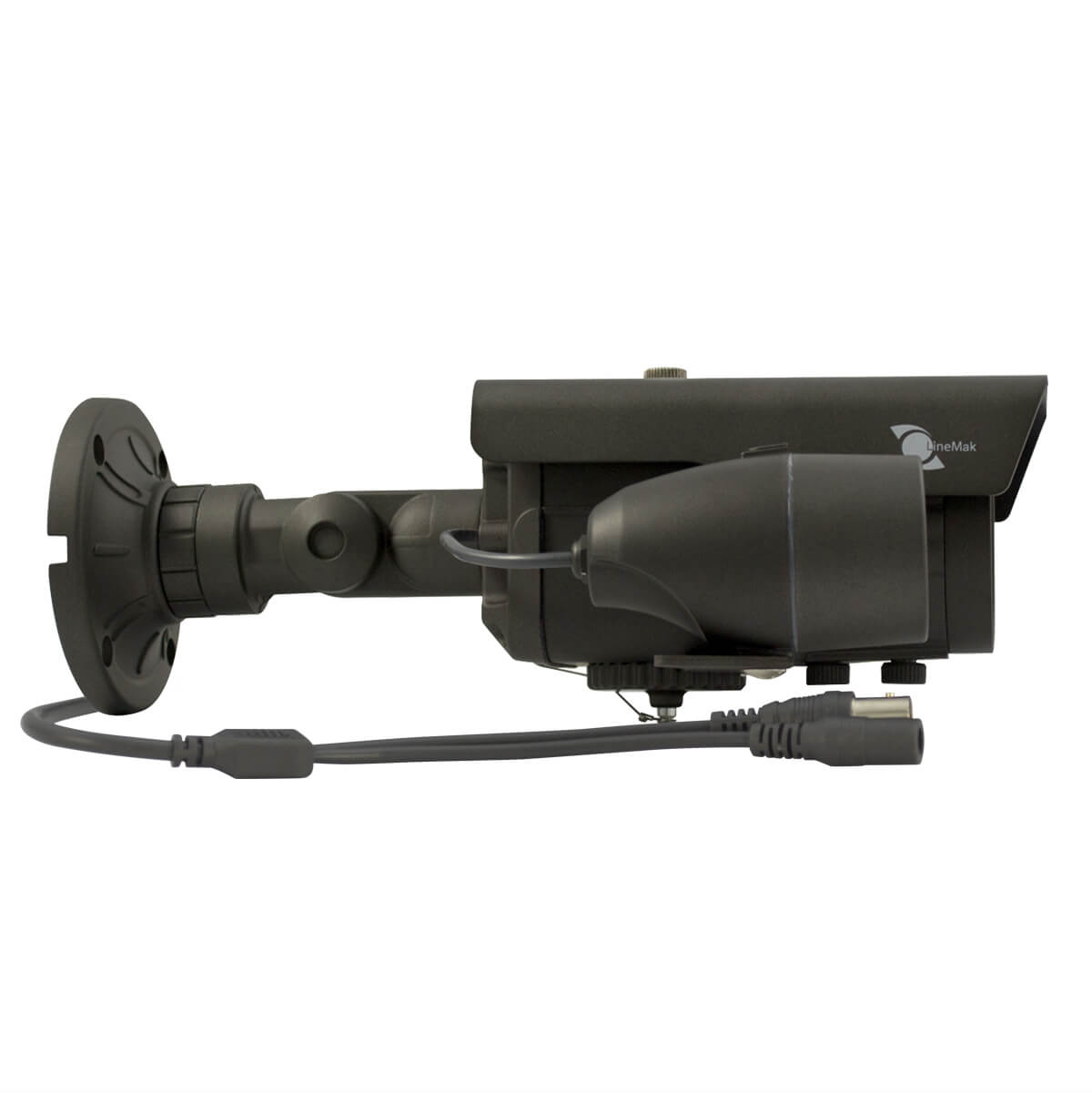

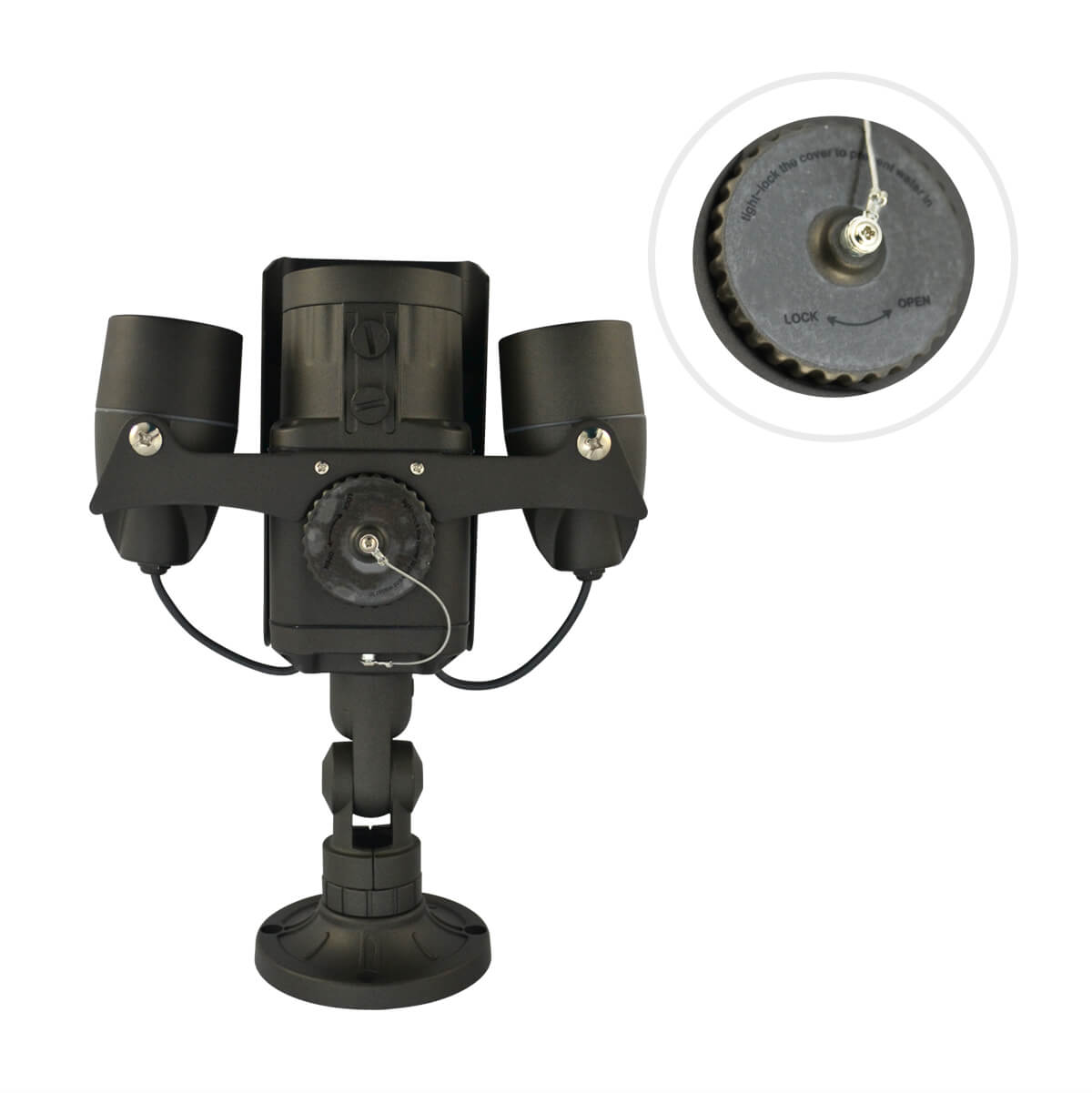

  • Bullet Camera, SONY CCD Sensor, 800TVL, 24 LEDs, 131ft IR, AGC, AWB - Image 2

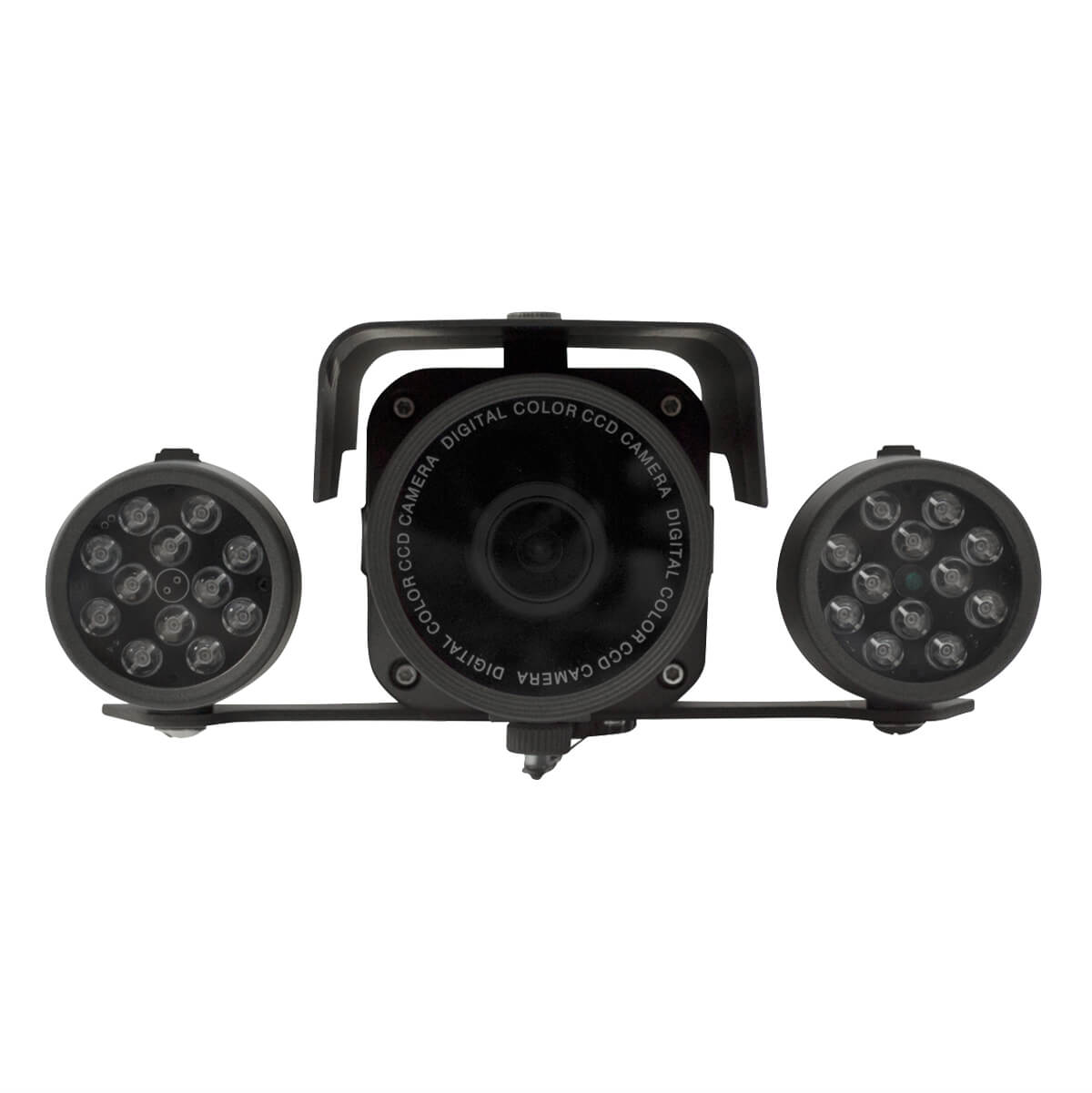

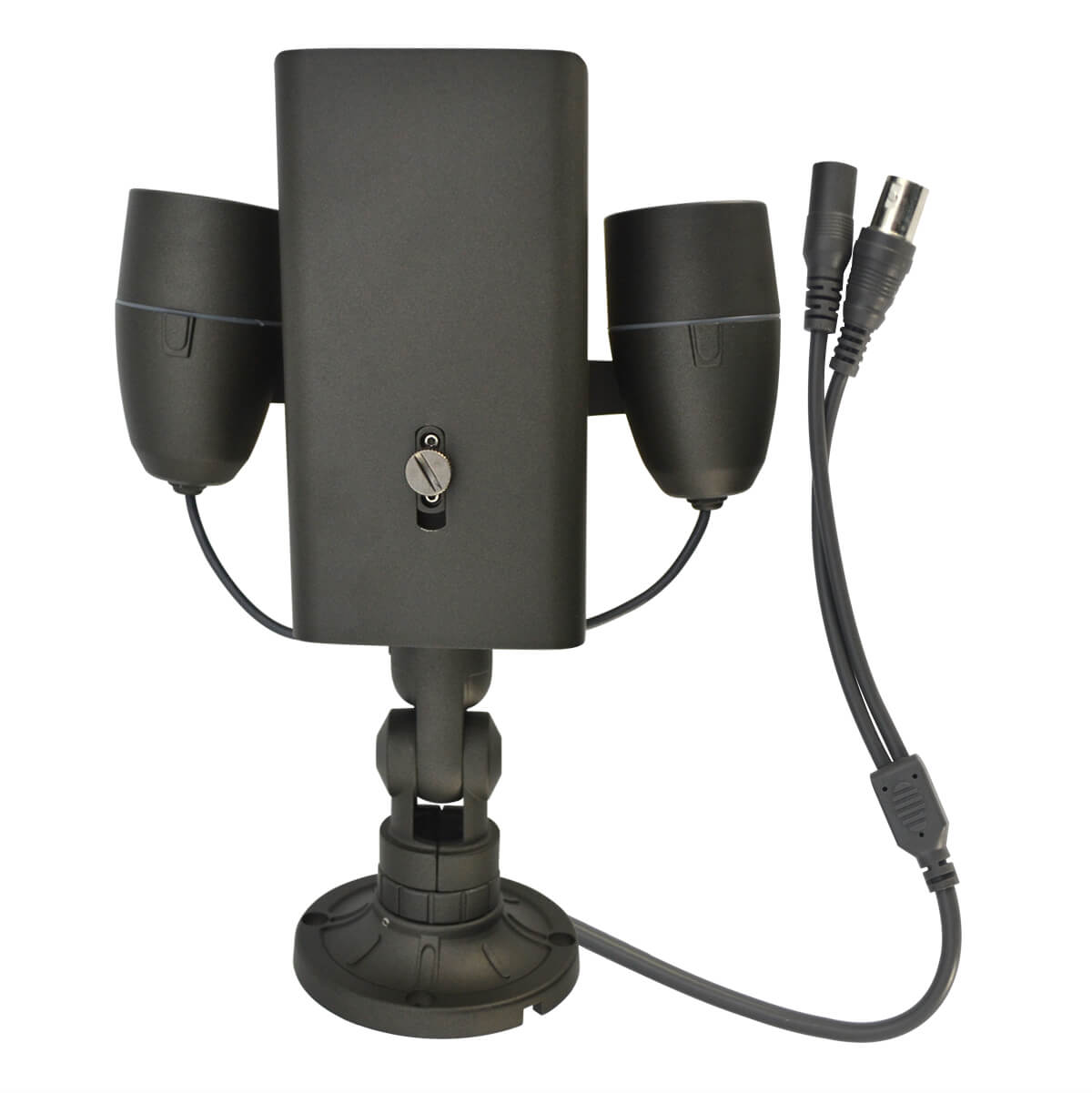

  • Bullet Camera, SONY CCD Sensor, 800TVL, 24 LEDs, 131ft IR, AGC, AWB - Image 3

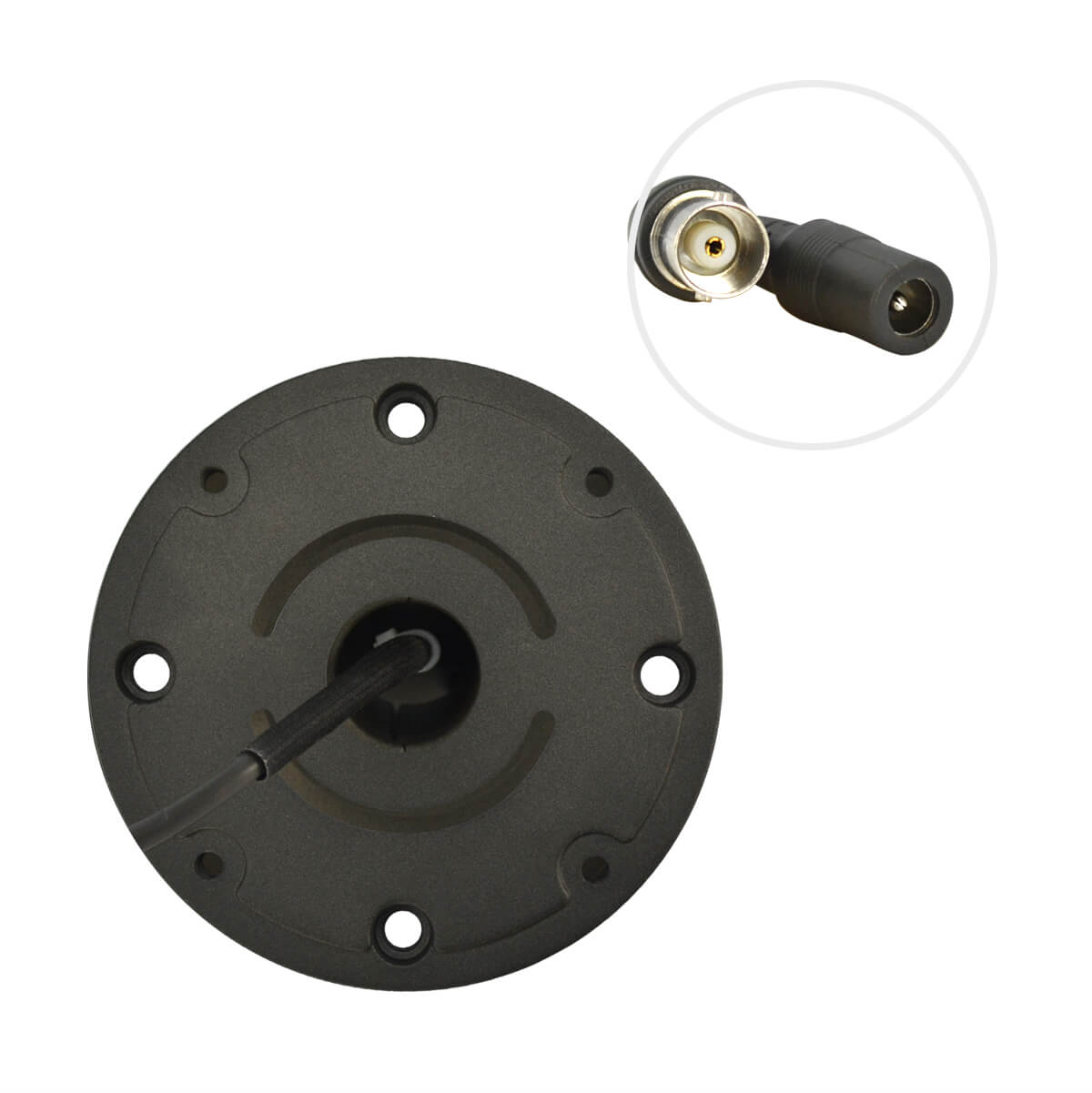

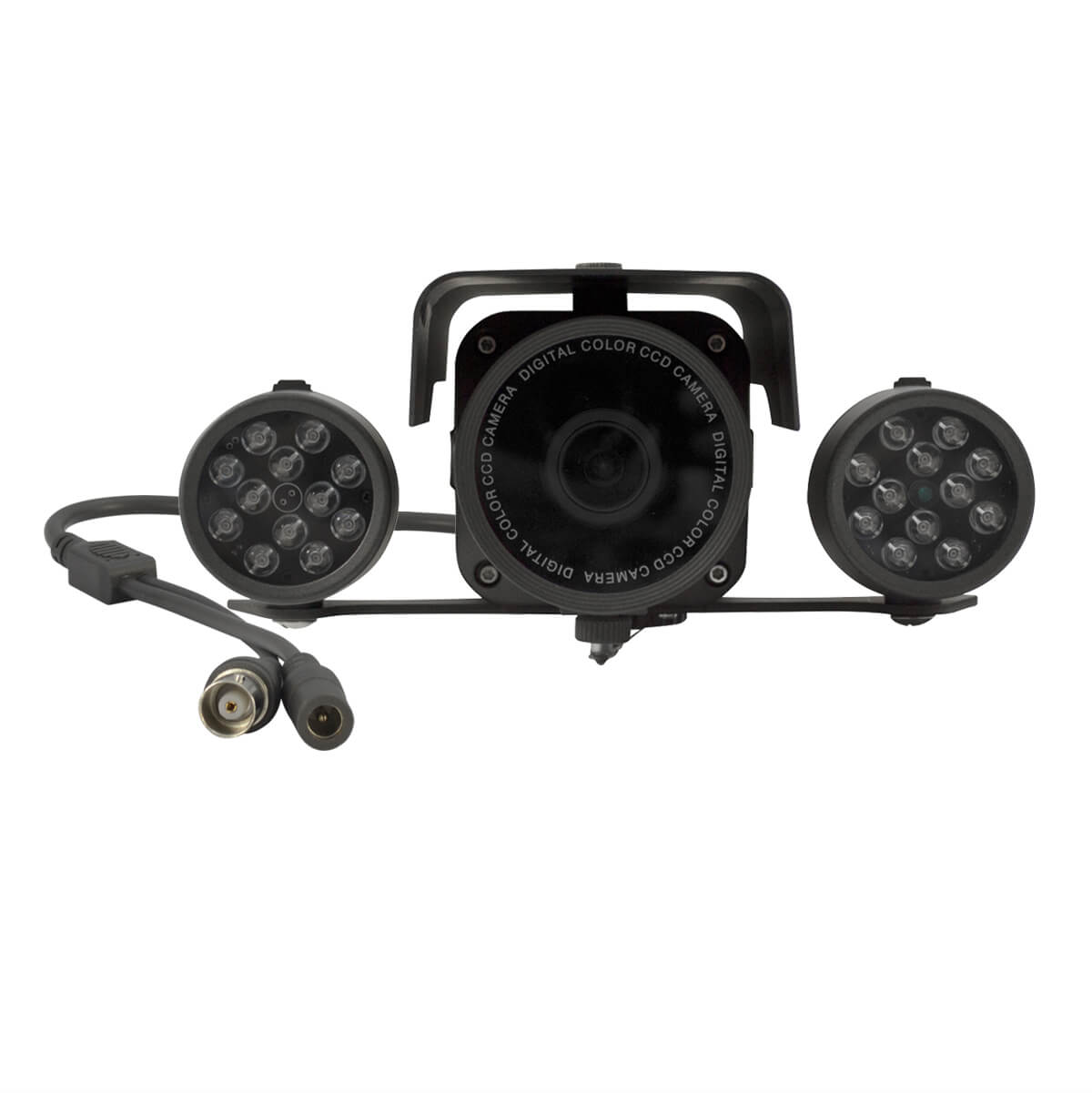

  • Bullet Camera, SONY CCD Sensor, 800TVL, 24 LEDs, 131ft IR, AGC, AWB - Image 4

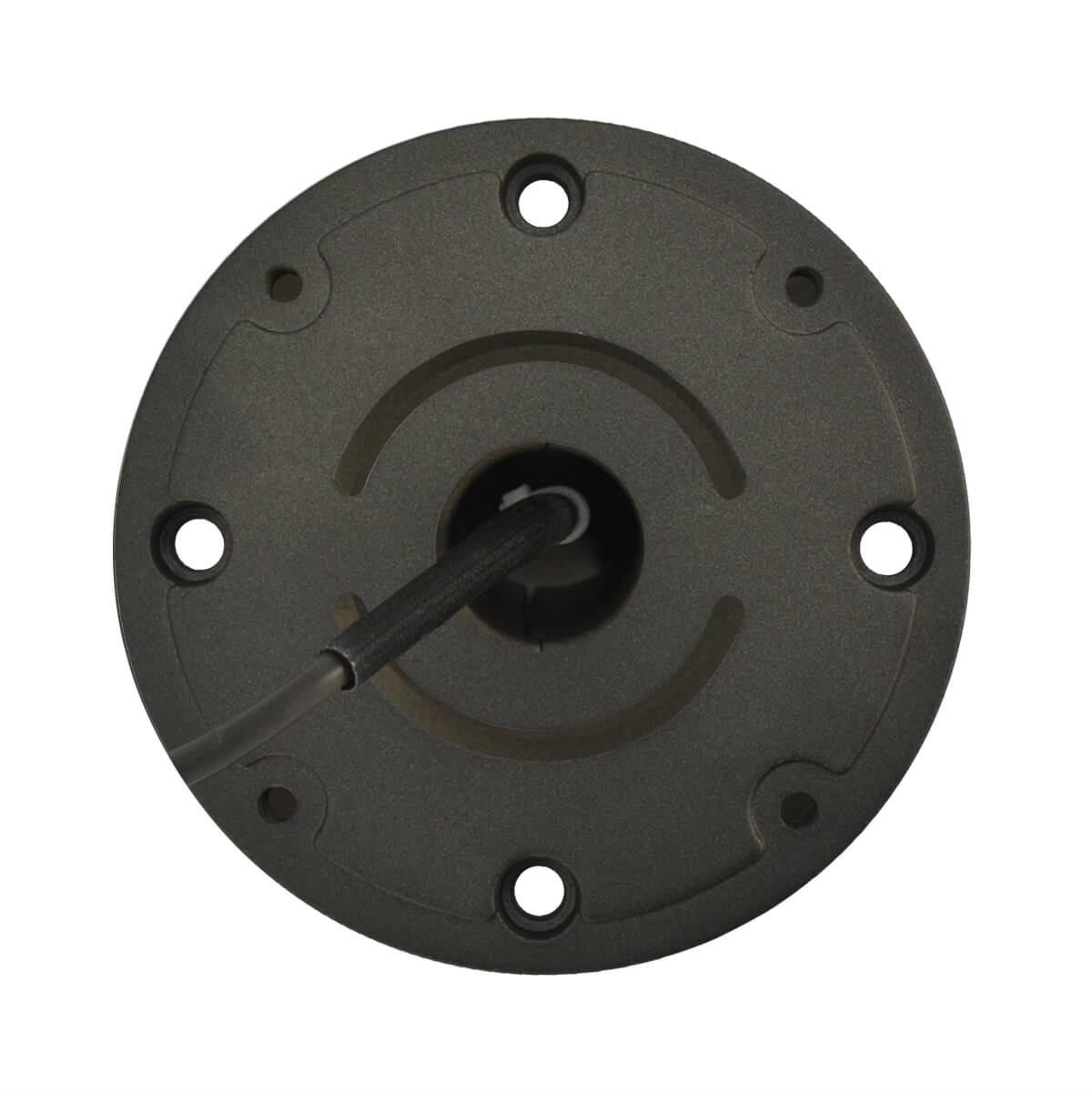

  • Bullet Camera, SONY CCD Sensor, 800TVL, 24 LEDs, 131ft IR, AGC, AWB - Image 5

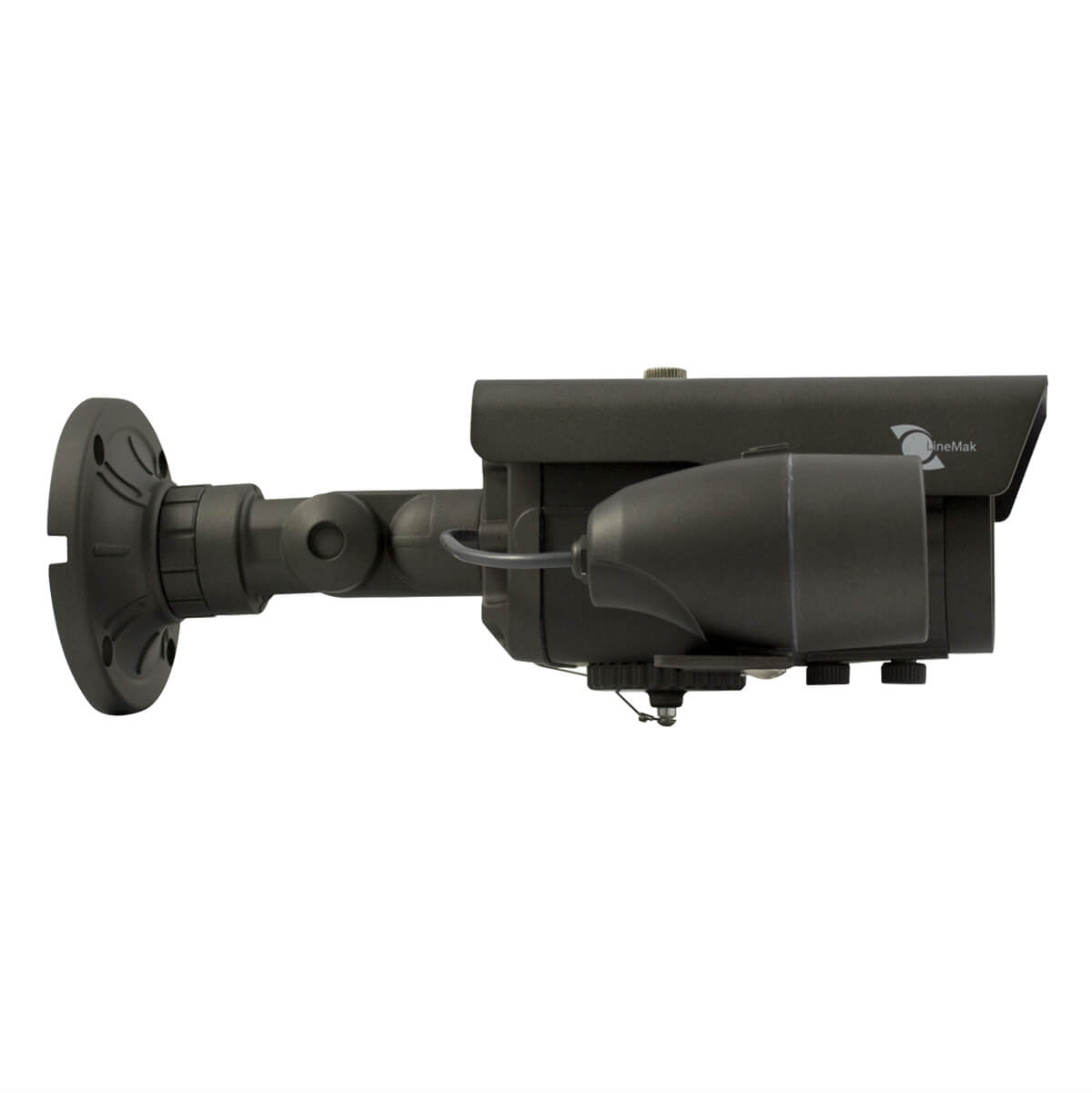

  • Bullet Camera, SONY CCD Sensor, 800TVL, 24 LEDs, 131ft IR, AGC, AWB - Image 6

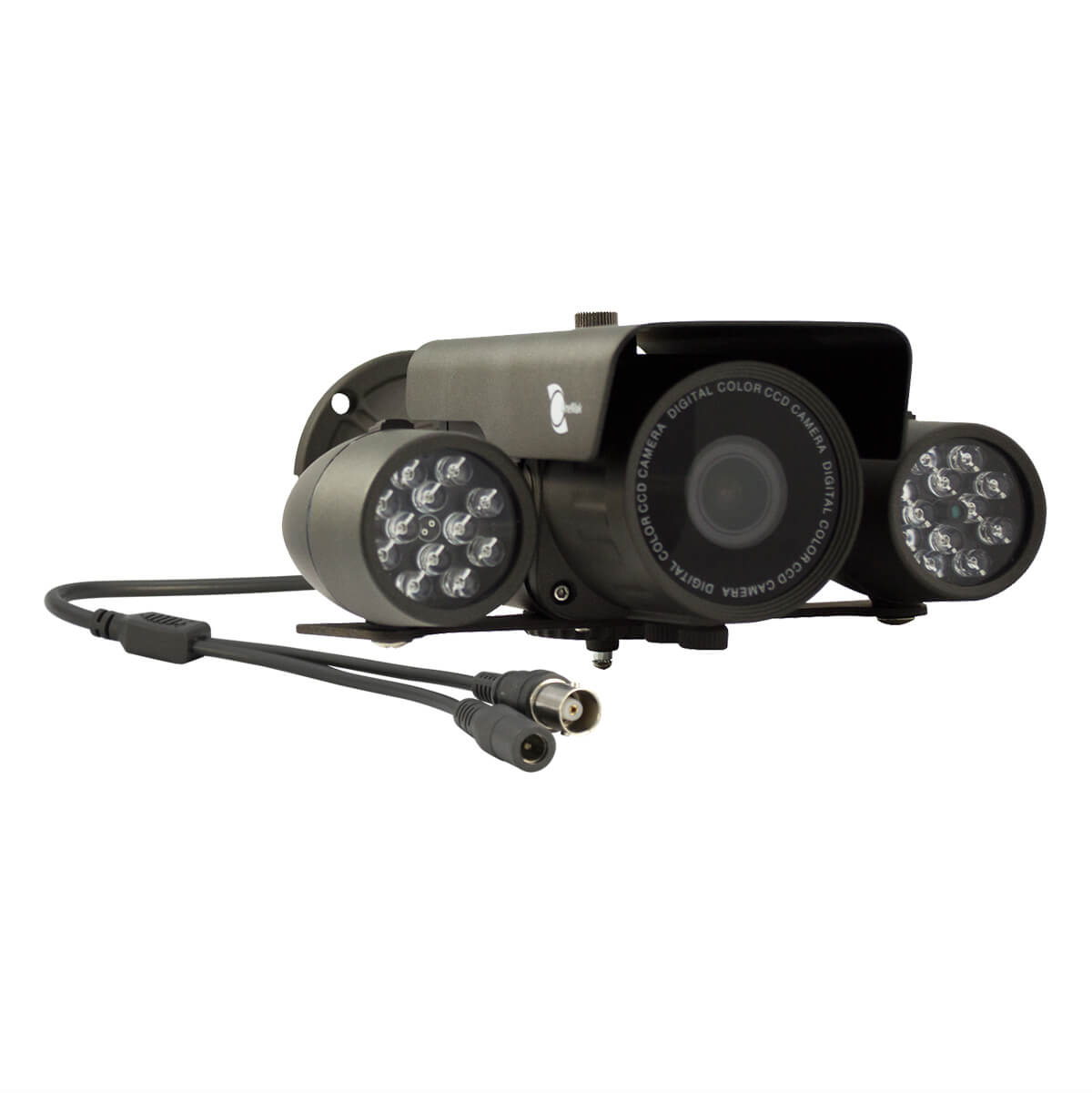

  • Bullet Camera, SONY CCD Sensor, 800TVL, 24 LEDs, 131ft IR, AGC, AWB - Image 7

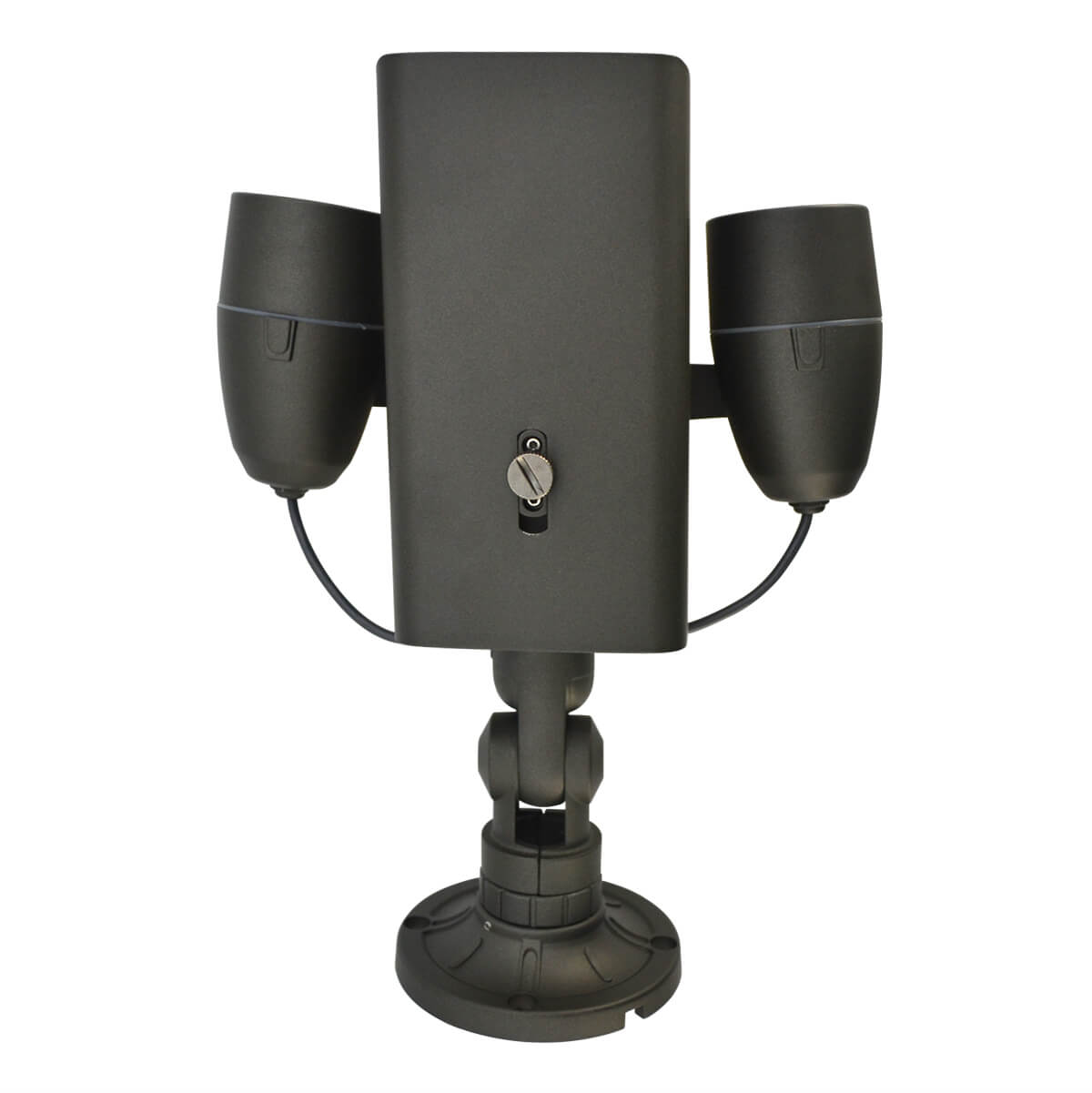

  • Bullet Camera, SONY CCD Sensor, 800TVL, 24 LEDs, 131ft IR, AGC, AWB - Image 8
  • Bullet Camera, SONY CCD Sensor, 800TVL, 24 LEDs, 131ft IR, AGC, AWB - Image 9
  • Bullet Camera, SONY CCD Sensor, 800TVL, 24 LEDs, 131ft IR, AGC, AWB - Image 10
  • Bullet Camera, SONY CCD Sensor, 800TVL, 24 LEDs, 131ft IR, AGC, AWB - Image 11
  • Bullet Camera, SONY CCD Sensor, 800TVL, 24 LEDs, 131ft IR, AGC, AWB - Image 12
  • - Excellent image quality.
  • - It supports ICR infrared filter.
  • - BLC, AES, AGC and AWB function.
  • - Power adapter not included.
  • - Images easily identified.
  • - Demist function.
  • High-resolution camera with a 2.8-12mm lens and a viewing angle of 25° to 115° which has 131ft of range of infrared night vision, and 24 pieces LEDs.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - Demist functions. Automatic electrical level adjustment and contour correction.
    - Gray scale up to 135 level standards.
    - Mist presence effectively solved.
    - Excellent image quality. Available especially under the condition of unpredictable illumination (such as building entrance, crossroad, etc.).
    - Images easily identified.
    - It supports ICR infrared filter to be auto-switch. Images turn from color to black automatically, and the camera monitors day and night.
    - AWB support function: high color reproduction and real image.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.
    - It uses an advanced double loop glass design for clearer images.
    Varifocal
    Varifocal
    Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    Auto White Balance (AWB)
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Automatic Gain Control (AGC)
    Back Light Compensation (BLC)
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    HD video
    HD video
    Large areas are covered by a single lens which straight-up great picture quality, design and features.
    True round-the-clock surveillance for illuminant/dark places
    This feature delivers a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications that deliver clear and sharp color images in illuminant areas and black and white images in dark areas using infrared illumination, without the need to refocus the lens.
    True round-the-clock surveillance for illuminant/dark places
    Warranty: One (1) Year
  • Bullet Camera, SONY CCD Sensor, 800TVL, 24 LEDs, 131ft IR, AGC, AWB
    General
    Brand LineMak
    Model LS-G70EN-SFA3Q
    Sensor
    Resolution 800TVL
    Sensor 1/3 SONY Color CCD (PAL: ICX811AK / NTSC: ICX810AK)
    Effective pixels PAL: 976*582
    NTSC: 976*494
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm (Composite signal)
    Frequency 36Mhz
    Lens
    Lens 2.8mm~12mm Varifocal
    IR Range 131ft night vision
    LEDs 24pcs (8mm each)
    IR-CUT Filter Yes
    Minimum illumination 0.01 Lux (with LED on)
    Viewing angle 25° ~ 115°
    IR Power ON CDS Automatic
    IR Status Under 10 Lux by CDS
    Environment
    Operation temperature -10°C ~ 45°C
    14°F ~ 113°F
    Storage temperature -30°C ~ 60°C
    -22°F ~ 140°F
    Working humidity 95%
    Power
    Power supply DC 12V
    Battery 400mA
    Appearance
    Color Grey
    Size 11.81(L) * 3.54(H) * 8.66(W) inches
    Weight 3.11 pounds
    Special function
    Back Light Compensation (BLC) Yes
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) PAL: 1/50~1/100,000s
    NTSC: 1/60~1/100,000s
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Adaptive Tone Reproduction (ATR) No
    Mirror No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Scanning system 2:1 interlace
    Synchronizing system Internal
    S/N Ratio >48dB
    Gamma correction 0.45
