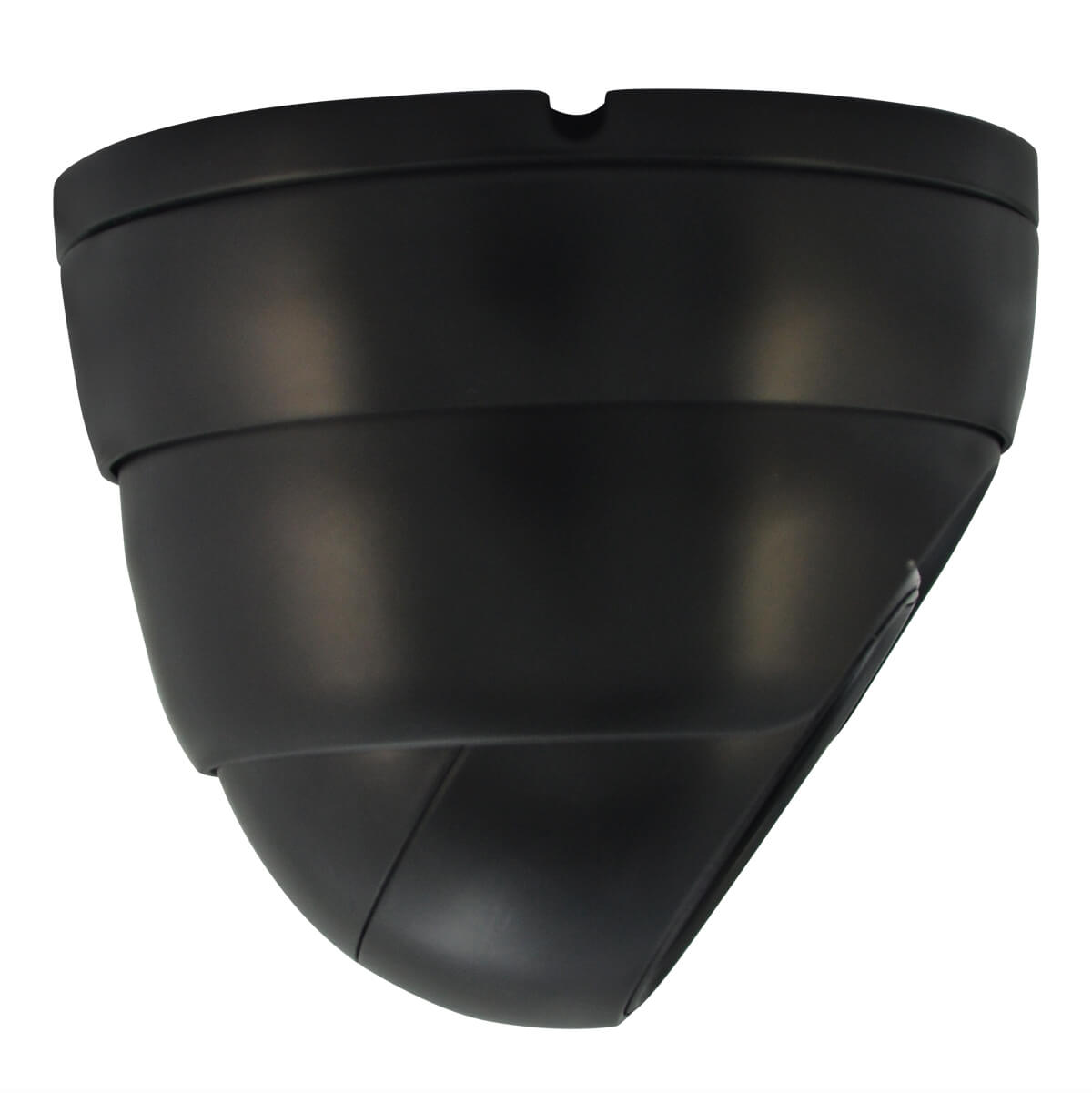

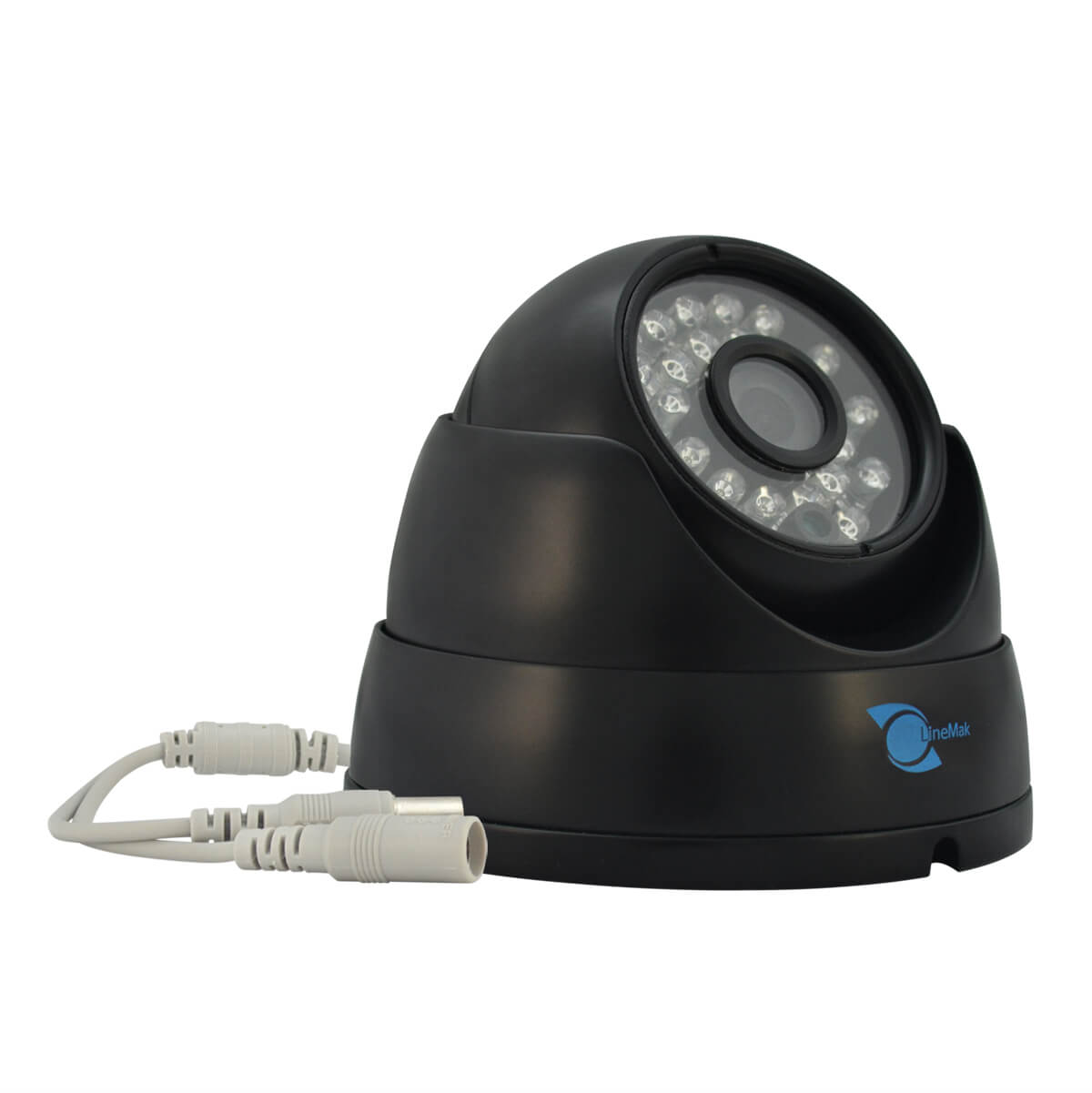

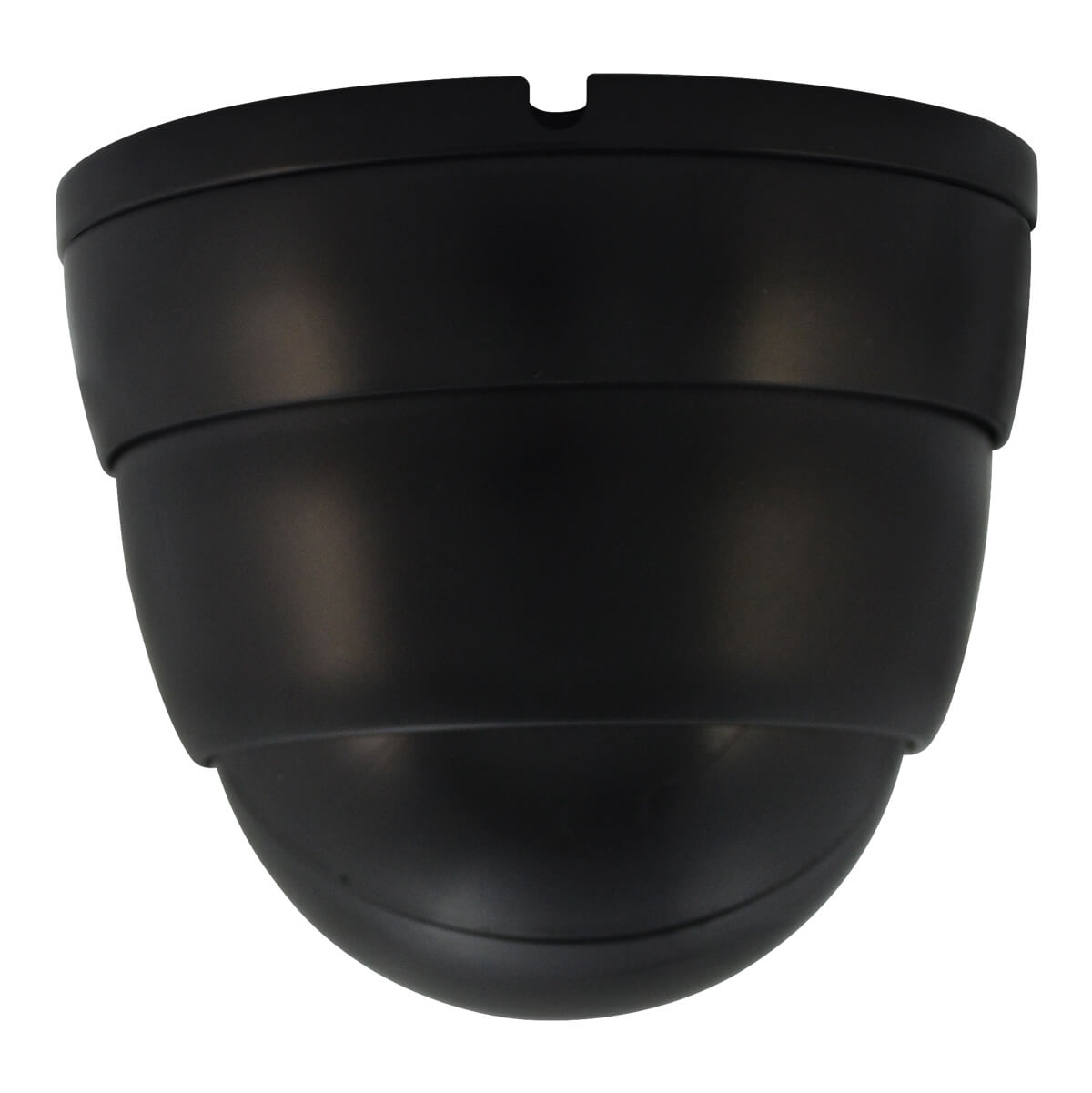

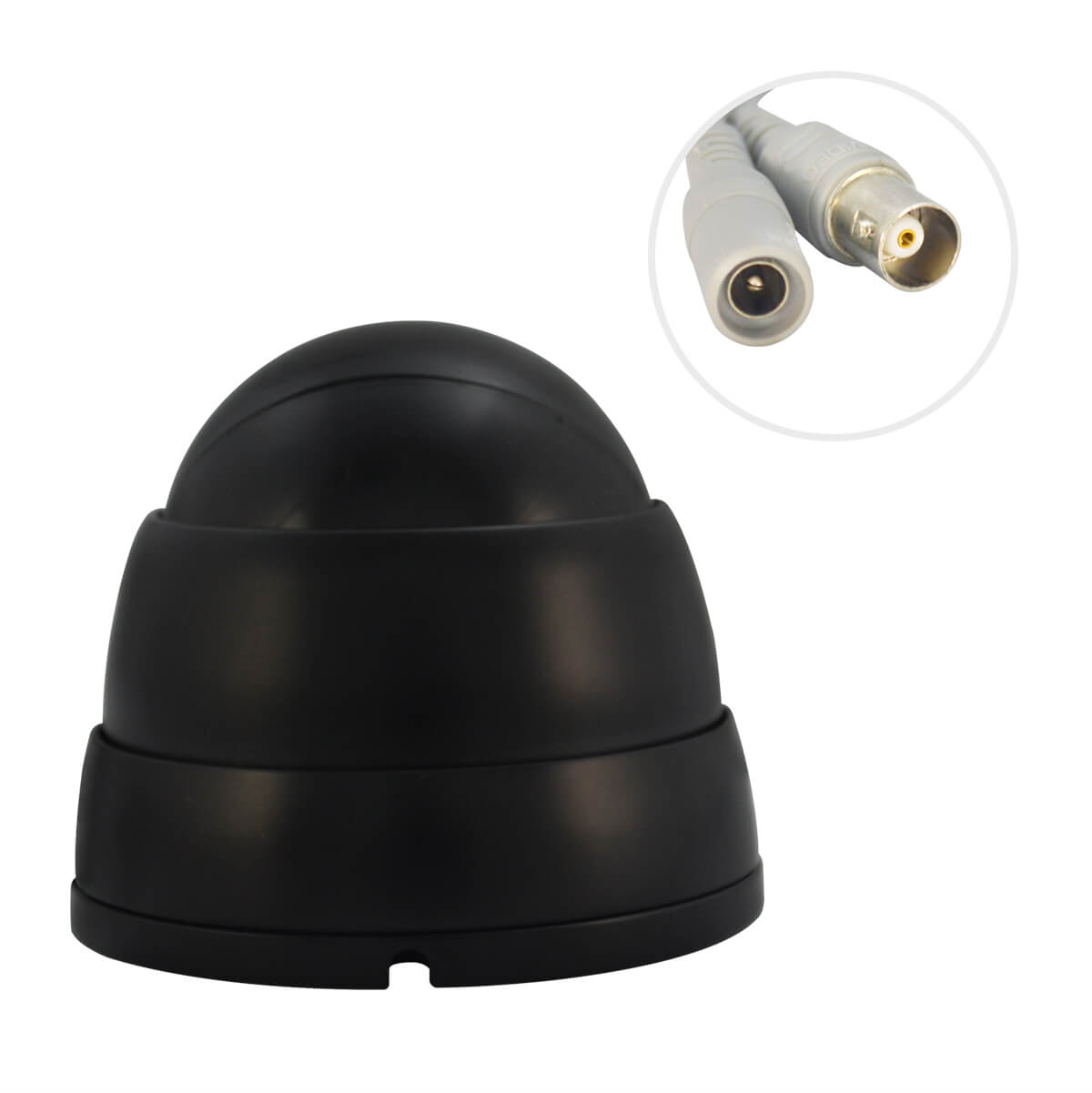

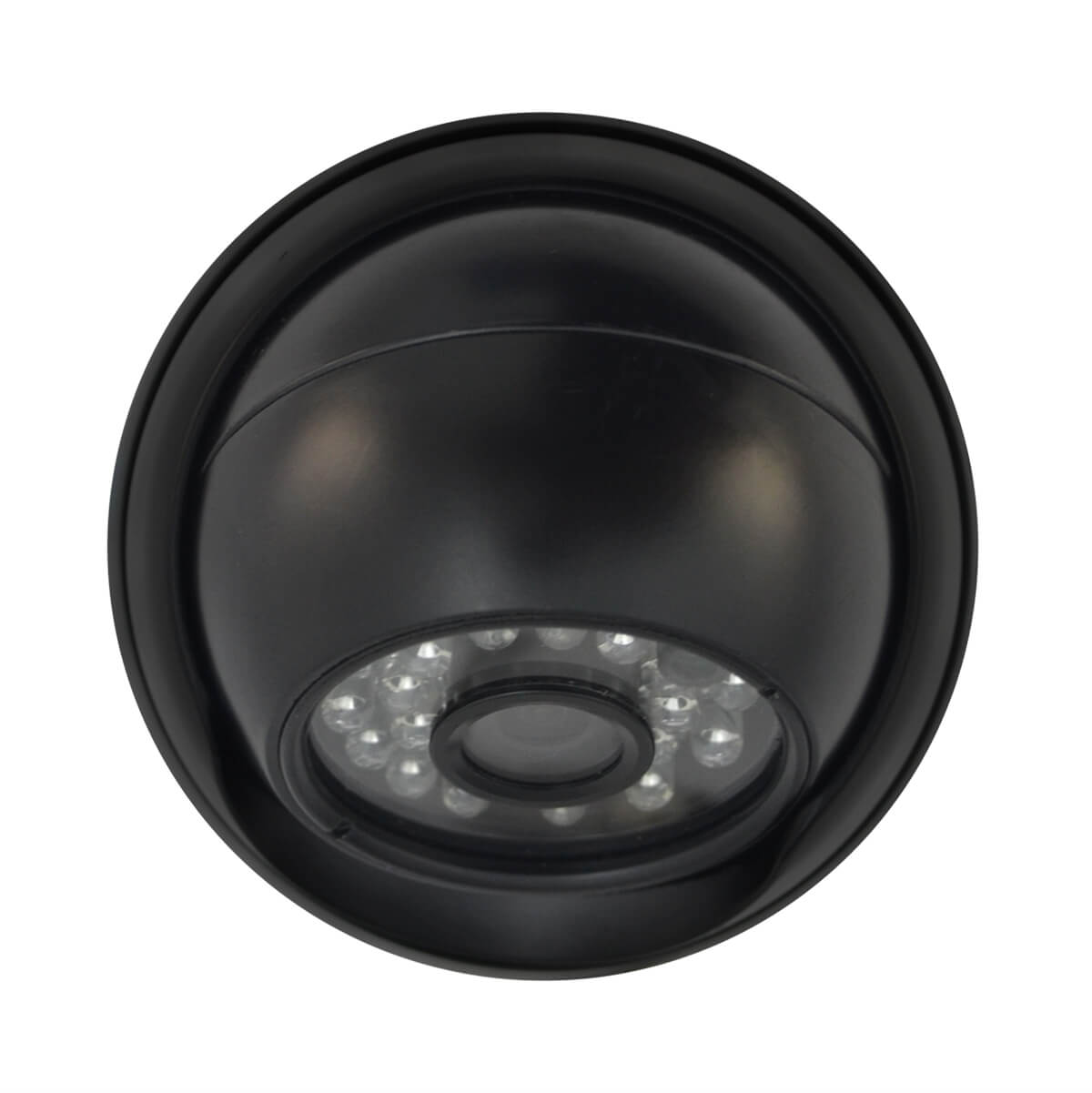

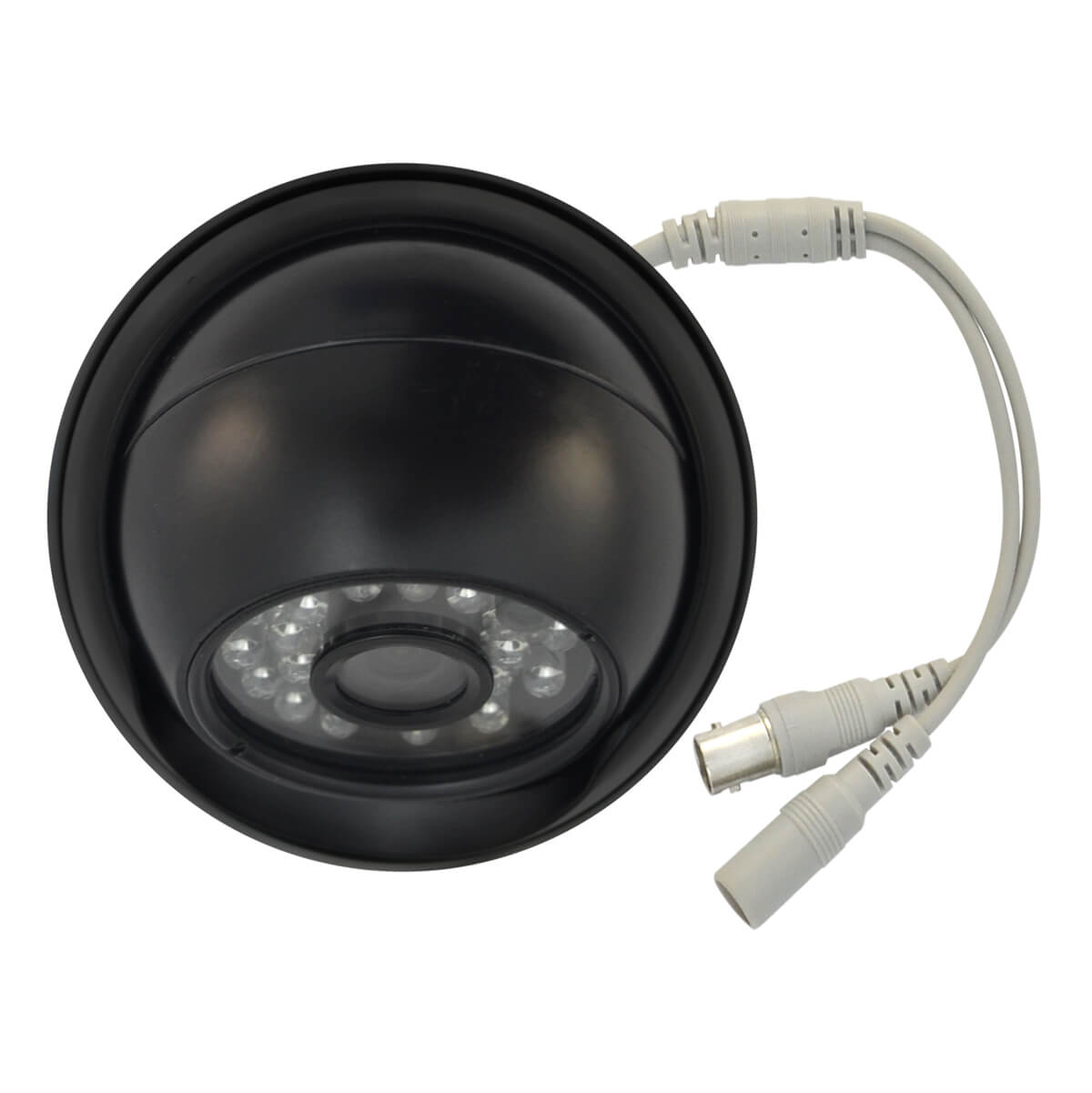

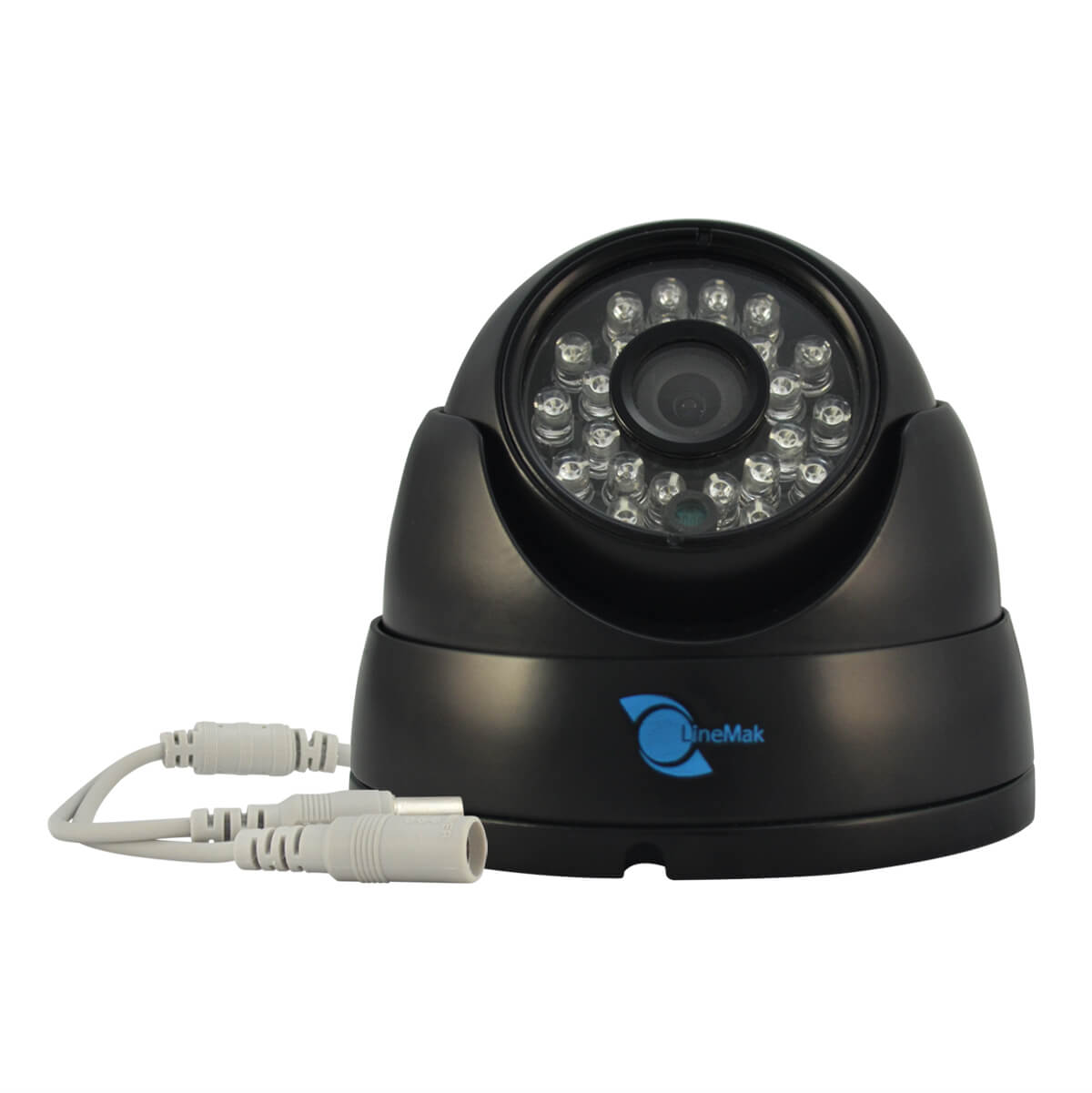

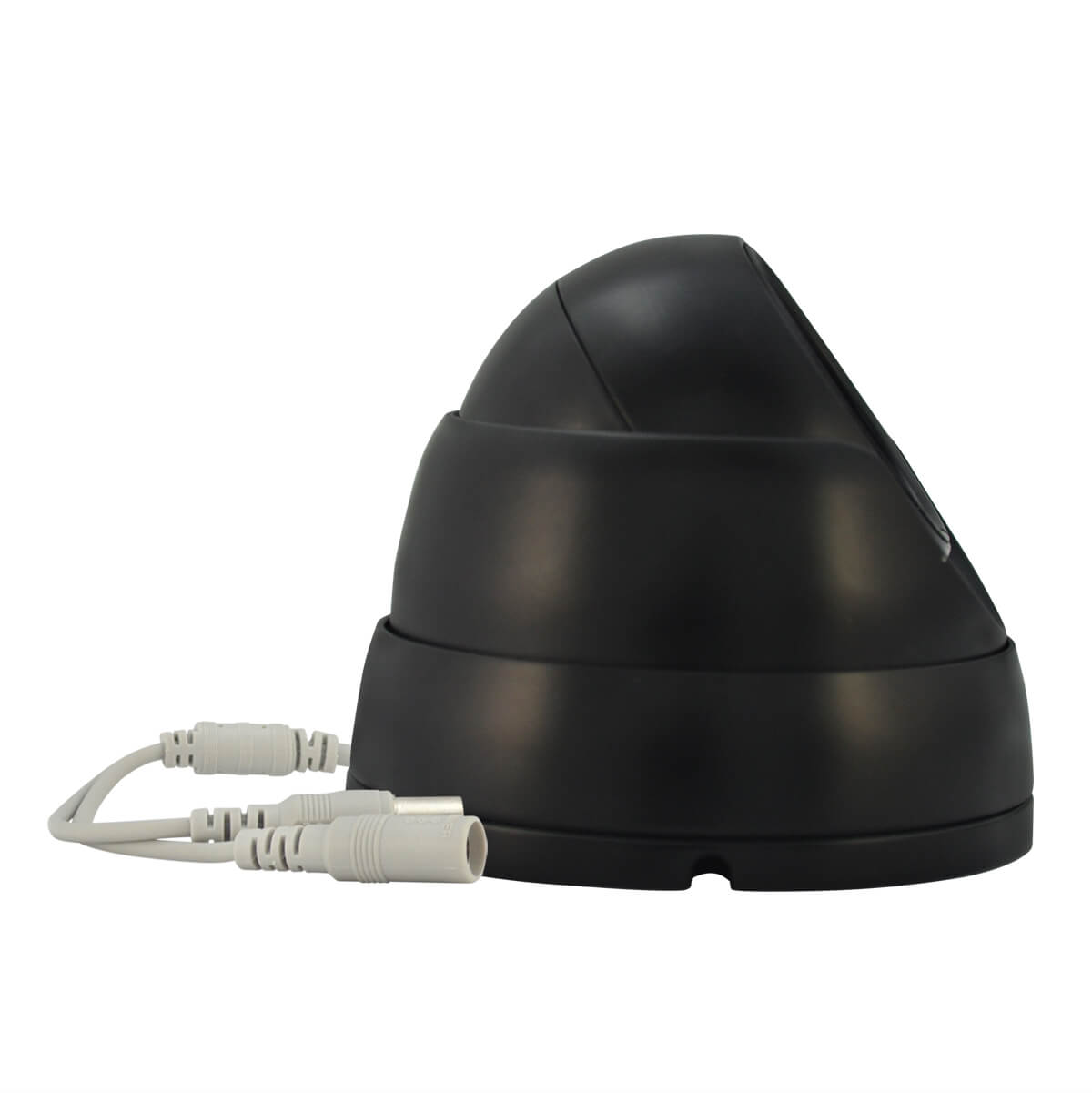

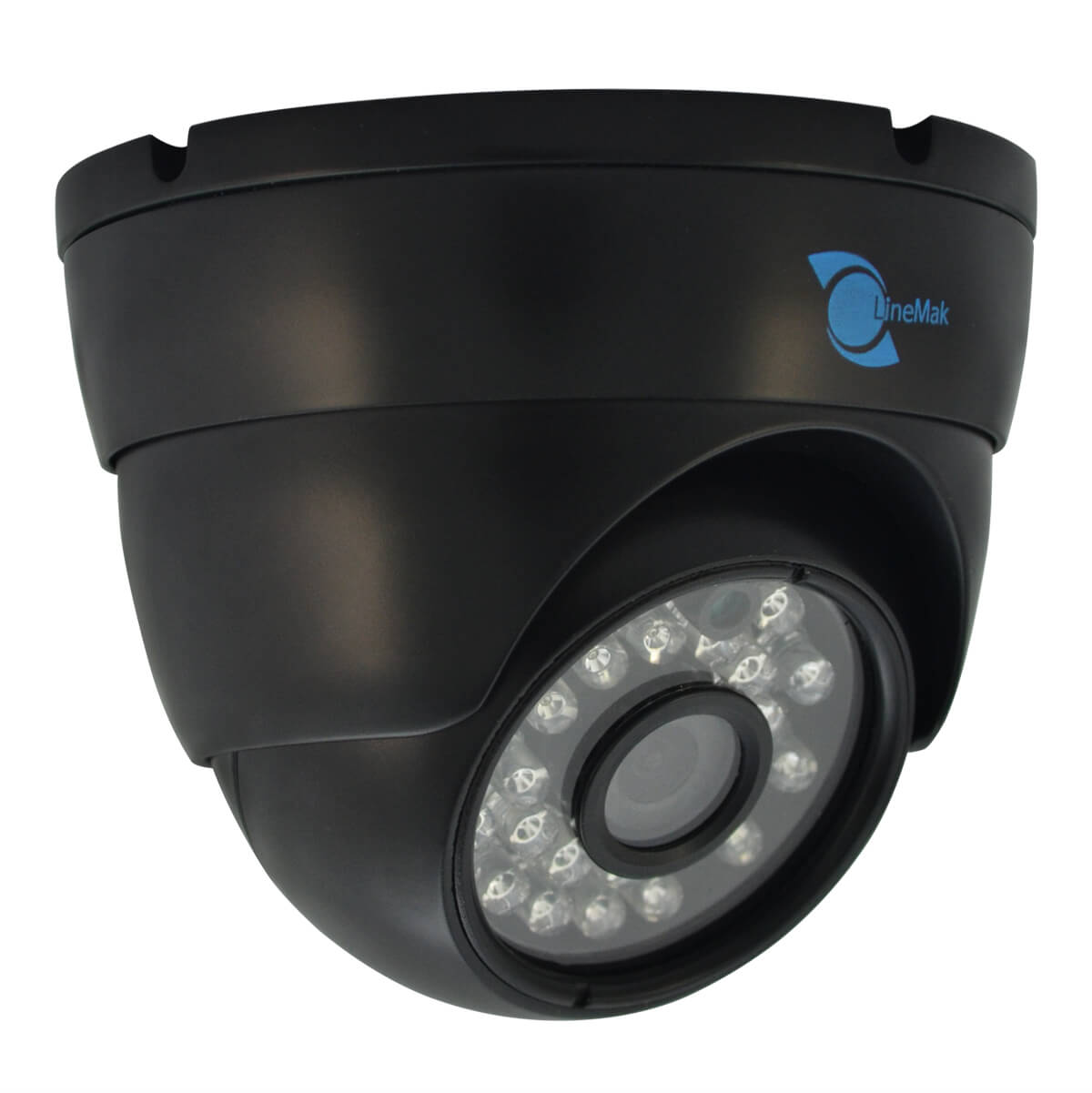

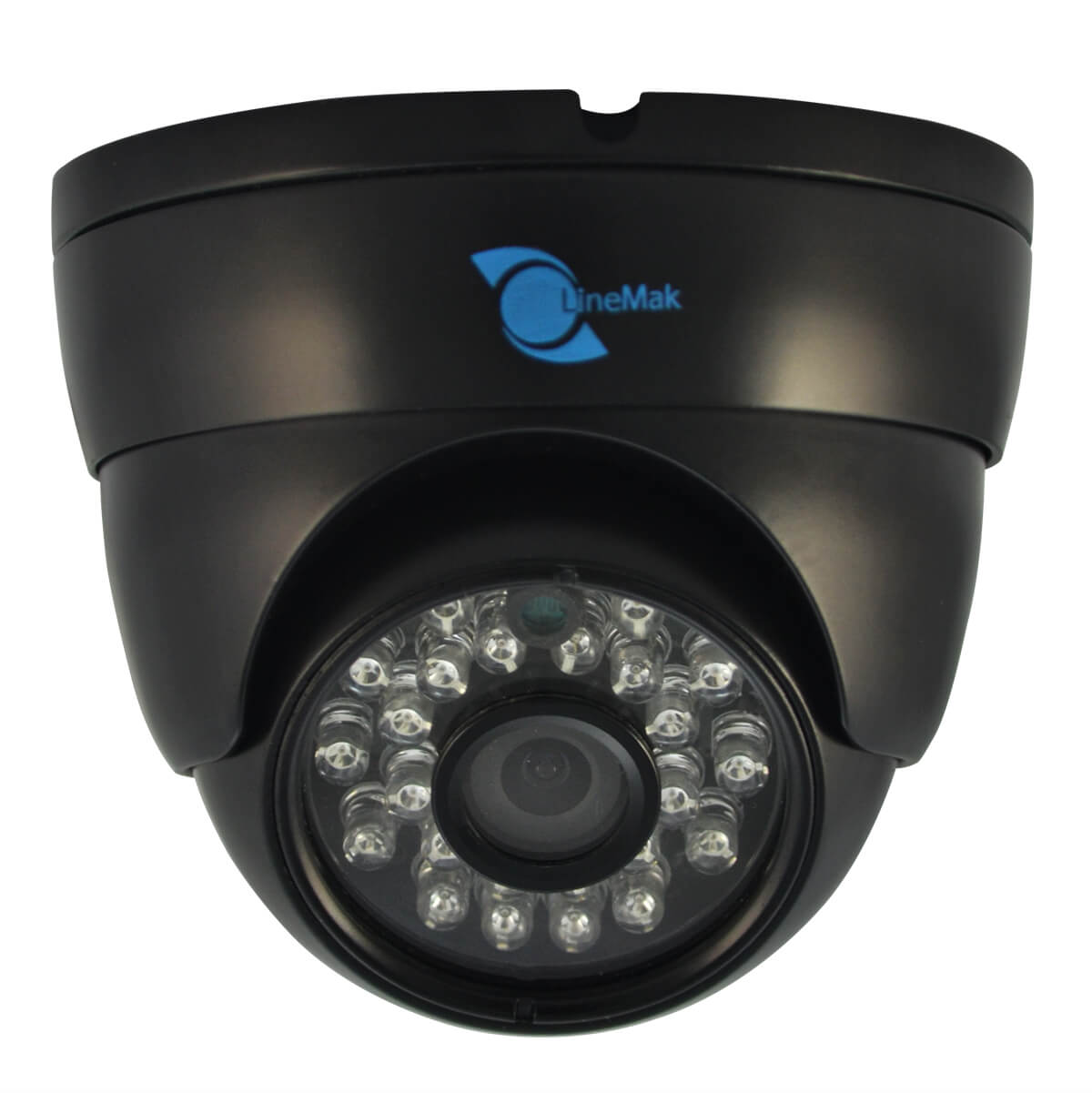

Dome camera, SONY CCD Sensor, 700TVL, 3.6mm lens, 24 LEDs, 65ft IR UTC
|
|
General
|
|
Brand | LineMak |
Model | LS-TC4950EF-UTC-B |
Sensor
|
|
Resolution | 700TVL |
Sensor | 1/3" SONY Effio-e CCD |
Effective pixels | PAL: 960*582NTSC: 962*492 |
Video
|
|
Video format | PAL / NTSC |
Video output | 1.0Vp-p, 75ohm |
Lens
|
|
Lens | 3.6mm |
IR Range | 65ft night vision |
LEDs | 24pcs (5mm each) |
Minimum illumination | 0 Lux (with LED on) |
Viewing angle | 92° |
Security
|
|
Motion detection zone | On / Off (4 Zones) |
Privacy zone | On / Off (8 Zones) |
Environment
|
|
Operation temperature | -10°C ~ 50°C 14°F ~ 122°F |
Storage temperature | -30°C ~ 80°C -22°F ~ 176°F |
Power
|
|
Power supply | DC 12V |
Power consumption | 300mA |
Appearance
|
|
Color | Black |
Size | 3.35(H) * 3.94(D) inches |
Weight | 11.64 ounces |
Special function
|
|
Back Light Compensation (BLC) | No |
Auto White Balance (AWB) | Yes |
Electronic shutter speed (AES) | PAL: 1/50~1/100000s NTSC: 1/60~1/100000s |
Auto Gain Control (AGC) | Yes |
Digital Noise Reduction (DNR) | Yes |
Wide Dynamic Range (WDR) | Yes |
Mirror | Yes |
Adaptive Tone Reproduction (ATR) | No |
High Light Compensation (HLC) | No |
Calling routing system (CRS) | No |
Standard
|
|
Brightness | 0~90 adjustable |
Synchronizing system | Internal |
S/N Ratio | >120dB (WDR ON) |
Freeze | Yes |
Digital zoom | Yes |
Gamma correction | 0.05~1 adjustable |
