16 Channels 24V Power Supply Passive Receiver Hub 984 feet

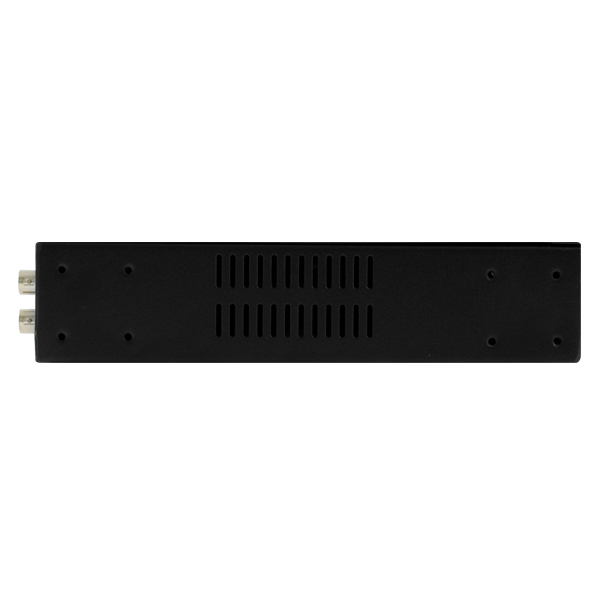

  • 16 Channels 24V Power Supply Passive Receiver Hub 984 feet - Image 1

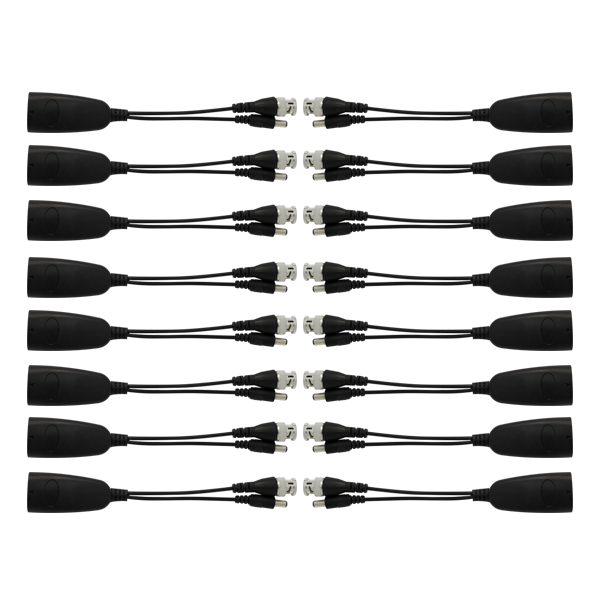

  • 16 Channels 24V Power Supply Passive Receiver Hub 984 feet - Image 2

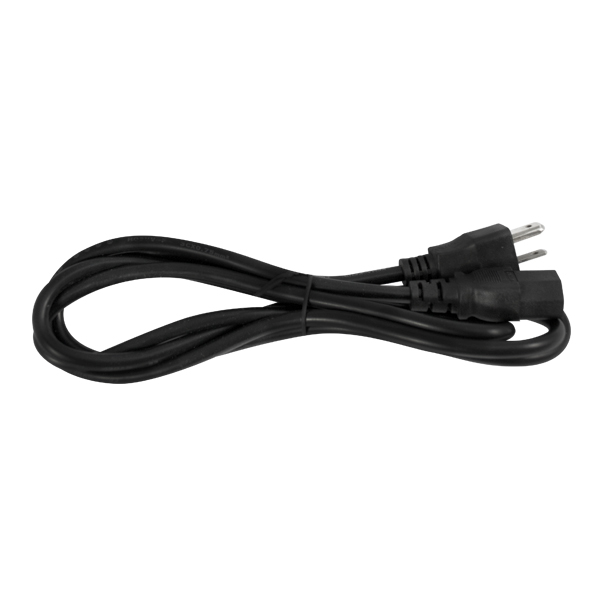

  • 16 Channels 24V Power Supply Passive Receiver Hub 984 feet - Image 3

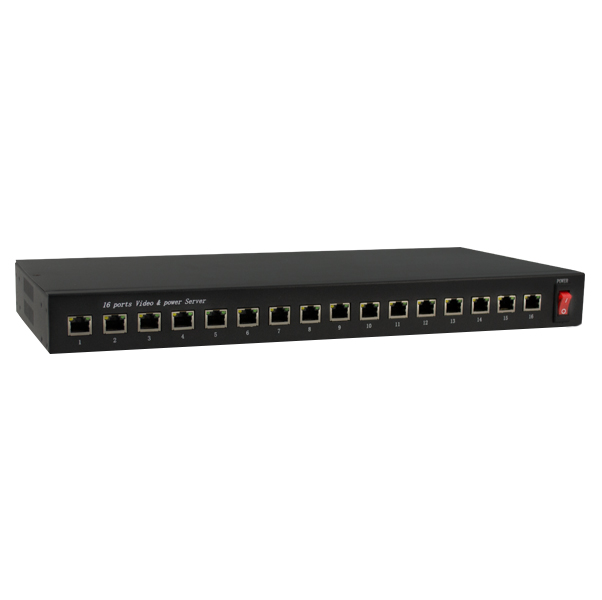

  • 16 Channels 24V Power Supply Passive Receiver Hub 984 feet - Image 4

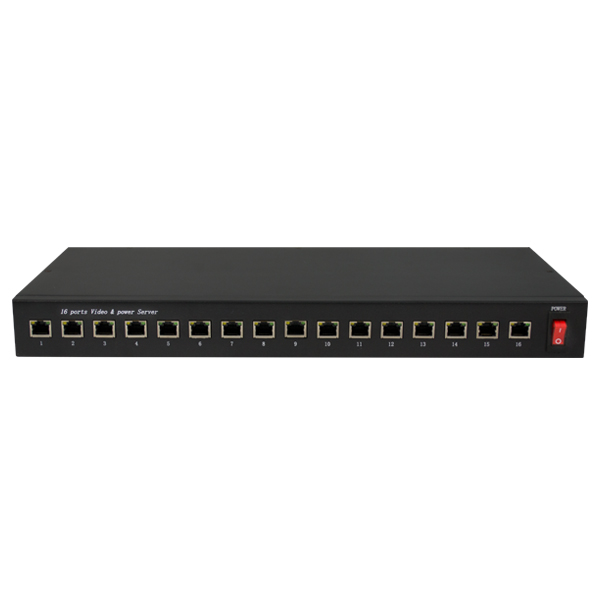

  • 16 Channels 24V Power Supply Passive Receiver Hub 984 feet - Image 5

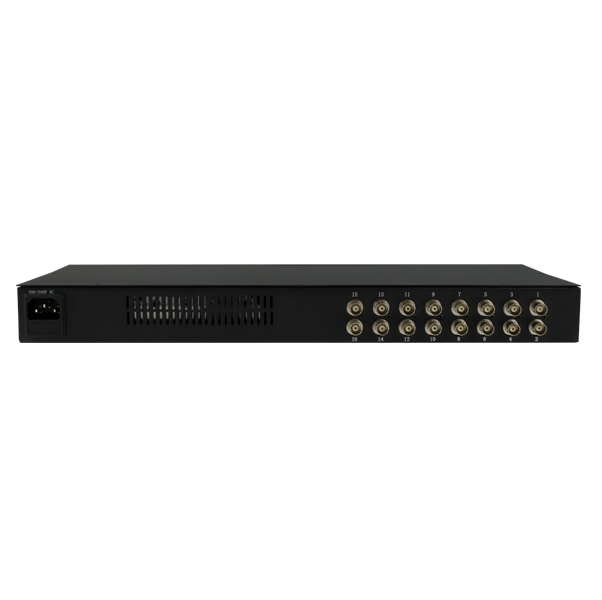

  • 16 Channels 24V Power Supply Passive Receiver Hub 984 feet - Image 6
  • - 12V DC 600mA.
  • - PAL, NTSC, SECAM.
  • Conductor device with converter function of unbalanced transmission lines to balanced lines, through a pair of wires with opposite polarities.

    Our video balun also counts with impedance functions, whose potency varies its design and construction material of the device.

    Main features:
    - Receive 16 channels CCTV video and privide power supply.
    - Compatible with PAL, NTSC, SECAM.
    - Output 24V 320W power supply.
    - Distance up to 300m, providing up to 600mA 12V DC for each channel
    - Owning power LED, signal LED, failure LED for over-voltage protection.
    - Built-in additional module for easy maintenance.
    - Built-in fan for thermal dissipation.
    - Plug and play, simple intallation.
    - Super surge protection and interference rejection.
    Warranty: One (1) Year
  • 16 Channels 24V Power Supply Passive Receiver Hub 984 feet
    General
    Brand Linemak
    Model LS-UTP16PV
    Video
    Frame rate PAL, NTSC, SECAM
    Interface
    Network interface RJ-45
    Video Balun
    Video Properties PAL, NTSC, SECAM
    Signal transmission band 0 - 6MHz
    Transmission distance 984ft (approx 12W for each camera)
    Video Protection Standard 2KV 10 / 700us Per IEC61000-4-5
    Video Connector BNC-M
    UTP cable connector RJ-45
    Reliability MTBF: 20000h
    ESD Protection Contact Discharge: 6000V
    Air Discharge: 8000V
    IEC61000-4-2 1995
    Environment
    Operation temperature 0ºC - 55ºC
    Storage temperature -20ºC - 88ºC
    Working humidity 0% - 95% (non condensing)
    Appearance
    Color Black
    Size 8.27(L) * 1.77(H) * 17.13(W) inches
    Weight 5.97 pounds
    Material Iron Metal
