8Ch DVR, H264/G711A, VGA/HDMI/CVBS/Loop/Spot outputs, D1

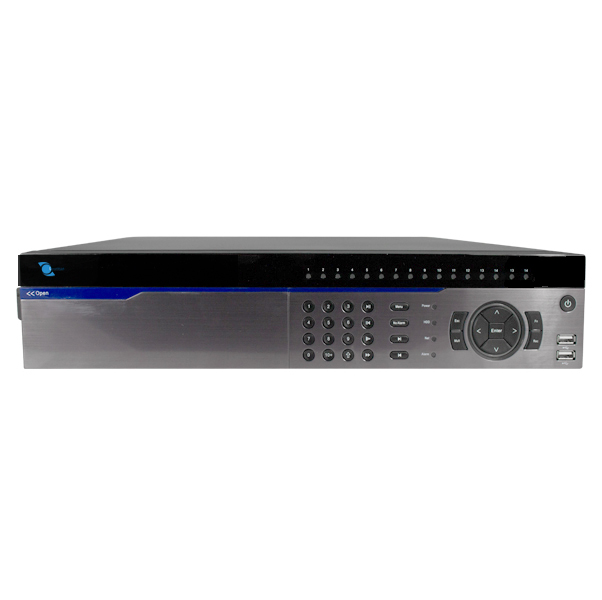

  • 8Ch DVR, H264/G711A, VGA/HDMI/CVBS/Loop/Spot outputs, D1 - Image 1
  • 8Ch DVR, H264/G711A, VGA/HDMI/CVBS/Loop/Spot outputs, D1 - Image 2
  • 8Ch DVR, H264/G711A, VGA/HDMI/CVBS/Loop/Spot outputs, D1 - Image 3
  • 8Ch DVR, H264/G711A, VGA/HDMI/CVBS/Loop/Spot outputs, D1 - Image 4
  • - D1 resolution.
  • - H.264 / G.711A compression formats.
  • - CVBS, VGA, HDMI, Spot and Loop outputs.
  • - Hard drive not included.
  • - Mobile surveillance: iOS and Android.
  • - PAL / NTSC video formats.
Products recommendaded to work with this item:
8ch dvr, h264/g711a, vga/hdmi/cvbs/loop/spot outputs, d1
+
dome camera, sony ccd sensor, 800tvl, 3.6mm lens, 23 leds, 65ft ir.
+
ir dome camera 1/3 hd sensor, 900tvl, 3.6mm lens 24 led 65ft ir ircut
+
seagate barracuda 1 tb hdd sata 6 gb/s ncq 64mb cache
Price for all 4: $507.96
  • Easy to use DVR (Digital Video Recorder) with simultaneous BNC, VGA and HDMI outputs. This video surveillance equipment can record images registered by cameras. Monitor your cameras online from anywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time. Its H.264 compression algorithm is ideal for standalone DVR.

    This video surveillance equipment can record images registered by their cameras and is very easy to use.

    Multiple recording modes: Manual, scheduled, sensor trigger, motion detection.
    Multiple control methods: front panel, USB mouse and remote control.
    Compatible with WIN98 / WIN2000 / WIN ME / WIN XP / VISTA WIN / WIN SEVEN.

    Hard drive not included.
    This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    HDMI delivers enhanced image clarity
    HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.
    HDMI delivers enhanced image clarity
    Full HD sets
    Full HD sets
    Be able to handle High Definition signal of 1080 lines of information across the screen with Full HD. Since Full HD is only a marketing term, it does not indicate any particular qualities besides 1080p. 1080p televisions have a resolution of 1920×1080 and are progressive scan, which means all lines of each frame of video are drawn on the set.
    Accurate alarm recording allows you to cover the whole event
    This feature works with the motion detection capability of the DVR or alarm contacts attached to a door or window. When an incident is detected, the DVR records a pre-set amount of time before and after the event to the hard drive. This enables you to see what happened before and after motion was detected and view additional information about the circumstances leading up to and after it.
    Accurate alarm recording allows you to cover the whole event
    Motion detection
    Motion detection
    Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.
    Backup for saving critical video evidence
    The recorder allows still images and recorded video to be offloaded via one or more of these options for quick and easy backup of your critical video evidence: DVD, USB drive or network.
    Backup for saving critical video evidence
    Monitoring 3G
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    Keep everything under watch with multiple recording modes
    Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.
    Keep everything under watch with multiple recording modes
    Save money with no contracts and no monthly fees
    Save money with no contracts and no monthly fees
    Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.
    Warranty: One (1) Year
  • 8Ch DVR, H264/G711A, VGA/HDMI/CVBS/Loop/Spot outputs, D1
    General
    Brand Linemak
    Model LS-RD518
    Video
    Resolution PAL: 720*576 (D1)
    NTSC: 720*480 (D1)
    Video format PAL / NTSC
    Compression format H.264 baseline compression
    Video recording PAL: 200fps/D1
    NTSC:240fps/D1
    Audio
    Audio compression G.711A
    Recording & Playback
    Recording mode Manual, scheduled, sensor trigger, motion detection.
    Local playback PAL: 200fps/D1
    NTSC:240fps/D1
    Storage & Backup
    Backup mode 1 USB 2.0 port for USB 2.0 flash disks, card readers, DVD RW, HDD, etc

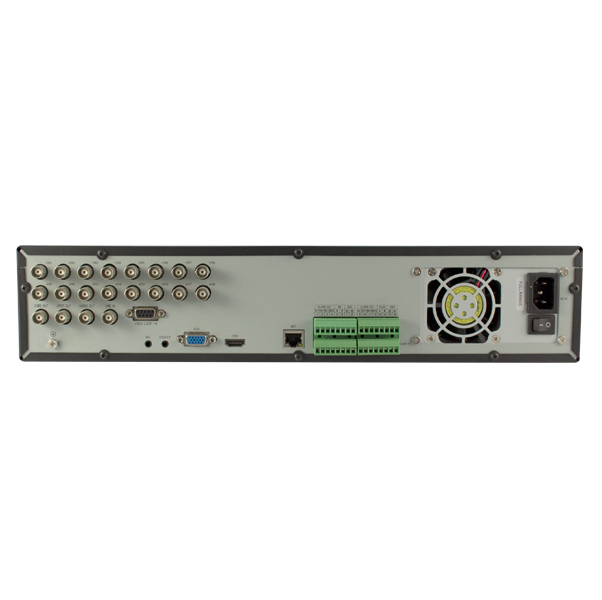

    Interface
    Video input/output Input: 8-Ch BNC
    Output: 1-Ch VGA(1280*1024), 1-Ch HDMI (1920*1080), 1-Ch CVBS, 1-Ch Loop and 1-Ch Spot
    Audio input/output Input: 8-Ch BNC
    Output: 1-Ch Line-in and 1-Ch MIC
    Alarm input/output Input: 16-Ch
    Output: 4-Ch
    PTZ Control 1 RS-485 port
    HDD Port 8 SATA HDD ports (up to 2TB each)
    Network interface 1 RJ45 100M/1000M Base-TX port
    Mode control
    Operating mode USB mouse, front panel and remote control
    Network
    Network protocol TCP-IP/ DHCP/DDNS/PPPOE/E-Mail/NTP/FTP/ RTSP/ IP Filter/ UPNP
    Remote
    Remote independent operation Live Monitor, Playback, Configuration, Backup, Mobile Phone Surveillance
    Security
    Event notificacion Motion detection, Sensor Input, Relay Output , Video Loss, Camera masking, No Disk space, Disk error, Not enough space, Network failure, IP Conflict
    Environment
    Operation temperature -10°C ~ 55°C
    14ºF ~ 131ºF
    Working humidity 10% ~ 90%
    Power
    Power supply AC 110V ~ 230V
    Power consumption 50Hz ~ 60Hz
    Appearance
    Color Gray
    Size 18.51 (L) * 3.55 (H) * 16.93 (W) inches
    Weight 15.08 pounds

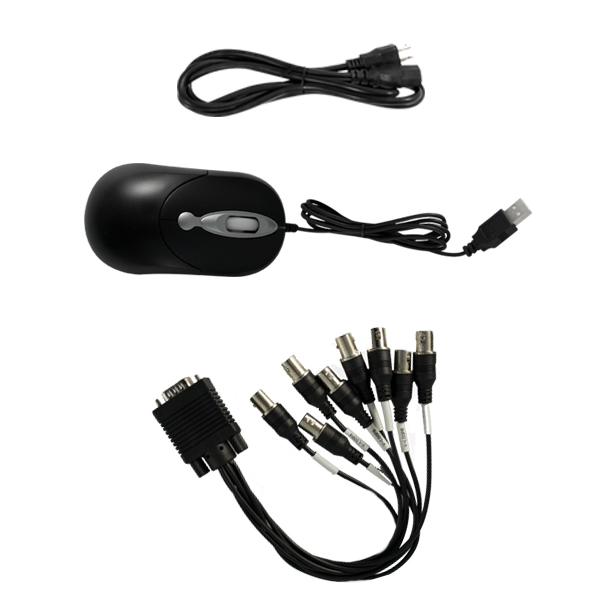

    Accessories

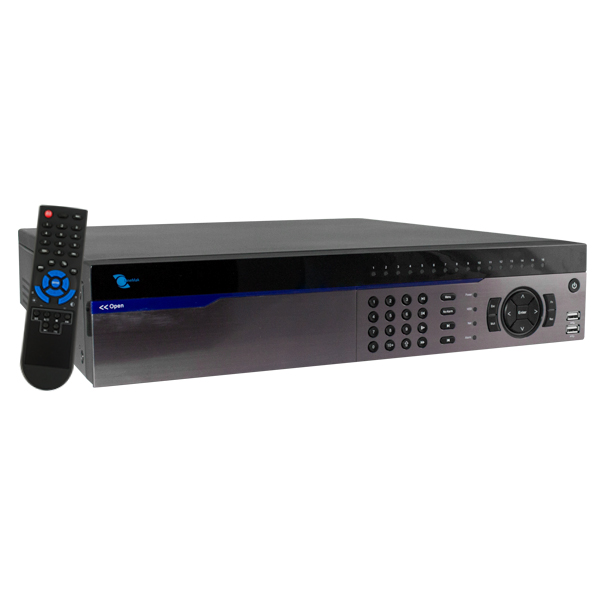

    Remote control Yes
    Mouse Yes
  • Manual
    File Size: 6960.25 Kb
    Languages: English
    File Type: PDF
    Instructions
    File Size: 2214.05 Kb
    Languages: English
    File Type: PDF
