IR Bullet camera 1/2.5 SONY CCD 1.3Mp 8mm lens 3 LEDs Array IP66

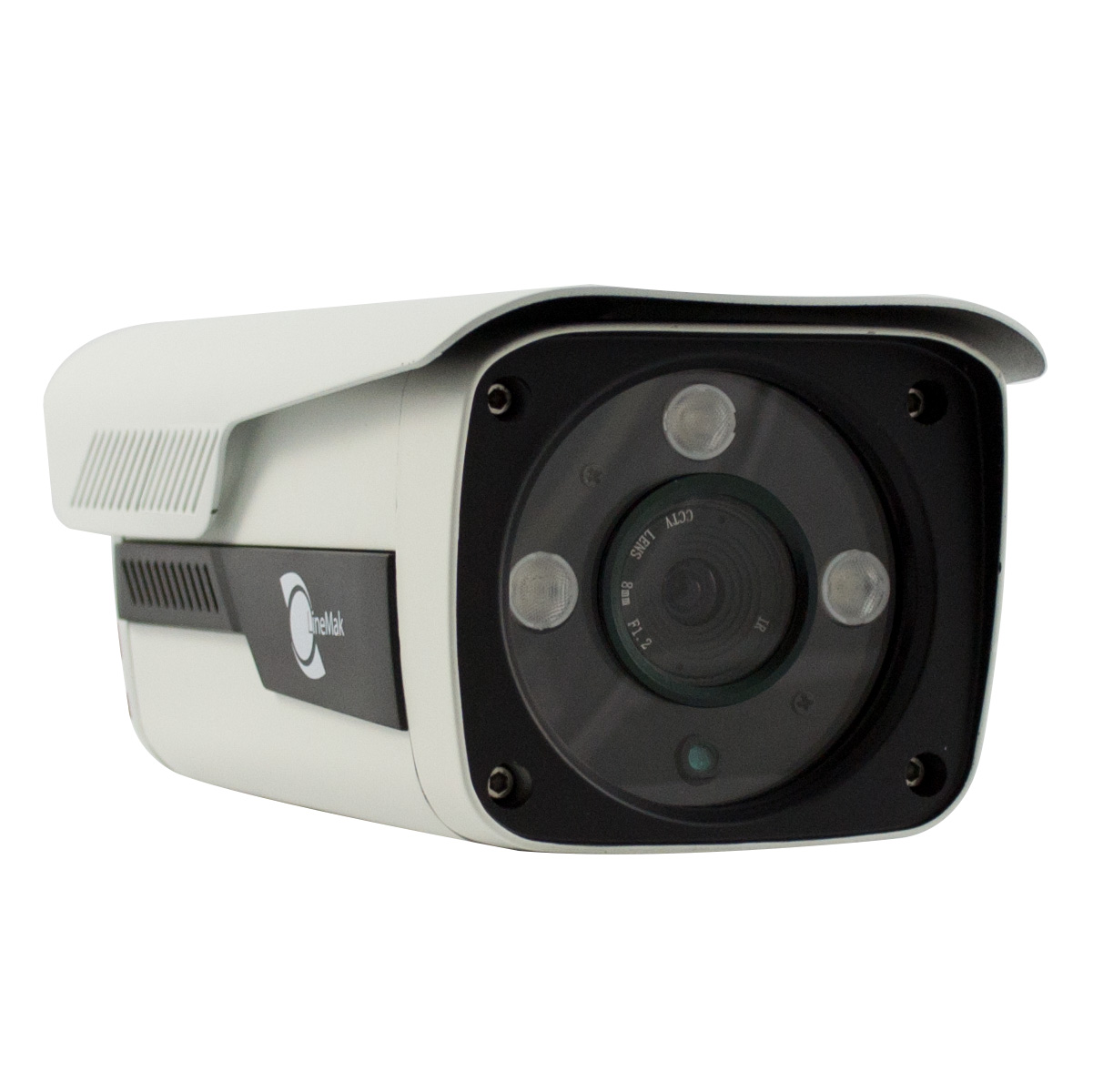

  • IR Bullet camera 1/2.5 SONY CCD 1.3Mp 8mm lens 3 LEDs Array IP66 - Image 1

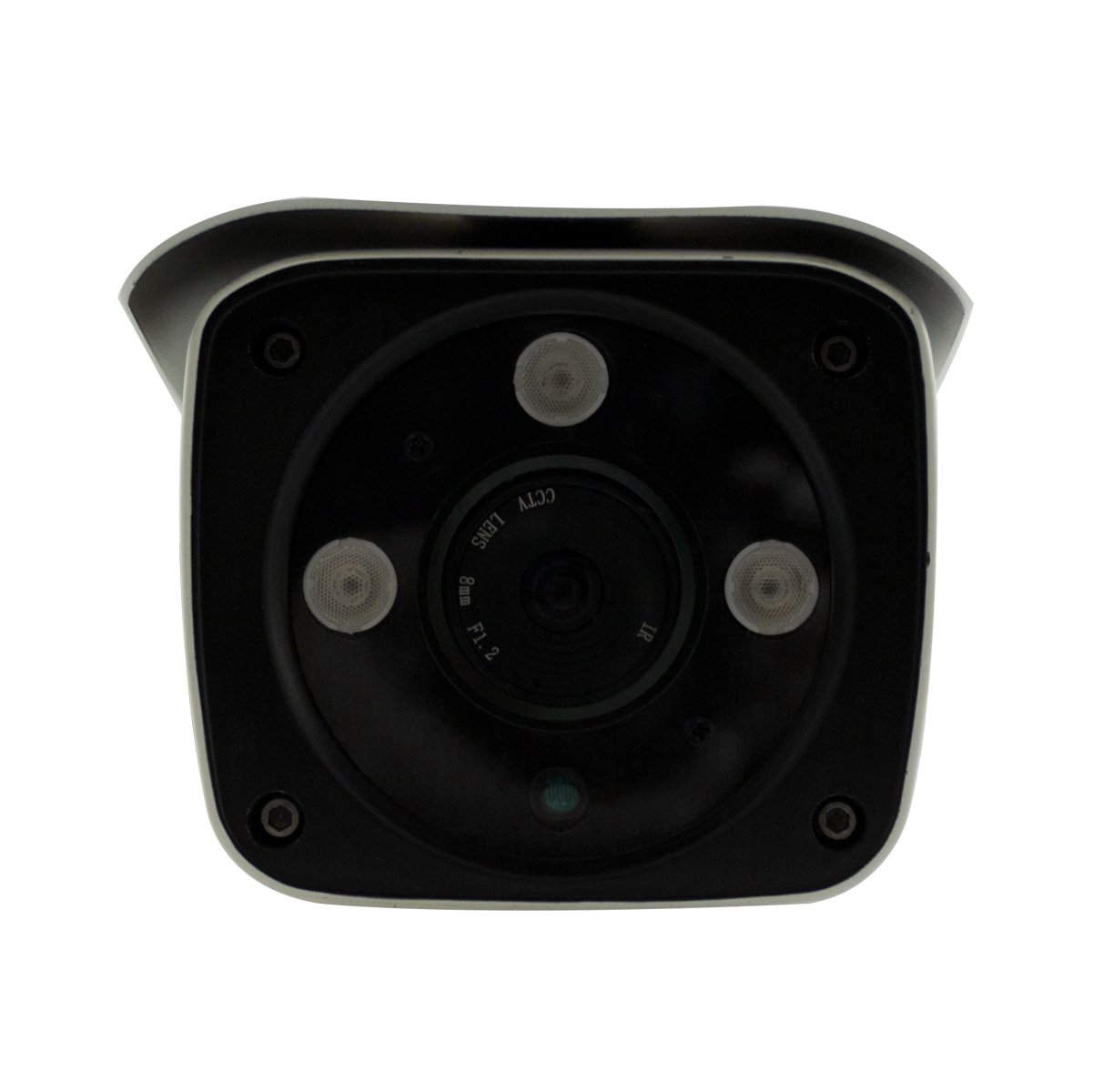

  • IR Bullet camera 1/2.5 SONY CCD 1.3Mp 8mm lens 3 LEDs Array IP66 - Image 2

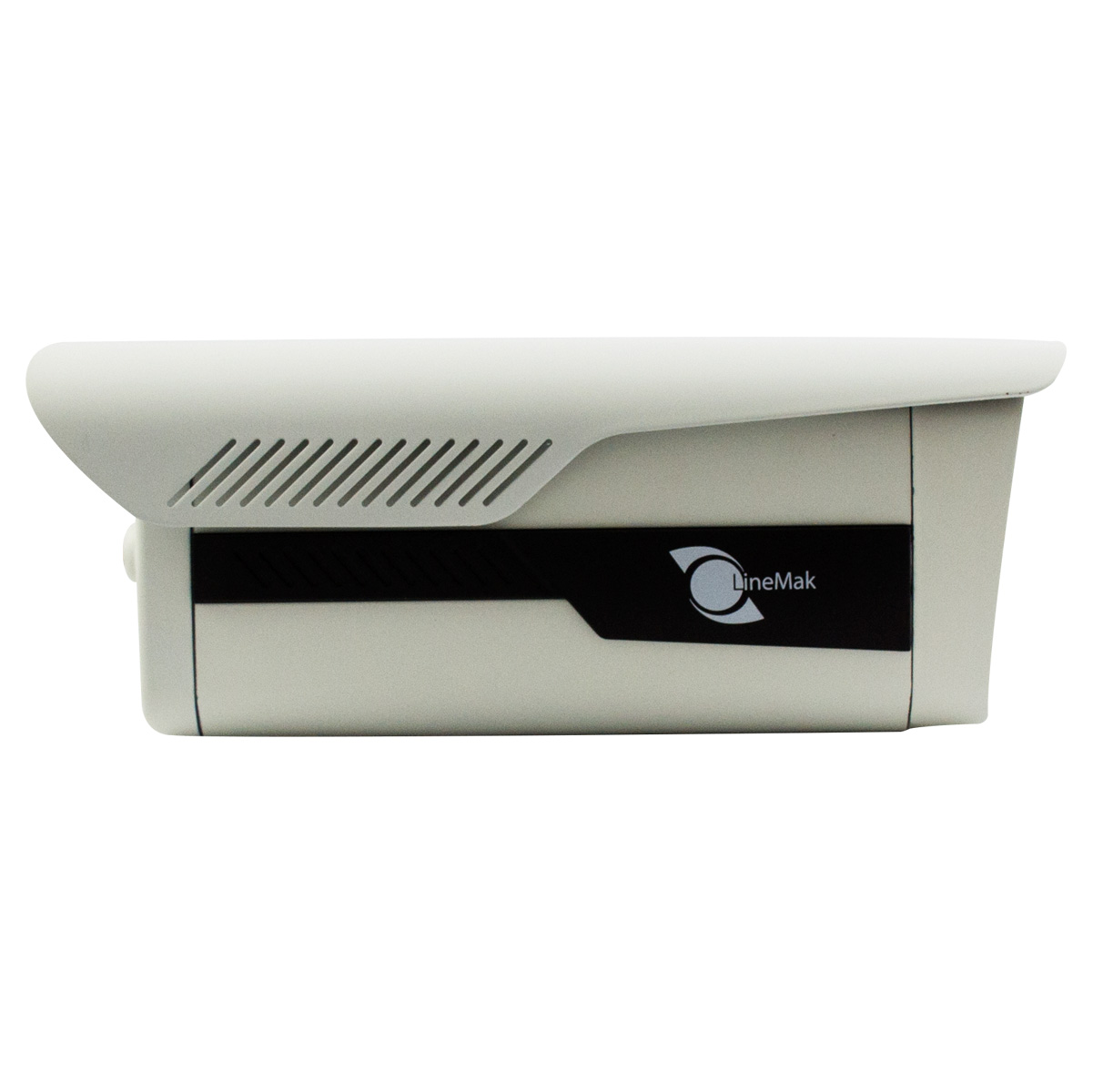

  • IR Bullet camera 1/2.5 SONY CCD 1.3Mp 8mm lens 3 LEDs Array IP66 - Image 3
  • - AES, AGC, AWB, BLC and mirror function.
  • - 3D-NR and OSD menu.
  • - Weatherproof: IP66.
  • - Power adapter not included.
  • - CS 8mm/F1.2 lens.
  • - 42MIL * 3pcs LED Array, 164ft~229ft IR distance.
Products recommendaded to work with this item:
ir bullet camera 1/2.5 sony ccd 1.3mp 8mm lens 3 leds array ip66
+
dc12v 2a power adapter specially for security cameras
+
16ch dvr, h264, bnc/vga/hdmi outputs, audio 16ch in/1ch out, d1
Price for all 3: $229.97
  • Waterproof IR bullet high-resolution camera with an 8mm lens and a 40° viewing angle, a 164ft ~ 229ft range of infrared night vision, and 42MIL * 3pcs LEDs array.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere. Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    Use any of our servers and digital video recorders (DVR) for best results regarding image quality. See this camera online through any of our recording systems.

    Waterproof: IP66.

    Main features:
    - Weatherproof IR camera.
    - 42MIL * 3pcs LED array.
    - IR distance: 164ft to 229ft.
    - Real day/night feature.
    - CS Lens 8mm/F2.0.
    - AWB support function: high color reproduction and real image.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.
    - 3D-NR function, digital zoom and OSD menu.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Weatherproof cameras in a year-round protection
    Our outdoor weatherproof cameras feature at least an IP66 weather rating. These outdoor cameras are built to keep out small particles such as dust and water, and are unaffected by a range of weather conditions including heavy rain and snow.
    Weatherproof cameras in a year-round protection
    LED array
    LED array
    The infrared led array has a wider emitting angle than traditional infrared leds. Traditional infrared leds can only emit the active infrared ray in a narrow angle. When there is a security camera with infrared led array, the emitted infrared will cover the whole surveillance area, which means the infrared led array camera can see the whole area in a dark environment such as at night.
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Automatic Gain Control (AGC)
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Auto White Balance (AWB)
    Back Light Compensation (BLC)
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    A rear-view mirror cameras
    The rear-view mirror camera imitates the function of the actual mirror including the recording function as well, reason why it is highly recommended to use the rear-view camera as a back-up means to check for obstructions behind the car and avoid using it on frozen slippery roads.
    A rear-view mirror cameras
    Digital Noise Reduction (DNR)
    Digital Noise Reduction (DNR)
    DNR incorporates frame-to-frame noise reduction with spatial noise reduction to produce clear video images with less noise, in low light conditions. It makes images clearer and reduces video file size and reduces the visibility of the random noise during playback of the video.
    Wide Dynamic Range (WDR)
    Security Cameras (Analogue Cameras) with WDR Function can treat different areas in the image individually. They can also apply separate brightness modifications within the same view. This function is ideal for are scenarios in which stark contrasts and differences in darkness and brightness within the same image view are expected.
    Wide Dynamic Range (WDR)
    Highlight Compensation (HLC)
    Highlight Compensation (HLC)
    Differently from BLC, stands for highlight compensation. Camera can detect the strong spots and then reduce the brightness of the strong spots to improve the overall images. This function is mainly designed so cameras capture vehicle plate license.
    OSD Menu
    Most monitors include an on screen menu for making adjustments to the display through which you can navigate through the menu and make adjustments by using the Plus (+) and Minus (-) buttons, usually located next to the menu button. OSD include basic brightness and contrast controls. This superimposed image on the screen is commonly used by modern TV sets for volume, channel and time control.
    OSD Menu
    Warranty: One (1) Year
  • IR Bullet camera 1/2.5 SONY CCD 1.3Mp 8mm lens 3 LEDs Array IP66
    General
    Brand LineMak
    Model LS-CA466T
    Sensor
    Resolution 1.3Mp Sensor / 720P
    Sensor 1/2.5" SONY CCD
    Effective pixels PAL: 752*582
    NTSC: 768*494
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohms
    Lens
    Lens CS 8mm / F1.2
    IR Range 164ft ~ 229ft night vision
    LEDs 42MIL * 3pcs LED Array
    Zoom Digital
    IR-CUT Filter Yes
    Auto Iris Video/DC Drive
    Minimum illumination 0.8 Lux
    0 Lux (with LED on)
    Viewing angle 53°
    Security
    Motion detection zone Yes
    Privacy zone Yes
    Environment
    Operation temperature -20°C ~ 50°C
    -4ºF ~ 122ºF
    Weatherproof standard IP66 (protection against dust and strong water pressure)
    Working humidity 0% ~ 95%
    Power
    Power supply DC 12V
    Power consumption 500mA
    Appearance
    Color White
    Size 8.47(L) * 3.35(H) * 3.94(W) inches
    Weight 2.39 pounds
    Special function
    Back Light Compensation (BLC) Yes
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) PAL: 1/50 ~ 1/100,000 sec
    NTSC: 1/60 ~ 1/100,000 sec
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) Yes
    Standard
    Scanning system 2:1 Interlace
    Synchronizing system Internal
    S/N Ratio >48dB
    Gamma correction >0.45
    OSD Menu Yes
  • Instrucción
    File Size: 546 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 456.74 Kb
    Languages: English
    File Type: PDF
