Bullet camera 1/3 SONY CCD 800TVL 2.8-12mm lens 42 LEDs 131ft IR IP66

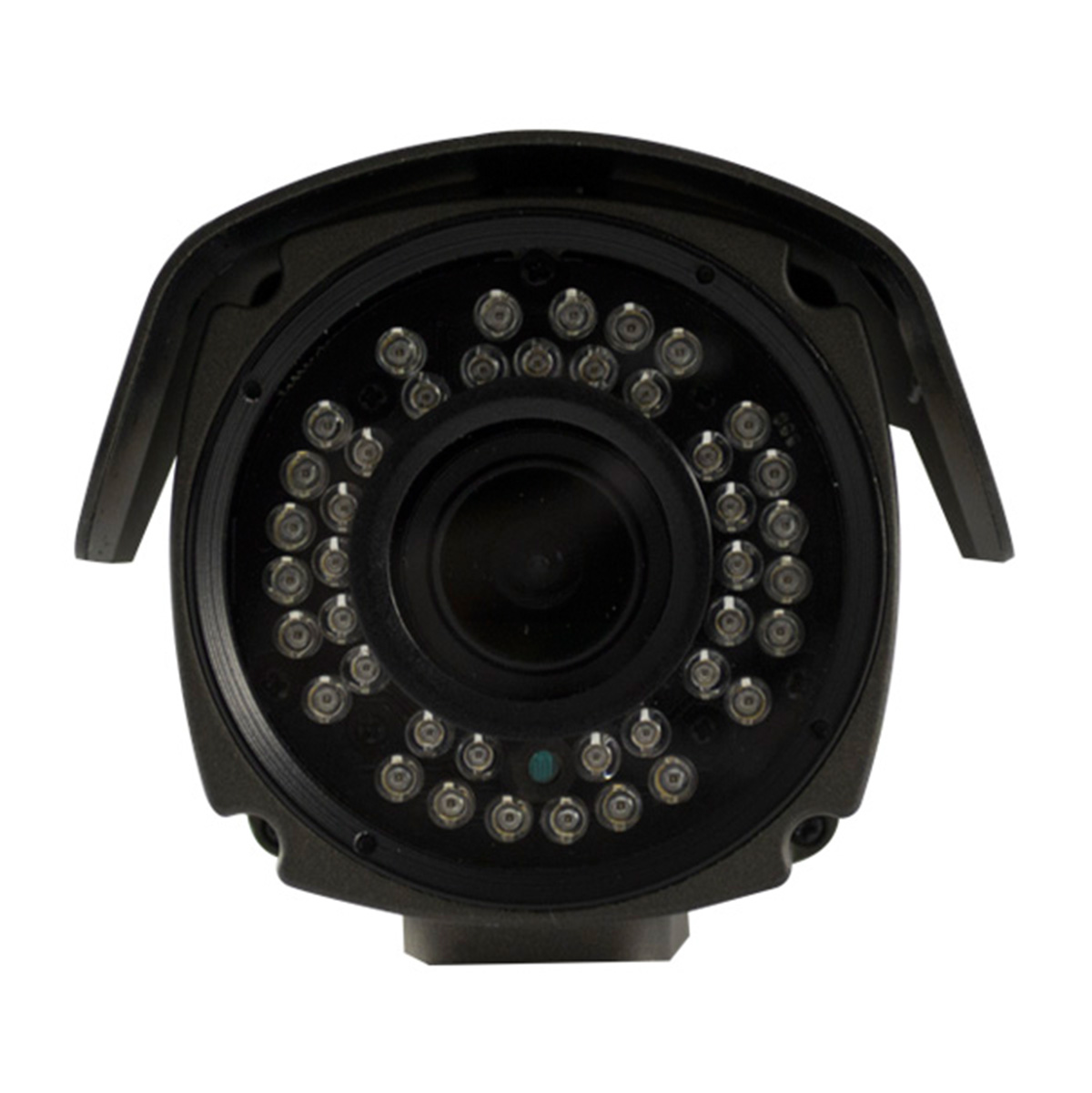

  • Bullet camera 1/3 SONY CCD 800TVL 2.8-12mm lens 42 LEDs 131ft IR IP66 - Image 1

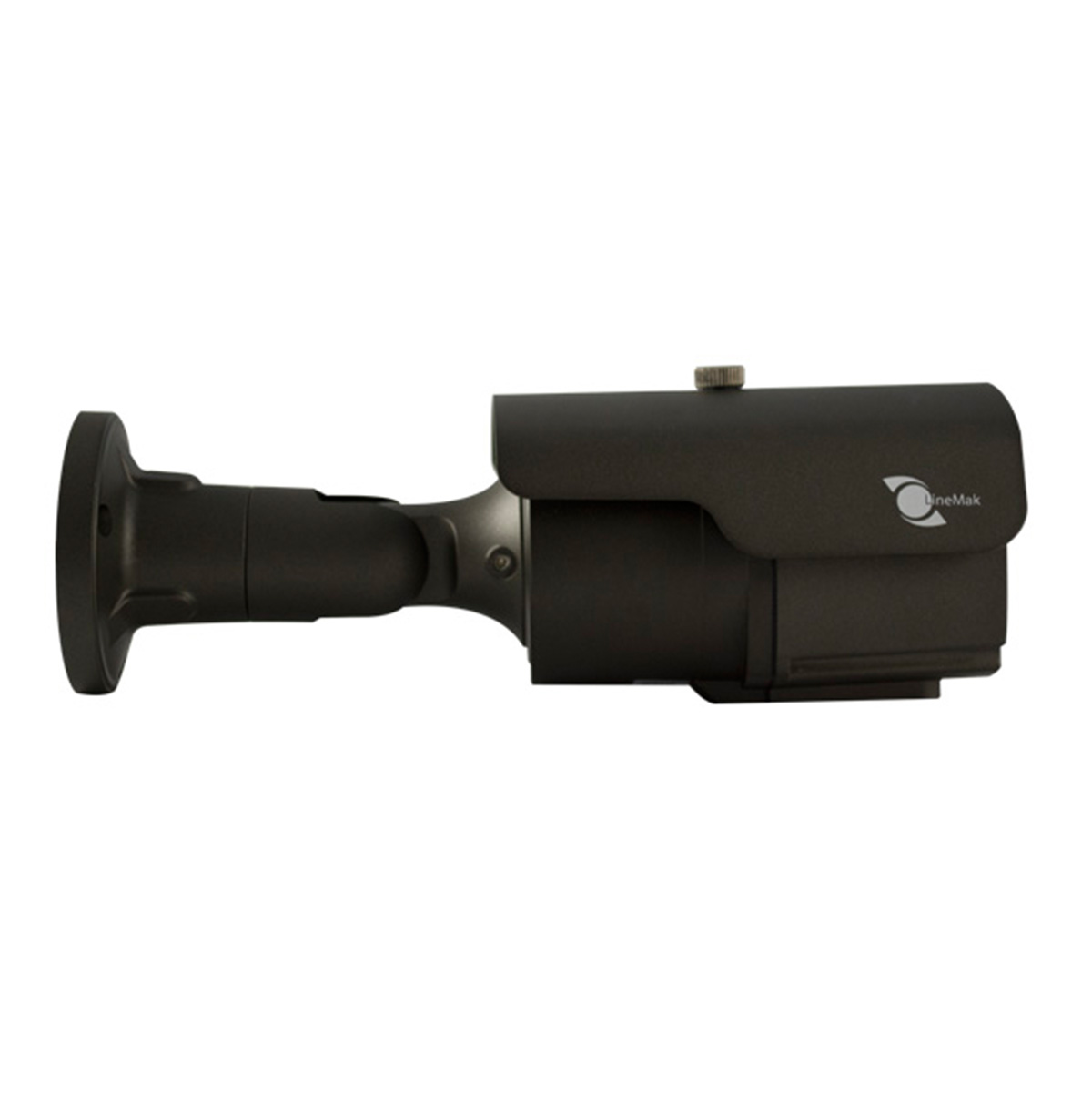

  • Bullet camera 1/3 SONY CCD 800TVL 2.8-12mm lens 42 LEDs 131ft IR IP66 - Image 2

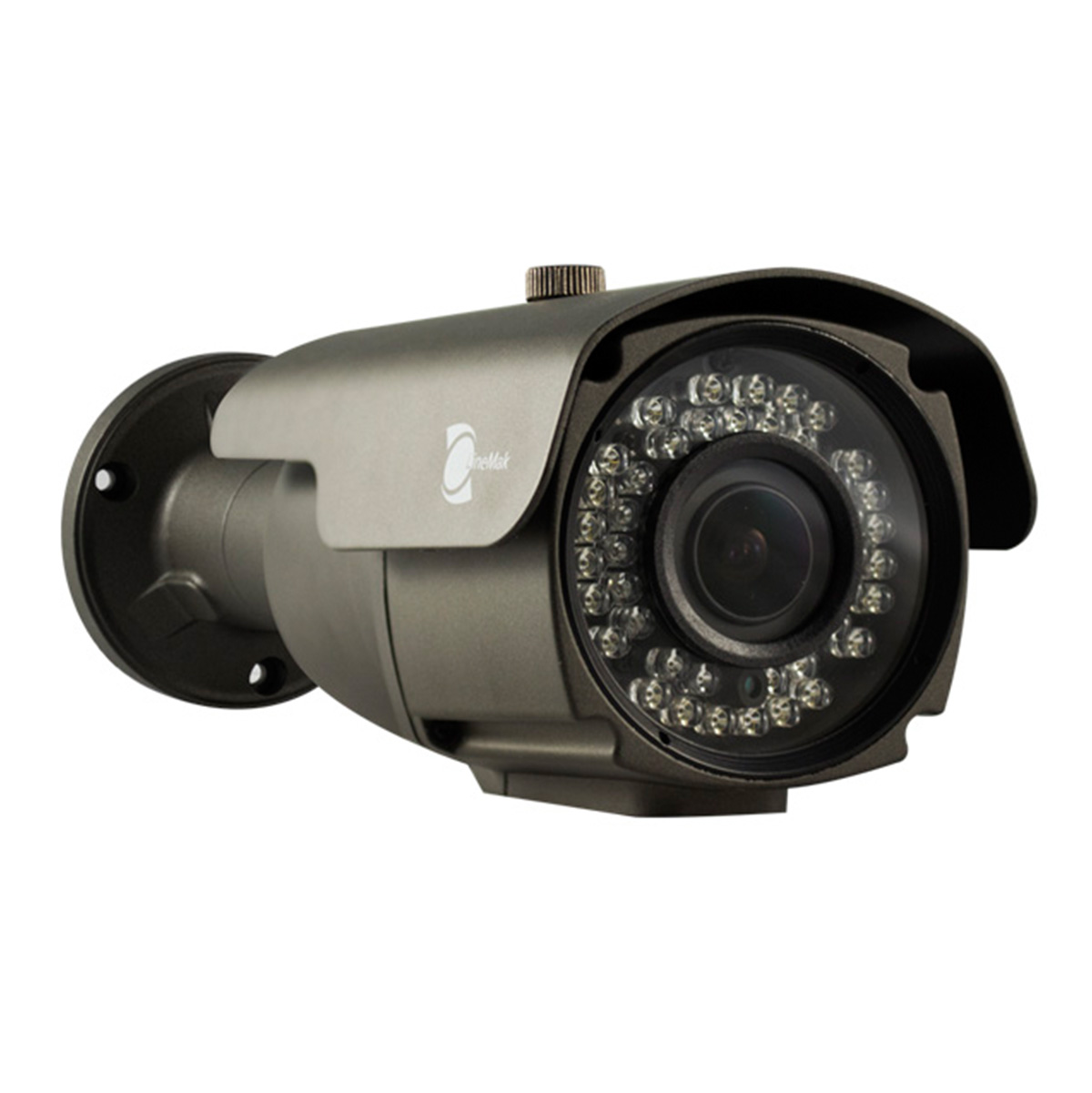

  • Bullet camera 1/3 SONY CCD 800TVL 2.8-12mm lens 42 LEDs 131ft IR IP66 - Image 3
  • - Excellent image quality.
  • - BLC, AES, AGC and AWB function.
  • - Weatherproof: IP66.
  • - Power adapter not included.
  • - It supports ICR infrared filter.
  • - Images easily identified.
Products recommendaded to work with this item:
bullet camera 1/3 sony ccd 800tvl 2.812mm lens 42 leds 131ft ir ip66
+
dc12v 1a power adapter specially for security cameras
+
passive video balun, power and video
Price for all 3: $96.97
  • Metal IR Weatherproof Bullet high resolution camera with a 2.8-12mm varifocal lens, a viewing angle of 115° ~ 25° a 131ft range of infrared night vision and 42 pieces LEDs.
    Top of the line equipment regarding sensor and driver.

    This equipment is designed for outdoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Weatherproof: IP66.

    Hinged base included.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main Features:
    - Demist Functions. Automatic electrical level adjustment and contour correction functions. Gray scale up to 135 level standards.
    - Mist presence effectively solved.
    - Excellent image quality. Available especially under the condition of unpredictable illumination (such as building entrance, crossroad, etc.).
    - Images easily identified.
    - It supports ICR infrared filter to be auto-switch. Images turn from color to black automatically, and the camera monitors day and night.
    - AWB support: High color reproduction and real image.
    - BLC function support: suitable for the object monitoring under backlight environment.
    - AES function support: adapt to different monitoring environment.
    - AGC function support: adaptive brightness.
    - It uses advanced double loop of glass design for clearer images.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Weatherproof cameras in a year-round protection
    Our outdoor weatherproof cameras feature at least an IP66 weather rating. These outdoor cameras are built to keep out small particles such as dust and water, and are unaffected by a range of weather conditions including heavy rain and snow.
    Weatherproof cameras in a year-round protection
    Varifocal
    Varifocal
    Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Automatic Gain Control (AGC)
    Auto White Balance (AWB)
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Back Light Compensation (BLC)
    HD video
    HD video
    Large areas are covered by a single lens which straight-up great picture quality, design and features.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    True Day/Night for round-the-clock surveillance
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    Wide Dynamic Range (WDR)
    Security Cameras (Analogue Cameras) with WDR Function can treat different areas in the image individually. They can also apply separate brightness modifications within the same view. This function is ideal for are scenarios in which stark contrasts and differences in darkness and brightness within the same image view are expected.
    Wide Dynamic Range (WDR)
    Highlight Compensation (HLC)
    Highlight Compensation (HLC)
    Differently from BLC, stands for highlight compensation. Camera can detect the strong spots and then reduce the brightness of the strong spots to improve the overall images. This function is mainly designed so cameras capture vehicle plate license.
    Warranty: One (1) Year
  • Bullet camera 1/3 SONY CCD 800TVL 2.8-12mm lens 42 LEDs 131ft IR IP66
    General
    Brand LineMak
    Model LS-IPE40NT-SFA3Q
    Sensor
    Resolution NTSC: 976*494
    Sensor 1/3" Sony CCD Color (NTSC: ICX810AK)
    Effective pixels NTSC: 976*494
    Video
    Video output 1.0Vp-p, 75ohm (composite signal)
    Frequency NTSC: 36Mhz
    Lens
    Lens 2.8mm~12mm Varifocal / F1.2
    IR Range 131ft night vision
    LEDs 42pcs (5mm each)
    IR-CUT Filter Included
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 25° ~ 115°
    IR Power ON CDS Auto Control
    IR Status Under 10 Lux by CDS
    Security
    Motion detection zone 4 areas
    Environment
    Operation temperature -10°C ~ 50°C
    14ºF~122ºF
    Storage temperature -30°C ~ 60°C
    -22ºF~140ºF
    Weatherproof standard IP66 (protection against dust and strong water pressure)
    Working humidity 85% ~ 95% RH
    Power
    Power supply DC 12V
    Power consumption 400mA
    Appearance
    Color Gray
    Size 11.23(L) * 3.94(H) * 4.34(W) inches
    Weight 2.24 pounds
    Special function
    Back Light Compensation (BLC) Included
    Auto White Balance (AWB) Included
    Electronic shutter speed (AES) NTSC: 1/60s ~ 1/100,000s
    Auto Gain Control (AGC) Included
    Standard
    Scanning system 2:1 interlace
    Synchronizing system Internal
    S/N Ratio >48dB
    Gamma correction 0.45
  • Instrucción
    File Size: 511.34 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 463.05 Kb
    Languages: English
    File Type: PDF
