Kit 8 cameras, HDIS CMOS Sensor, 900TVL, H264/G711A, D1/CIF resolution
  • Kit 8 cameras, HDIS CMOS Sensor, 900TVL, H264/G711A, D1/CIF resolution - Image 1
  • Kit 8 cameras, HDIS CMOS Sensor, 900TVL, H264/G711A, D1/CIF resolution - Image 2
  • Kit 8 cameras, HDIS CMOS Sensor, 900TVL, H264/G711A, D1/CIF resolution - Image 3
  • Kit 8 cameras, HDIS CMOS Sensor, 900TVL, H264/G711A, D1/CIF resolution - Image 4
  • Kit 8 cameras, HDIS CMOS Sensor, 900TVL, H264/G711A, D1/CIF resolution - Image 5
  • Kit 8 cameras, HDIS CMOS Sensor, 900TVL, H264/G711A, D1/CIF resolution - Image 6
  • - Kit of 8 analog cameras, 900TVL.
  • - D1/CIF resolutions.
  • - 3.6mm Board lens. 24pcs LED. 65ft IR distance.
  • - Recording and playback are available in mobile phone.
  • - Plug and Play (PnP) function.
  • - H.264 main profile compression algorithm ideal for standalone DVR.
  • Kit of 8 cameras ideal for monitoring homes, offices or local chambers, is easy to install and can see the images captured by the cameras via internet.

    4 cameras contain a sensor 1/3.5" HDIS Color CMOS that provides a resolution of 900TVL and one 3.6mm lens, his crown of 24 LEDs 5mm each allows a night vision of 65 feets, it has a IP66 weatherproof resistance, these cameras are designed to be installed outdoors. The other 4 cameras contain a sensor 1/3.5" HDIS Color CMOS that provides a resolution of 900TVL and one 3.6mm board lens, his crown of 24 LEDs 5mm each, allows a night vision of 65 feets, these cameras are designed to be installed indoors.

    The DVR is designed for the connection of 8 incoming channel and 3 output channels (BNC, VGA and HDMI), recorded in H.264 format in real time, has a compact size to be placed anywhere, has two USB ports 2.0 and a network port RJ-45, encode 100/120fps at D1 format, playing from 1 to 4 channels simultaneously supports remote access.

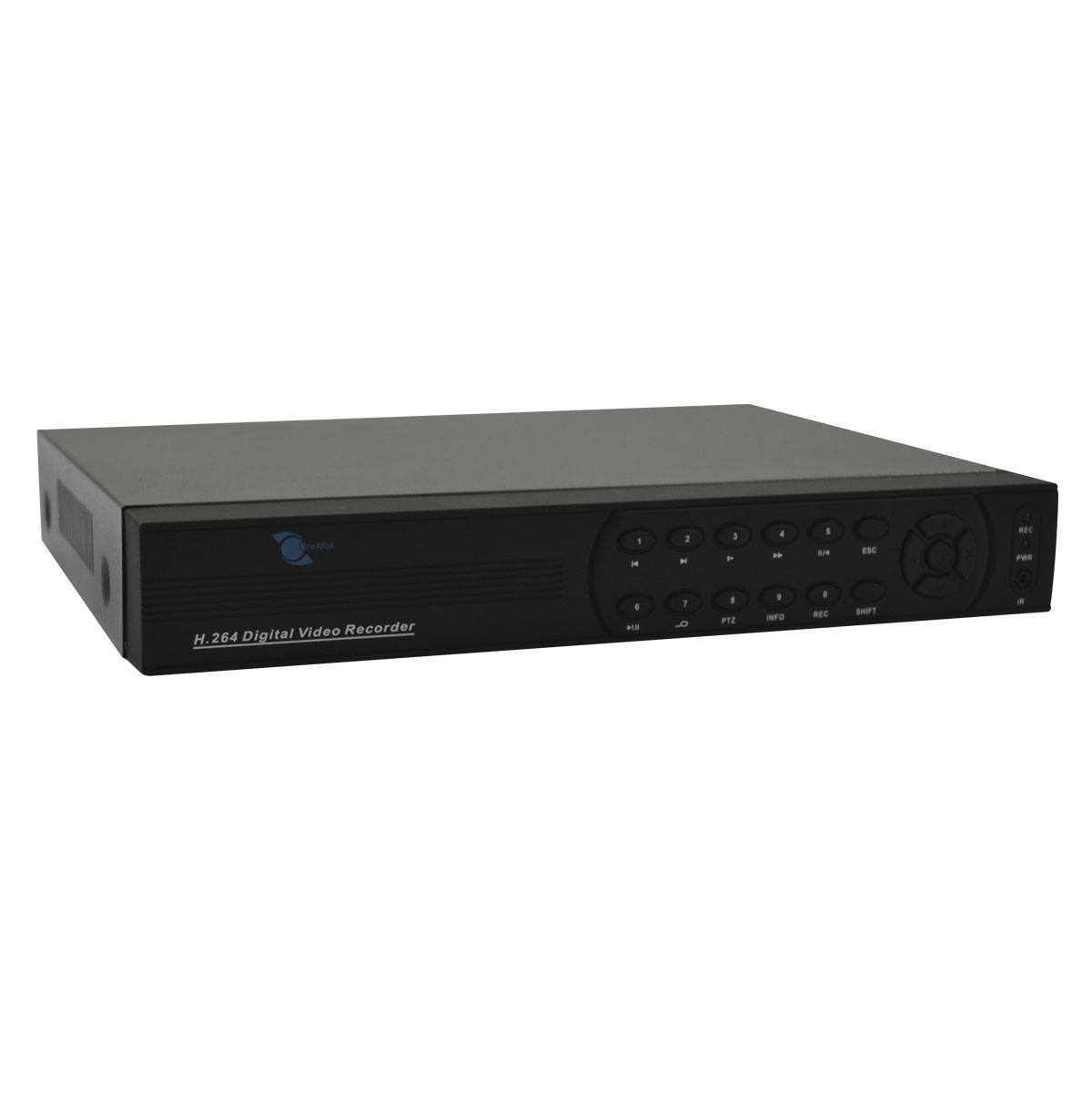

    Digital Video Recorder (DVR) LS-SEDVR6308EA

    This DVR (Digital Video Recorder) is an easy to use device with simultaneous BNC, VGA and HDMI outputs. Monitor your cameras on the Internet everywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time.

    This video surveillance equipment can record images registered by their cameras and is very easy to use.

    Multiple recording modes: Manual, alarm, motion detection and continuous.
    Control method: USB mouse.
    Compatible with: WIN98 / WIN2000 / WIN ME / WIN XP / VISTA WIN / WIN SEVEN.

    Main features:
    - Intelligence analysis system: Intelligent analyze function not only including the core function of touch line (unidirectional and reversible picket line) and perimeter (to invade or leave picket area) but also abnormal alarm linkage to make monitoring easier and easier.
    - HD DVR three in one: all functions of DVR / HVR / NVR combined, multi-mode input, 8ch 960H for encode and decode supported, analog network HD video hybrid input supported, full HD network video input support.
    - Step on the Internet: It can penetrate through all kinds of network via cloud service, to do remote control easily and conveniently avoiding complicated setting.
    - Ideal compression algorithm: Compression algorithm upgraded to H.264 main profile, the advanced space-time filter technique makes the code stream lowered at least 30%.
    - Playback quality: real-time recording synchronously (8ch 960H real-time encode), real-time multi-channel playback synchronously (8ch 960H real-time decode).
    - Main and sub stream: Main stream and extra steam encode synchronously supported. Main stream is for local storage to maintain the image quality, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.
    - Mobile monitor: all kinds of mobile monitor (iPhone, Windows Mobile, BlackBerry, Symbian and Android) supported.
    - Display: TV, VGA and HDMI output synchronously supported.
    - Operation interface: Similar WINDOWS operating style, powerful right button menu function of mouse. Easy to use.
    - Network: Powerful net service supported (DHCP / PPPOE / FTP / DNS / DDNS / NTP / UPNP / EMAIL / IP authority / IP search / alarm center, etc.), complete enclosure (WEB / CMS / SDK) to easily achieve interconnection.
    - Browsers: Multi-browser (IE, Chrome, Firefox, Safari).
    - Remote access: Self enclosed with DNS function (ARSP), one-key to enable remote control, and DNS of 3322 / dyndns / oray / myq-see, etc. supported.
    - Device port: 1 SATA port, 1HDD of 2T, 2 USB2.0 port supported for operation of mouse control, back up, burning and upgrade.
    - Differentiation: change boot screen freely, more than 20 different languages, more than 10 kinds of GUI interface, ten kinds of remote controller, and dozens of front panel board for selection supported to make different products.
    - Others: Completed protective circuit, unique treble watchdog function. It makes device never crash; special black-box technology to monitor the device process. It greatly reduces the maintenance cost.
    - 20 different languages (English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish, Vietnamese, Ukrainian, Romanian, Brazilian, Korean).

    Hard drive and remote control not included.
    This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

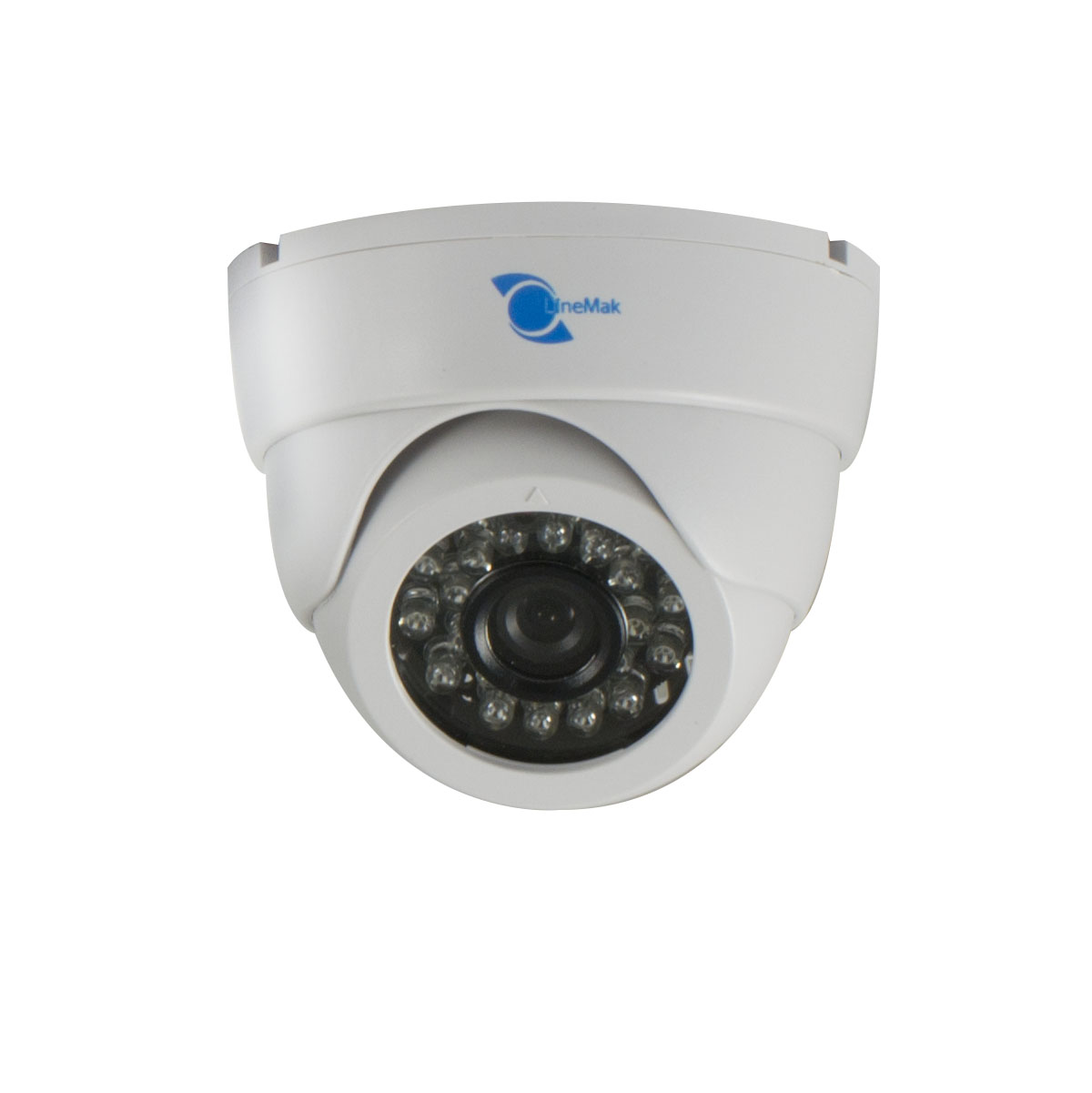

    Indoor camera LS-TC4052CB06

    Dome camera with 3.6mm board lens and a viewing angle of 95° which has a 65ft range of infrared night vision, and a 24 pcs LEDs 5mm each. Top of the line equipment regarding sensor and driver technology.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size. Due to its slightly tilted crystal, the IR is not reflected on the surface.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and video recorders (DVR, NVR, HVR). See this camera online through any of our recording systems.

    Power adapter not included:
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

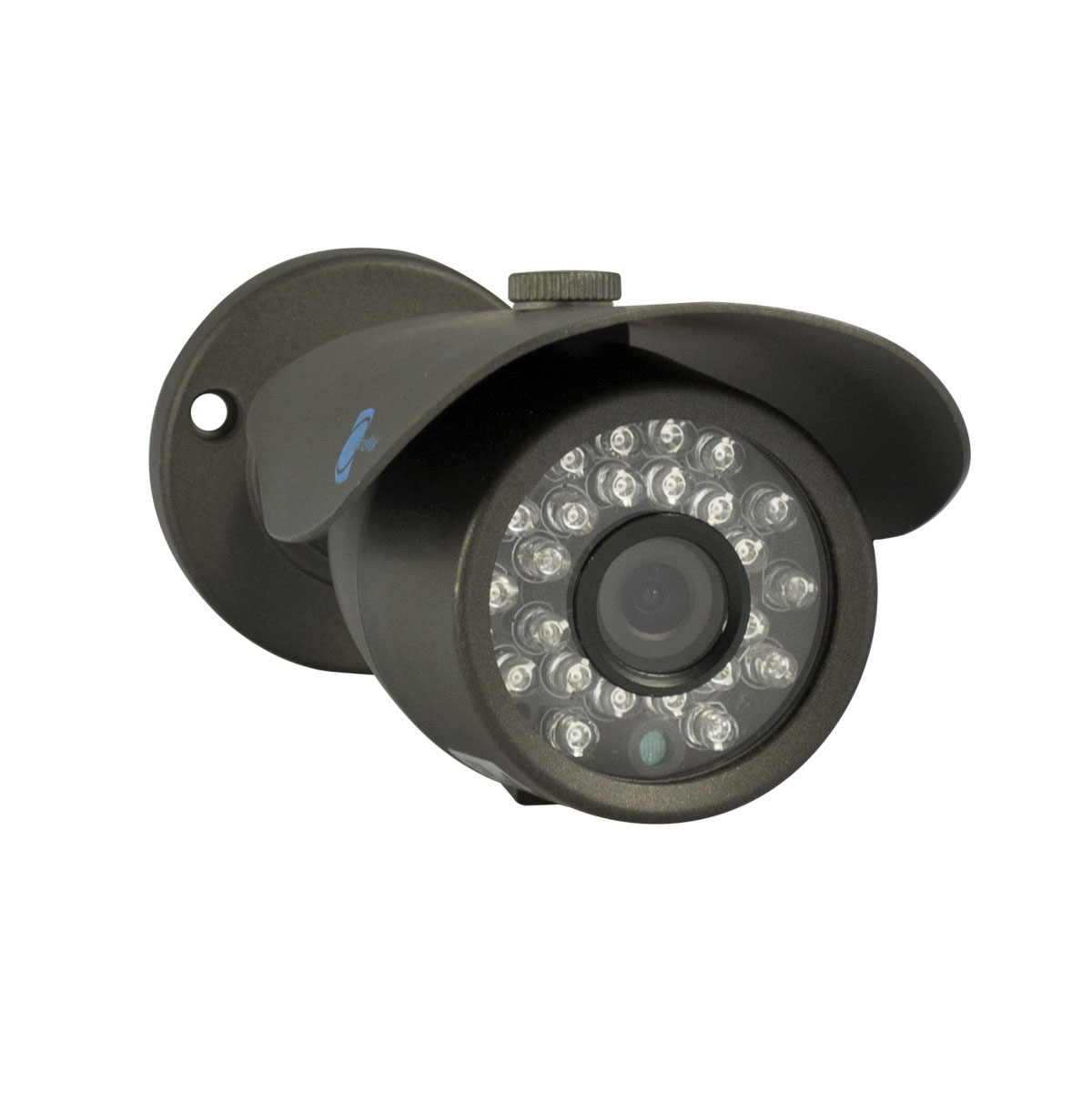

    Outdoor camera LS-TC3066CB06

    IR Waterproof high resolution Bullet camera with a 1/3" HDIS color CMOS Sensor and 900TVL of resolution which has a 3.6mm lens, a 92° viewing angle, a 65ft range of infrared night vision, and 24pcs 5mm LEDs each. Available in gray. Latest technology of sensor and driver adopted.

    This equipment designed for outdoors can be easily installed anywhere. Resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no lighting.

    Using servers and digital video recorders for good results in image quality is recommended. You can see this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

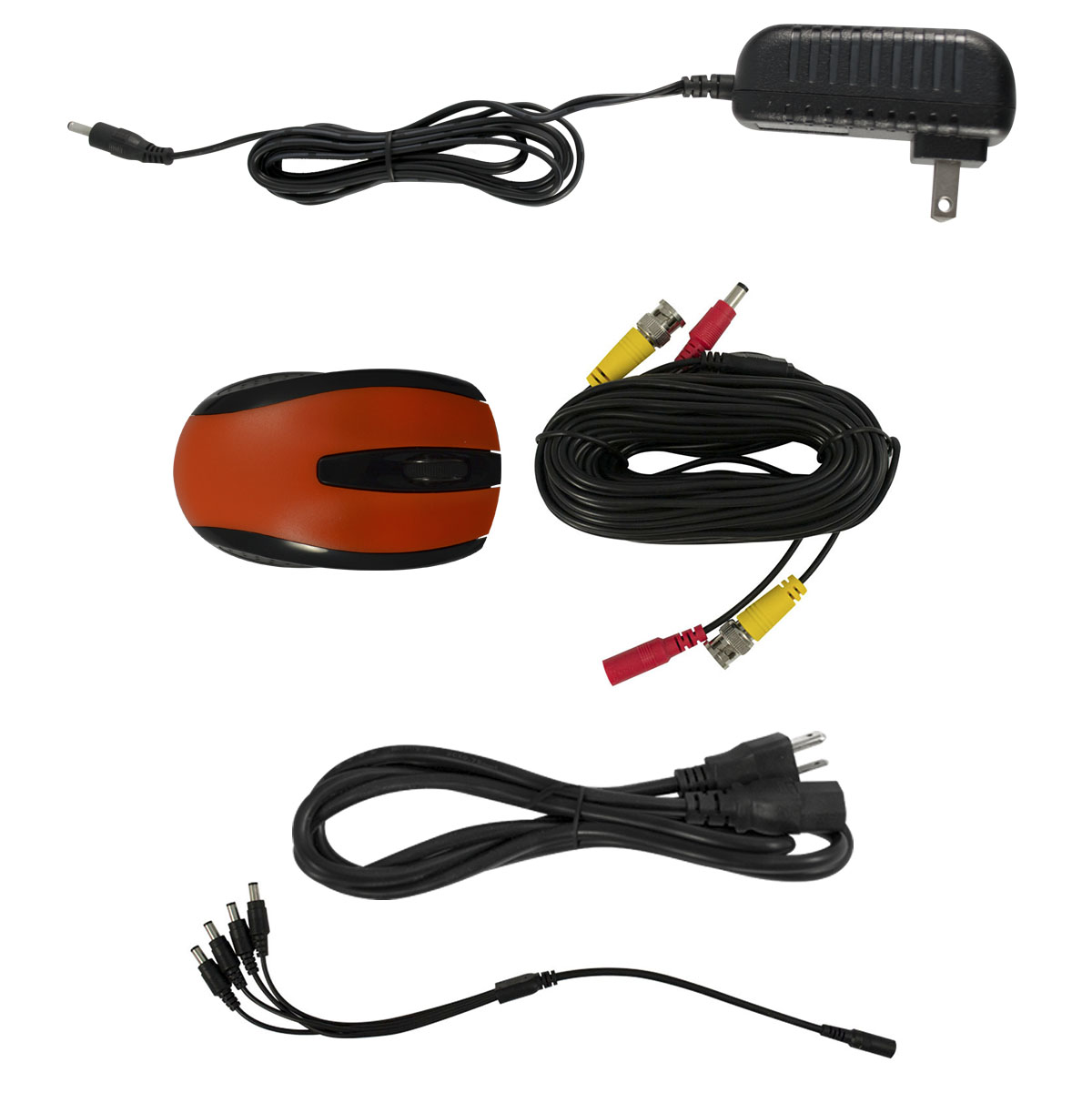

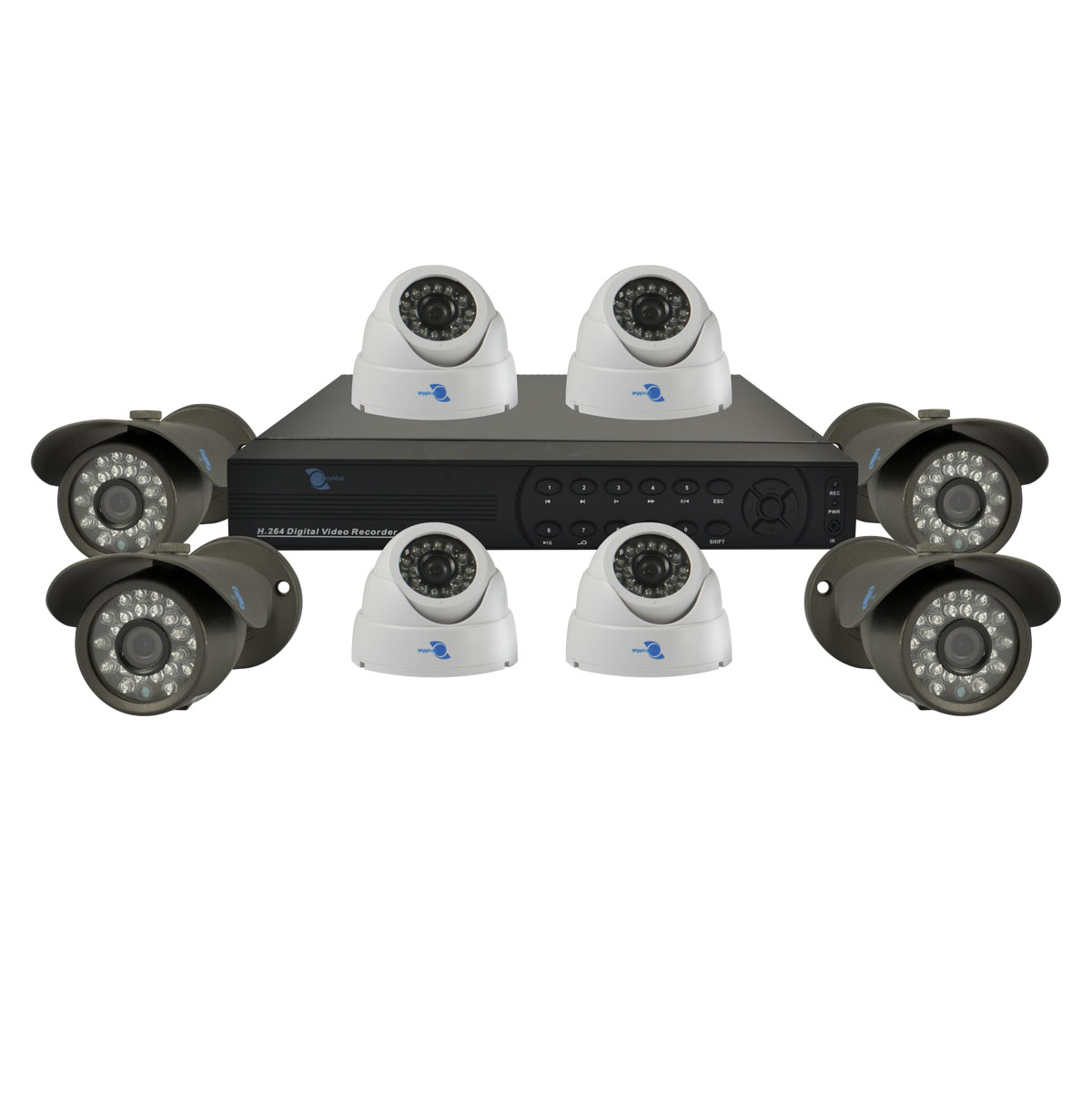

    Package contents:
    - 1 Digital Video Recorder (LS-SEDVR6308EA).
    - 4 Dome cameras (LS-TC4052CB06).
    - 4 Bullet cameras (LS-TC3066CB06).
    - 2 Power supply.
    - 8 Video Cable and DC Cable 65ft each.
    - 1 4-Way power cable spliter.
    - 1 5-Way power cable spliter.
    - 1 Cable BNC (F) to RCA (M), 5ft.
    - 1 Mouse (wireless).
    - Manual.
    - Software.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Weatherproof cameras in a year-round protection
    Our outdoor weatherproof cameras feature at least an IP66 weather rating. These outdoor cameras are built to keep out small particles such as dust and water, and are unaffected by a range of weather conditions including heavy rain and snow.
    Weatherproof cameras in a year-round protection
    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    HDMI delivers enhanced image clarity
    HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.
    HDMI delivers enhanced image clarity
    Keep everything under watch with multiple recording modes
    Keep everything under watch with multiple recording modes
    Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.
    Accurate alarm recording allows you to cover the whole event
    This feature works with the motion detection capability of the DVR or alarm contacts attached to a door or window. When an incident is detected, the DVR records a pre-set amount of time before and after the event to the hard drive. This enables you to see what happened before and after motion was detected and view additional information about the circumstances leading up to and after it.
    Accurate alarm recording allows you to cover the whole event
    Remote setup to access the DVR screen setting
    Remote setup to access the DVR screen setting
    DVR settings adjustment such as remote firmware upgrade, email notification, recording resolution, and motion recording. All DVR settings in the Display, Record, Device, Storage, System, Security Network and Upgrade screens are accessible remotely, for easy adjustment of related DVR functions.
    Motion detection
    Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.
    Motion detection
    Backup for saving critical video evidence
    Backup for saving critical video evidence
    The recorder allows still images and recorded video to be offloaded via one or more of these options for quick and easy backup of your critical video evidence: DVD, USB drive or network.
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    Monitoring 3G
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Auto White Balance (AWB)
    Remote monitoring Surveillance
    Remote monitoring Surveillance
    Rely on our current and advanced technology by using any top-of-line wireless sensing device for remotely monitoring your goods or property from everywhere, every time. Be able to manipulate your security system through a simple click and have it all watched like you were nearby.
    Save money with no contracts and no monthly fees
    Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.
    Save money with no contracts and no monthly fees
    Warranty: One (1) Year
  • 8 Channel DVR, H264/G711A, VGA/BNC/HDMI output, D1/CF Resolution.
    General
    Brand LineMak
    Model LS-SEDVR6308EA
    System
    Main processor Technical grade embedded microprocessor HI 3520A
    Operating system Embedded Linux
    System resources Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB backup
    Display
    Display area 1/4/9
    Graphic user interface (GUI) 16 bits real color GUI interface support, mouse operation
    Video
    Resolution 1080p 720p D1, HD1, CIF
    Video format PAL/NTSC
    Compression format H.264 high profile
    Display quality Monitor: D1, VGA, HDMI: High definition (support 1920*1080, 1280*720, 1440*900, 1280*1024, 1024*768, 800*600)
    Encode capacity 8-Ch 960H real-time
    Decode capacity 8-Ch 960H real-time
    Multi-mode input Local analogue input: 8-Ch D1
    Local analogue network digital input: 2-Ch D1 (1*1080p 1*720p)
    Network digital input: 8-Ch 960h, 4-Ch 720p, 2-Ch 1080p, 1-Ch 720p*7-Ch D1, 1-Ch 1080p 1-Ch 720p 2-Ch D1
    Frame rate PAL: 50fps
    NTSC: 60fps
    Audio
    Audio compression G.711A
    Bidirectional talk Yes
    Recording & Playback
    Recording mode Manual, alarm, motion detection, timing
    Local playback 1-8 playback synchronously
    Search mode Time, date, event, channel search
    Storage & Backup
    Space ocupation Video: CIF 4-5G/day channel, D1 16-20Gday channel
    Audio: 691.2M/day channel
    Recording storage Local hard disk and network
    Backup mode Network backup, USB portable HDD, USB inprint, SATA inprint

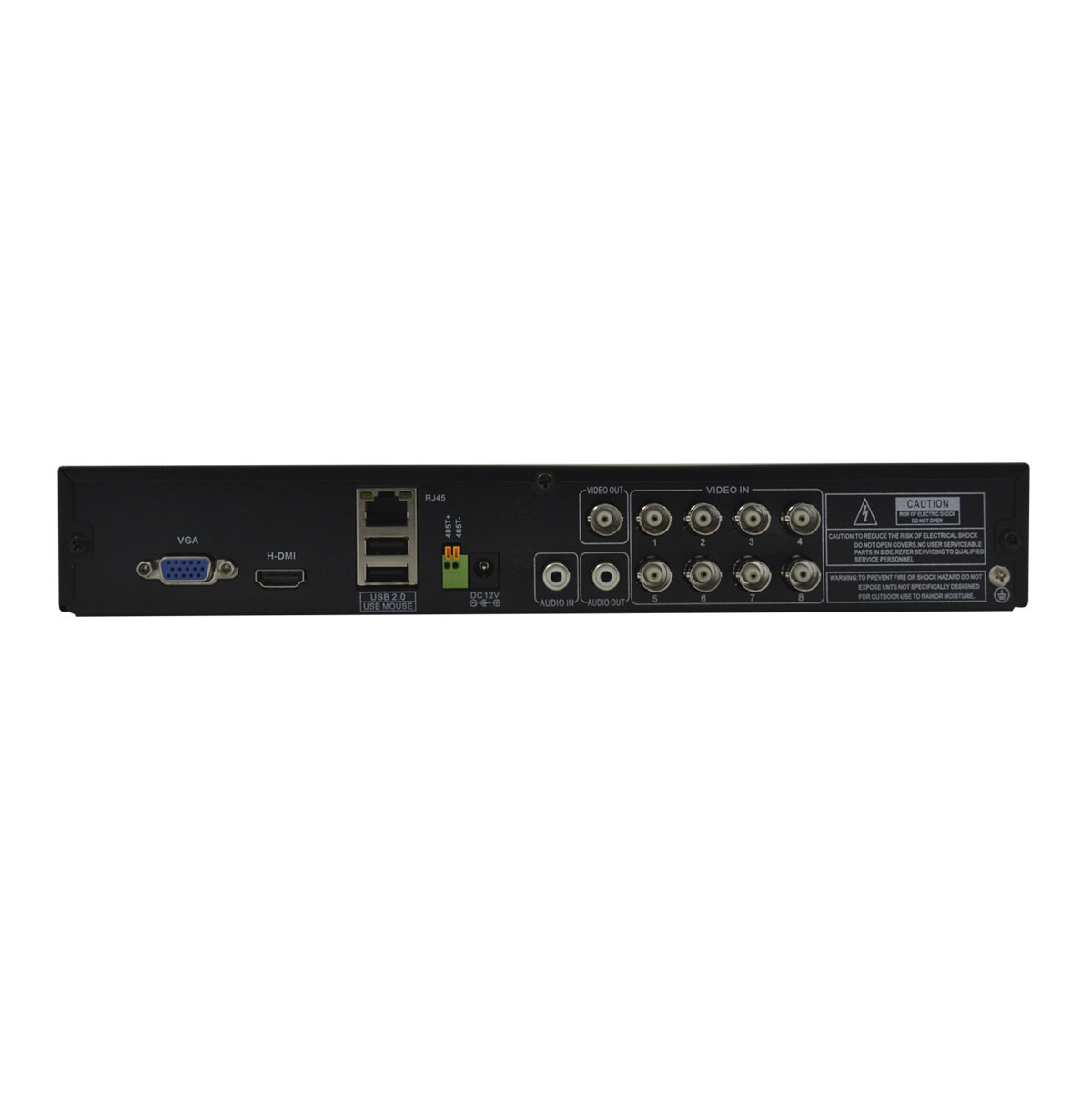

    Interface
    Video input/output Input: 8-Ch CVBS/BNC
    Output: 1-Ch CVSB/BNC (1.0Vp-p, 45Ohm), 1.Ch VGA, 1-Ch HDMI
    Audio input/output Input: 1-Ch
    Output: 1-Ch
    PTZ Control 1 RS485 port, 1RS232 port (support multi kinds of PTZ control)
    USB Port 2 2.0 Ports
    HDD Port 1 SATA (Max 2 TB)
    Wireless port 3G, WiFi (extension via USB port)
    Network interface 1 RJ-45 (10M-100M)
    Security
    Motion detection zone Zones: 392 (16/12)
    Environment
    Operation temperature 0ºC ~ 55ºC
    32ºF ~ 131ºF
    Working humidity 10% ~ 90%
    Atmosphere pressure 86kpa ~ 106kpa
    Power
    Power supply 12V-2A
    Power consumption <15W (Hard disk not included)
    Appearance
    Color Black
    Accessories
    Mouse Yes
    Dome Camera, HDIS CMOS Sensor, 900TVL, 3.6mm lens, 24 LEDs, 65ft IR
    General
    Brand LineMak
    Model LS-TC4052CB06
    Sensor
    Resolution 900TVL
    Sensor 1/3.5" HDIS Color CMOS
    Effective pixels PAL: 752*582
    NTSC: 768*794
    Video
    Video format PAL/NTSC
    Video output BNC (1.0Vp-p, 75Ohm)
    Lens
    Lens Board lens 3.6mm
    IR Range 65ft IR distance
    LEDs 24pcs (5mm each)
    Minimum illumination 0 Lux (when LED on)
    Viewing angle 95º
    Environment
    Operation temperature -10ºC ~ 50ºC
    14ºF ~ 122ºF
    Power
    Power supply DC12V
    Power consumption 300mA
    Appearance
    Color White
    Special function
    Auto White Balance (AWB) No
    Electronic shutter speed (AES) 1/50 ~ 1/100000
    Auto Gain Control (AGC) No
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Mirror No
    Adaptive Tone Reproduction (ATR) No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Synchronizing system Internal
    S/N Ratio >50dB
    Bullet camera, HDIS CMOS Sensor, 900TVL, 3.6mm lens, 24 LEDs, 65ft IR
    General
    Brand LineMak
    Model LS-TC3066CB06
    Sensor
    Resolution 900TVL
    Sensor 1/3.5? HDIS Color CMOS
    Video
    Video format PAL/NTSC
    Video output BNC (1.0Vp-p, 75Ohm), Composite output
    Lens
    Lens 3.6mm
    IR Range 65ft night vision
    LEDs 24pcs (5mm each)
    Minimum illumination 0 Lux (when IR On)
    Viewing angle 95º
    Environment
    Operation temperature -20ºC ~50ºC
    -4ºF ~ 122ºF
    Weatherproof standard IP66 (dustproof and waterproof)
    Power
    Power supply DC12V /- 1V
    Power consumption 500mA
    Appearance
    Color Grey
    Special function
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) 1/50 ~ 1/120000
    Auto Gain Control (AGC) No
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Mirror No
    Adaptive Tone Reproduction (ATR) No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Scanning system 2:1 interlace
    Synchronizing system Internal
    S/N Ratio >50dB
    Gamma correction 0.45
