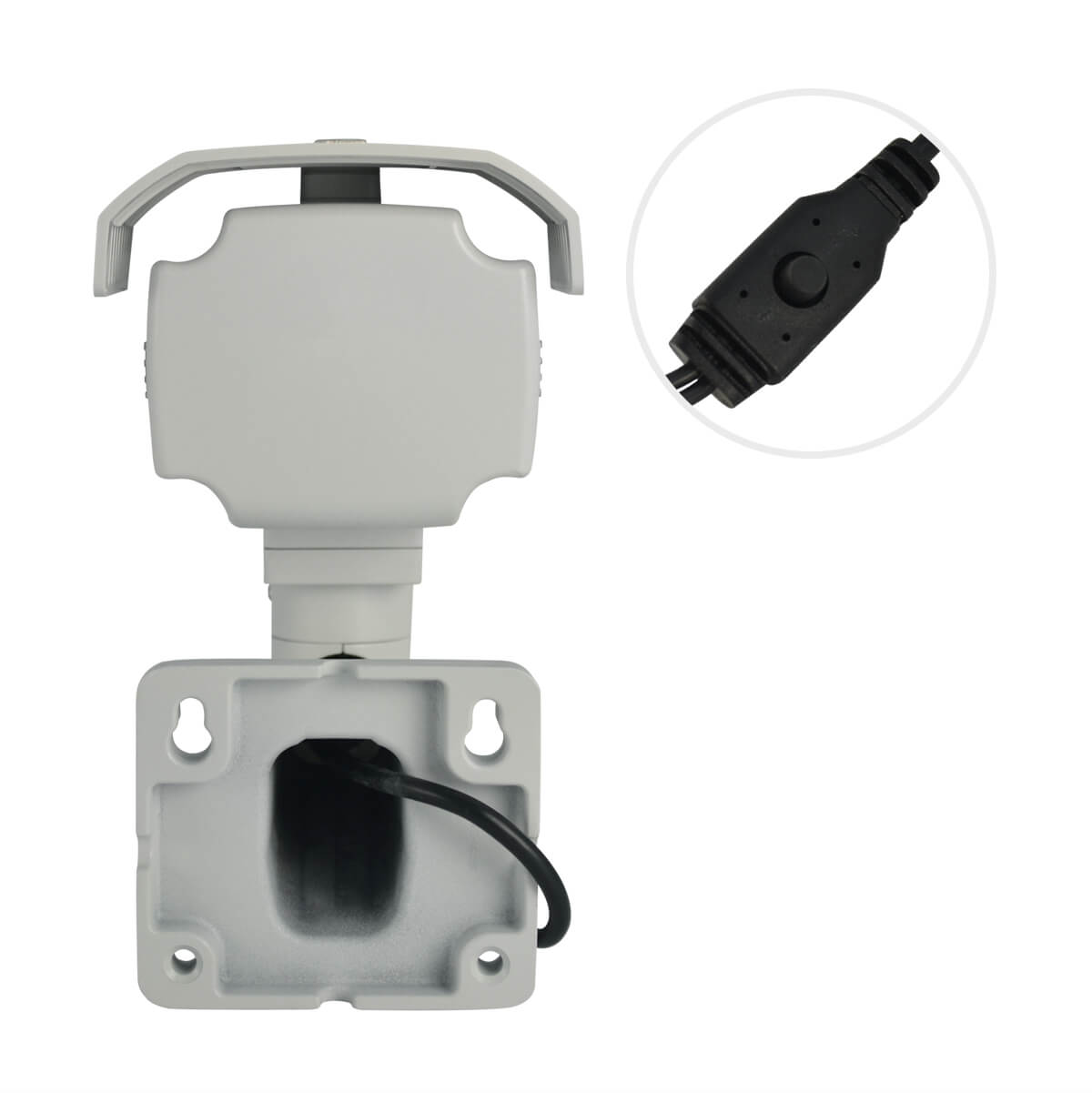

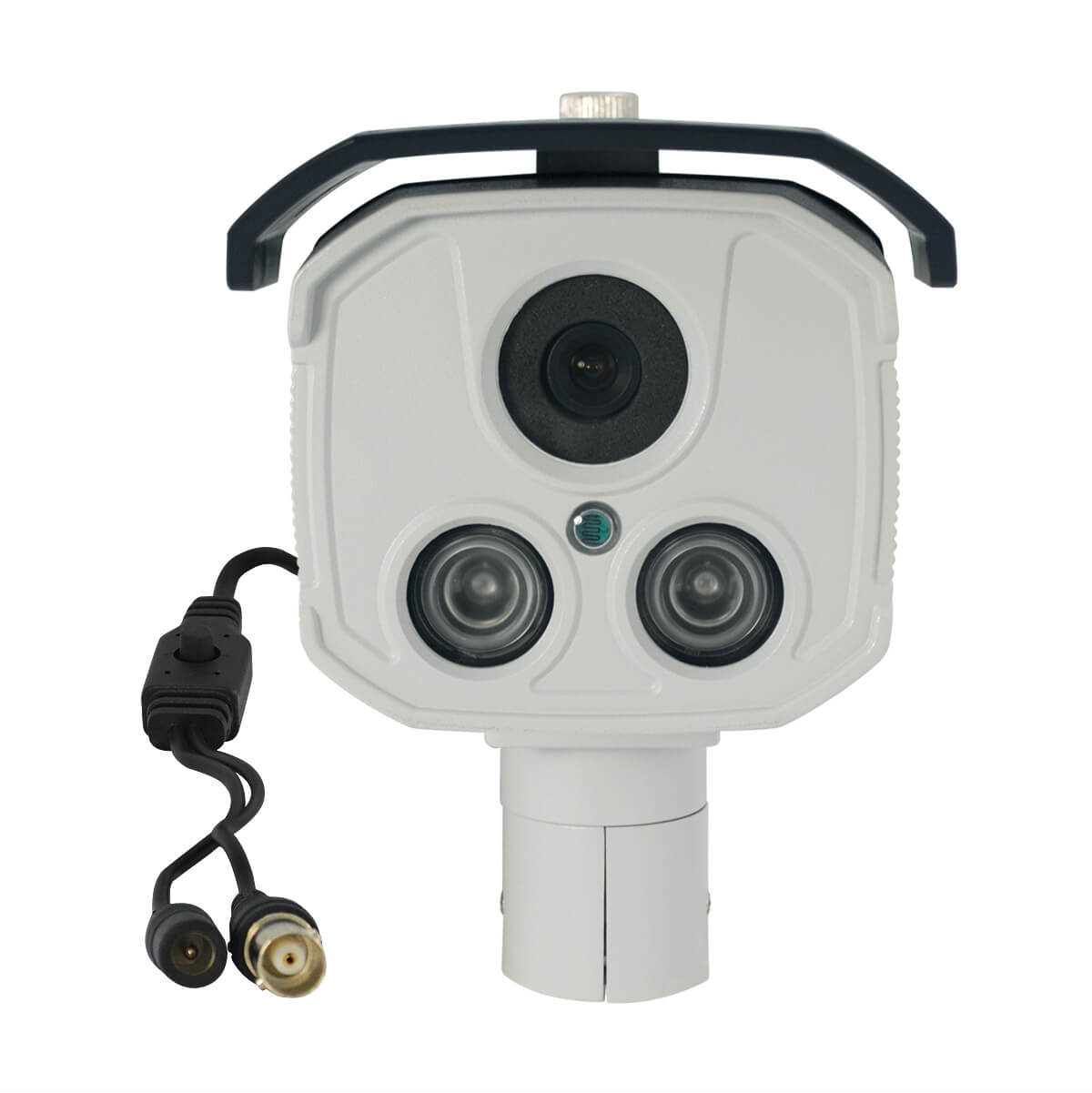

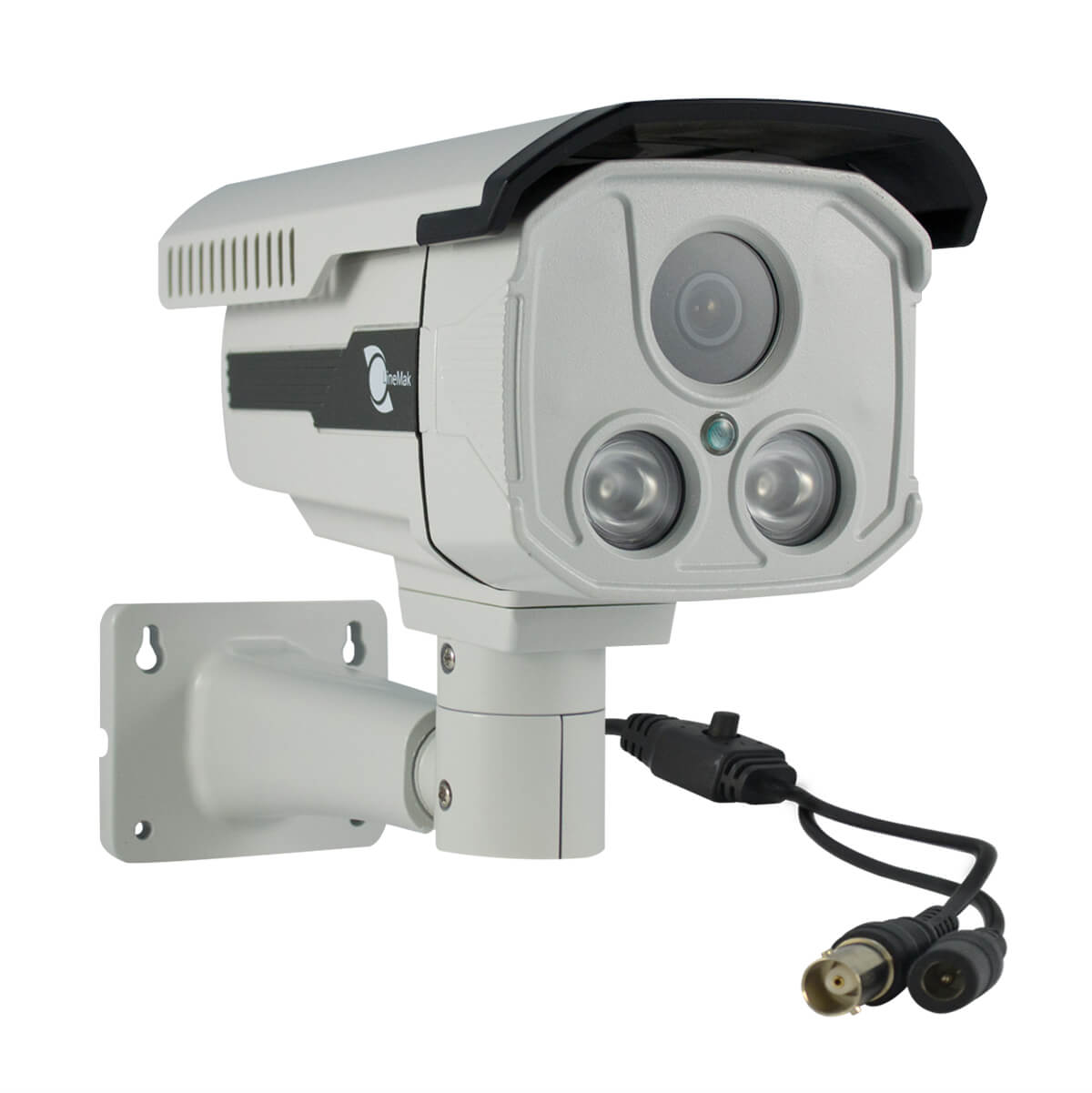

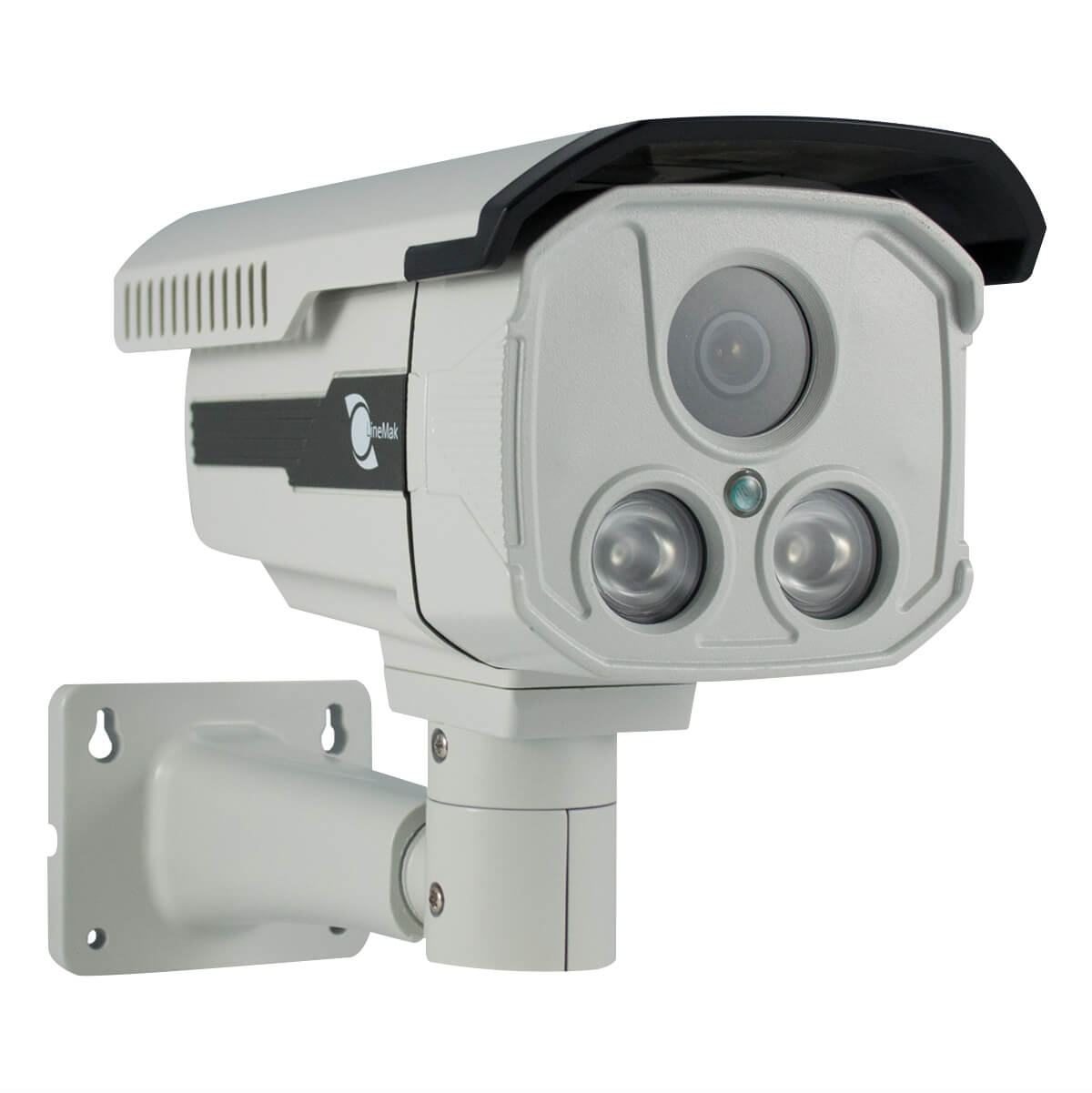

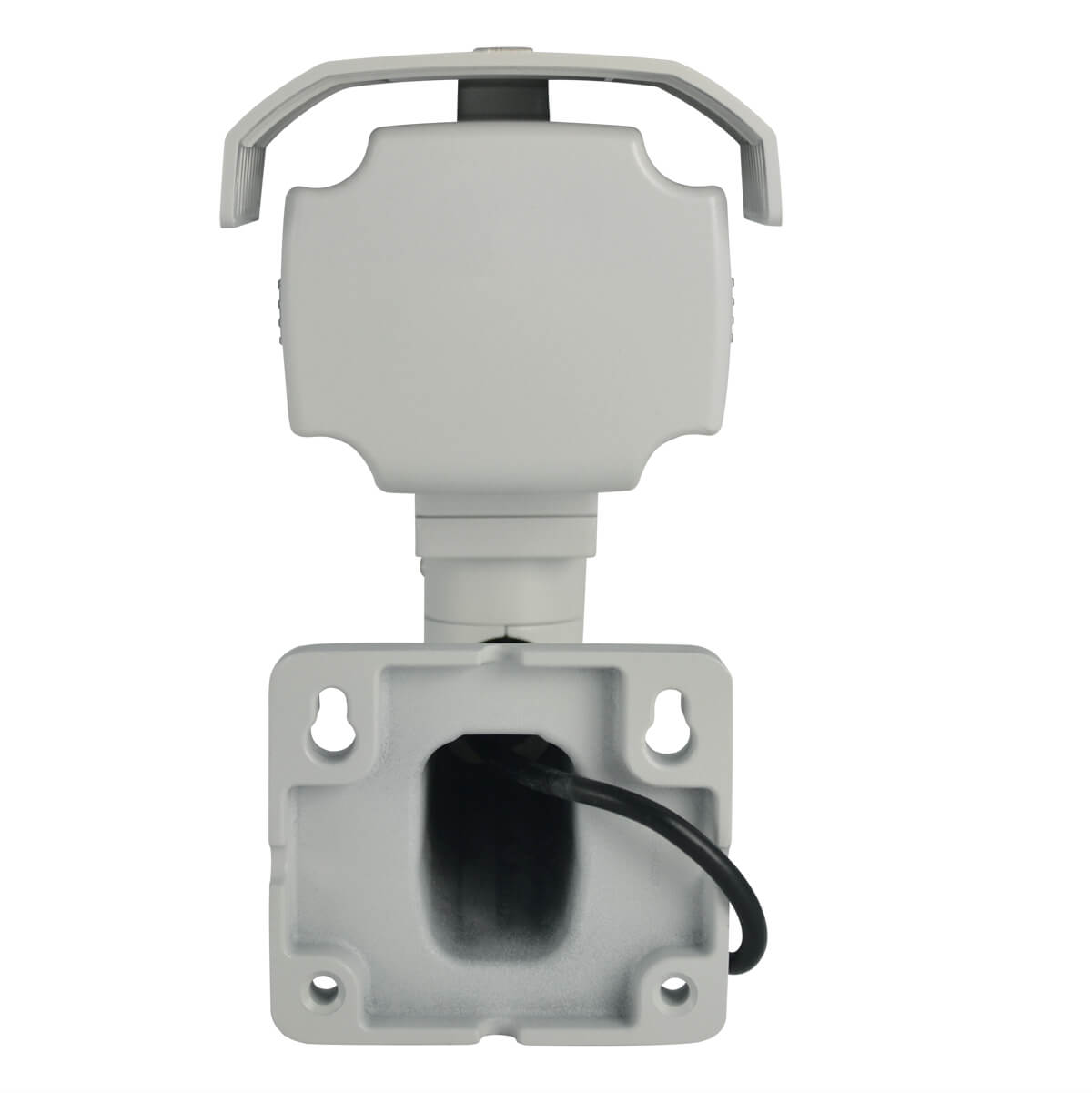

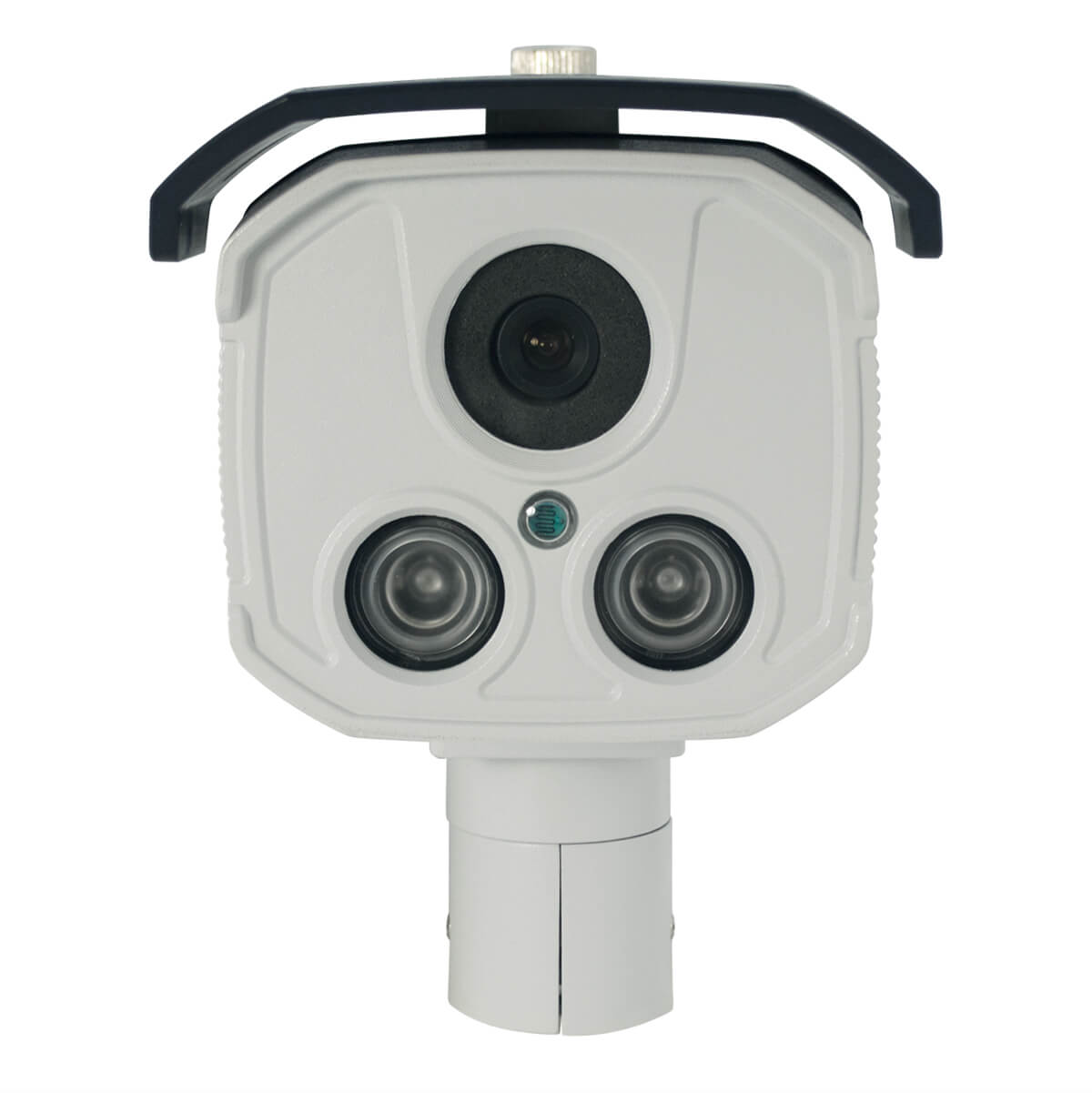

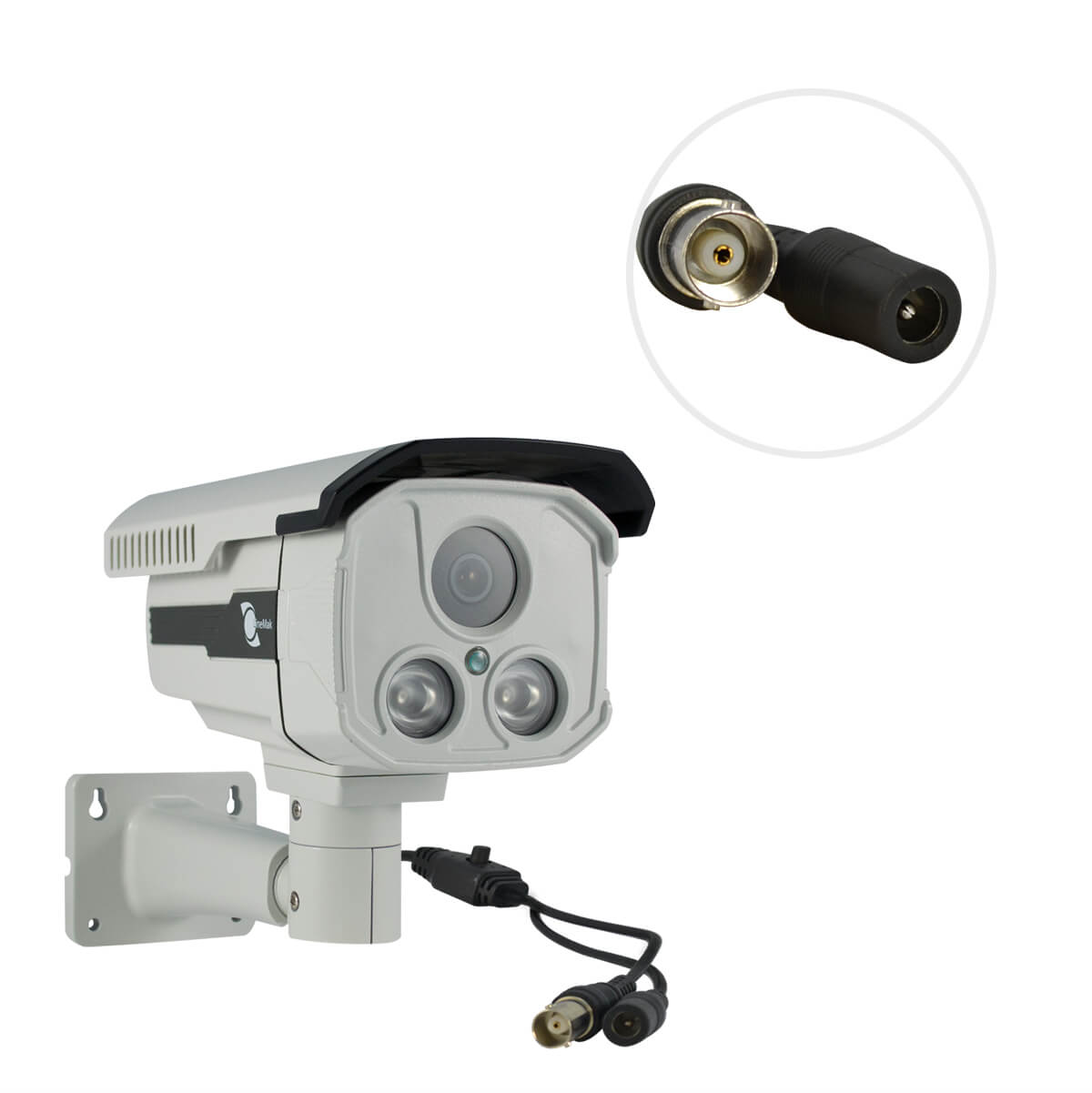

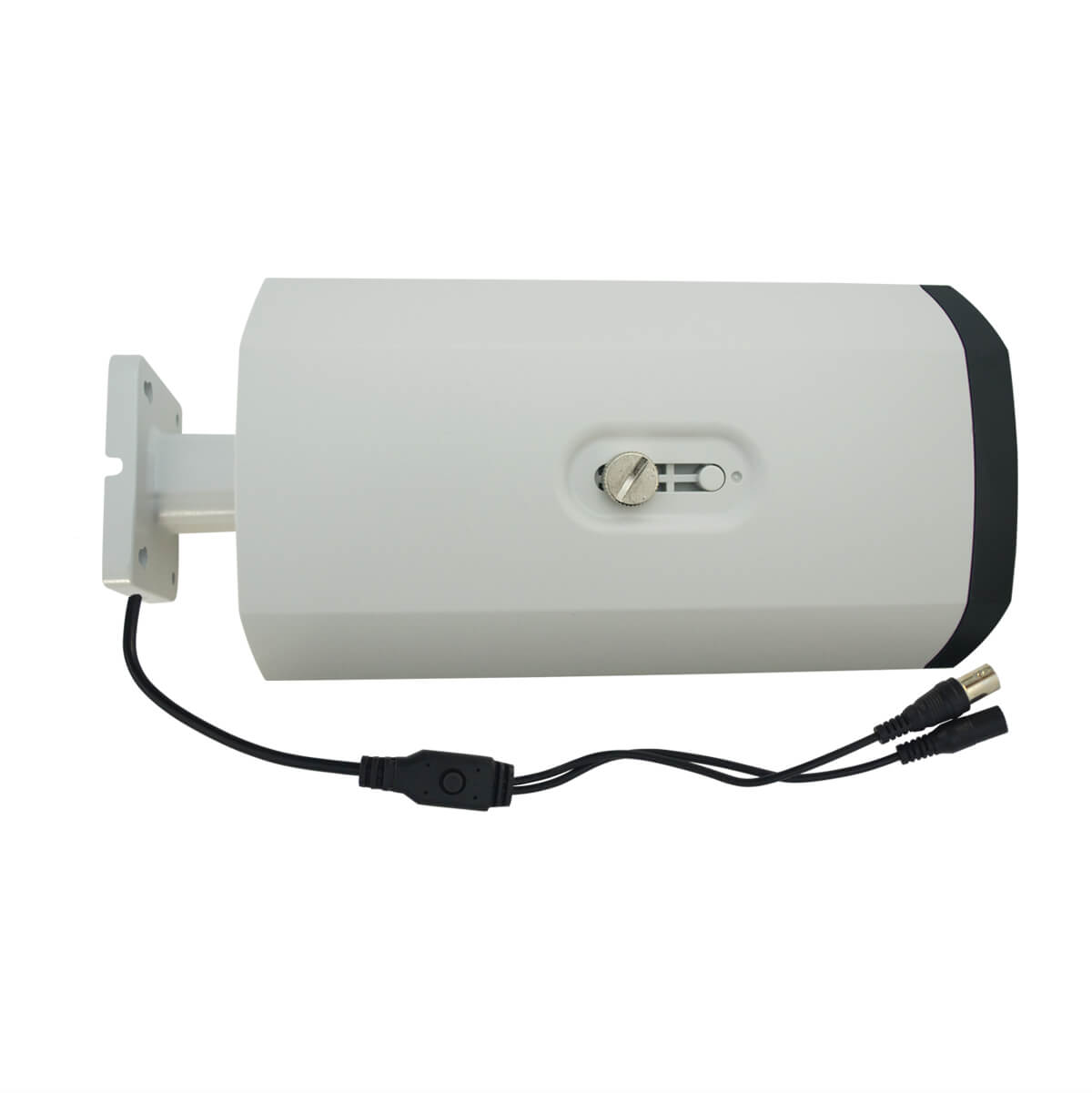

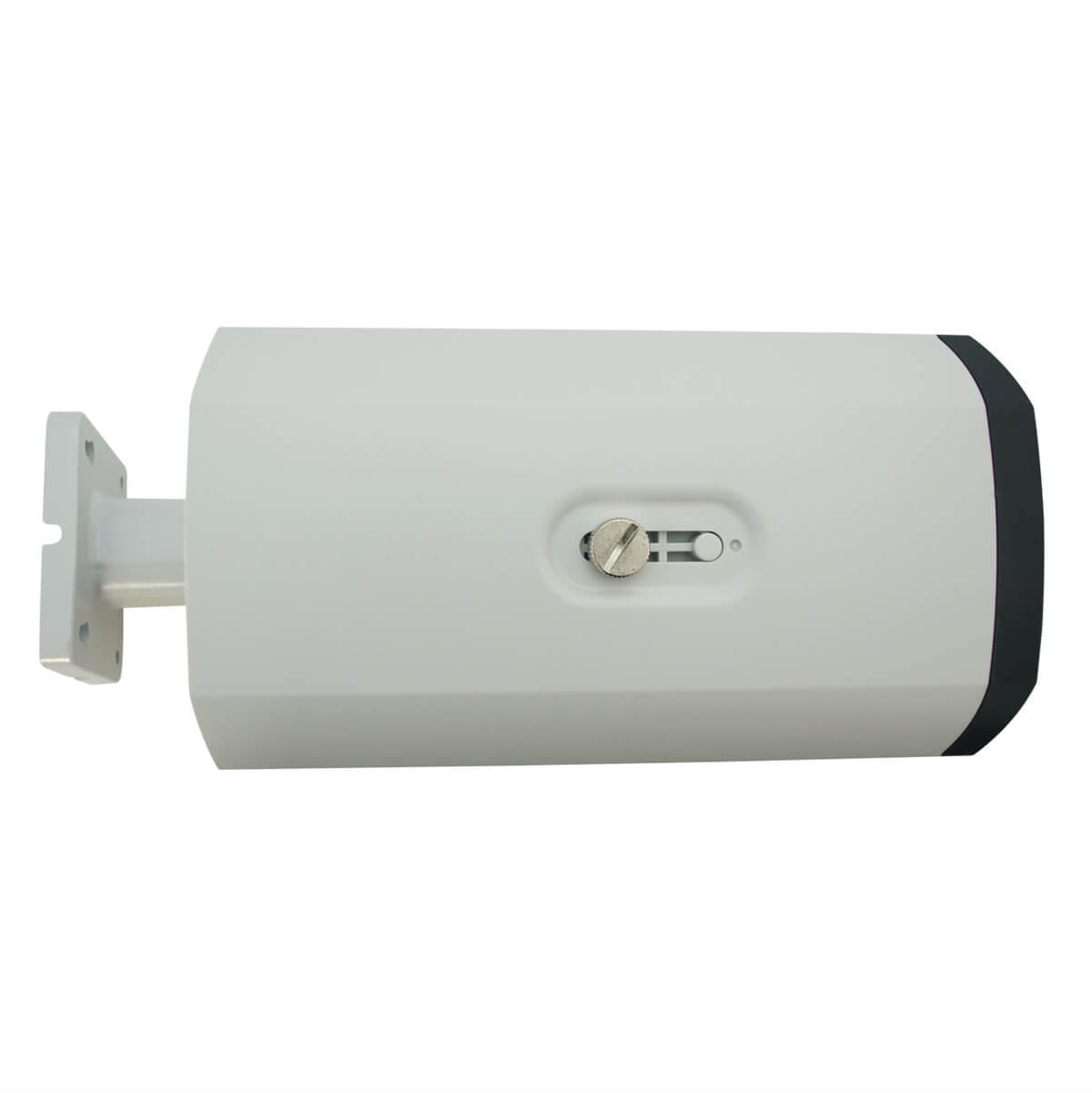

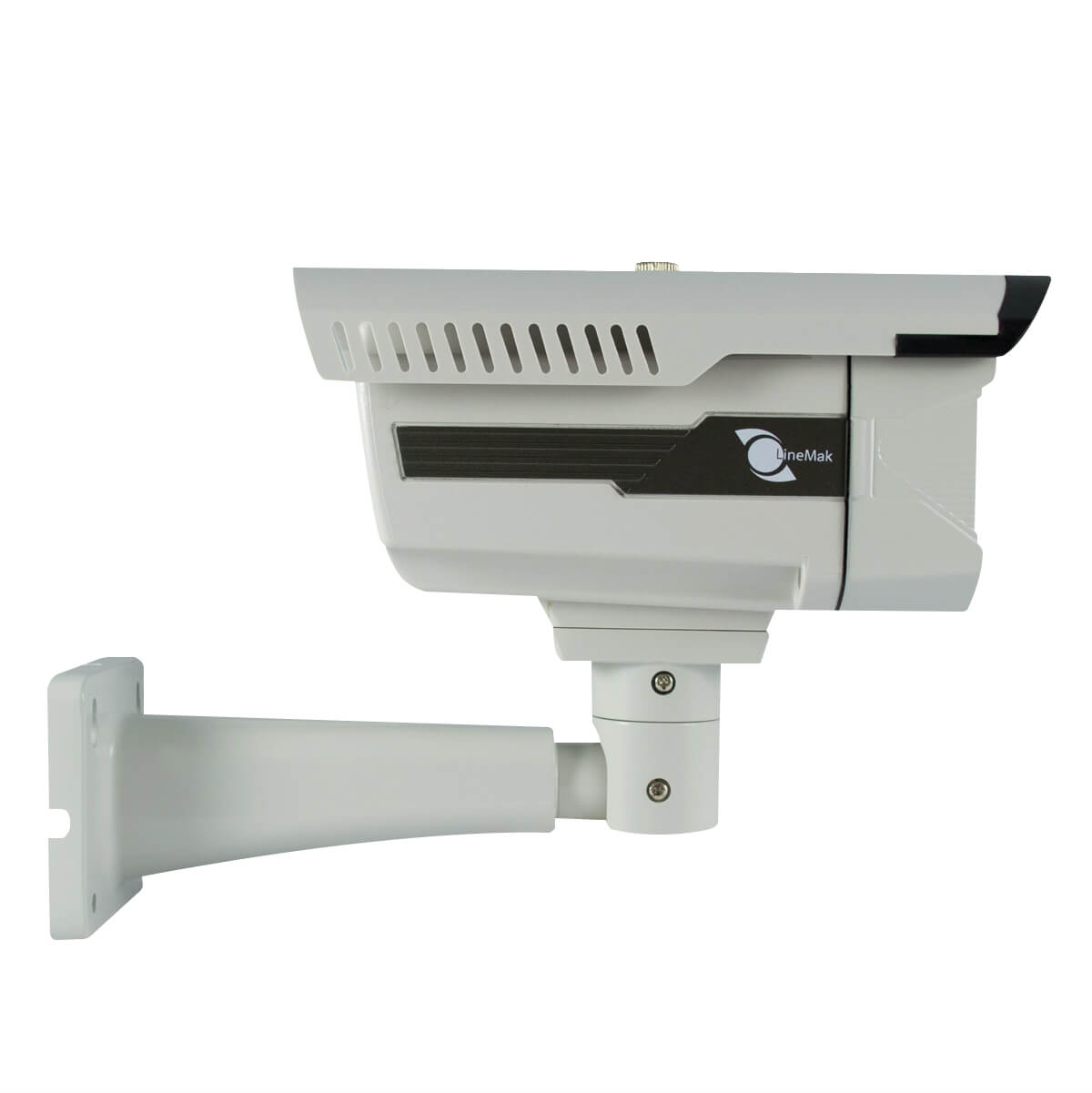

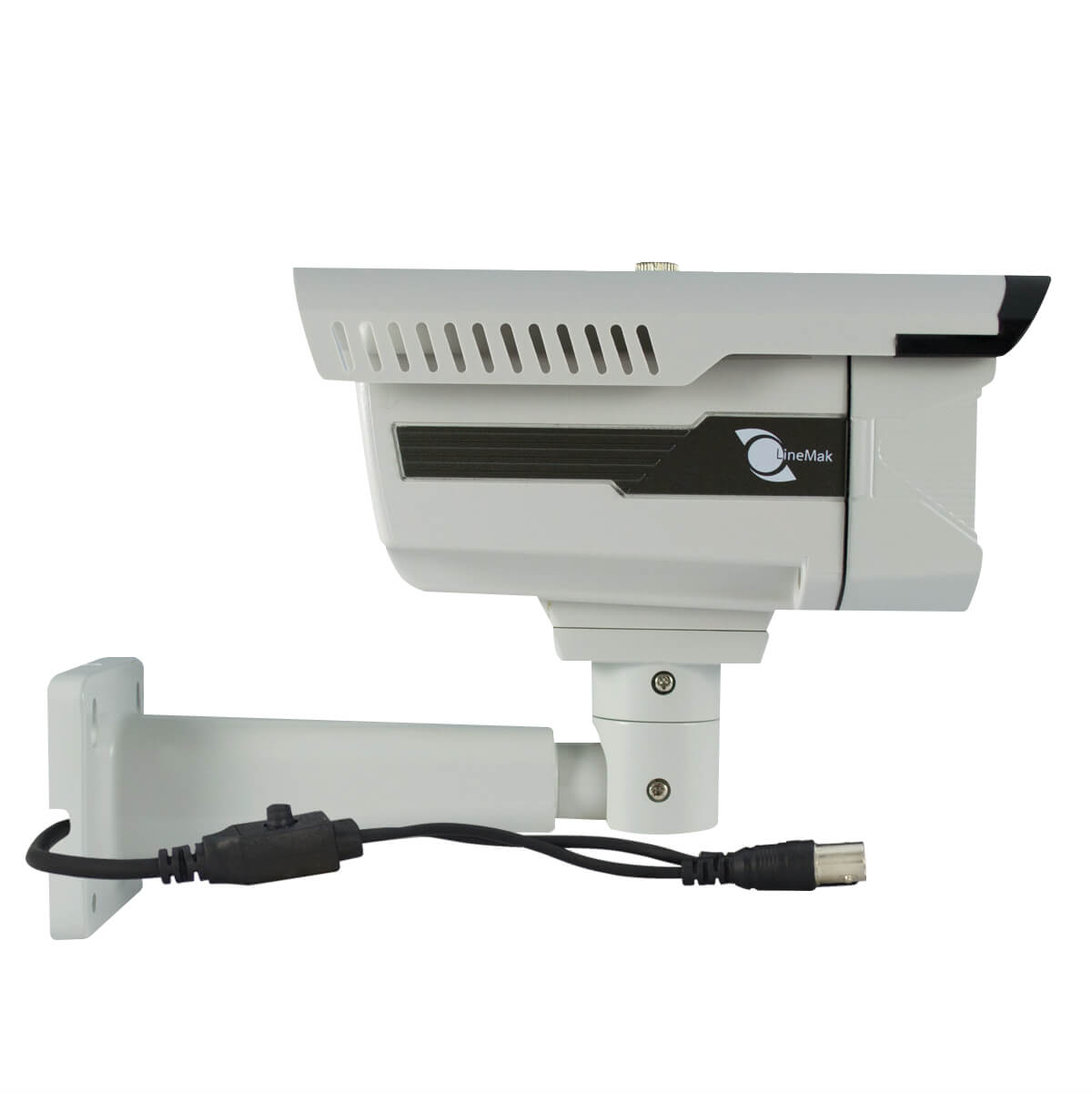

High-resolution IR waterproof bullet metal camera, with a 6mm lens and a viewing angle of 53? has 164ft of range infrared night vision, and 2 LEDs array.
Top of the line equipment regarding sensor and driver.
This equipment is designed for outdoors usage and can be easily installed anywhere. Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.
For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.
Main features:
- Demist functions. Automatic electrical level adjustment and contour correction.
- Gray scale up to 135 level standards.
- Mist presence effectively solved.
- Excellent image quality. Available especially under the condition of unpredictable illumination (such as building entrance, crossroad, etc.).
- Images easily identified.
- It supports ICR infrared filter to be auto-switch. Images turn from color to black automatically, and the camera monitors day and night.
- AWB support function: high color reproduction and real image.
- BLC support function: suitable for objects monitoring under backlight environment.
- AES support function: adapt to different monitoring environment.
- AGC support function: adaptive brightness.
- It uses an advanced double loop glass design for clearer images.
Power adapter not included.
This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
True Day/Night for round-the-clock surveillance
Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
IR illumination gives your cameras night vision
IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
Weatherproof cameras in a year-round protection
Our outdoor weatherproof cameras feature at least an IP66 weather rating. These outdoor cameras are built to keep out small particles such as dust and water, and are unaffected by a range of weather conditions including heavy rain and snow.
LED array
The infrared led array has a wider emitting angle than traditional infrared leds. Traditional infrared leds can only emit the active infrared ray in a narrow angle. When there is a security camera with infrared led array, the emitted infrared will cover the whole surveillance area, which means the infrared led array camera can see the whole area in a dark environment such as at night.
Automatic Gain Control (AGC)
Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
Automatic Electronic Shutter (AES)
To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
Back Light Compensation (BLC)
In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
Auto White Balance (AWB)
Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
Digital Noise Reduction (DNR)
DNR incorporates frame-to-frame noise reduction with spatial noise reduction to produce clear video images with less noise, in low light conditions. It makes images clearer and reduces video file size and reduces the visibility of the random noise during playback of the video.
OSD Menu
Most monitors include an on screen menu for making adjustments to the display through which you can navigate through the menu and make adjustments by using the Plus (+) and Minus (-) buttons, usually located next to the menu button. OSD include basic brightness and contrast controls. This superimposed image on the screen is commonly used by modern TV sets for volume, channel and time control.
HD video
Large areas are covered by a single lens which straight-up great picture quality, design and features.
Warranty: One (1) Year
Bullet camera 1/3 SONY CMOS 1000TVL 6mm lens 2 LED Array 164ft IR IP66
General
Brand
LineMak
Model
LS-IHBG2-SFC30Q
Sensor
Resolution
1000TVL
Sensor
1/3" SONY CMOS (IMX138)
Effective pixels
NTSC: 1296*1041
Video
Video format
NTSC
Video output
1Vpp, 75ohm
Frequency
6Mhz
Lens
Lens
6mm
IR Range
164ft night vision
LEDs
42MIL*2 LEDs Array
IR-CUT Filter
Yes
Minimum illumination
0.01 Lux (with LED on)
Viewing angle
53°
IR Power ON
CDS Auto Control
IR Status
Under 10 Lux by CDS
Security
Motion detection zone
4 areas
Environment
Operation temperature
-10°C ~ 50°C 14ºF ~ 122ºF
Storage temperature
-30°C ~ 60°C -22ºF ~ 140ºF
Weatherproof standard
IP66 (protection against dust and strong water pressure)
