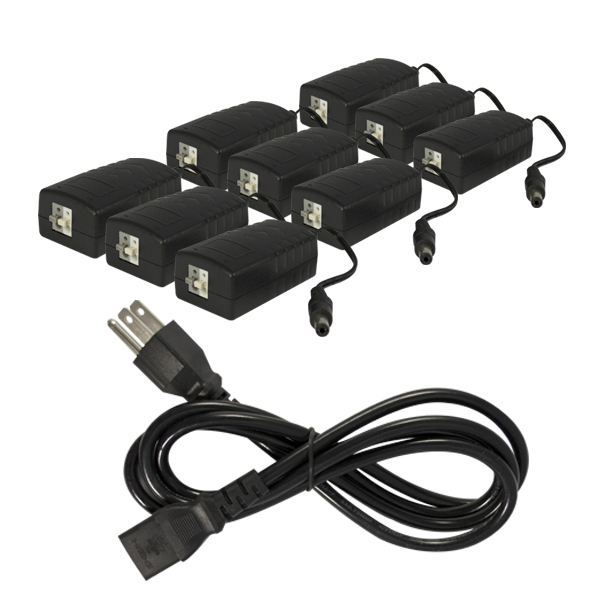

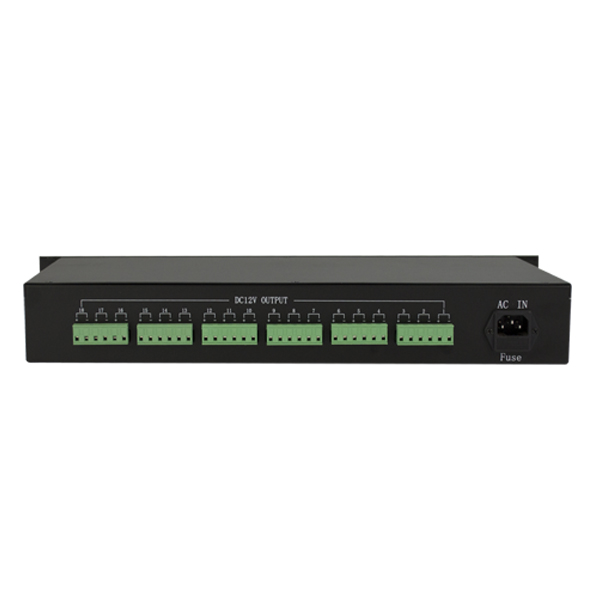

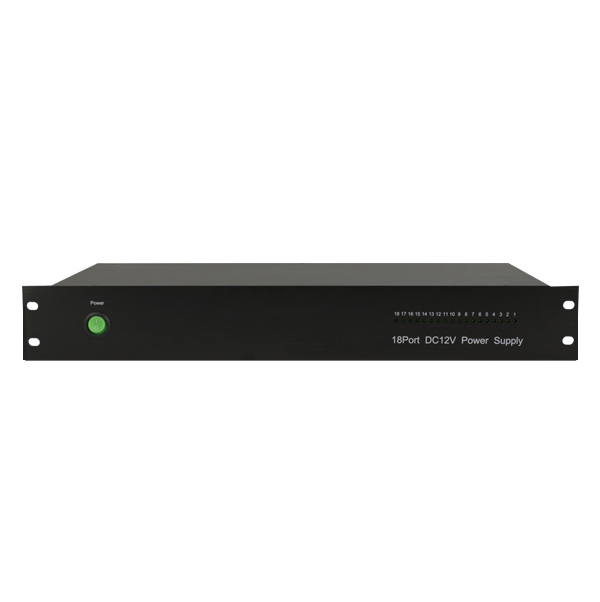

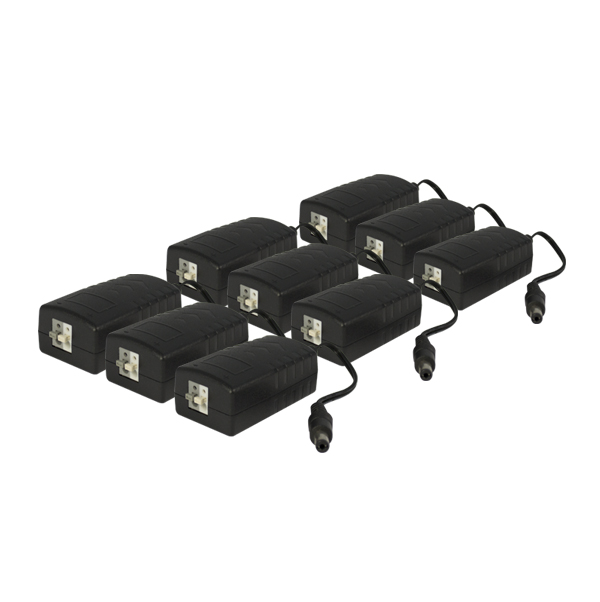

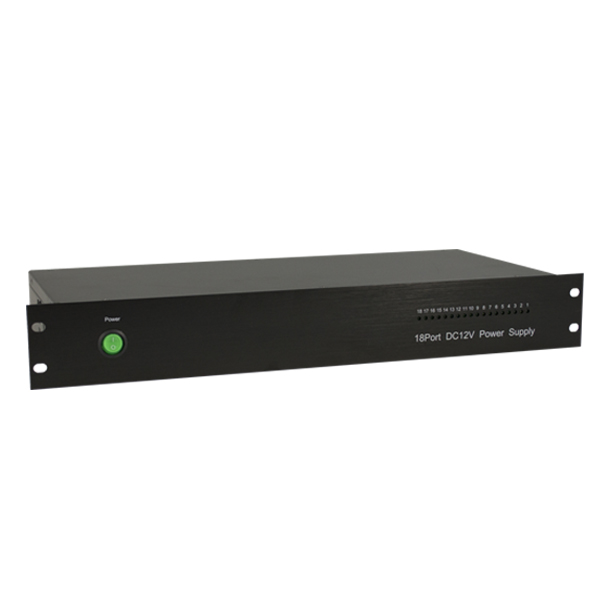

Power supply centralized 18 ports DC 12V/20A
  • Power supply centralized 18 ports DC 12V/20A - Image 1
  • Power supply centralized 18 ports DC 12V/20A - Image 2
  • Power supply centralized 18 ports DC 12V/20A - Image 3
  • Power supply centralized 18 ports DC 12V/20A - Image 4
  • Power supply centralized 18 ports DC 12V/20A - Image 5
  • - Power supply centralized.
  • - Output: DC 12V/20A.
  • - 18 puertos.
  • - Input: AC100~240V.
  • - With US AC cable.
Products recommendaded to work with this item:
power supply centralized 18 ports dc 12v/20a
+
ir dome camera 1/3 hd sensor, 900tvl, 3.6mm lens 24 led 65ft ir ircut
+
plug connector power supply female
Price for all 3: $137.97
  • Electronic device, designed to transform the alternating current (AC) into direct current (DC) through a rectifier , a fuse and other elements that facilitate receipt electricity , in addition to regulate it , filter it and adapt it according to the requirements of the intended product feed .

    Our power supply, brand LineMak, protect your security system from possible irregularities in the voltage.

    Main features
    - Input: AC100~240V.
    - Output: DC 12V/20A.
    - 18 Ports.

    With US AC cable.
    Warranty: One (1) Year
  • Power supply centralized 18 ports DC 12V/20A
    General
    Brand LineMak
    Model LS-PCP1218-20A
    Video
    Multi-mode input Support Onvif v2.2 (Profile S)
    Storage & Backup
    Backup mode Local Micro SD Memory, Remote FTP server, TCP/UDP CMS, RTSP connection (stream 1,2 or 3)
    Network
    RTSP Video Standard RFC2326, Support QuickTime / VLC Player. User security authentication (Enabled / Disabled)
    Environment
    Operation temperature 20°C~80°C
    Storage temperature -30°C ~ 70°C
    Working humidity 20%~80%
    Barometric pressure 86~106kpa
    Power
    Power supply DC 12V/20A
    Input condition 90-250ac / 50~60hz
    Stabilized voltage accuracy ±1%
    Load stability <=1%
    Voltage stability <=5%
    Ripple and noise <=150mv
    Efficiency >=80%
    Hold time >=20ms
    Short-circuit Protection Auto recovery
    Noise <=55db
    Input inrush current Less than 50 times of standand input current value
    Power factor >=0.55
    Transient recovery time >=50ms
    Appearance
    Color Black
    Size 7.87(L) * 2.76(H) * 17.32(W) inches
    Weight 6.72 pounds
