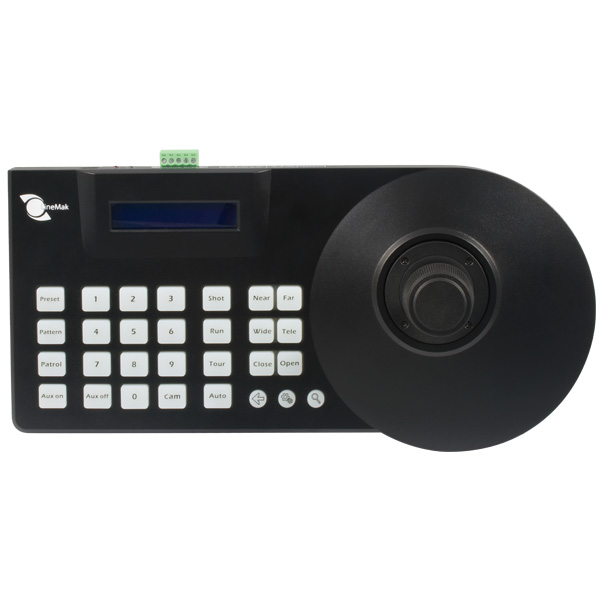

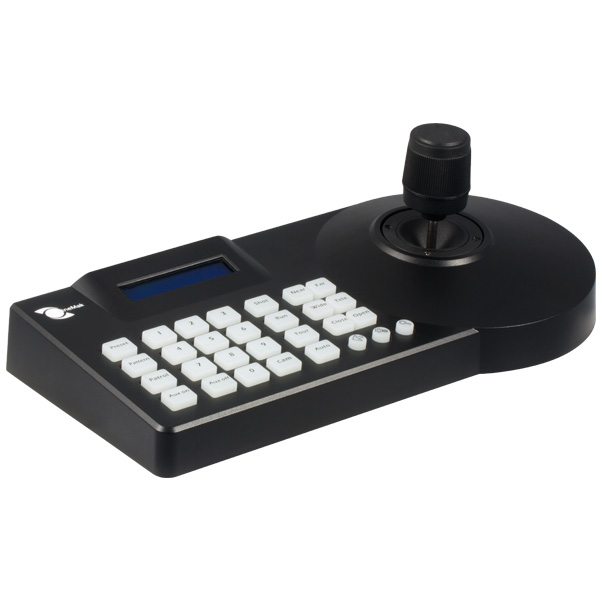

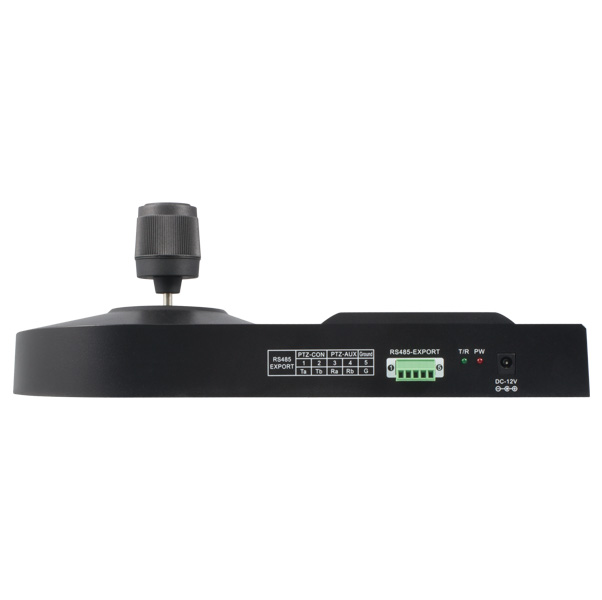

Joystick control of 3 axis, for PTZ cameras, supports 255 cameras, LCD
  • Joystick control of 3 axis, for PTZ cameras, supports 255 cameras, LCD - Image 1
  • Joystick control of 3 axis, for PTZ cameras, supports 255 cameras, LCD - Image 2
  • Joystick control of 3 axis, for PTZ cameras, supports 255 cameras, LCD - Image 3
  • Joystick control of 3 axis, for PTZ cameras, supports 255 cameras, LCD - Image 4
  • - Joystick control of 3 axis
  • - Lightning proof and anti-disturb design
  • - Support RS485/RS422 communication port.
  • - Password function for keyboard operation.
  • - LCD display
  • - Communication standard can reach 1200m.
Products recommendaded to work with this item:
joystick control of 3 axis, for ptz cameras, supports 255 cameras, lcd
+
1 channel passive video balun 2000ft, contains 6 pairs 12 pcs
+
high speed ptz dome camera, sony ccd sensor, 650tvl, 262ft ir, ip66
+
dc12v 5a power adapter specially for security cameras
Price for all 4: $540.96
  • Manual devices of complementary use of security system that go connected to computer and/or camera, whose functionality allows you to control manually the movement?s commands and configurations of your PTZ cameras.

    Main features:
    - Professional controller, elegant design.
    - LCD display.
    - All parameters are set by key, fast and easy.
    - Unique control code study function, allows customers to modify control code instructions.
    - Updating new program function on line.
    - One key to search current protocol and baud rate of control address.
    - Lightning proof and anti-disturb design.
    - Communication standard can reach 1200m.
    - Can connect 15 pcs sub-keyboard at most.
    - Support RS485/RS422 communication port.
    - Communication with good compatibility, build in kinds of protocol.
    - Password function for keyboard operation.
    Warranty: One (1) Year
  • Joystick control of 3 axis, for PTZ cameras, supports 255 cameras, LCD
    General
    Brand Linemak
    Model LS-PC400E
    LCD Panel
    Monitor LCD display
    PTZ
    PTZ Control RS485 (Half Duplex) / RS422
    Communication protocol PELCO-D, PELCO-P, etc.
    Baud rate 2400bps, 4800bps, 9600bps, 1920bps
    Environment
    Operation temperature -10ºC to 55ºC
    Working humidity <90% RH (No cream node)
    Power
    Power supply DC 12V / 2A
    Appearance
    Size 11.81 (L) * 4.33 (H) * 5.51 (W) inches
    Weight 1.60 pounds
