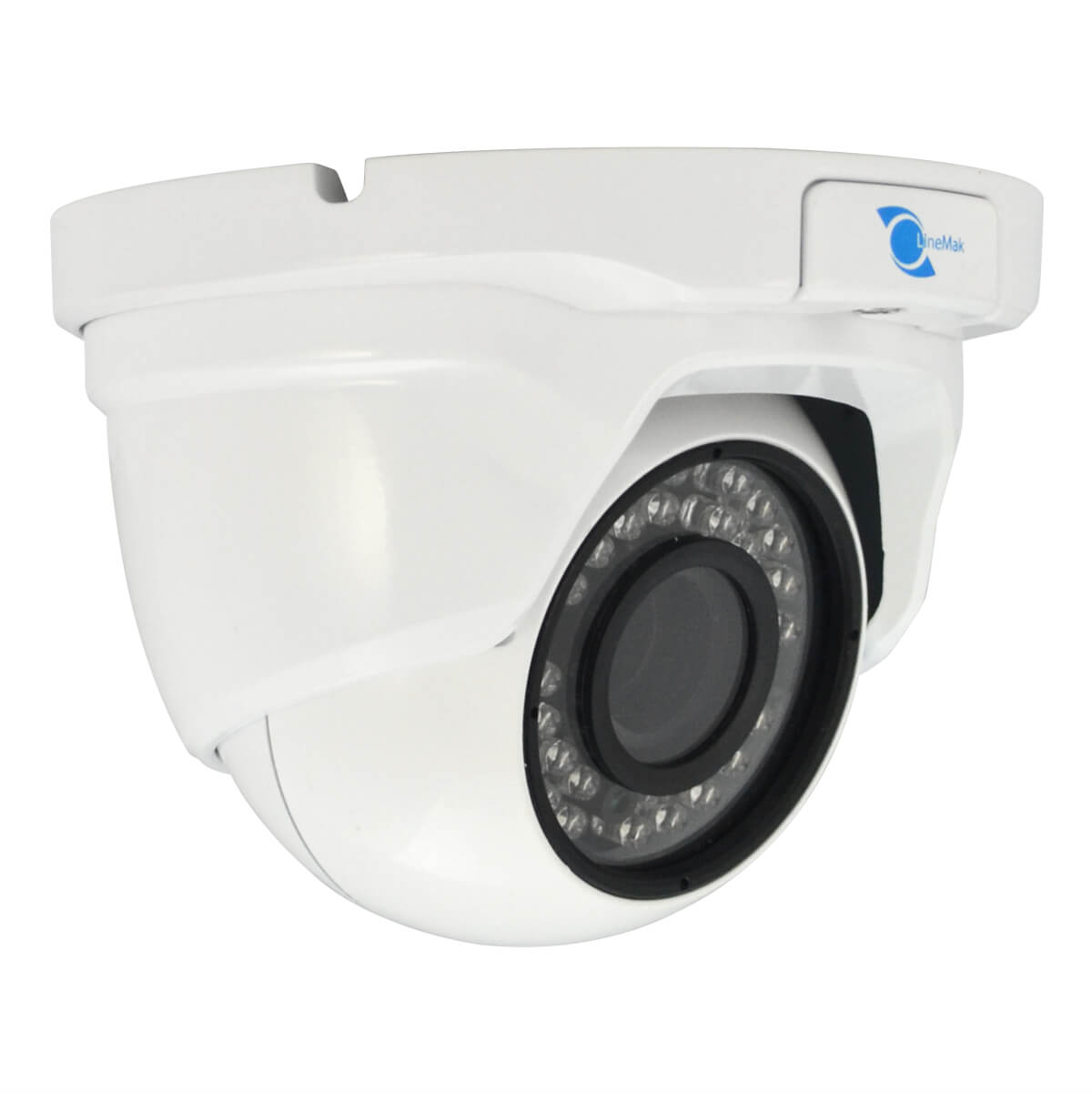

Vandalproof Dome camera, 1/2.8 HDIS Color CMOS Sensor, 1200TVL, 3.6mm
  • Vandalproof Dome camera, 1/2.8 HDIS Color CMOS Sensor, 1200TVL, 3.6mm - Image 1
  • - 1/2.8" HDIS Color CMOS Sensor, 1200TVL.
  • - 2.8mm~12mm varifocal lens
  • - 24pcs LEDs, 65ft IR distance.
  • - Power adapter not included.
  • - 25° ~ 115° viewing angle.
  • - Minimun illumination: 0 LUX.
Products recommendaded to work with this item:
vandalproof dome camera, 1/2.8 hdis color cmos sensor, 1200tvl, 3.6mm
+
1 channel passive video balun 2000ft, contains 6 pairs 12 pcs
+
dc12v 2a power adapter specially for security cameras
Price for all 3: $118.97
  • Vandalproof high-resolution camera with a 2.8mm~12mm varifocal lens and a viewing angle of 25? to 115?, which has a 65ft range of infrared night vision, 24 pieces 5mm LEDs each. Available in white.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size. Due to its slightly tilted crystal, the IR is not reflected on the surface.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Varifocal
    Varifocal
    Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
    Vandalproof
    The vandal-proof provides robust protection from vandalism. If the camera has integrated housing shields from dust and water, it will be allowed to be applied in the harsh weather conditions of outdoor environments as well. A vandal-proof camera is a camera and housing intended to resist vandalism, making sure the camera will continue to operate in conditions where people attempt to break it or impair its function.
    Vandalproof
    Warranty: One (1) Year
  • Vandalproof Dome camera, 1/2.8 HDIS Color CMOS Sensor, 1200TVL, 3.6mm
    General
    Brand LineMak
    Model LS-TC4961CB08
    Sensor
    Resolution 1200TVL
    Sensor 1/2.8" HDIS Color CMOS
    Effective pixels 1280*720
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm (Composite output)
    Lens
    Lens 2.8mm~12mm varifocal
    IR Range 65ft night vision
    LEDs 24pcs (5mm each)
    Infrared wavelength 850nm
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 25° ~ 115°
    Environment
    Operation temperature -10°C ~ 50°C
    14°F ~ 122°F
    Power
    Power supply DC 12V
    Power consumption 350mA
    Appearance
    Color White
    Size 5.91 (L) * 4.33 (H) * 5.12 (W) inches
    Weight 1.63 pounds
    Special function
    Back Light Compensation (BLC) No
    Auto White Balance (AWB) No
    Electronic shutter speed (AES) 1/50~1/12,000s
    Auto Gain Control (AGC) No
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Mirror No
    Adaptive Tone Reproduction (ATR) No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Synchronizing system Internal
    S/N Ratio >50dB
  • Instructions
    File Size: 348.38Kb
    Languages: English
    File Type: PDF
