Bullet camera 1/3 SONY CCD 700TVL 2 LED Array 164ft IR IP66

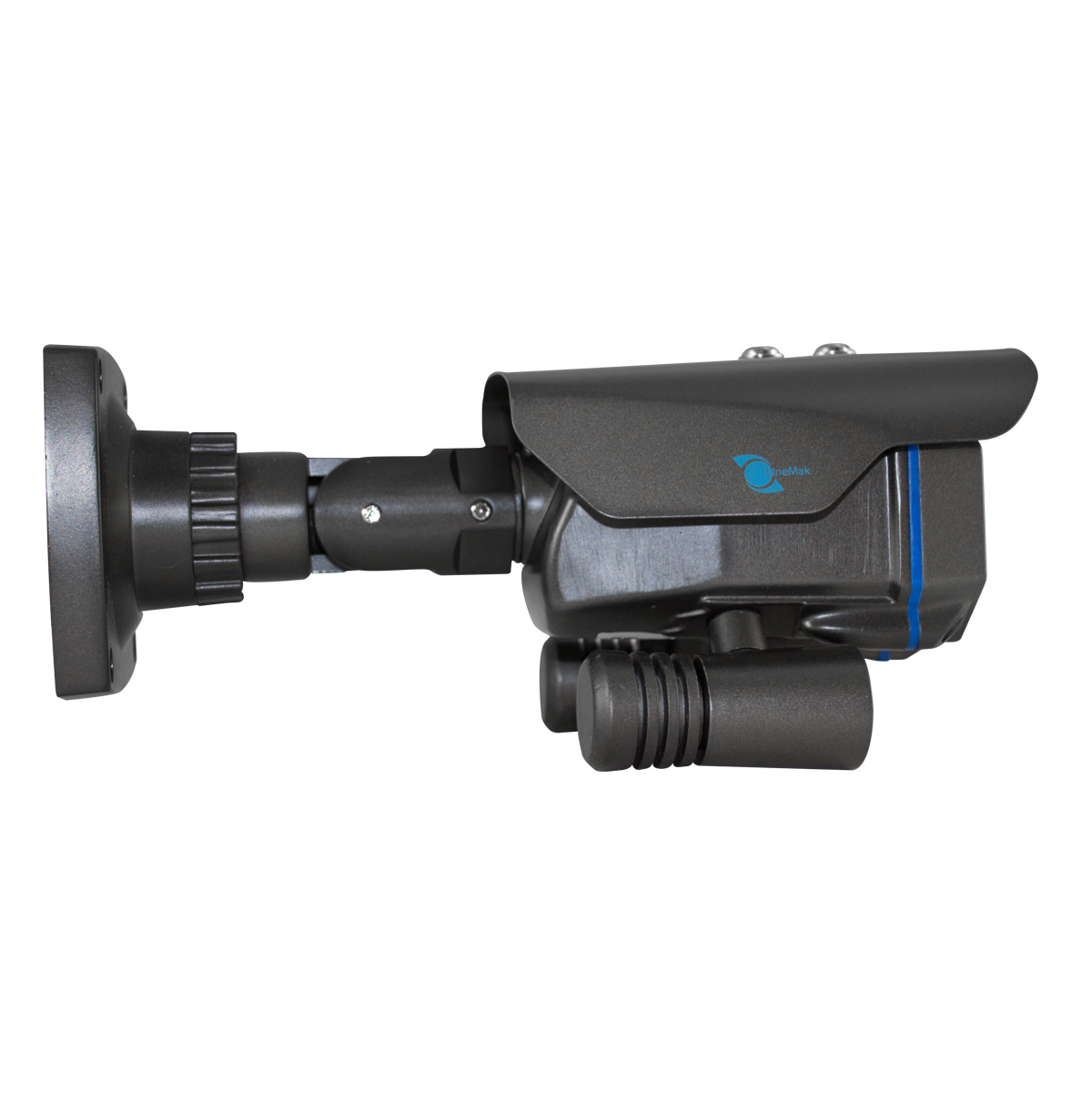

  • Bullet camera 1/3 SONY CCD 700TVL 2 LED Array 164ft IR IP66 - Image 1

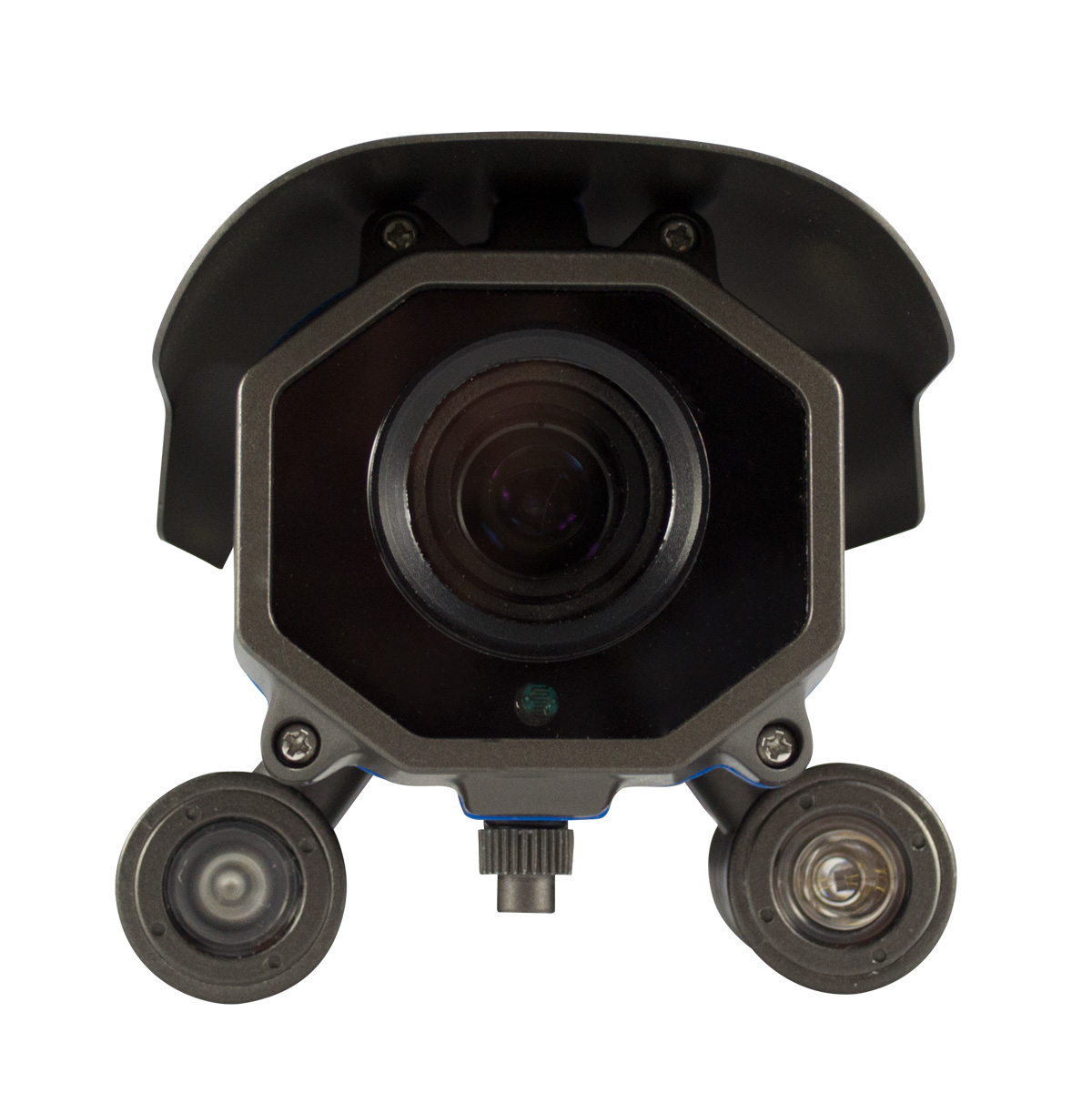

  • Bullet camera 1/3 SONY CCD 700TVL 2 LED Array 164ft IR IP66 - Image 2

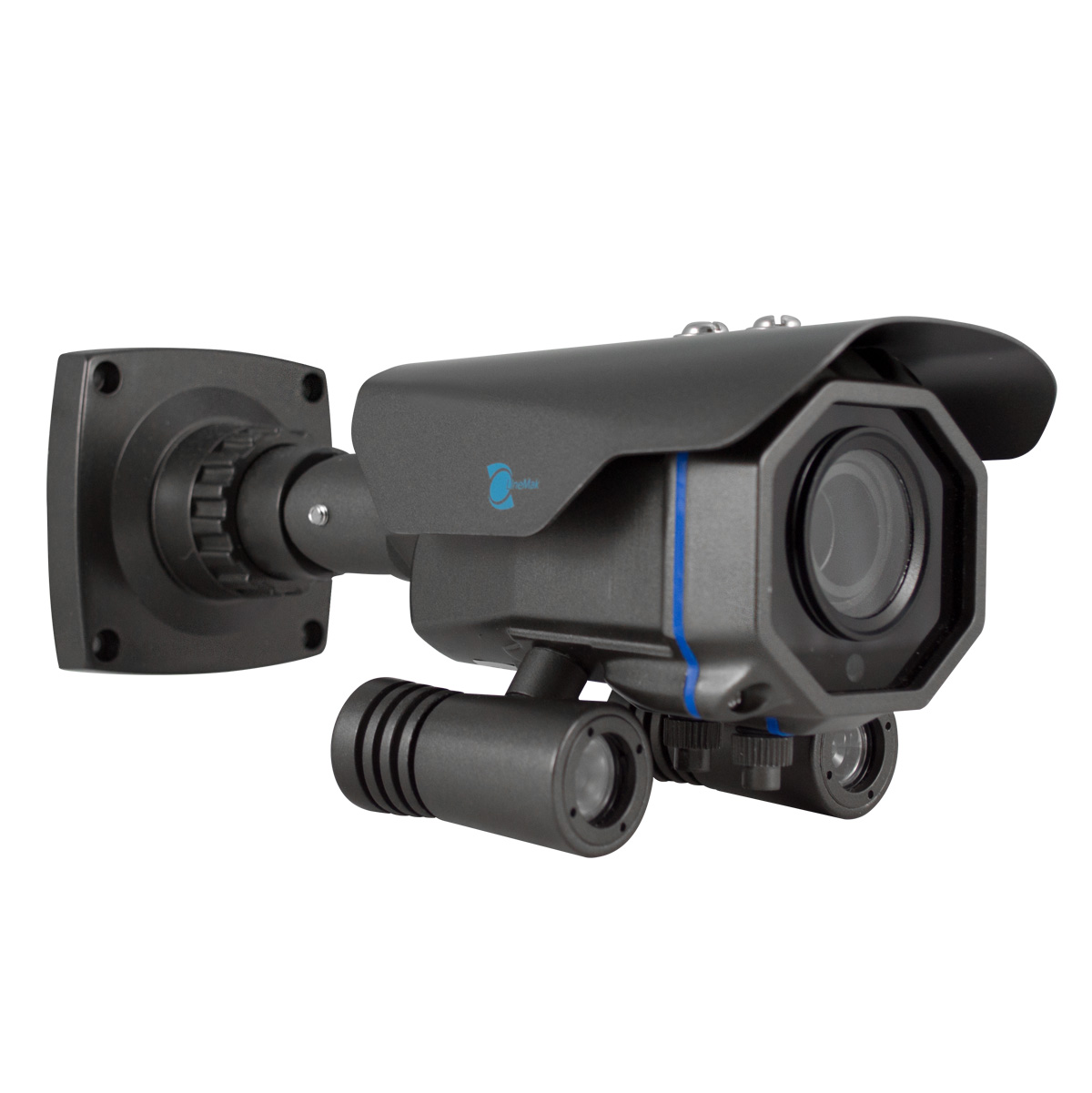

  • Bullet camera 1/3 SONY CCD 700TVL 2 LED Array 164ft IR IP66 - Image 3
  • - 1/3" SONY 960H Exview CCD, 700TVL.
  • - 2pcs LED Array, 164ft IR distance.
  • - Weatherproof: IP66.
  • - Power adapter not included
  • - 2.8-12mm Varifocal lens.
  • - Externally adjust lens Zoom.
  • Metal bullet high-resolution camera with a 1/3" SONY 960H Exview CCD sensor and 700TVL of resolution, a 2.8mm ~ 12mm varifocal lens, a viewing angle of 25? ~ 115?, a 164ft range of infrared night vision, and 2pcs 5mm LEDs each.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for outdoors usage and can be easily installed anywhere. Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Waterproof: IP66

    Main features:
    - IR Waterproof Camera.
    - Built-in 2.8-12mm Varifocal Lens.
    - Cable conceal inside of the all-oriented bracket.
    - 2pcs GIII LED ARRAY, 164ft IR distance.
    - Adjust externally lens zoom.

    UTC function.
    This camera has the UTC function that can be accessed through a UTC control. This camera does not include it. We sell various types of UTC controls if needed. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Weatherproof cameras in a year-round protection
    Our outdoor weatherproof cameras feature at least an IP66 weather rating. These outdoor cameras are built to keep out small particles such as dust and water, and are unaffected by a range of weather conditions including heavy rain and snow.
    Weatherproof cameras in a year-round protection
    Varifocal
    Varifocal
    Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
    LED array
    The infrared led array has a wider emitting angle than traditional infrared leds. Traditional infrared leds can only emit the active infrared ray in a narrow angle. When there is a security camera with infrared led array, the emitted infrared will cover the whole surveillance area, which means the infrared led array camera can see the whole area in a dark environment such as at night.
    LED array
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Warranty: One (1) Year
  • Bullet camera 1/3 SONY CCD 700TVL 2 LED Array 164ft IR IP66
    General
    Brand LineMak
    Model LS-VE8051EF-UTC
    Sensor
    Resolution 700TVL
    Sensor 1/3" SONY 960H Exview CCD
    Effective pixels PAL: 960*582
    NTSC: 967*492
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p 75ohm BNC
    Lens
    Lens 2.8mm~12mm Varifocal / F1.2
    IR Range 164ft night vision
    LEDs 2pcs GIII LED Array
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 25° ~ 115°
    Environment
    Operation temperature -10°C ~ 50°C
    14ºF ~ 122ºF
    Storage temperature -30°C ~ 80°C
    -22ºF ~ 176ºF
    Weatherproof standard IP66 (Full protection against dust and strong water pressure)
    Power
    Power supply DC 12V
    Power consumption 500mA
    Appearance
    Color Dark gray
    Size 9.45(L) * 4.73(H) * 4.34(W) inches
    Weight 2.79 pounds
    Special function
    Electronic shutter speed (AES) PAL: 1/50~1/100,000sec
    NTSC: 1/60~1/100,000sec
    Standard
    Synchronizing system Internal
    S/N Ratio >120dB WDR on
