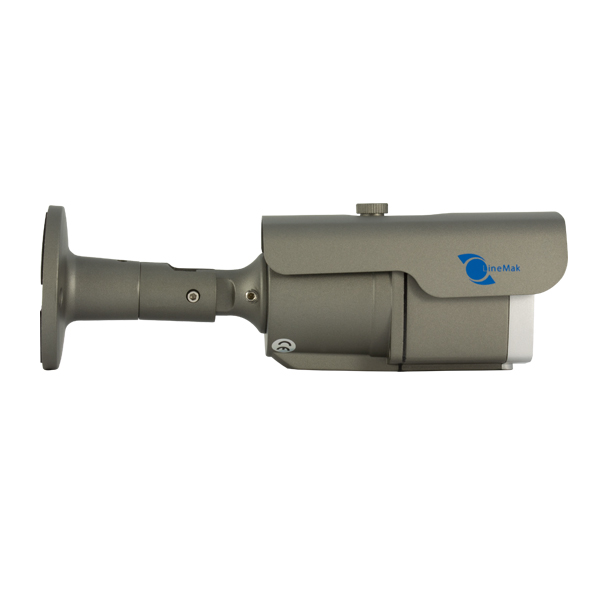

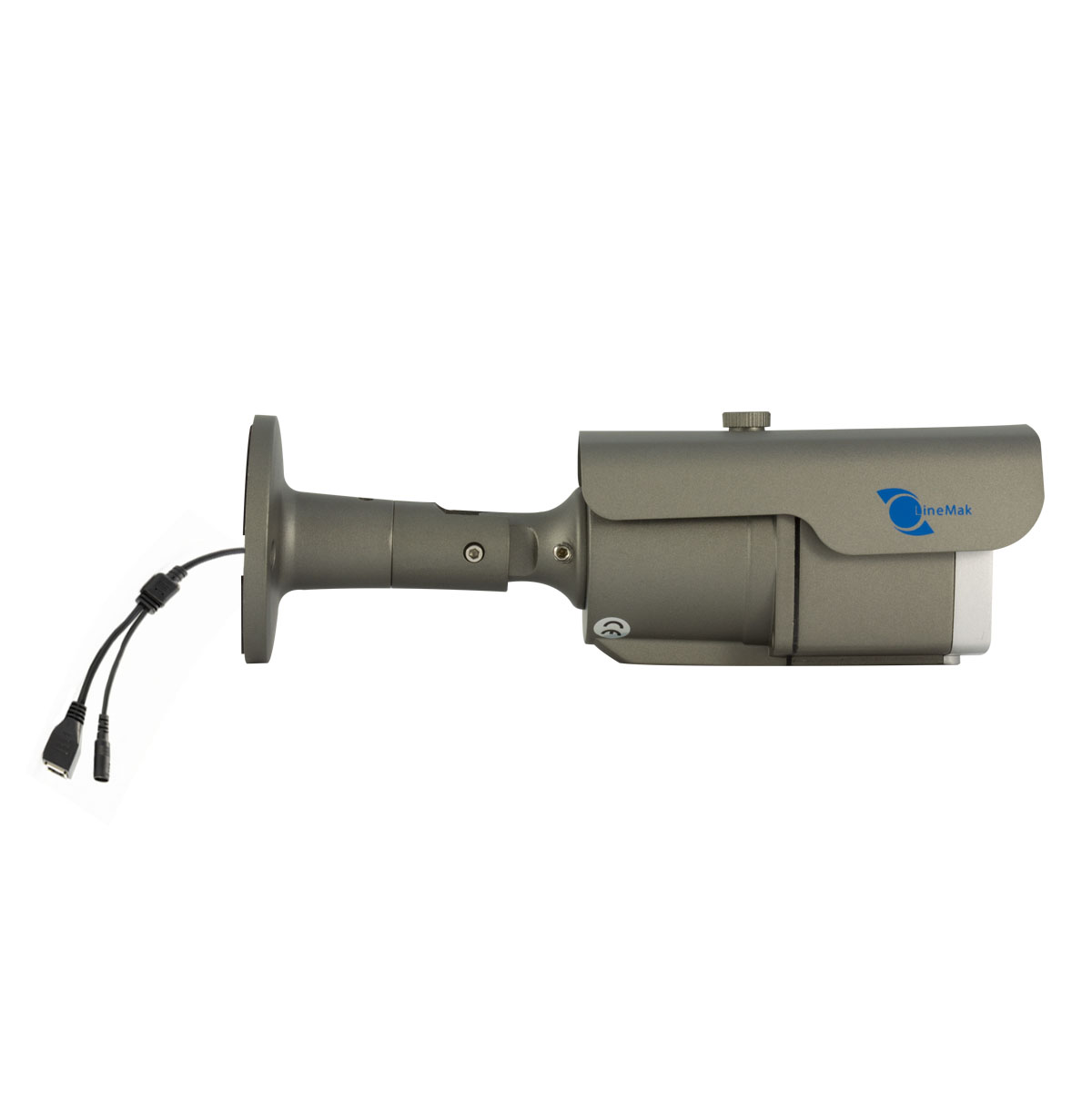

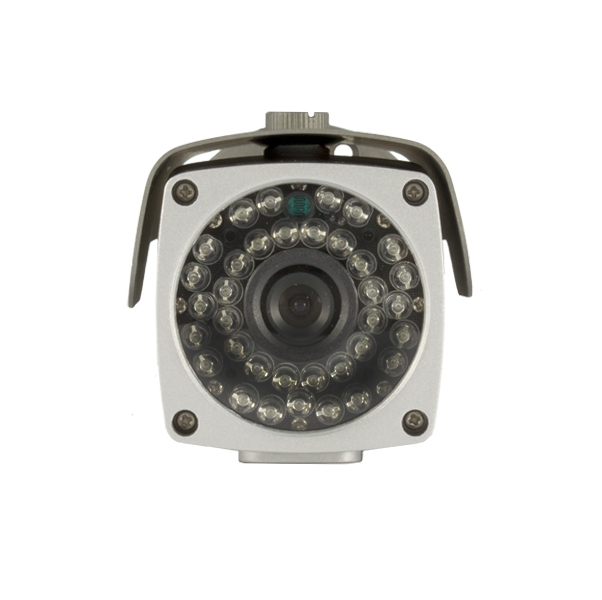

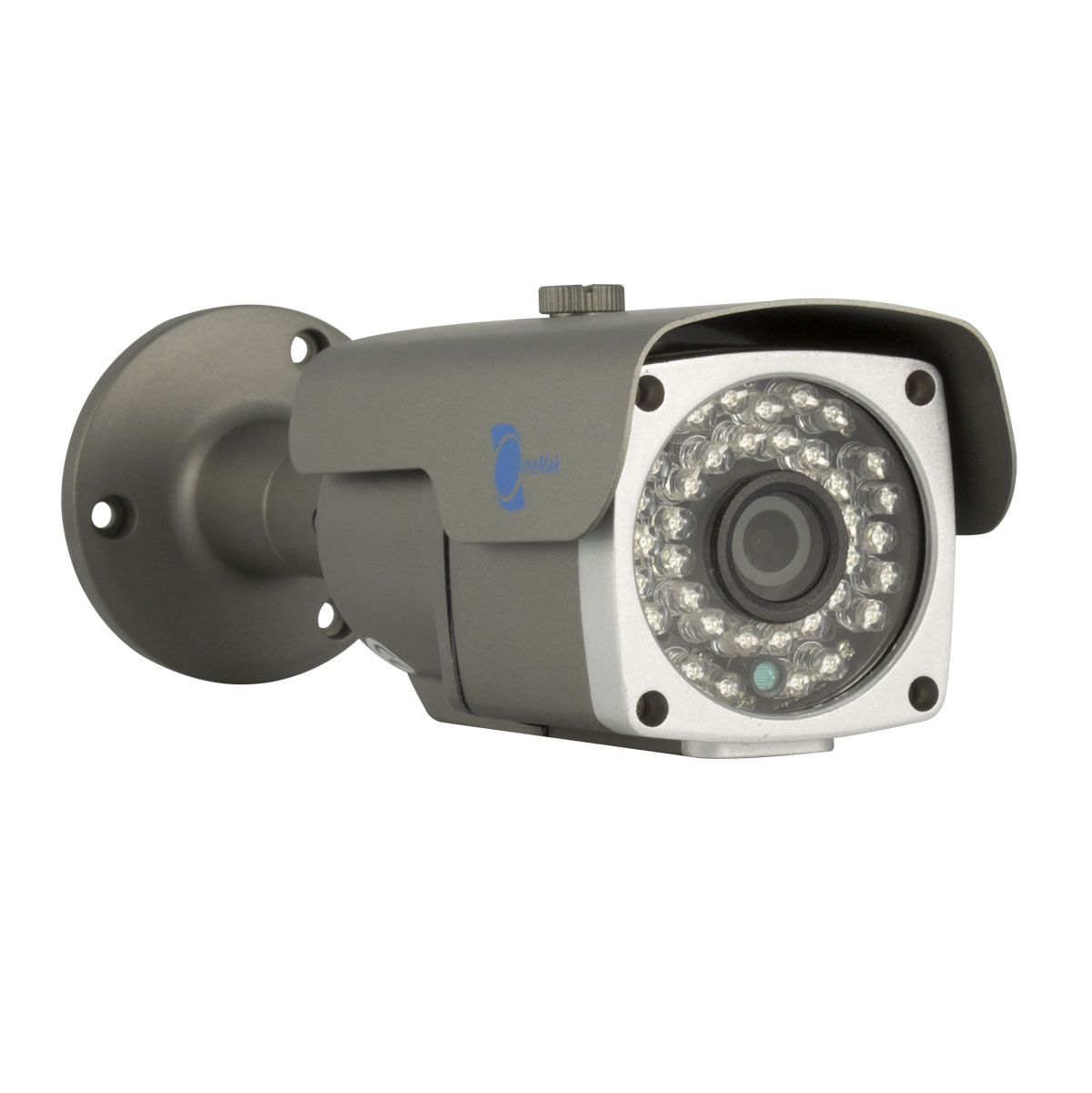

IP Bullet camera 1/3 CMOS Sensor 2.0Mp 3.6mm lens 36 LEDs 98ft IR IP66
|
|
General
|
|
Brand | Linemak |
Model | LS-JAD3020 |
System
|
|
Main processor | Hi3516C |
Operating system | Embedded Linux |
Sensor
|
|
Resolution | 2.0Mp |
Sensor | 1/3" CMOS (AR0330) |
Video
|
|
Resolution | 1080p |
Compression format | H.264 |
Frame rate | Main: 1920*1080@30fpsSub 1st: 640*480@30fpsSub 2nd:320*240@30fps |
Bit rate | 64Kbit/s ~ 4Mbit/s continuously - adjustable |
Streams | Multi stream, main stream for local record, sub stream for network upload, mobile stream for mobile |
Interface
|
|
Network interface | 1 RJ-45 10M/100M self-adaptive Ethernet interface |
User
|
|
On-line user | 4 |
Network
|
|
Network protocol | TCP, RTP, RTSP, RTMP, HTTP, UDP, PPOE, DDNS and ONVIF 2.1 |
Web Browser | IE, Chrome, Safari and Firefox |
Remote
|
|
Mobile surveillance | Remote view by mobile phone (Eseenet app for iOS and Android) |
Lens
|
|
Lens | 3.6mm HD |
IR Range | 98ft night vision |
LEDs | 36pcs (5mm each) |
IR-CUT Filter | Yes |
Minimum illumination | 0.1Lux ~ 0.5Lux/F1.2 (Color) - 0 Lux with IR |
Environment
|
|
Operation temperature | -10°C ~ 55°C 14ºF ~ 131ºF |
Weatherproof standard | IP66 (Dustproof and waterproof) |
Working humidity | 10% ~ 90% |
Power
|
|
Power supply | DC 12V/1A |
Power consumption | 5W ~ 6W |
PoE | Yes |
Appearance
|
|
Color | Gray |
Size | 8.47(L) 2.76(H) 2.76(W) |
Weight | 14.46 ounces |
Material | Metal |
Special function
|
|
Electronic shutter speed (AES) | 1/100s -1/120s |
