Fingerprint reader, compatible with access panels and attendance, IP65

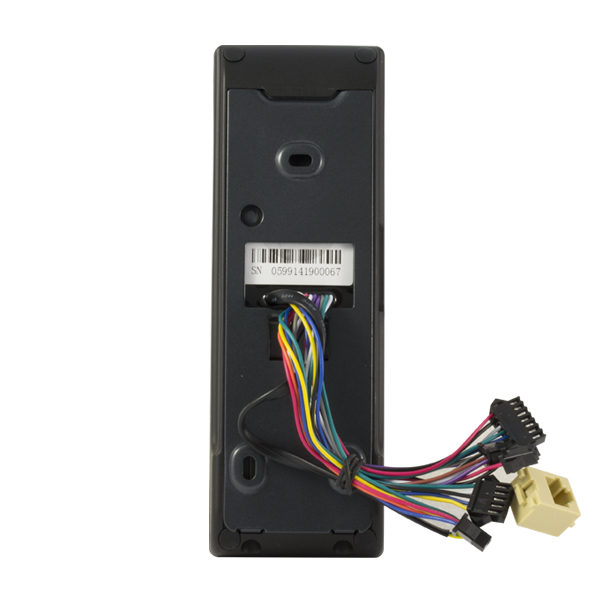

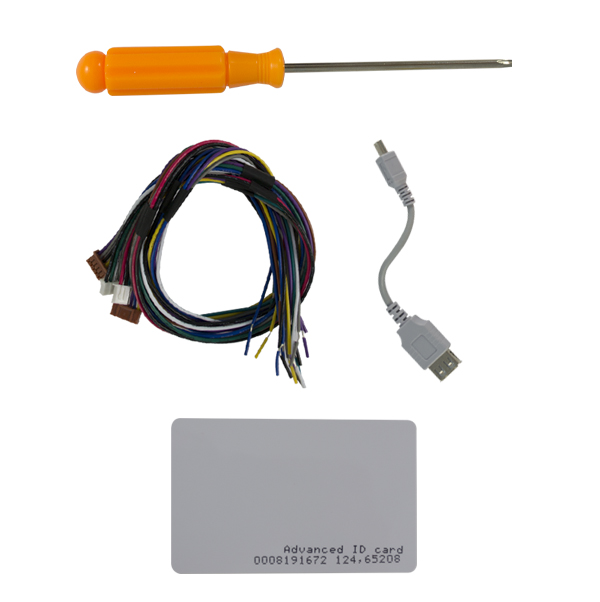

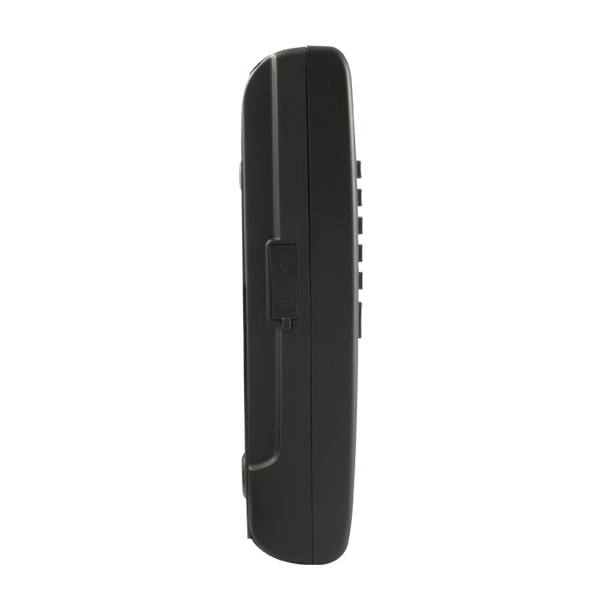

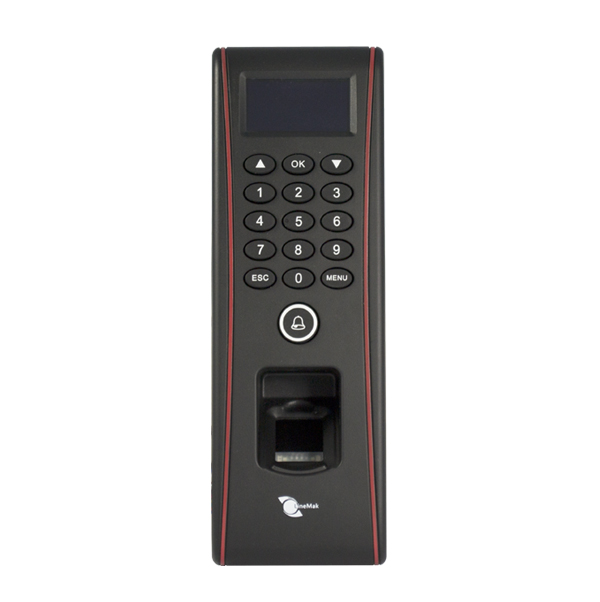

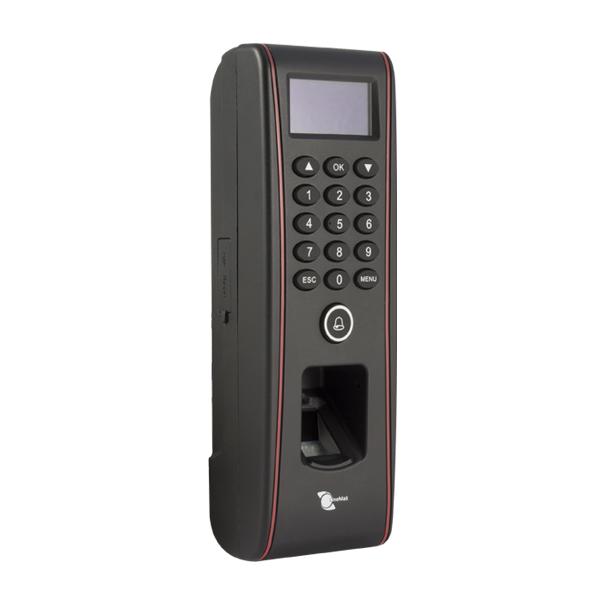

  • Fingerprint reader, compatible with access panels and attendance, IP65 - Image 1
  • Fingerprint reader, compatible with access panels and attendance, IP65 - Image 2
  • Fingerprint reader, compatible with access panels and attendance, IP65 - Image 3
  • Fingerprint reader, compatible with access panels and attendance, IP65 - Image 4
  • Fingerprint reader, compatible with access panels and attendance, IP65 - Image 5
  • - Sleek and slim design for narrow spaces.
  • - DLST.
  • - Anti-pass back.
  • - Stores 2200 fingerprint templates, 10000 cards and 30000 transactions.
  • - OLED, buzzer, 3x5 keypads and doorbell.
  • - Built-in keypad and RF card reader.
  • One of the world smallest IP-based fingerprint terminals used for access control and time attendance features designed for standalone applications such as house, office, shop, garage, factory and others.

    This product offers extra durability in all weather conditions including outdoor environments.

    Main features:
    - Sleek and slim design for narrow spaces.
    - DLST.
    - Webserver.
    - Anti-pass back.
    - Access control interface for 3rd party electric lock, door sensor, exit button, alarm.
    - Fingerprint identification in 1 second.
    - Stores 2200 fingerprint templates, 10000 cards and 30000 transactions.
    - Work without computer.
    - OLED, buzzer, 3x5 keypads and doorbell.
    - Built-in keypad and RF card reader for multi-modal authentication.
    Waterproof
    Waterproof
    Waterproofing, defined as the resistance of the passage of water under hydrostatic head pressure, provide reliable solutions for all waterproofing designs and conditions.
    Weatherproof cameras in a year-round protection
    Our outdoor weatherproof cameras feature at least an IP66 weather rating. These outdoor cameras are built to keep out small particles such as dust and water, and are unaffected by a range of weather conditions including heavy rain and snow.
    Weatherproof cameras in a year-round protection
    Warranty: One (1) Year
  • Fingerprint reader, compatible with access panels and attendance, IP65
    General
    Brand LineMak
    Model LB-TF1700
    System
    Main processor 400MHz
    Flash Memory 128MB flash 32MB RAM
    LCD Panel
    Monitor 128*64 OLED
    Biometric control
    Sensor Fingerprint 500 DPI Optical sensor
    Communication TCP/IP, RS485
    Keyboard 3 * 5 Keypads and doorbell
    Capacity Fingerprint: 1500 fingerprints
    Card: 10000 cards
    Log: 30000 events
    Wiegand signal Input and output
    Functions Standard: DLST, Webserver
    Card reader EM (standard) / Mifare
    Algorithm version ZK Finger 10.0
    Authentication Finger / PIN / Card
    Sound and interface Buzzer and multi-color LED
    Environment
    Operation temperature -40°C ~ 45°C / -40ºF ~ 113ºF
    Weatherproof standard IP65 (Protection against water and dust)
    Power
    Power supply DC 12V
    Appearance
    Color Black
    Size 1.58(L) * 7.49(H) * 2.17(W) inches
    Weight 12.70 ounces
