IR Bullet camera 1/3 HD Sensor 800TVL 8mm lens 2 LED Array 98-16fts IR

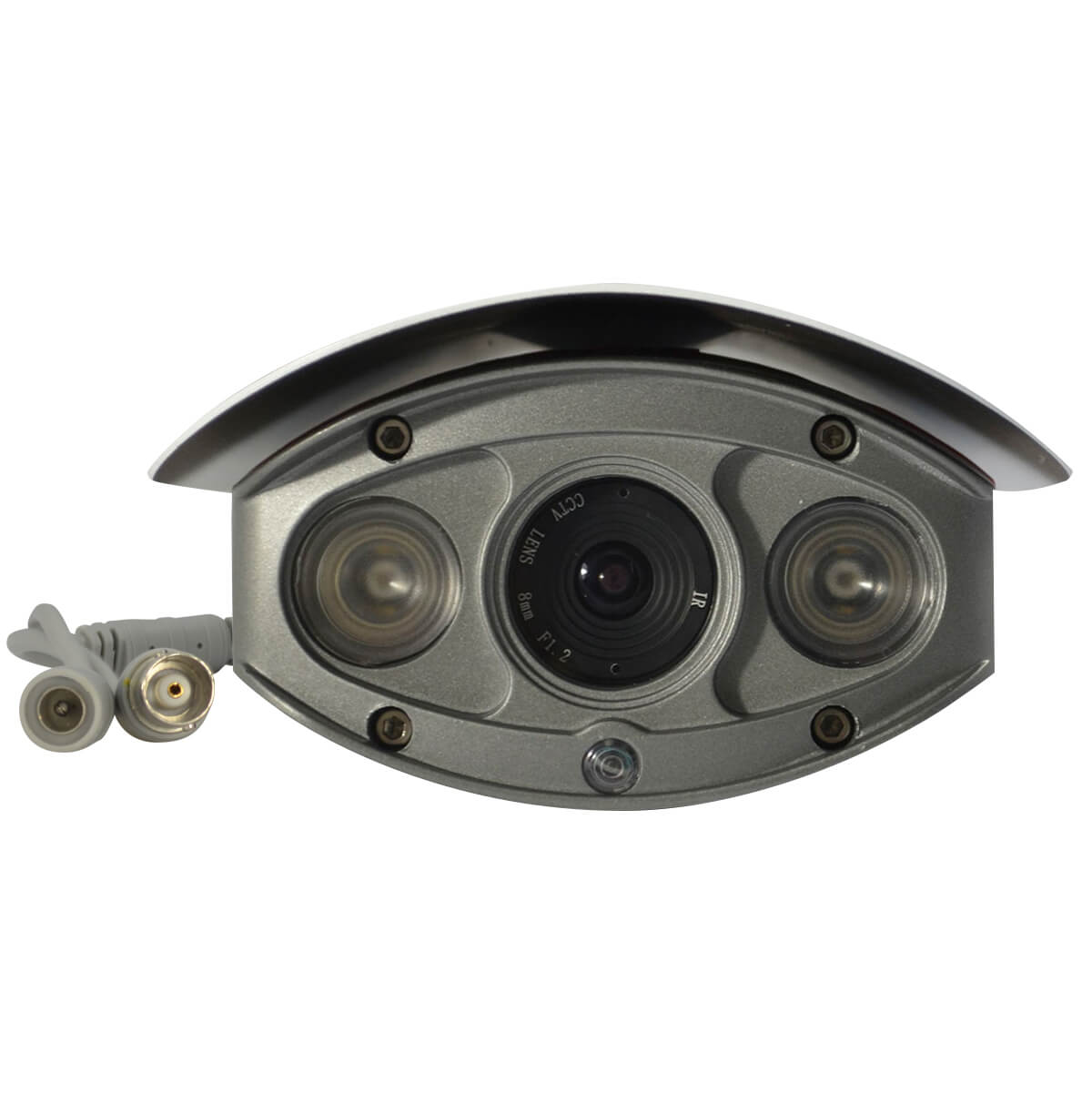

  • IR Bullet camera 1/3 HD Sensor 800TVL 8mm lens 2 LED Array 98-16fts IR - Image 1

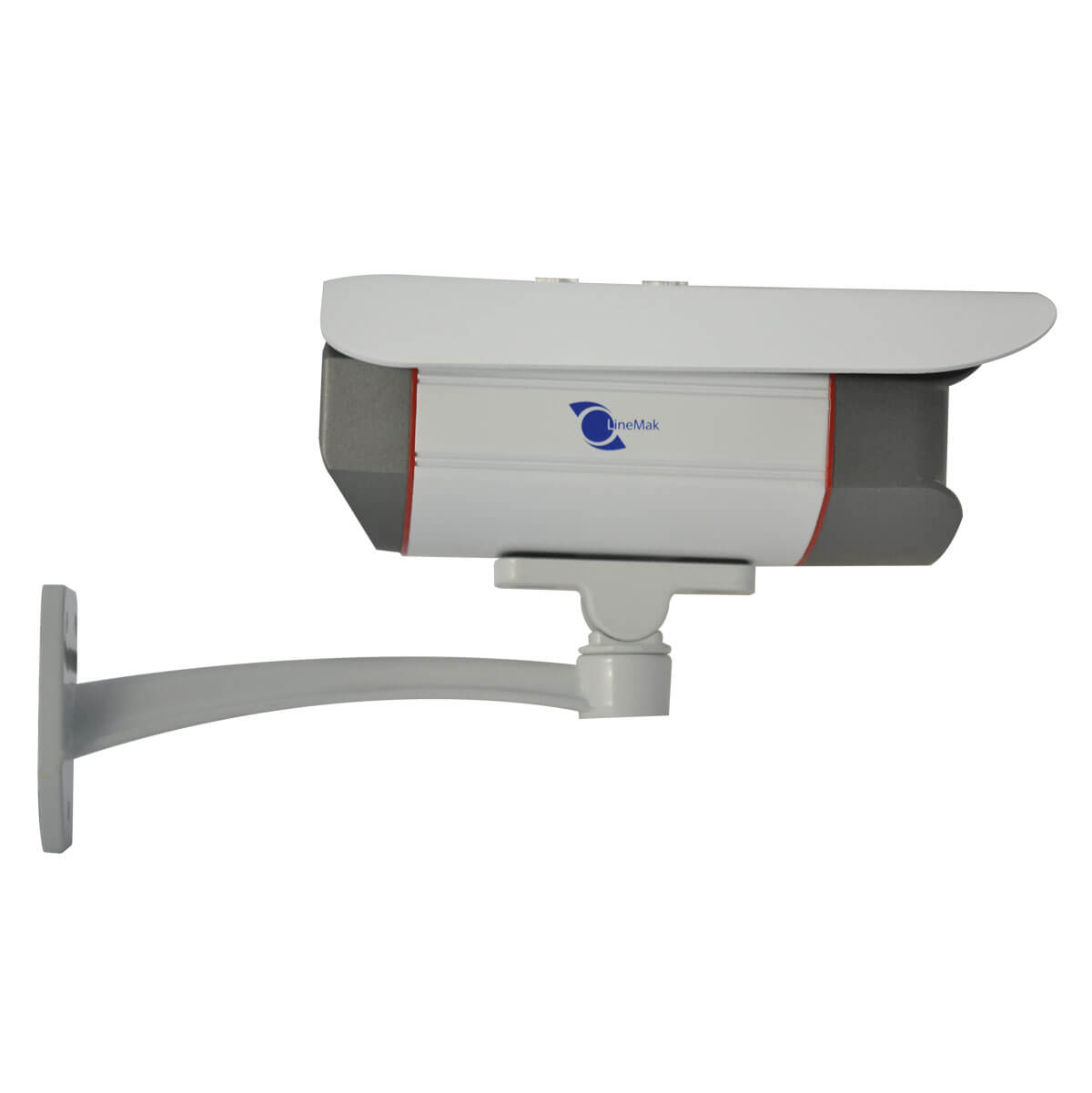

  • IR Bullet camera 1/3 HD Sensor 800TVL 8mm lens 2 LED Array 98-16fts IR - Image 2

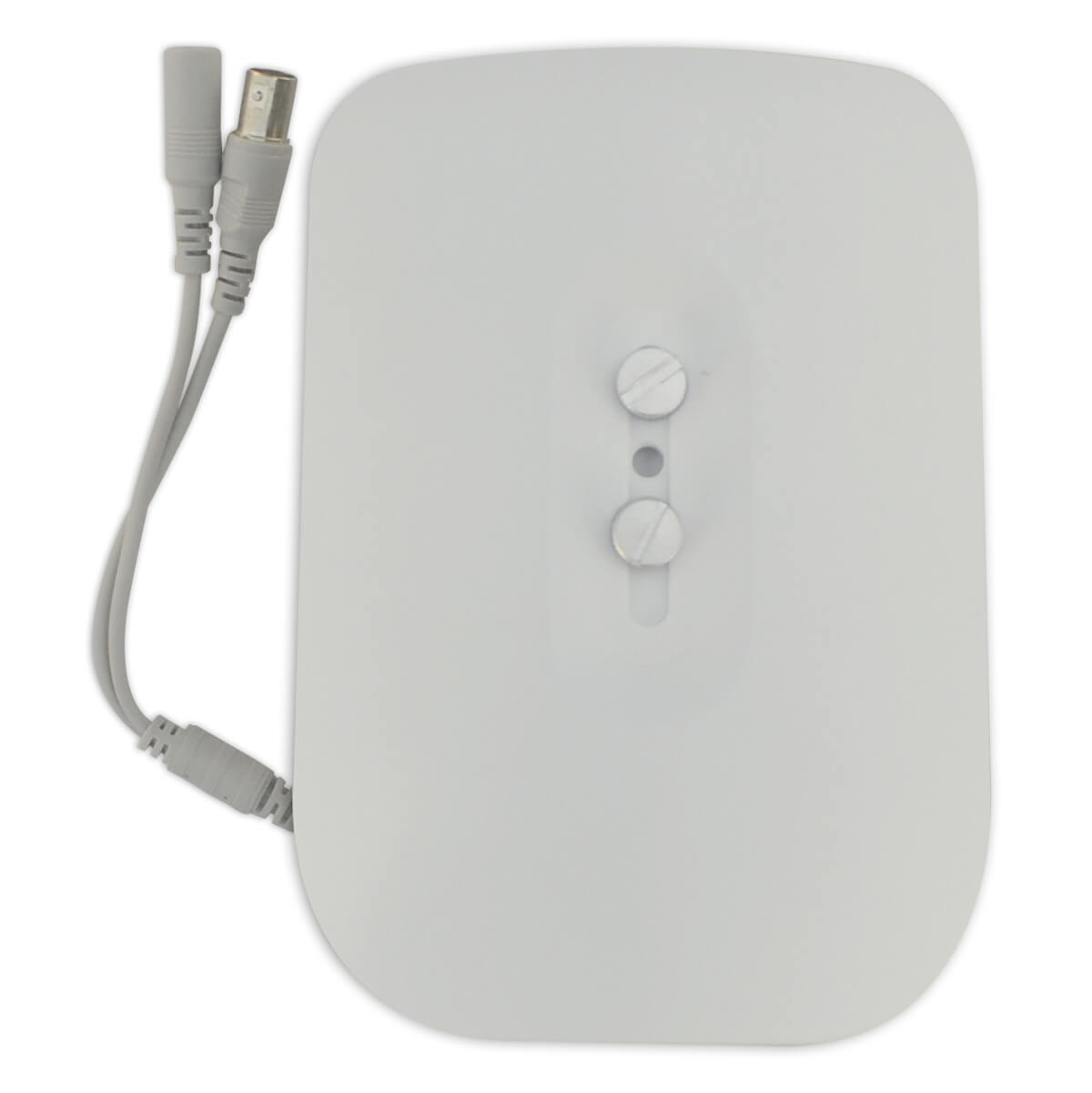

  • IR Bullet camera 1/3 HD Sensor 800TVL 8mm lens 2 LED Array 98-16fts IR - Image 3

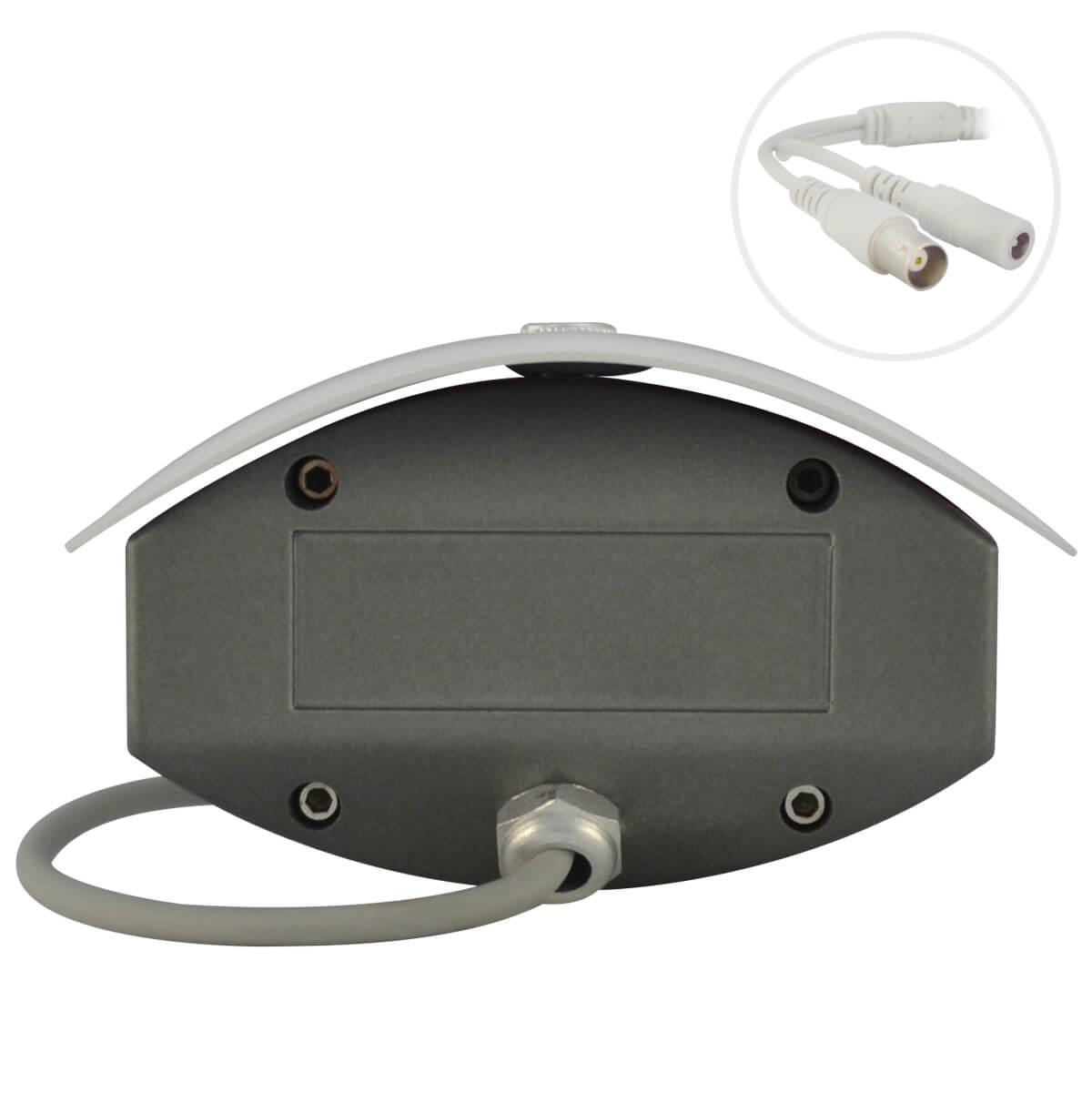

  • IR Bullet camera 1/3 HD Sensor 800TVL 8mm lens 2 LED Array 98-16fts IR - Image 4

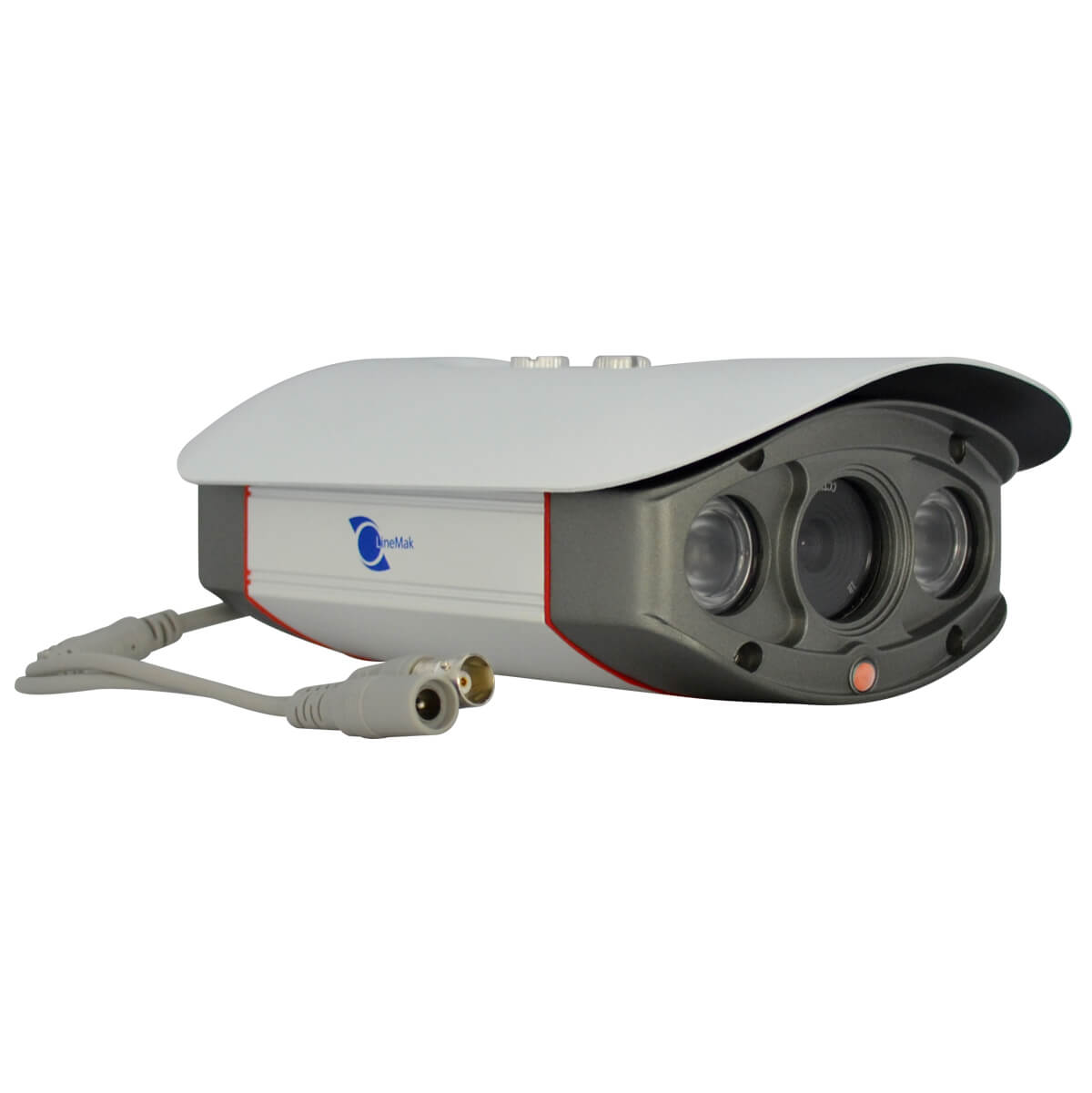

  • IR Bullet camera 1/3 HD Sensor 800TVL 8mm lens 2 LED Array 98-16fts IR - Image 5

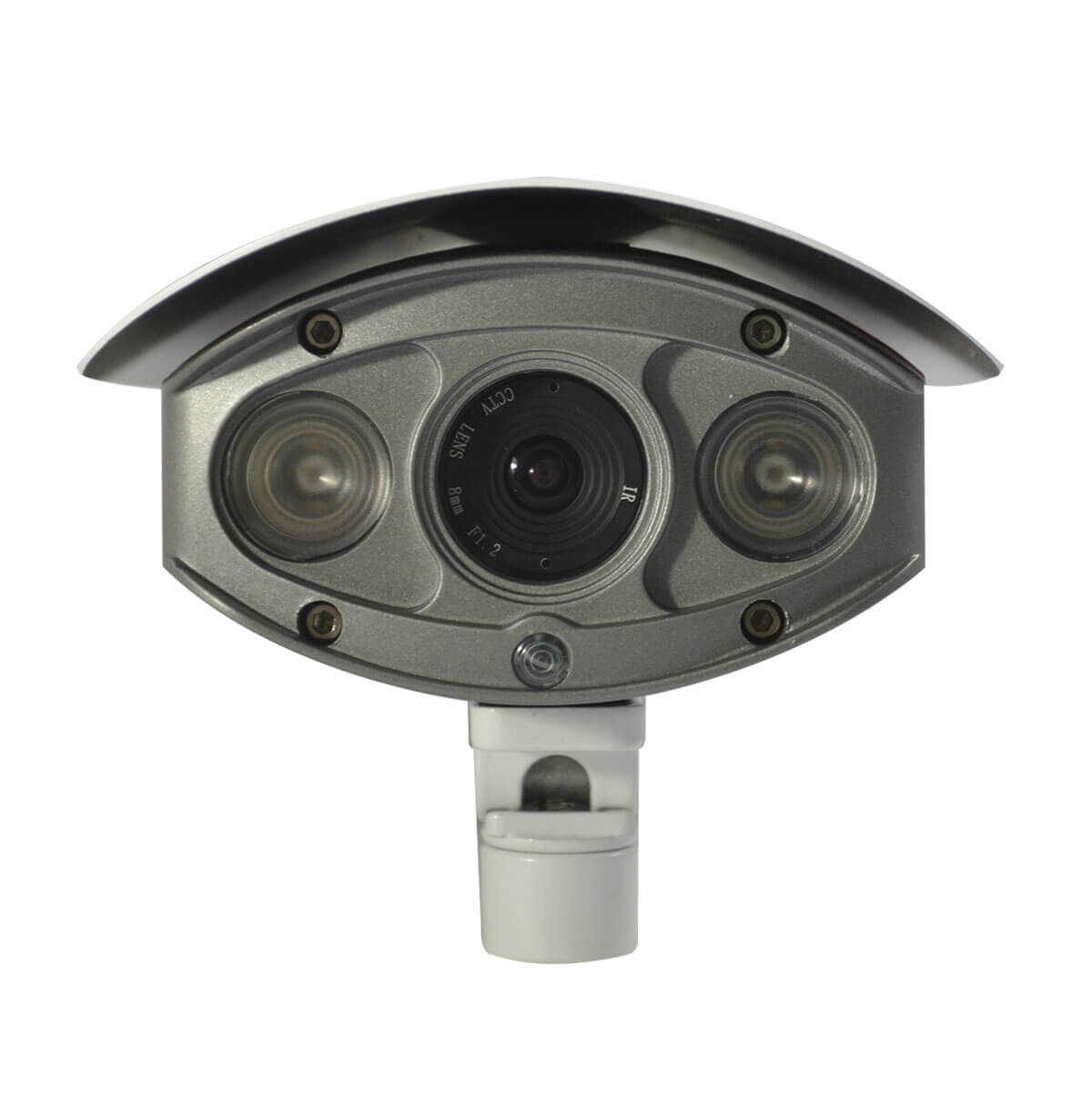

  • IR Bullet camera 1/3 HD Sensor 800TVL 8mm lens 2 LED Array 98-16fts IR - Image 6

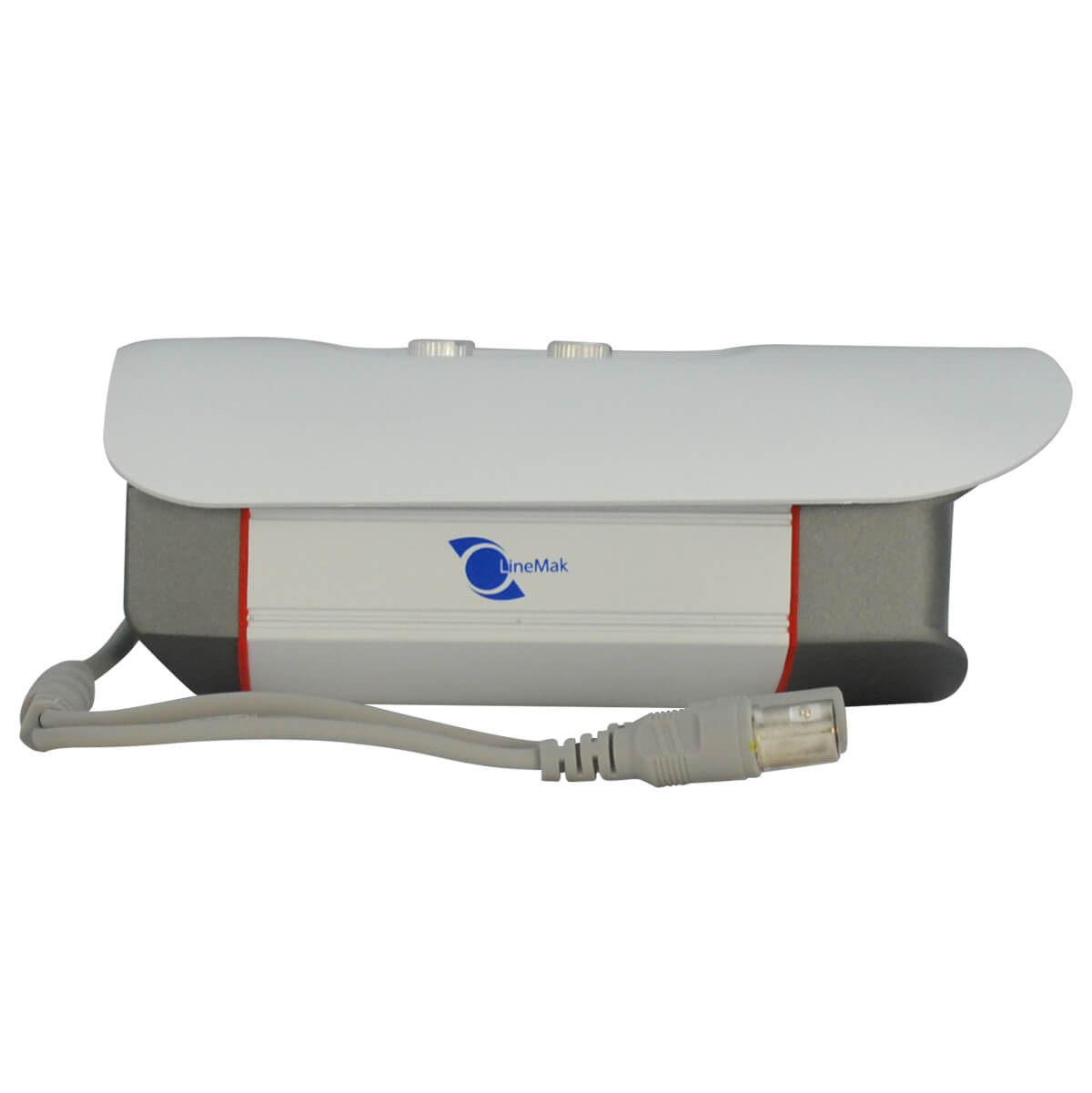

  • IR Bullet camera 1/3 HD Sensor 800TVL 8mm lens 2 LED Array 98-16fts IR - Image 7

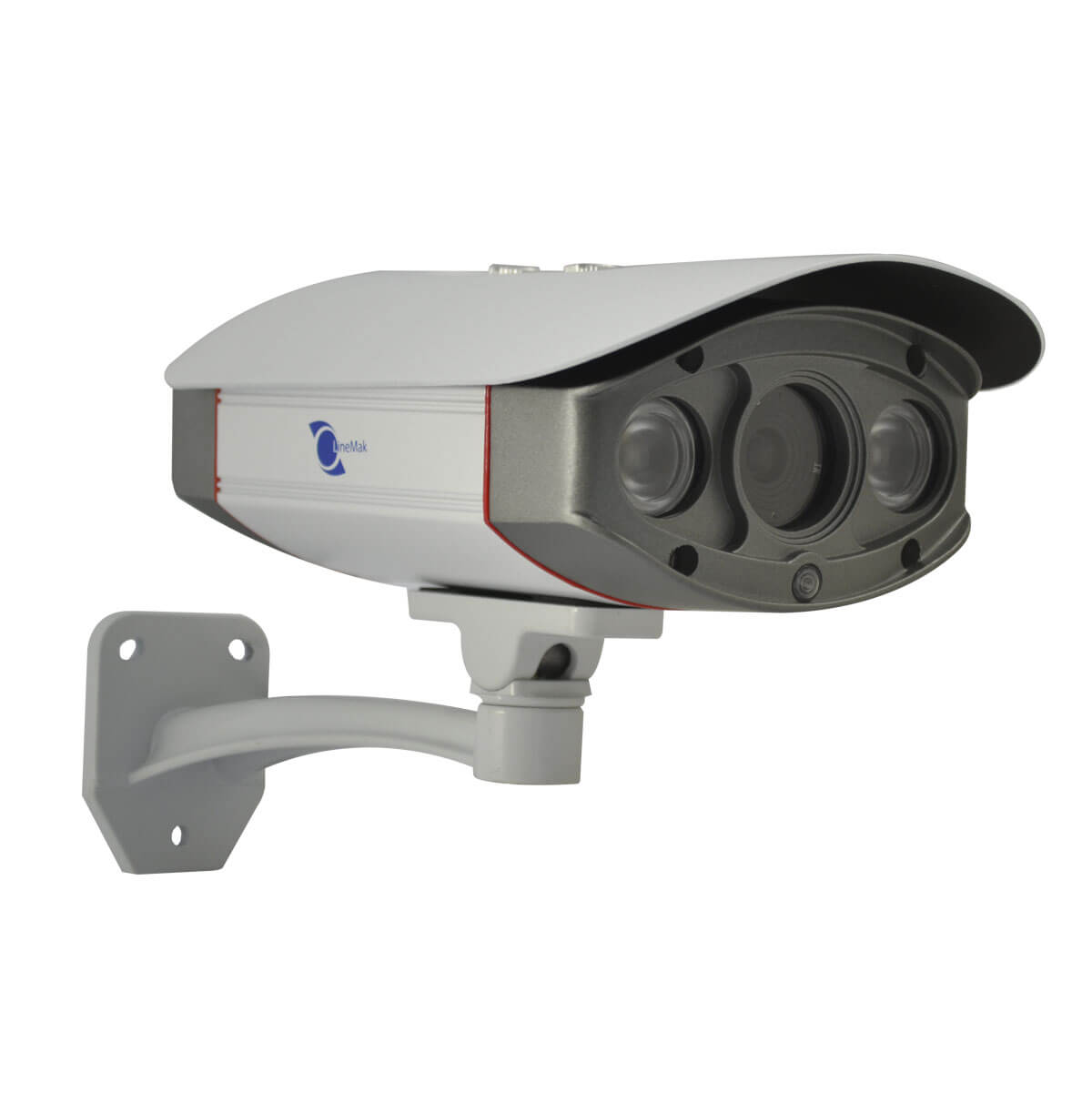

  • IR Bullet camera 1/3 HD Sensor 800TVL 8mm lens 2 LED Array 98-16fts IR - Image 8
  • - AES, AGC, AWB, BLC and mirror function.
  • - 1/3" HD Digital Sensor.
  • - 800TVL resolution.
  • - Power adapter not included.
  • - 2pcs Array LED, 98ft ~ 164ft IR distance.
  • - 8mm lens.
  • IR waterproof bullet camera high-resolution with an 8mm lens with a viewing angle of 40° which has 98ft to 164ft of range infrared night vision, and 2 LEDs array.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - Weatherproof IR camera.
    - 42MIL * 2pcs array IR LED.
    - 98ft ~ 164ft IR distance.
    - Real day/night feature.
    - CS Lens 8mm/F1.2.
    - AWB support function: high color reproduction and real image.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.
    LED array
    LED array
    The infrared led array has a wider emitting angle than traditional infrared leds. Traditional infrared leds can only emit the active infrared ray in a narrow angle. When there is a security camera with infrared led array, the emitted infrared will cover the whole surveillance area, which means the infrared led array camera can see the whole area in a dark environment such as at night.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    True Day/Night for round-the-clock surveillance
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Auto White Balance (AWB)
    Back Light Compensation (BLC)
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Waterproof
    Waterproofing, defined as the resistance of the passage of water under hydrostatic head pressure, provide reliable solutions for all waterproofing designs and conditions.
    Waterproof
    Warranty: One (1) Year
  • IR Bullet camera 1/3 HD Sensor 800TVL 8mm lens 2 LED Array 98-16fts IR
    General
    Brand LineMak
    Model LS-CA356X
    Sensor
    Resolution 800TVL
    Sensor 1/3" HD Digital
    Effective pixels PAL: 752*582
    NTSC: 768*494
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm
    Lens
    Lens 8mm / F1.2
    IR Range 98ft ~ 164ft night vision
    LEDs 2pcs LEDs Array (42 Mil)
    IR-CUT Filter Yes
    Minimum illumination 0.1 Lux (with LED on)
    Viewing angle 40°
    Environment
    Operation temperature -20°C ~ 50°C
    -4ºF ~ 122ºF
    Power
    Power supply DC 12V
    Power consumption 500mA
    Appearance
    Color White
    Size 6.70(L) * 2.56(H) * 4.73(W) inches
    Weight 1.22 pounds
    Special function
    Back Light Compensation (BLC) Included
    Auto White Balance (AWB) Included
    Electronic shutter speed (AES) PAL: 1/50s ~ 1/100,000s
    NTSC: 1/60s ~ 1/100,000s
    Auto Gain Control (AGC) Included
    Mirror Included
    Standard
    Scanning system 2:1 Interlace
    Synchronizing system Internal
    S/N Ratio >48dB
    Gamma correction >0.45
  • Instrucción
    File Size: 523.17 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 448.33 Kb
    Languages: English
    File Type: PDF
