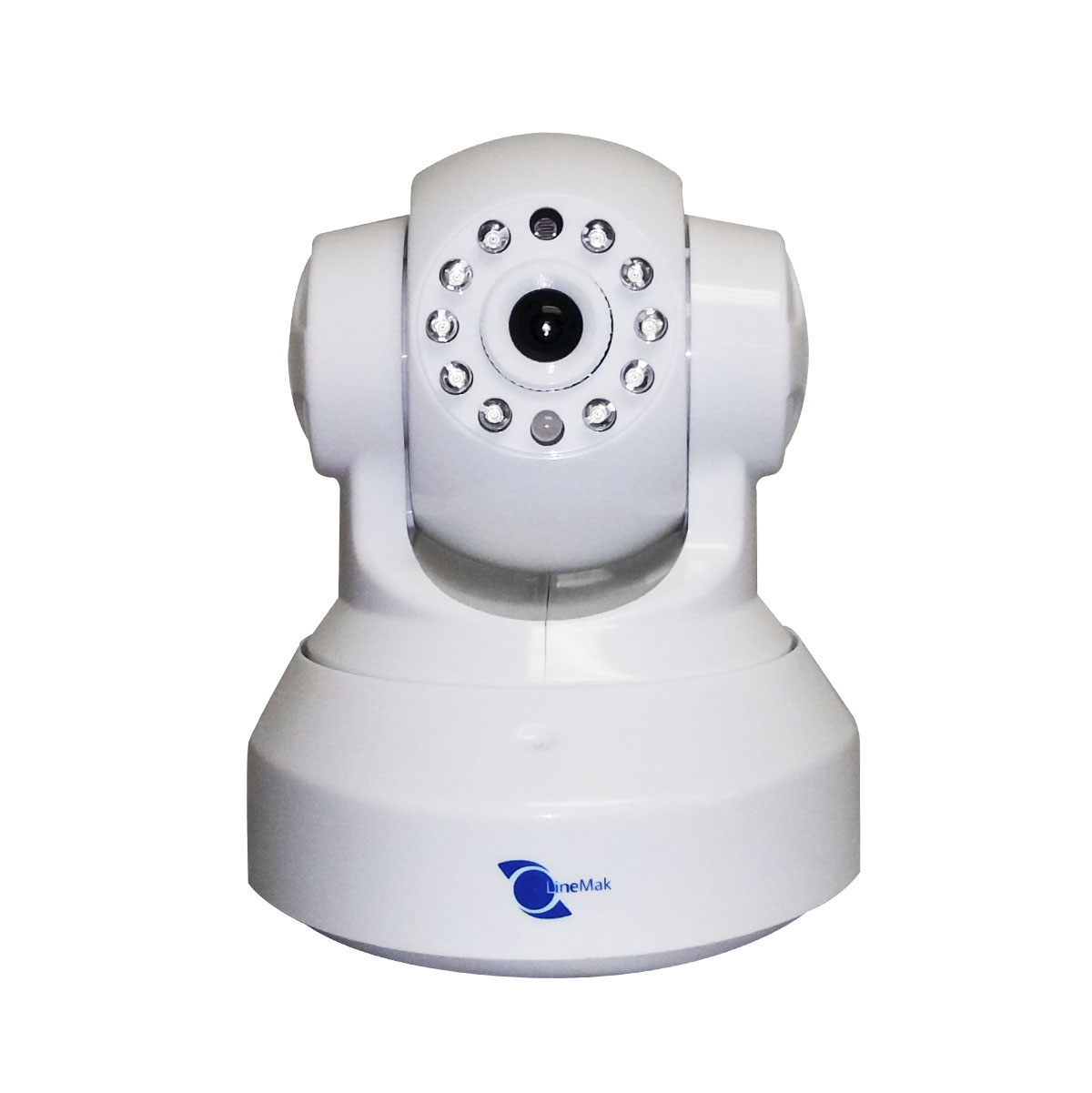

IP Camera CMOS Sensor 3.6mm lens 10 LEDs 49 fts IR
|
|
|
General
|
|
| Brand | Linemak |
| Model | LS-ND101C |
|
System
|
|
| Main processor | 2.0GHz or above (suggested 3.0GHz) |
| Pc Requirements | Display Card 64M or above |
| Memory Space | 256MB or above (suggested 1.0GHz) |
|
Sensor
|
|
| Sensor | 1/4" CMOS |
| Effective pixels | 720P(1280*720) / 640*360 / 320*180 |
|
Video
|
|
| Compression format | H.264 / MJPEG |
| Frame rate | 30fps |
|
Audio
|
|
| Audio compression | G.711 / G.726 |
| Bidirectional talk | Two-way audio |
|
Interface
|
|
| Audio input/output | Input: N/A Output: built-in microphone 3.5mm |
| Wireless port | WI-FI |
| Network interface | 1 RJ-45 10M/100M Base T port |
|
User
|
|
| Multi-level user | Three Level |
|
Network
|
|
| Network protocol | TCP/IP, DHCP, ARP, ICMP, FTP, SMTP, DDNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP/IP, P2P |
| Web Browser | IE 8.0, Firefox, Safari and Google Chrome |
| Wireless Speed | IEEE802.11b/g/n 150Mbps |
|
Remote
|
|
| Mobile surveillance | iOS and Android |
|
Lens
|
|
| Lens | 3.6mm / F=2.0 |
| IR Range | 49ft night vision |
| LEDs | 10 LEDs |
| IR-CUT Filter | Yes |
|
Security
|
|
| Motion detection zone | Support four areas |
| Security protocol | WPA / WPA2-PSK, WPA / WPA2-AES, WEP |
|
Environment
|
|
| Operation temperature | -10°C ~ 50°C 14ºF ~ 122ºF |
| Storage temperature | -40°C ~ 70°C -40ºF ~ 158ºF |
| Working humidity | 10% ~ 90% |
|
Power
|
|
| Power supply | DC 5V |
| Power consumption | <6W |
|
Appearance
|
|
| Size | 3.94 (L) 5.52 (H) 3.94 (W) inches |
| Weight | 10.23 ounces |
|
Standard
|
|
| Rotation range | Pan: 290°Tilt: 120° |
| Operating Frequency | 2.4 GHz |
| Code Rate | 32kbps ~ 4Mbps |
| Software |
File Size: 12989.68 Kb
|
Languages: English |
File Type: EXE |
|
