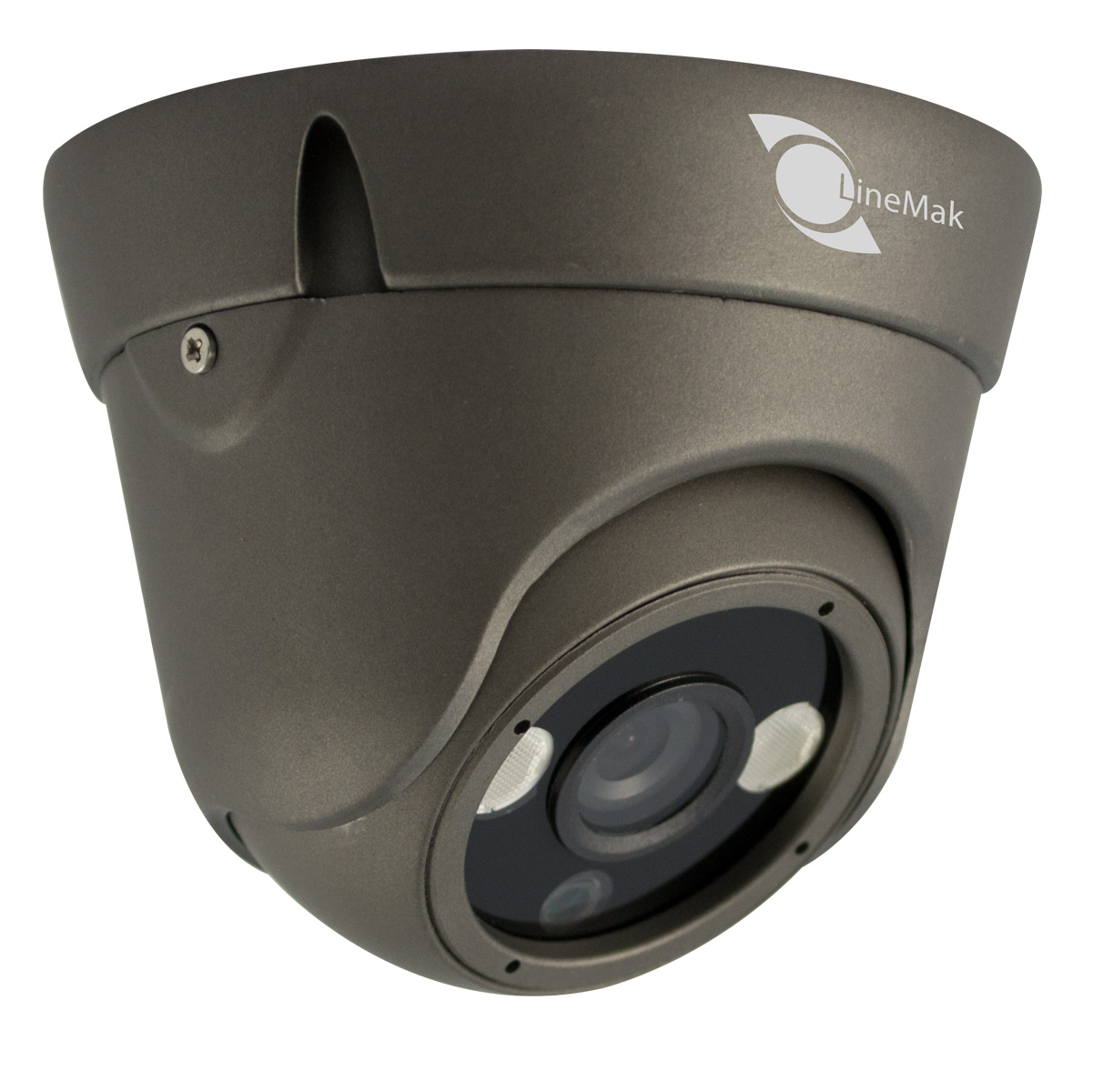

Vandalproof Dome camera, HD Sensor, 800TVL, 3.6mm lens, 2 LED Array
  • Vandalproof Dome camera, HD Sensor, 800TVL, 3.6mm lens, 2 LED Array - Image 1
  • Vandalproof Dome camera, HD Sensor, 800TVL, 3.6mm lens, 2 LED Array - Image 2
  • Vandalproof Dome camera, HD Sensor, 800TVL, 3.6mm lens, 2 LED Array - Image 3
  • - Vandalproof Dome Array LED camera.
  • - AES, AGC, AWB, BLC and mirror function.
  • - IR-CUT Filter. MTV Lens 3.6mm.
  • - Power adapter not included.
  • - 28MIL * 2pcs LED Array.
  • - 82ft to 96ft IR night vision.
Products recommendaded to work with this item:
vandalproof dome camera, hd sensor, 800tvl, 3.6mm lens, 2 led array
+
1 channel passive video balun 1082ft, contains 6 pairs 12 pcs
+
dc12v 2a power adapter specially for security cameras
Price for all 3: $65.97
  • Vandalproof dome camera with a 3.6mm lens with a viewing angle of 92? which has 1 LED array and an 82ft to 96 range of infrared night vision.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size. Due to its slightly tilted crystal, the IR is not reflected on the surface.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - Vandalproof dome array LED camera.
    - 28MIL * 2pcs LED array.
    - 82ft to 96ft IR night vision.
    - Real day/night feature.
    - MTV lens 3.6mm.
    - AWB support function: high color reproduction and real image.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.
    LED array
    LED array
    The infrared led array has a wider emitting angle than traditional infrared leds. Traditional infrared leds can only emit the active infrared ray in a narrow angle. When there is a security camera with infrared led array, the emitted infrared will cover the whole surveillance area, which means the infrared led array camera can see the whole area in a dark environment such as at night.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Back Light Compensation (BLC)
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Auto White Balance (AWB)
    A rear-view mirror cameras
    A rear-view mirror cameras
    The rear-view mirror camera imitates the function of the actual mirror including the recording function as well, reason why it is highly recommended to use the rear-view camera as a back-up means to check for obstructions behind the car and avoid using it on frozen slippery roads.
    True round-the-clock surveillance for illuminant/dark places
    This feature delivers a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications that deliver clear and sharp color images in illuminant areas and black and white images in dark areas using infrared illumination, without the need to refocus the lens.
    True round-the-clock surveillance for illuminant/dark places
    Warranty: One (1) Year
  • Vandalproof Dome camera, HD Sensor, 800TVL, 3.6mm lens, 2 LED Array
    General
    Brand LineMak
    Model LS-CA352G
    Sensor
    Resolution 800 TVL
    Sensor 1/3" HD Digital
    Effective pixels PAL: 752*582
    NTSC: 768*494
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm
    Lens
    Lens 3.6mm
    IR Range 82ft~96ft night vision
    LEDs 2pcs LED Array (28MIL)
    IR-CUT Filter Yes
    Minimum illumination 0.1 Lux (with LEDs on)
    Viewing angle 92°
    Environment
    Operation temperature -20°C ~ 50°C
    -4°F ~ 122°F
    Power
    Power supply DC 12V
    Power consumption 500mA
    Appearance
    Color Dark gray
    Size 3.94(H) * 3.54(D) inches
    Weight 9.35 ounces
    Special function
    Back Light Compensation (BLC) Yes
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) PAL: 1/50~1/100,000s
    NTSC: 1/60~1/100,000s
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Mirror Yes
    Adaptive Tone Reproduction (ATR) No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Scanning system 2:1 Interlace
    Synchronizing system Internal
    S/N Ratio >48dB
    Gamma correction 0.45
